Xc 38 Standard
Sailboat specifications
The Xc 38 is a 38’ (11.58m) fast cruising sailboat designed by X-Yachts Design Group (Denmark). She is built since 2010 by X-Yachts (Denmark). She has been awarded "2011 - European Yacht of the Year: Luxury Cruiser".
The Xc 38 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Xc 38 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Xc 38's main features
- Model
- Xc 38
- Version
- Standard
- Hull type
- Monohull
- Category
- Fast cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Denmark
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame - First built hull
- 2010
- Last built hull
- Still in production
- Award(s)
- 2011: European Yacht of the Year: Luxury Cruiser
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About299 000 €(2020)
Xc 38's main dimensions
- Hull length
- 38’11.58 m
- Waterline length
- 34’ 1”10.38 m
- Beam (width)
- 12’ 6”3.81 m
- Draft
- 6’ 6”1.98 m
- Light displacement (MLC)
- 19180 lb8700 kg
- Ballast weight
- 8322 lb3775 kg
- Ballast type
- Cast iron fin with lead bulb

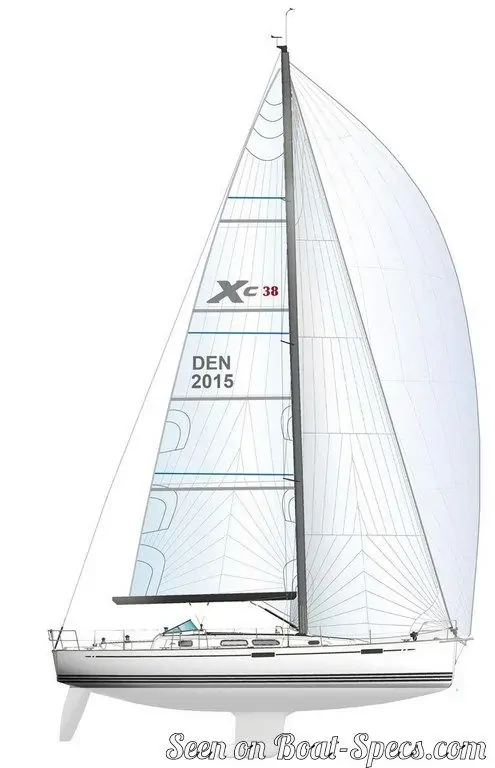

Xc 38's rig and sails
- Upwind sail area
- 864 ft²80.3 m²
- Downwind sail area
- 1885 ft²175.1 m²
- Mainsail area
- 475 ft²44.1 m²
- Genoa area
- 390 ft²36.2 m²
- Solent area
- 346 ft²32.1 m²
- Asymmetric spinnaker area
- 1410 ft²131 m²
- Rigging type
- Sloop Marconi 19/20
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Xc 38's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 204 ft²/T18.98 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 446 ft²/T41.39 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 220
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 43 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 7.82 knots
Xc 38's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 40 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 52.8 gal200 liters
Xc 38's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 6
- Head(s)
- 1
- Freshwater tank capacity
- 99.1 gal375 liters
- Fridge/ice-box capacity
- 31.7 gal120 liters
Xc 38's saloon
- Chart table
- 3’ 1”0.93 m x 2’ 1”0.64 m
Xc 38's fore cabin
- Berth length
- 6’ 11”2.1 m
- Berth width
- 7’ 2”2.19 m

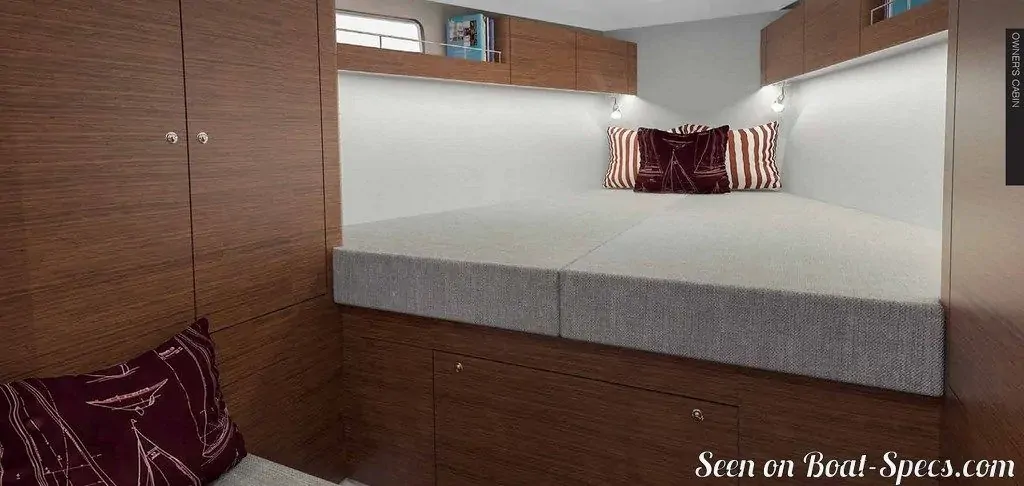

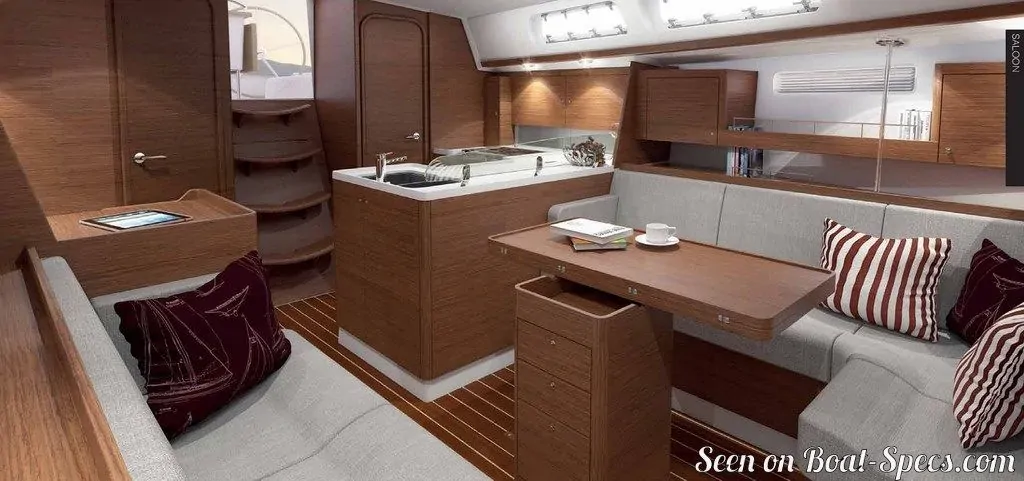

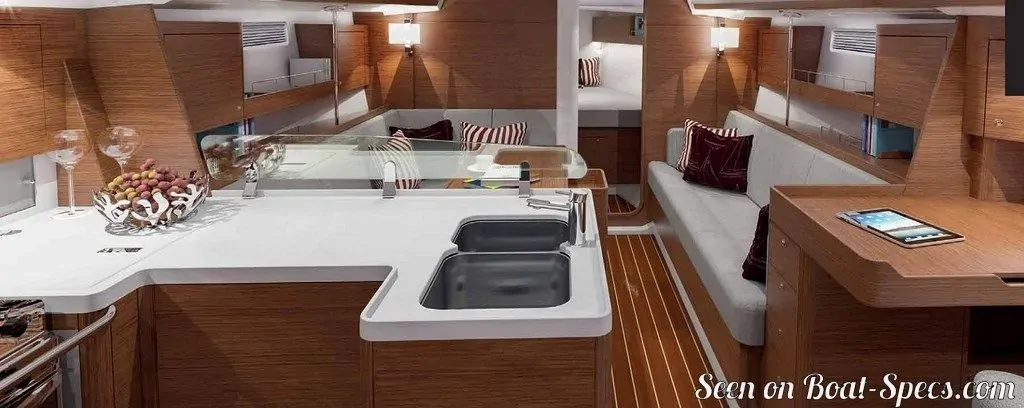

X-Yachts Xc 38 interior and accommodations - - 7/9
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts Xc 38 interior and accommodations - - 8/9
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts Xc 38 interior and accommodations - - 9/9
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
