X6⁵ Deep draft

Sailboat specifications

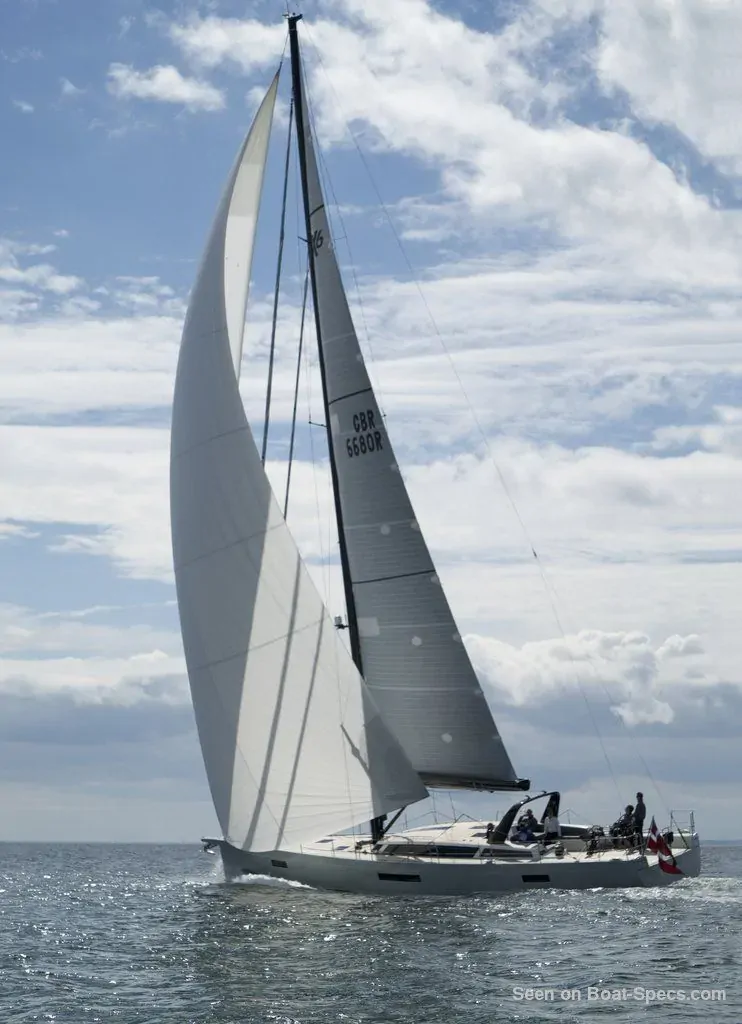

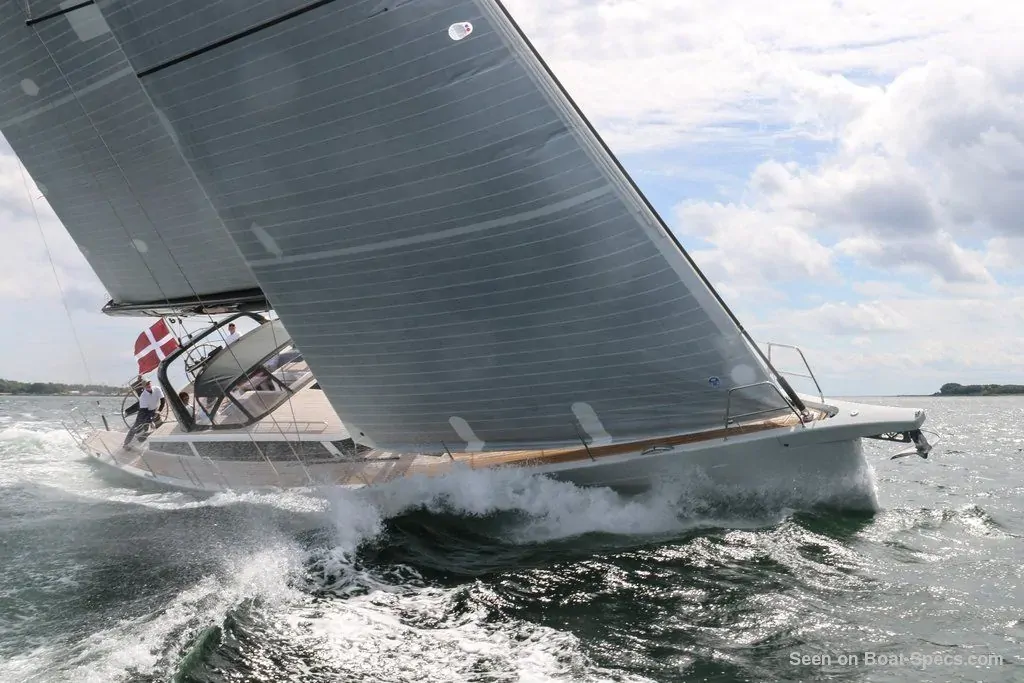

The X6⁵ is a 63’ (19.19m) fast cruising sailboat designed by Niels Jeppesen (Denmark). She is built since 2016 by X-Yachts (Denmark). The Deep draft version features a deeper T-shaped keel to grant extra performance especially upwind.

The X6⁵ is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).

X6⁵'s main features

Model: X6⁵
Version: Deep draft
Hull type: Monohull
Category: Offshore fast cruising sailboat
Sailboat builder: X-Yachts
Sailboat designer: Niels Jeppesen
Sailboat range: X
Country: Denmark
Construction: Fiberglass reinforced epoxy:
Sandwich PVC fiberglass epoxy with carbon fiber reinforcements
First built hull: 2016
Last built hull: Still in production
Appendages: Keel : T-shaped keel (with bulb)

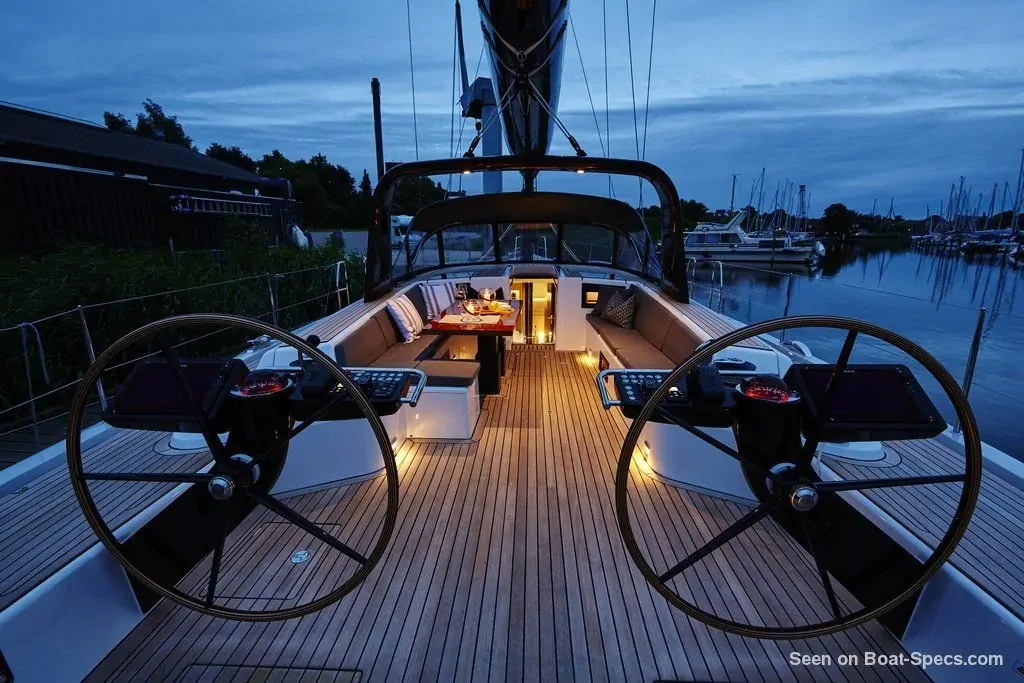

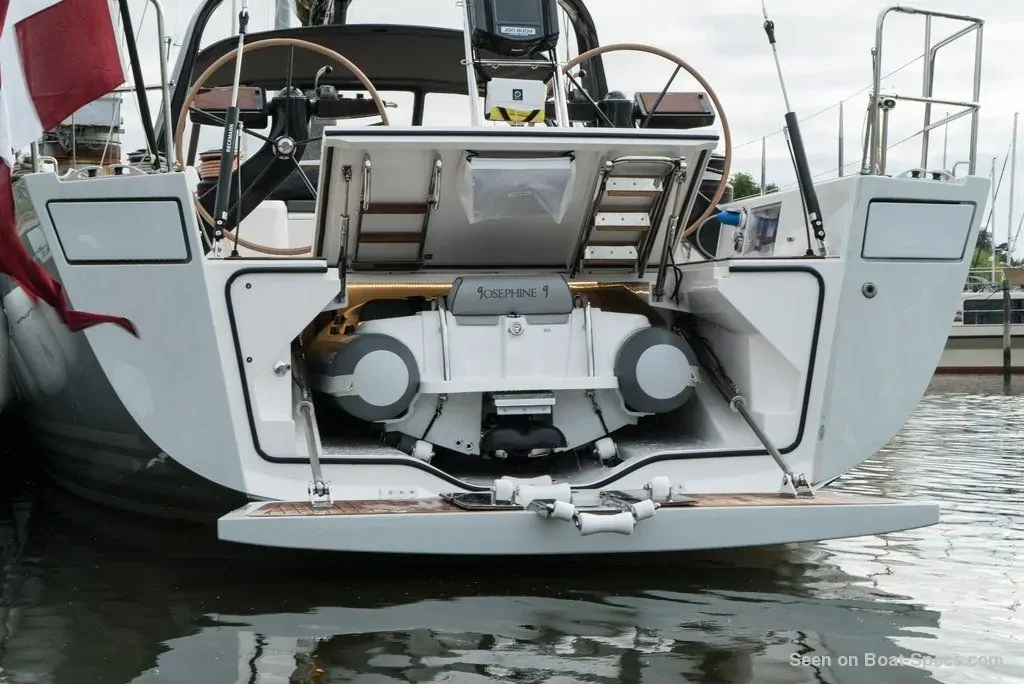

Helm: Twin helm wheels
Rudder: Twin spade rudders
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
2 060 000 €
(2017)

X6⁵'s main dimensions

Overall length: 65’ 11”20.1 m
Hull length: 63’19.19 m
Waterline length: 58’ 7”17.85 m
Beam (width): 17’ 8”5.4 m
Draft: 11’ 2”3.4 m
Light displacement (M_LC): 65036 lb29500 kg
Ballast weight: 24030 lb10900 kg

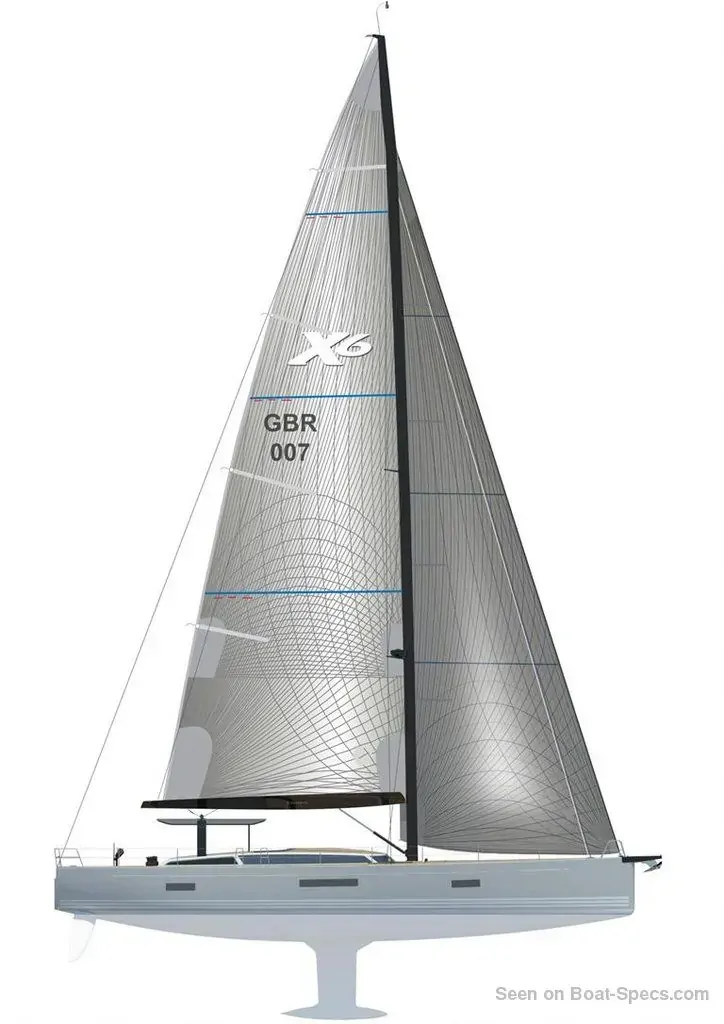

X6⁵'s rig and sails

Upwind sail area: 2368 ft²220 m²
Downwind sail area: 4413 ft²410 m²
Mainsail area: 1399 ft²130 m²
Genoa area: 969 ft²90 m²
Asymmetric spinnaker area: 3014 ft²280 m²
Rigging type: Sloop Marconi 9/10
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 3
Spreaders angle: Swept-back
Spars construction: Aluminum spars (carbon fiber spars as an option)

X6⁵'s performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 248 ft²/T23.04 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 462 ft²/T42.94 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 147
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 37 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 10.25 knots
