X-442

Sailboat specifications

The X-442 is a 44’4” (13.5m) cruiser-racer sailboat designed by Niels Jeppesen (Denmark). She was built between 1993 and 2003 by X-Yachts (Denmark) with 54 hulls completed. She has been awarded "2000 - Cruising World - Boat of the Year: Cruiser/Racer".

X-442's main features

Model

X-442

Hull type

Monohull

Category

Offshore cruiser-racer sailboat

Sailboat builder

X-Yachts

Sailboat designer

Niels Jeppesen

Country

Denmark

Construction

GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame

Number of hulls built

First built hull

1993

Last built hull

2003

Award(s)

2000: Cruising World - Boat of the Year: Cruiser/Racer

Appendages

Keel : L-shaped keel (with bulb)

Helm

Single helm wheel

Rudder

Single spade rudder

Unsinkable

Trailerable

Former French navigation category

Standard public price ex. VAT (indicative only)

N/A €

X-442's main dimensions

Hull length: 44’ 4”13.5 m
Waterline length: 36’ 8”11.2 m
Beam (width): 13’ 7”4.15 m
Draft: 7’ 6”2.3 m
Light displacement (M_LC): 21385 lb9700 kg
Ballast weight: 9480 lb4300 kg
French customs tonnage: 18.40 Tx

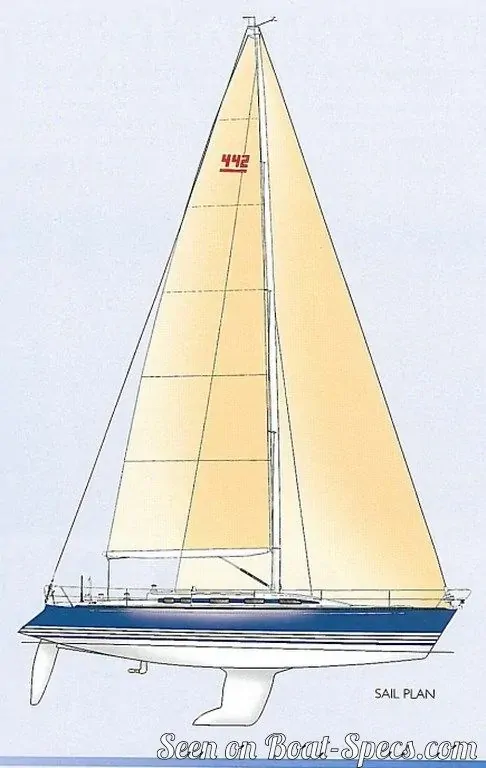

X-442's rig and sails

Upwind sail area: 1296 ft²120.4 m²
Downwind sail area: 2269 ft²210.8 m²
Mainsail area: 508 ft²47.2 m²
Genoa area: 788 ft²73.2 m²
Solent area: 525 ft²48.8 m²
Jib area: 420 ft²39 m²
Symmetric spinnaker area: 1761 ft²163.6 m²
Rigging type: Sloop Marconi masthead
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 3
Spreaders angle: 0 °
Spars construction: Aluminum spars

X-442's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 285 ft²/T26.47 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 499 ft²/T46.35 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 196
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 44 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.12 knots
