Pilot Saloon 58 Deep draft
Sailboat specifications
The Pilot Saloon 58 is a 58’1” (17.7m) cruising sailboat designed by Berret Racoupeau Yachts Design (France). She is built since 2017 by Wauquiez (France). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.
The Pilot Saloon 58 is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).
The Pilot Saloon 58 is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).
Pilot Saloon 58's main features
- Model
- Pilot Saloon 58
- Version
- Deep draft
- Hull type
- Monohull
- Category
- Offshore deck saloon cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- France
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester (vacuum infusion)
- Deck: Sandwich balsa fiberglass polyester (vacuum infusion) - First built hull
- 2017
- Last built hull
- Still in production
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About695 000 €(2020)
Pilot Saloon 58's main dimensions
- Hull length
- 58’ 1”17.7 m
- Waterline length
- 51’ 2”15.6 m
- Beam (width)
- 16’ 2”4.95 m
- Draft
- 8’ 2”2.5 m
- Light displacement (MLC)
- 47399 lb21500 kg
- Ballast weight
- 15212 lb6900 kg
- Ballast type
- Cast iron
Pilot Saloon 58's rig and sails
- Upwind sail area
- 1432 ft²133 m²
- Downwind sail area
- 2863 ft²266 m²
- Mainsail area
- 850 ft²79 m²
- Jib area
- 581 ft²54 m²
- Asymmetric spinnaker area
- 2013 ft²187 m²
- Code 0 area
- 1195 ft²111 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Pilot Saloon 58's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 185 ft²/T17.2 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 370 ft²/T34.4 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 160
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 32 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.59 knots
Pilot Saloon 58's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 110 HP / 150 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 162.5 gal615 liters
Pilot Saloon 58's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 2 / 5
- Berth(s) (min./max.)
- 4 / 9
- Head(s) (min./max.)
- 2 / 3
- Freshwater tank capacity
- 268.1 gal1015 liters
- Holding tank capacity
- 42.3 gal160 liters
- Fridge/ice-box capacity
- 79.3 gal300 liters
- Boiler capacity
- 19.8 gal75 liters
- Maximum headroom
- 6’ 7”2.02 m
Wauquiez Pilot Saloon 58 sailplan - - 2/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez

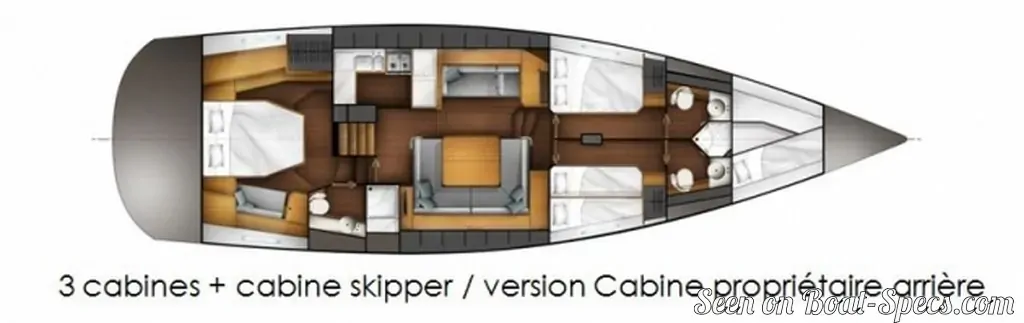

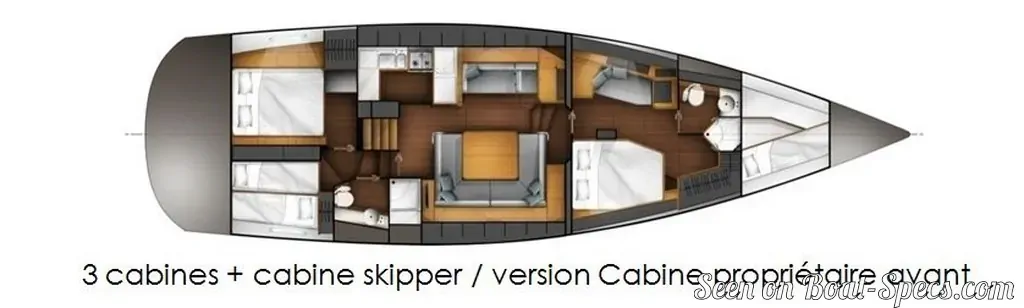

Wauquiez Pilot Saloon 58 layout - - 3/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez

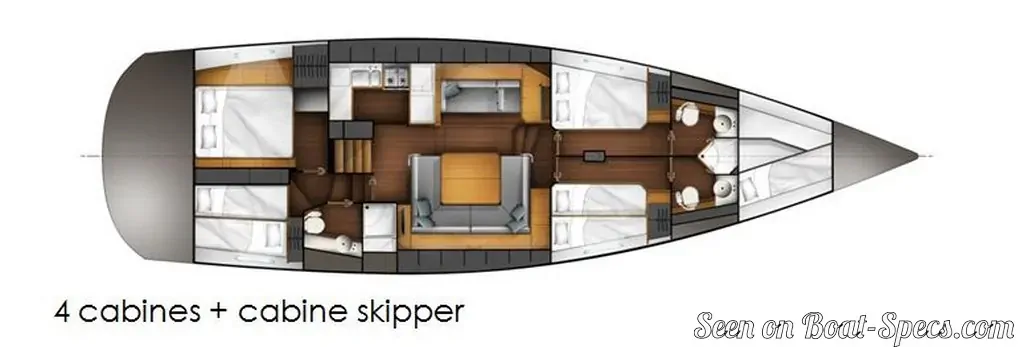

Wauquiez Pilot Saloon 58 layout - - 4/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 layout - - 5/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez

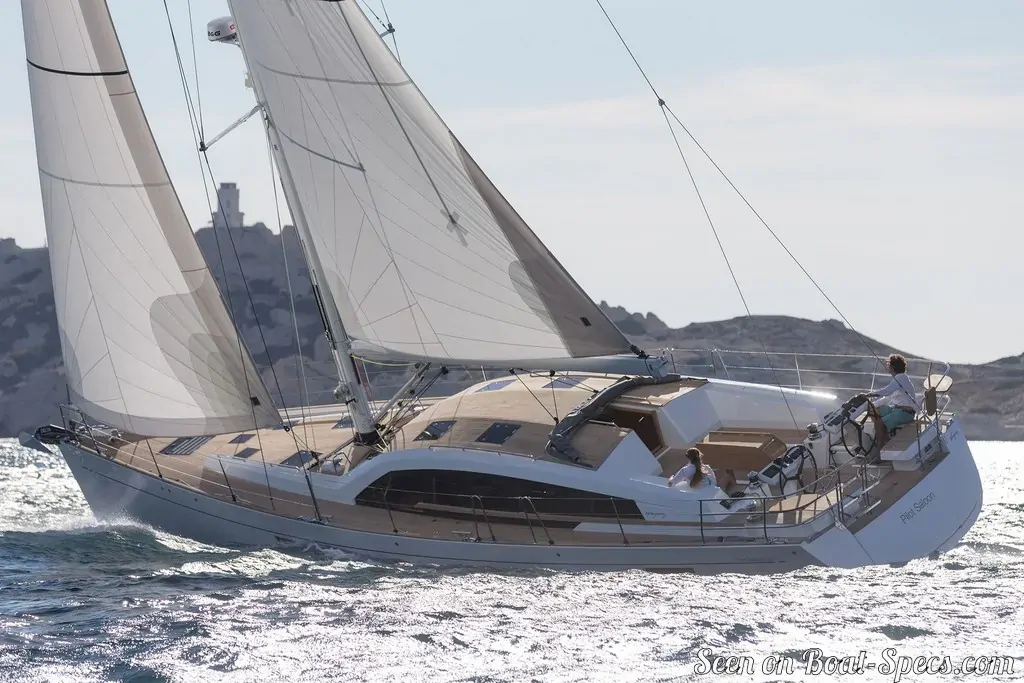

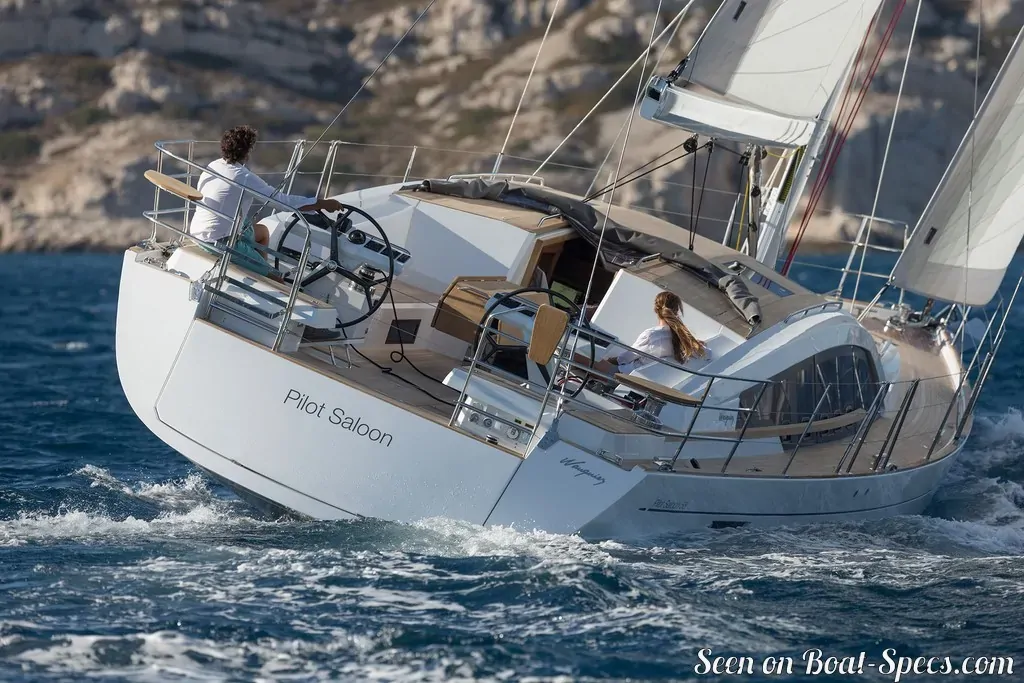

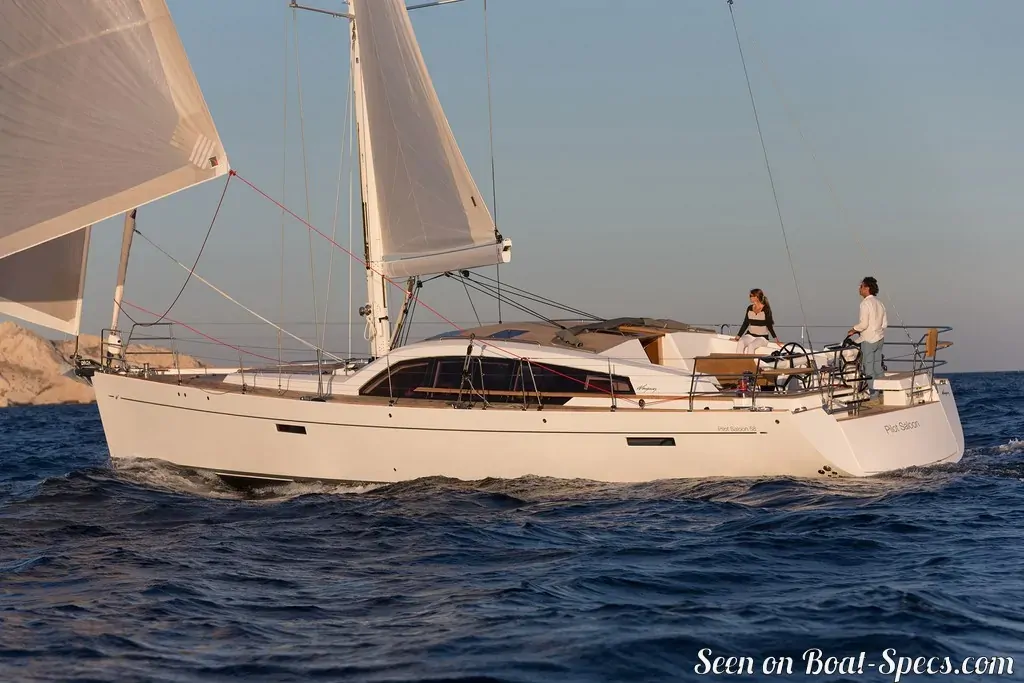

Wauquiez Pilot Saloon 58 sailing - - 6/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 sailing - - 7/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 sailing - - 8/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez

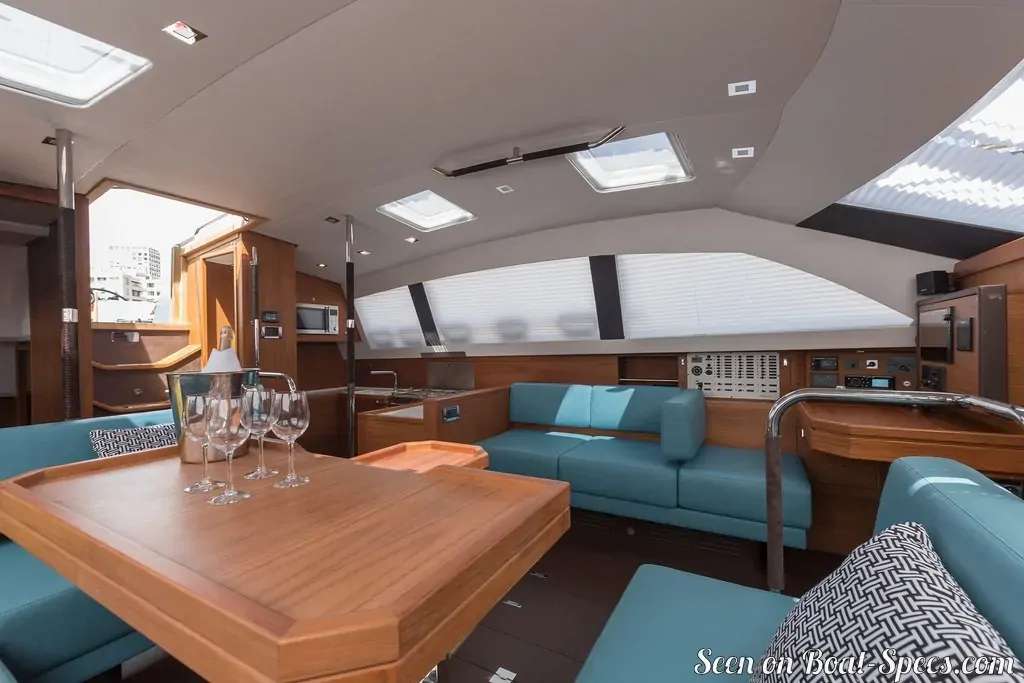

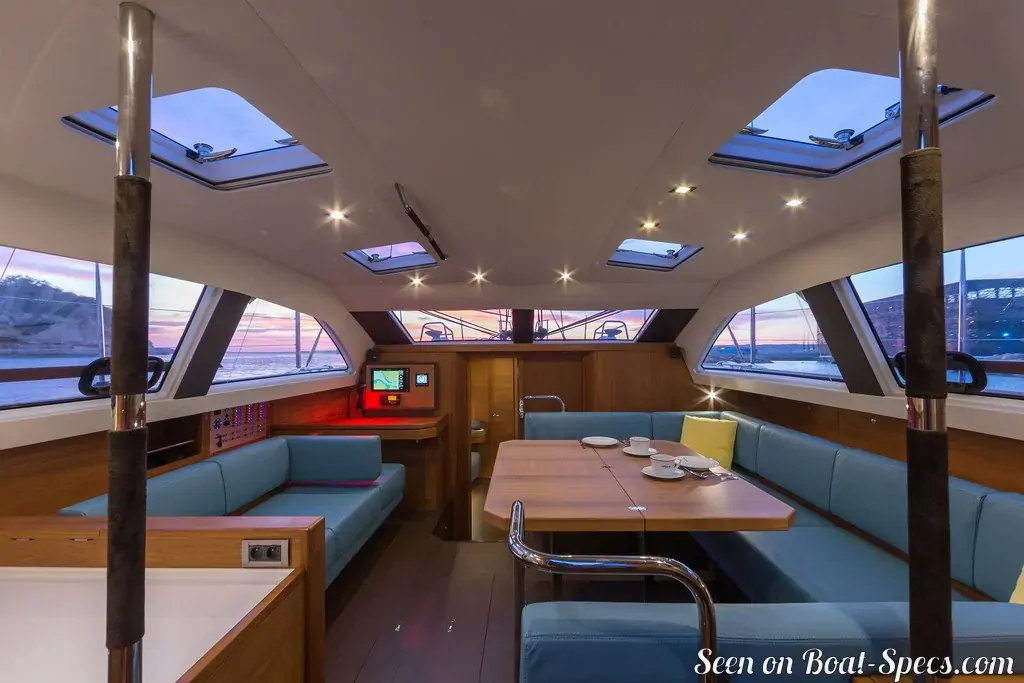

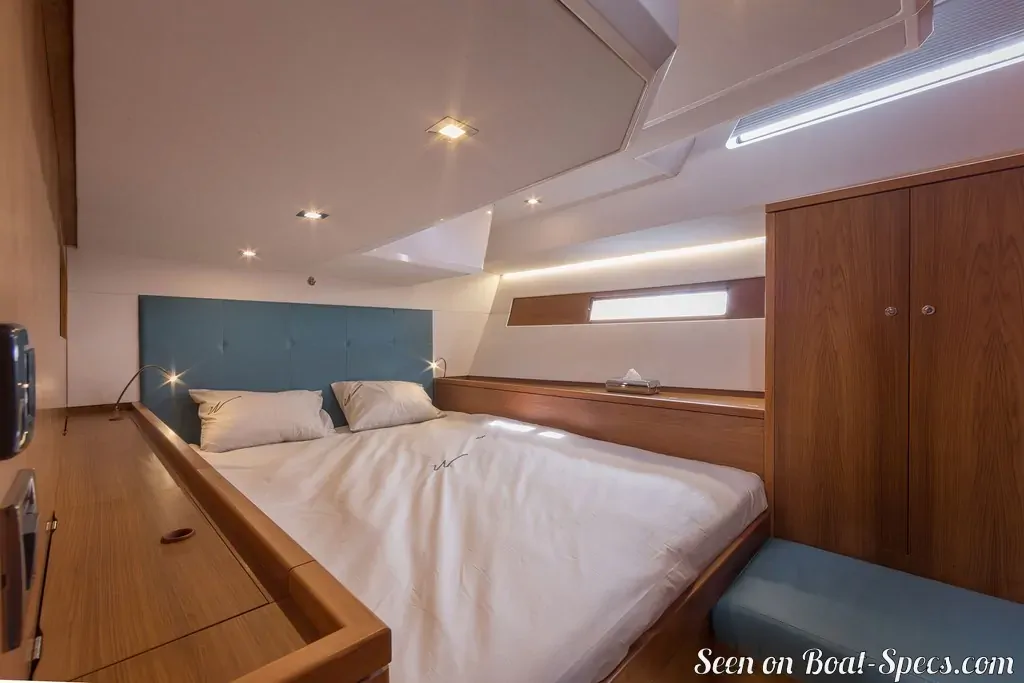

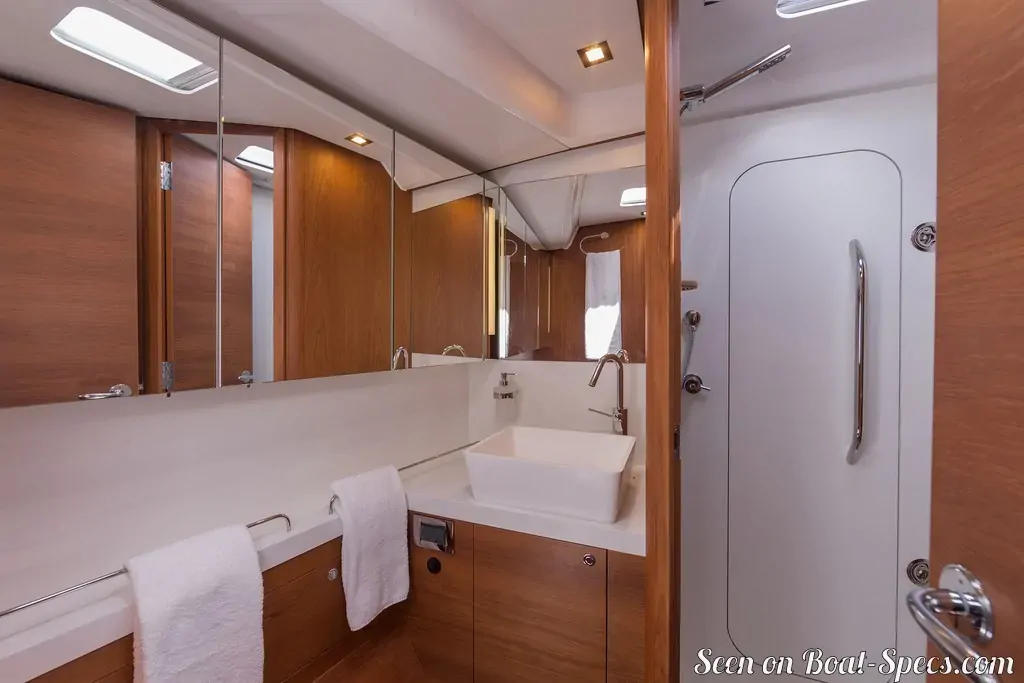

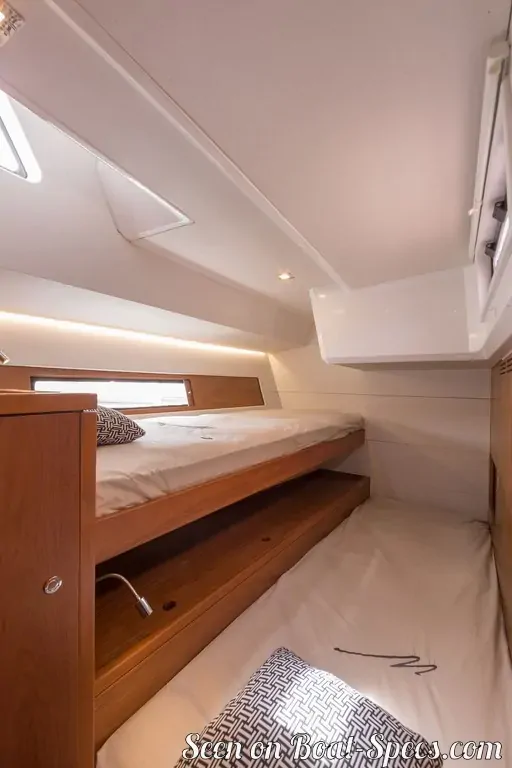

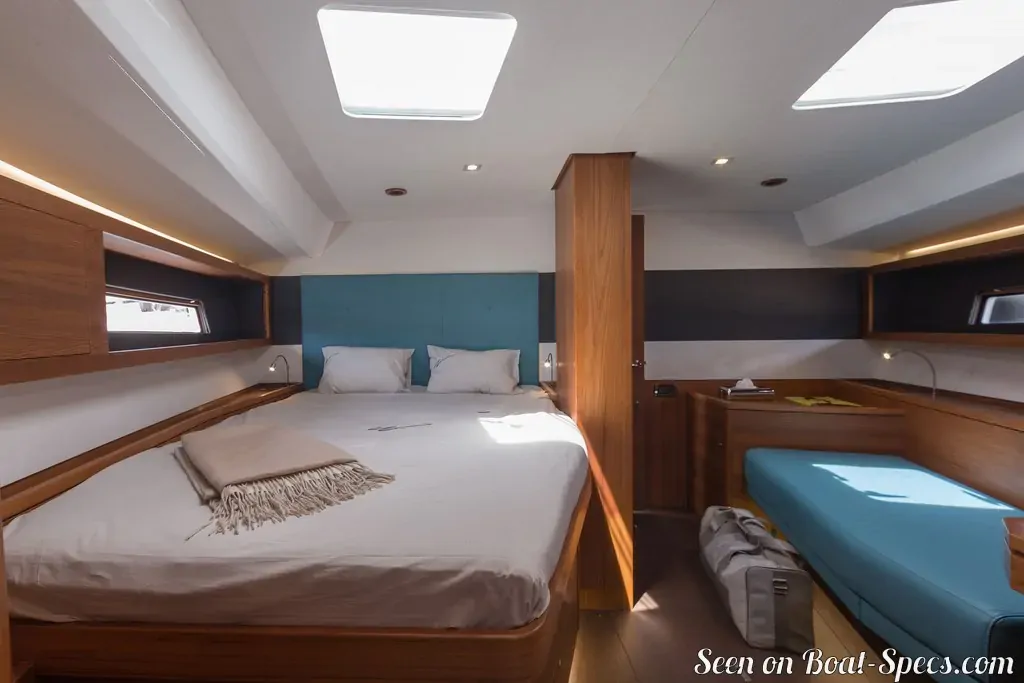

Wauquiez Pilot Saloon 58 interior and accommodations - - 9/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 interior and accommodations - - 10/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 interior and accommodations - - 11/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 interior and accommodations - - 12/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 interior and accommodations - - 13/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
Wauquiez Pilot Saloon 58 interior and accommodations - - 14/14
Picture extracted from the commercial documentation © Wauquiez
Picture extracted from the commercial documentation © Wauquiez
