Sunbeam 22.1

Sailboat specifications

The Sunbeam 22.1 is a 22’ (6.7m) cruiser-racer sailboat designed by J&J Design (Slovenia). She is built since 2016 by Sunbeam Yachts (Austria).

Find out more about the Sunbeam 22.1 on Boat-Spec's blog: European Yacht of the Year 2017.

Sunbeam 22.1's main features

Model: Sunbeam 22.1
Hull type: Monohull
Category: Coastal cruiser-racer sailboat
Sailboat builder: Sunbeam Yachts
Sailboat designer: J&J Design
Country: Austria
Construction: Hull and deck: GRP (glass reinforced polyester)
First built hull: 2016
Last built hull: Still in production
Appendages: Lifting keel : swing keel
Helm: Single tiller
Rudder: Single transom hung rudder
Unsinkable: No
Trailerable: Yes
Standard public price ex. VAT (indicative only): About
30 000 €
(2020)

Sunbeam 22.1's main dimensions

Overall length: 22’ 6”6.85 m
Hull length: 22’6.7 m
Waterline length: 21’ 8”6.62 m
Beam (width): 8’ 2”2.49 m
Draft: 4’ 7”1.4 m
Draft when appendages up: 2’0.6 m
Mast height from D_WL: 34’ 2”10.41 m
Light displacement (M_LC): 2866 lb1300 kg
Ballast weight: 507 lb230 kg

Sunbeam 22.1's rig and sails

Upwind sail area: 301 ft²28 m²
Downwind sail area: 560 ft²52 m²
Mainsail area: 183 ft²17 m²
Genoa area: 118 ft²11 m²

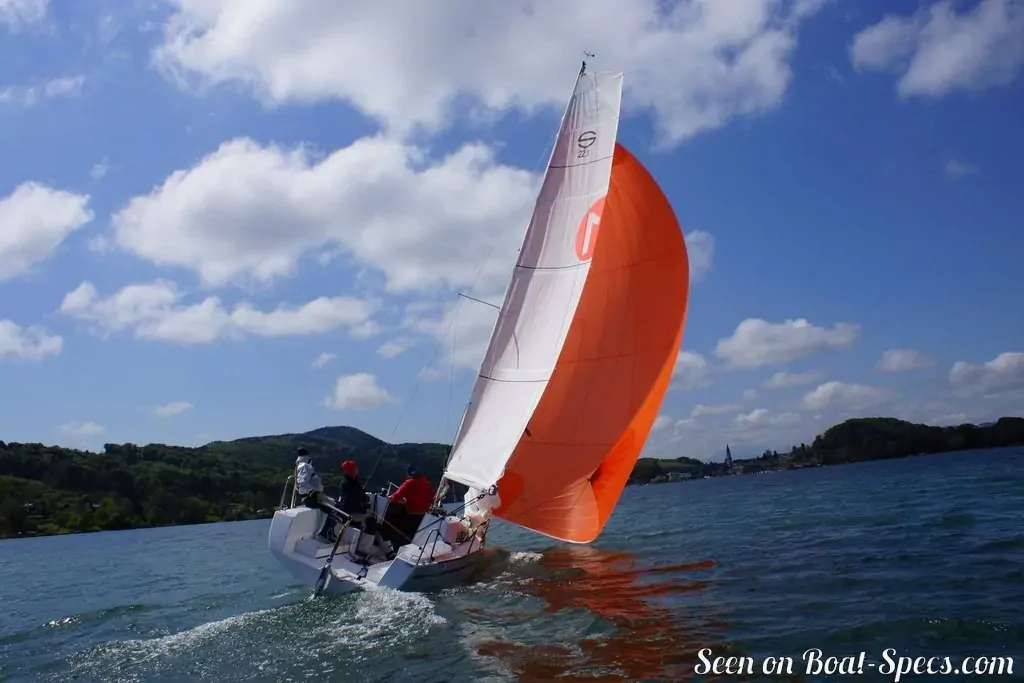

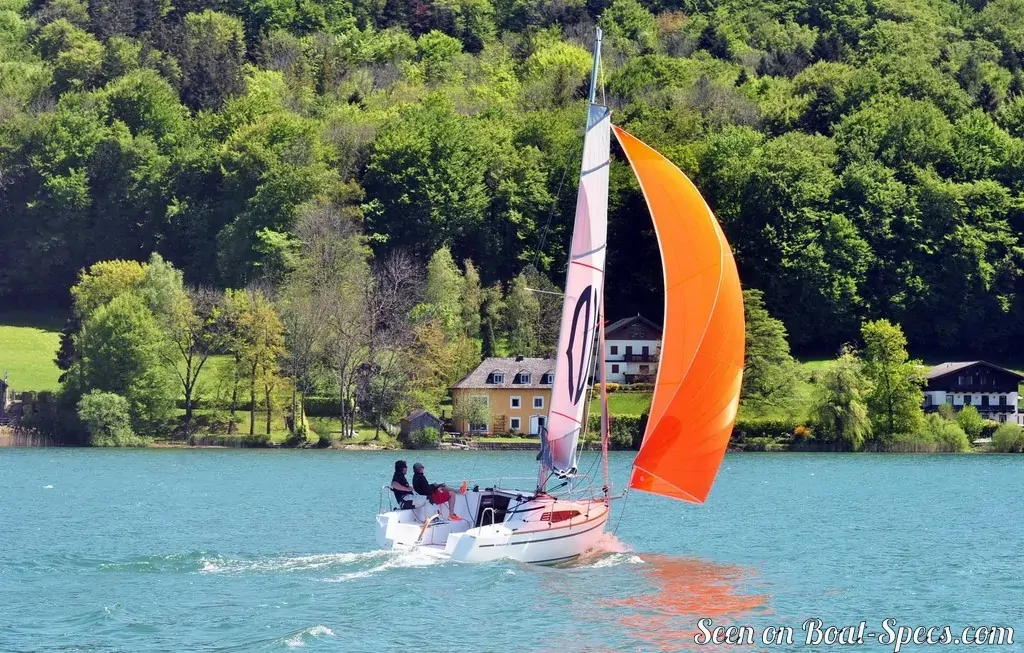

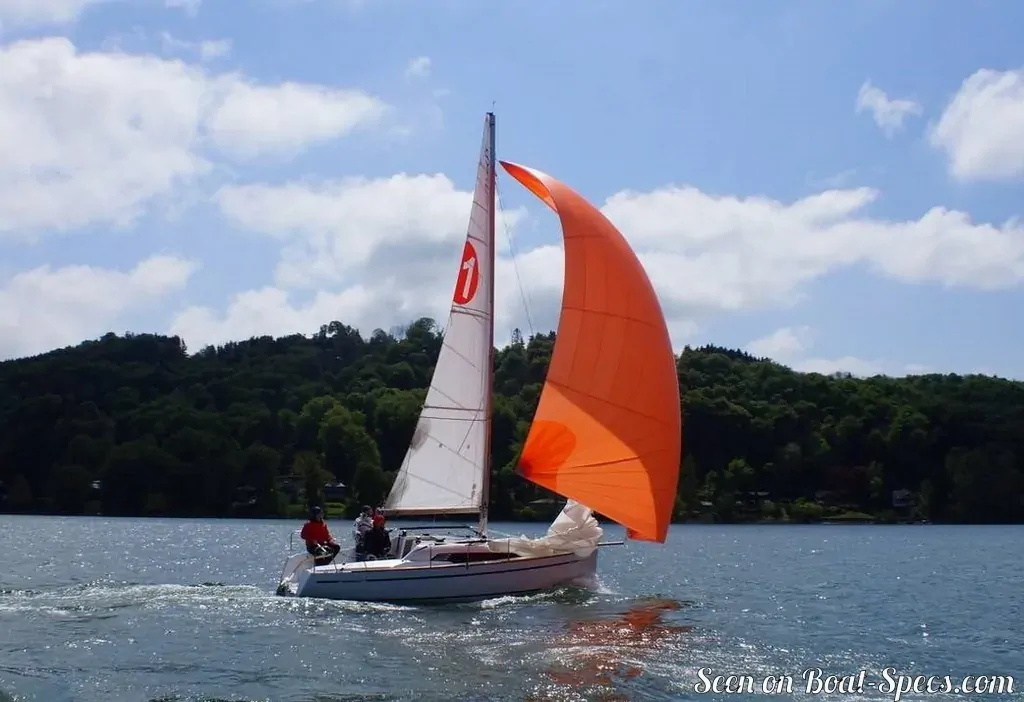

Asymmetric spinnaker area: 377 ft²35 m²
Rigging type: Sloop Marconi (square top mainsail) 7/8
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: Swept-back (diamond)
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Sunbeam 22.1's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 253 ft²/T23.51 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 470 ft²/T43.66 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 127
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 18 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.24 knots
