Seawind 1190 Sport
Sailboat specifications
The Seawind 1190 is a 39’ (11.9m) fast cruising catamaran designed by Richard Ward (Australia). She is built since 2017 by Seawind Catamarans (Australia). The Sport version displays a taller mast and larger sail area.
The Seawind 1190 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
The Seawind 1190 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
Seawind 1190's main features
- Model
- Seawind 1190
- Version
- Sport
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- Australia
- Construction
- GRP (glass reinforced polyester):
Sandwich PVC fiberglass vinylester - First built hull
- 2017
- Last built hull
- Still in production
- Appendages
- Centerboard : twin daggerboards
- Helm
- Twin helm wheels
- Rudder
- Twin transom hung rudders
- Unsinkable
- Yes
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Seawind 1190's main dimensions
- Hull length
- 39’11.9 m
- Waterline length
- 37’ 1”11.3 m
- Beam (width)
- 21’ 4”6.5 m
- Draft when appendages up
- 2’0.6 m
- Light displacement (MLC)
- 14551 lb6600 kg
Seawind 1190's rig and sails
- Upwind sail area
- 915 ft²85 m²
- Downwind sail area
- 1722 ft²160 m²
- Mainsail area
- 657 ft²61 m²
- Jib area
- 258 ft²24 m²
- Asymmetric spinnaker area
- 1066 ft²99 m²
- Code 5 area
- 603 ft²56 m²
- Rigging type
- Sloop Marconi 7/8
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- Dyform discontinuous
Seawind 1190's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 260 ft²/T24.16 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 489 ft²/T45.47 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 130
Seawind 1190's auxiliary engine
- Engine(s)
- 2 outboard engine
- Engine(s) power
- 20 HP
- Fuel type
- Gas
- Fuel tank capacity
- 71.1 gal269 liters
Seawind 1190's accommodations and layout
- Cockpit
- Closed aft cockpit
- Cabin(s)
- 3
- Berth(s) (min./max.)
- 6 / 8
- Head(s) (min./max.)
- 1 / 2
- Freshwater tank capacity
- 184.9 gal700 liters
- Holding tank capacity
- 34.3 gal130 liters
- Fridge/ice-box capacity
- 34.3 gal130 liters
Seawind 1190's fore cabin
- Berth length
- 6’ 8”2.05 m
- Berth width
- 5’ 1”1.54 m
Seawind 1190's aft cabin
- Berth length
- 6’ 6”1.99 m
- Berth width
- 4’1.23 m

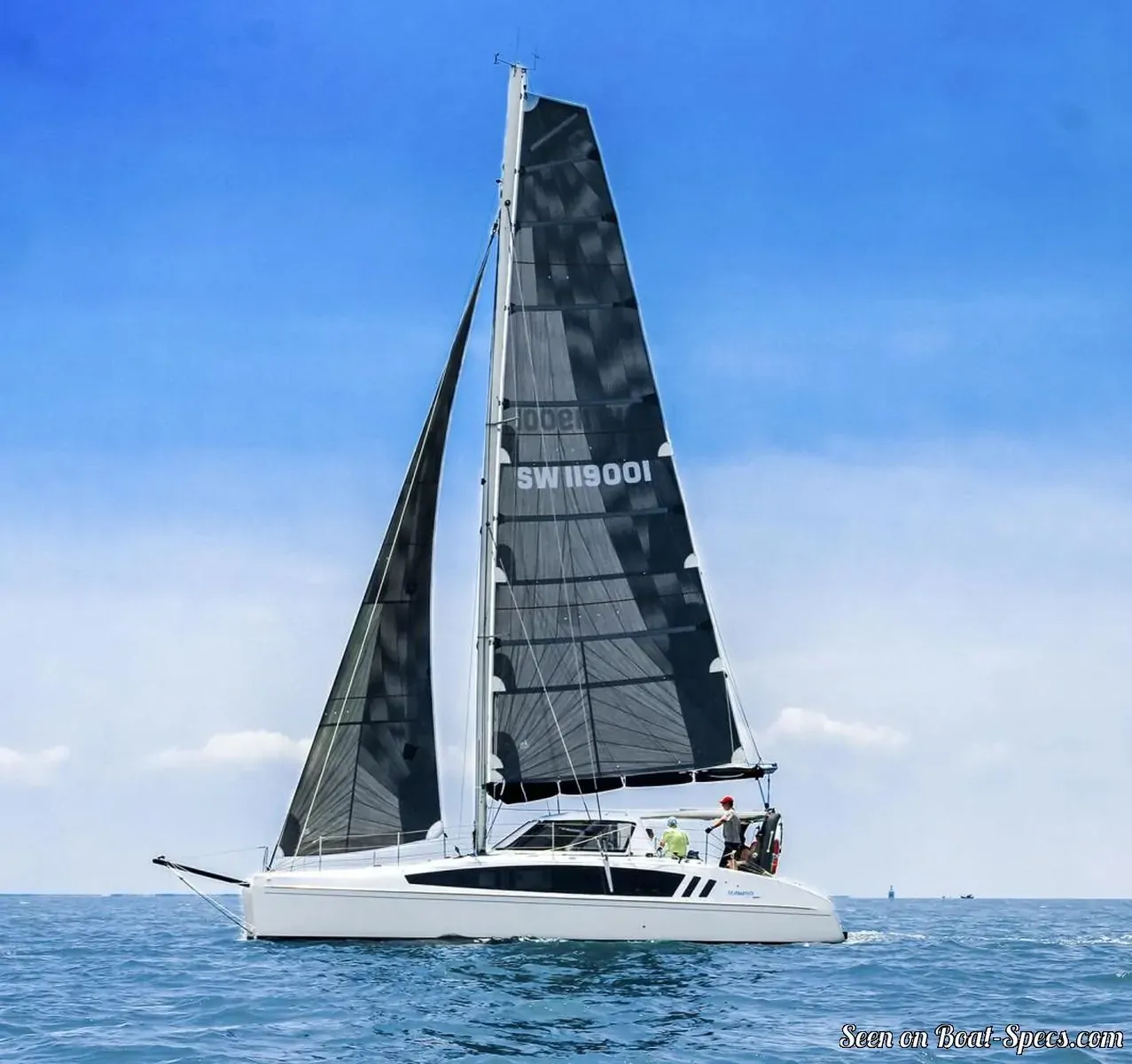

Seawind Catamarans Seawind 1190 - - 1/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans

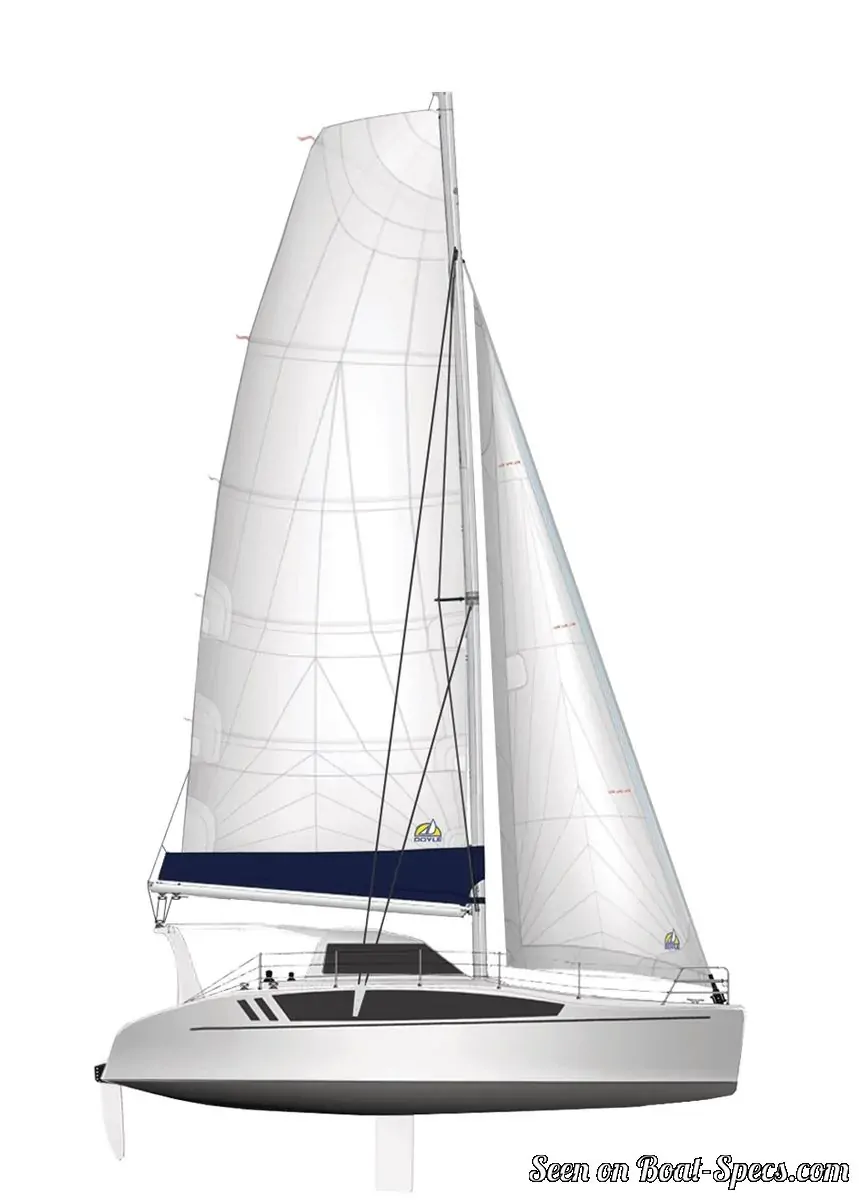

Seawind Catamarans Seawind 1190 sailplan - - 2/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans

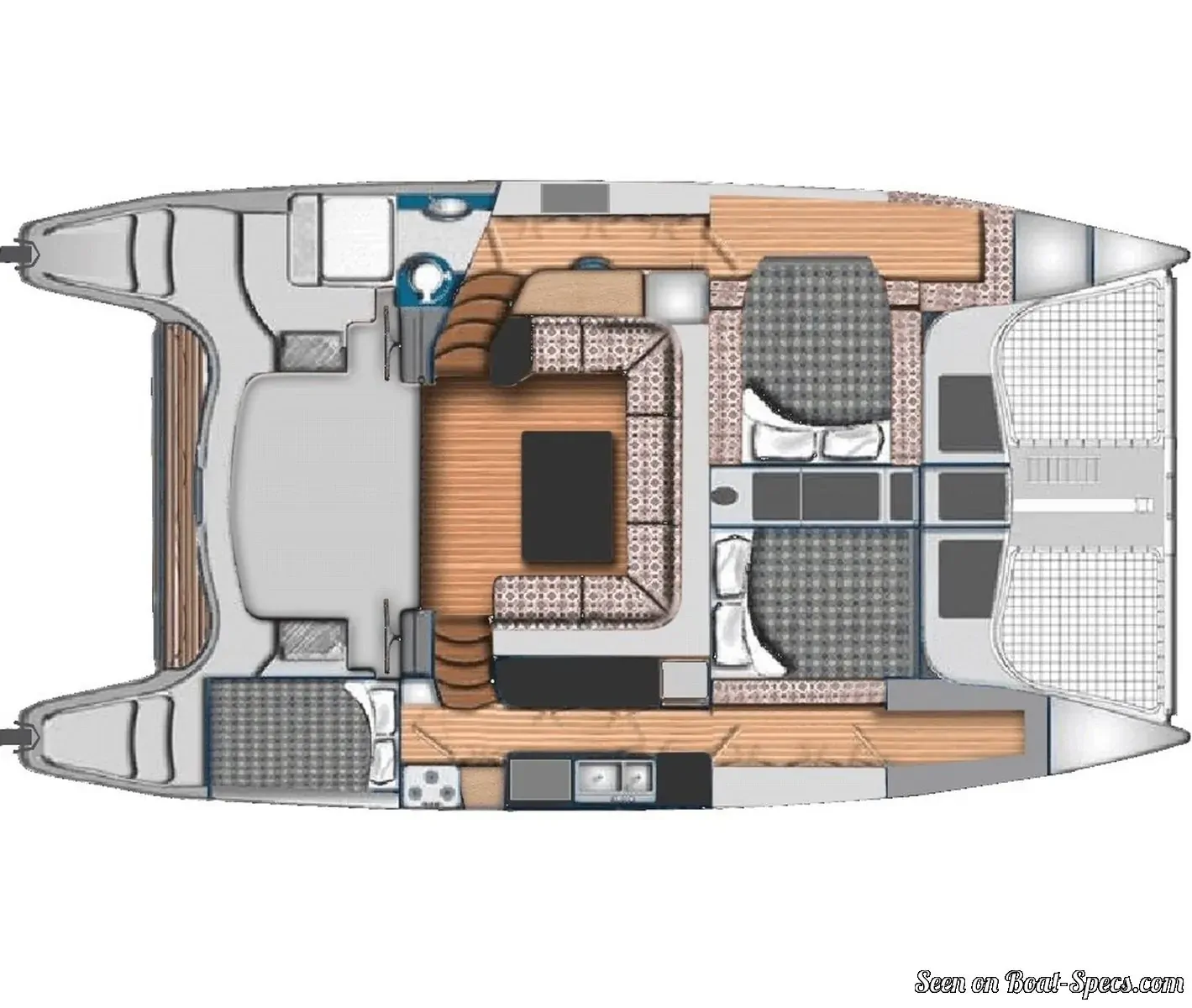

Seawind Catamarans Seawind 1190 layout - - 3/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans

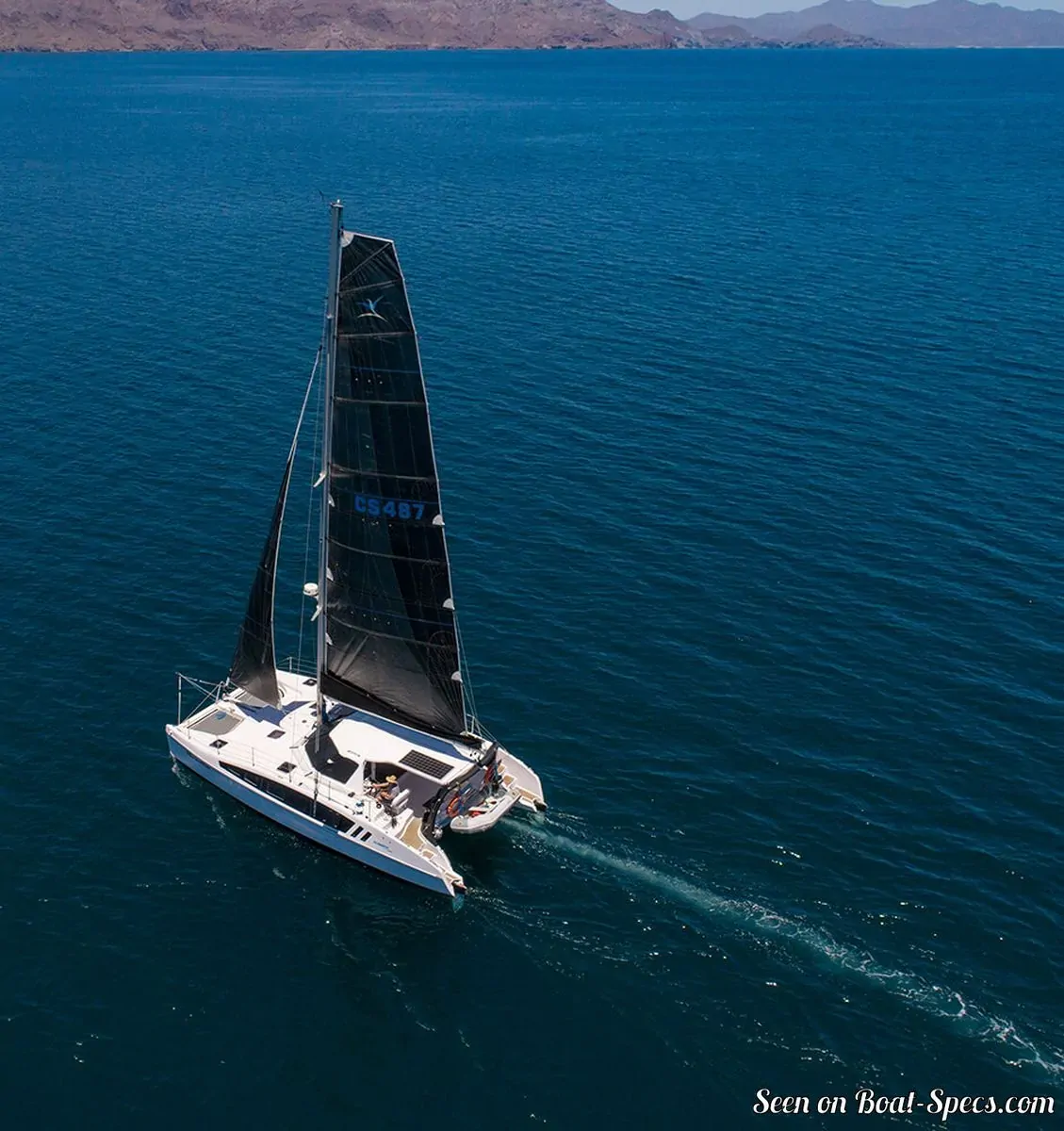

Seawind Catamarans Seawind 1190 sailing - - 4/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
Seawind Catamarans Seawind 1190 sailing - - 5/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
Seawind Catamarans Seawind 1190 sailing - - 6/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
Seawind Catamarans Seawind 1190 sailing - - 7/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
Seawind Catamarans Seawind 1190 sailing - - 8/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
Seawind Catamarans Seawind 1190 sailing - - 9/9
Picture extracted from the commercial documentation © Seawind Catamarans
Picture extracted from the commercial documentation © Seawind Catamarans
