Seascape 18 Standard
Sailboat specifications
The Seascape 18 is a 18’ (5.5m) one design sailboat designed by Sam Manuard Yacht Design (France). She was built between 2008 and 2018 by Seascape (Slovenia). She has been awarded "2010 - European Yacht of the Year: Special Yacht".
The Seascape 18 has also been marketed as First 18 - 2018 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Seascape 18 has also been marketed as First 18 - 2018 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Seascape 18's main features
- Model
- Seascape 18
- Version
- Standard
- Hull type
- Monohull
- Category
- One design sailboat
- Sailboat builder
- Sailboat designer
- Country
- Slovenia
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich foam fiberglass polyester
- Deck: Sandwich foam fiberglass polyester - First built hull
- 2008
- Last built hull
- 2018
- Award(s)
- 2010: European Yacht of the Year: Special Yacht
- Appendages
- Keel : swing keel
- Helm
- Single tiller
- Rudder
- Twin transom hung rudders
- Unsinkable
- Yes
- Trailerable
- Yes
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - C
- Standard public price ex. VAT (indicative only)
- About20 900 €(2017)
Seascape 18's main dimensions
- Hull length
- 18’5.5 m
- Beam (width)
- 7’ 10”2.37 m
- Draft
- 4’ 11”1.5 m
- Draft when appendages up
- 0’ 6”0.15 m
- Light displacement (MLC)
- 1102 lb500 kg
- Ballast weight
- 276 lb125 kg
- Ballast type
- Cast iron
Seascape 18's rig and sails
- Upwind sail area
- 255 ft²23.7 m²
- Downwind sail area
- 501 ft²46.5 m²
- Mainsail area
- 156 ft²14.5 m²
- Genoa area
- 99 ft²9.2 m²
- Asymmetric spinnaker area
- 344 ft²32 m²
- Code 0 area
- 205 ft²19 m²
- Rigging type
- Sloop Marconi (square top mainsail) 7/8
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Spreaders angle
- No spreader
- Spars construction
- Carbon fiber spars
- Standing rigging
- 1x19 strand wire
Seascape 18's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 405 ft²/T37.62 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 794 ft²/T73.81 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 25 %
Seascape 18's auxiliary engine
- Engine(s)
- 1 outboard engine
Seascape 18's accommodations and layout
- Cockpit
- Open aft cockpit
- Berth(s)
- 2

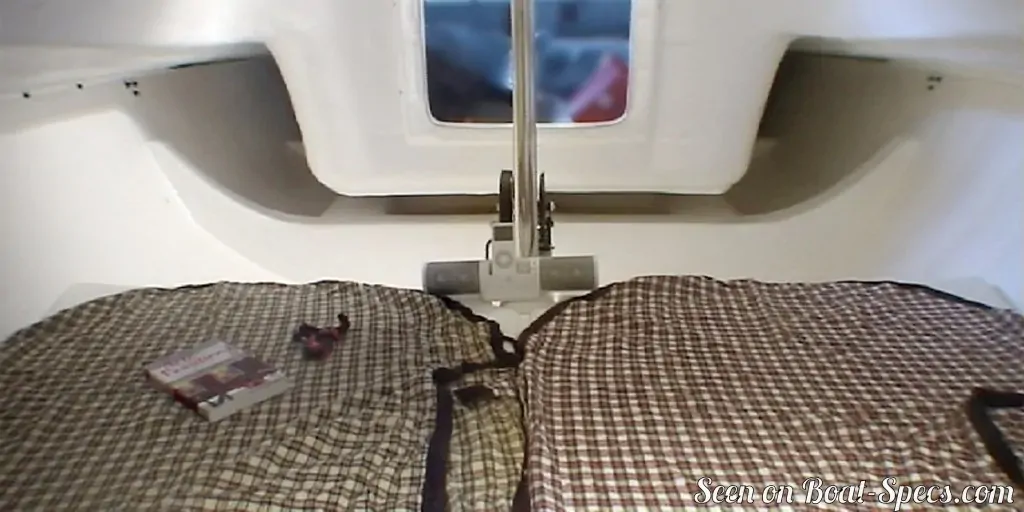

Seascape 18 interior and accommodations - - 7/8
Picture extracted from the commercial documentation © Seascape
Picture extracted from the commercial documentation © Seascape
