Moorings 4500
Sailboat specifications
The Moorings 4500 is a 45’ (13.72m) cruising catamaran designed by Simonis Voogd Design (Netherlands). She is built since 2017 by Robertson and Caine (South Africa).
The Moorings 4500 has also been marketed as Moorings 4500.
The Moorings 4500 has also been marketed as Moorings 4500.
Moorings 4500's main features
- Model
- Moorings 4500
- Hull type
- Catamaran
- Category
- Offshore cruising catamaran
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- South Africa
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester - First built hull
- 2017
- Last built hull
- Still in production
- Appendages
- Skegs : skeg on each hull
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Moorings 4500's main dimensions
- Overall length
- 45’13.72 m
- Hull length
- 45’13.72 m
- Waterline length
- 42’ 11”13.07 m
- Beam (width)
- 24’ 1”7.36 m
- Draft
- 4’ 11”1.5 m
- Mast height from DWL
- 70’21.34 m
- Light displacement (MLC)
- 31967 lb14500 kg
- Capacity
- 10141 lb4600 kg
Moorings 4500's rig and sails
- Upwind sail area
- 1328 ft²123.4 m²
- Mainsail area
- 786 ft²73 m²
- Genoa area
- 543 ft²50.4 m²
- Rigging type
- Sloop Marconi (square top mainsail) 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire continuous
Moorings 4500's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 223 ft²/T20.75 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 184
Moorings 4500's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 45 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 184.9 gal700 liters
Moorings 4500's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s) (min./max.)
- 3 / 5
- Berth(s) (min./max.)
- 6 / 11
- Head(s) (min./max.)
- 3 / 5
- Freshwater tank capacity
- 206.1 gal780 liters
- Holding tank capacity
- 44.9 gal170 liters
Moorings 4500's saloon
- Maximum headroom
- 6’ 7”2 m
Moorings 4500's fore cabin
- Maximum headroom
- 6’ 2”1.9 m
- Berth length
- 6’ 7”2.02 m
- Berth width
- 4’ 7”1.39 m
Moorings 4500's aft cabin
- Maximum headroom
- 6’ 2”1.9 m
- Berth length
- 6’ 7”2.01 m
- Berth width
- 5’1.52 m

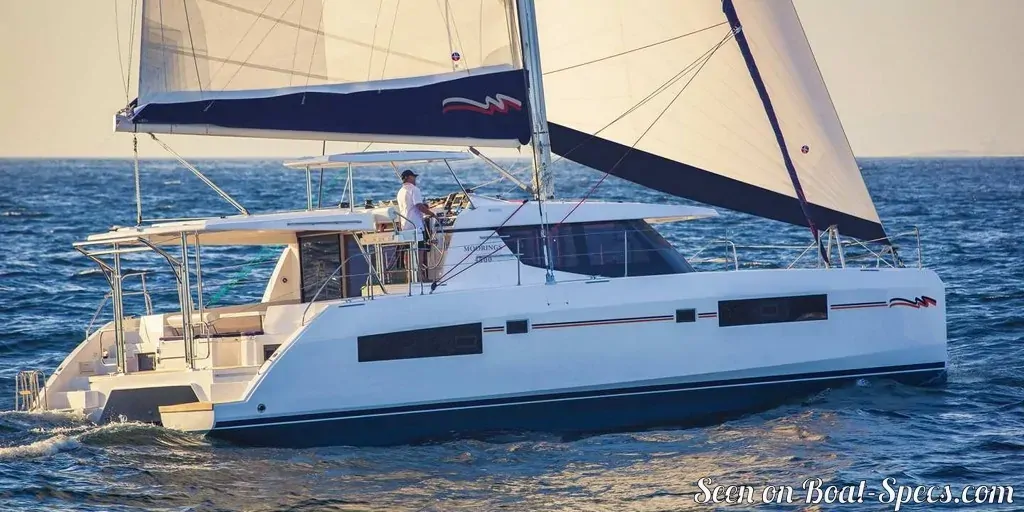

Robertson and Caine Moorings 4500 - - 1/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

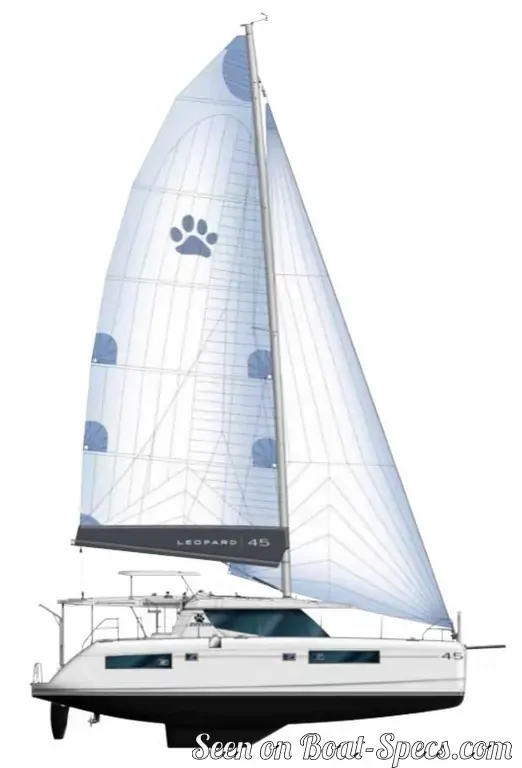

Robertson and Caine Moorings 4500 sailplan - - 2/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

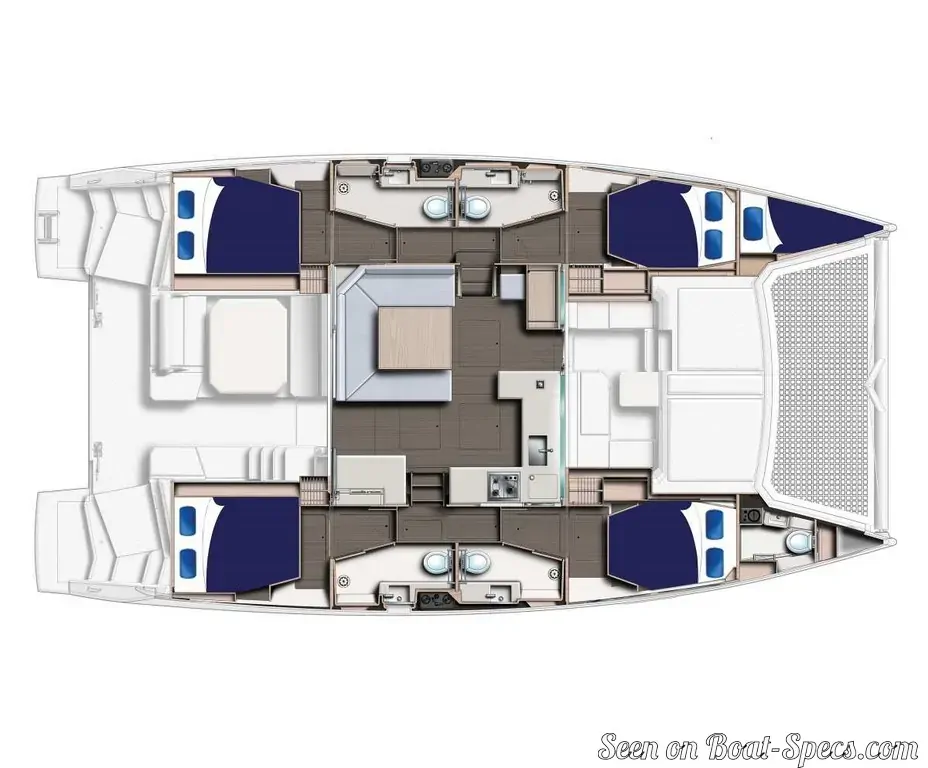

Robertson and Caine Moorings 4500 layout - - 3/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

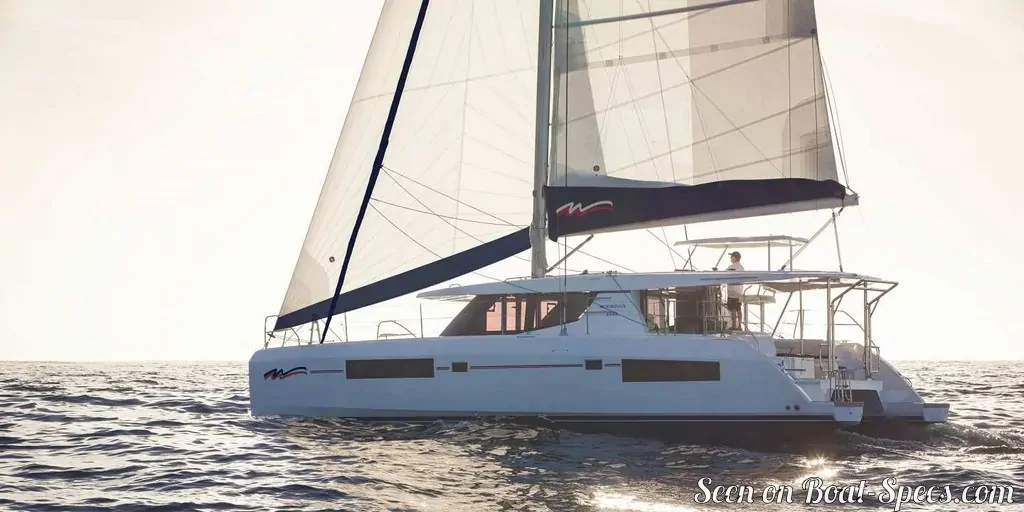

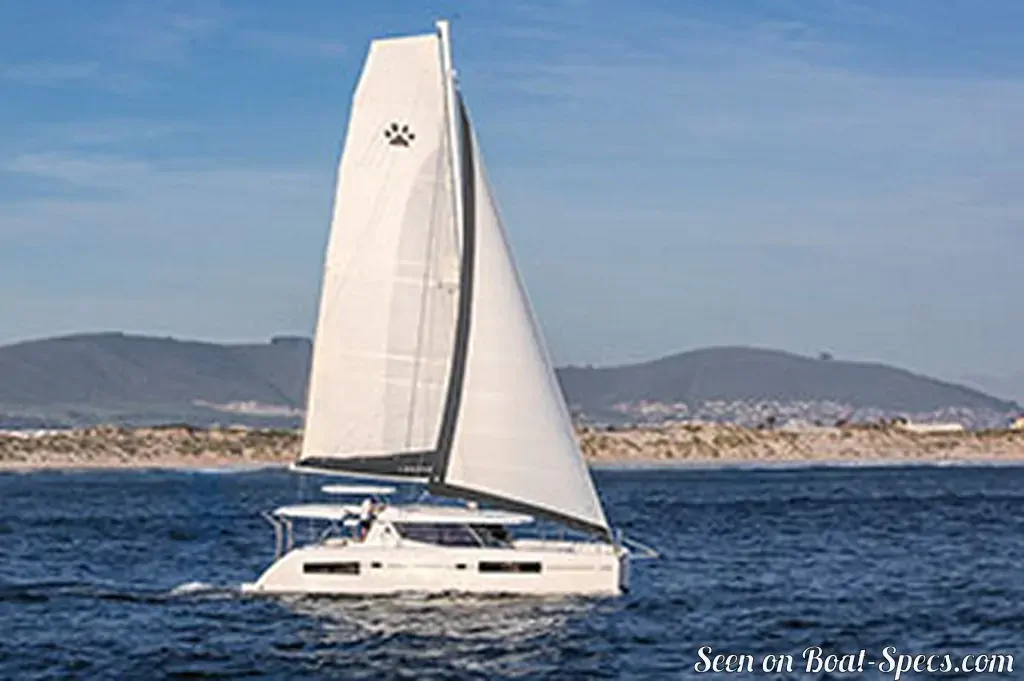

Robertson and Caine Moorings 4500 sailing - - 4/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine
Robertson and Caine Moorings 4500 sailing - - 5/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

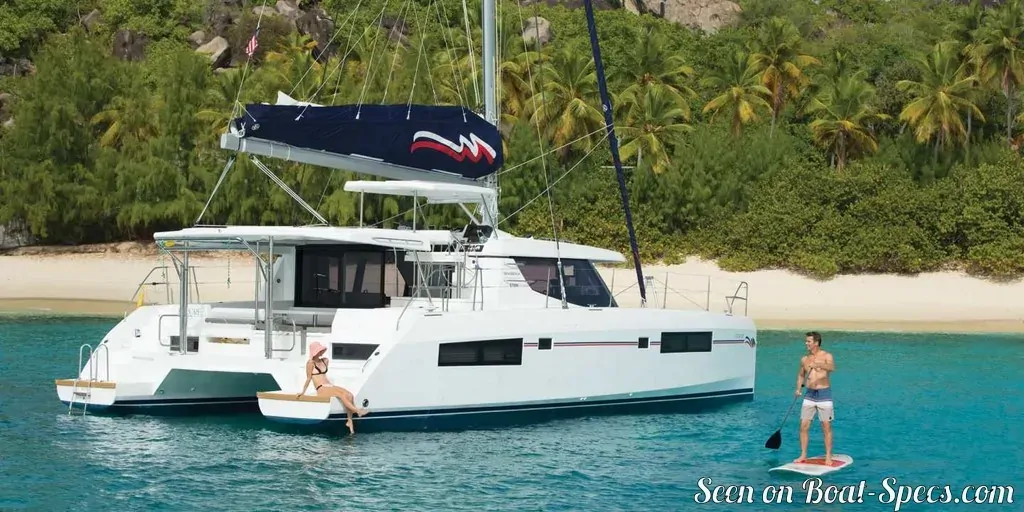

Robertson and Caine Moorings 4500 sailing - - 6/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

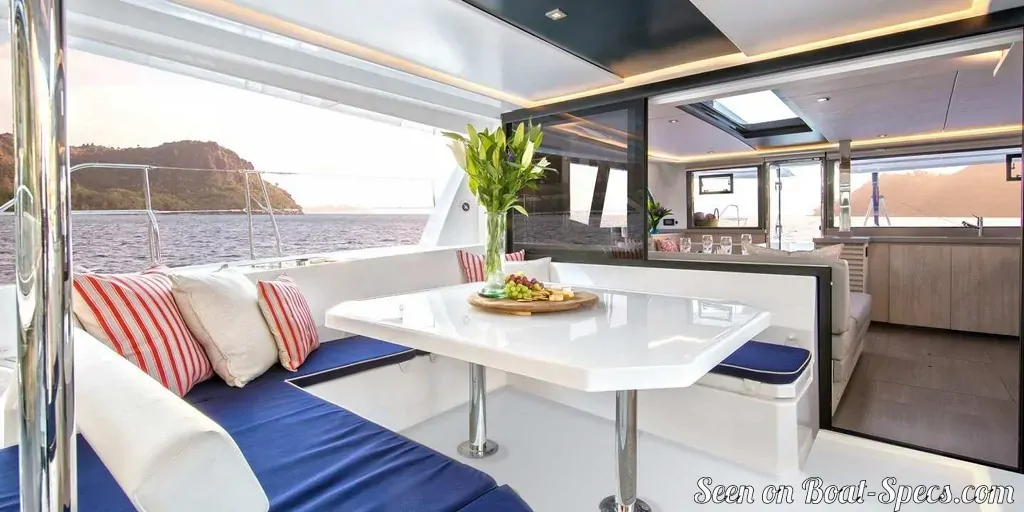

Robertson and Caine Moorings 4500 cockpit - - 7/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

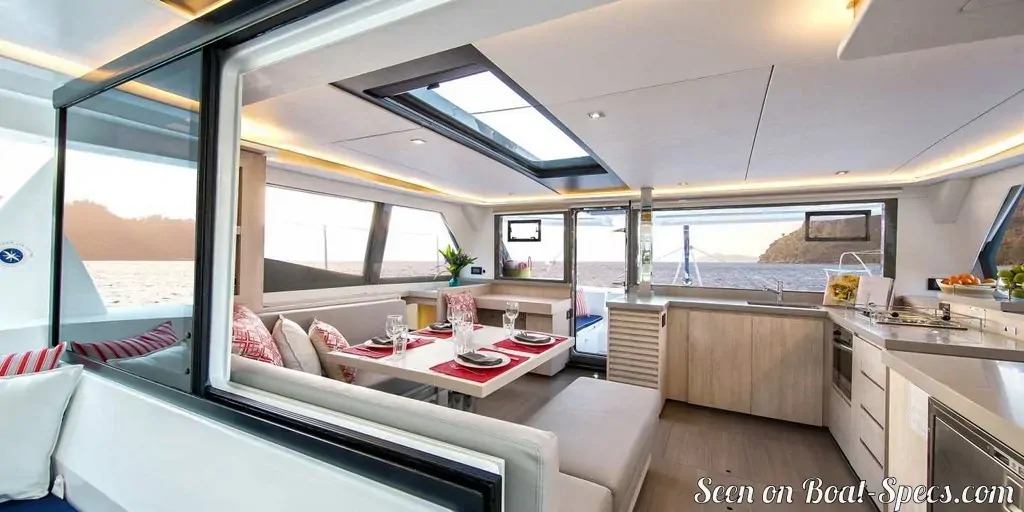

Robertson and Caine Moorings 4500 interior and accommodations - - 8/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

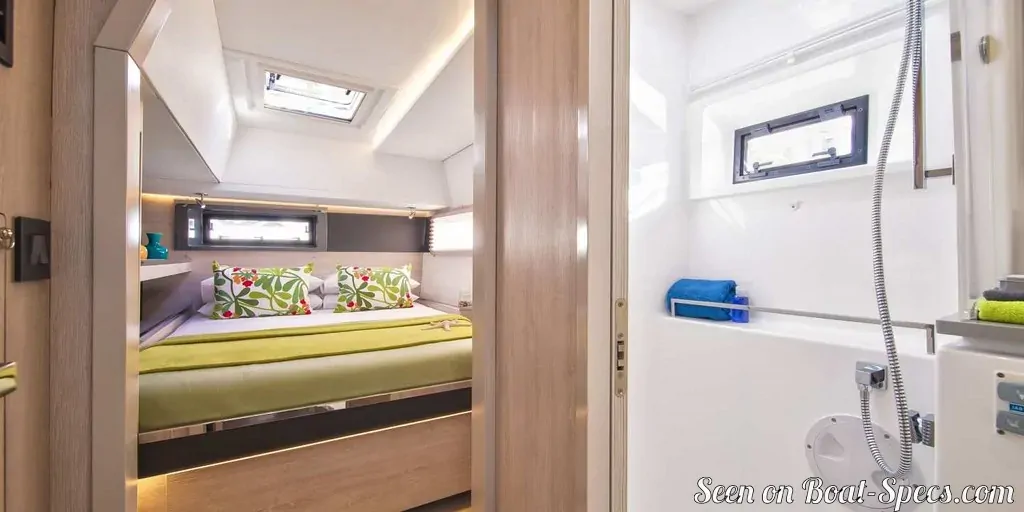

Robertson and Caine Moorings 4500 interior and accommodations - - 9/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine

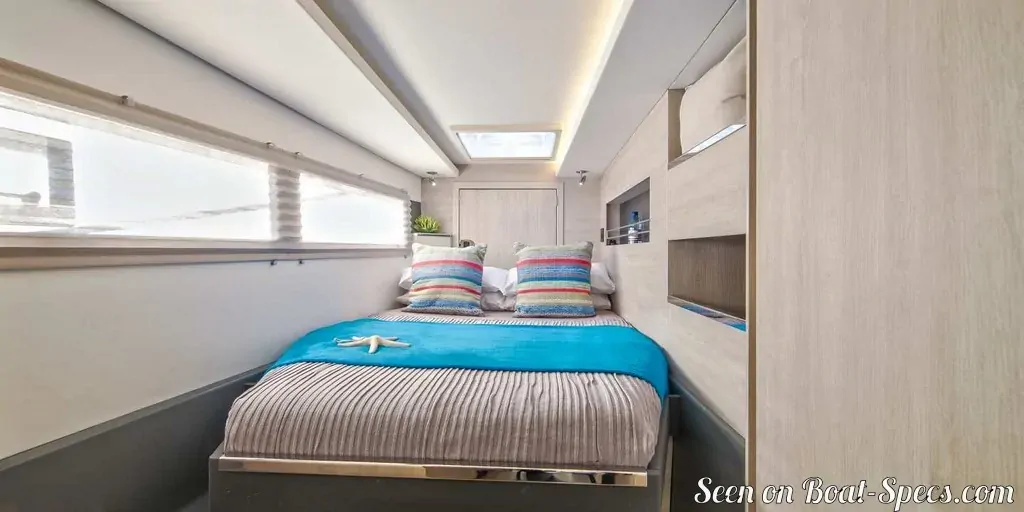

Robertson and Caine Moorings 4500 interior and accommodations - - 10/10
Picture extracted from the commercial documentation © Robertson and Caine
Picture extracted from the commercial documentation © Robertson and Caine
