Leopard 50 L

Sailboat specifications

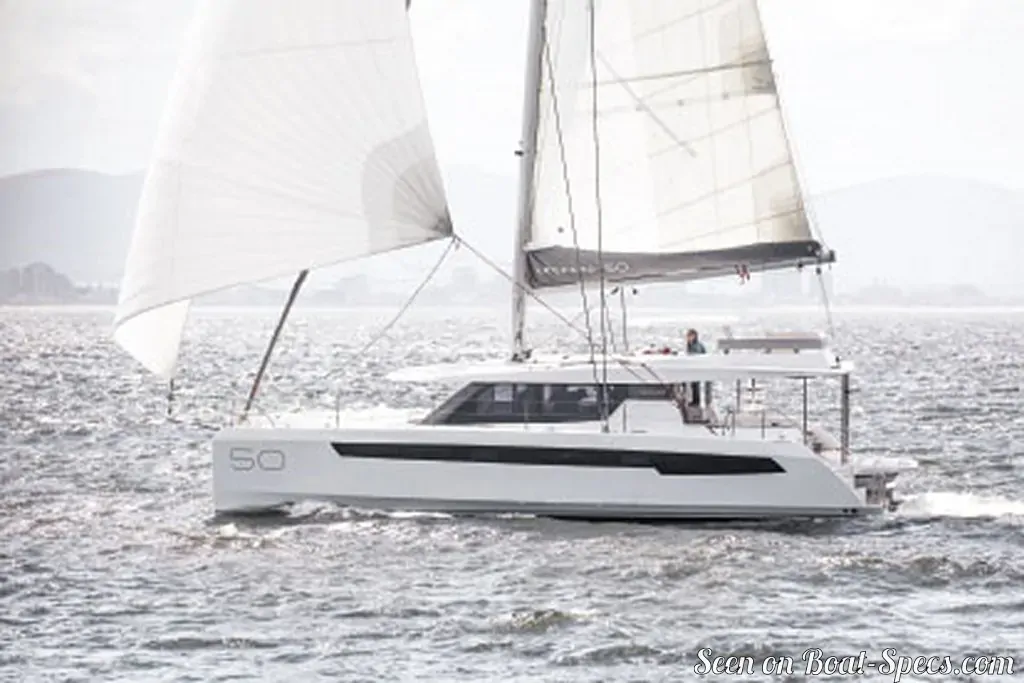

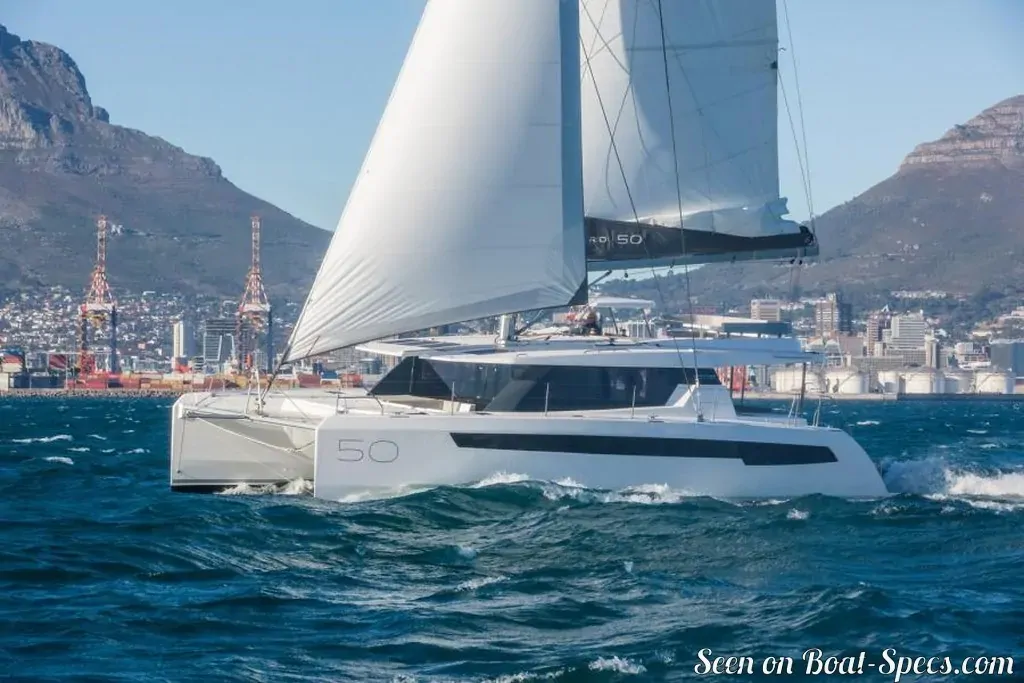

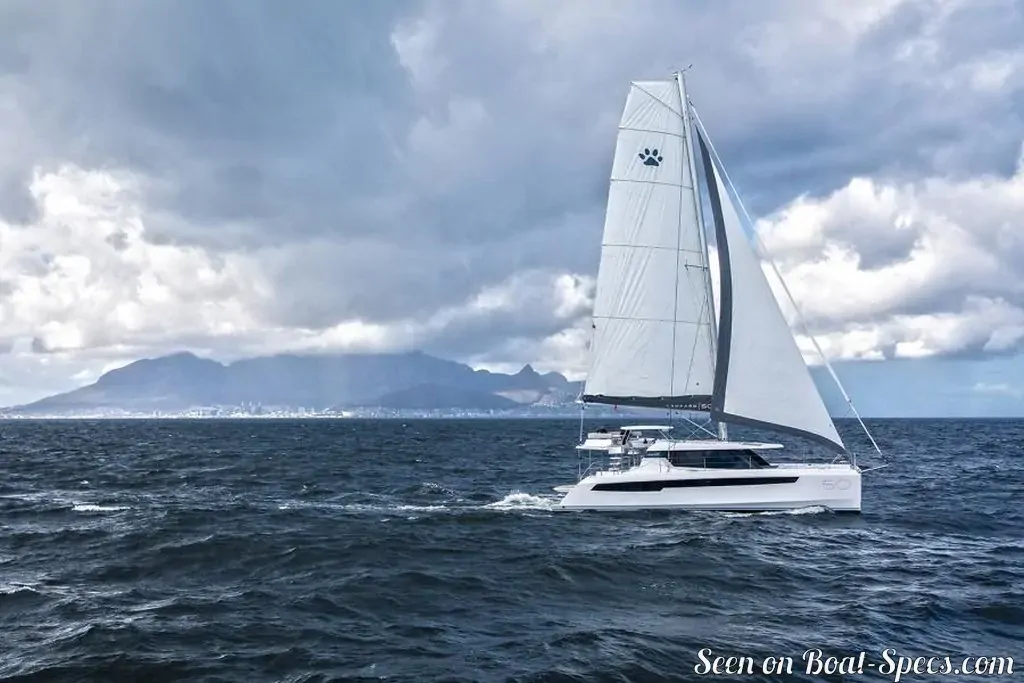

The Leopard 50 L is a 50’6” (15.4m) cruising catamaran designed by Simonis Voogd Design (Netherlands). She is built since 2019 by Robertson and Caine (South Africa). She has been awarded "2019 - Cruising World - Boat of the Year: Charter Boat".

The Leopard 50 L has also been marketed as Moorings 5000.

Leopard 50 L's main features

Model
Leopard 50 L
Hull type
Catamaran
Category
Offshore cruising catamaran
Sailboat builder
Sailboat designer
Sailboat range
Country
South Africa
Construction
GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
First built hull
2019
Last built hull
Still in production
Award(s)
  • 2019: Cruising World - Boat of the Year: Charter Boat
    Appendages
    Skegs : skeg on each hull
    Helm
    Single helm wheel
    Rudder
    Twin spade rudders
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    640 000 €
     (2020)

    Leopard 50 L's main dimensions

    Overall length
    50’ 6”15.4 m
    Hull length
    50’ 6”15.4 m
    Waterline length
    48’ 11”14.9 m
    Beam (width)
    27’ 7”8.4 m
    Draft
    5’ 2”1.6 m
    Mast height from DWL
    77’ 2”23.52 m
    Light displacement (MLC)
    45415 lb20600 kg
    Maximum displacement (MLDC)
    57320 lb26000 kg
    Capacity
    11905 lb5400 kg

    Leopard 50 L's rig and sails

    Upwind sail area
    1660 ft²154.2 m²
    Downwind sail area
    2662 ft²247.3 m²
    Mainsail area
    972 ft²90.3 m²
    Genoa area
    688 ft²63.9 m²
    Code 0 area
    970 ft²90.1 m²
    Code 5 area
    1690 ft²157 m²
    Rigging type
    Sloop Marconi (square top mainsail) 9/10
    Mast configuration
    Deck stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    1
    Spreaders angle
    Swept-back (diamond)
    Spars construction
    Aluminum spars
    Standing rigging
    1x19 strand wire continuous

    Leopard 50 L's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    221 ft²/T20.52 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    354 ft²/T32.91 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    176

    Leopard 50 L's auxiliary engine

    Engine(s)
    2 inboard engines
    Engine(s) power
    57 HP
    Fuel type
    Diesel
    Fuel tank capacity
    243 gal920 liters

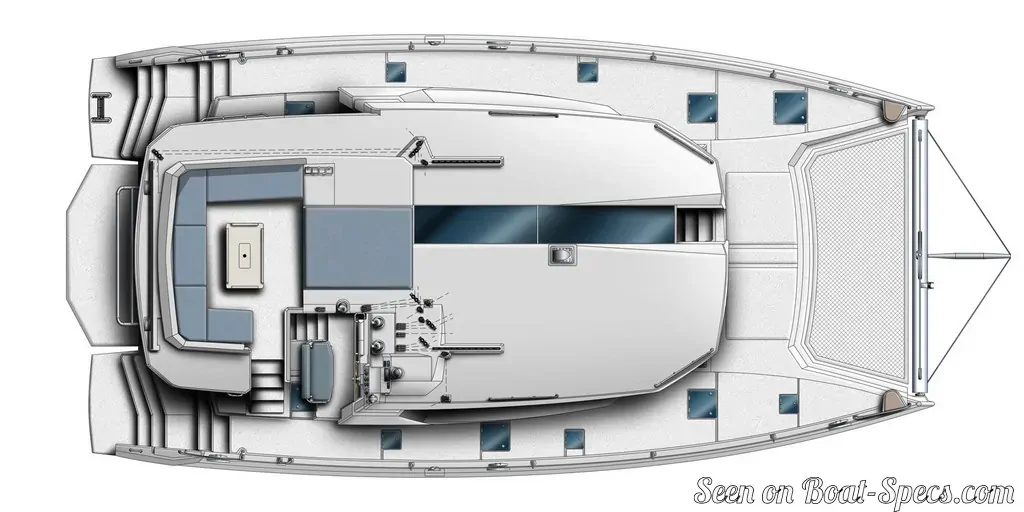

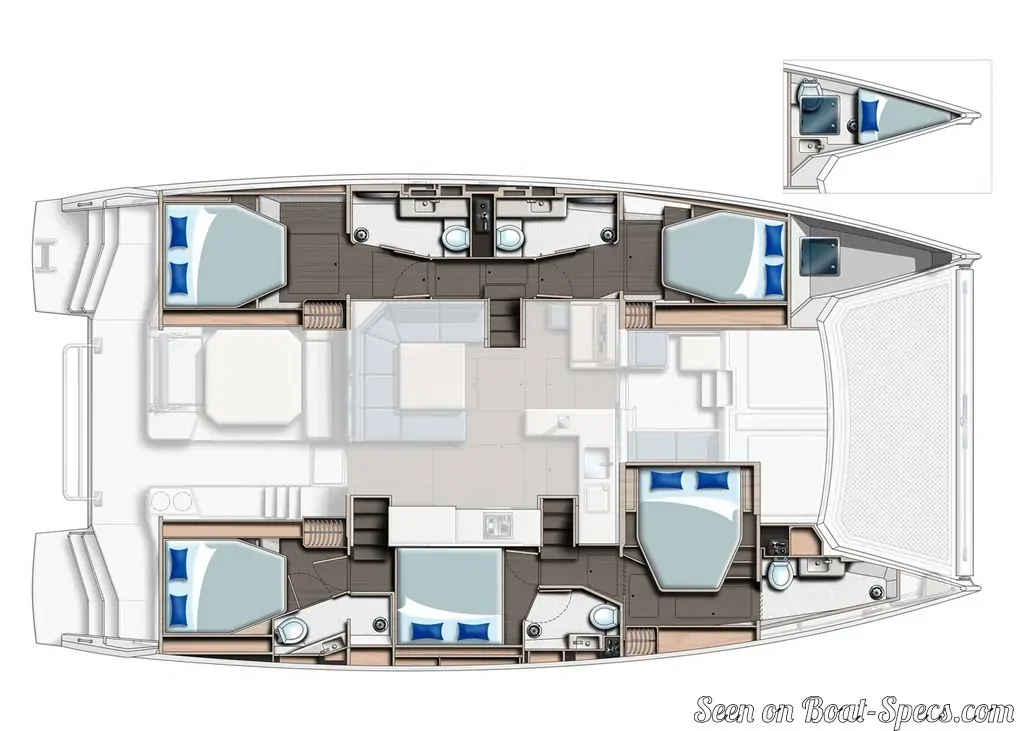

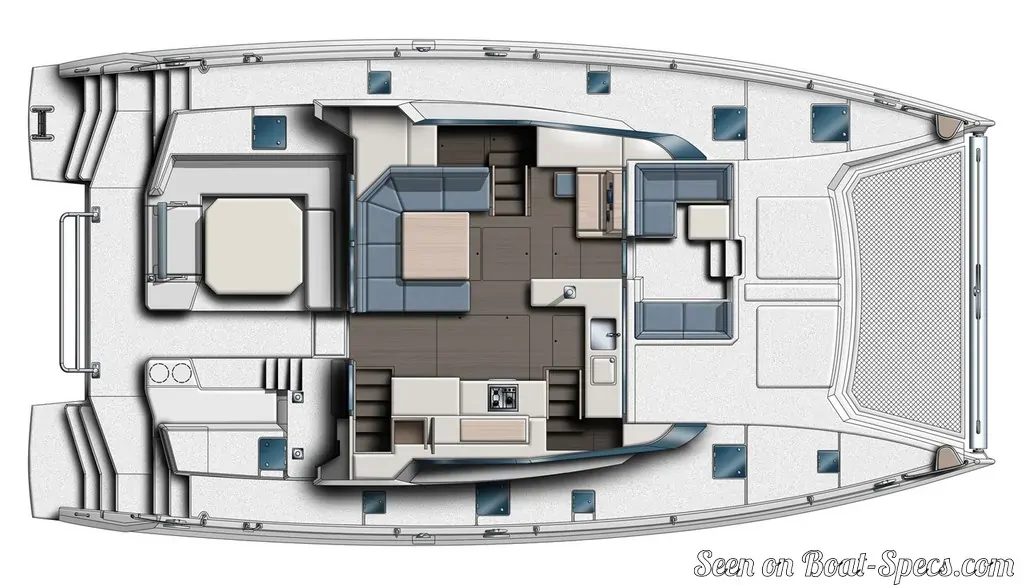

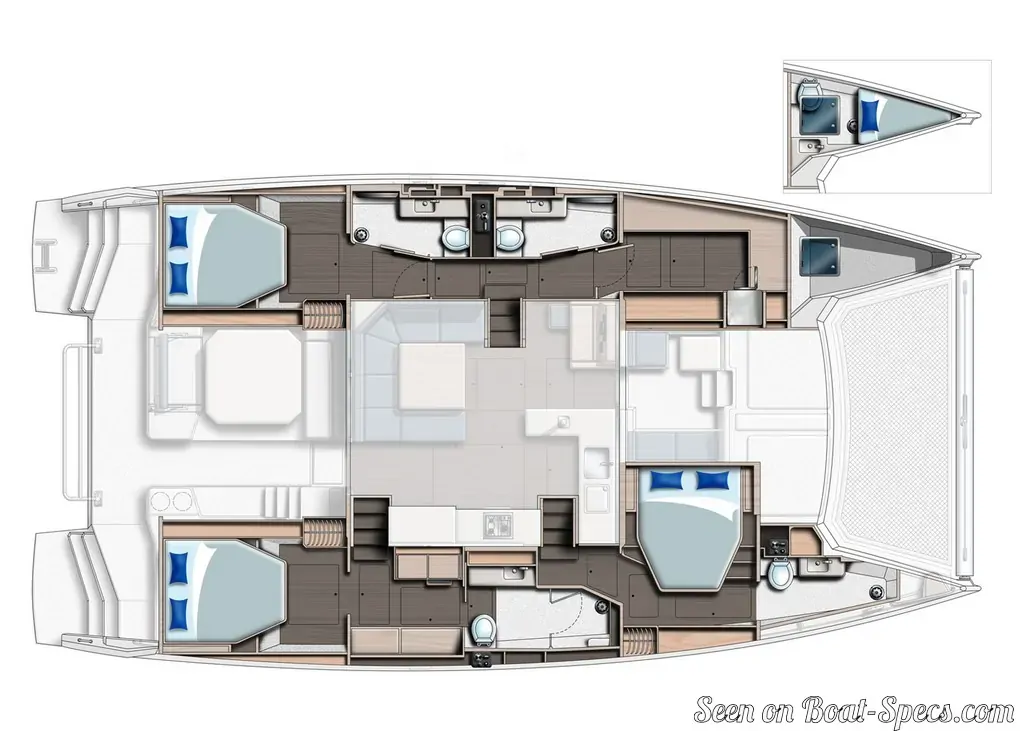

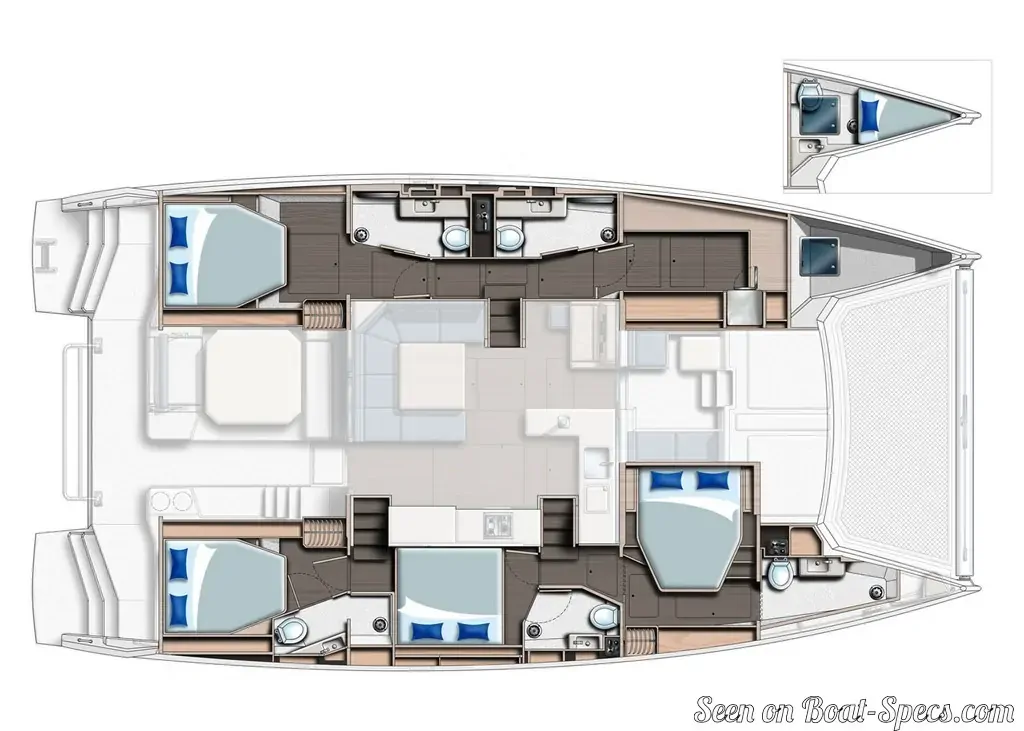

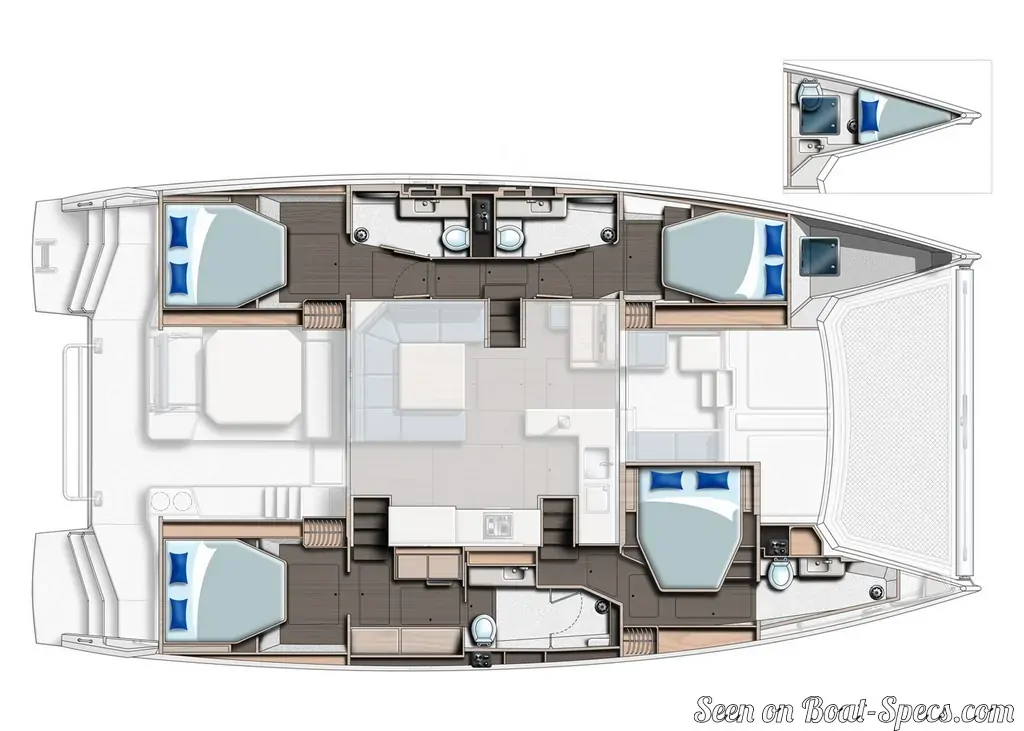

    Leopard 50 L's accommodations and layout

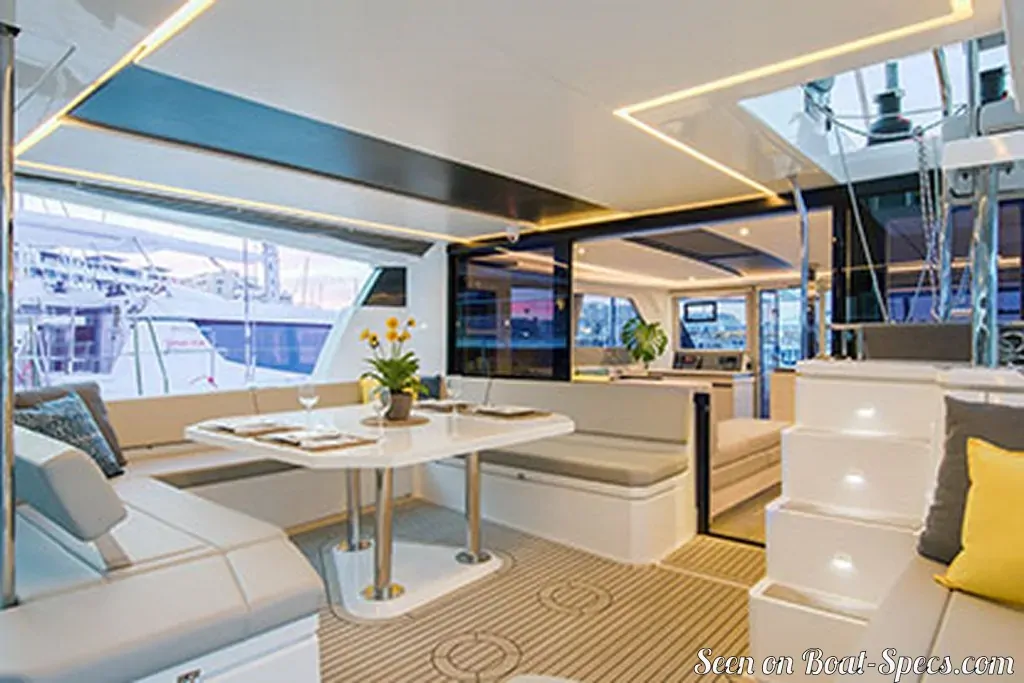

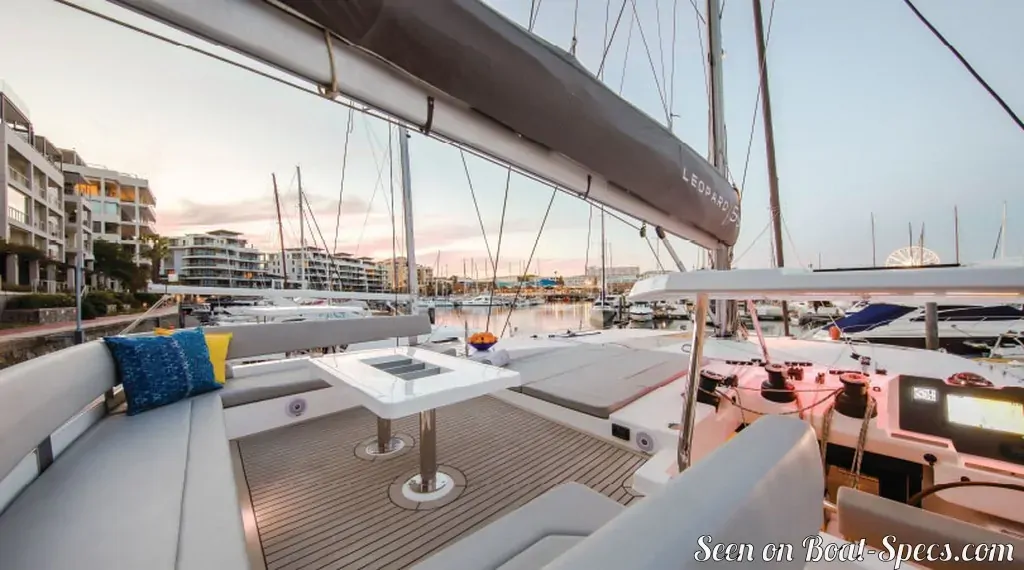

    Cockpit
    Aft cockpit, front cockpit and flybridge
    Cabin(s) (min./max.)
    3 / 6
    Berth(s) (min./max.)
    6 / 11
    Head(s) (min./max.)
    4 / 5
    Freshwater tank capacity
    184.9 gal700 liters

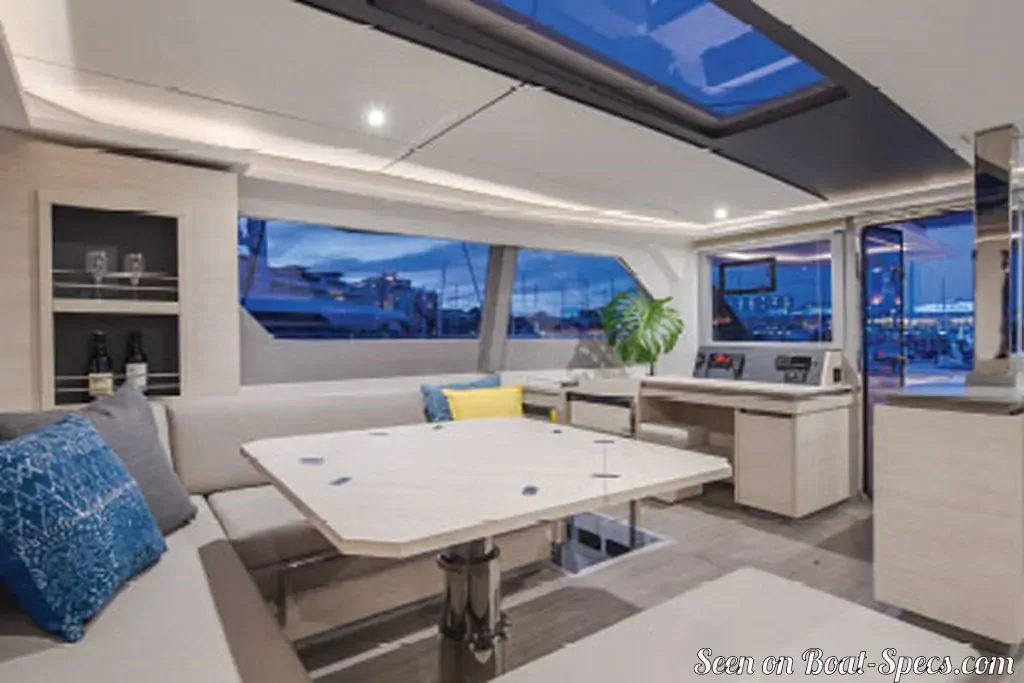

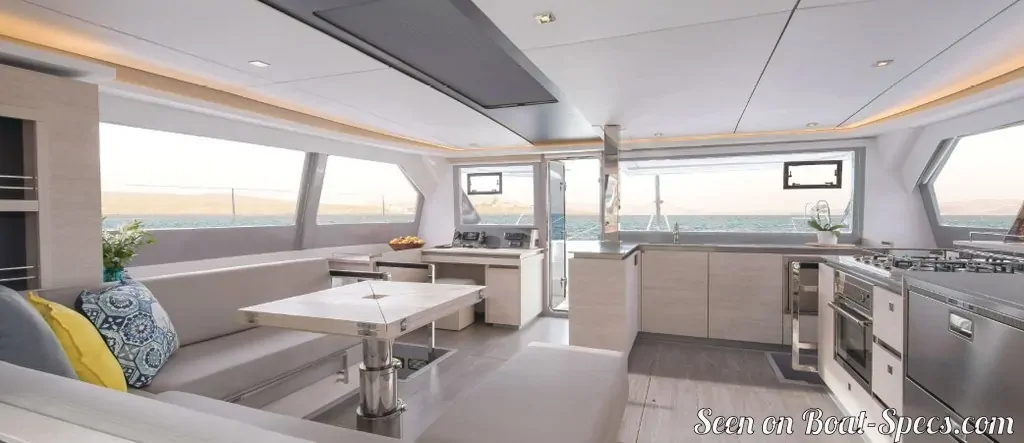

    Leopard 50 L's saloon

    Maximum headroom
    6’ 7”2.02 m

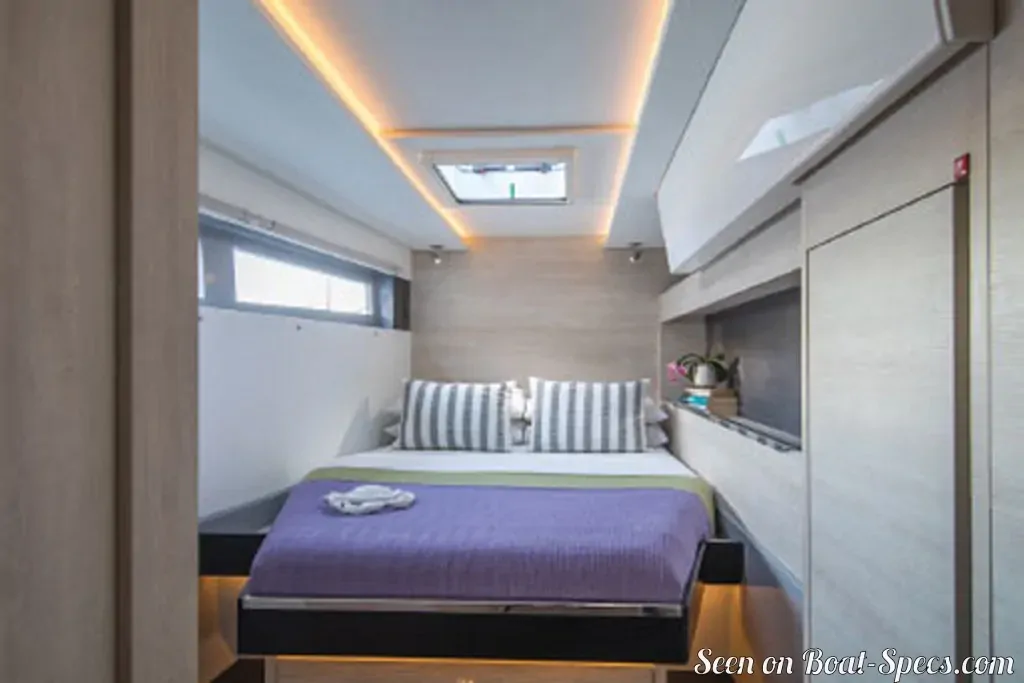

    Leopard 50 L's fore cabin

    Maximum headroom
    6’ 8”2.03 m
    Berth length
    6’ 7”2.02 m
    Berth width
    4’ 11”1.5 m

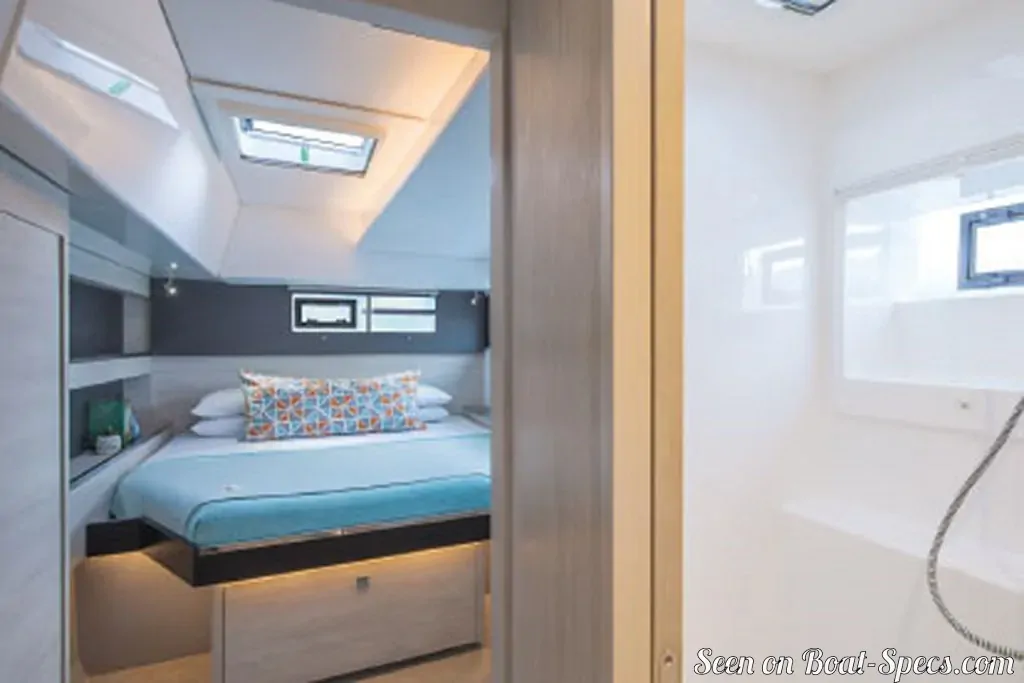

    Leopard 50 L's aft cabin

    Maximum headroom
    6’ 6”1.99 m
    Berth length
    6’ 7”2.02 m
    Berth width
    5’ 7”1.72 m
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
