Dragonfly 35 Ultimate

Sailboat specifications

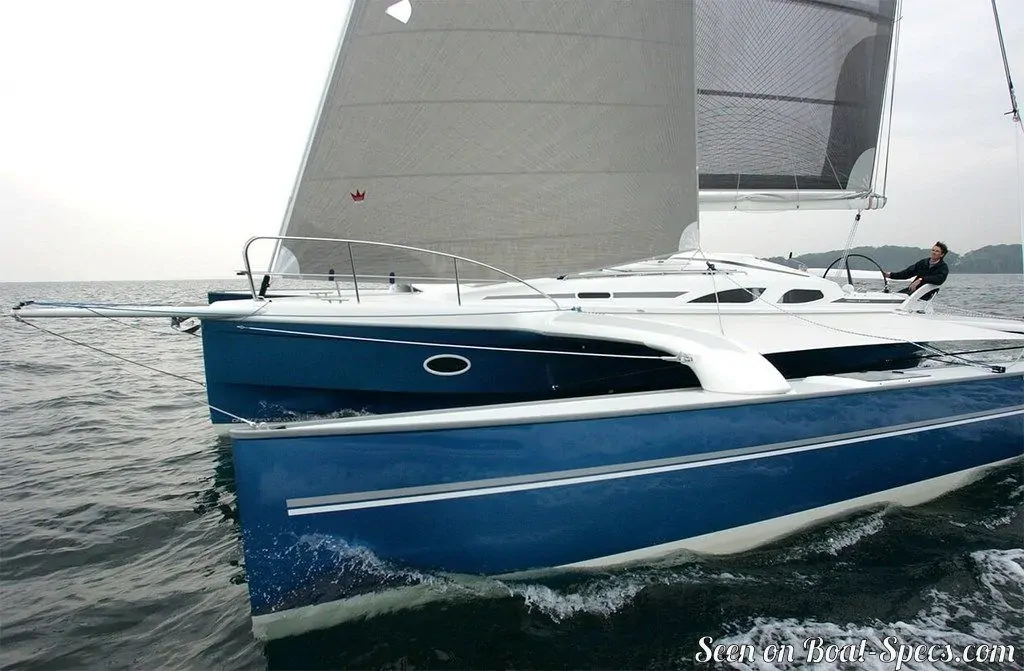

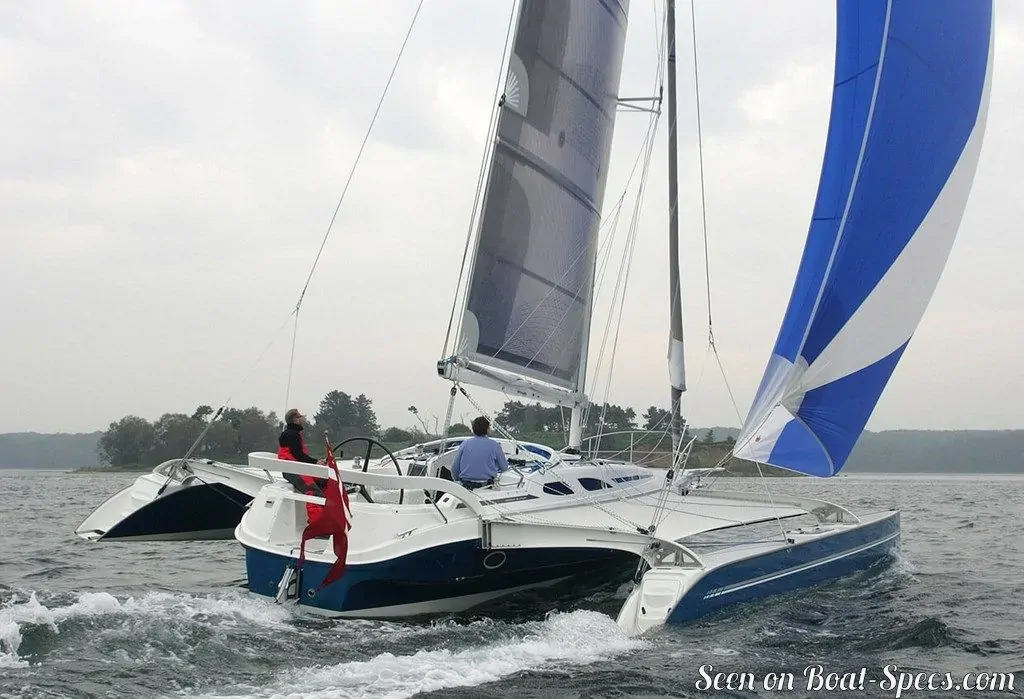

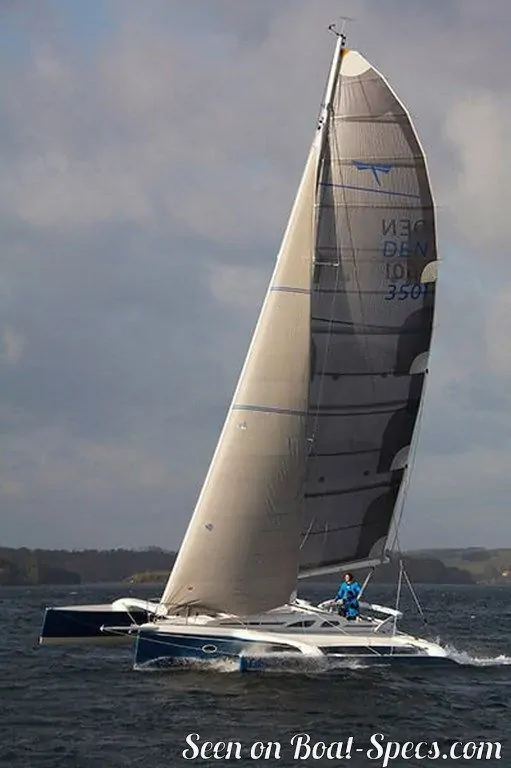

The Dragonfly 35 is a 35’ (10.68m) fast cruising trimaran designed by Jens Quorning (Denmark) and Olsen Design (Denmark). She was built between 2007 and 2019 by Quorning Boats (Denmark). The Ultimate version features a taller carbon mast and ultimately a larger sail area. She has been awarded "2008 - European Yacht of the Year: Multihulls".

The Dragonfly 35 is as well listed, on Boat-Specs.com, in Touring version (see all the versions compared).

Dragonfly 35's main features

Model
Dragonfly 35
Version
Ultimate
Hull type
Trimaran
Category
Offshore fast cruising trimaran
Sailboat builder
Sailboat designer
Sailboat range
Country
Denmark
Construction
GRP (glass reinforced polyester):
Sandwich PVC fiberglass vinylester
First built hull
2007
Last built hull
2019
Award(s)
  • 2008: European Yacht of the Year: Multihulls
    Appendages
    Centerboard : pivoting centerboard (main hull)
    Helm
    Single tiller (helm wheel in option)
    Rudder
    Single transom hung rudder (main hull)
    Unsinkable
    Yes
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    323 000
     (2017)

    Dragonfly 35's main dimensions

    Overall length
    35’10.68 m
    Hull length
    35’10.68 m
    Waterline length
    34’ 5”10.5 m
    Beam (width)
    26’ 11”8.2 m
    Draft
    6’ 2”1.9 m
    Draft when appendages up
    1’ 10”0.55 m
    Mast height from DWL
    64’19.5 m
    Folding type
    Horizontal, double-hinge with vertical axis
    Overall width folded
    12’ 10”3.9 m
    Overall length folded
    41’ 4”12.6 m
    Light displacement (MLC)
    8598 lb3900 kg
    Maximum displacement (MLDC)
    11905 lb5400 kg

    Dragonfly 35's rig and sails

    Upwind sail area
    1076 ft²100 m²
    Downwind sail area
    1938 ft²180 m²
    Mainsail area
    700 ft²65 m²
    Genoa area
    377 ft²35 m²

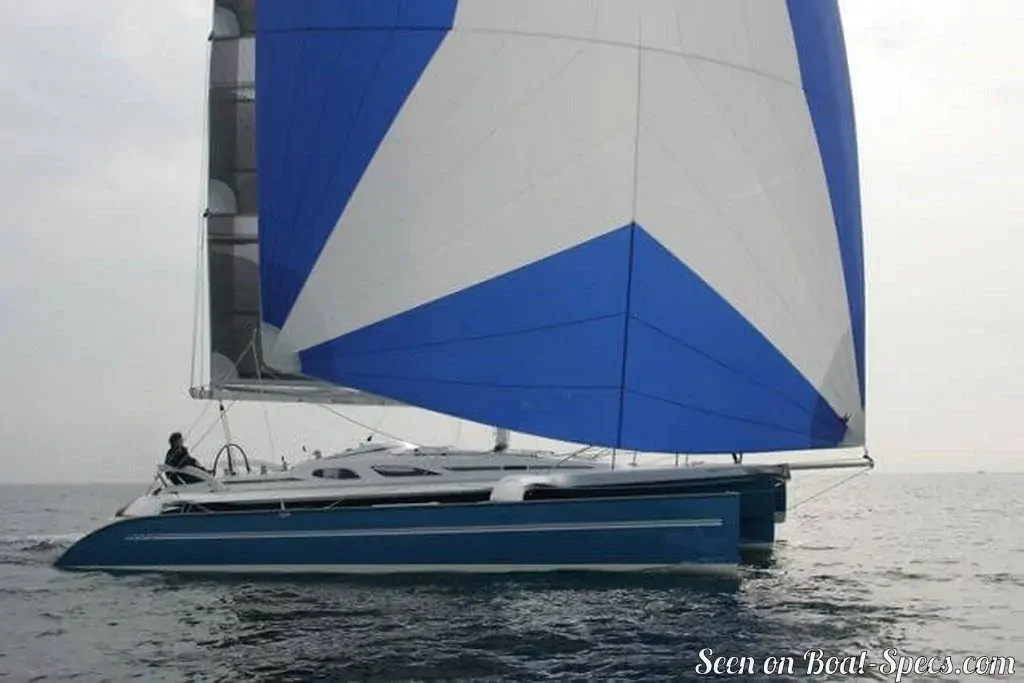

    Asymmetric spinnaker area
    1238 ft²115 m²
    Code 0 area
    592 ft²55 m²
    Rigging type
    Sloop Marconi 9/10
    Mast configuration
    Deck stepped mast
    Rotating spars
    Yes
    Number of levels of spreaders
    2
    Spreaders angle
    Swept-back (diamond)
    Spars construction
    Carbon fiber mast and aluminum boom

    Dragonfly 35's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    434 ft²/T40.36 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    782 ft²/T72.65 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    95

    Dragonfly 35's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    30 HP
    Fuel type
    Diesel
    Fuel tank capacity
    21.1 gal80 liters

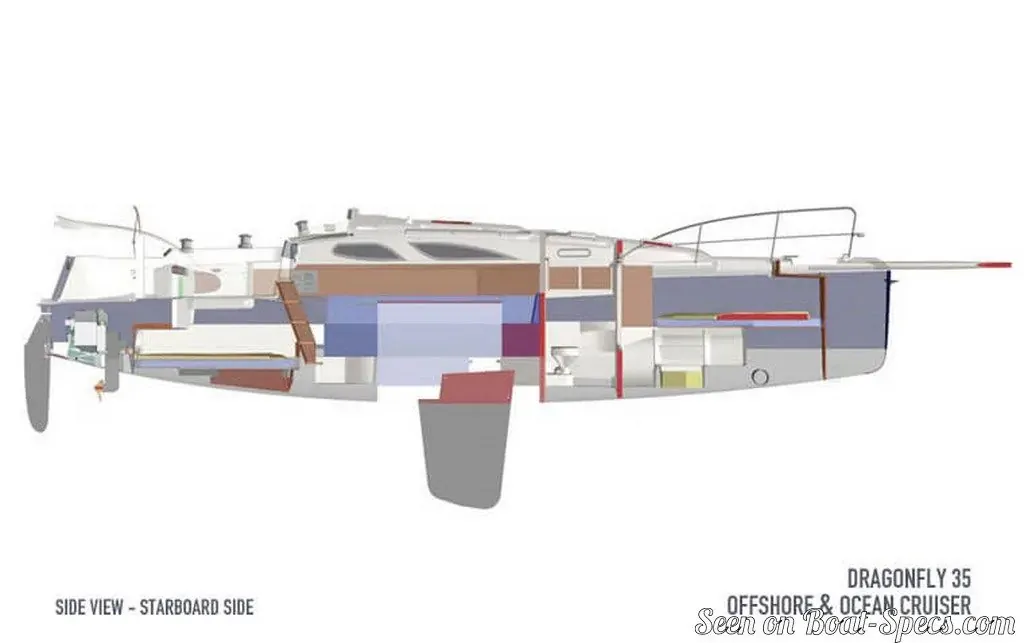

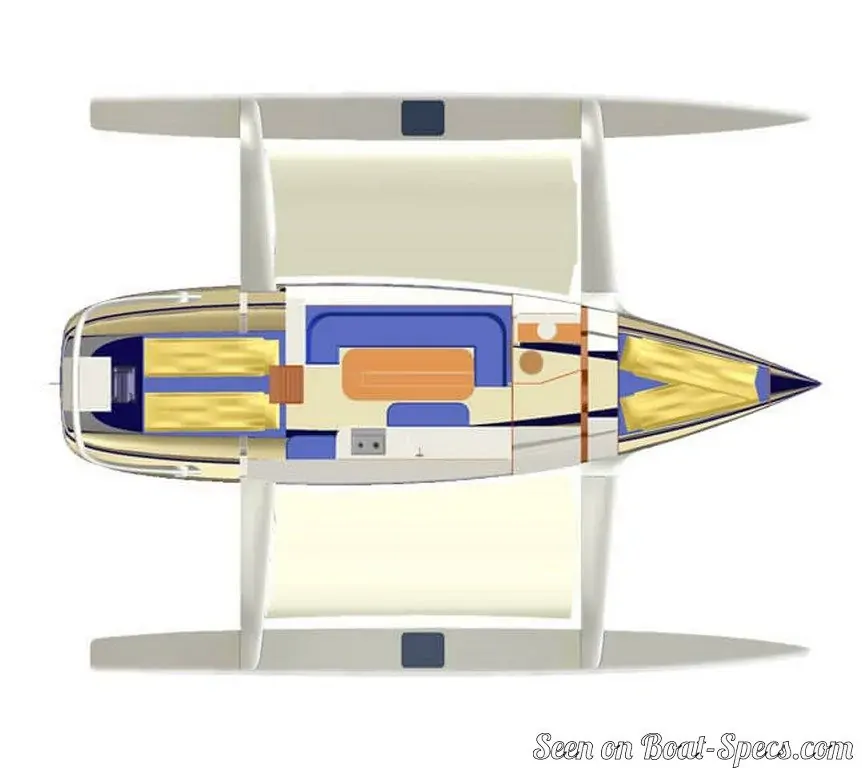

    Dragonfly 35's accommodations and layout

    Cockpit
    Closed aft cockpit
    Cabin(s)
    1
    Berth(s) (min./max.)
    4 / 6
    Head(s)
    1
    Freshwater tank capacity
    37 gal140 liters
    Holding tank capacity
    15.9 gal60 liters
    Maximum headroom
    6’ 6”1.98 m
    Head headroom
    6’ 2”1.88 m

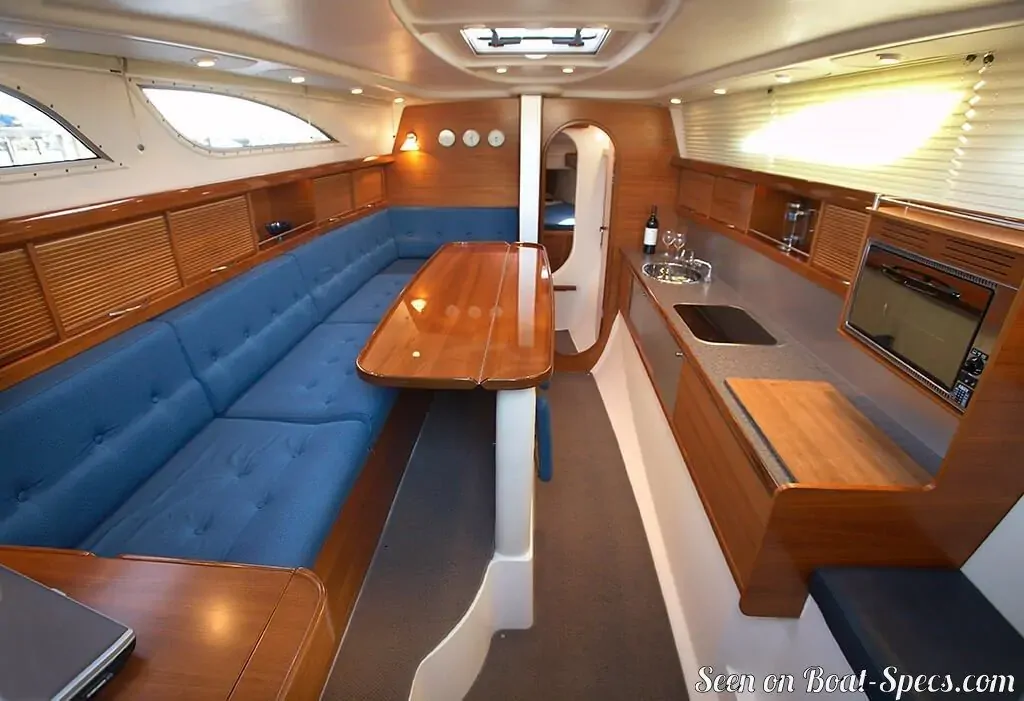

    Dragonfly 35's saloon

    Maximum headroom
    6’ 2”1.9 m
    Saloon table length
    5’ 7”1.72 m
    Saloon table width
    2’0.62 m
    Berth length
    6’ 11”2.1 m
    Berth width
    3’ 4”1 m

    Dragonfly 35's fore cabin

    Maximum headroom
    5’ 11”1.8 m
    Berth length
    6’ 10”2.07 m
    Berth width
    5’ 2”1.58 m

    Dragonfly 35's aft cabin

    Berth length
    6’ 7”2 m
    Berth width
    4’ 8”1.43 m
