Farr 400

Sailboat specifications

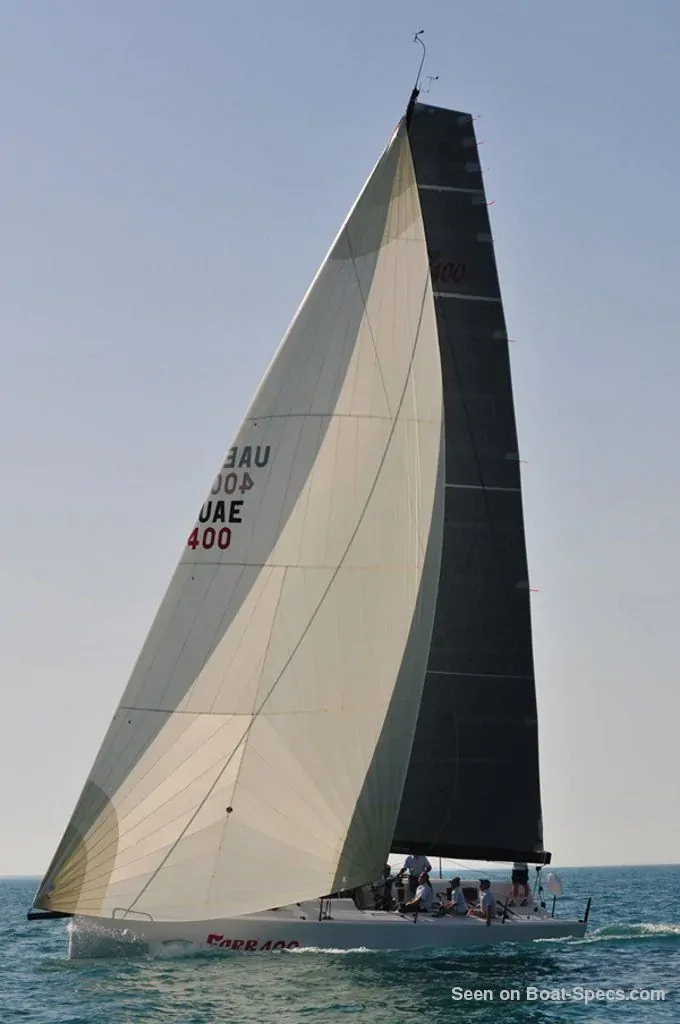

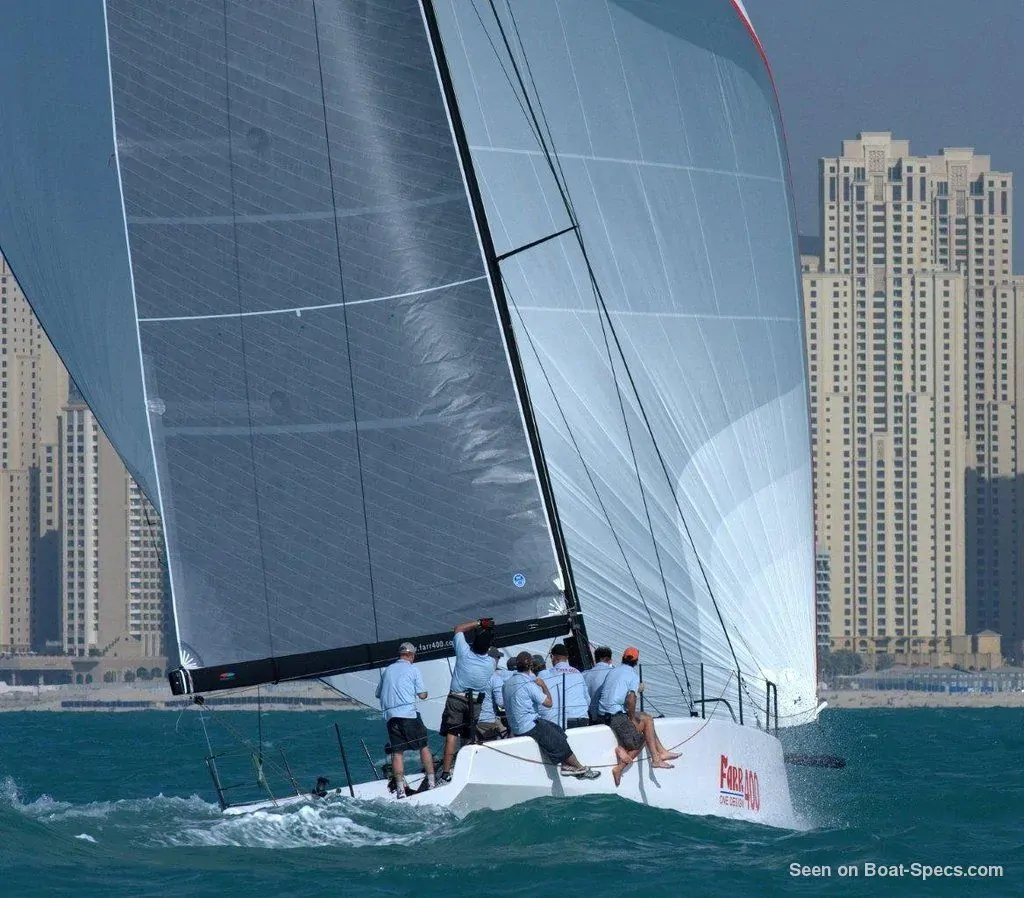

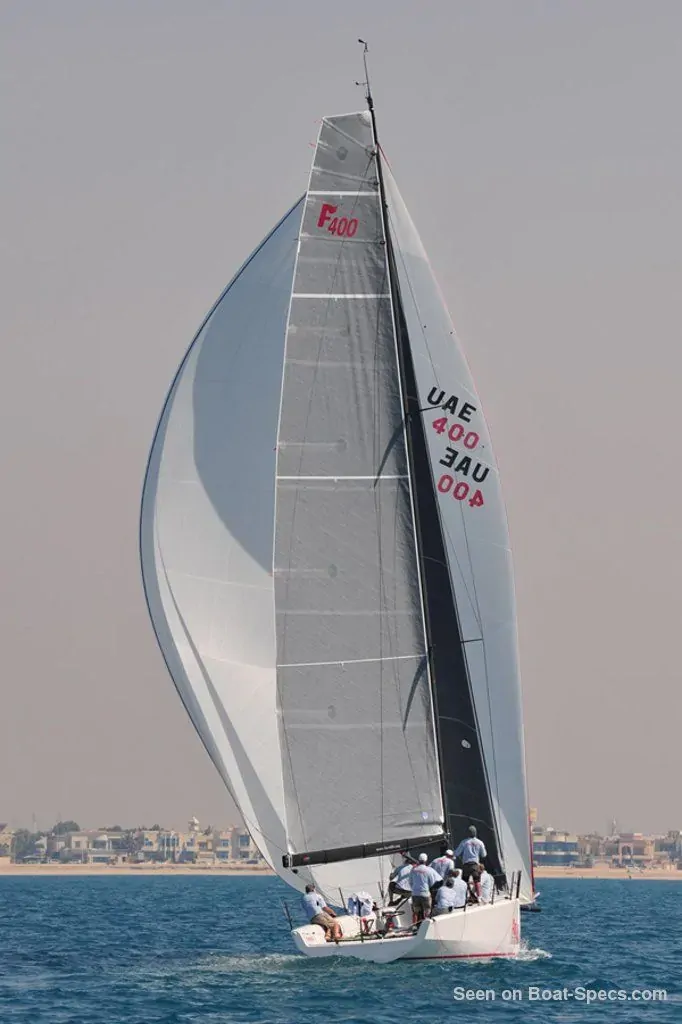

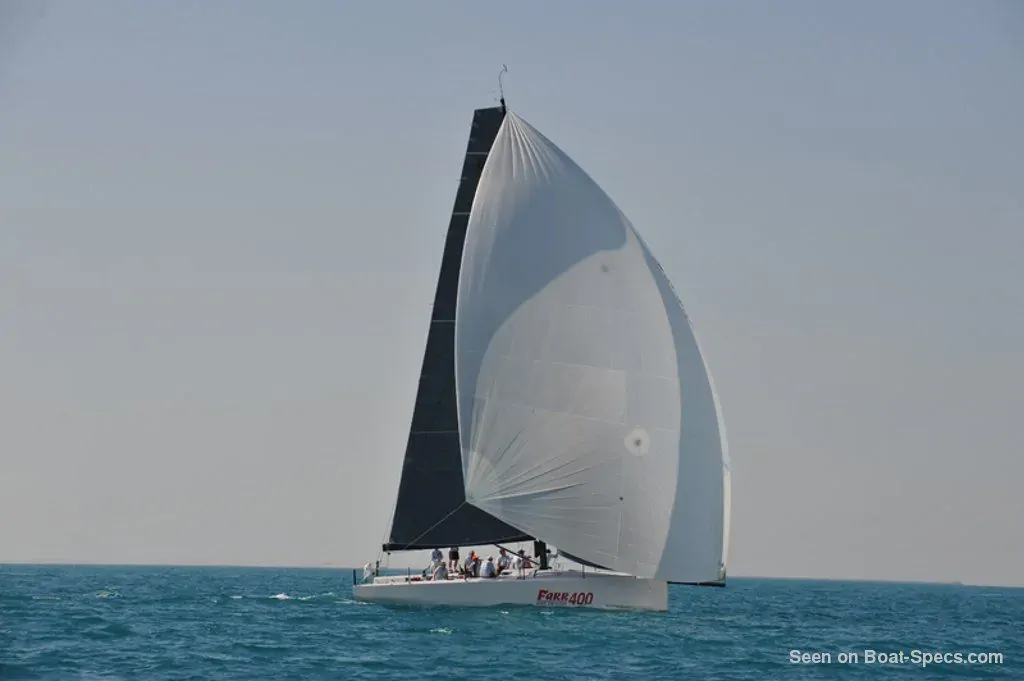

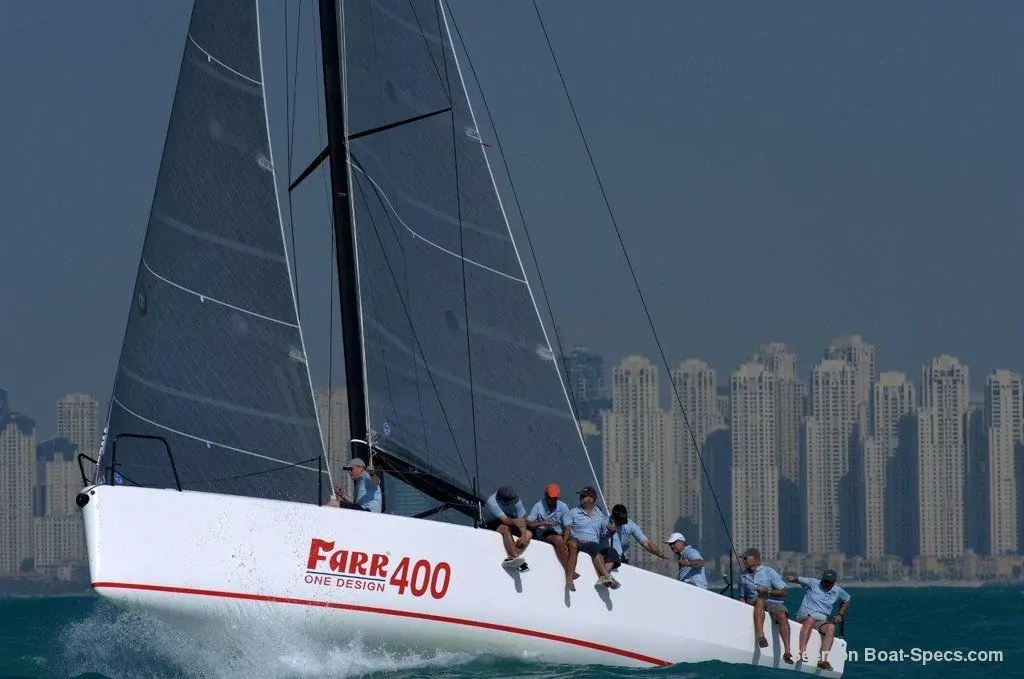

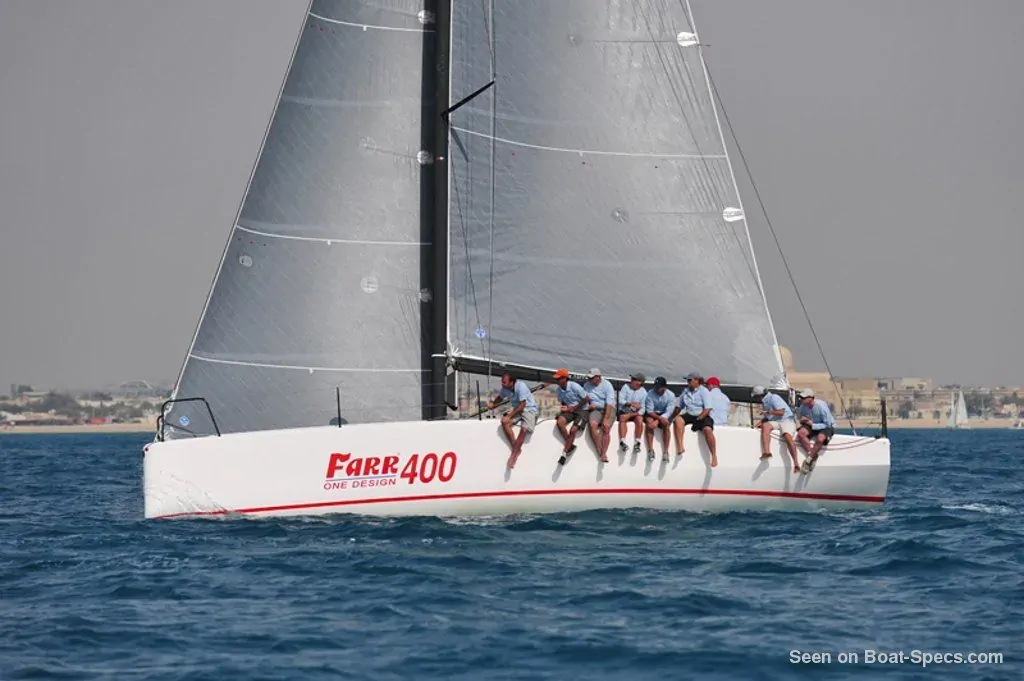

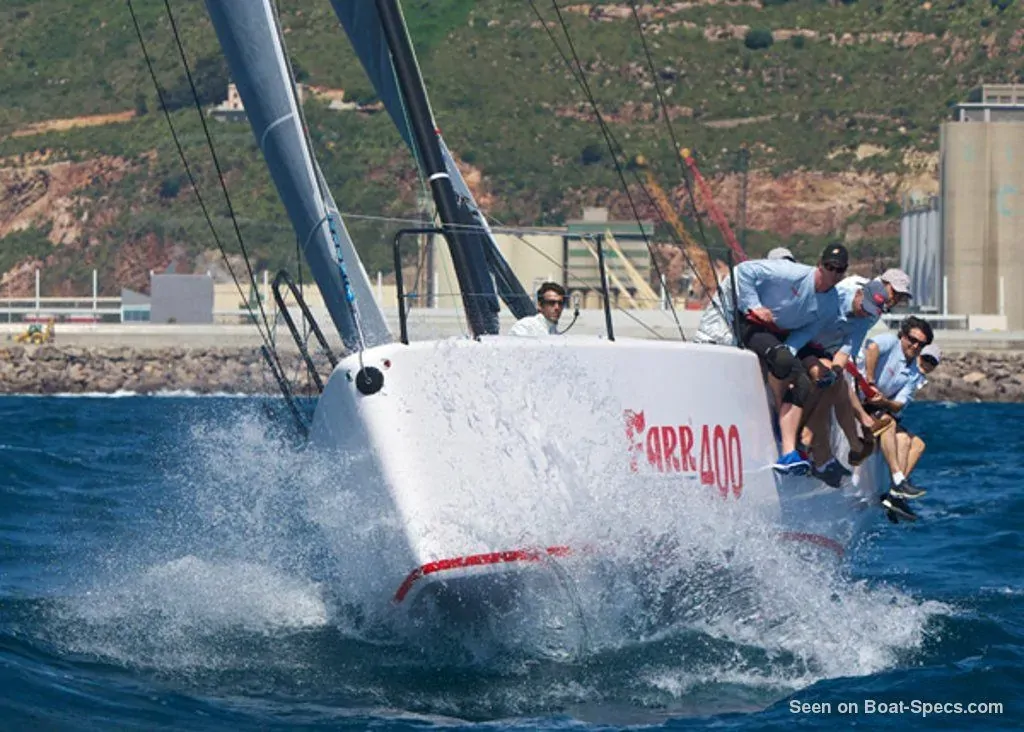

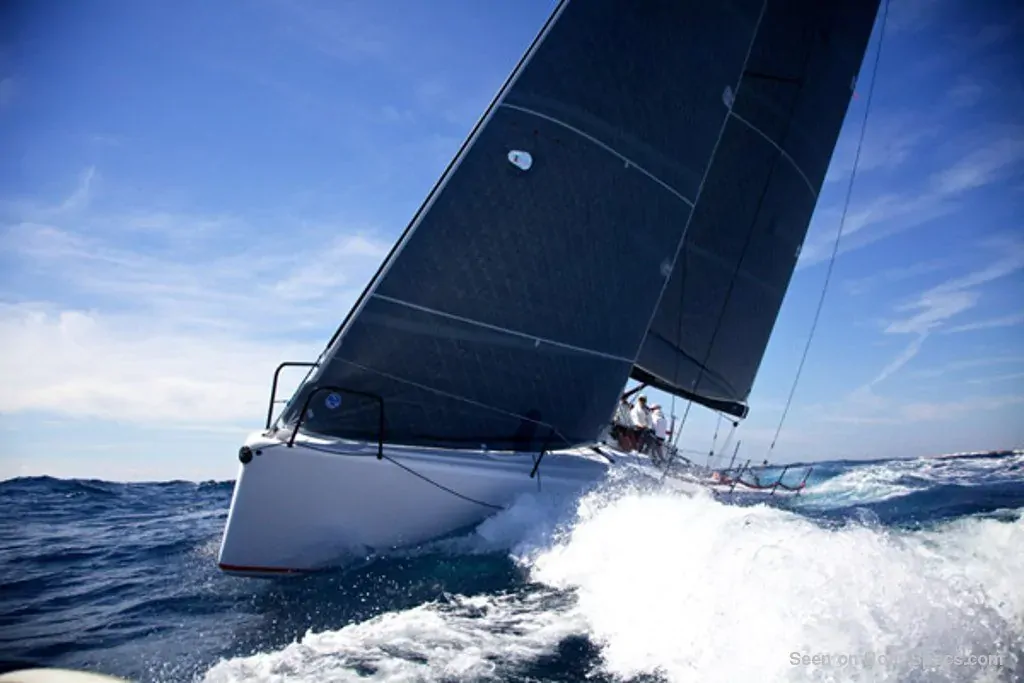

The Farr 400 is a 38’8” (11.8m) racing sailboat designed by Farr Yacht Design (United States). She is built since 2010 by Premier Composite Technologies (United Arab Emirates).

Farr 400's main features

Model: Farr 400
Hull type: Monohull
Category: Racing sailboat
Sailboat builder: Premier Composite Technologies
Sailboat designer: Farr Yacht Design
Country: United Arab Emirates
Construction: Carbon fiber reinforced epoxy:
Sandwich carbon fiber epoxy (vacuum infusion)
First built hull: 2010
Last built hull: Still in production
Appendages: Lifting keel : fin with bulb, lifting
Helm: Single tiller (helm wheel in option)
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Farr 400's main dimensions

Hull length: 38’ 8”11.8 m
Waterline length: 36’ 6”11.11 m
Beam (width): 11’ 2”3.42 m
Draft: 9’ 6”2.9 m
Draft when appendages up: 6’ 6”1.98 m
Light displacement (M_LC): 8642 lb3920 kg
Ballast weight: 4806 lb2180 kg
Ballast type: Steel fin with lead bulb

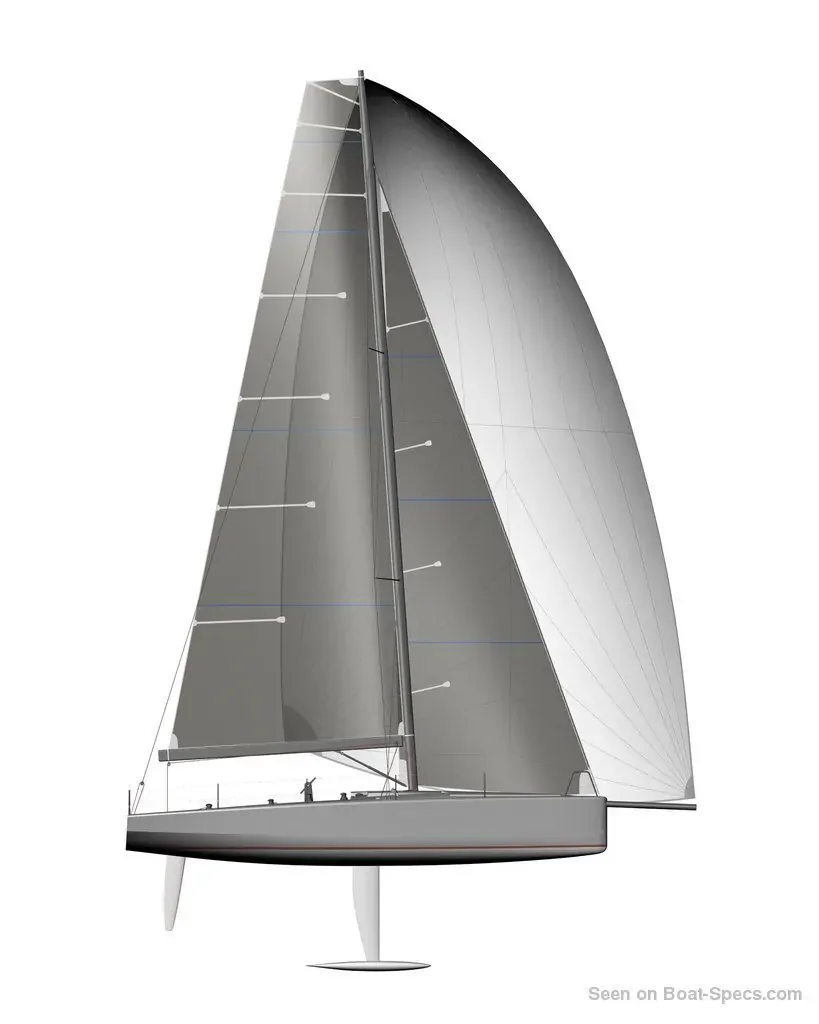

Farr 400's rig and sails

Upwind sail area: 1098 ft²102 m²
Downwind sail area: 2530 ft²235 m²
I iFore triangle height (from mast foot to fore stay top attachment): 51’ 2”15.6 m
J iFore triangle base (from mast foot to bottom of forestay): 14’ 7”4.45 m
P iMainsail hoist measurement (from tack to head): 53’16.15 m
E iMainsail foot measurement (from tack to clew): 19’5.8 m
Rigging type: Sloop Marconi (square top mainsail) fractional
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 22 °
Spars construction: Carbon fiber spars
Standing rigging: Carbon fiber discontinuous

Farr 400's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 442 ft²/T41.03 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 1017 ft²/T94.52 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 81
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 56 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.09 knots
