Carkeek 40 MkII Race

Sailboat specifications

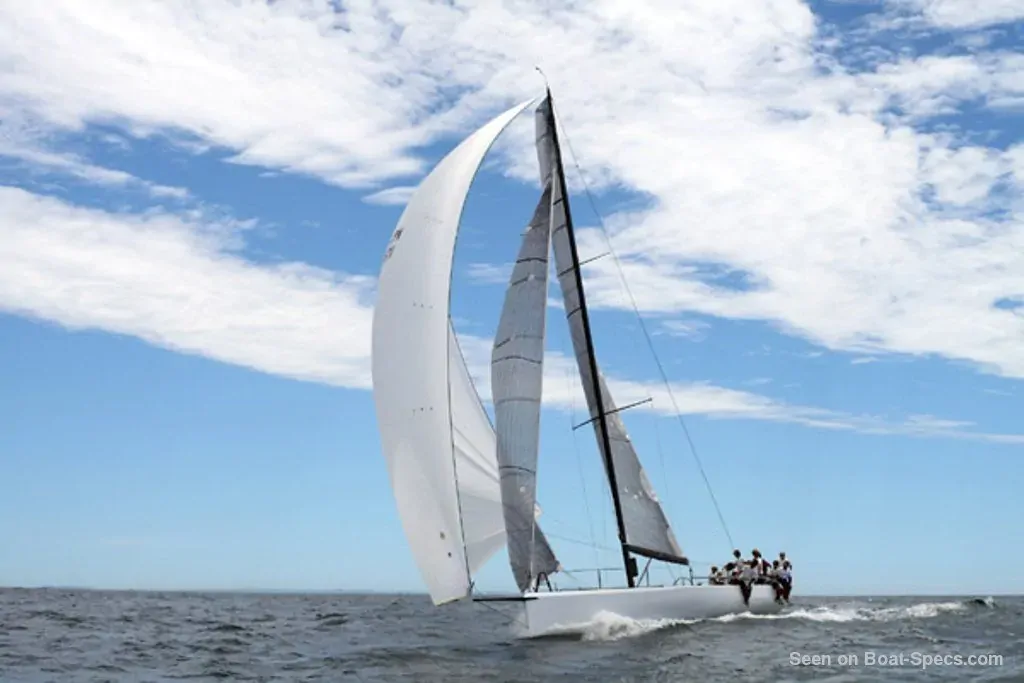

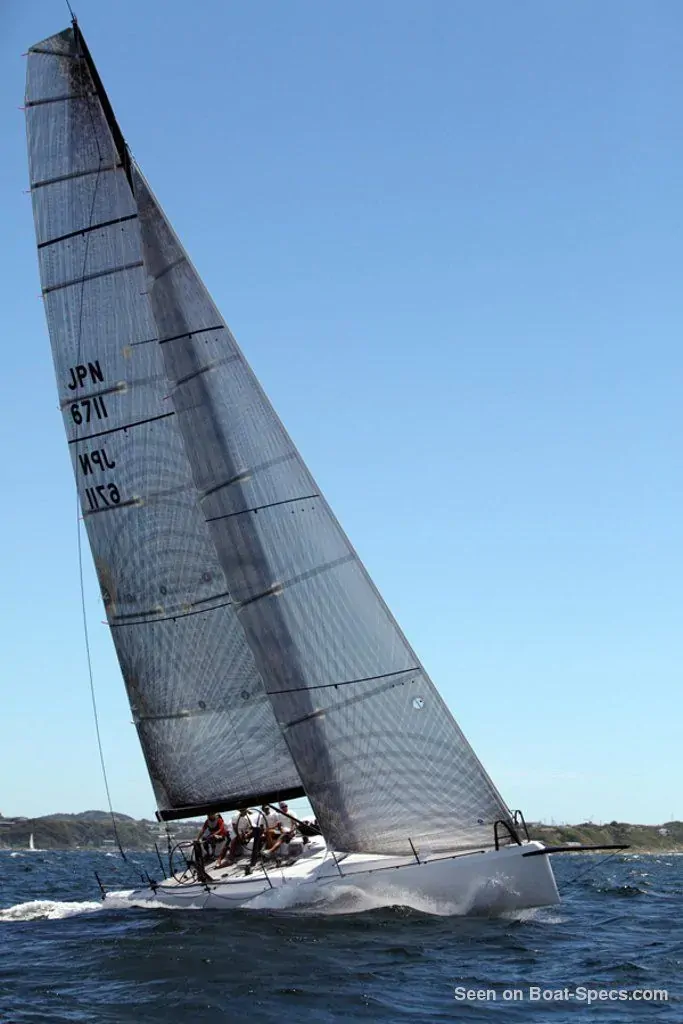

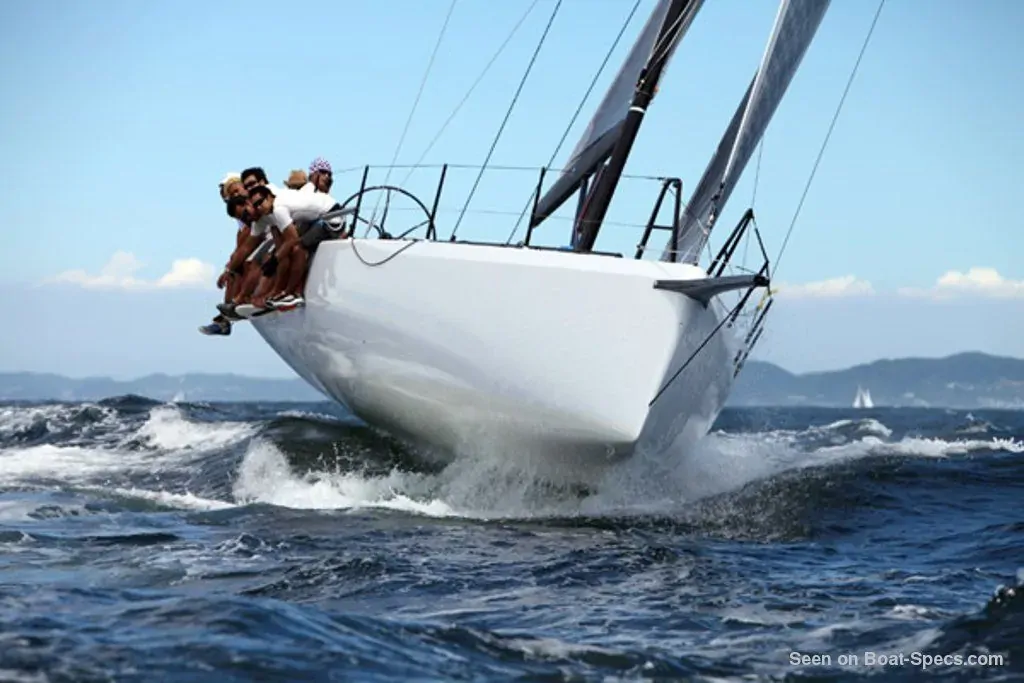

The Carkeek 40 MkII is a 40’ (12.2m) racing sailboat designed by Carkeek Design Partners (South Africa). She is built since 2014 by Premier Composite Technologies (United Arab Emirates). The Race version is proposed with simple accommodations and high tech material to keep the mass as low as possible.

The Carkeek 40 MkII is as well listed, on Boat-Specs.com, in GP version (see all the versions compared).

Carkeek 40 MkII's main features

Model
Carkeek 40 MkII
Version
Race
Hull type
Monohull
Category
Racing sailboat
Sailboat builder
Sailboat designer
Country
United Arab Emirates
Construction
Carbon fiber reinforced epoxy:
- Hull: Sandwich foam E-glass epoxy (vacuum infusion)
- Deck: Sandwich foam carbon fiber epoxy (vacuum infusion)
First built hull
2014
Last built hull
Still in production
Appendages
Keel : fin with bulb
Helm
Single tiller (helm wheel in option)
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
Standard public price ex. VAT (indicative only)
N/A €

Carkeek 40 MkII's main dimensions

Hull length
40’12.2 m
Beam (width)
12’ 7”3.85 m
Draft
9’ 8”2.95 m
Light displacement (MLC)
9149 lb4150 kg
Ballast type
Lead

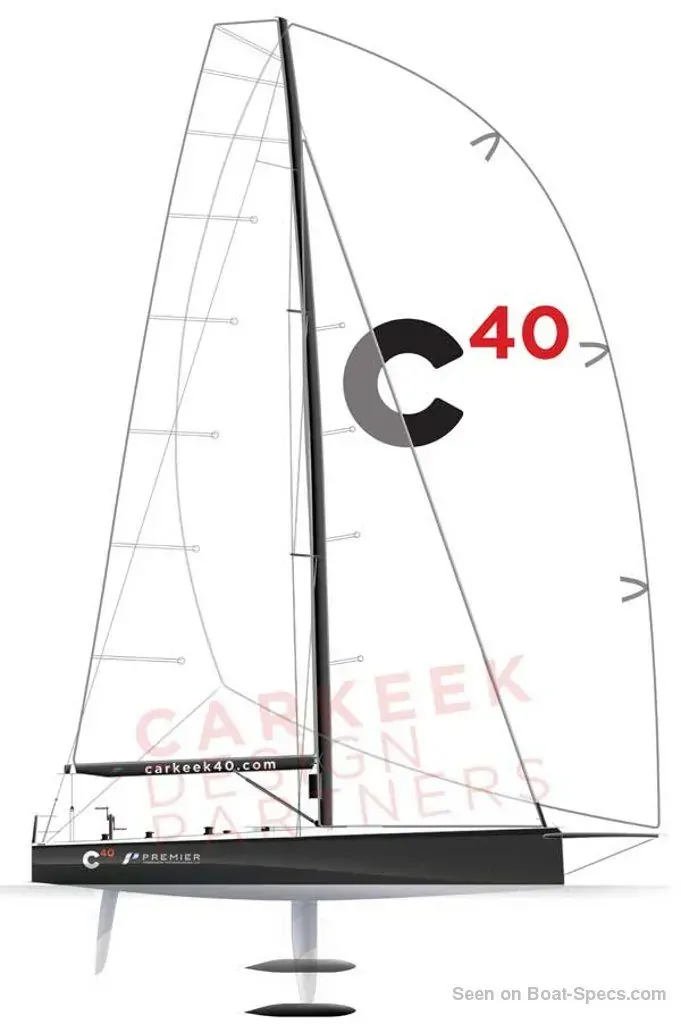

Carkeek 40 MkII's rig and sails

Upwind sail area
1174 ft²109.1 m²
Downwind sail area
2680 ft²249 m²
Rigging type
Sloop Marconi (square top mainsail) 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Carbon fiber spars
Standing rigging
Carbon fiber discontinuous

Carkeek 40 MkII's performances

Crew
7 - 9
Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
455 ft²/T42.25 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
1038 ft²/T96.42 m²/T

Carkeek 40 MkII's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
30 HP
Fuel type
Diesel
Fuel tank capacity
10.6 gal40 liters

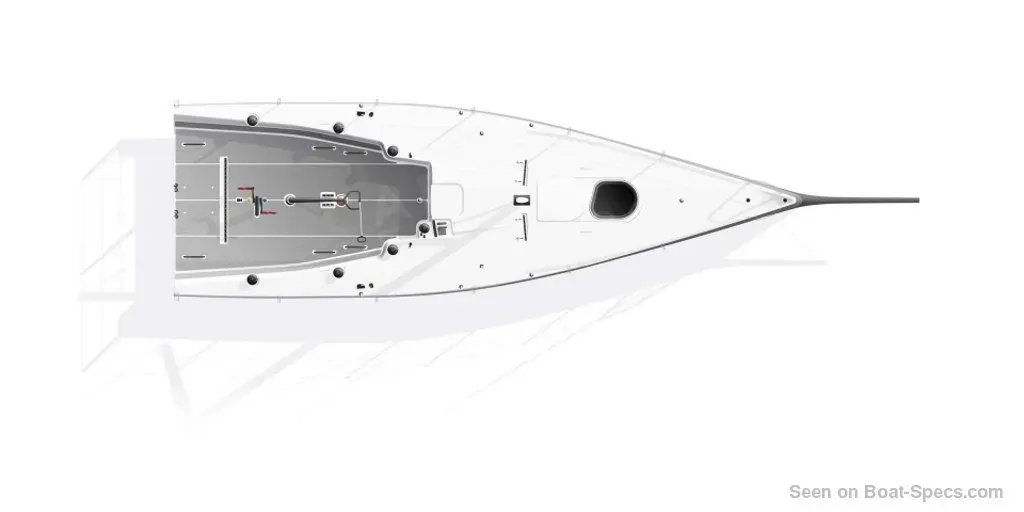

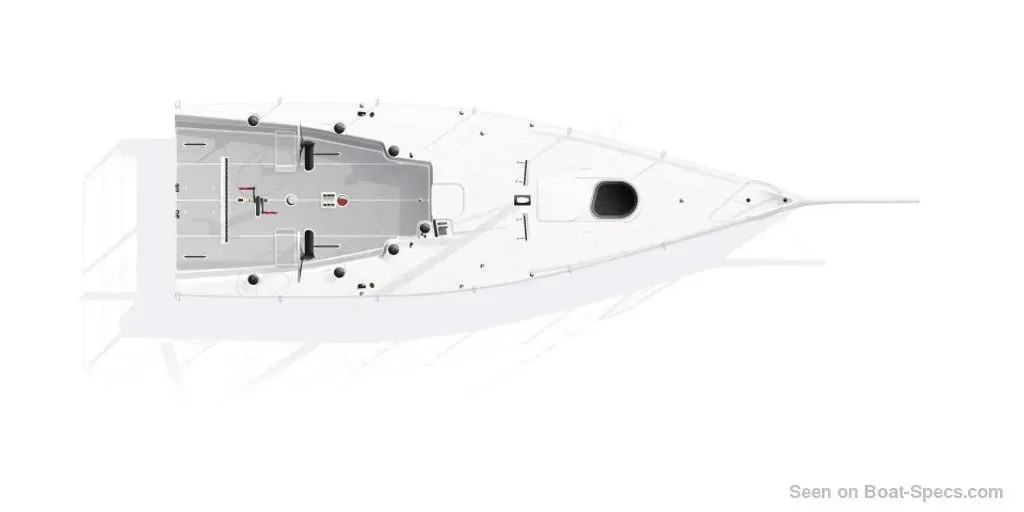

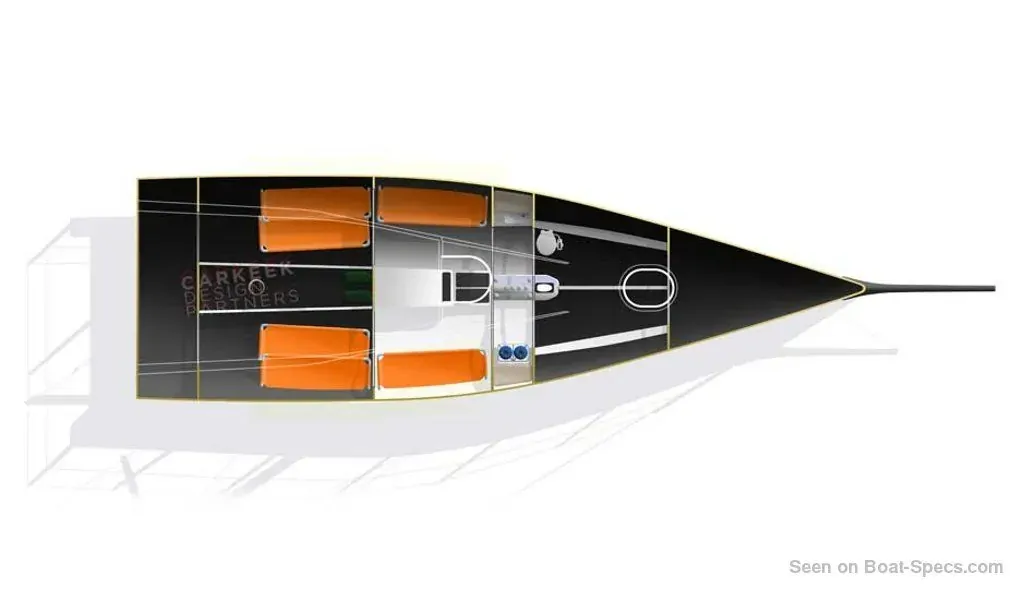

Carkeek 40 MkII's accommodations and layout

Cockpit
Open aft cockpit
Berth(s)
4
Freshwater tank capacity
26.4 gal100 liters
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
