Pogo 40S3
Sailboat specifications
The Pogo 40S3 is a 40’ (12.18m) racing sailboat designed by Finot Conq Architectes (France). She was built between 2014 and 2016 by Pogo Structures (France).
Pogo 40S3's main features
- Model
- Pogo 40S3
- Hull type
- Monohull
- Category
- Racing sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Sailboat collection
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich PVC fiberglass vinylester (vacuum infusion) - First built hull
- 2014
- Last built hull
- 2016
- Appendages
- Keel : fin with bulb
- Helm
- Twin tillers
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Pogo 40S3's main dimensions
- Hull length
- 40’12.18 m
- Beam (width)
- 14’ 10”4.5 m
- Draft
- 9’ 10”3 m
- Mast height from DWL
- 62’ 4”19 m
- Light displacement (MLC)
- 9921 lb4500 kg
- Ballast type
- Glass fiber/vinylester (infusion) fin with lead bulb
- Water ballast
- Lateral water ballasts
- Water ballast capacity
- 299.1 gal375 liters
Pogo 40S3's rig and sails
- Upwind sail area
- 1238 ft²115 m²
- Rigging type
- Sloop Marconi (square top mainsail) 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Spreaders angle
- Swept-back
- Spars construction
- Carbon fiber mast and aluminum boom
- Standing rigging
- Single-strand (ROD)
Pogo 40S3's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 454 ft²/T42.19 m²/T
Pogo 40S3's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 30 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 10.6 gal40 liters
Pogo 40S3's accommodations and layout
- Cockpit
- Open aft cockpit

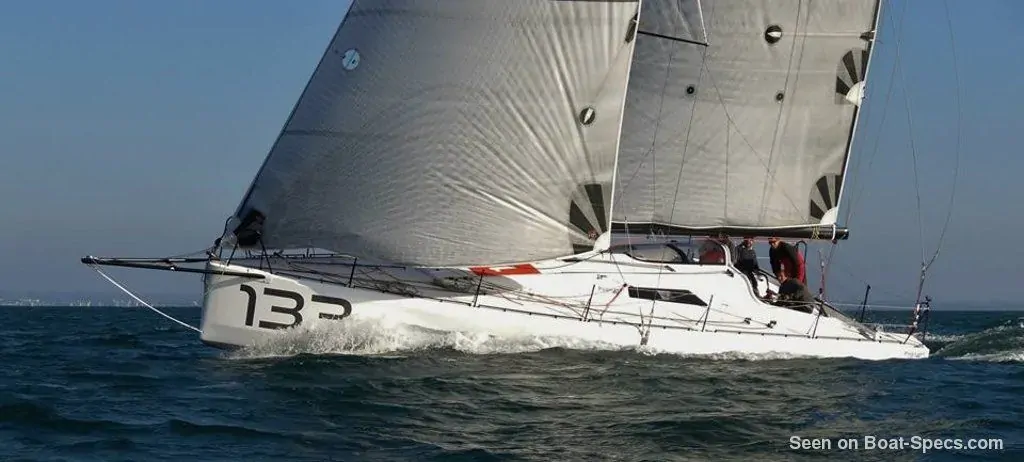

Pogo Structures Pogo 40S3 - - 1/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

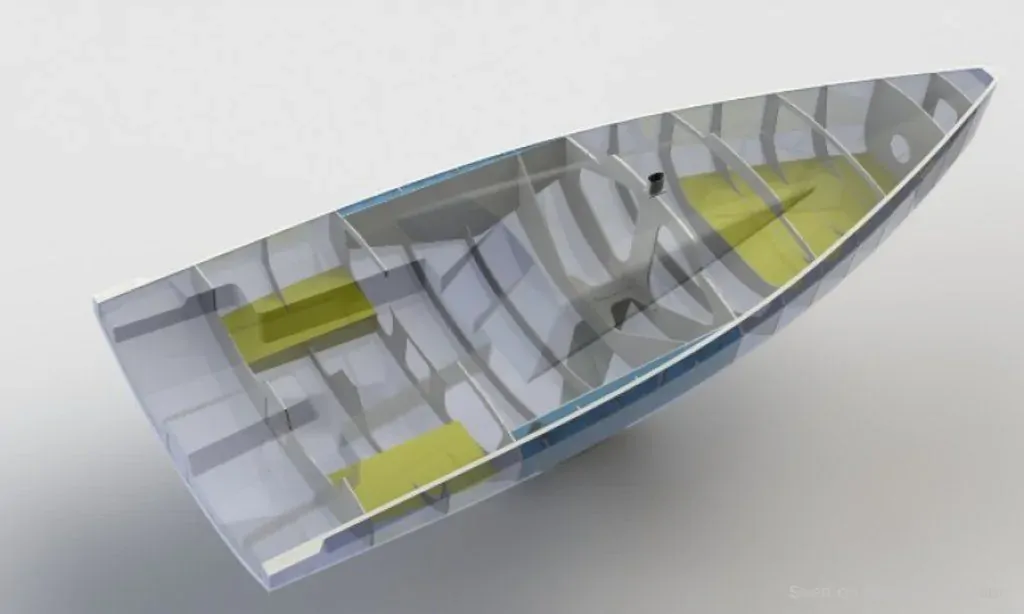

Pogo Structures Pogo 40S3 layout - - 2/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

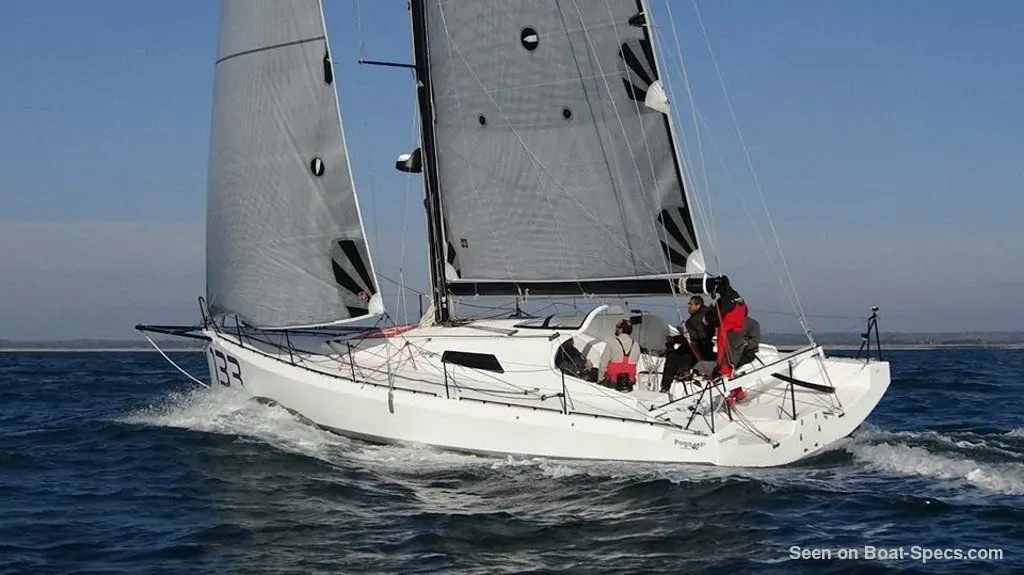

Pogo Structures Pogo 40S3 sailing - - 3/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

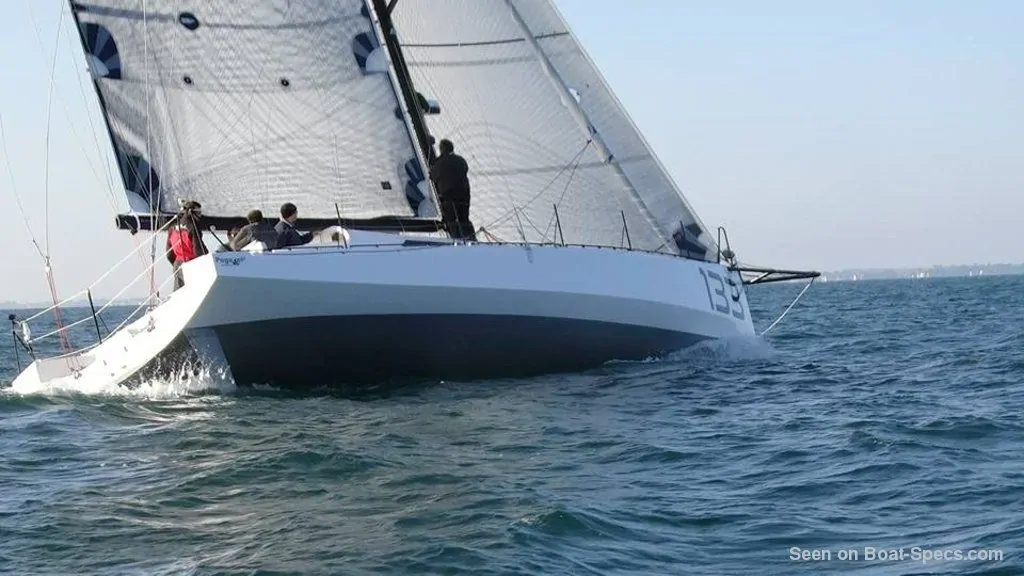

Pogo Structures Pogo 40S3 sailing - - 4/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

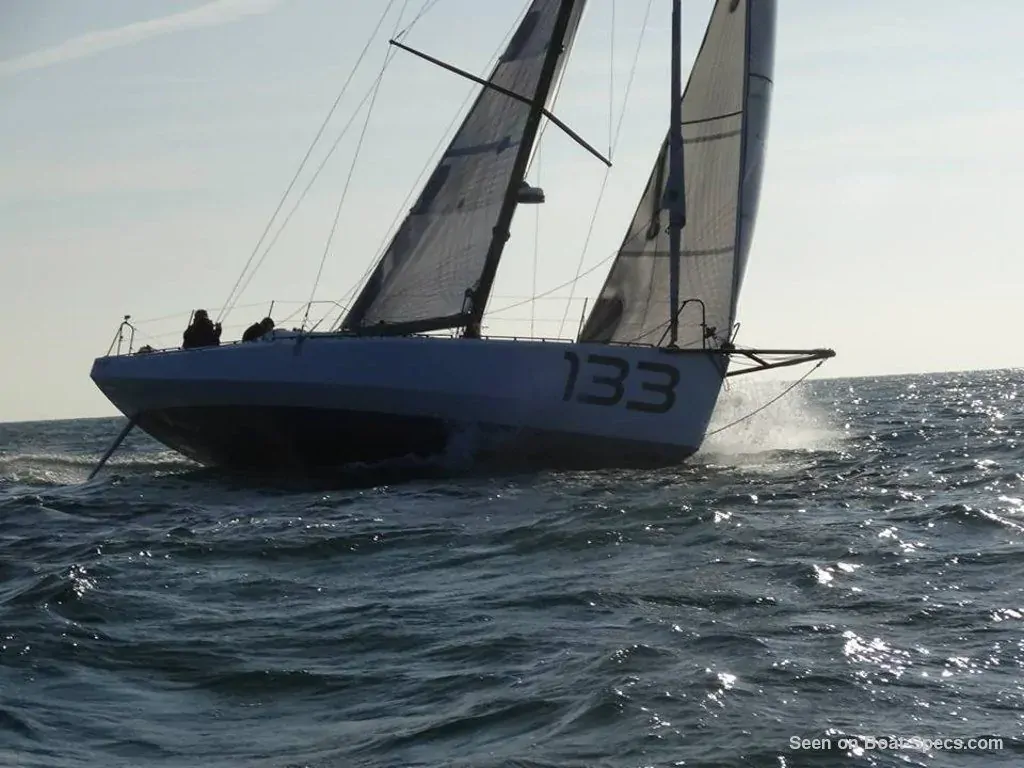

Pogo Structures Pogo 40S3 sailing - - 5/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

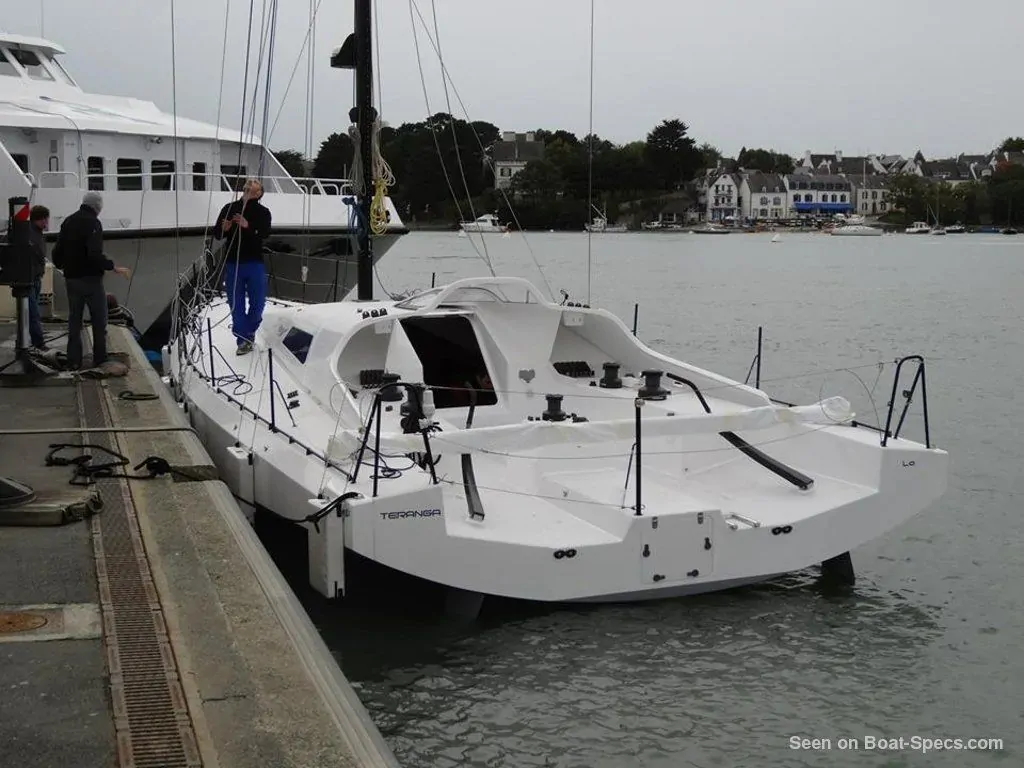

Pogo Structures Pogo 40S3 cockpit - - 6/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

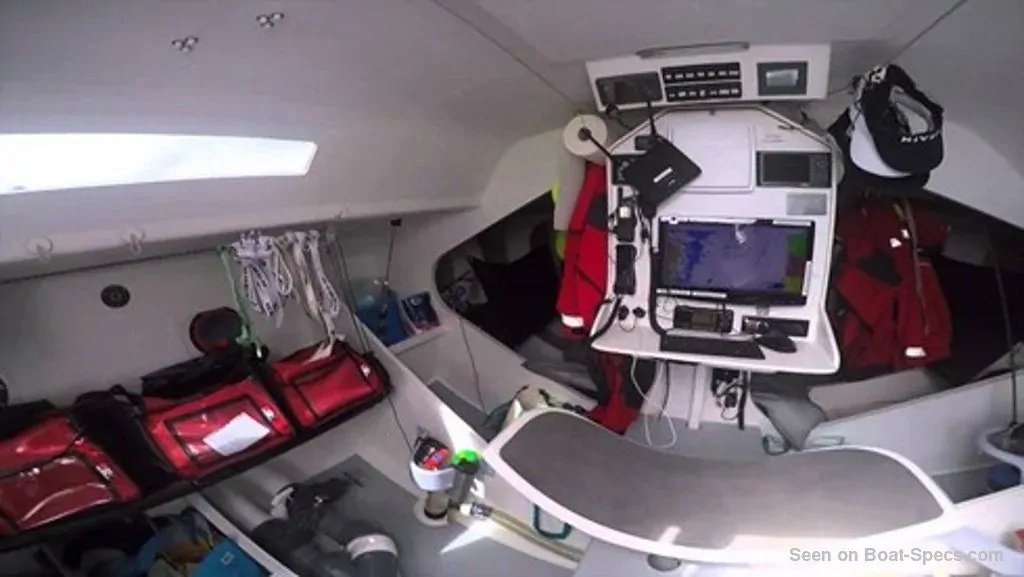

Pogo Structures Pogo 40S3 interior and accommodations - - 7/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

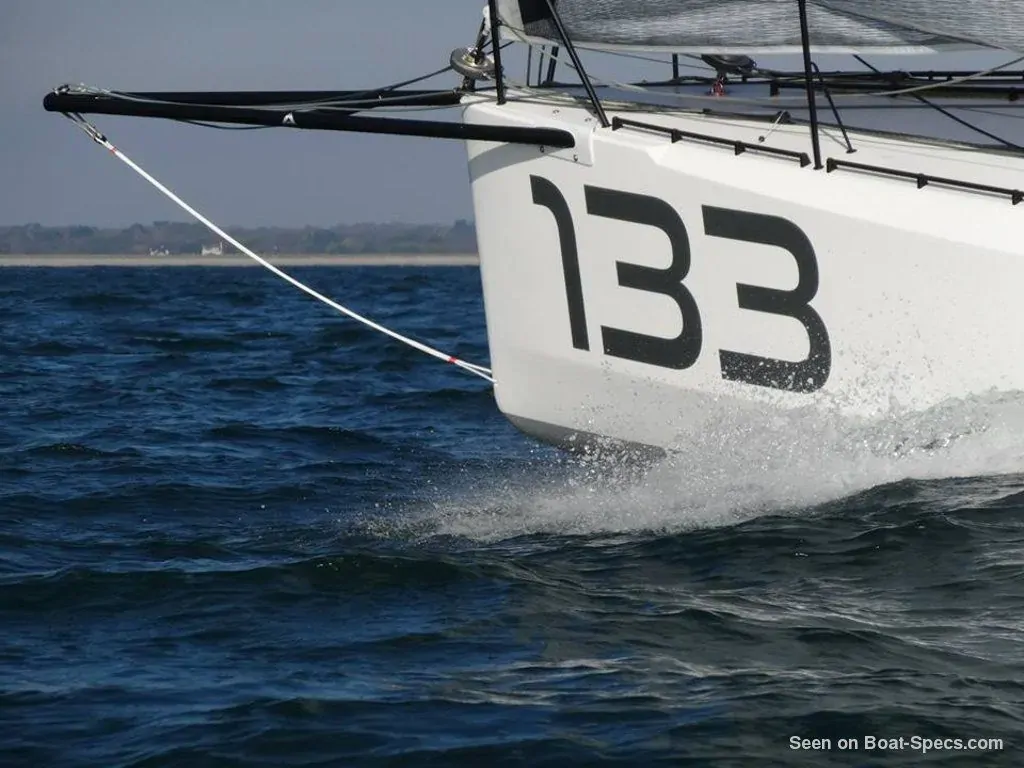

Pogo Structures Pogo 40S3 detail - - 8/8
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures
