Oyster 745 Keel and centerboard
Sailboat specifications

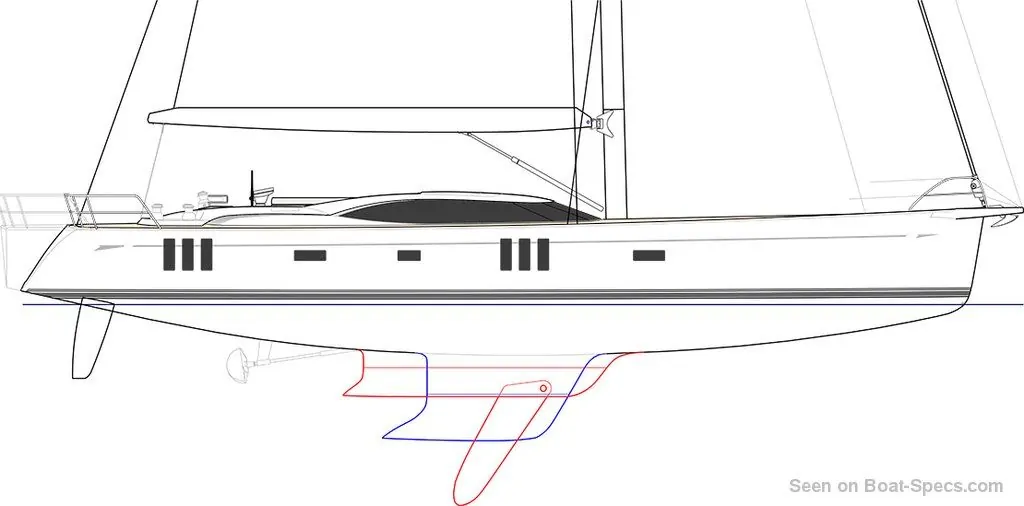

The Oyster 745 is a 71’8” (21.86m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She is built since 2014 by Oyster (United Kingdom). The Keel and centerboard version features a centerboard inside of a short fin-keel allowing shoal draft while maintaining upwind capabilities. She has been awarded "2018 - Cruising World - Boat of the Year: Luxury Cruiser".
The Oyster 745 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
The Oyster 745 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
Oyster 745's main features
- Model
- Oyster 745
- Version
- Keel and centerboard
- Hull type
- Monohull
- Category
- Offshore deck saloon cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- United Kingdom
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2014
- Last built hull
- Still in production
- Award(s)
- 2018: Cruising World - Boat of the Year: Luxury Cruiser
- Appendages
- Centerboard : pivoting centerboard in the keel
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About4 440 000 €(2016)
Oyster 745's main dimensions
- Overall length
- 74’ 7”22.74 m
- Hull length
- 71’ 8”21.86 m
- Waterline length
- 65’ 10”20.07 m
- Beam (width)
- 19’ 5”5.91 m
- Draft
- 15’ 7”4.75 m
- Draft when appendages up
- 6’ 11”2.1 m
- Mast height from DWL
- 110’ 7”33.7 m
- Light displacement (MLC)
- 115963 lb52600 kg
Oyster 745's rig and sails
- Upwind sail area
- 3001 ft²278.8 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Oyster 745's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 214 ft²/T19.86 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 184
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 10.87 knots
Oyster 745's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 247 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 528.3 gal2000 liters

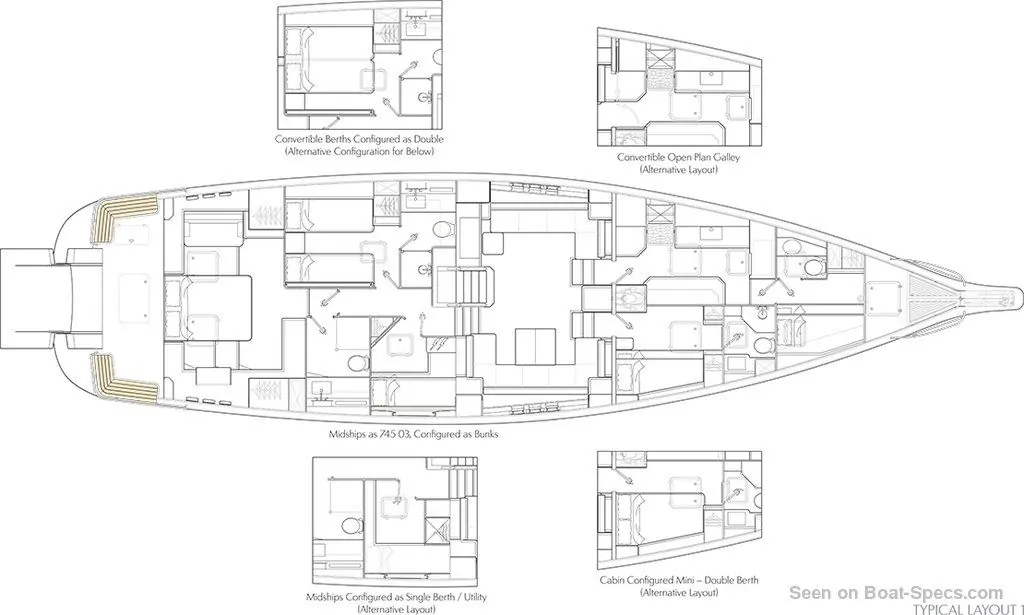

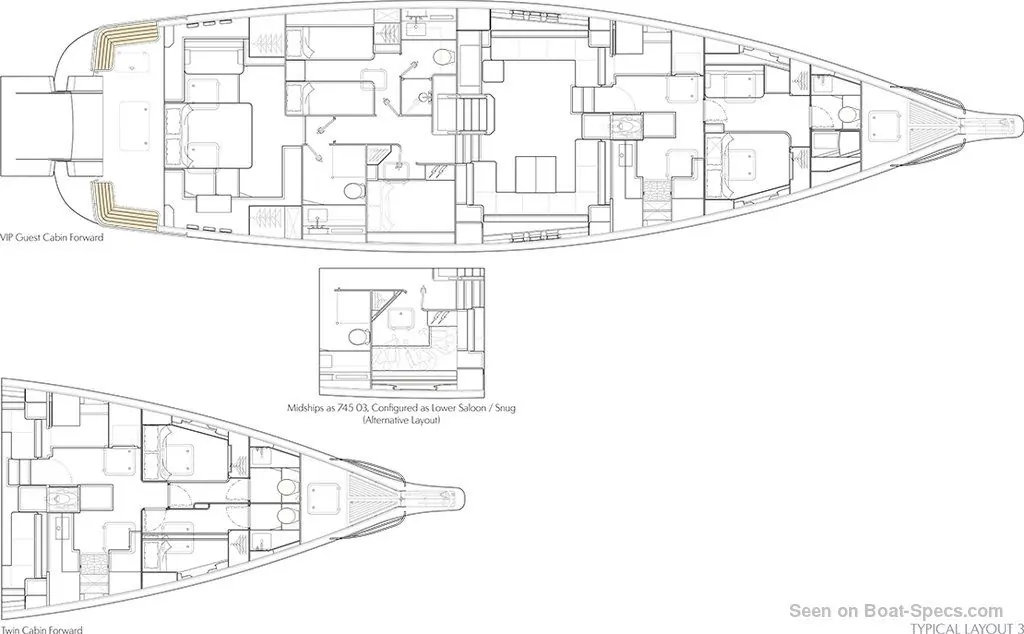

Oyster 745's accommodations and layout

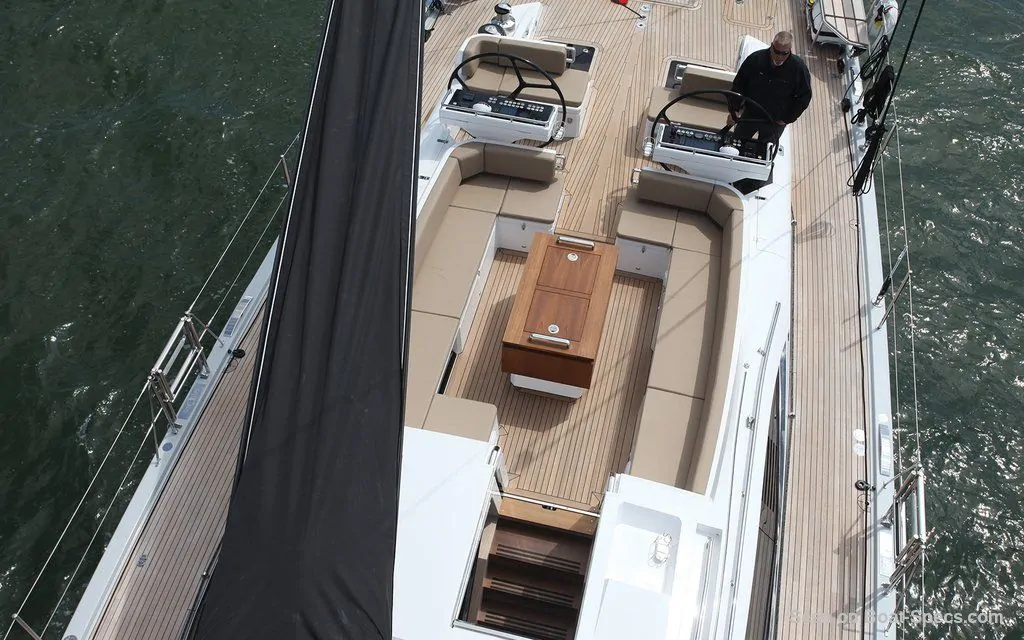

- Cockpit
- Center cockpit
- Cabin(s) (min./max.)
- 3 / 5
- Berth(s) (min./max.)
- 6 / 10
- Head(s)
- 4
- Freshwater tank capacity
- 396.3 gal1500 liters

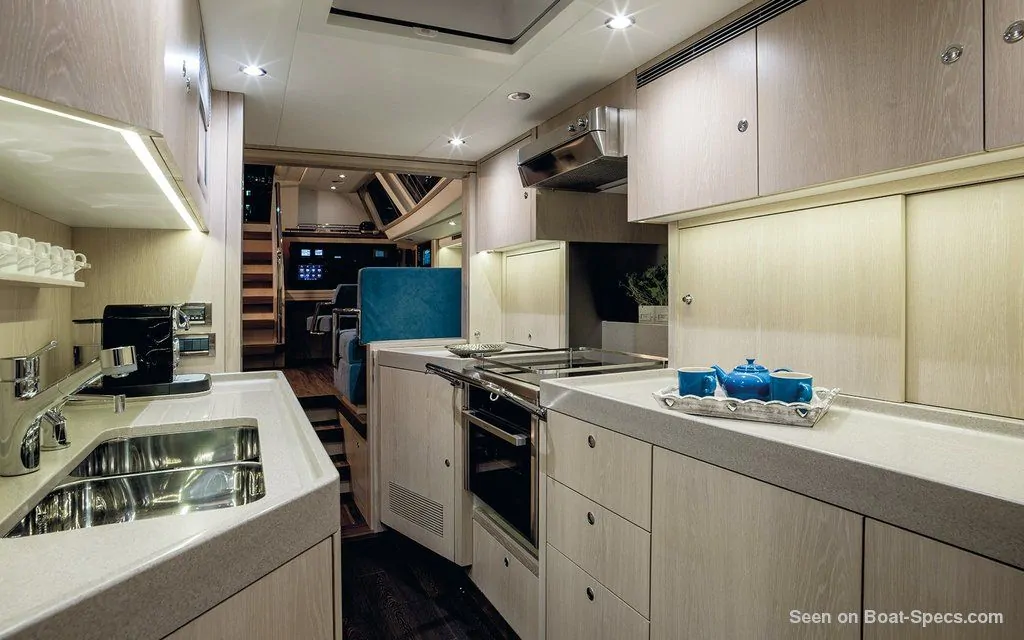

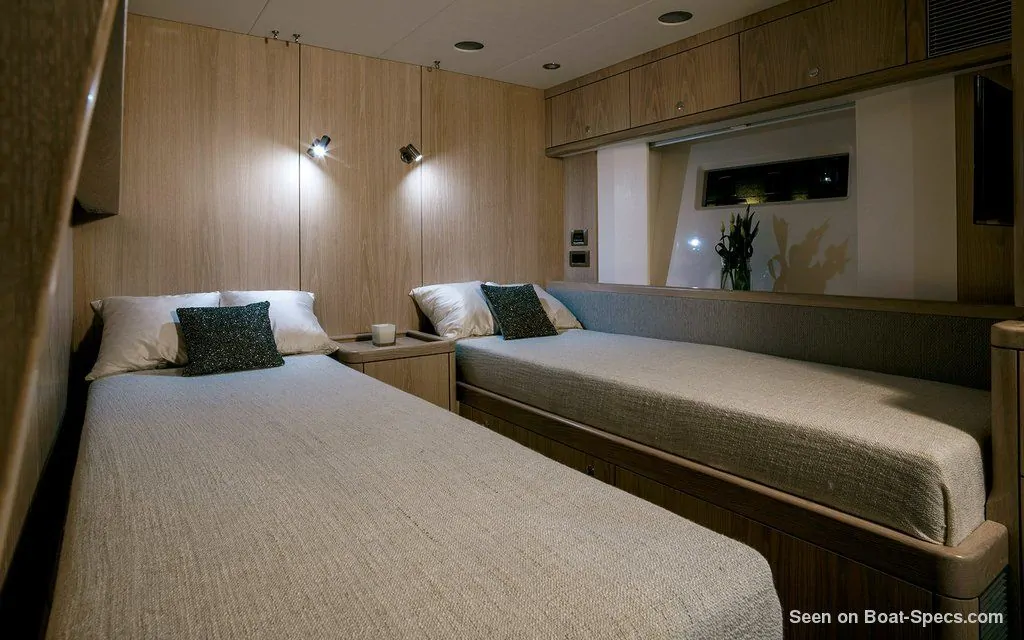

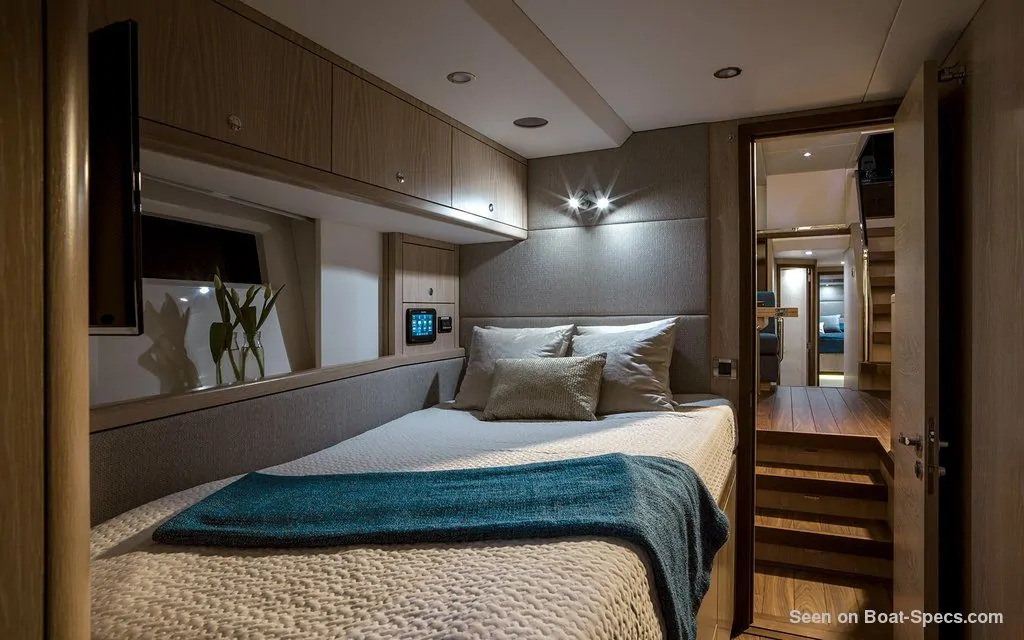

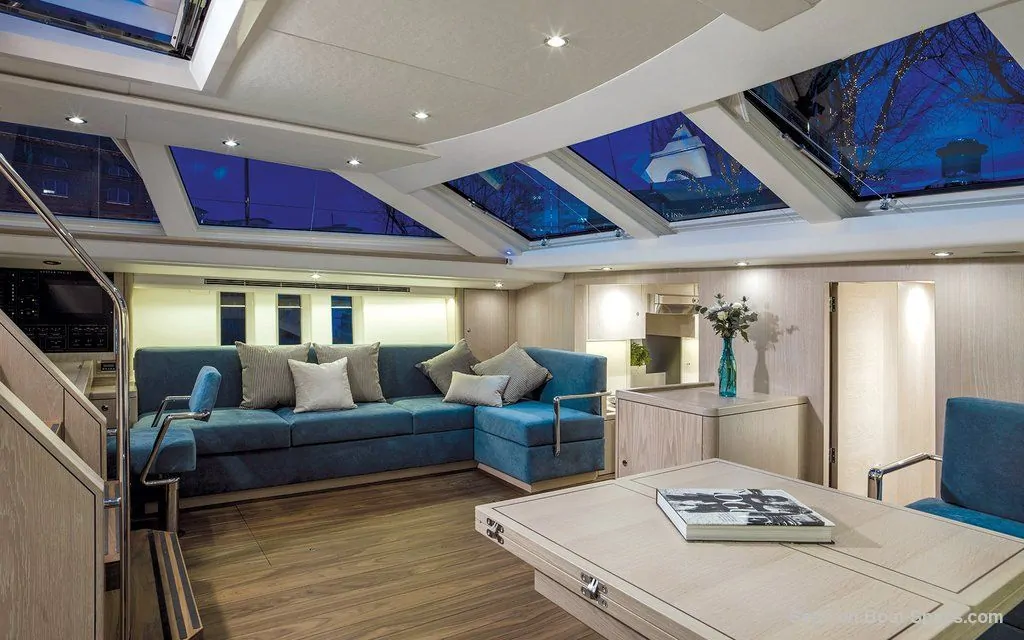

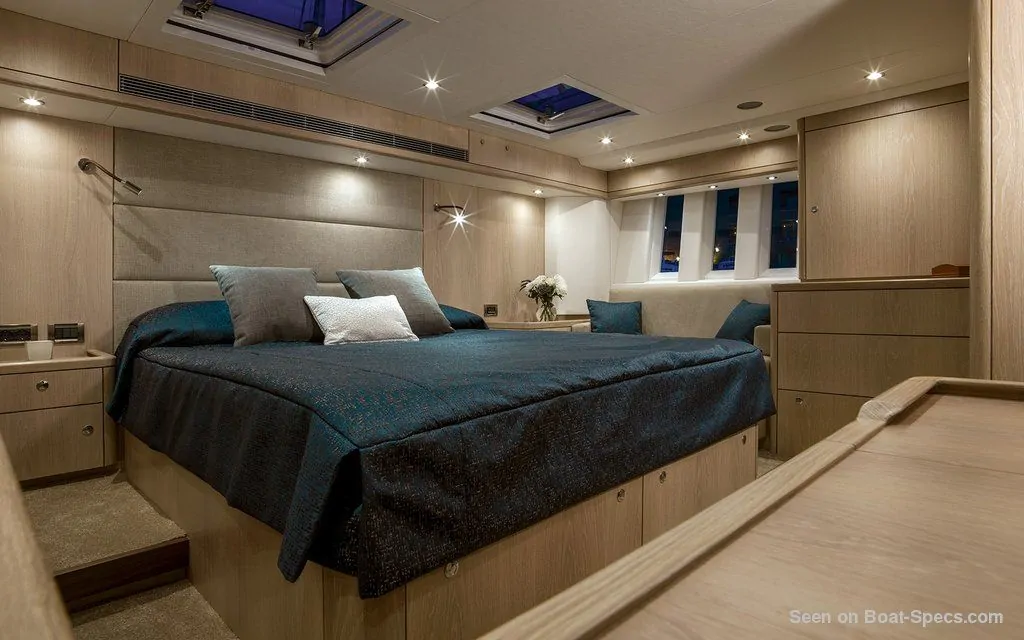

Oyster 745 interior and accommodations - - 17/21
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 745 interior and accommodations - - 18/21
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 745 interior and accommodations - - 19/21
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 745 interior and accommodations - - 20/21
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 745 interior and accommodations - - 21/21
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
