Oyster 545 Keel and centerboard
Sailboat specifications
The Oyster 545 is a 52’11” (16.12m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She was built between 2013 and 2018 by Oyster (United Kingdom). The Keel and centerboard version features a centerboard inside of a short fin-keel allowing shoal draft while maintaining upwind capabilities.
The Oyster 545 has also been marketed as Oyster 54 and she is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).
The Oyster 545 has also been marketed as Oyster 54 and she is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).
Oyster 545's main features
- Model
- Oyster 545
- Version
- Keel and centerboard
- Hull type
- Monohull
- Category
- Offshore deck saloon cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- United Kingdom
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2013
- Last built hull
- 2018
- Appendages
- Centerboard : pivoting centerboard in the keel
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About1 300 000 €(2016)
Oyster 545's main dimensions
- Overall length
- 53’ 11”16.43 m
- Hull length
- 52’ 11”16.12 m
- Waterline length
- 46’ 4”14.1 m
- Beam (width)
- 15’ 7”4.75 m
- Draft
- 11’ 7”3.53 m
- Draft when appendages up
- 5’ 1”1.55 m
- Mast height from DWL
- 70’ 6”21.5 m
- Light displacement (MLC)
- 46992 lb21315 kg

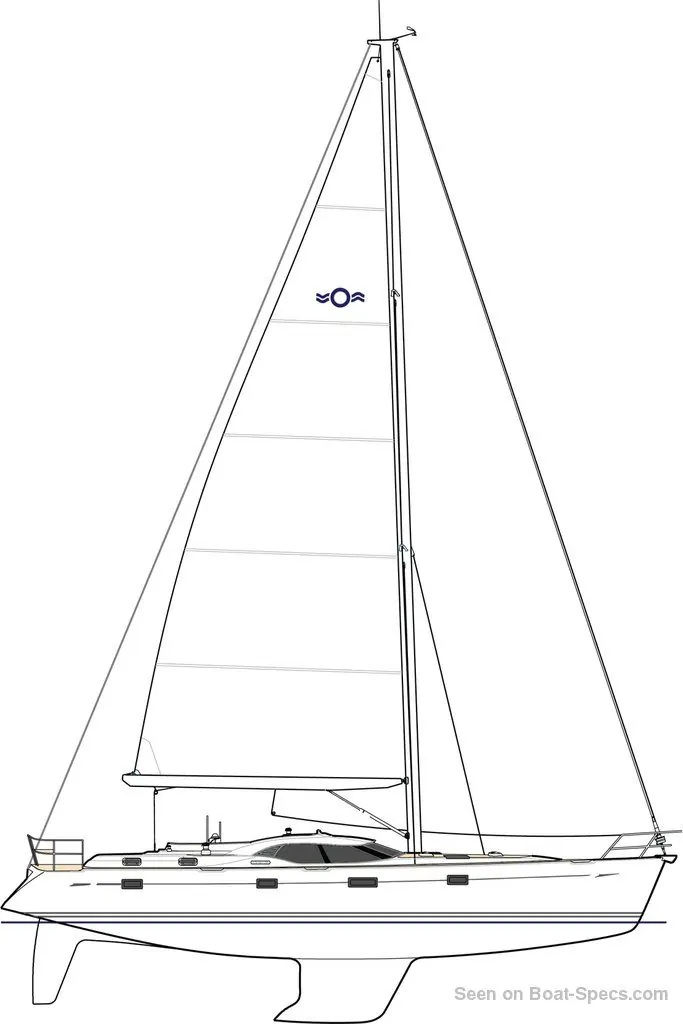

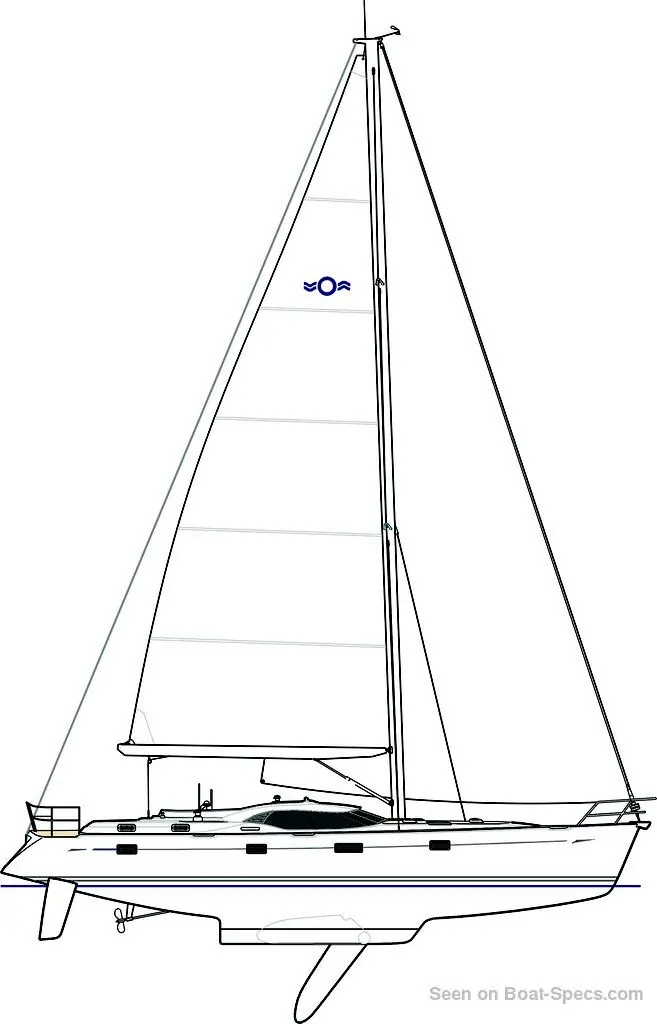

Oyster 545's rig and sails
- Upwind sail area
- 1659 ft²154.09 m²
- Rigging type
- Sloop Marconi masthead
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Oyster 545's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 216 ft²/T20.04 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 215
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.11 knots
Oyster 545's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 110 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 224.5 gal850 liters
Oyster 545's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s)
- 3
- Berth(s) (min./max.)
- 6 / 8
- Head(s)
- 2
- Freshwater tank capacity
- 198.1 gal750 liters

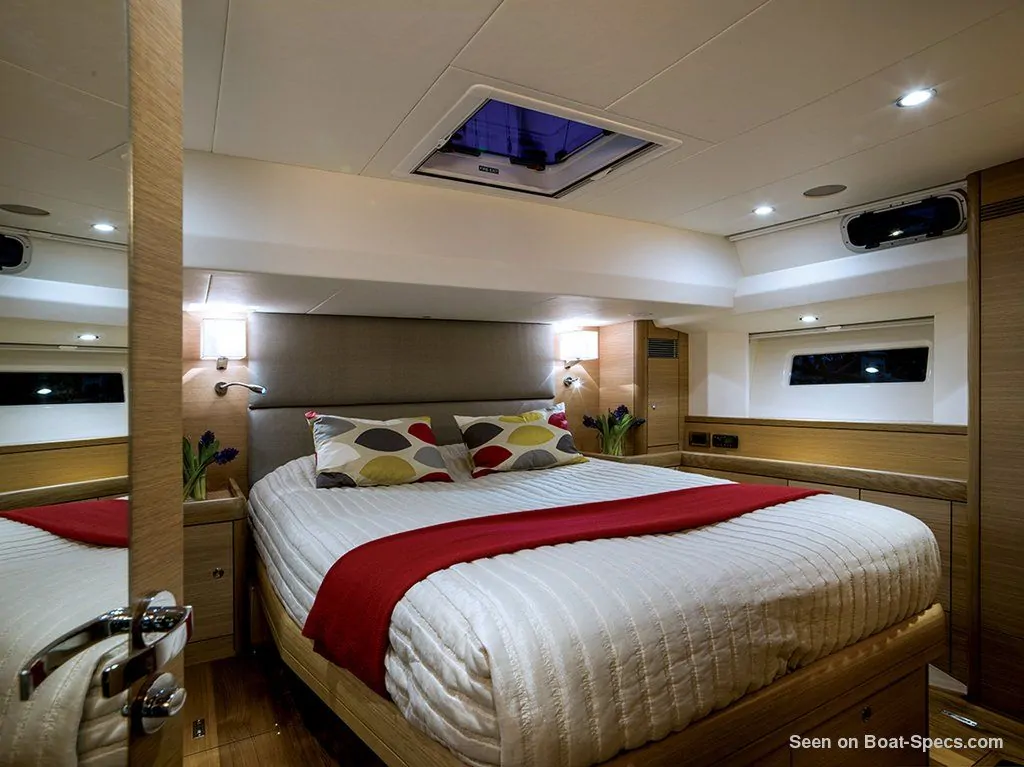

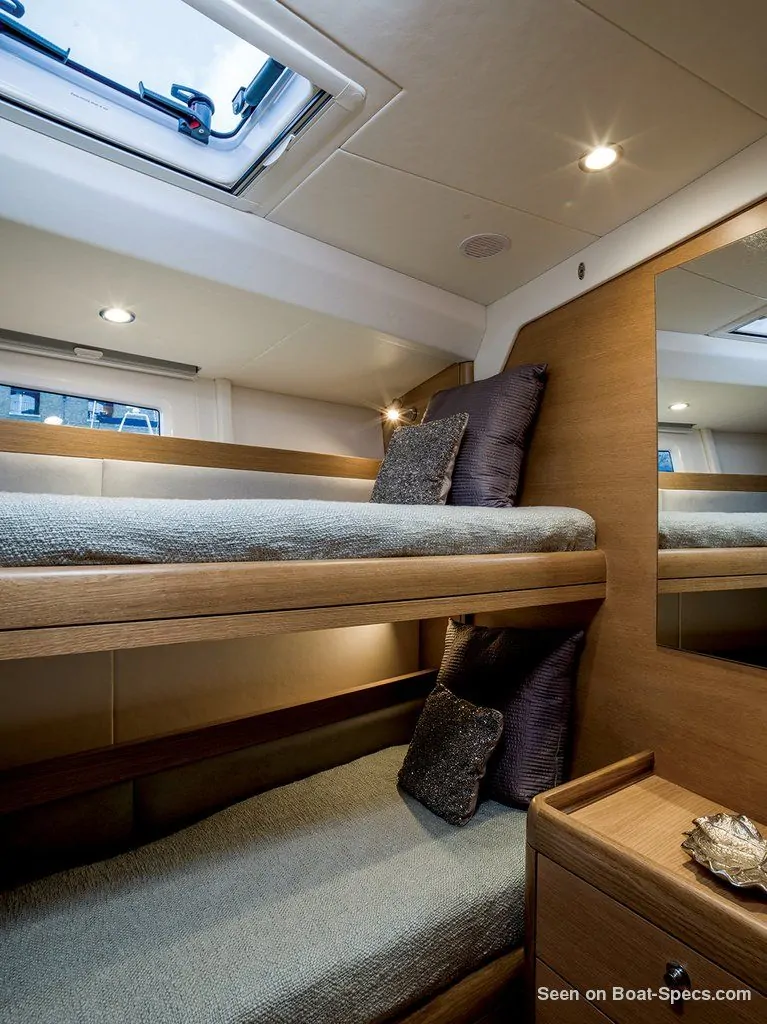

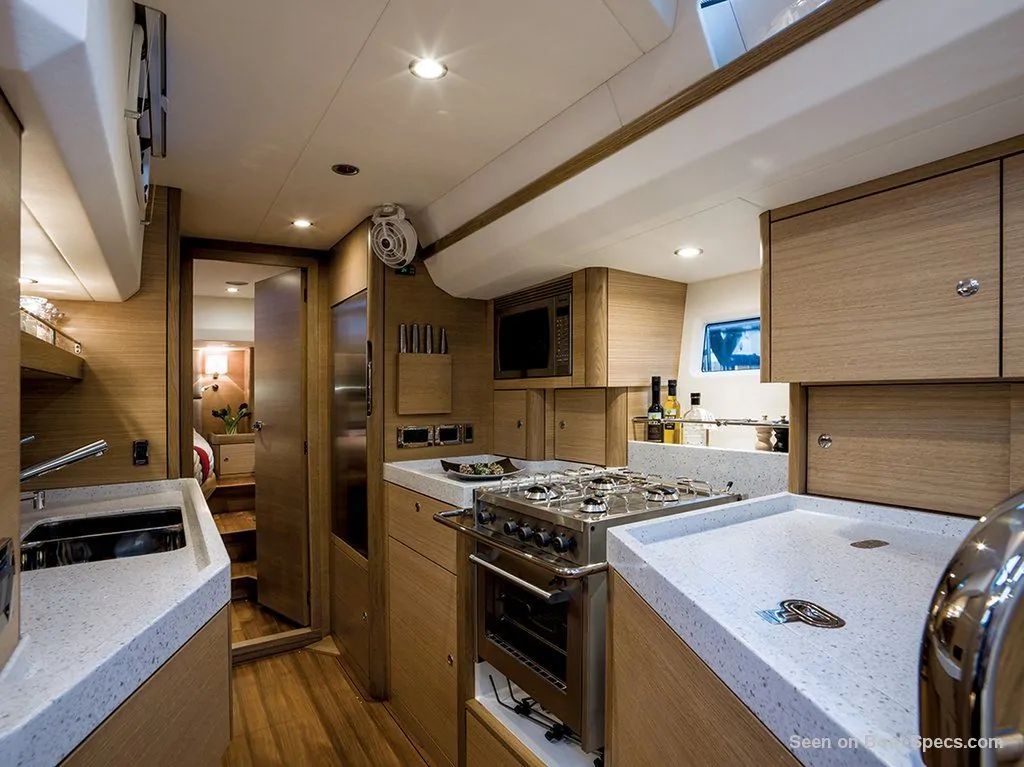

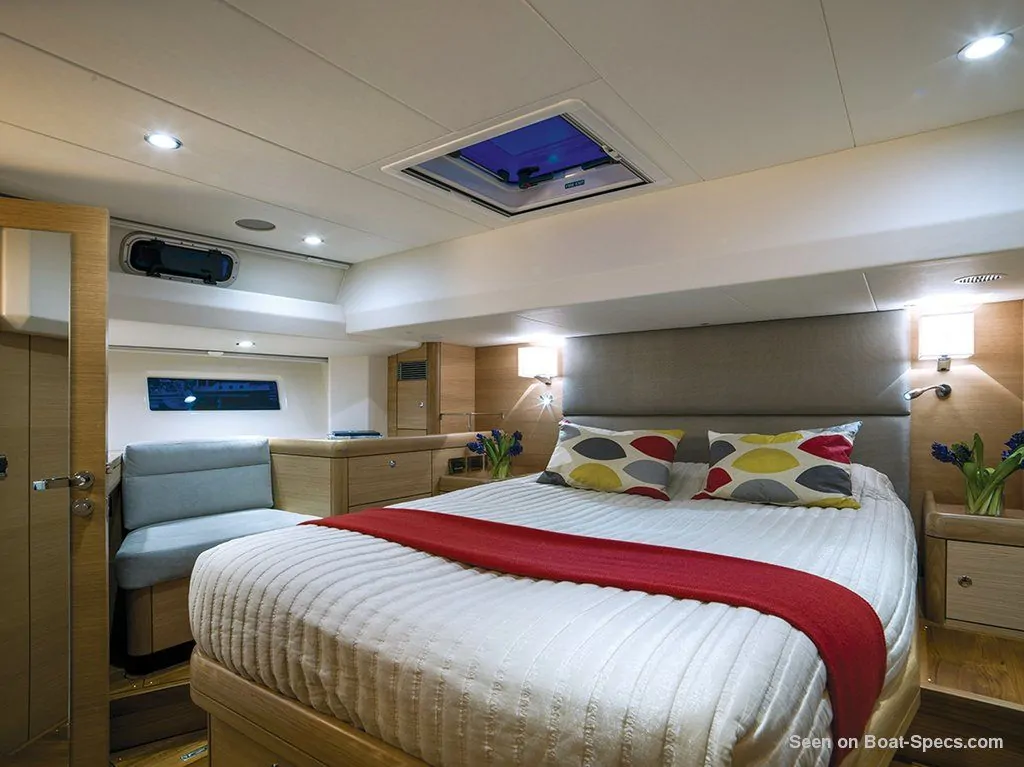

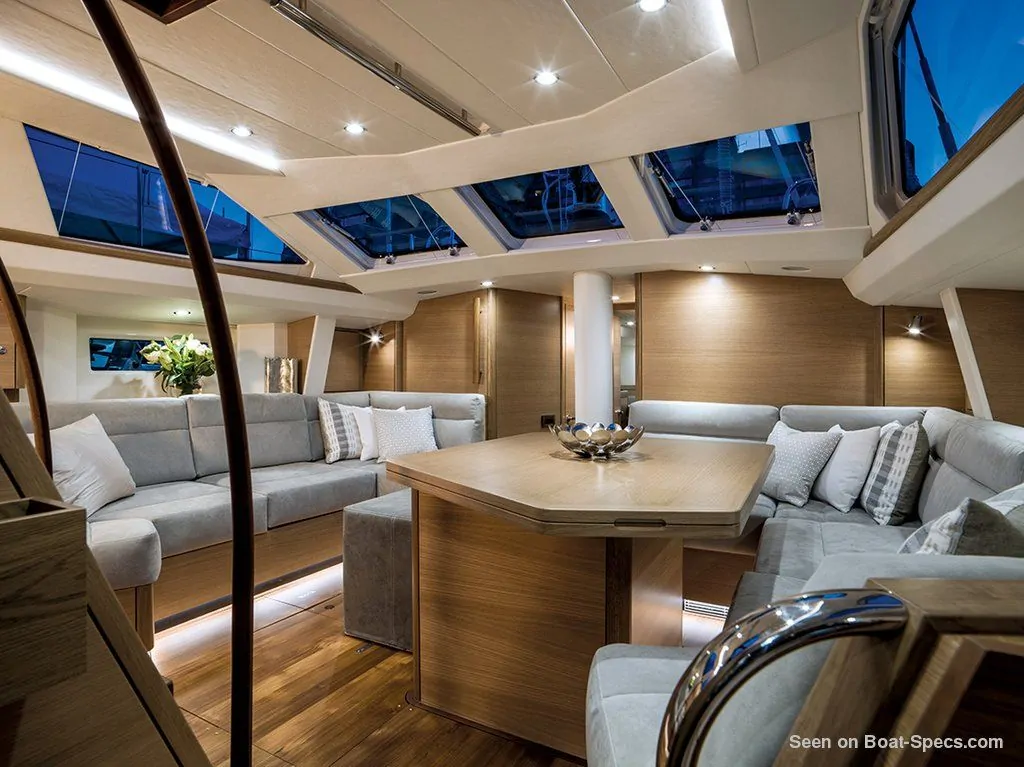

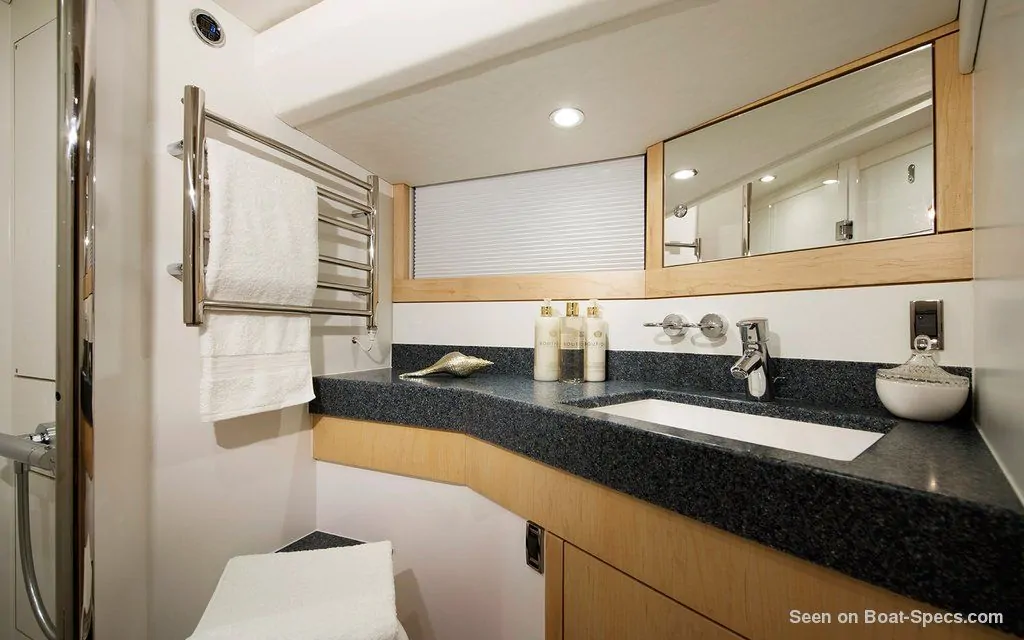

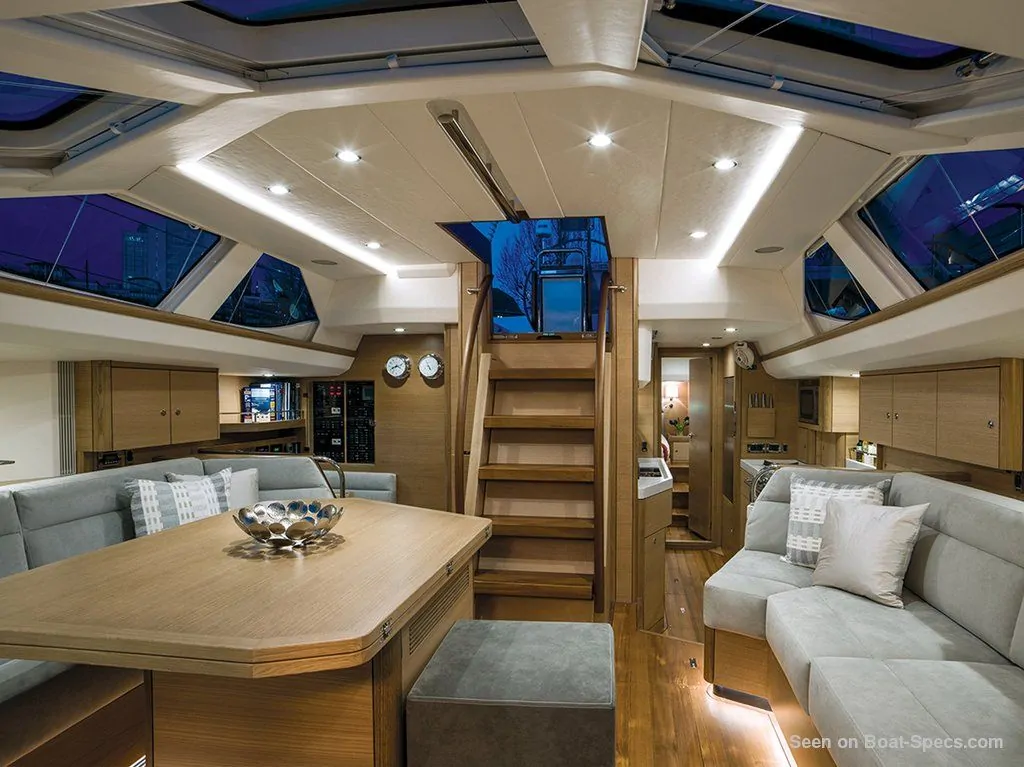

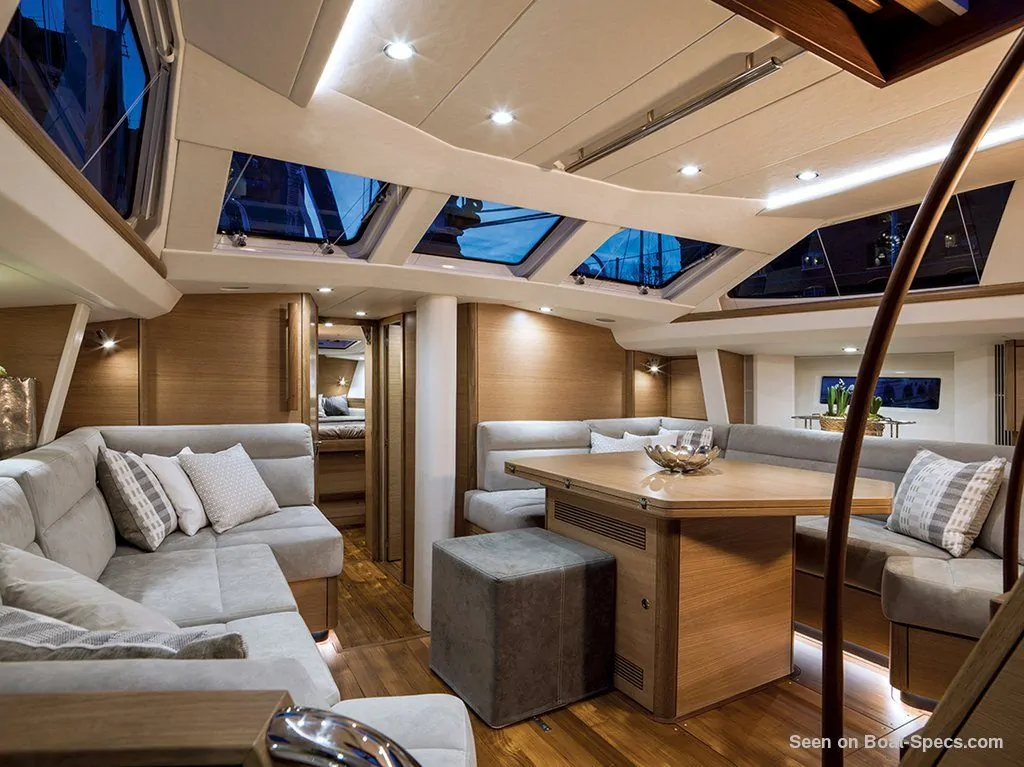

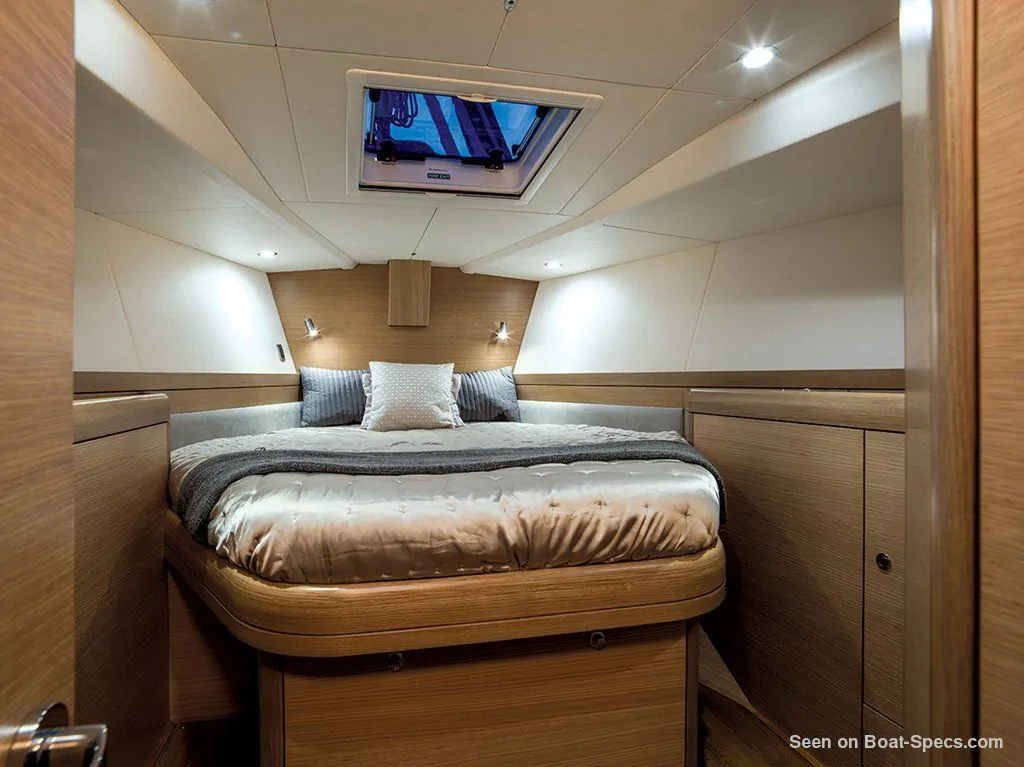

Oyster 545 interior and accommodations - - 10/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 11/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 12/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 13/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 14/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 15/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 16/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 17/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 545 interior and accommodations - - 18/18
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
