Oyster 475 Standard
Sailboat specifications

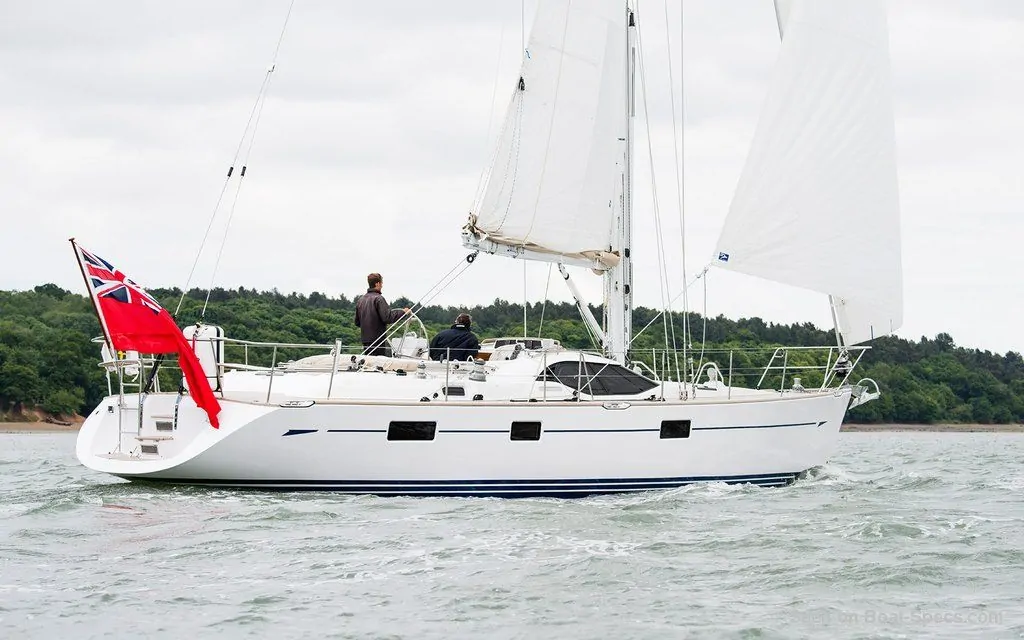

The Oyster 475 is a 47’6” (14.48m) cruising sailboat designed by Holman & Pye (United Kingdom). She was built between 2012 and 2018 by Oyster (United Kingdom).
The Oyster 475 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Oyster 475 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Oyster 475's main features
- Model
- Oyster 475
- Version
- Standard
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- United Kingdom
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2012
- Last built hull
- 2018
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Single helm wheel
- Rudder
- Single rudder on skeg
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About975 000 €(2016)
Oyster 475's main dimensions
- Overall length
- 48’ 7”14.81 m
- Hull length
- 47’ 6”14.48 m
- Waterline length
- 40’ 7”12.36 m
- Beam (width)
- 14’ 6”4.41 m
- Draft
- 7’ 1”2.16 m
- Mast height from DWL
- 62’ 5”19.03 m
- Light displacement (MLC)
- 35274 lb16000 kg

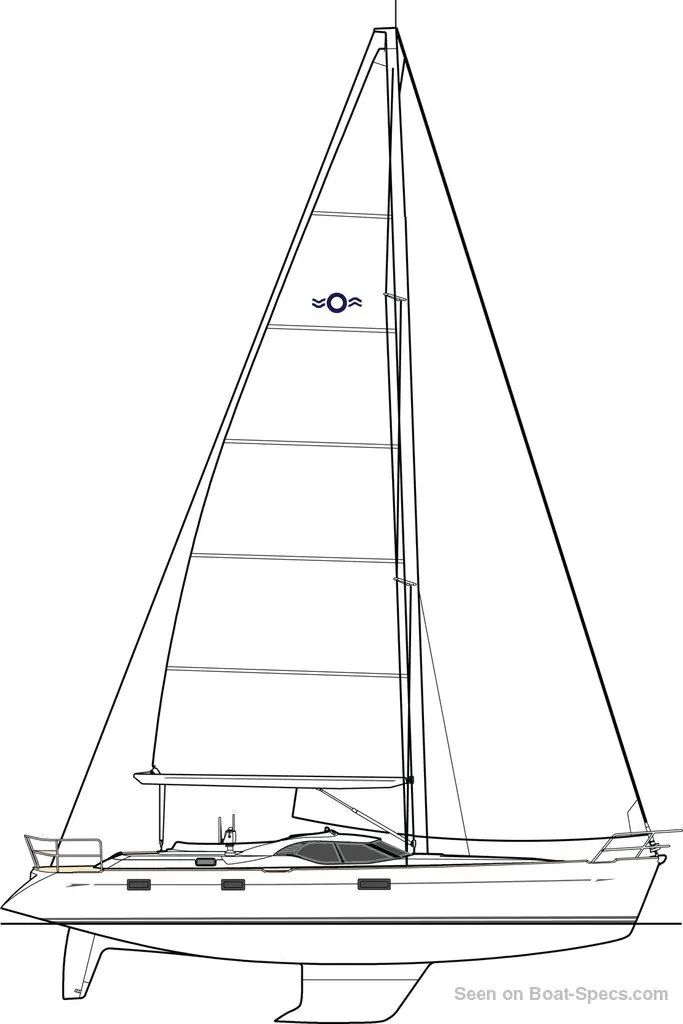

Oyster 475's rig and sails
- Upwind sail area
- 1293 ft²120.1 m²
- Rigging type
- Sloop Marconi masthead
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Oyster 475's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 204 ft²/T18.91 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 240
- Righting moment @ 30°iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 73777 lb.ft10200 kg.m
- Maximum righting momentiThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 95476 lb.ft13200 kg.m @ 50.00 °
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.53 knots
Oyster 475's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 75 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 198.1 gal750 liters

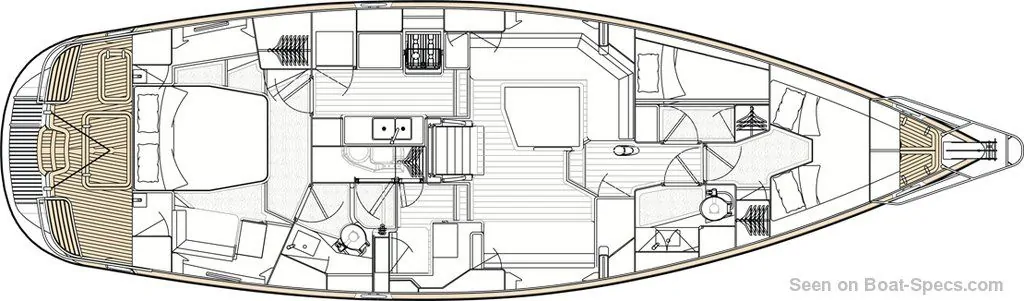

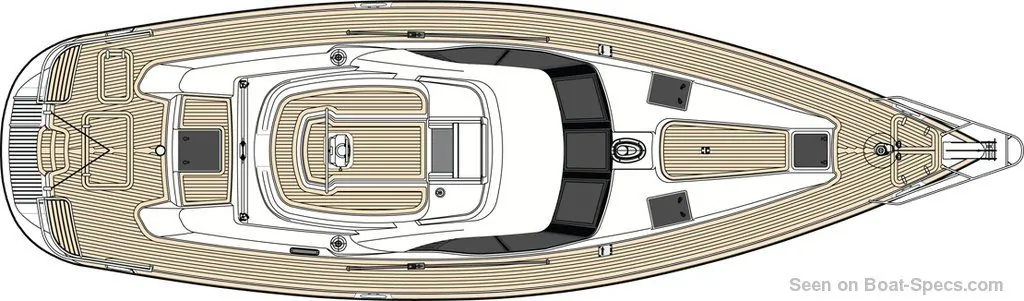

Oyster 475's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 4 / 8
- Head(s)
- 2
- Freshwater tank capacity
- 171.7 gal650 liters

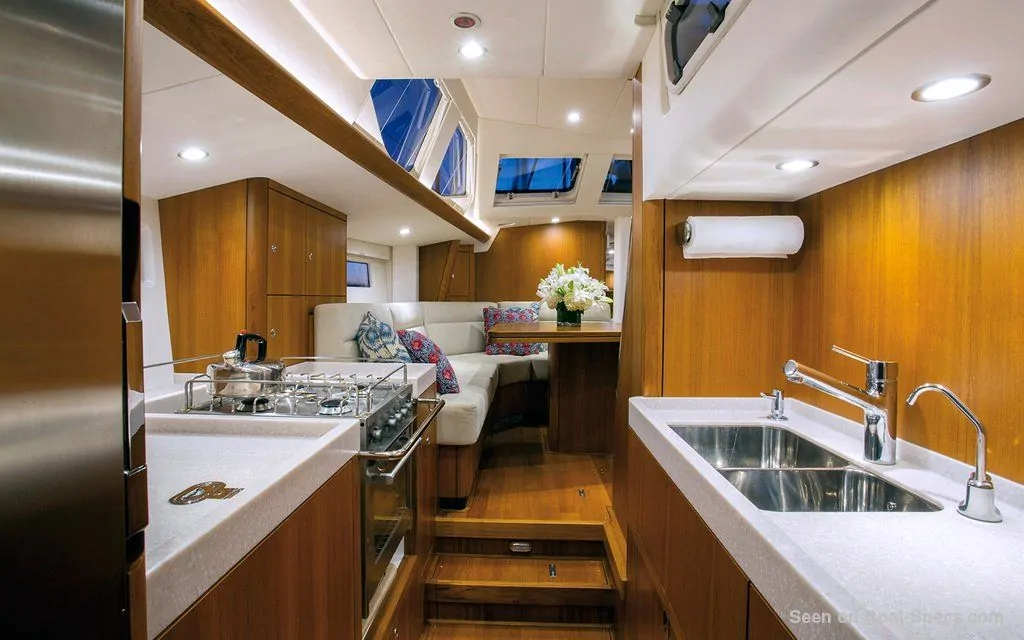

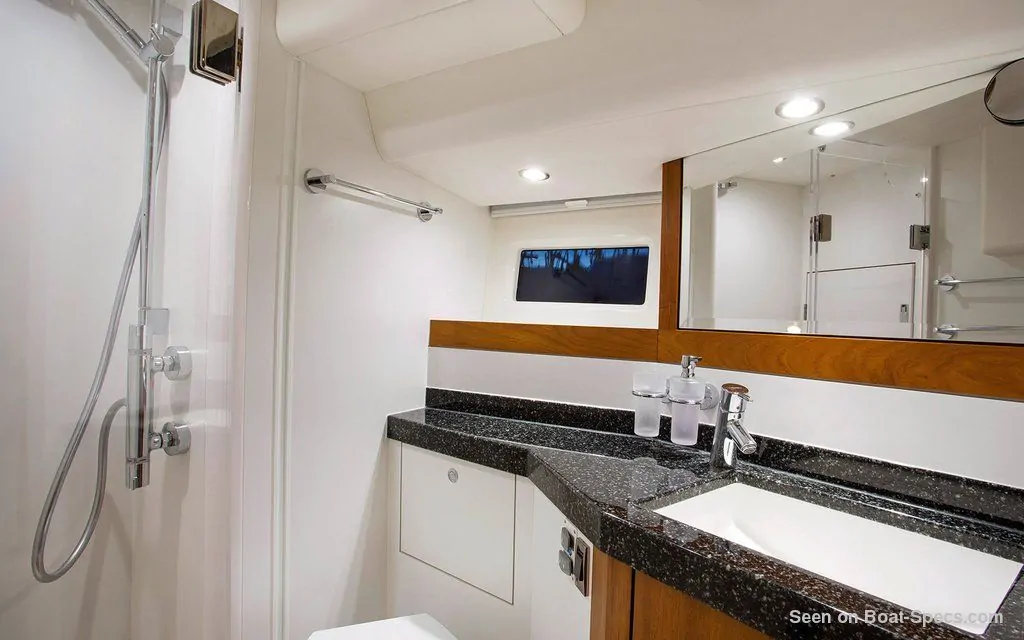

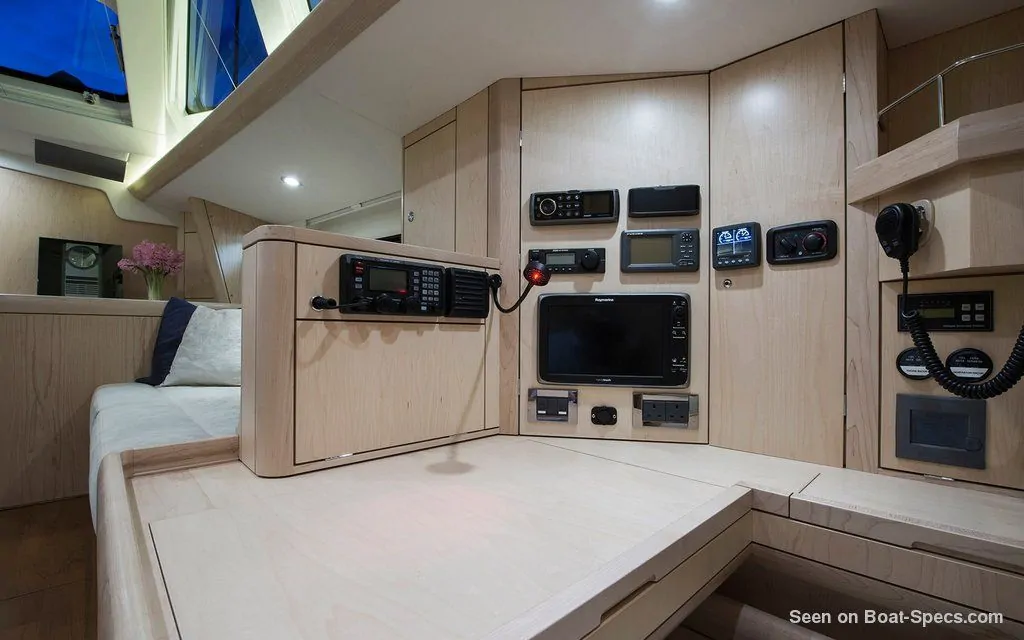

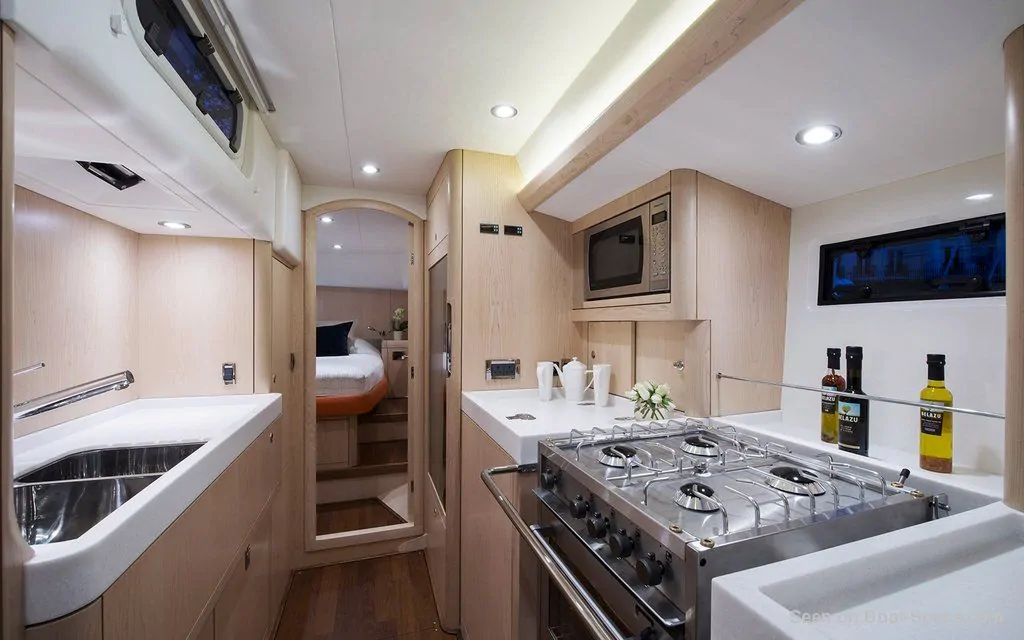

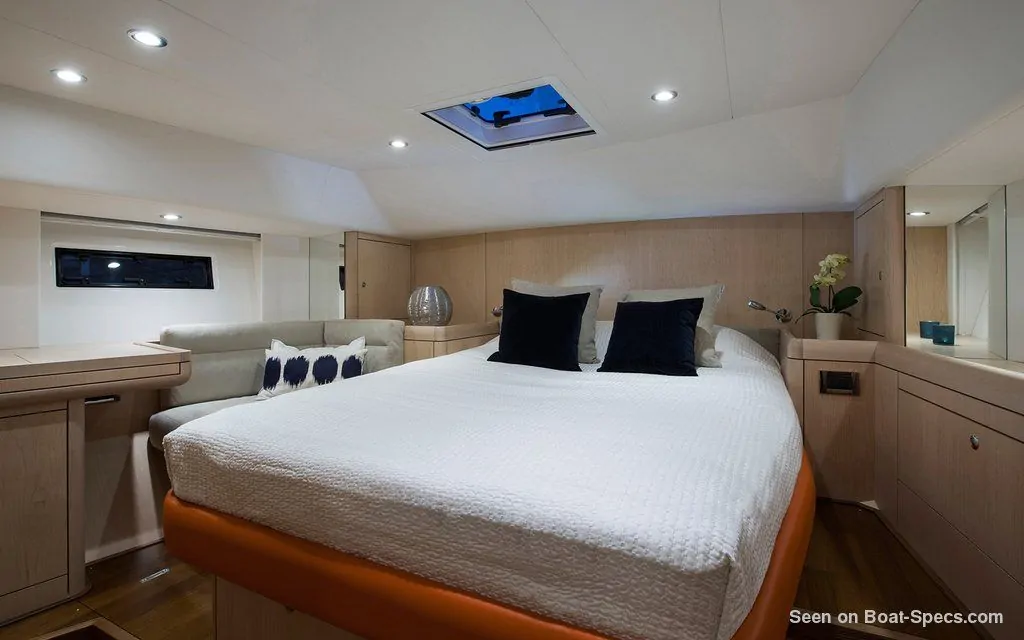

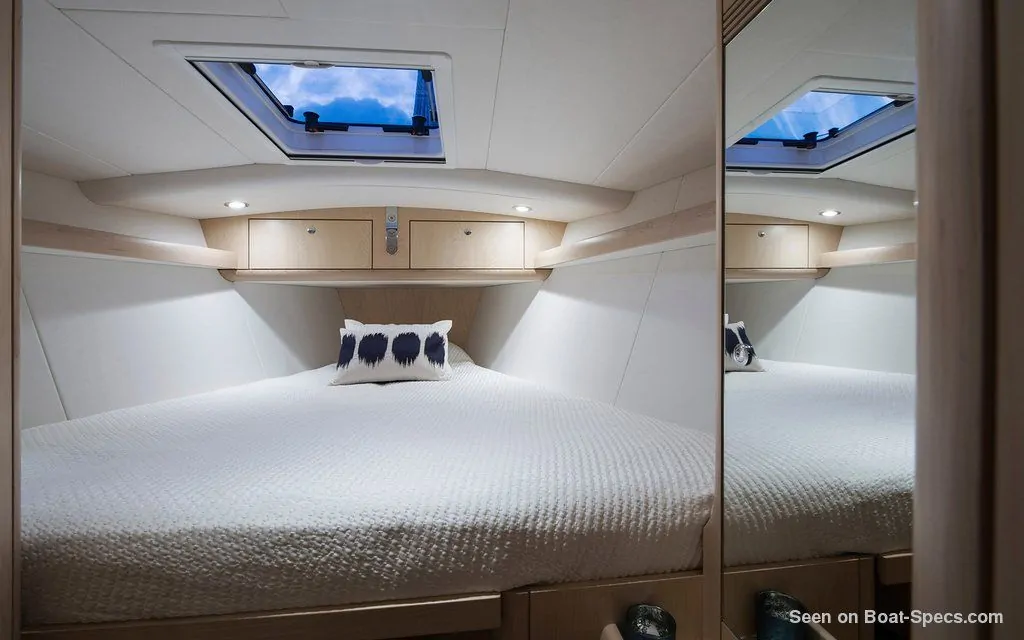

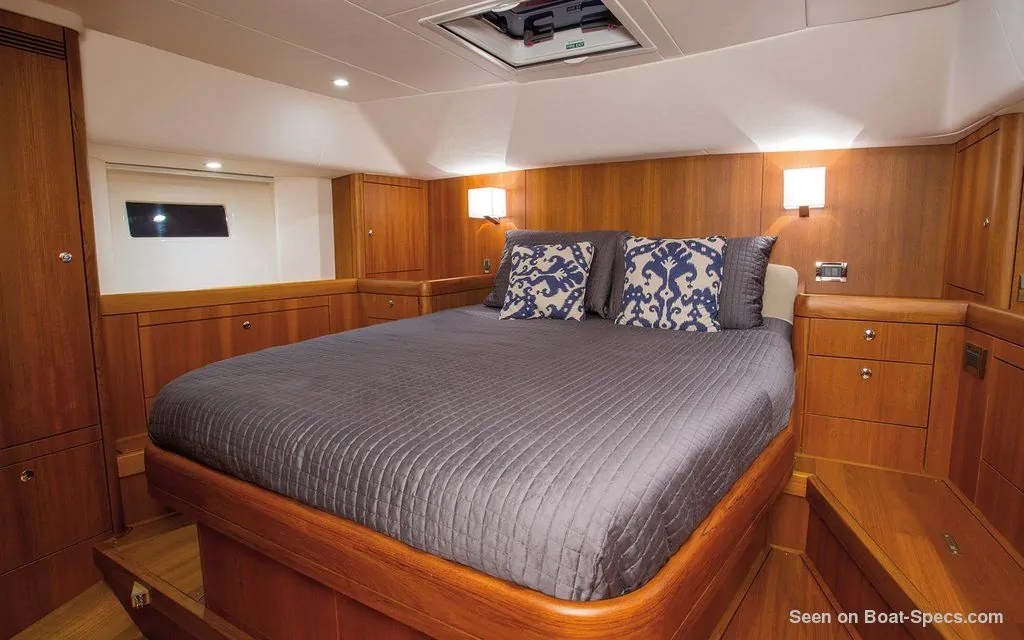

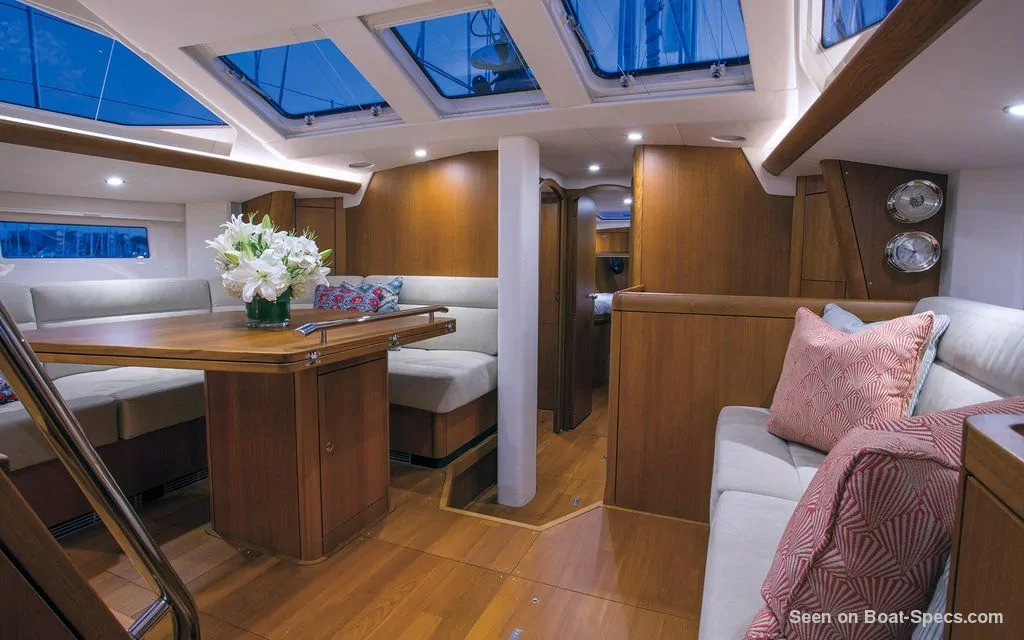

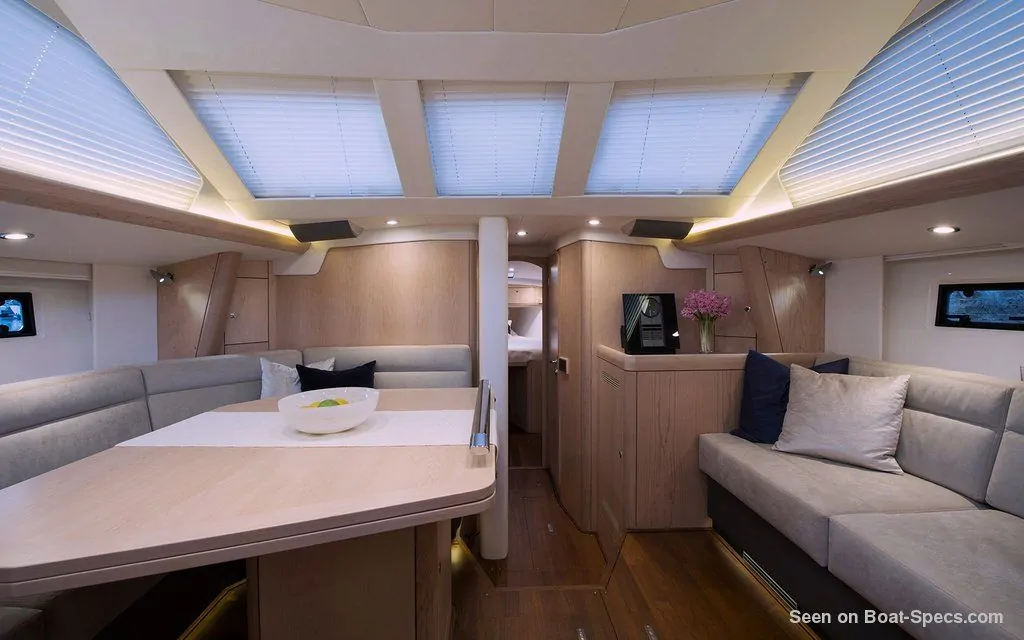

Oyster 475 interior and accommodations - - 6/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 7/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 8/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 9/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 10/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 11/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 12/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 13/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
Oyster 475 interior and accommodations - - 14/14
Picture extracted from the commercial documentation © Oyster
Picture extracted from the commercial documentation © Oyster
