Outremer 51
Sailboat specifications
The Outremer 51 is a 51’4” (15.65m) fast cruising catamaran designed by Christophe Barreau (France) and Frédéric Neuman (France). She is built since 2013 by Outremer Yachting (France).
Outremer 51's main features
- Model
- Outremer 51
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Single skin bottom, sandwich sides and deck: fiberglass polyester with carbon fiber reinforcements - First built hull
- 2013
- Last built hull
- Still in production
- Appendages
- Centerboard : twin daggerboards
- Helm
- Twin tillers
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About780 000 €(2020)
Outremer 51's main dimensions
- Hull length
- 51’ 4”15.65 m
- Beam (width)
- 24’ 5”7.45 m
- Draft
- 7’ 8”2.35 m
- Draft when appendages up
- 3’ 1”0.95 m
- Mast height from DWL
- 75’ 8”23.08 m
- Light displacement (MLC)
- 24251 lb11000 kg
- Maximum displacement (MLDC)
- 30203 lb13700 kg
Outremer 51's rig and sails
- Upwind sail area
- 1389 ft²129 m²
- Downwind sail area
- 2734 ft²254 m²
- Mainsail area
- 958 ft²89 m²
- Solent area
- 431 ft²40 m²
- Asymmetric spinnaker area
- 1776 ft²165 m²
- Gennaker area
- 1453 ft²135 m²
- Rigging type
- Cat boat Marconi (square top mainsail) 7/8
- Mast configuration
- Deck stepped mast
- Rotating spars
- Yes
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
Outremer 51's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 281 ft²/T26.08 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 553 ft²/T51.35 m²/T
Outremer 51's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 40 HP
- Fuel type
- Diesel
Outremer 51's accommodations and layout
- Cockpit
- Closed aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 11
- Head(s)
- 3
Outremer Yachting Outremer 51 - - 1/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting

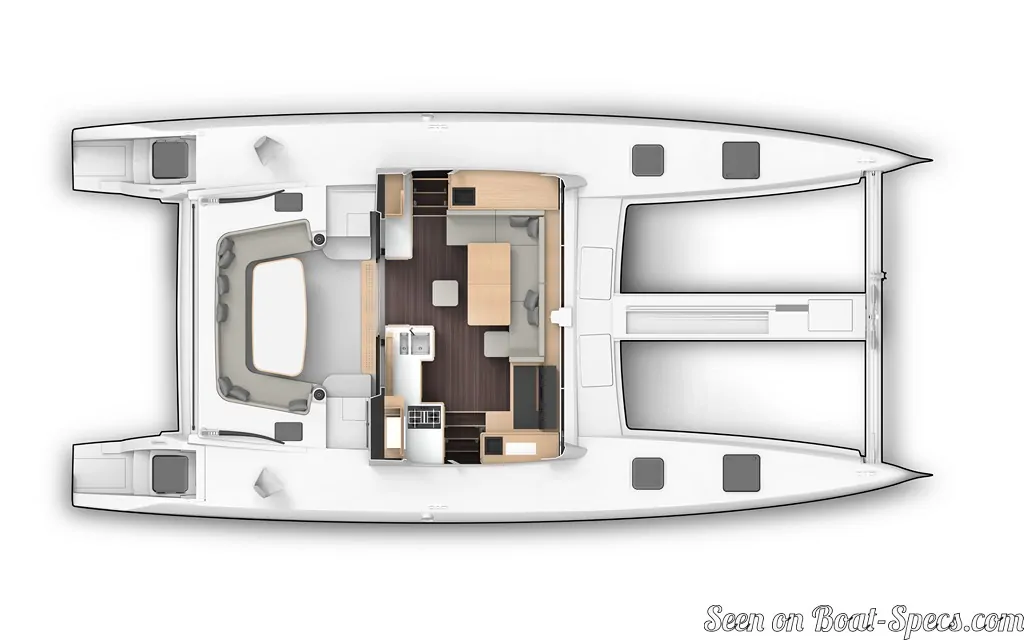

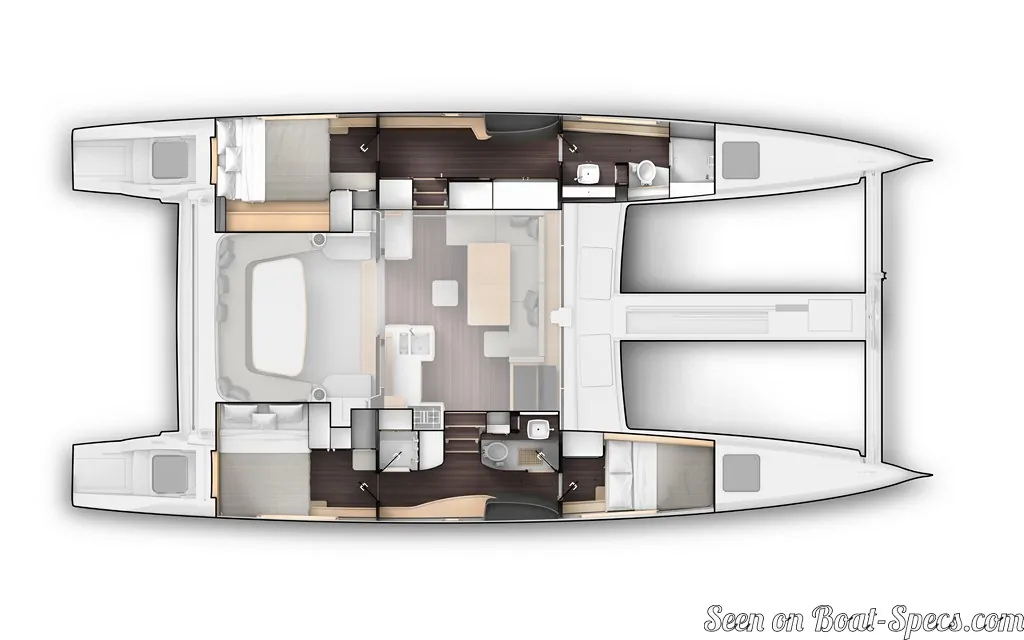

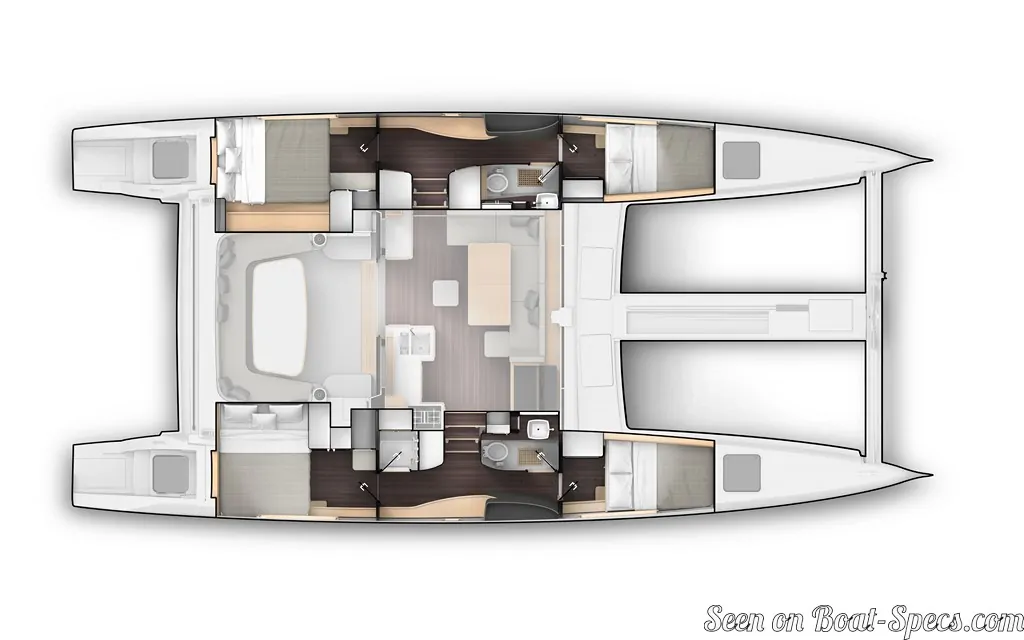

Outremer Yachting Outremer 51 layout - - 2/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 layout - - 3/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 layout - - 4/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting

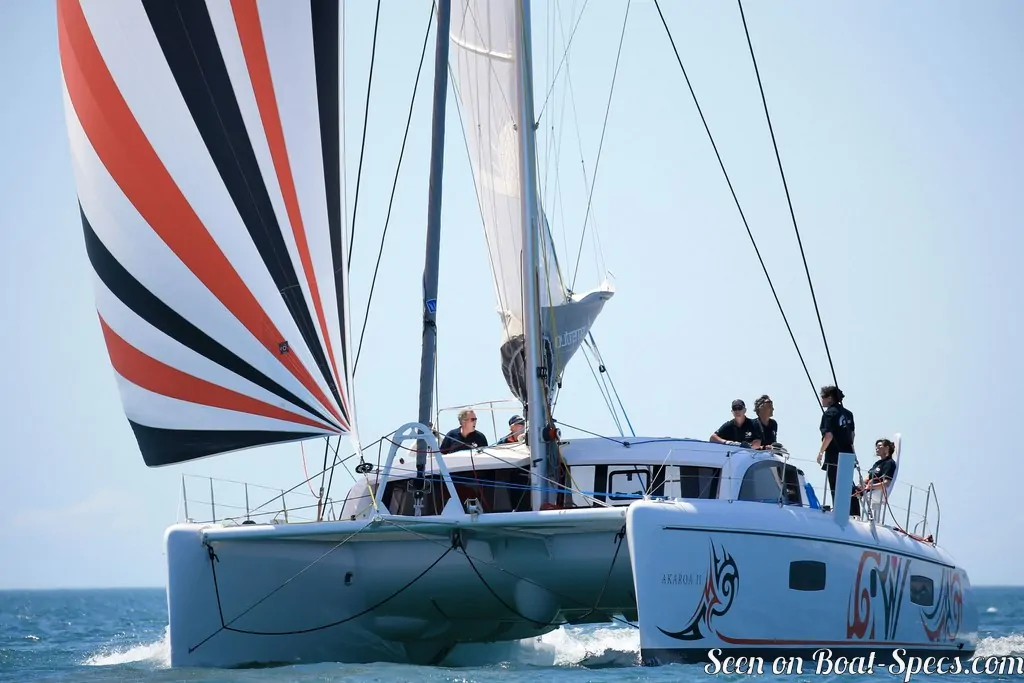

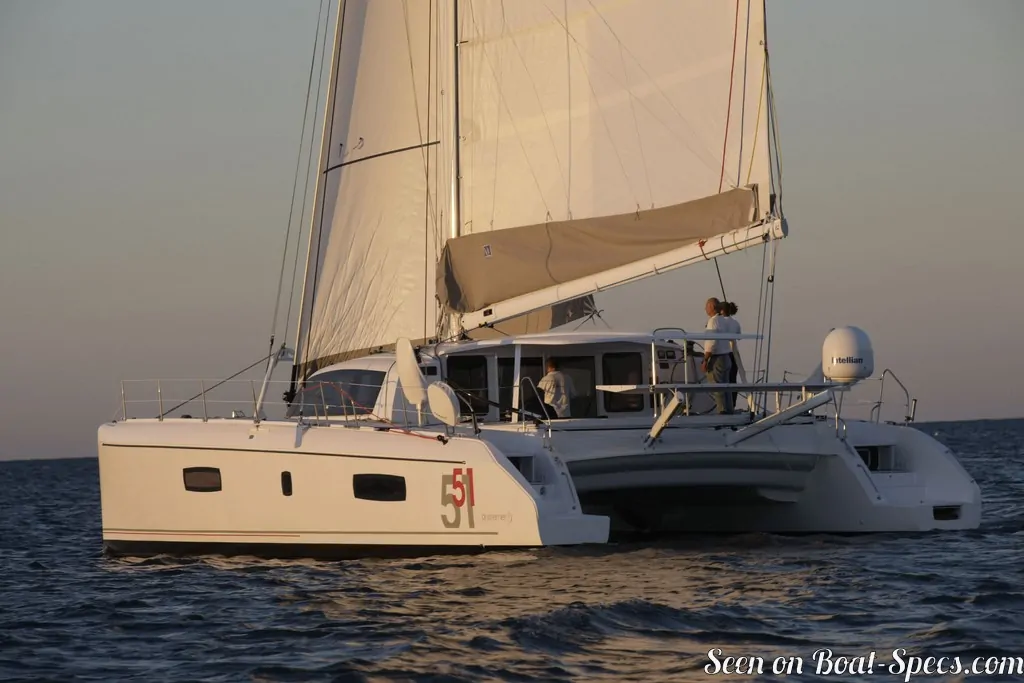

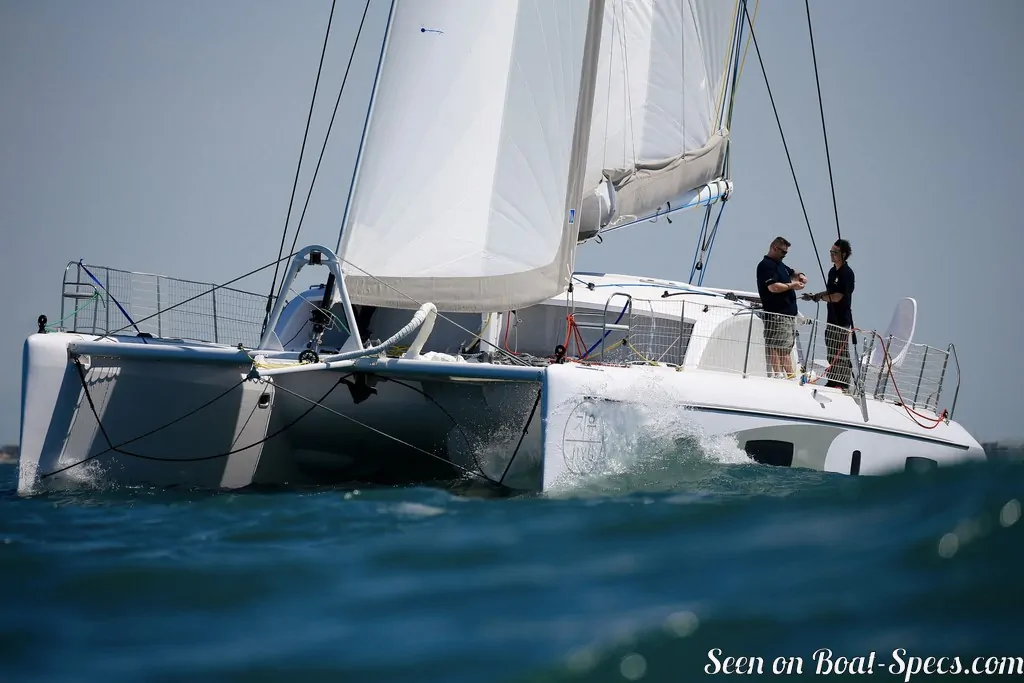

Outremer Yachting Outremer 51 sailing - - 5/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 sailing - - 6/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 sailing - - 7/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting

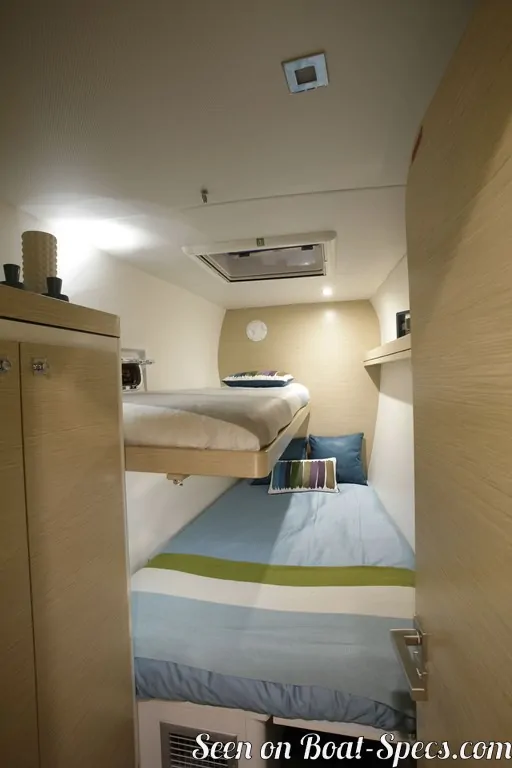

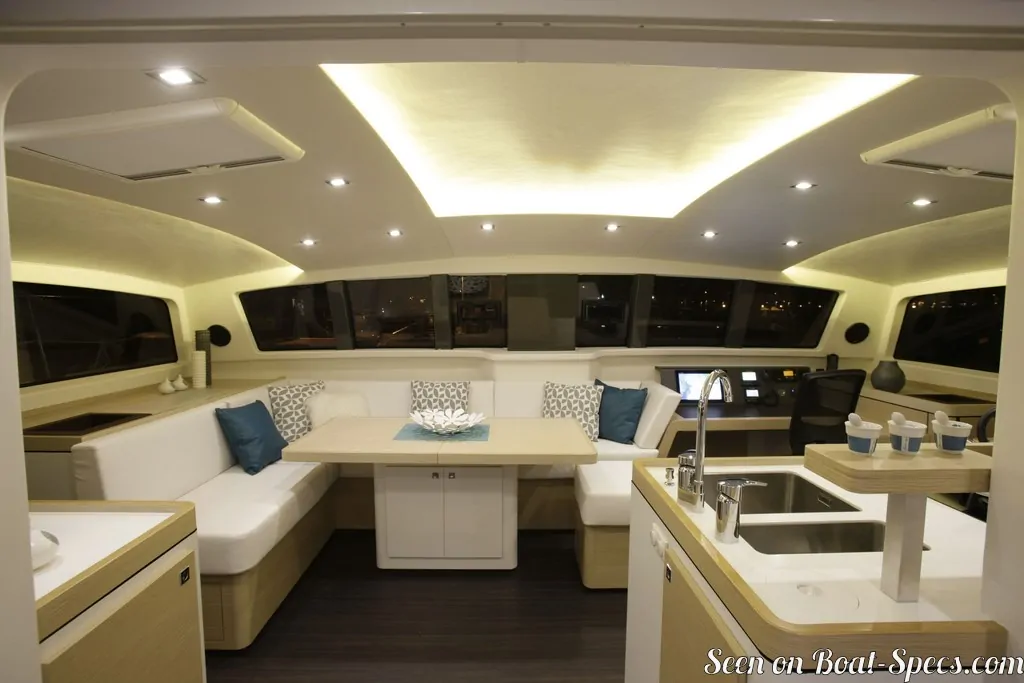

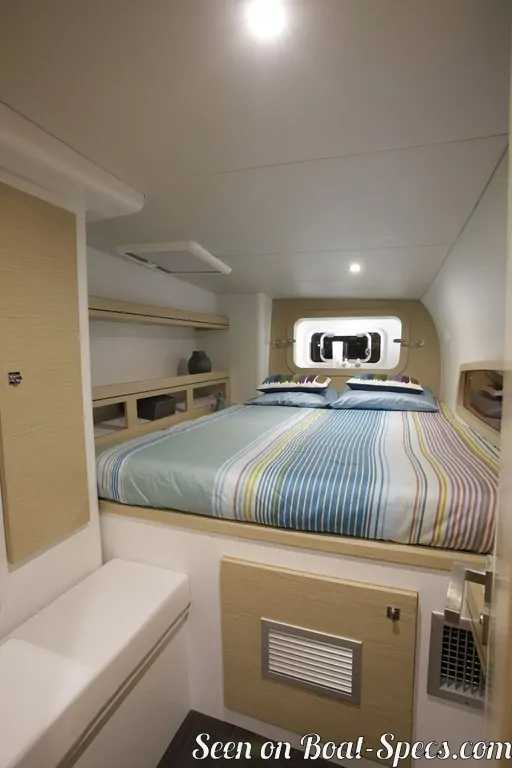

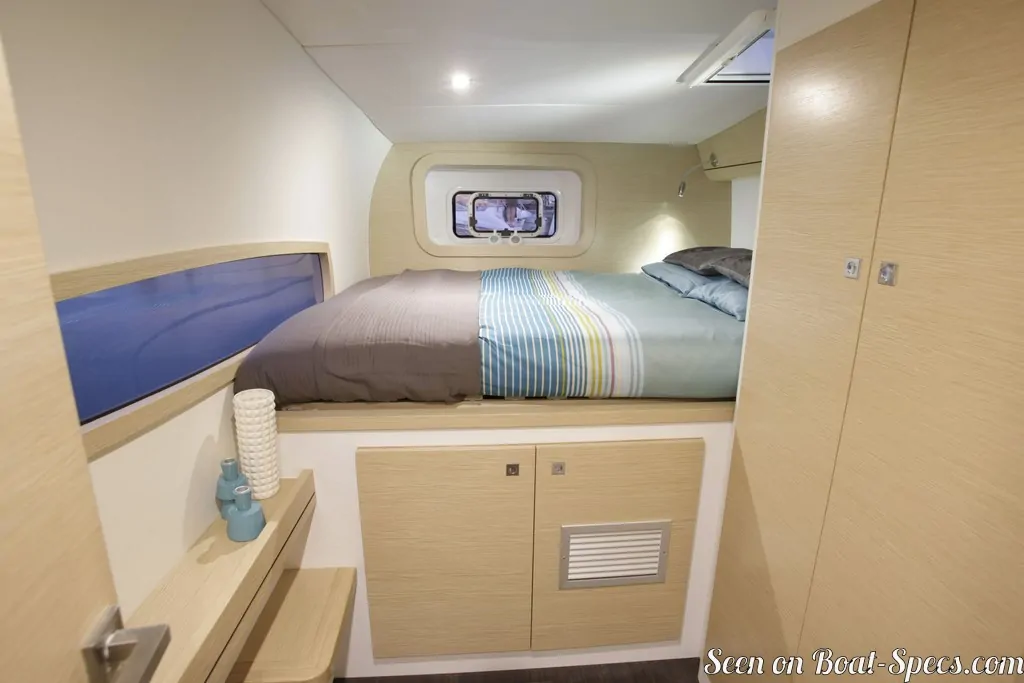

Outremer Yachting Outremer 51 interior and accommodations - - 8/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 interior and accommodations - - 9/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 interior and accommodations - - 10/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
Outremer Yachting Outremer 51 interior and accommodations - - 11/11
Picture extracted from the commercial documentation © Outremer Yachting
Picture extracted from the commercial documentation © Outremer Yachting
