Vancouver 34 Pilot

Sailboat specifications

The Vancouver 34 Pilot is a 34’4” (10.44m) cruising sailboat designed by Robert B Harris (United States). She was built between 1991 and 2008 by Northshore (United Kingdom) with 36 hulls completed.

Vancouver 34 Pilot's main features

Model: Vancouver 34 Pilot
Hull type: Monohull
Category: Offshore deck saloon cruising sailboat
Sailboat builder: Northshore
Sailboat designer: Robert B Harris
Sailboat range: Vancouver
Country: United Kingdom
Construction: Hull and deck: GRP (glass reinforced polyester)
Number of hulls built: 36
First built hull: 1991
Last built hull: 2008
Appendages: Keel : swing keel
Helm: Single helm wheel
Rudder: Single rudder on skeg
Unsinkable: No
Trailerable: No
Standard public price ex. VAT (indicative only): N/A €

Vancouver 34 Pilot's main dimensions

Hull length: 34’ 4”10.44 m
Waterline length: 27’ 6”8.38 m
Beam (width): 10’ 6”3.2 m
Draft: 4’ 10”1.46 m
Light displacement (M_LC): 16945 lb7686 kg
Ballast weight: 5891 lb2672 kg

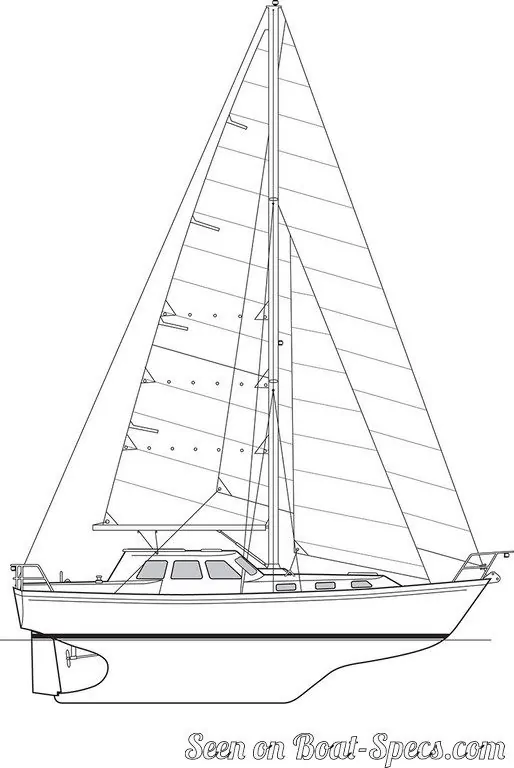

Vancouver 34 Pilot's rig and sails

Upwind sail area: 700 ft²65 m²
Mainsail area: 248 ft²23 m²
Genoa area: 431 ft²40 m²
Yankee area: 344 ft²32 m²
Staysail area: 108 ft²10 m²
Rigging type: Cutter Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Vancouver 34 Pilot's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 180 ft²/T16.69 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 370
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 35 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.03 knots
