Nordship 46 DS Custom
Sailboat specifications
The Nordship 46 DS Custom is a 45’11” (14m) cruising sailboat designed by Lars Buchwald (Denmark) and Borghegn Yachtdesign (Denmark). She is built since 2012 by Nordship Yachts (Denmark).
Nordship 46 DS Custom's main features
- Model
- Nordship 46 DS Custom
- Hull type
- Monohull
- Category
- Deck saloon cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- Denmark
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 2012
- Last built hull
- Still in production
- Appendages
- Keel : fin with bulb
- Helm
- Single helm wheel
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About715 000 €(2020)
Nordship 46 DS Custom's main dimensions
- Hull length
- 45’ 11”14 m
- Beam (width)
- 14’ 5”4.4 m
- Draft
- 6’ 11”2.1 m
- Light displacement (MLC)
- 33069 lb15000 kg
- Ballast weight
- 11905 lb5400 kg
- Ballast type
- Lead
Nordship 46 DS Custom's rig and sails
- Upwind sail area
- 1055 ft²98 m²
- Mainsail area
- 624 ft²58 m²
- Jib area
- 431 ft²40 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- Discontinuous
Nordship 46 DS Custom's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 173 ft²/T16.11 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 36 %
Nordship 46 DS Custom's auxiliary engine
- Engine(s)
- 1 inboard engine
- Fuel type
- Diesel
Nordship 46 DS Custom's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 4 / 8
- Head(s)
- 2

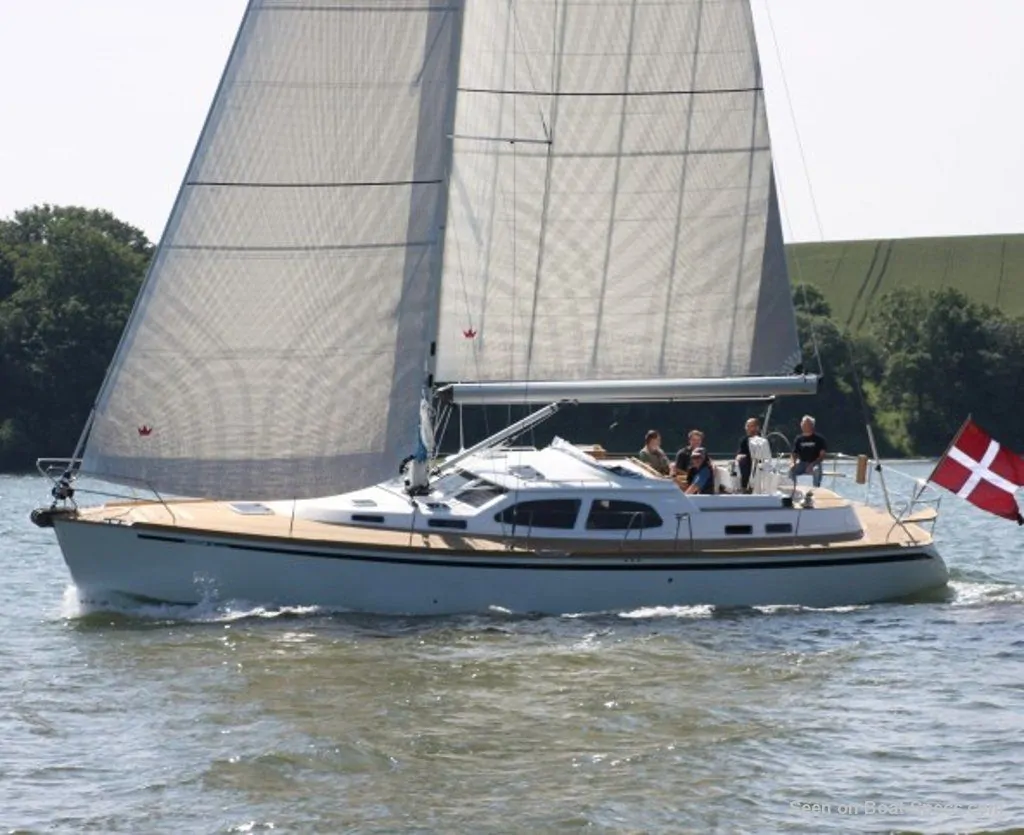

Nordship Yachts Nordship 46 DS Custom - - 1/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

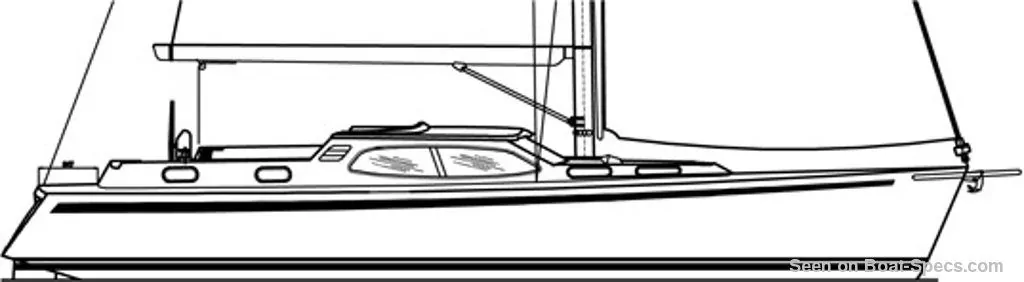

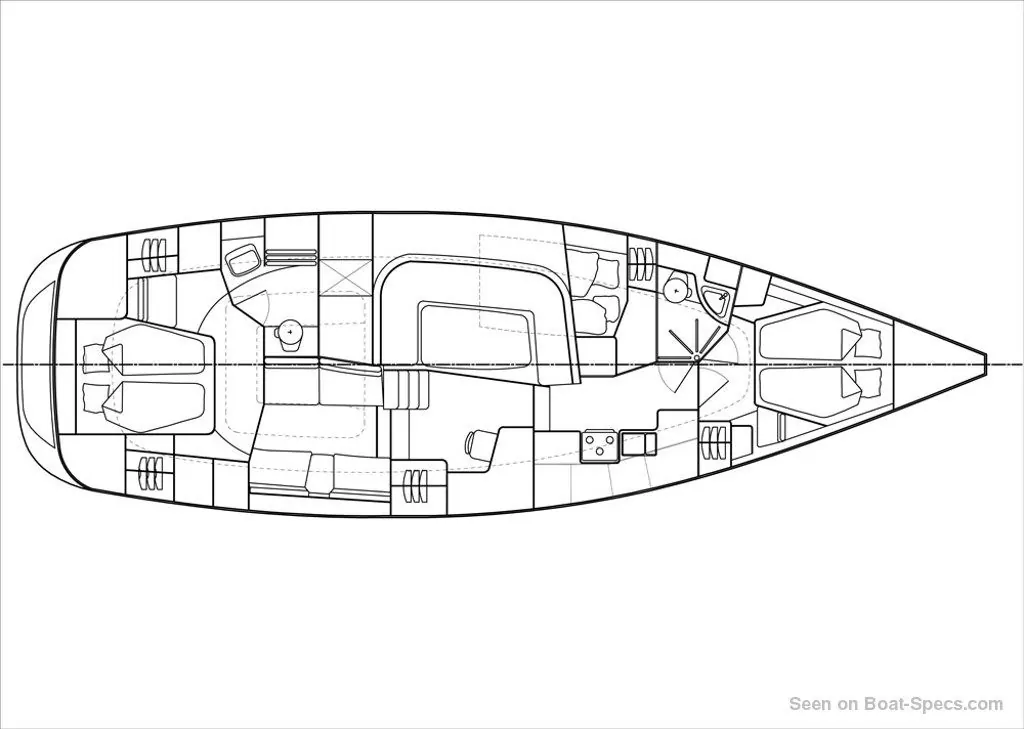

Nordship Yachts Nordship 46 DS Custom layout - - 2/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

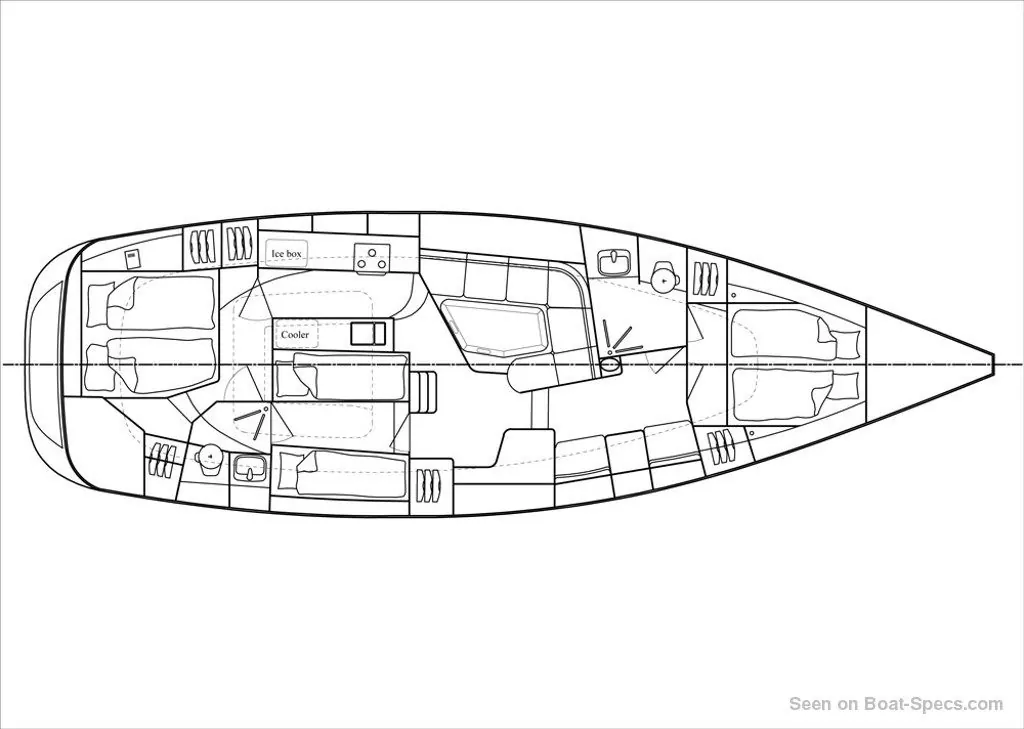

Nordship Yachts Nordship 46 DS Custom layout - - 3/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

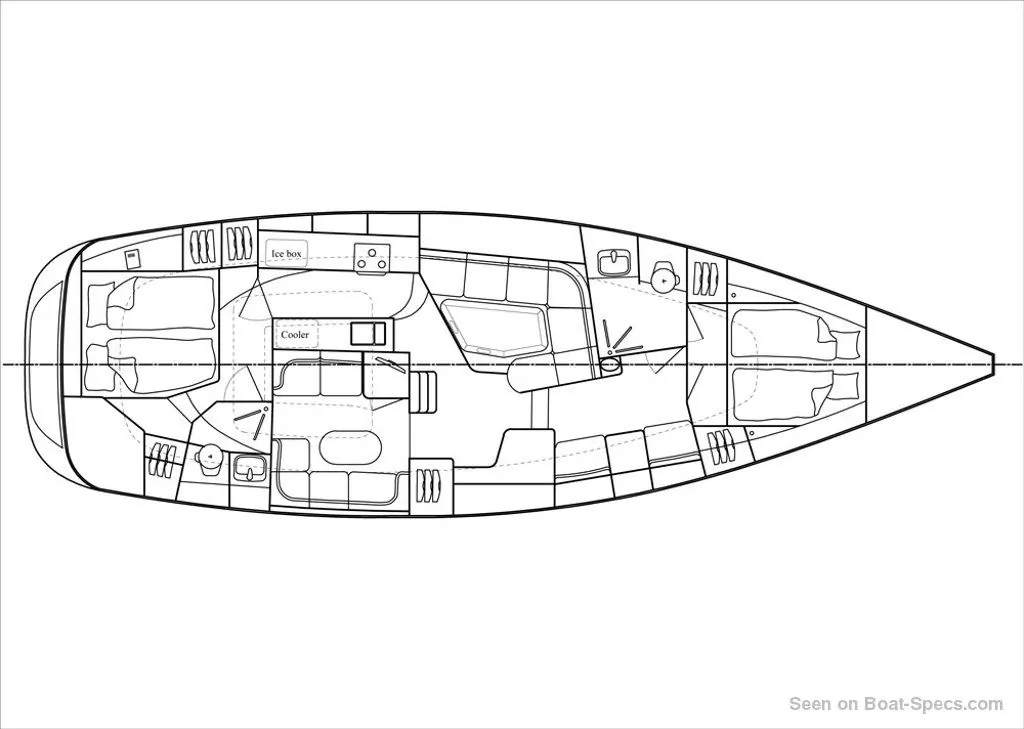

Nordship Yachts Nordship 46 DS Custom layout - - 4/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

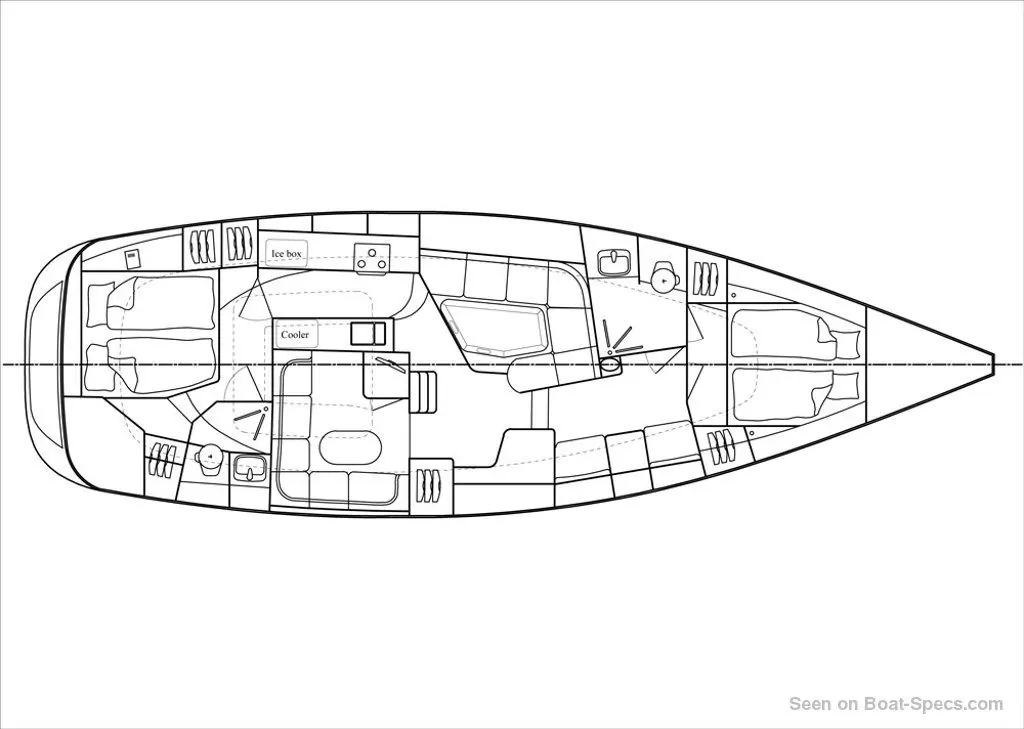

Nordship Yachts Nordship 46 DS Custom layout - - 5/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts
Nordship Yachts Nordship 46 DS Custom layout - - 6/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

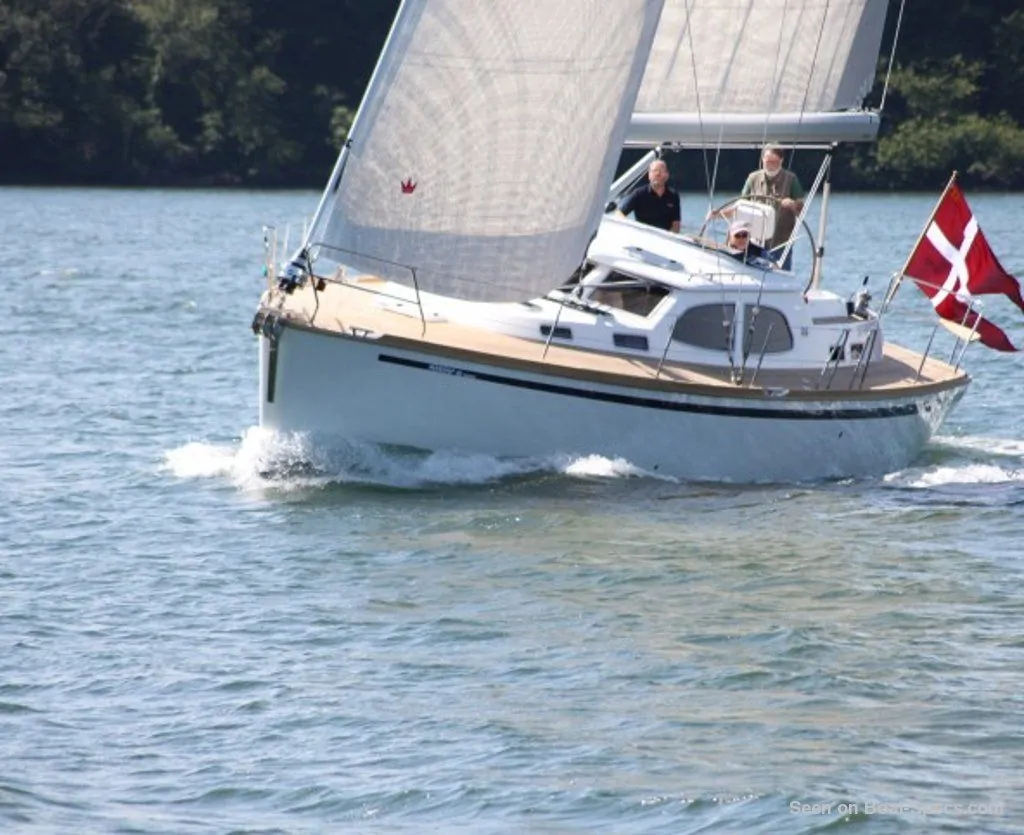

Nordship Yachts Nordship 46 DS Custom sailing - - 7/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

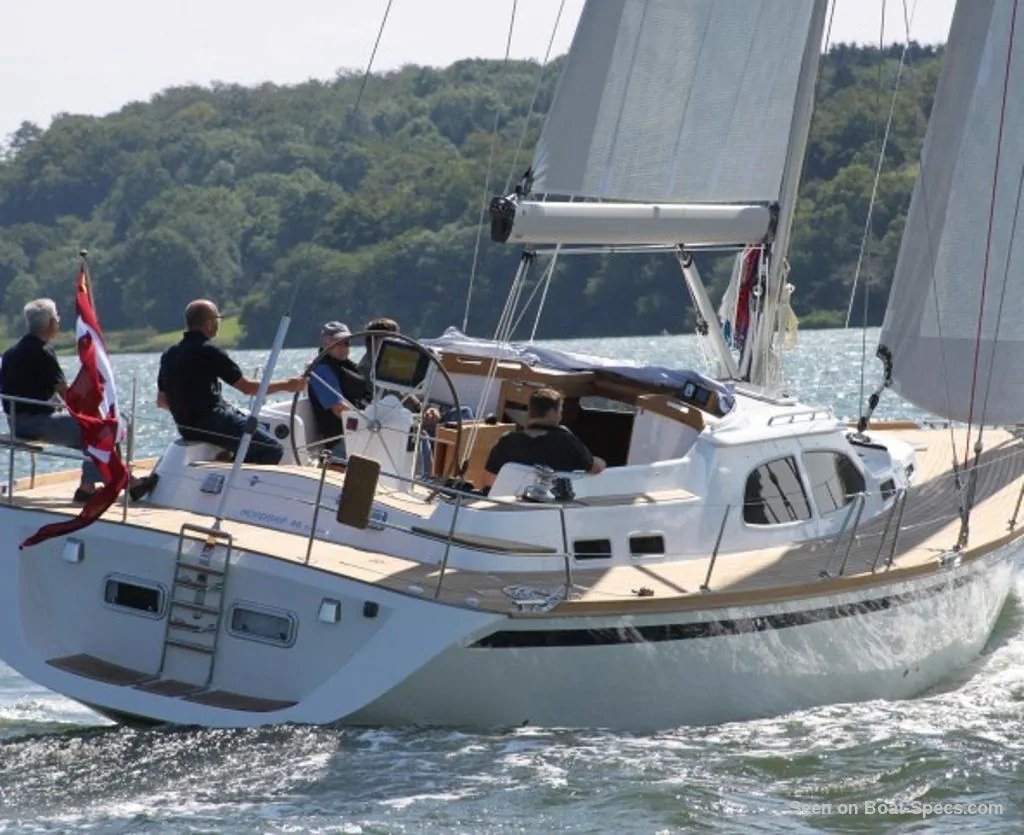

Nordship Yachts Nordship 46 DS Custom sailing - - 8/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

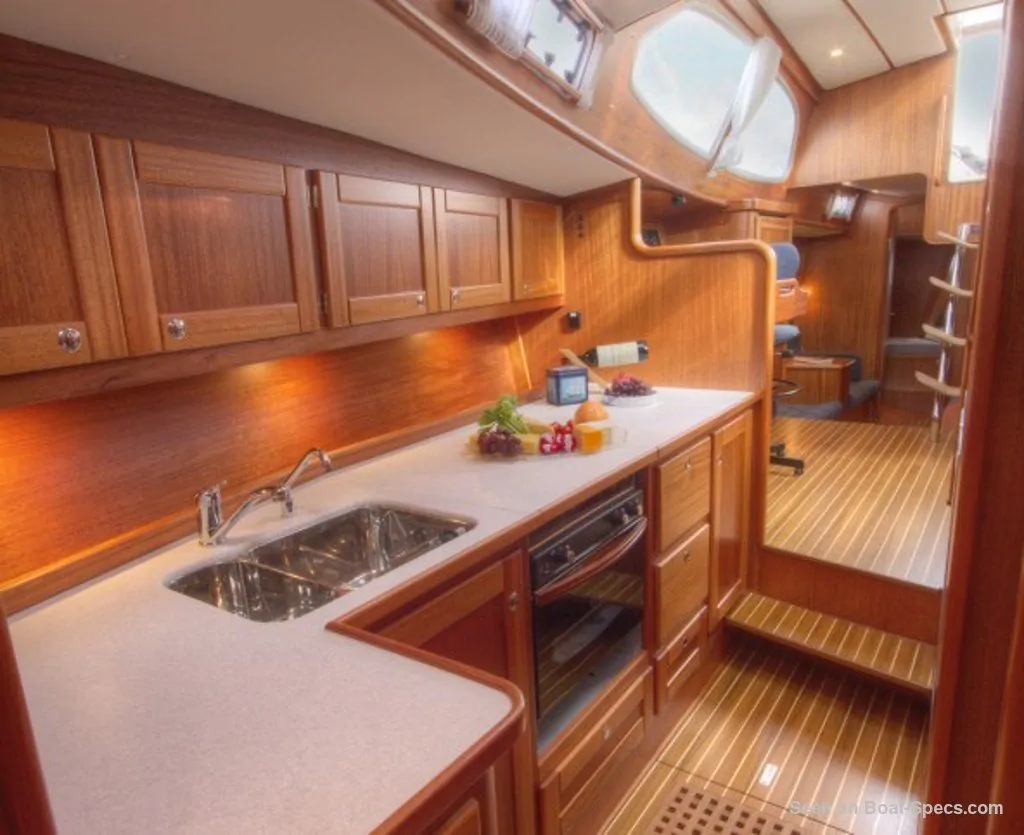

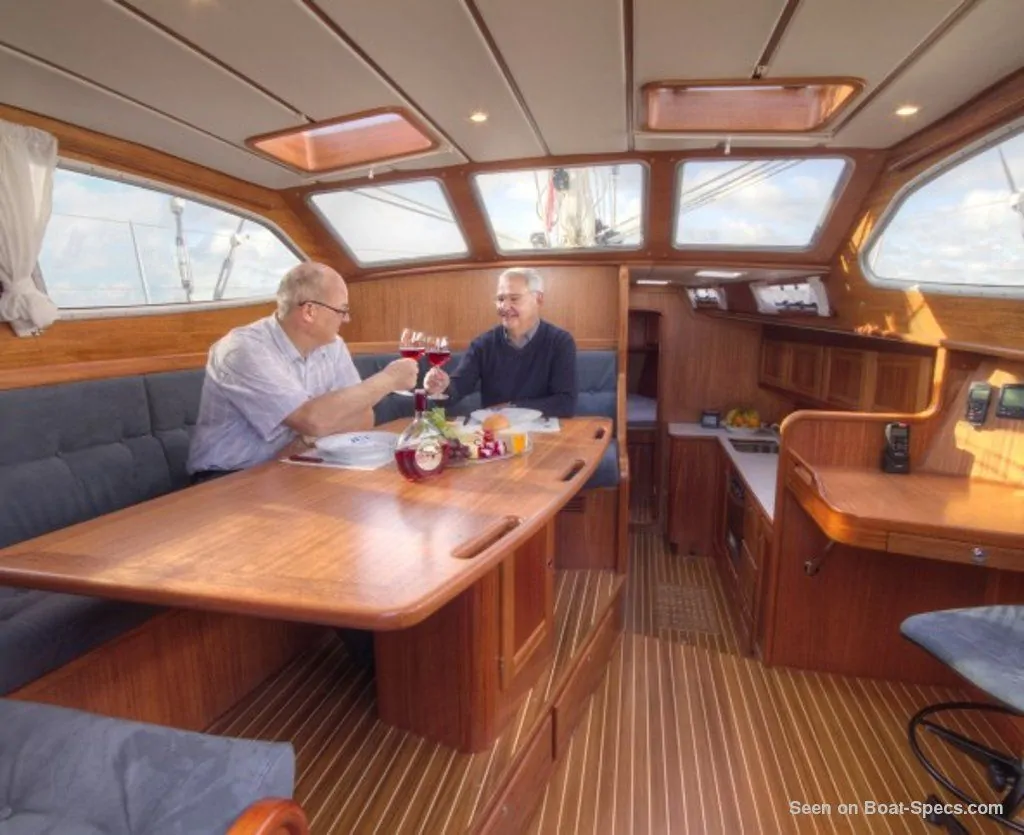

Nordship Yachts Nordship 46 DS Custom interior and accommodations - - 9/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts

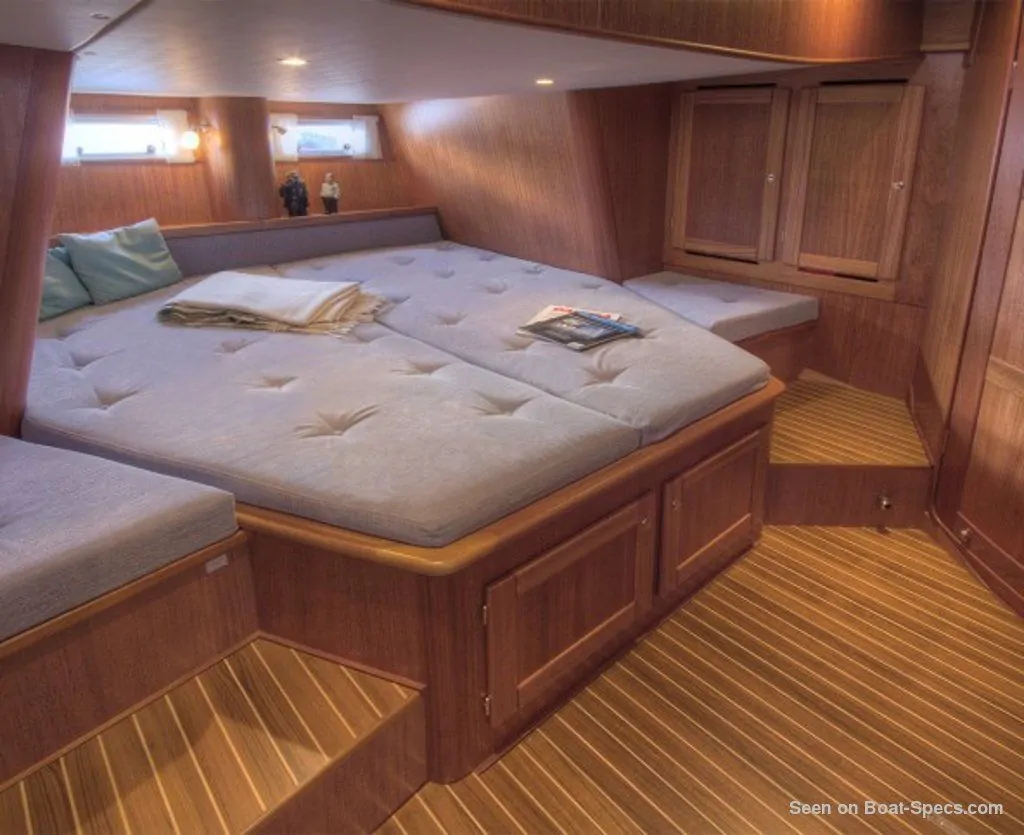

Nordship Yachts Nordship 46 DS Custom interior and accommodations - - 10/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts
Nordship Yachts Nordship 46 DS Custom interior and accommodations - - 11/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts
Nordship Yachts Nordship 46 DS Custom interior and accommodations - - 12/12
Picture extracted from the commercial documentation © Nordship Yachts
Picture extracted from the commercial documentation © Nordship Yachts
