Nordship 360 DS

Sailboat specifications

The Nordship 360 DS is a 36’1” (11m) cruising sailboat designed by Lars Buchwald (Denmark) and Borghegn Yachtdesign (Denmark). She is built since 2009 by Nordship Yachts (Denmark).

Nordship 360 DS's main features

Model: Nordship 360 DS
Hull type: Monohull
Category: Deck saloon cruising sailboat
Sailboat builder: Nordship Yachts
Sailboat designer: Lars Buchwald & Borghegn Yachtdesign
Country: Denmark
Construction: GRP (glass reinforced polyester):
Sandwich fiberglass polyester
First built hull: 2009
Last built hull: Still in production
Appendages: Keel : T-shaped keel (with bulb)
Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
296 000 €
(2020)

Nordship 360 DS's main dimensions

Hull length: 36’ 1”11 m
Waterline length: 32’9.76 m
Beam (width): 11’ 10”3.6 m
Draft: 5’ 11”1.8 m
Light displacement (M_LC): 14330 lb6500 kg
Ballast weight: 4850 lb2200 kg
Ballast type: Lead

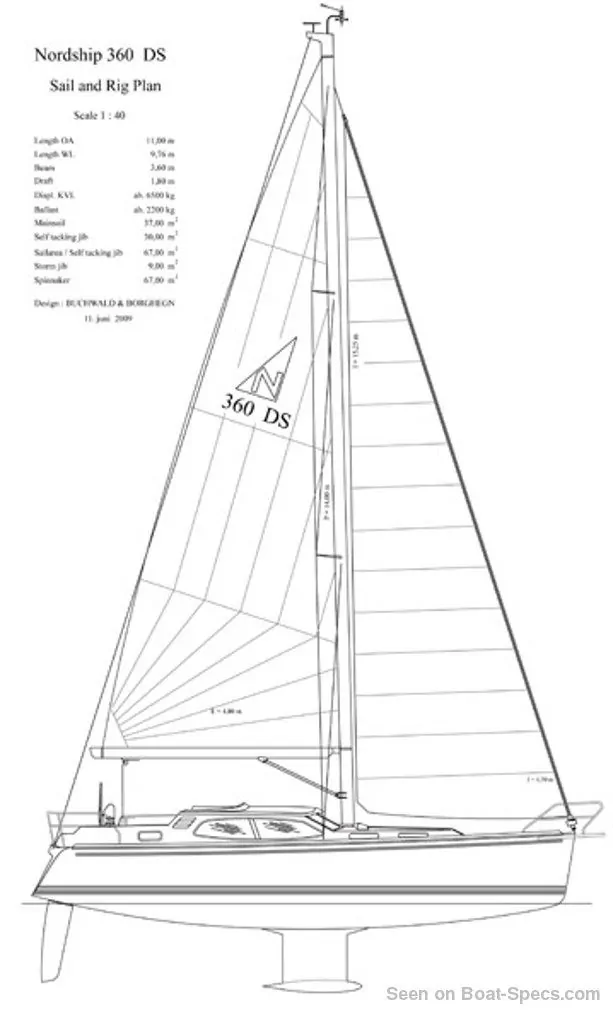

Nordship 360 DS's rig and sails

Upwind sail area: 721 ft²67 m²
Mainsail area: 398 ft²37 m²
Jib area: 323 ft²30 m²
I iFore triangle height (from mast foot to fore stay top attachment): 50’ 2”15.3 m
J iFore triangle base (from mast foot to bottom of forestay): 14’ 10”4.5 m
P iMainsail hoist measurement (from tack to head): 50’ 2”15.3 m
E iMainsail foot measurement (from tack to clew): 14’ 10”4.5 m
Rigging type: Sloop Marconi 19/20
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: Discontinuous

Nordship 360 DS's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 207 ft²/T19.24 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 198
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 34 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.58 knots
