Neo 350
Sailboat specifications
The Neo 350 is a 35’5” (10.8m) racer-cruiser sailboat designed by Ceccarelli Yacht Desing and Engineering (Italy). She is built since 2018 by Neo Yachts (Italy).
Neo 350's main features
- Model
- Neo 350
- Hull type
- Monohull
- Category
- Racer-cruiser sailboat
- Sailboat builder
- Sailboat designer
- Country
- Italy
- Construction
- Fiberglass reinforced epoxy:
Sandwich fiberglass epoxy (vacuum infusion) - First built hull
- 2018
- Last built hull
- Still in production
- Appendages
- Keel : T-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Neo 350's main dimensions
- Hull length
- 35’ 5”10.8 m
- Beam (width)
- 12’3.65 m
- Draft
- 6’ 11”2.09 m
- Light displacement (MLC)
- 9921 lb4500 kg
- Ballast weight
- 3858 lb1750 kg
Neo 350's rig and sails
- Upwind sail area
- 764 ft²71 m²
- Downwind sail area
- 1722 ft²160 m²
- Mainsail area
- 431 ft²40 m²
- Solent area
- 334 ft²31 m²
- Symmetric spinnaker area
- 1130 ft²105 m²
- Asymmetric spinnaker area
- 1292 ft²120 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Carbon fiber spars
- Standing rigging
- Single-strand (ROD) discontinuous
Neo 350's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 280 ft²/T26.05 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 632 ft²/T58.7 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 39 %
Neo 350's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 20 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 15.9 gal60 liters
Neo 350's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 8
- Head(s)
- 1
- Freshwater tank capacity
- 39.6 gal150 liters

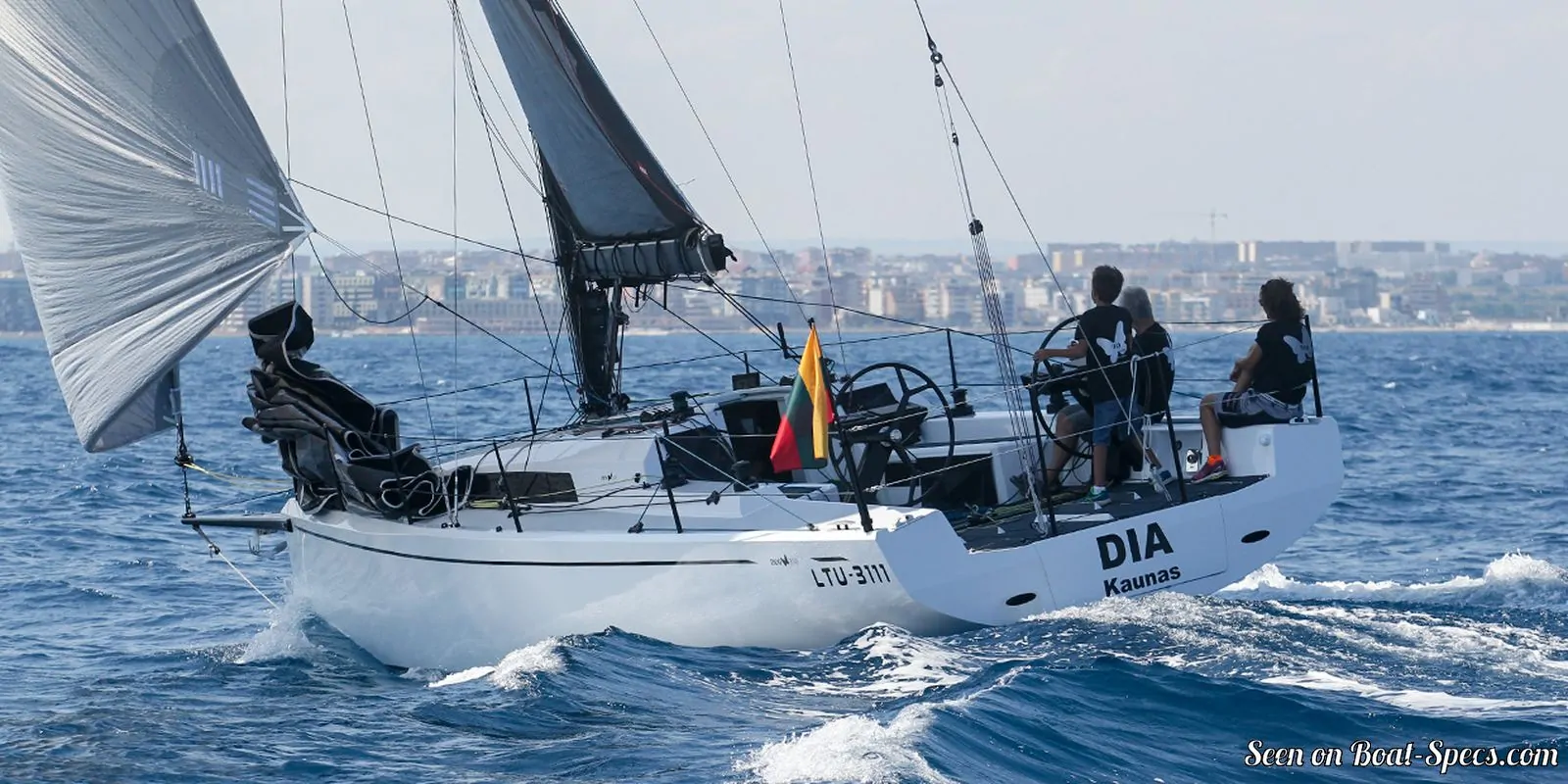

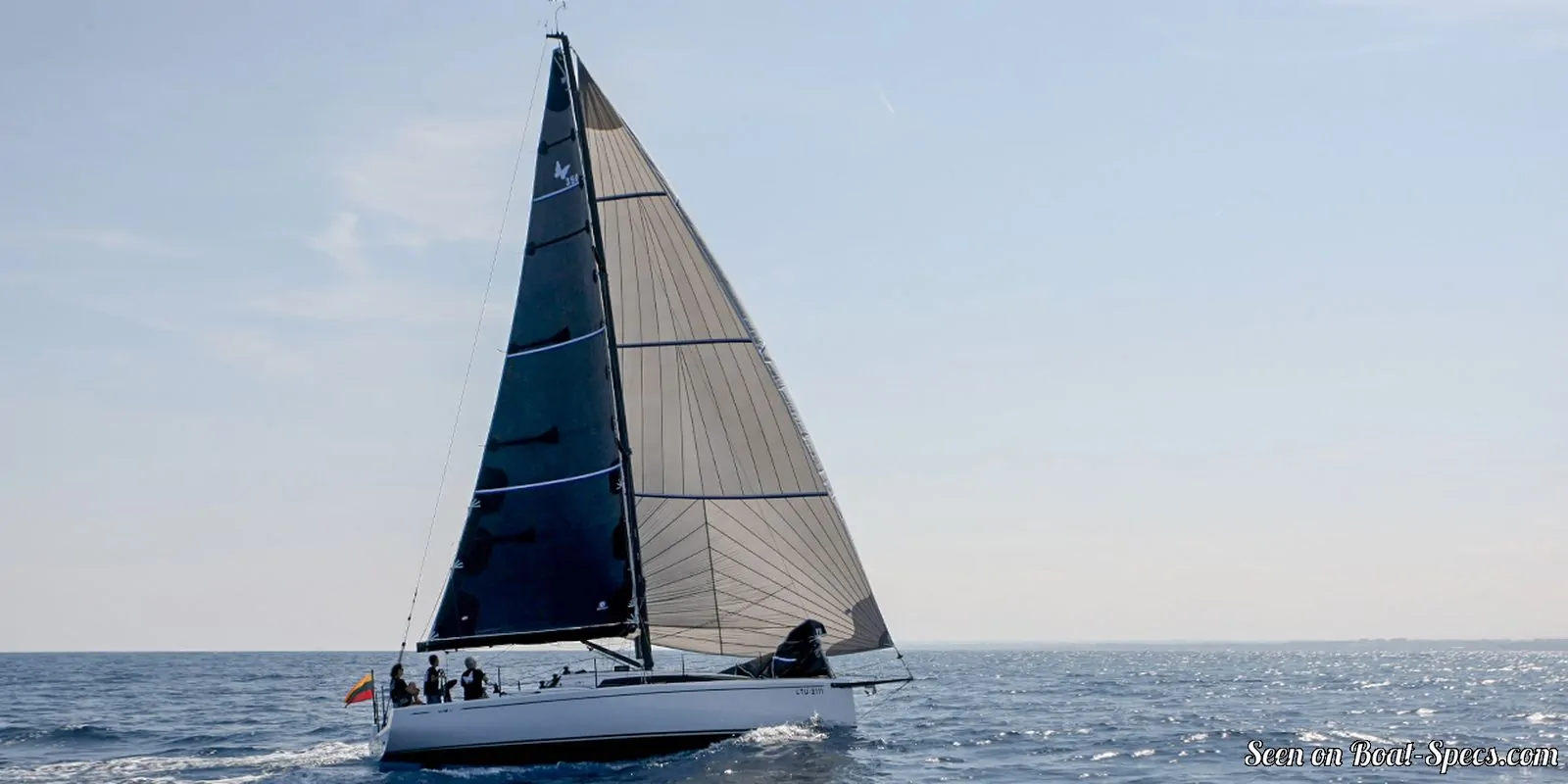

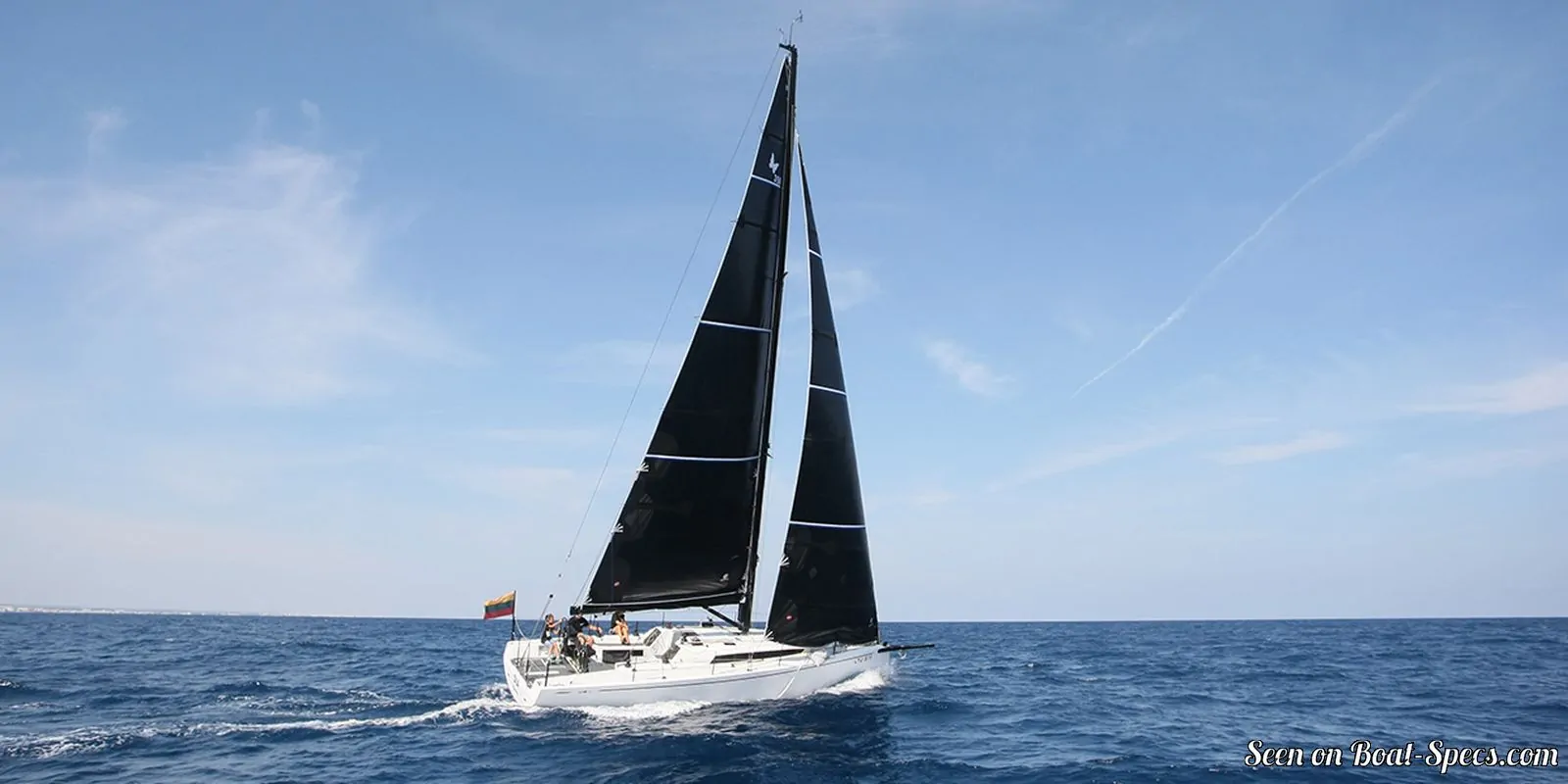

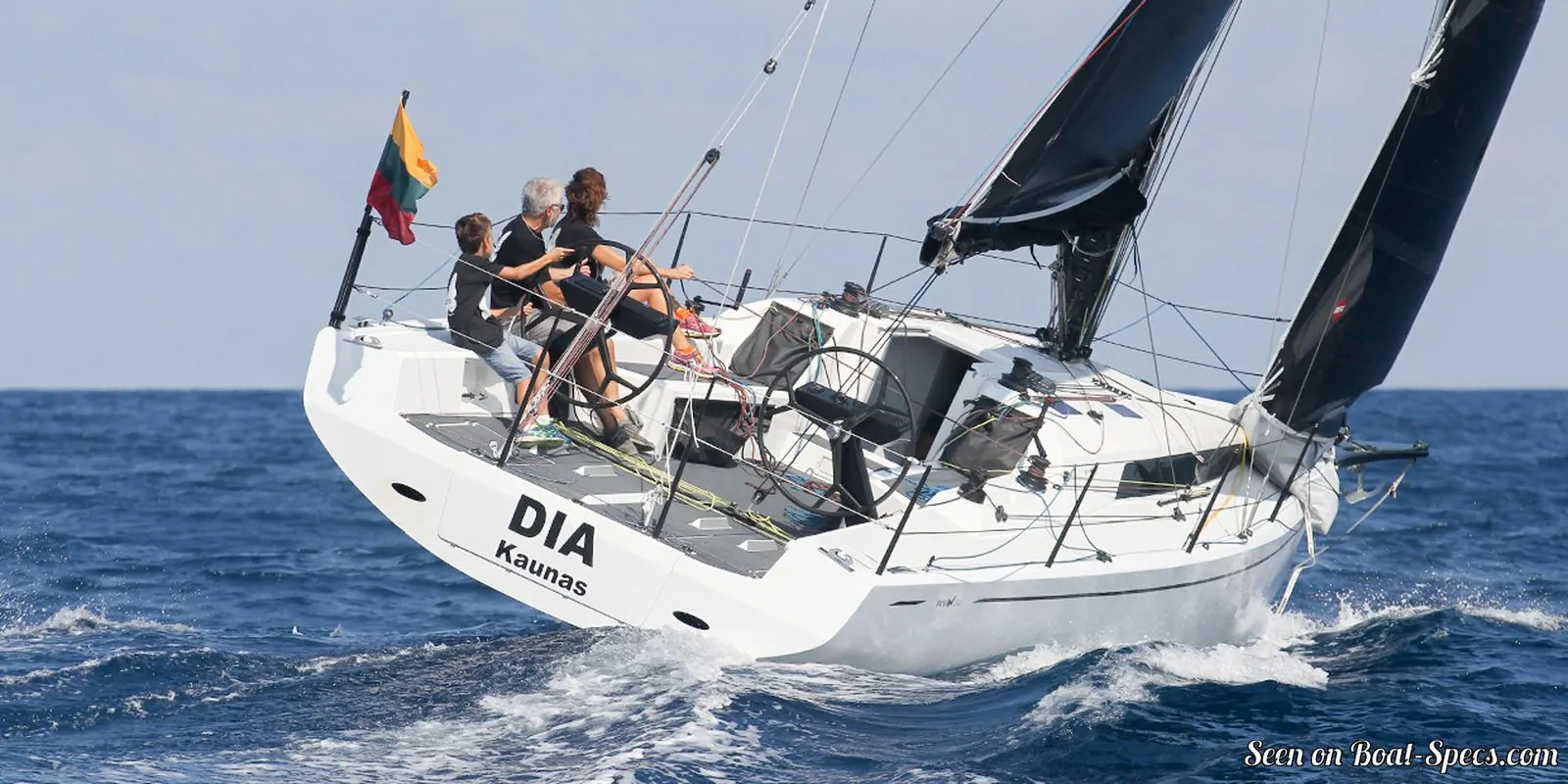

Neo Yachts Neo 350 sailing - - 10/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts

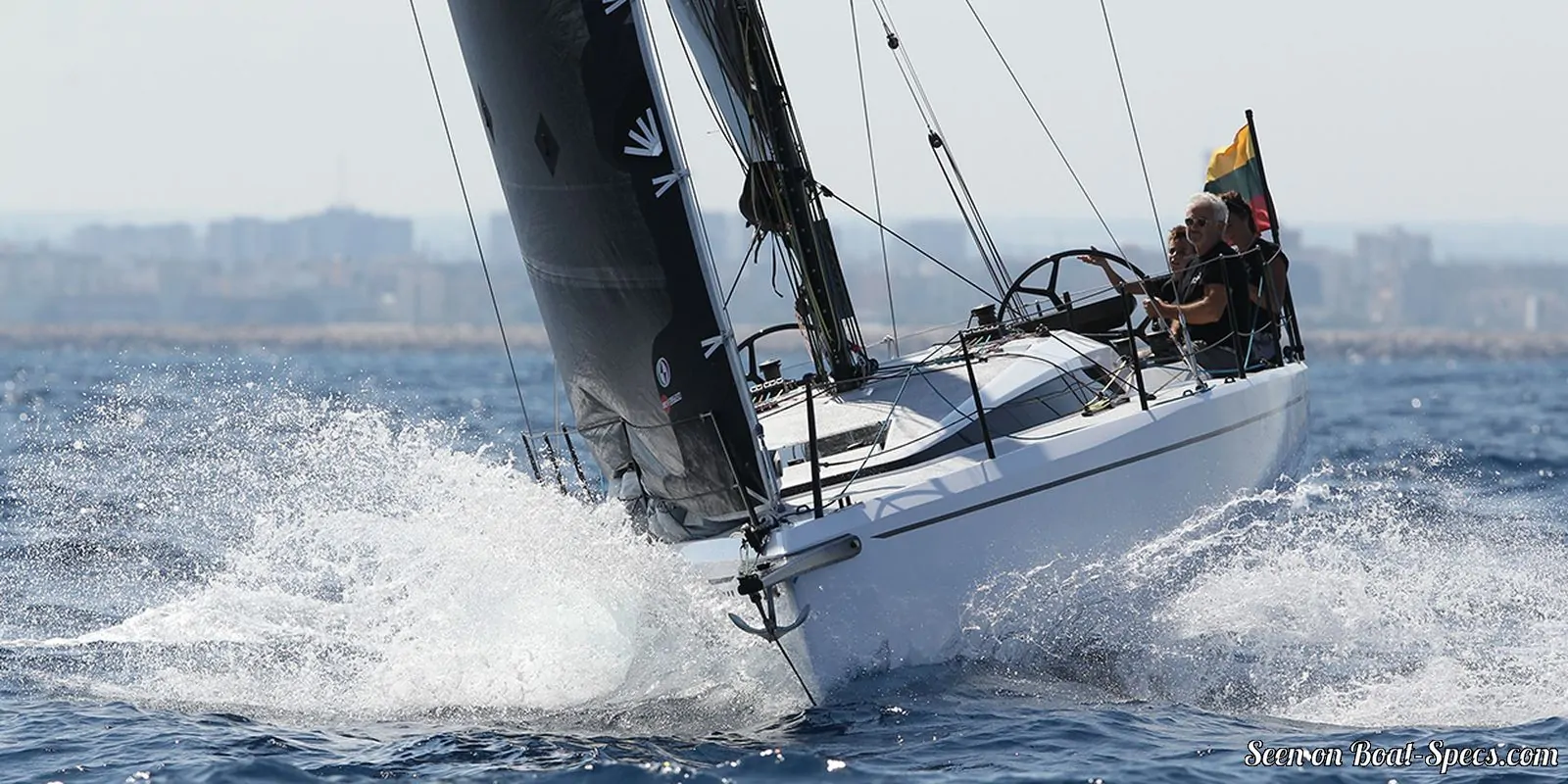

Neo Yachts Neo 350 sailing - - 11/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts

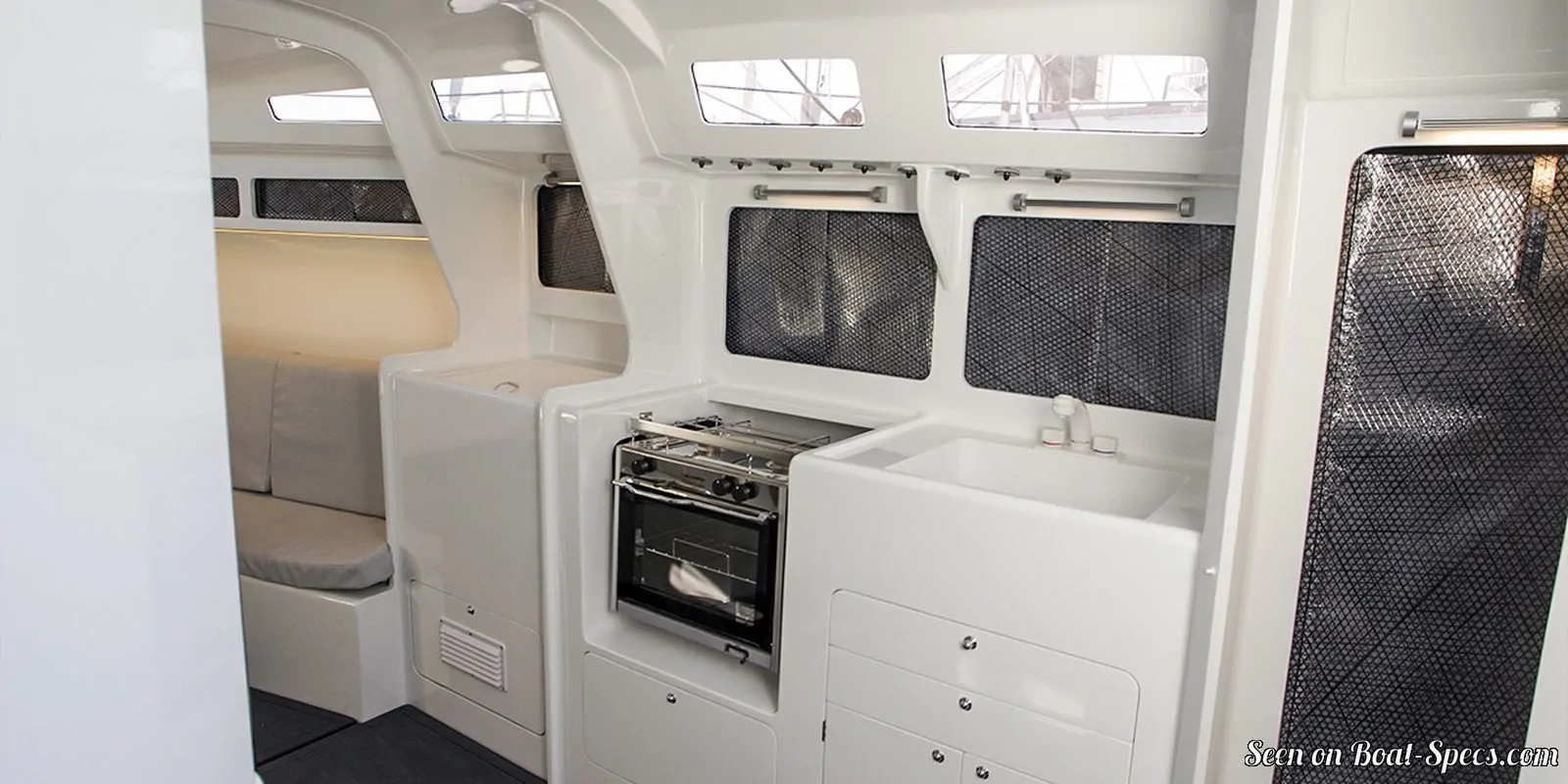

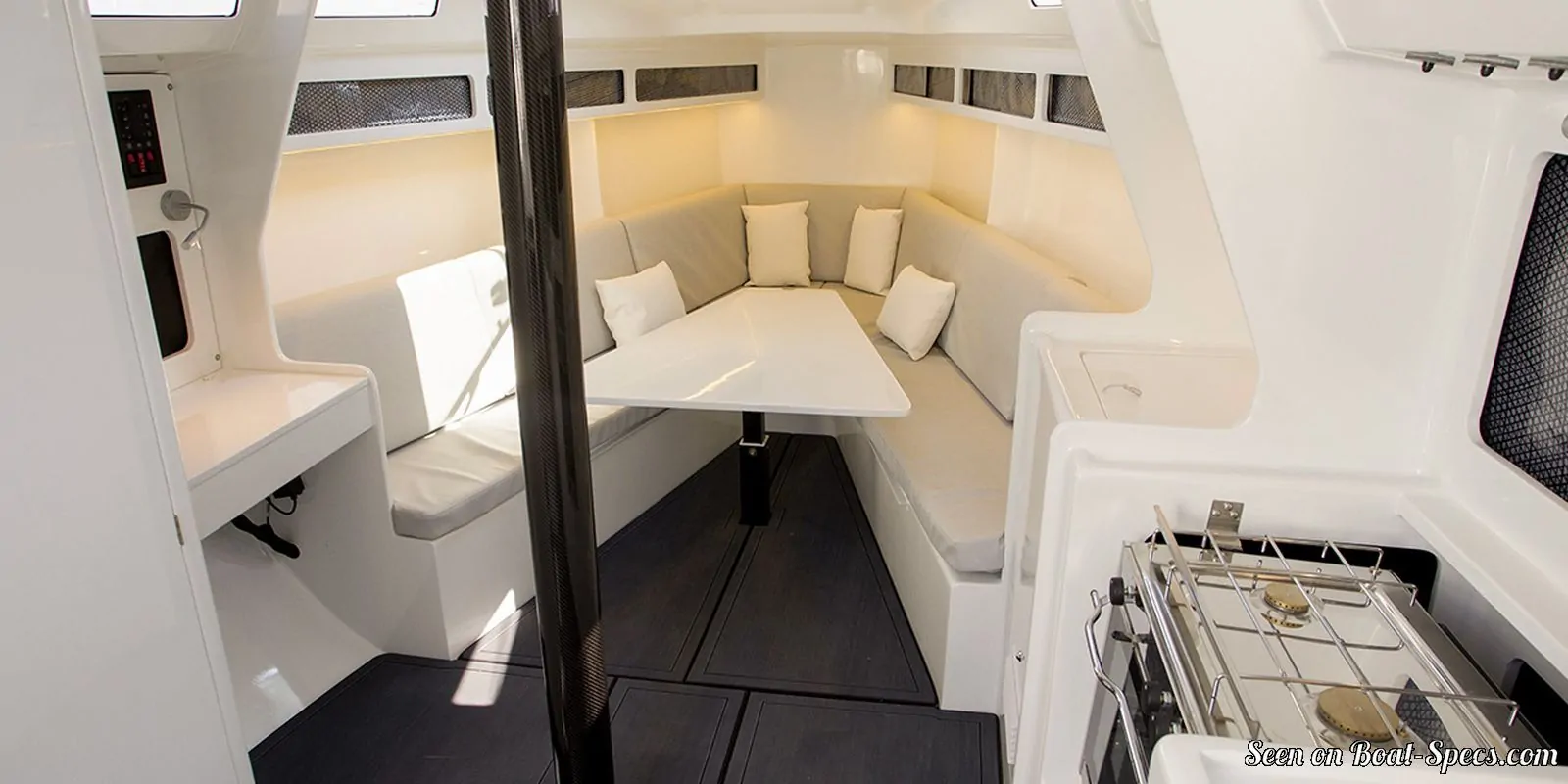

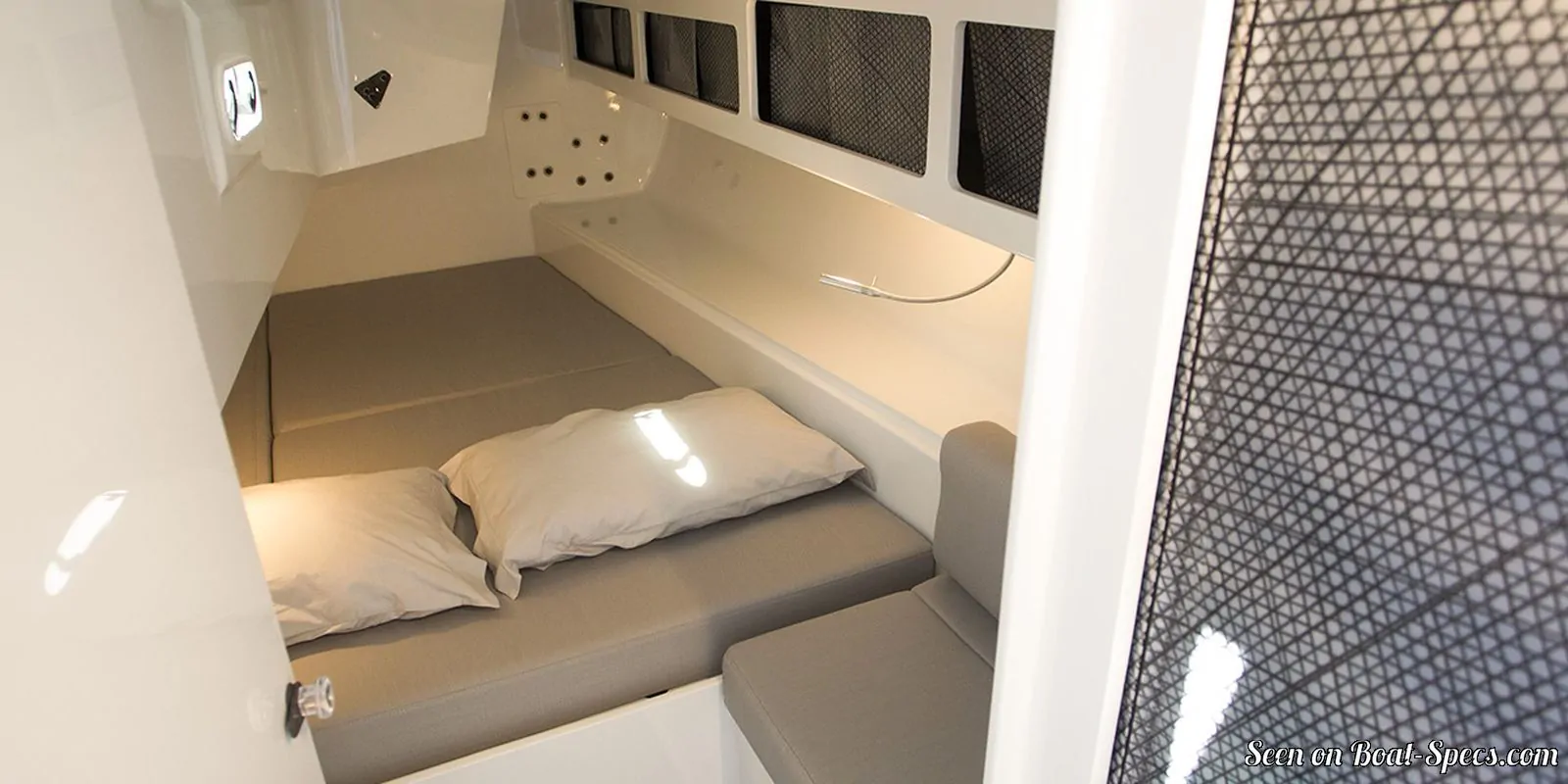

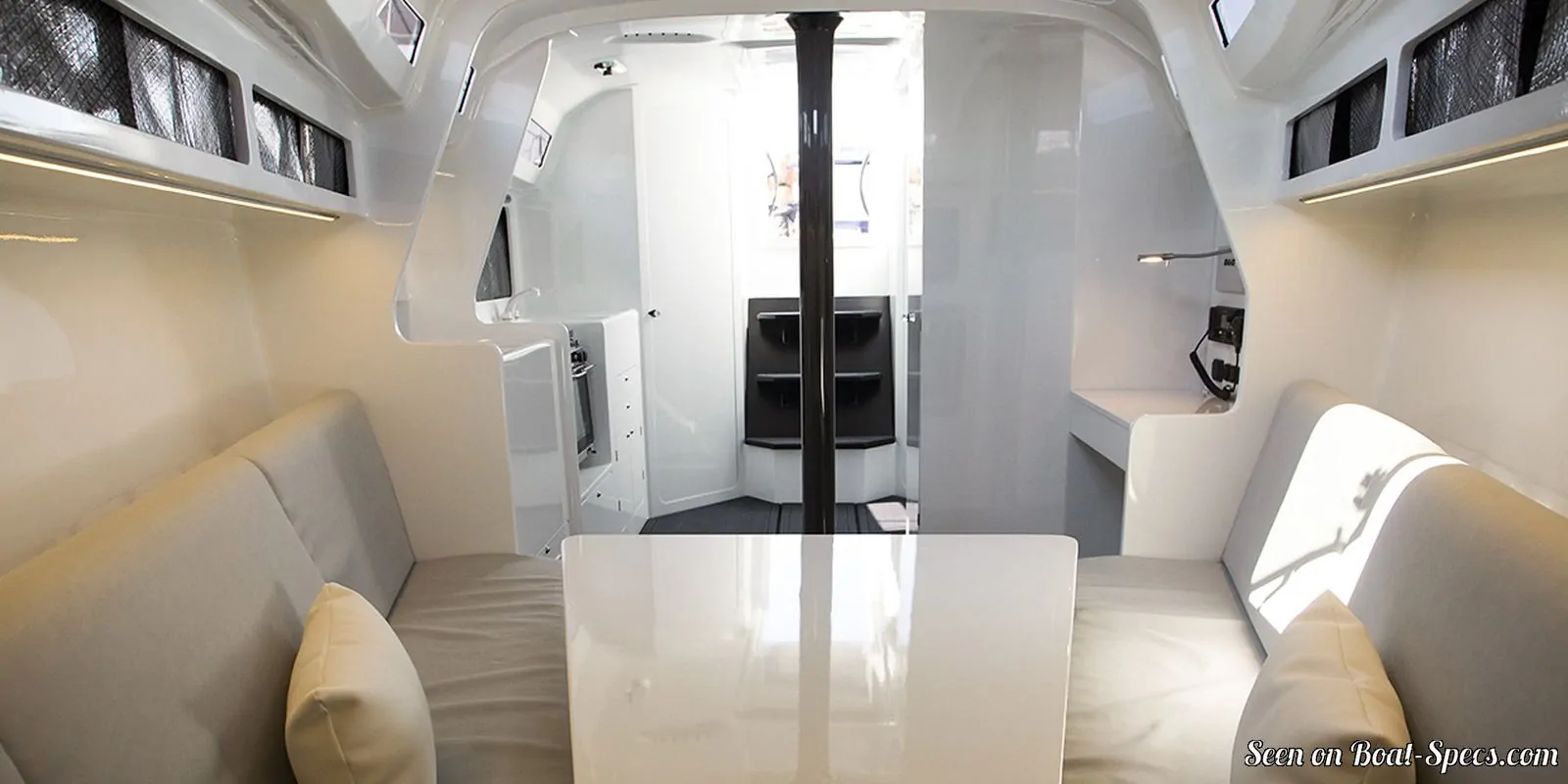

Neo Yachts Neo 350 interior and accommodations - - 12/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts
Neo Yachts Neo 350 interior and accommodations - - 13/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts
Neo Yachts Neo 350 interior and accommodations - - 14/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts
Neo Yachts Neo 350 interior and accommodations - - 15/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts
Neo Yachts Neo 350 interior and accommodations - - 16/18
Picture extracted from the commercial documentation © Neo Yachts
Picture extracted from the commercial documentation © Neo Yachts
