Neel 47

Sailboat specifications

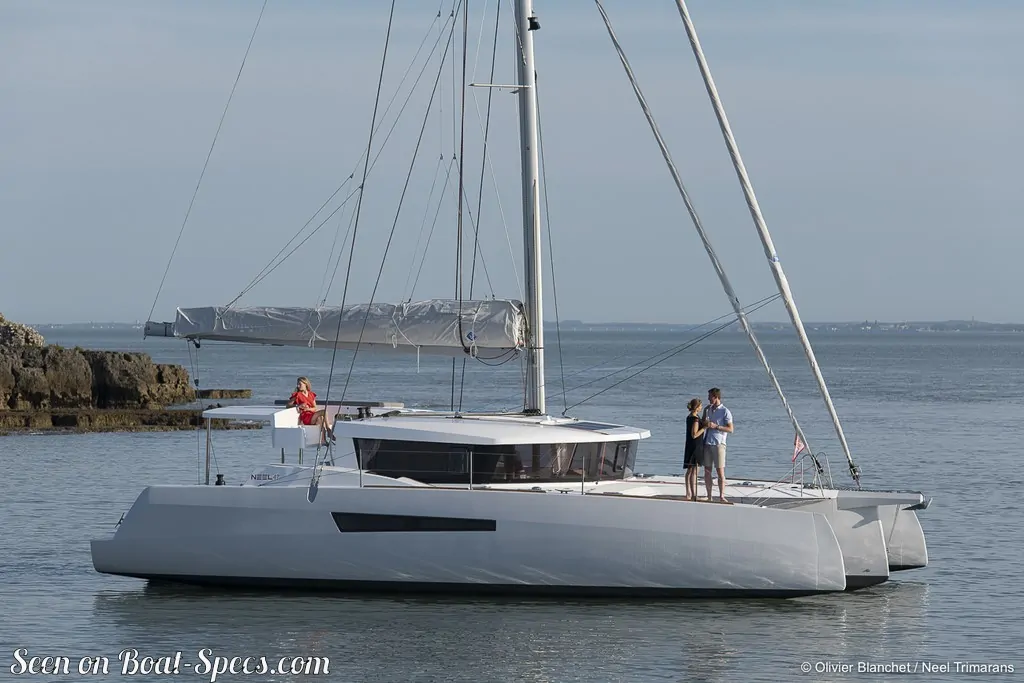

The Neel 47 is a 46’7” (14.2m) cruising trimaran designed by Marc Lombard Yacht Design Group (France). She is built since 2019 by Neel Trimarans (France). She has been awarded "2020 - Cruising World - Boat of the Year: Full-Size Multihull" and "2020 - Multihull of the Year: From 40 to 50 feet".

Find out more about the Neel 47 on Boat-Spec's blog: European Yacht of the Year 2020 nominated sailboats.

Neel 47's main features

Model
Neel 47
Hull type
Trimaran
Category
Cruising trimaran
Sailboat builder
Sailboat designer
Country
France
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2019
Last built hull
Still in production
Award(s)
  • 2020: Cruising World - Boat of the Year: Full-Size Multihull
  • 2020: Multihull of the Year: From 40 to 50 feet
    Appendages
    Skegs : skeg on each hull
    Helm
    Single helm wheel
    Rudder
    Single spade rudder
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    473 000 €
     (2020)

    Neel 47's main dimensions

    Overall length
    46’ 7”14.2 m
    Hull length
    46’ 7”14.2 m
    Beam (width)
    27’ 2”8.3 m
    Draft
    5’ 2”1.6 m
    Mast height from DWL
    62’ 4”19 m
    Light displacement (MLC)
    23369 lb10600 kg

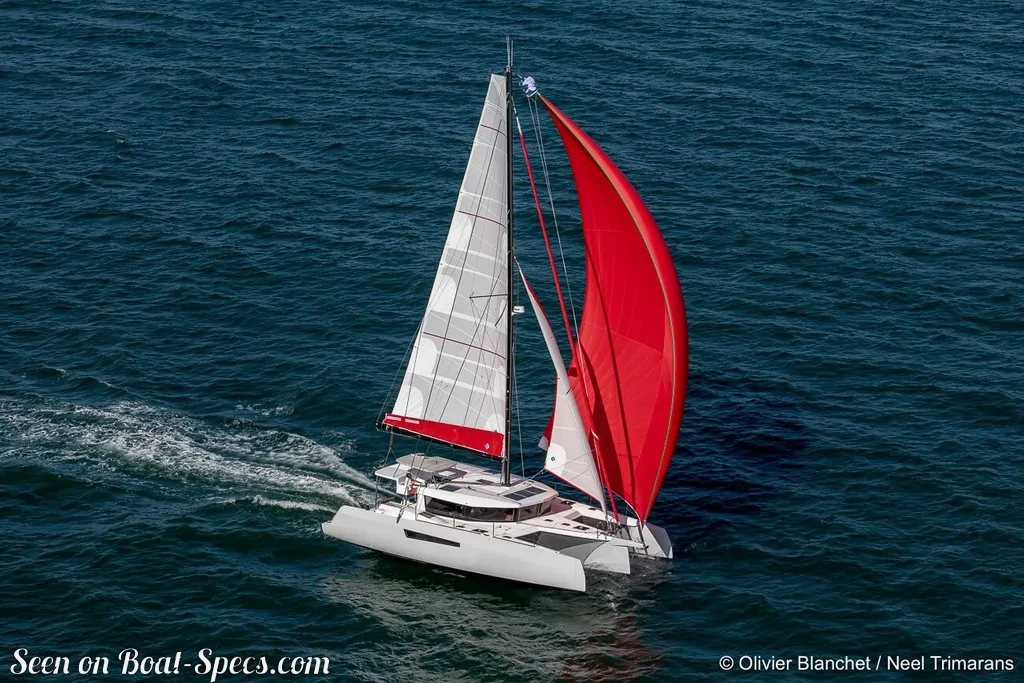

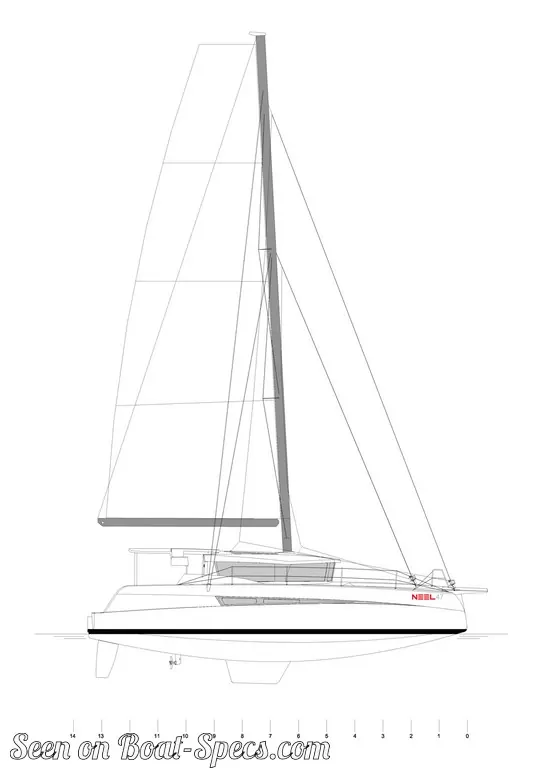

    Neel 47's rig and sails

    Upwind sail area
    1292 ft²120 m²
    Mainsail area
    753 ft²70 m²
    Genoa area
    538 ft²50 m²
    Staysail area
    215 ft²20 m²
    Rigging type
    Sloop Marconi (square top mainsail) 7/8
    Mast configuration
    Deck stepped mast
    Rotating spars
    Yes
    Number of levels of spreaders
    2
    Spreaders angle
    Swept-back (diamond)
    Spars construction
    Aluminum spars

    Neel 47's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    268 ft²/T24.87 m²/T

    Neel 47's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    60 HP
    Fuel type
    Diesel
    Fuel tank capacity
    79.3 gal300 liters

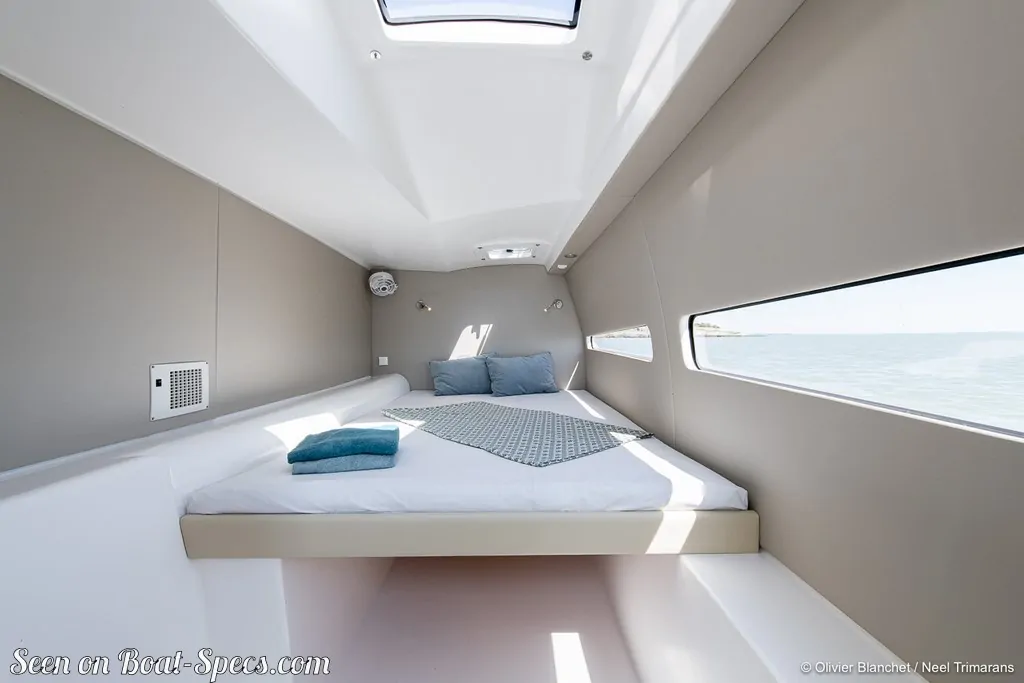

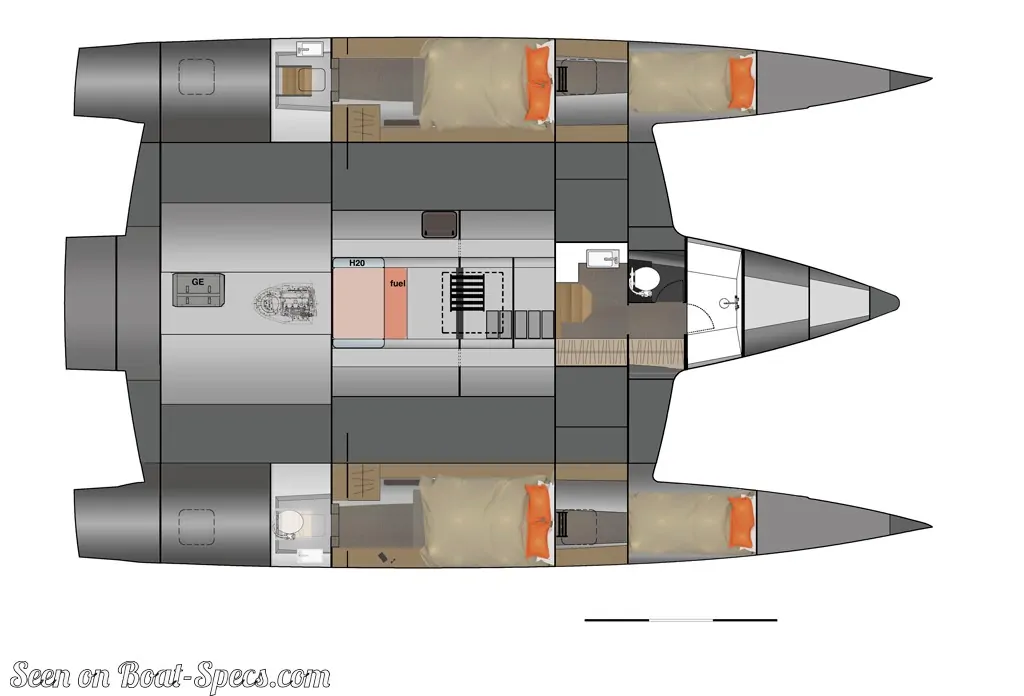

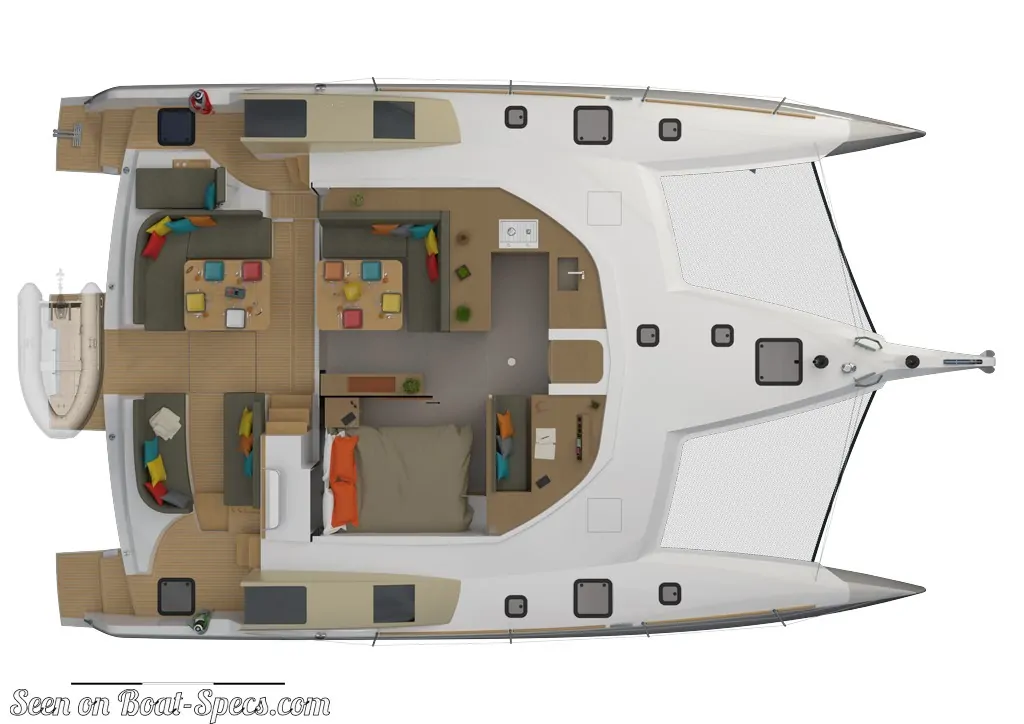

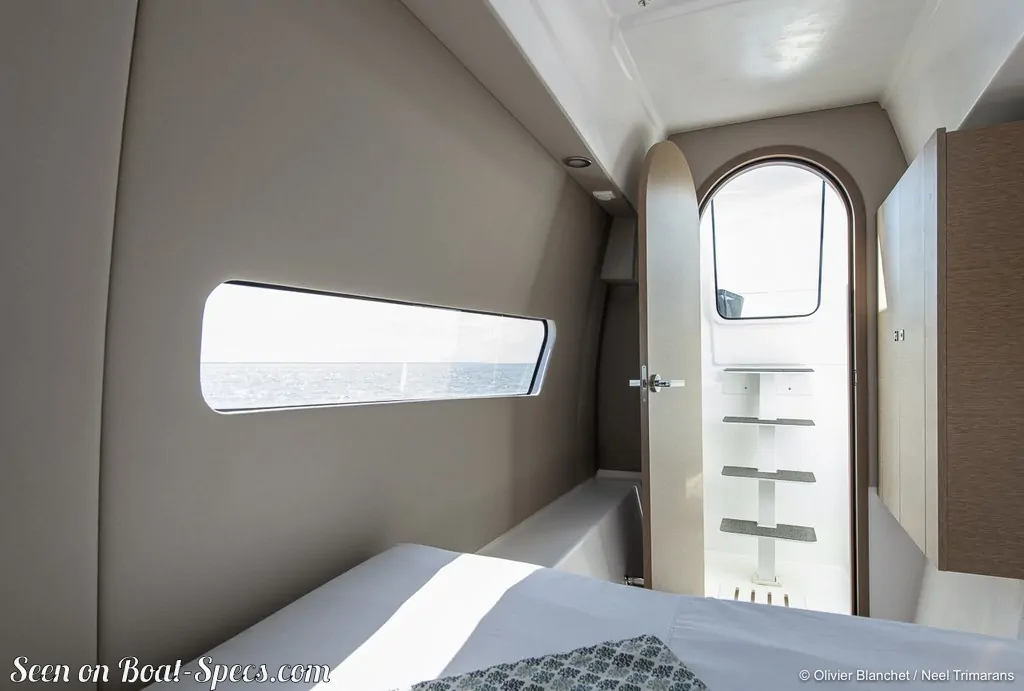

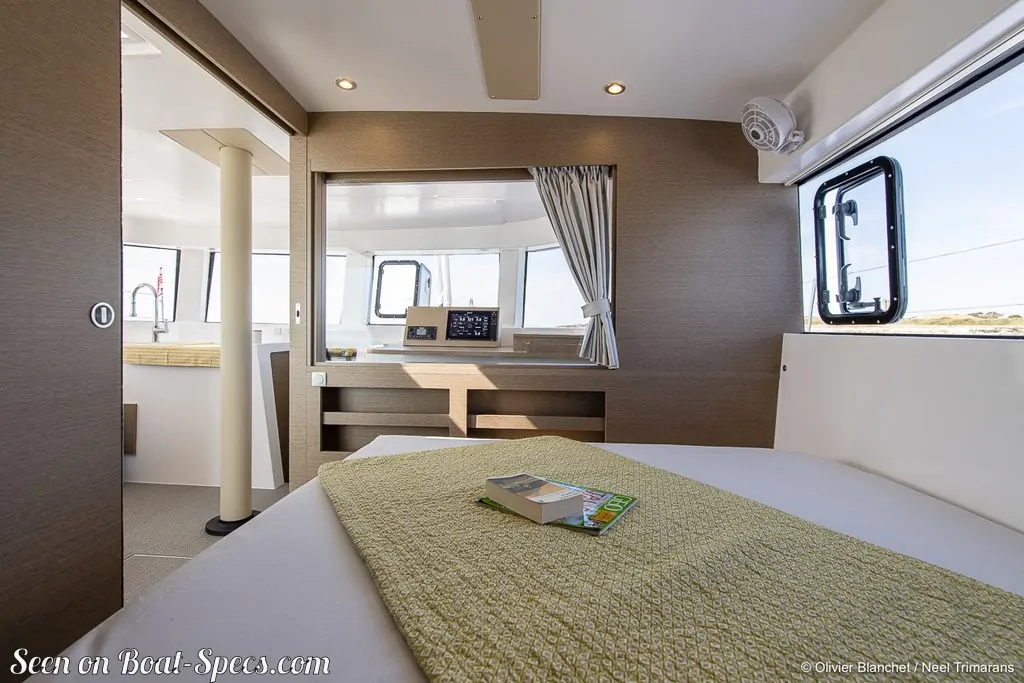

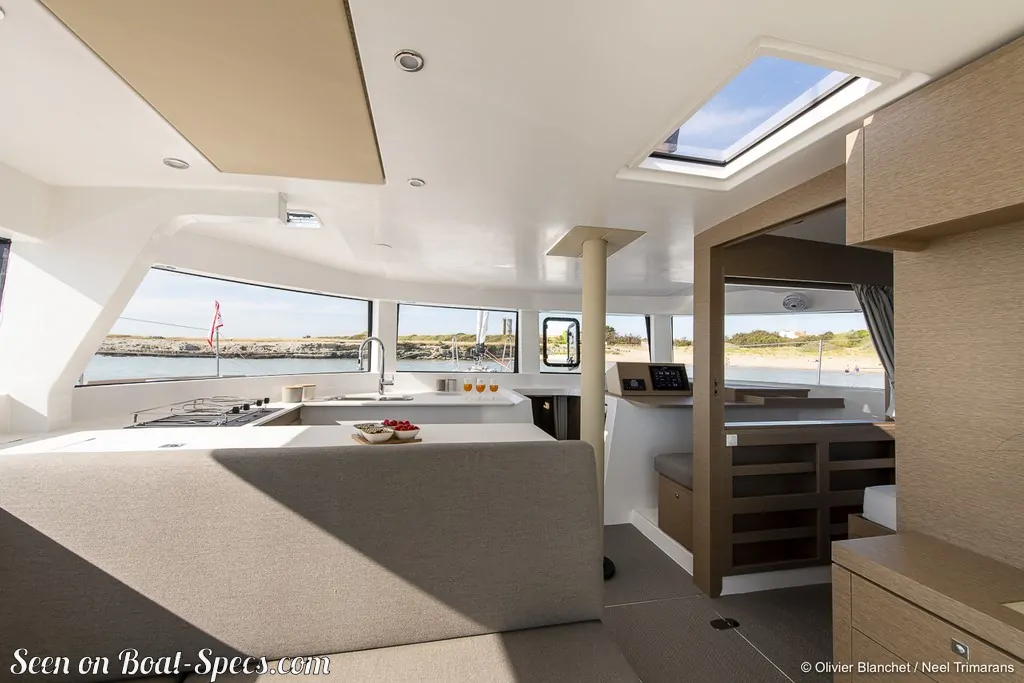

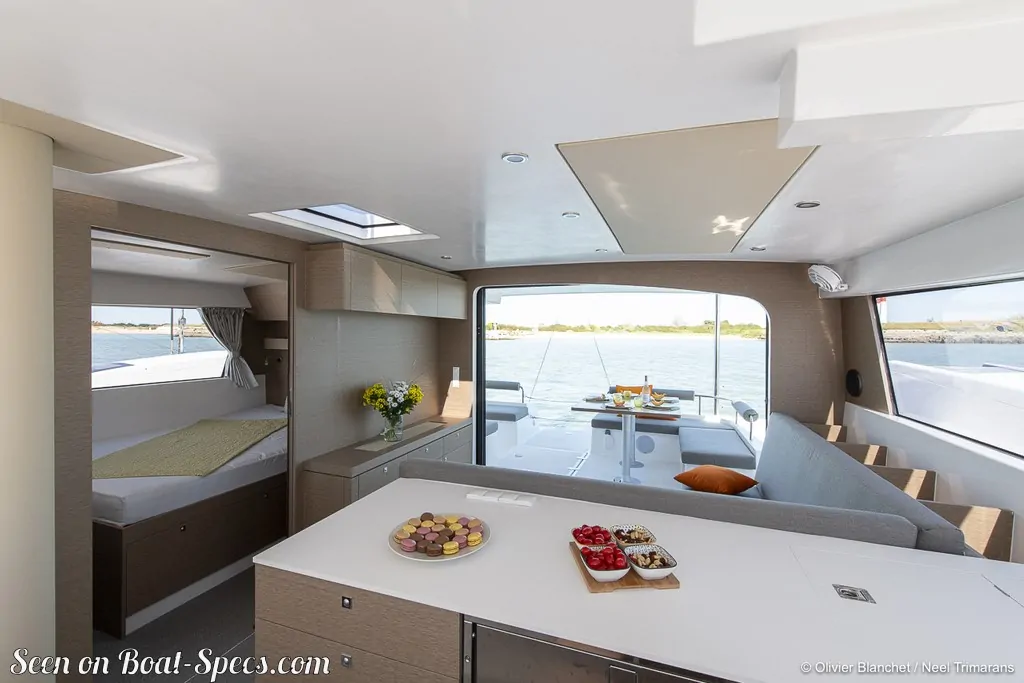

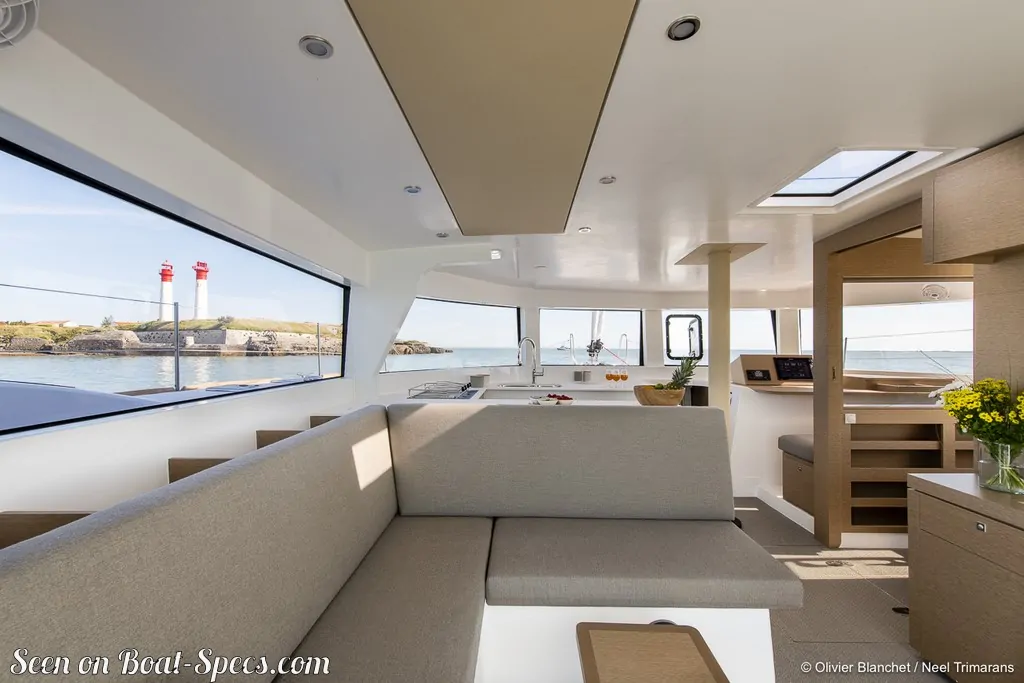

    Neel 47's accommodations and layout

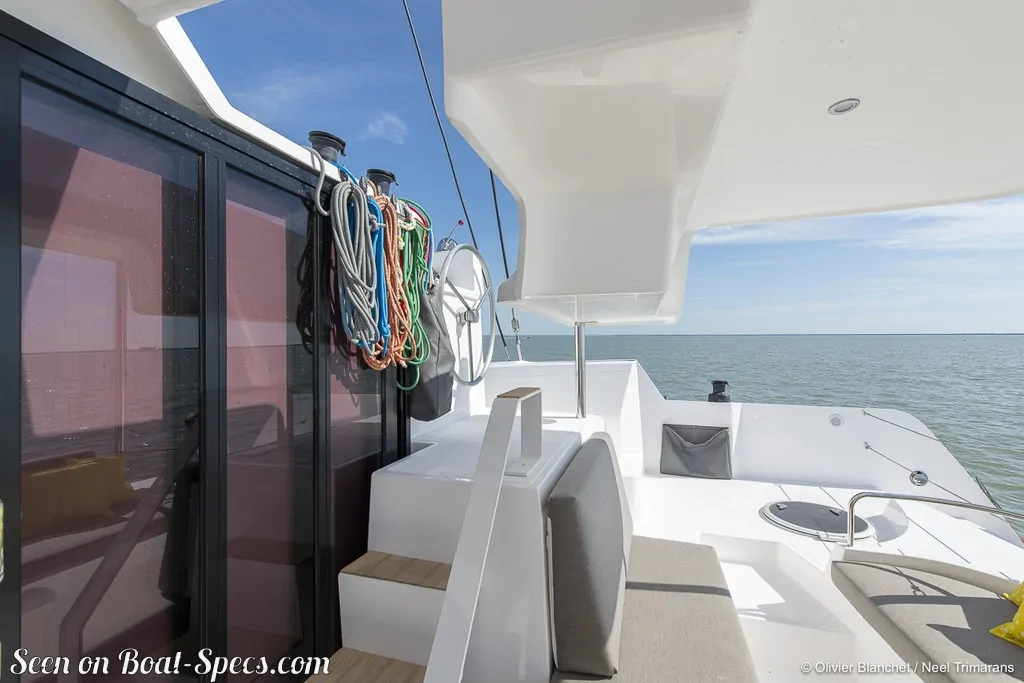

    Cockpit
    Open aft cockpit
    Cabin(s) (min./max.)
    3 / 5
    Berth(s) (min./max.)
    6 / 8

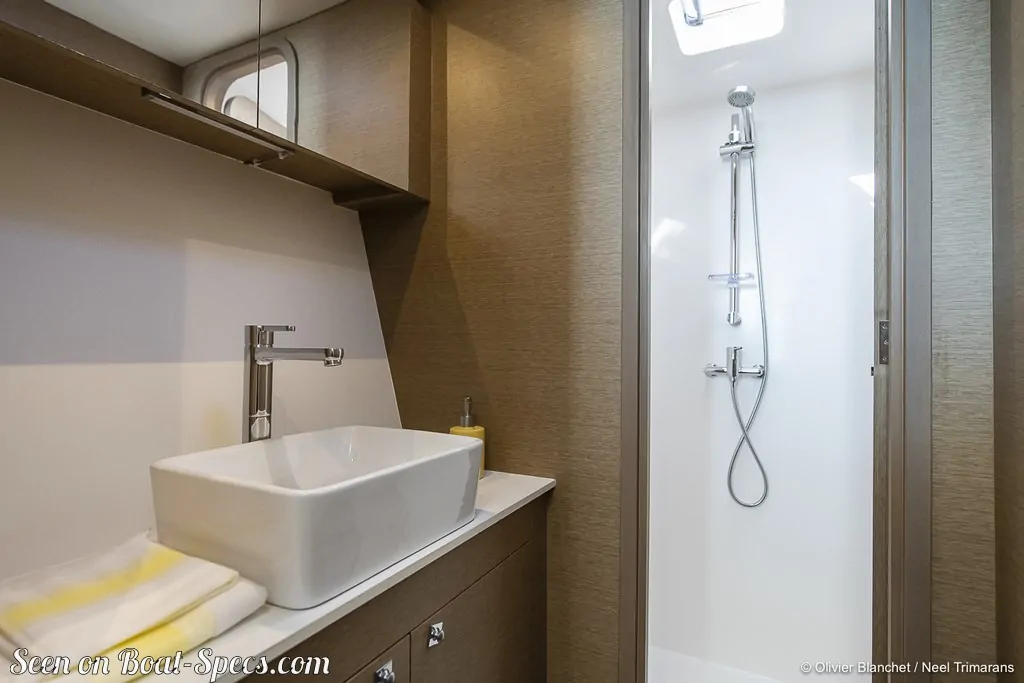

    Head(s)
    3
    Freshwater tank capacity
    158.5 gal600 liters
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
