Nauticat 351

Sailboat specifications

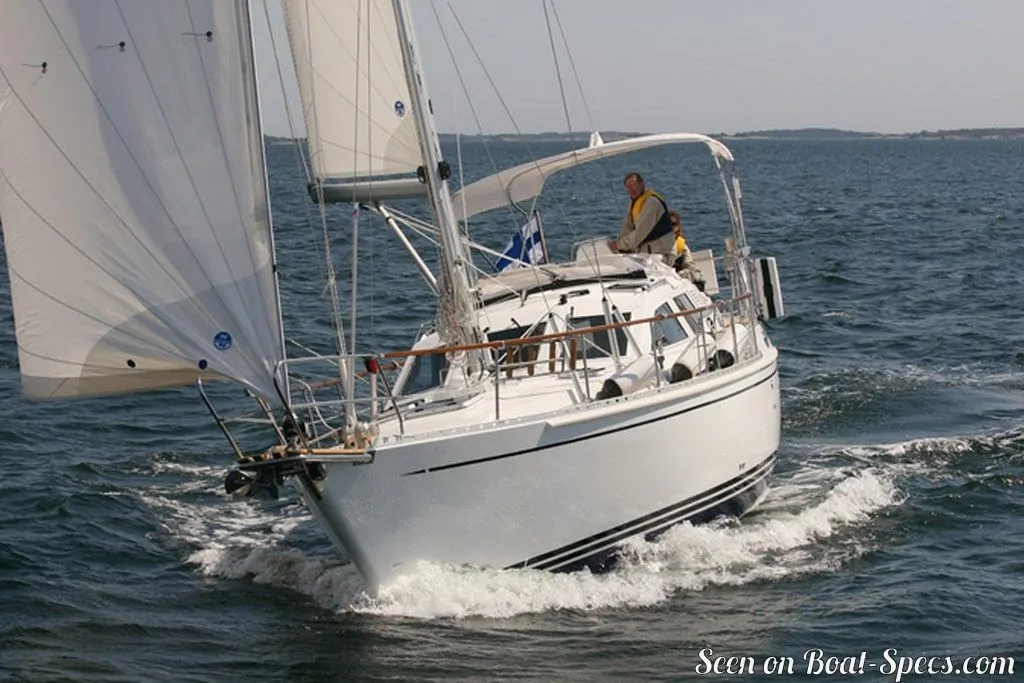

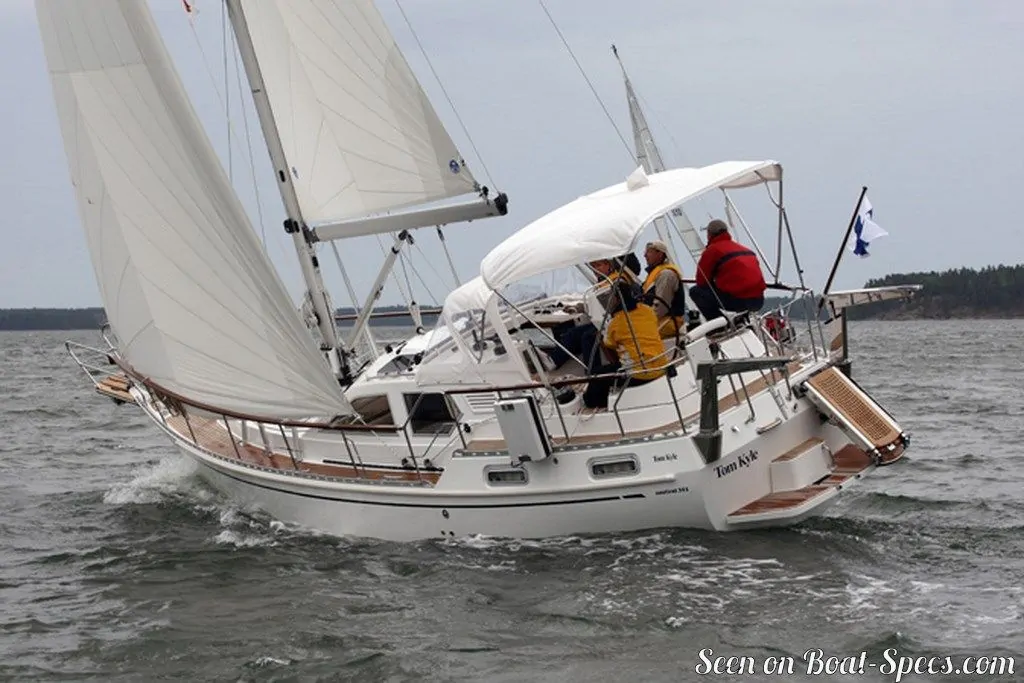

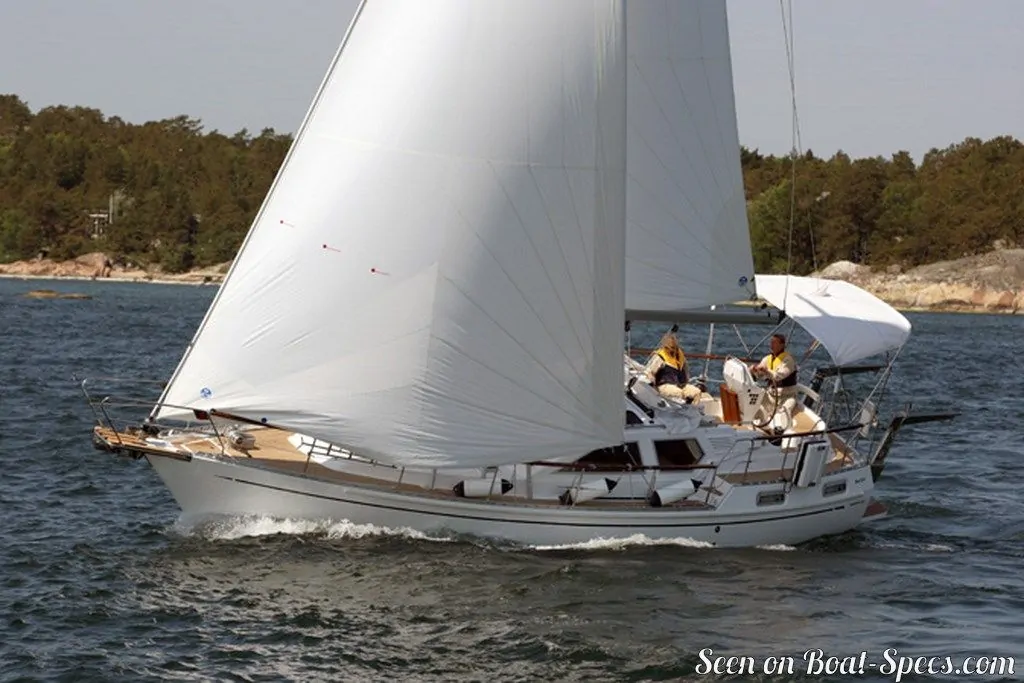

The Nauticat 351 is a 34’10” (10.6m) cruising sailboat designed by Siltala Design Office (Finland). She was built between 2006 and 2018 by Nauticat Yachts (Finland).

Nauticat 351's main features

Model: Nauticat 351
Hull type: Monohull
Category: Deck saloon cruising sailboat
Sailboat builder: Nauticat Yachts
Sailboat designer: Siltala Design Office
Sailboat range: Nauticat
Country: Finland
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
First built hull: 2006
Last built hull: 2018
Appendages: Keel : fin without bulb

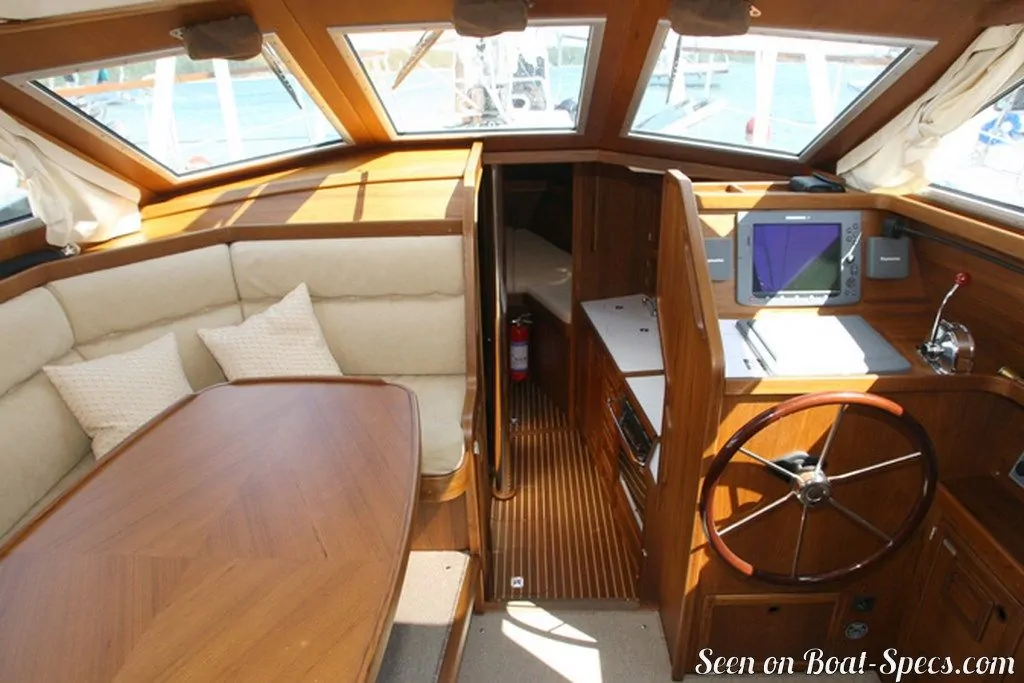

Helm: Twin helm wheels
Rudder: Single semi-spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
290 000 €
(2017)

Nauticat 351's main dimensions

Hull length: 34’ 10”10.6 m
Waterline length: 29’ 8”9.05 m
Beam (width): 11’ 6”3.5 m
Draft: 5’ 11”1.8 m
Mast height from D_WL: 50’ 11”15.5 m
Fore freeboard: 4’ 10”1.45 m
Mid-ship freeboard: 5’ 7”1.7 m
Light displacement (M_LC): 16535 lb7500 kg
Ballast weight: 5952 lb2700 kg
Ballast type: Lead

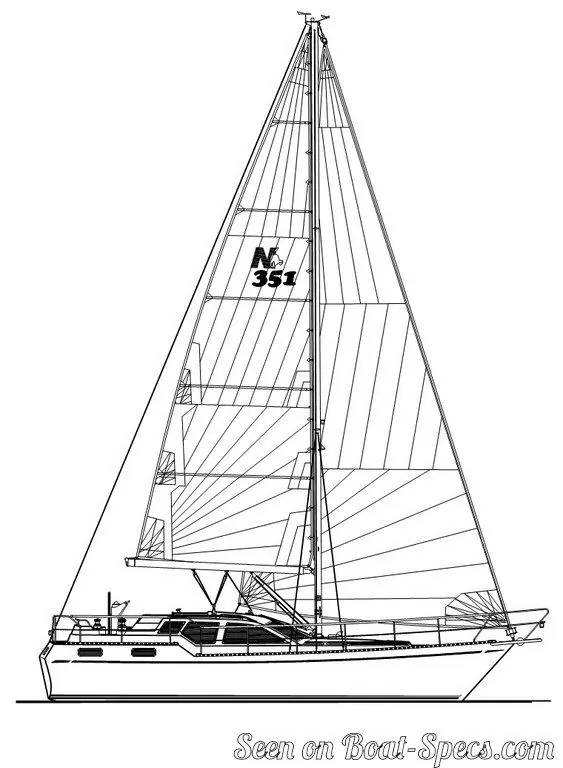

Nauticat 351's rig and sails

Upwind sail area: 729 ft²67.7 m²
Downwind sail area: 1337 ft²124.2 m²
Mainsail area: 293 ft²27.2 m²
Genoa area: 436 ft²40.5 m²
Solent area: 337 ft²31.3 m²
Stormjib area: 98 ft²9.1 m²
Symmetric spinnaker area: 1044 ft²97 m²
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Nauticat 351's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 190 ft²/T17.67 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 349 ft²/T32.42 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 287
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 36 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.30 knots
