Moody 54 DS Shoal draft
Sailboat specifications
The Moody 54 DS is a 56’1” (17.1m) cruising sailboat designed by Dixon Yacht Design (United Kingdom). She is built since 2014 by Moody (United Kingdom). The Shoal draft version features a shorter keel to grant access to shallow areas.
The Moody 54 DS is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).
The Moody 54 DS is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).
Moody 54 DS's main features
- Model
- Moody 54 DS
- Version
- Shoal draft
- Hull type
- Monohull
- Category
- Offshore deck saloon cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- United Kingdom
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester - First built hull
- 2014
- Last built hull
- Still in production
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About680 000 €(2020)
Moody 54 DS's main dimensions
- Hull length
- 56’ 1”17.1 m
- Waterline length
- 51’15.55 m
- Beam (width)
- 17’ 1”5.2 m
- Draft
- 7’ 5”2.25 m
- Mast height from DWL
- 83’25.3 m
- Light displacement (MLC)
- 54013 lb24500 kg
- Ballast weight
- 15432 lb7000 kg
- Ballast type
- Cast iron

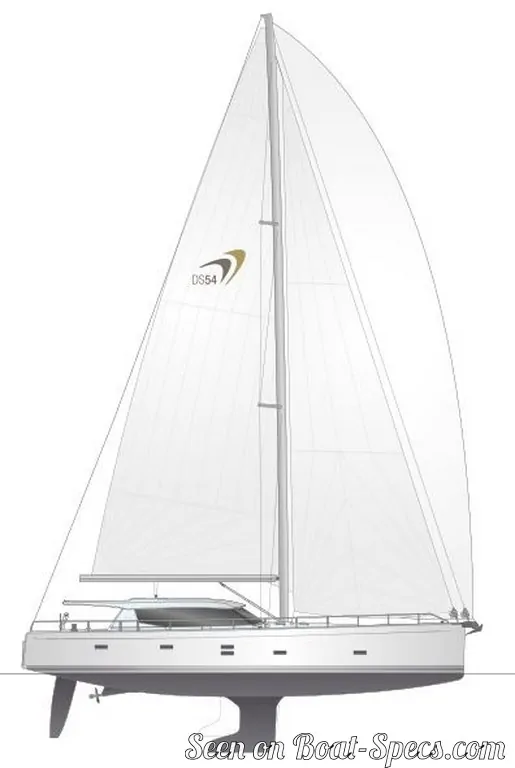

Moody 54 DS's rig and sails
- Upwind sail area
- 1728 ft²160.5 m²
- Downwind sail area
- 3030 ft²281.5 m²
- Mainsail area
- 877 ft²81.5 m²
- Genoa area
- 850 ft²79 m²
- Jib area
- 700 ft²65 m²
- Asymmetric spinnaker area
- 2153 ft²200 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 70’ 2”21.4 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 21’6.4 m
- PiMainsail hoist measurement (from tack to head)
- 67’ 11”20.7 m
- EiMainsail foot measurement (from tack to clew)
- 23’ 4”7.1 m
- Rigging type
- Sloop Marconi masthead
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Moody 54 DS's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 205 ft²/T19.03 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 359 ft²/T33.37 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 185
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 29 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.57 knots
Moody 54 DS's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 146 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 137.9 gal522 liters

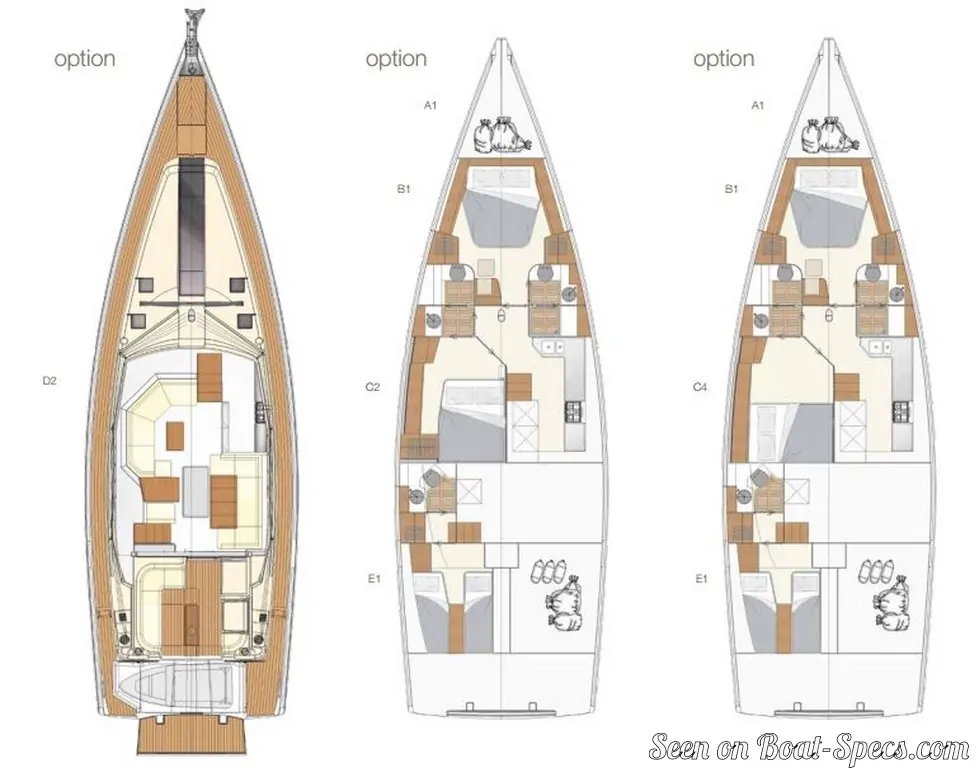

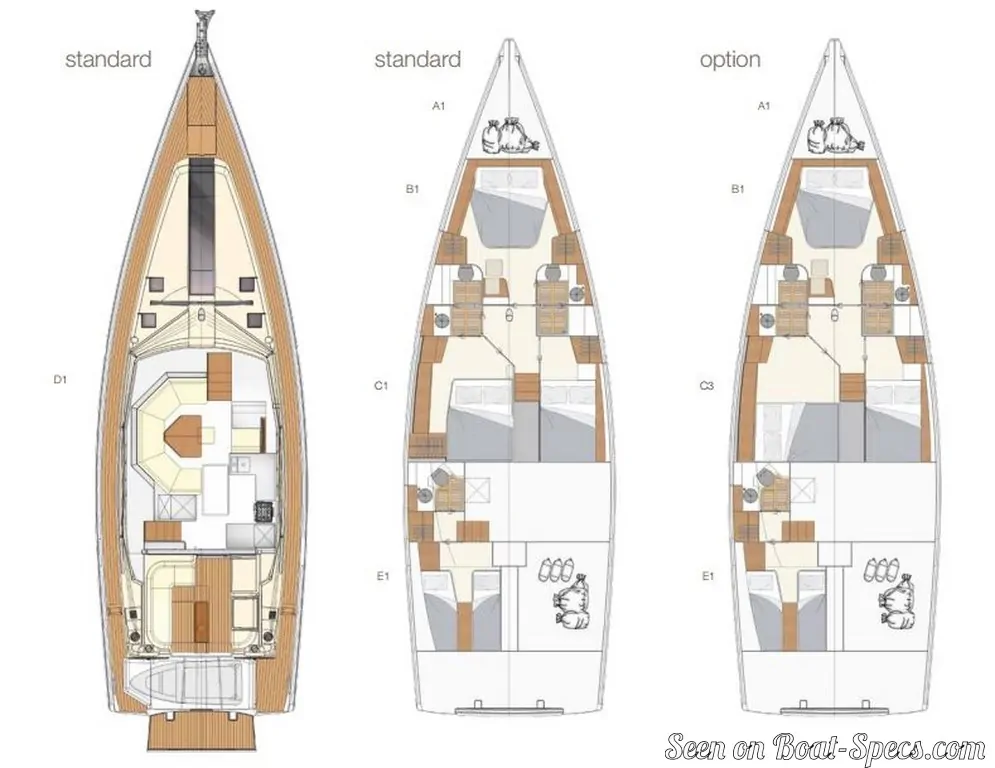

Moody 54 DS's accommodations and layout

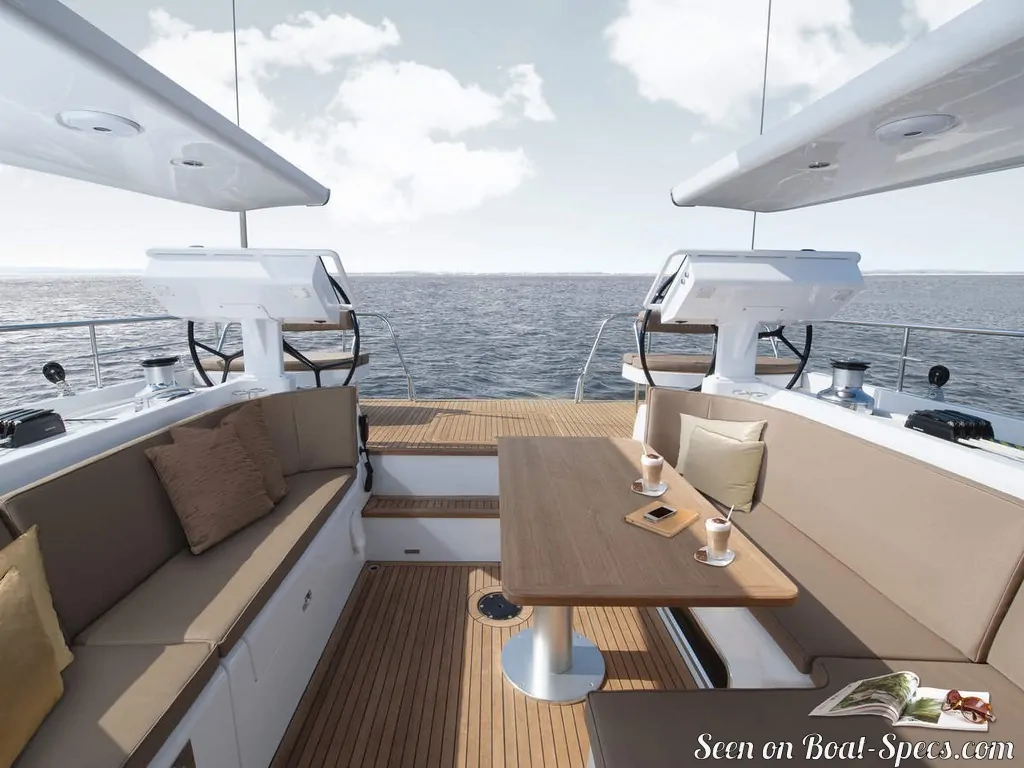

- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 8
- Head(s) (min./max.)
- 3 / 4
- Freshwater tank capacity
- 214 gal810 liters
- Holding tank capacity
- 67.4 gal255 liters
- Fridge/ice-box capacity
- 37 gal140 liters
- Boiler capacity
- 10.6 gal40 liters
- Head headroom
- 6’ 10”2.06 m

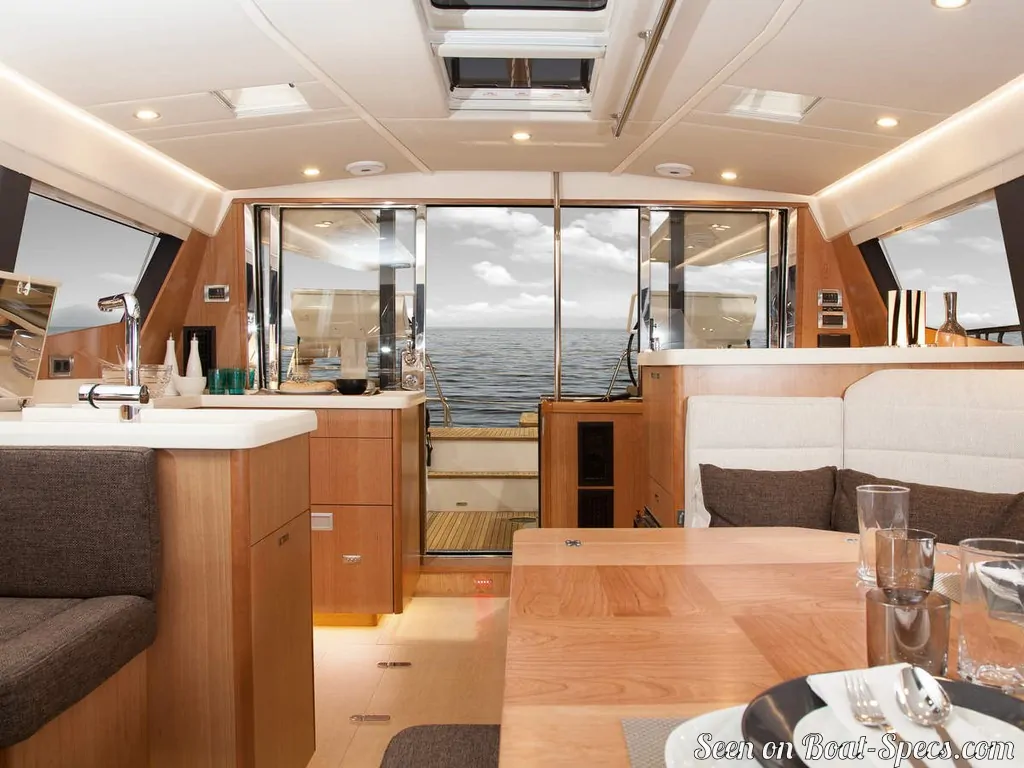

Moody 54 DS's saloon
- Saloon table length
- 3’ 1”0.96 m
- Saloon table width (min./max.)
- 2’ 7”0.78 m / 4’ 5”1.34 m
- Chart table
- 2’ 6”0.76 m x 1’ 10”0.56 m

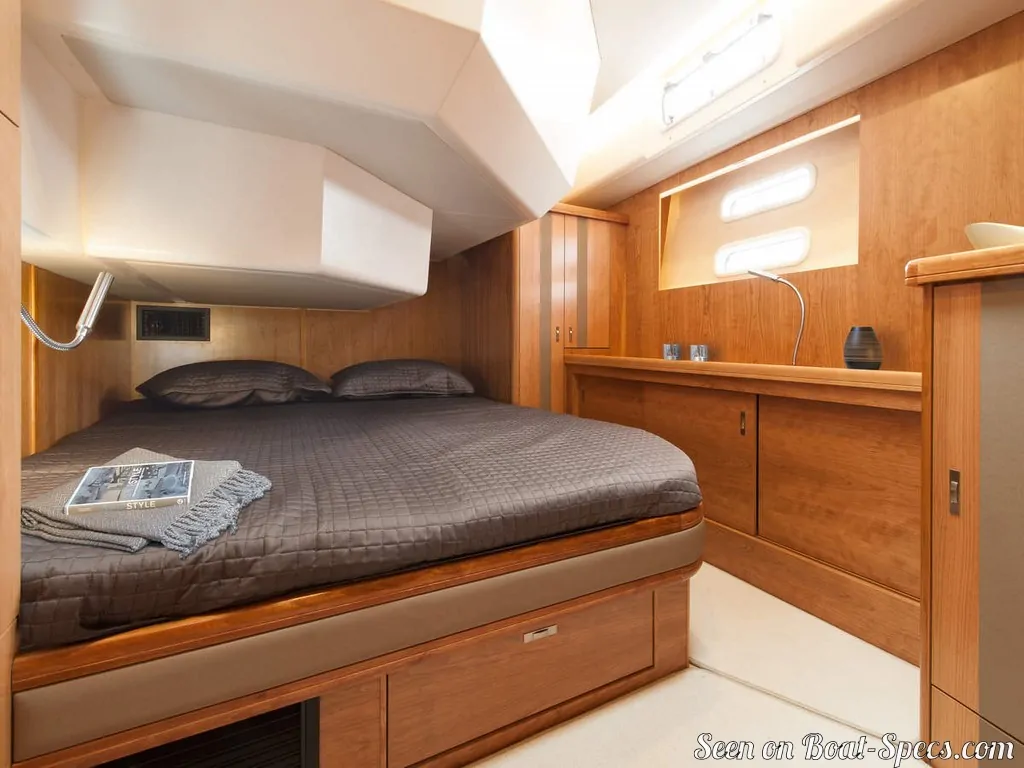

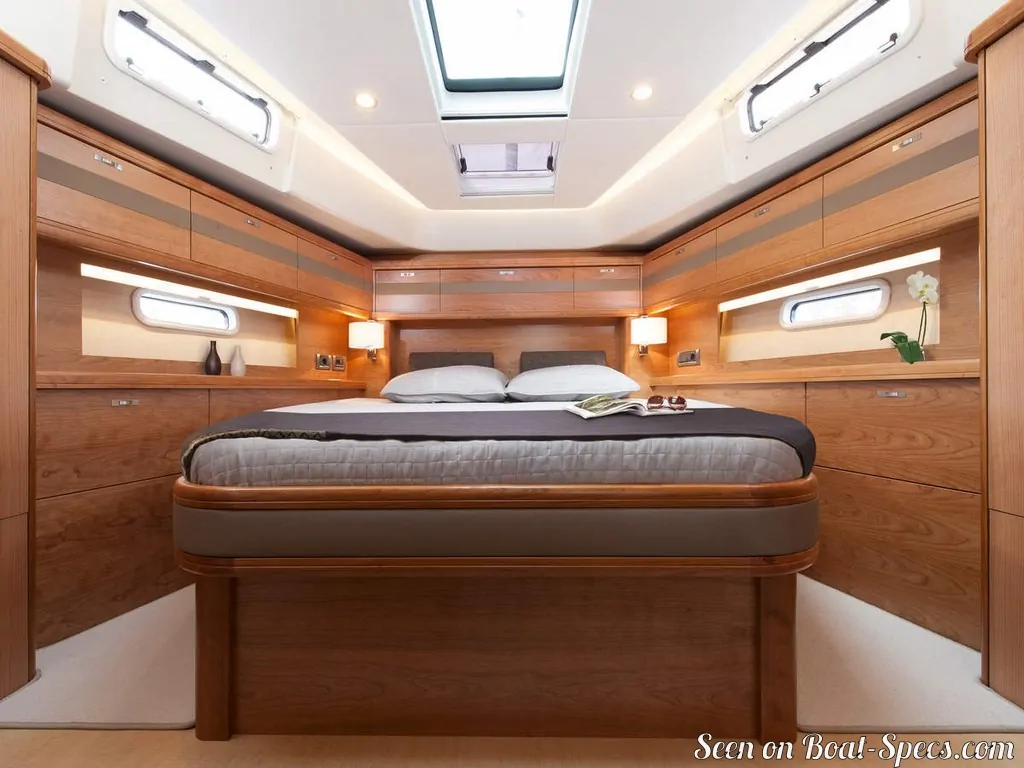

Moody 54 DS's fore cabin
- Maximum headroom
- 6’ 7”2.02 m
- Berth length
- 6’ 11”2.09 m
- Berth width
- 5’ 7”1.7 m

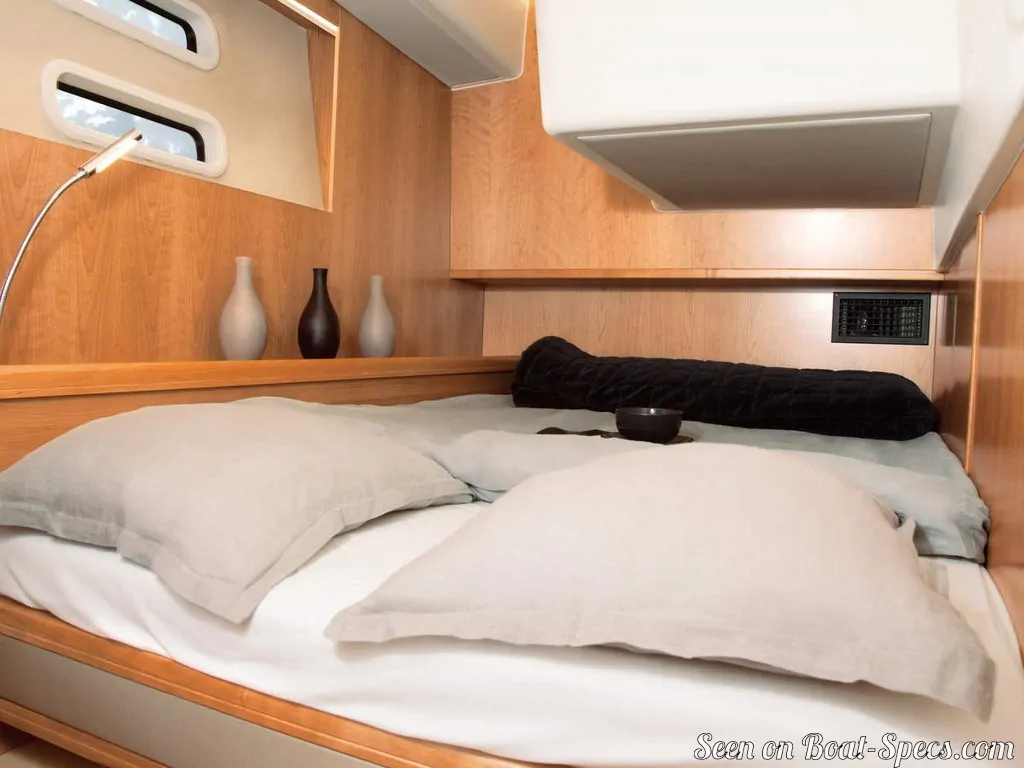

Moody 54 DS's aft cabin
- Maximum headroom
- 6’ 6”1.98 m
- Berth length
- 6’ 8”2.04 m
- Berth width
- 5’ 2”1.57 m

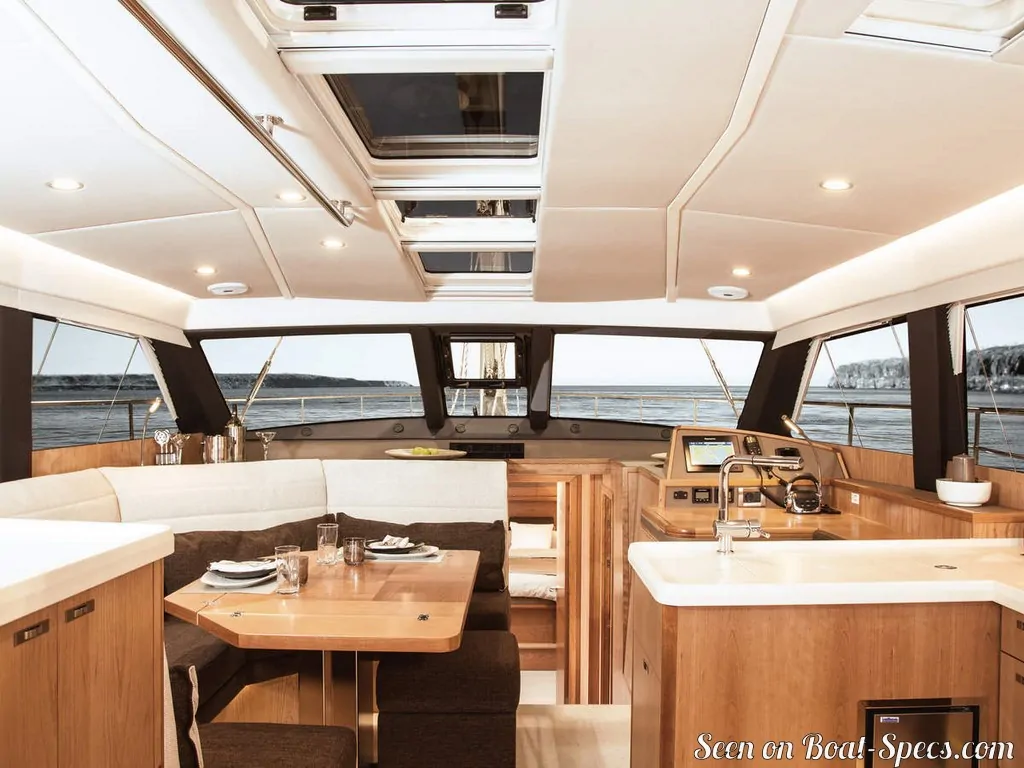

Moody 54 DS interior and accommodations - - 12/16
Picture extracted from the commercial documentation © Moody
Picture extracted from the commercial documentation © Moody
Moody 54 DS interior and accommodations - - 13/16
Picture extracted from the commercial documentation © Moody
Picture extracted from the commercial documentation © Moody
Moody 54 DS interior and accommodations - - 14/16
Picture extracted from the commercial documentation © Moody
Picture extracted from the commercial documentation © Moody
Moody 54 DS interior and accommodations - - 15/16
Picture extracted from the commercial documentation © Moody
Picture extracted from the commercial documentation © Moody
Moody 54 DS interior and accommodations - - 16/16
Picture extracted from the commercial documentation © Moody
Picture extracted from the commercial documentation © Moody
