Marlow Hunter 40 Deep draft

Sailboat specifications

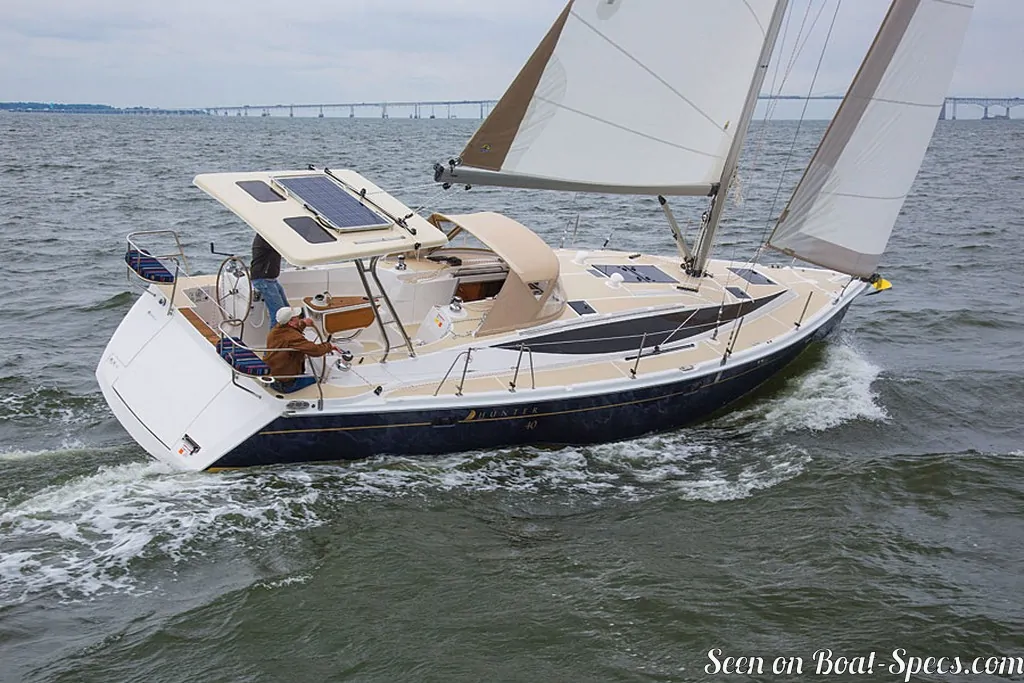

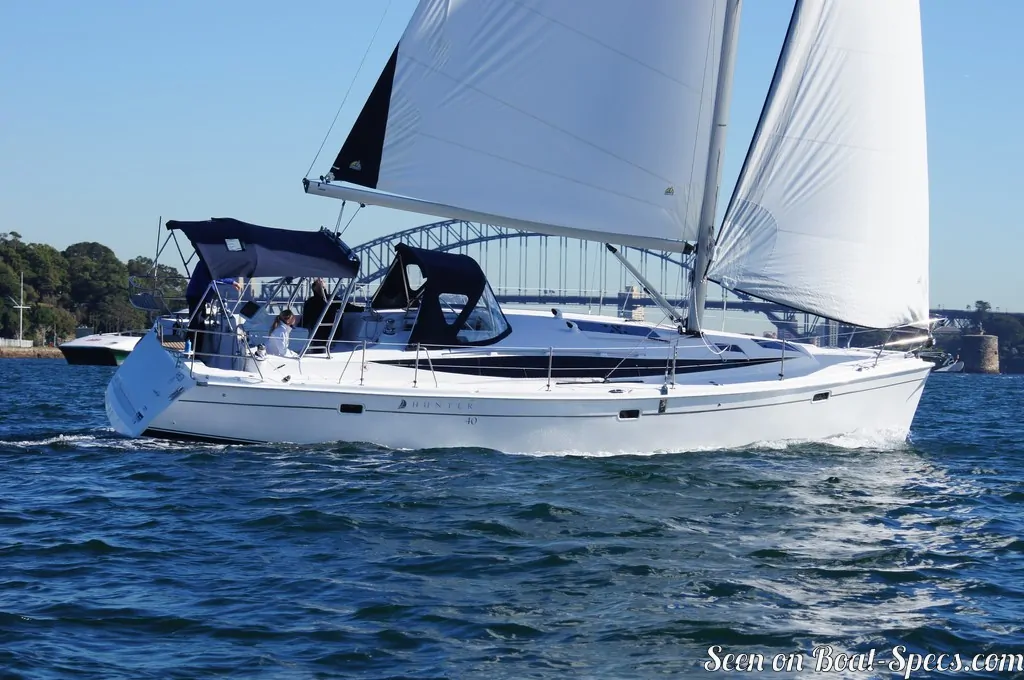

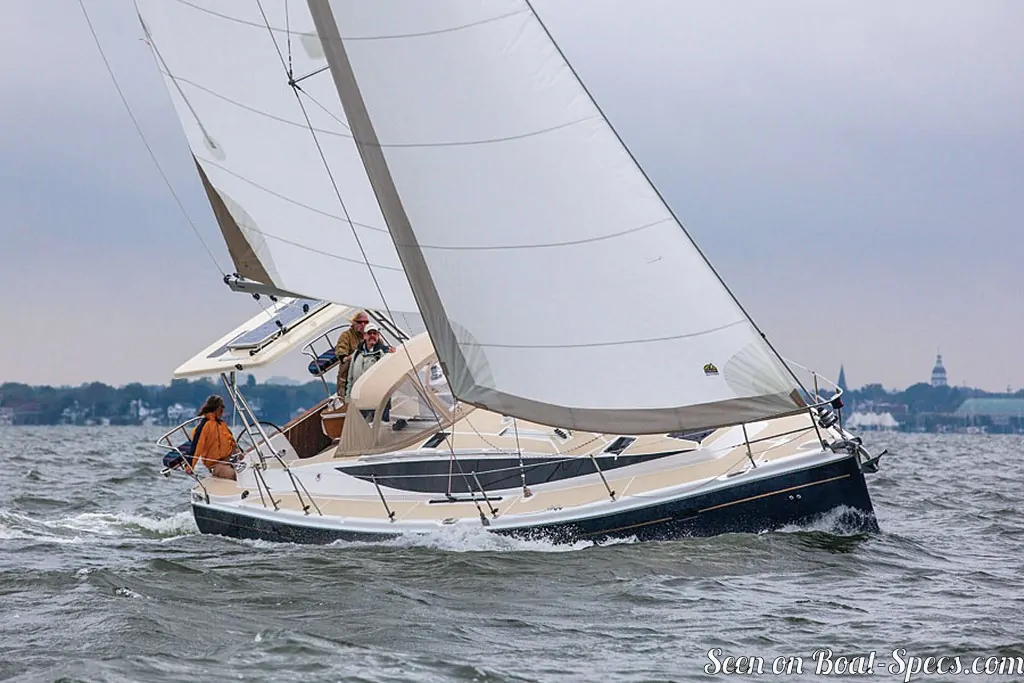

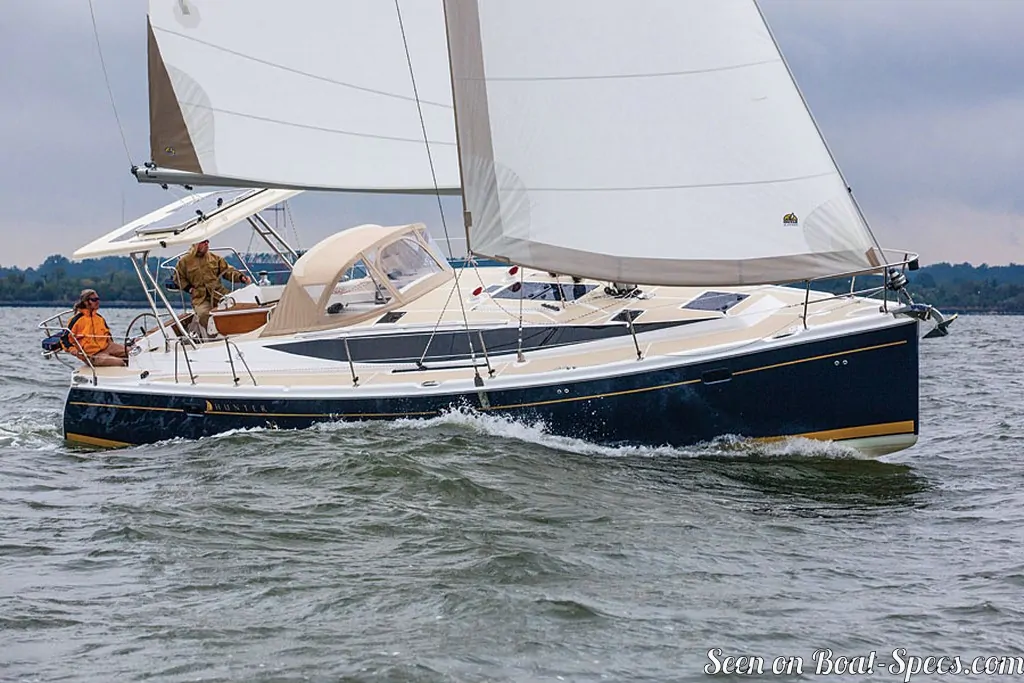

The Marlow Hunter 40 is a 40’ (12.19m) cruising sailboat designed by Glenn Henderson (United States). She is built since 2013 by Marlow Hunter (United States). The Deep draft version displays a deeper fin allowing a lower center of gravity and extra performance especially upwind.

The Marlow Hunter 40 is as well listed, on Boat-Specs.com, in Shoal draft and Furling mainsail version (see all the versions compared).

Marlow Hunter 40's main features

Model: Marlow Hunter 40
Version: Deep draft
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: Marlow Hunter
Sailboat designer: Glenn Henderson
Country: United States
Construction: GRP (glass reinforced polyester):
Single skin bottom, sandwich sides and deck: balsa fiberglass polyester with Kevlar reinforcements
First built hull: 2013
Last built hull: Still in production
Appendages: Keel : fin without bulb

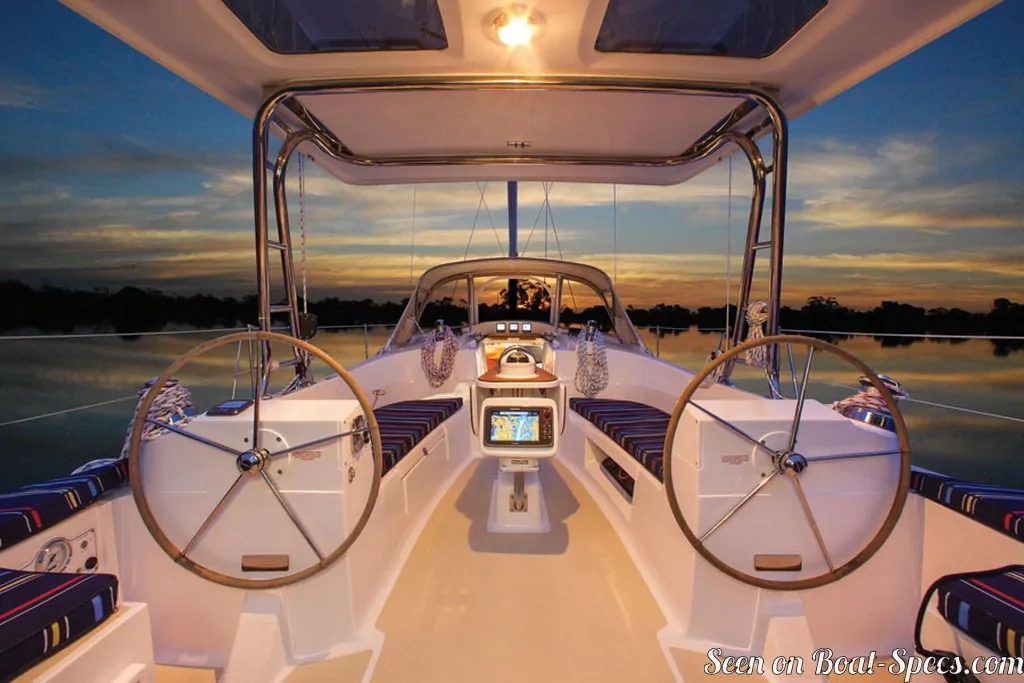

Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Marlow Hunter 40's main dimensions

Overall length: 41’ 2”12.57 m
Hull length: 40’12.19 m
Waterline length: 36’10.97 m
Beam (width): 13’ 2”4.01 m
Draft: 6’ 8”2.03 m
Mast height from D_WL: 61’ 8”18.82 m
Light displacement (M_LC): 19099 lb8663 kg
Ballast weight: 5426 lb2461 kg
Ballast type: Cast iron

Marlow Hunter 40's rig and sails

Upwind sail area: 1006 ft²93.46 m²

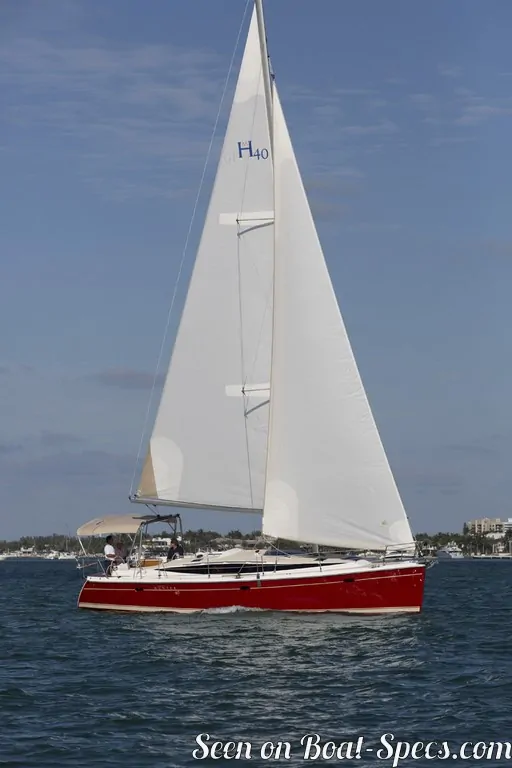

Rigging type: Sloop Marconi (in-mast furling mainsail) fractional
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back (Bergström)
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Marlow Hunter 40's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 239 ft²/T22.16 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 186
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 28 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.04 knots
