Lagoon 52 F
Sailboat specifications
The Lagoon 52 F is a 52’ (15.84m) cruising catamaran designed by VPLP Design (France). She was built between 2012 and 2018 by Lagoon (France).
Lagoon 52 F's main features
- Model
- Lagoon 52 F
- Hull type
- Catamaran
- Category
- Cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 2012
- Last built hull
- 2018
- Appendages
- Skegs : skeg on each hull
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About685 000 €(2017)
Lagoon 52 F's main dimensions
- Hull length
- 52’15.84 m
- Waterline length
- 51’ 2”15.6 m
- Beam (width)
- 28’ 8”8.74 m
- Draft
- 5’ 1”1.55 m
- Mast height from DWL
- 91’ 10”27.97 m
- Light displacement (MLC)
- 57386 lb26030 kg
Lagoon 52 F's rig and sails
- Upwind sail area
- 1905 ft²177 m²
- Downwind sail area
- 3897 ft²362 m²
- Mainsail area
- 1152 ft²107 m²
- Genoa area
- 753 ft²70 m²
- Jib area
- 635 ft²59 m²

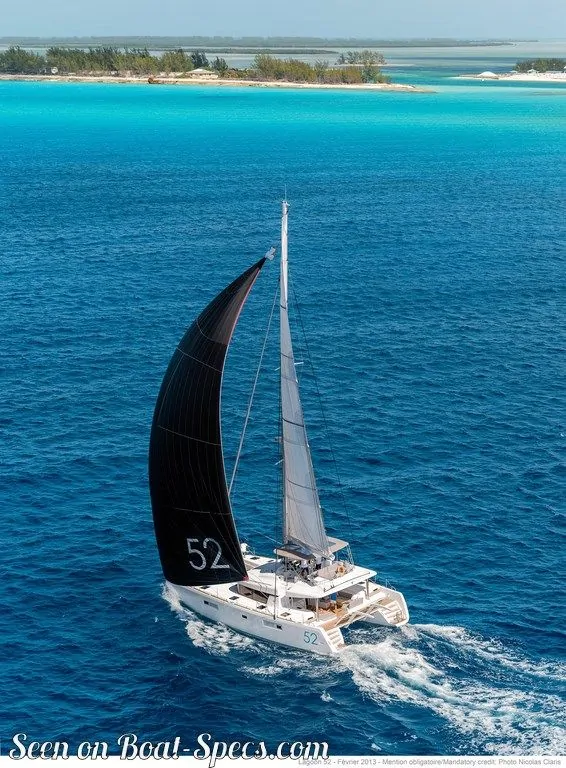

- Asymmetric spinnaker area
- 2745 ft²255 m²
- Code 0 area
- 1636 ft²152 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Lagoon 52 F's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 217 ft²/T20.15 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 444 ft²/T41.22 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 194
Lagoon 52 F's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 57 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 262.1 gal992 liters

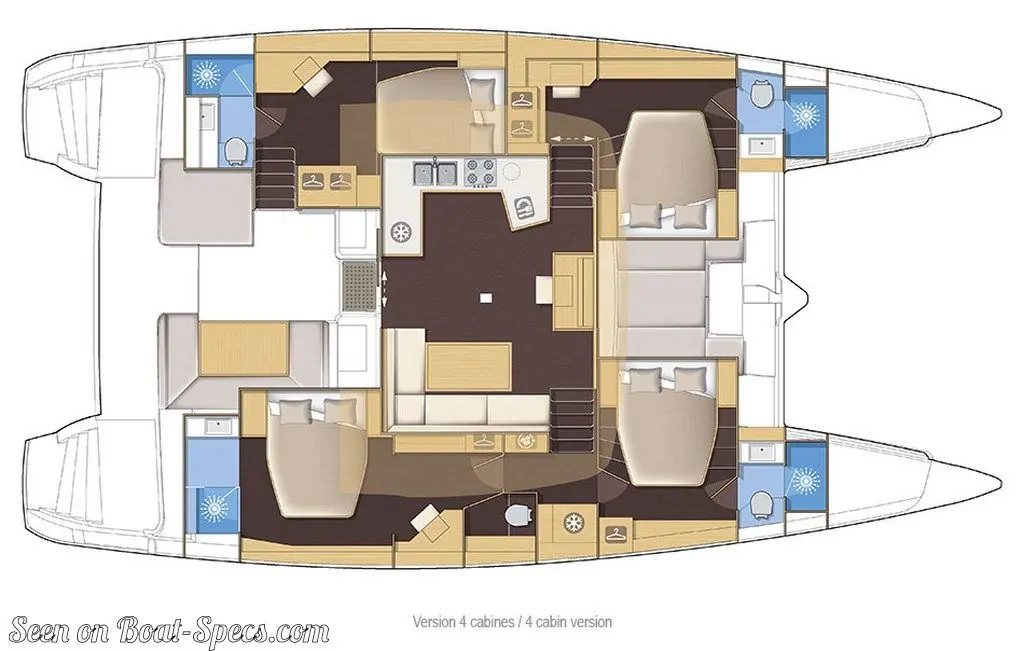

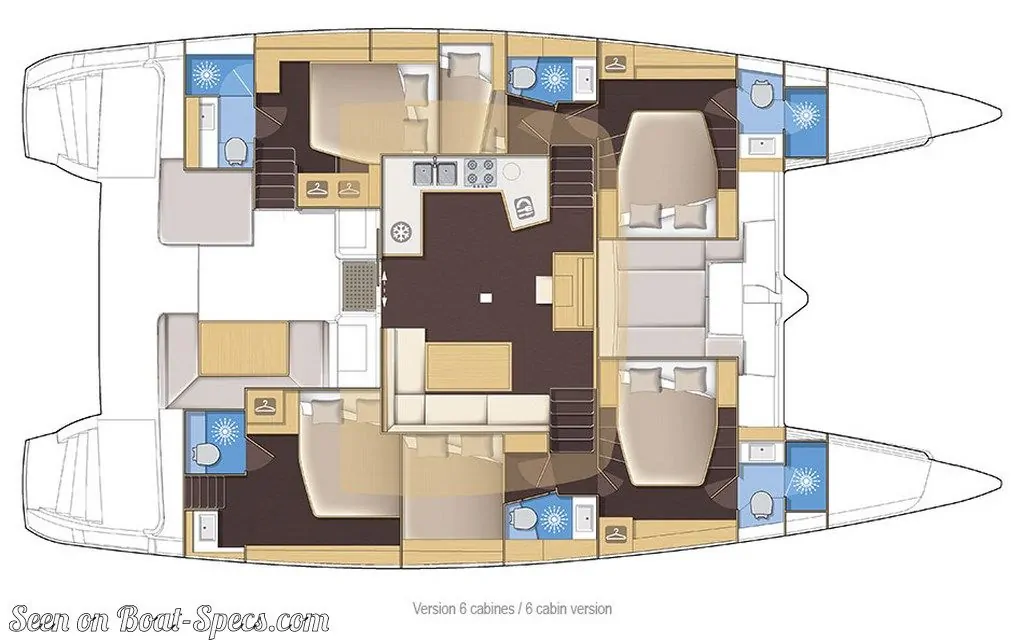

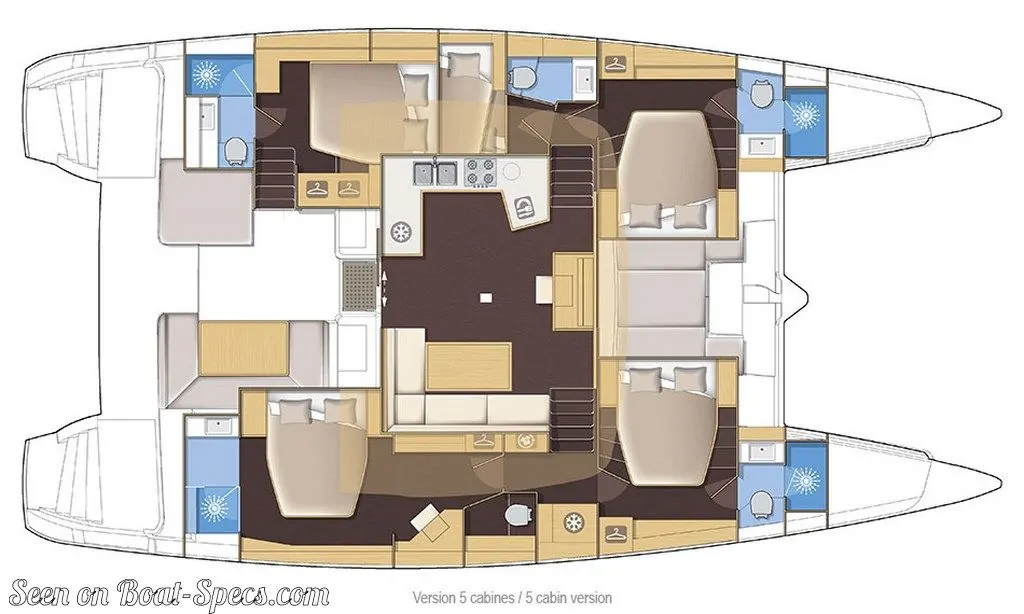

Lagoon 52 F's accommodations and layout

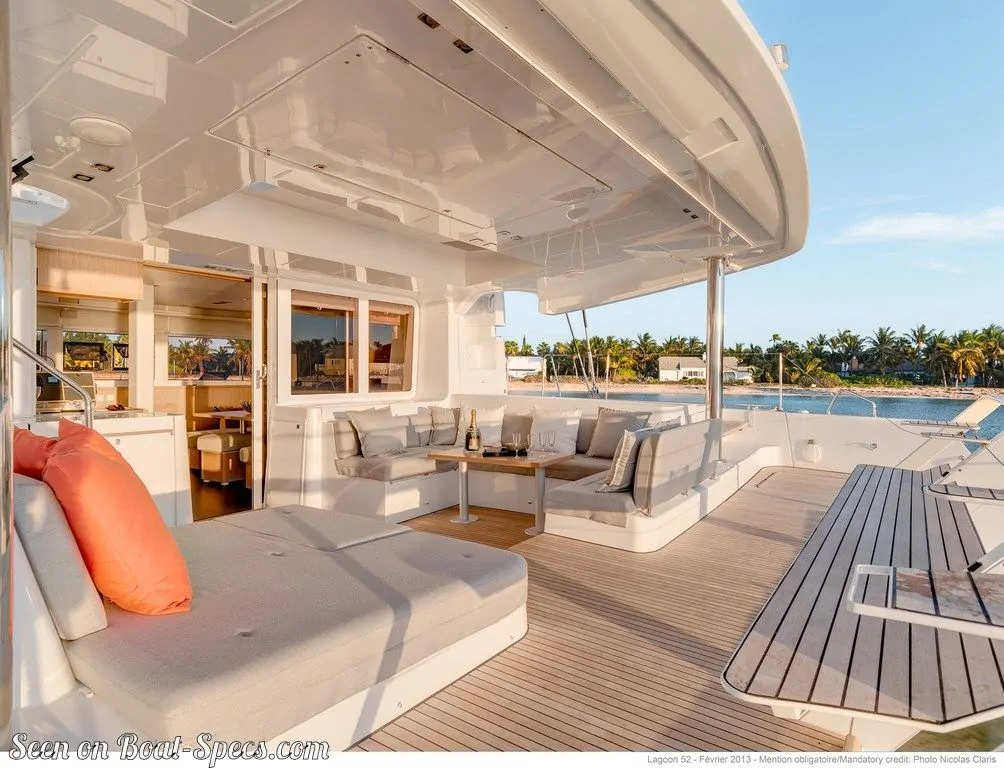

- Cockpit
- Aft cockpit and flybridge
- Cabin(s) (min./max.)
- 3 / 6
- Berth(s) (min./max.)
- 6 / 14
- Head(s) (min./max.)
- 3 / 6
- Freshwater tank capacity
- 253.6 gal960 liters
- Holding tank capacity
- 57.9 gal219 liters
- Boiler capacity
- 15.9 gal60 liters
- Head headroom
- 6’ 8”2.05 m

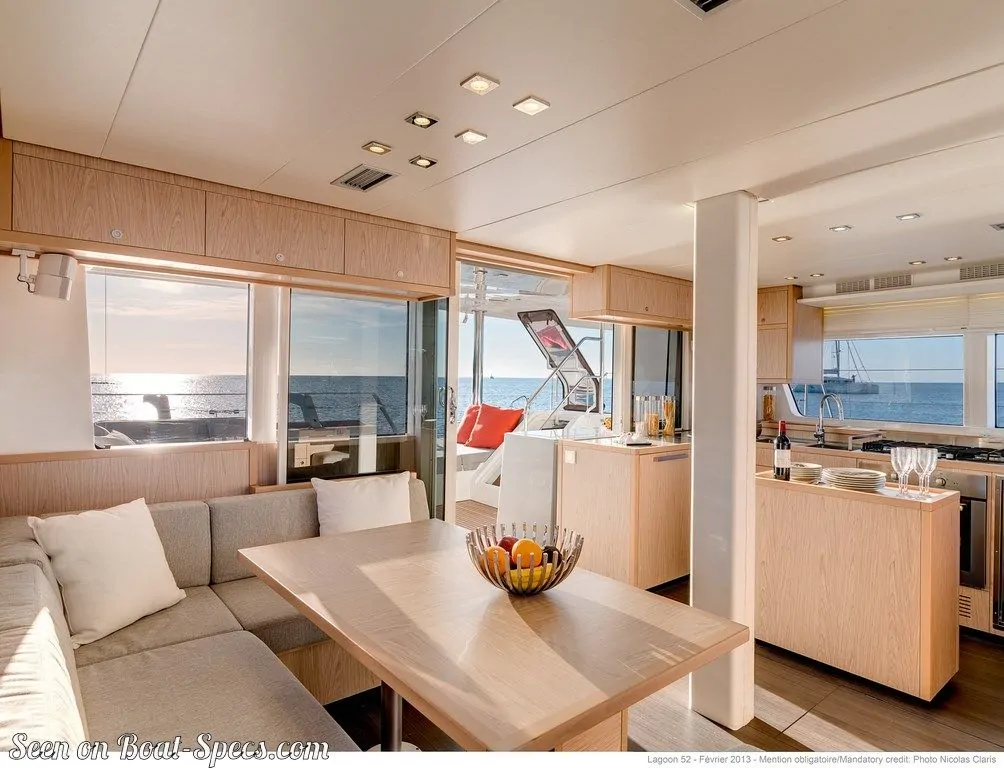

Lagoon 52 F's saloon
- Maximum headroom
- 7’ 1”2.15 m

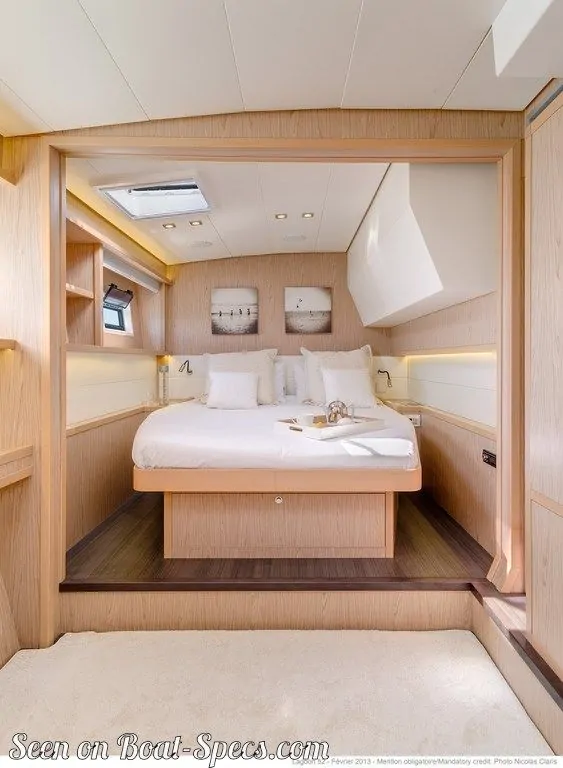

Lagoon 52 F's fore cabin
- Maximum headroom
- 6’ 8”2.05 m
- Berth length
- 6’ 8”2.05 m
- Berth width
- 5’ 2”1.6 m

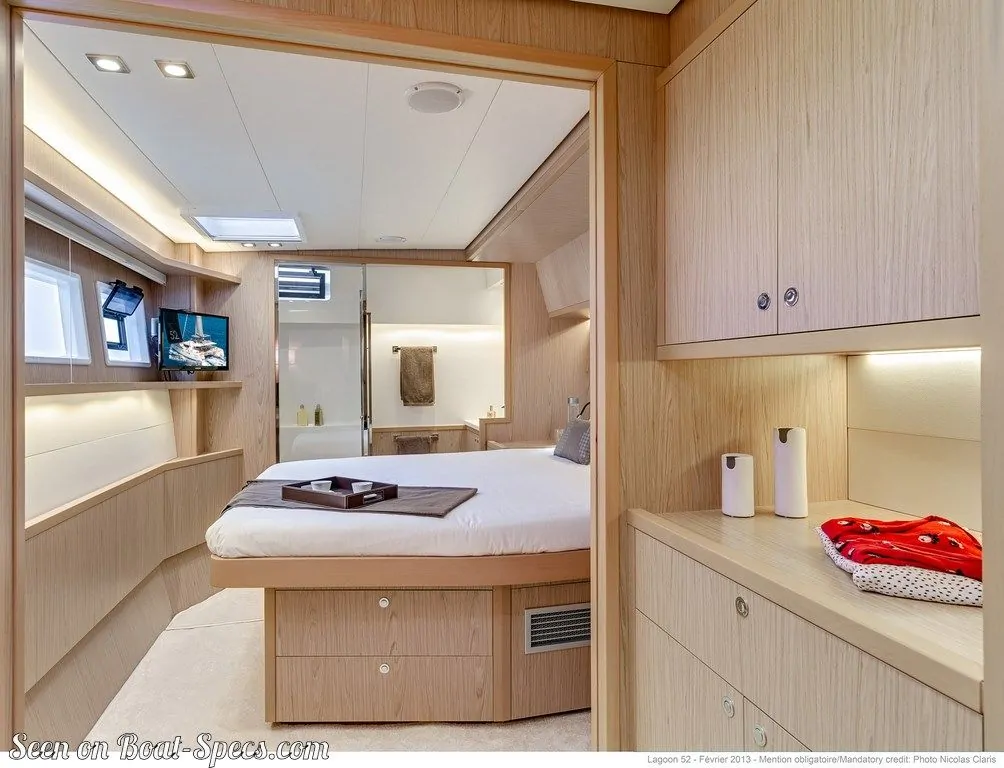

Lagoon 52 F's aft cabin
- Maximum headroom
- 6’ 8”2.05 m
- Berth length
- 6’ 8”2.05 m
- Berth width
- 5’ 2”1.6 m

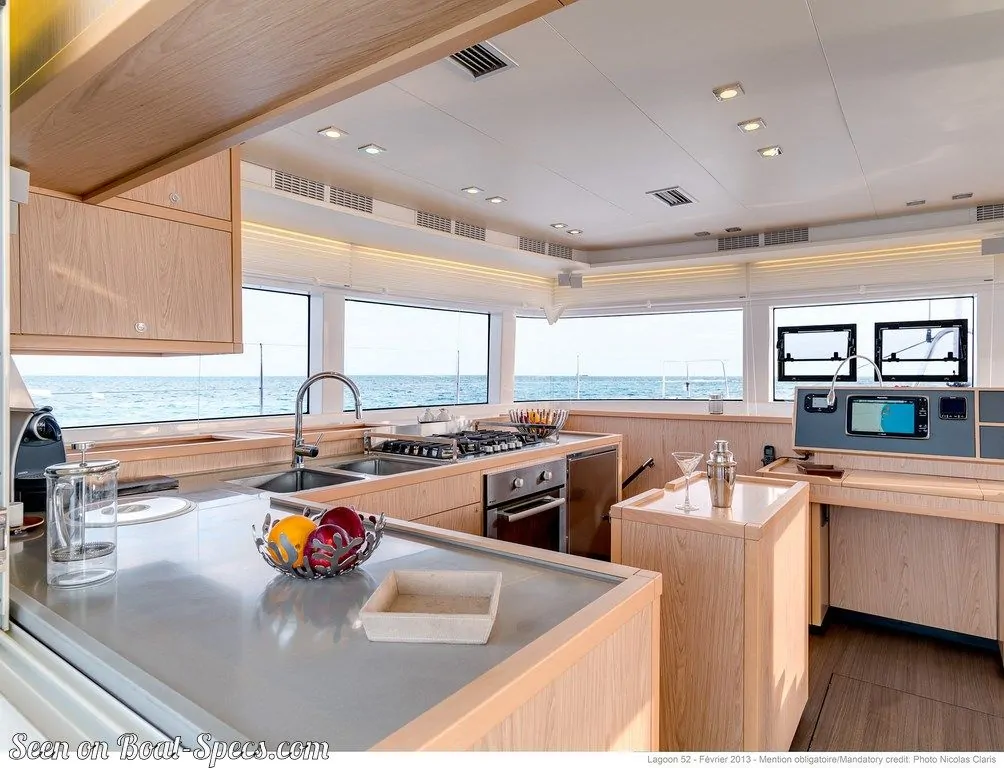

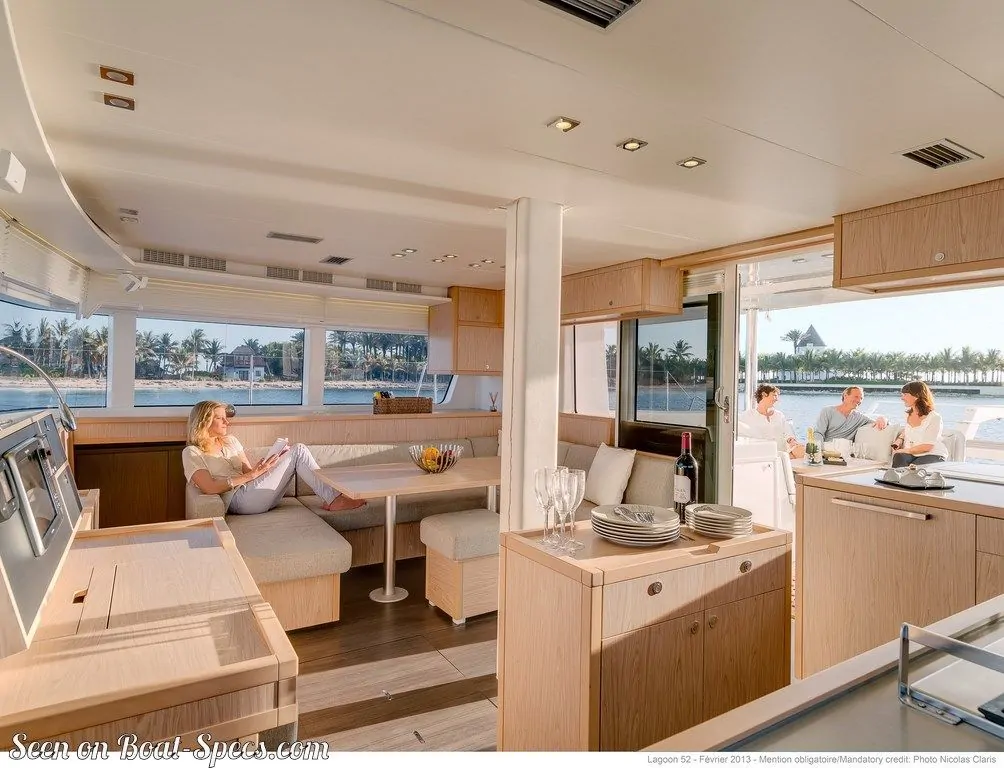

Lagoon 52 F interior and accommodations - - 15/20
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 52 F interior and accommodations - - 16/20
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 52 F interior and accommodations - - 17/20
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 52 F interior and accommodations - - 18/20
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 52 F interior and accommodations - - 19/20
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
