Lagoon 500
Sailboat specifications
The Lagoon 500 is a 51’ (15.54m) cruising catamaran designed by VPLP Design (France). She was built between 2005 and 2012 by Lagoon (France).
Lagoon 500's main features
- Model
- Lagoon 500
- Hull type
- Catamaran
- Category
- Cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 2005
- Last built hull
- 2012
- Appendages
- Skegs : skeg on each hull
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Lagoon 500's main dimensions
- Hull length
- 51’15.54 m
- Waterline length
- 49’14.93 m
- Beam (width)
- 28’8.52 m
- Draft
- 4’ 7”1.4 m
- Mast height from DWL
- 82’25 m
- Light displacement (MLC)
- 37633 lb17070 kg
- French customs tonnage
- 41.62 Tx
Lagoon 500's rig and sails
- Upwind sail area
- 1724 ft²160.2 m²
- Downwind sail area
- 2616 ft²243 m²
- Mainsail area
- 1055 ft²98 m²
- Genoa area
- 670 ft²62.2 m²
- Gennaker area
- 1561 ft²145 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Lagoon 500's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 260 ft²/T24.16 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 394 ft²/T36.65 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 145
Lagoon 500's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power (min./max.)
- 55 HP / 75 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 126.8 gal480 liters

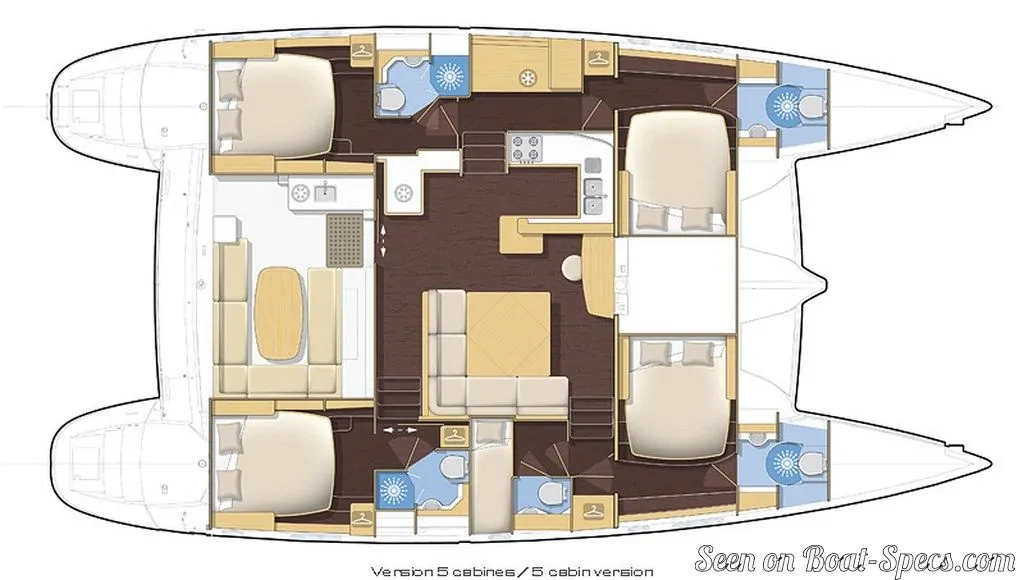

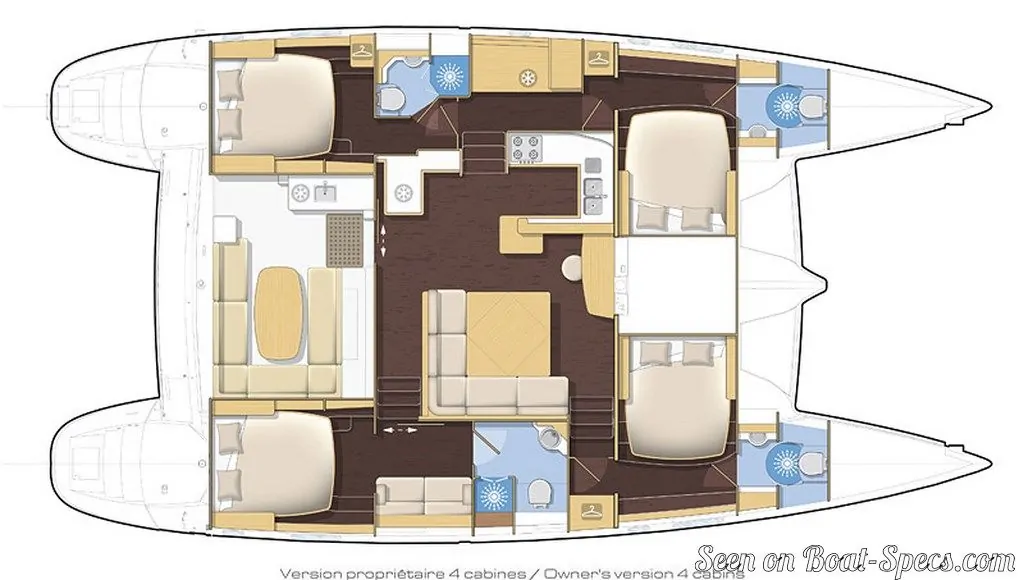

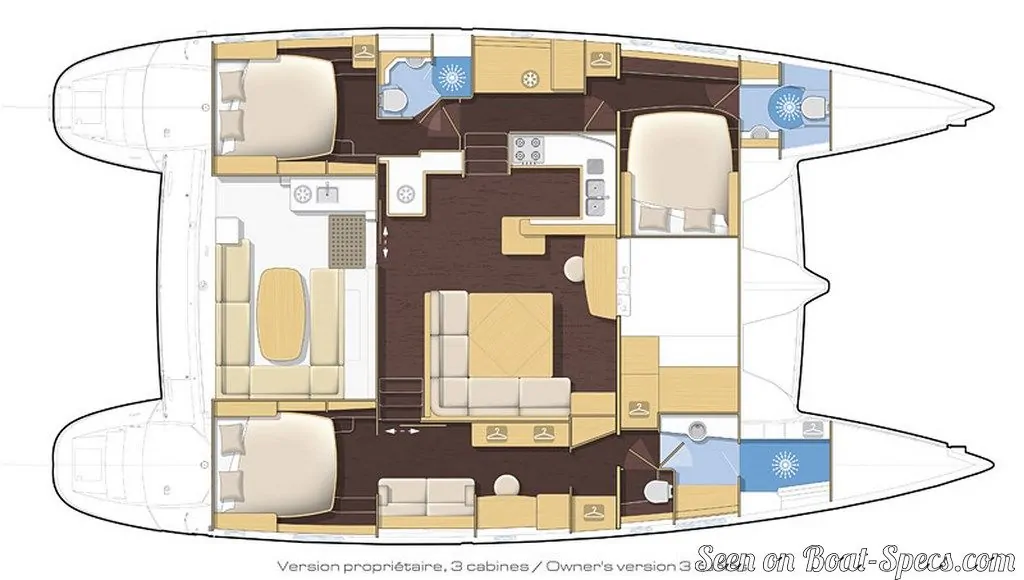

Lagoon 500's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s) (min./max.)
- 3 / 5
- Berth(s) (min./max.)
- 6 / 14
- Head(s) (min./max.)
- 3 / 5
- Freshwater tank capacity
- 253.6 gal960 liters
- Maximum headroom
- 6’ 8”2.03 m

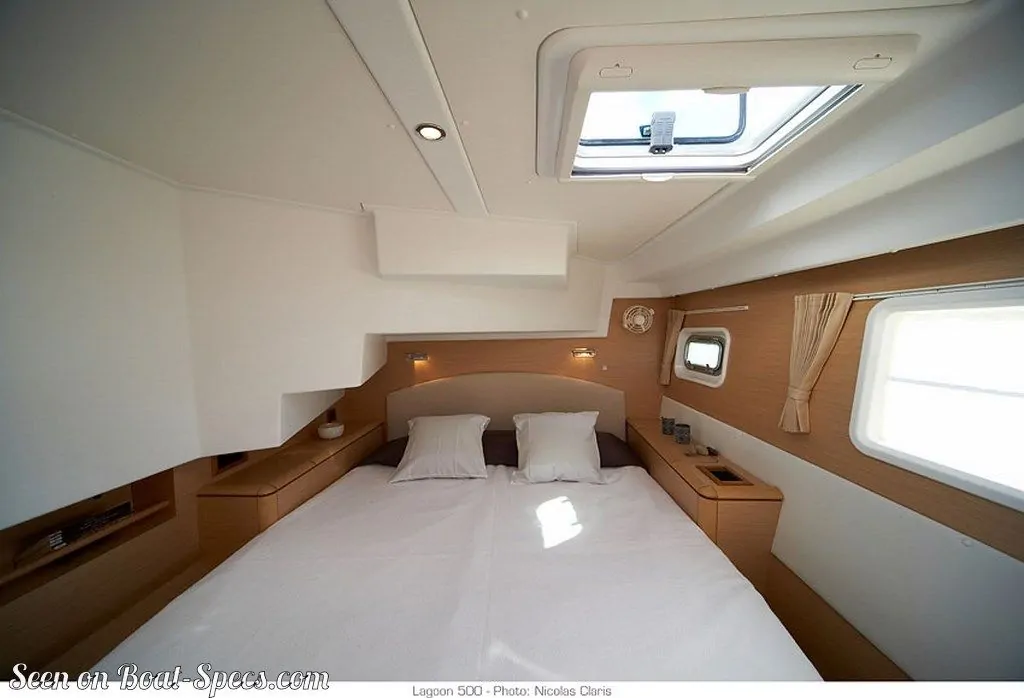

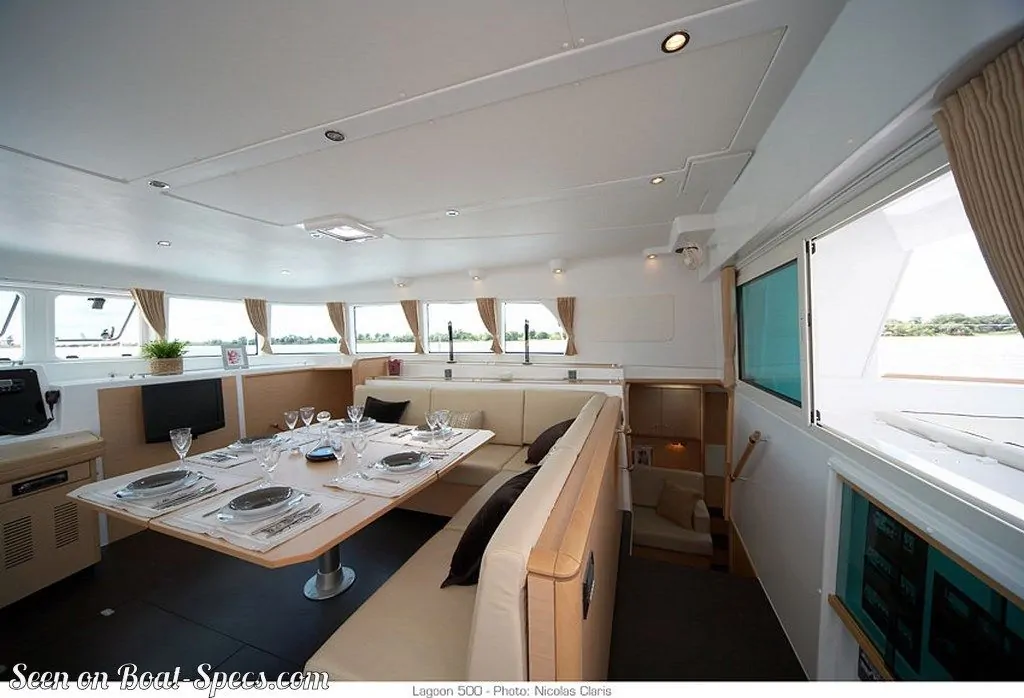

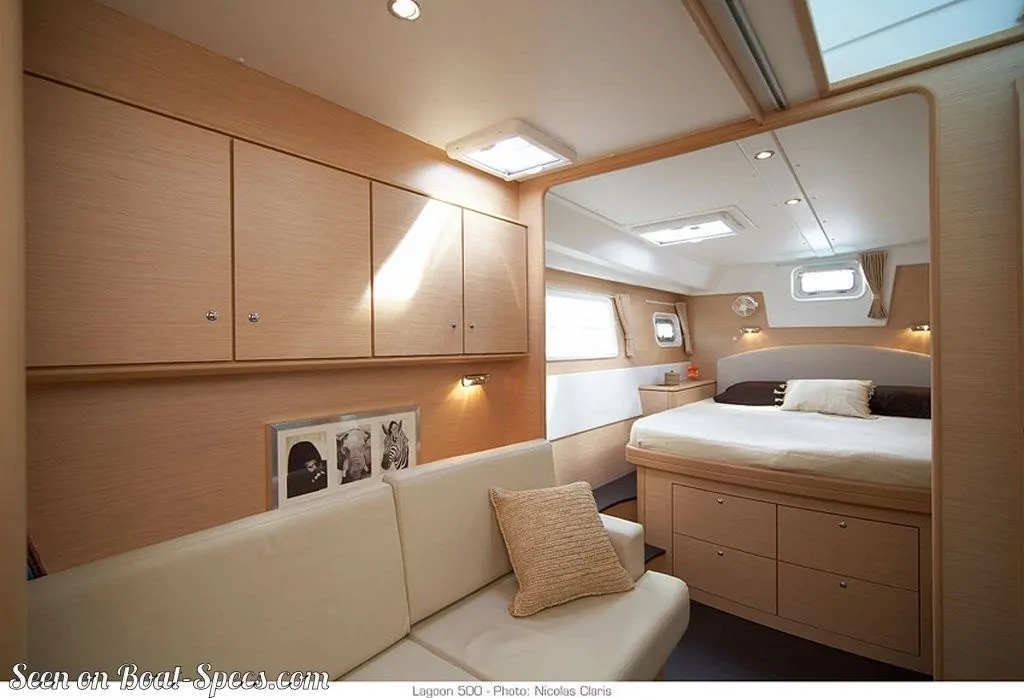

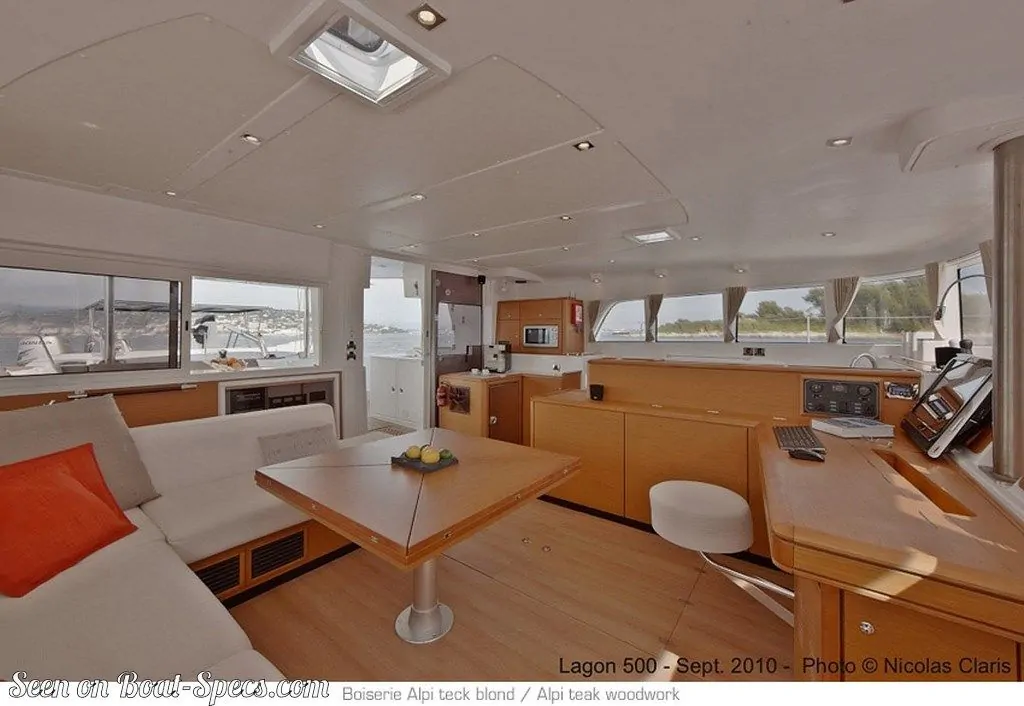

Lagoon 500 interior and accommodations - - 7/10
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 500 interior and accommodations - - 8/10
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 500 interior and accommodations - - 9/10
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 500 interior and accommodations - - 10/10
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
