Lagoon 39
Sailboat specifications

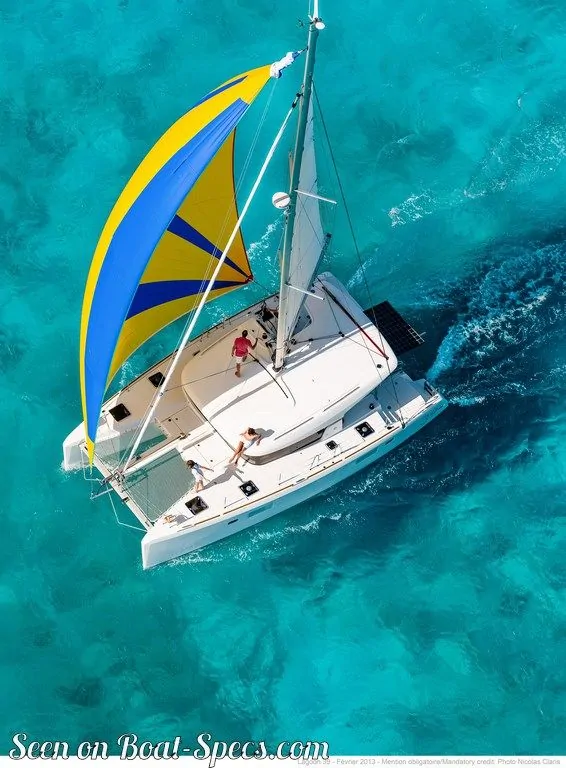

The Lagoon 39 is a 38’6” (11.74m) cruising catamaran designed by VPLP Design (France). She was built between 2013 and 2017 by Lagoon (France).
Lagoon 39's main features
- Model
- Lagoon 39
- Hull type
- Catamaran
- Category
- Cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 2013
- Last built hull
- 2017
- Appendages
- Skegs : skeg on each hull
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About240 000 €(2016)
Lagoon 39's main dimensions
- Hull length
- 38’ 6”11.74 m
- Beam (width)
- 22’ 4”6.79 m
- Draft
- 4’1.21 m
- Mast height from DWL
- 60’ 5”18.4 m
- Light displacement (MLC)
- 25735 lb11673 kg
Lagoon 39's rig and sails
- Upwind sail area
- 818 ft²76 m²
- Downwind sail area
- 1206 ft²112 m²
- Mainsail area
- 474 ft²44 m²
- Jib area
- 344 ft²32 m²
- Code 0 area
- 732 ft²68 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Lagoon 39's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 159 ft²/T14.77 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 234 ft²/T21.77 m²/T
Lagoon 39's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power (min./max.)
- 20 HP / 29 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 105.7 gal400 liters

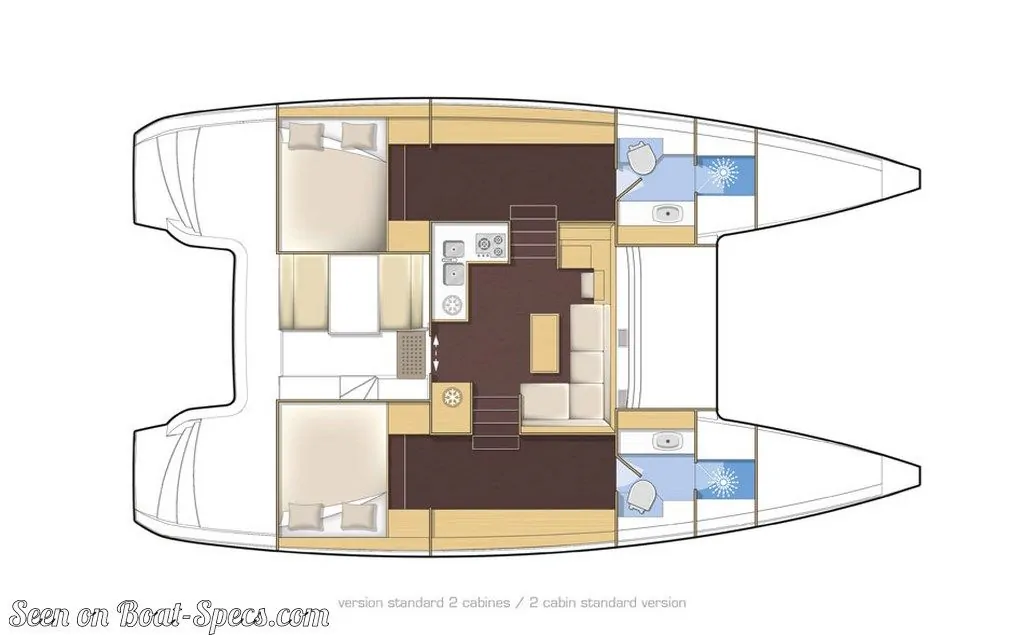

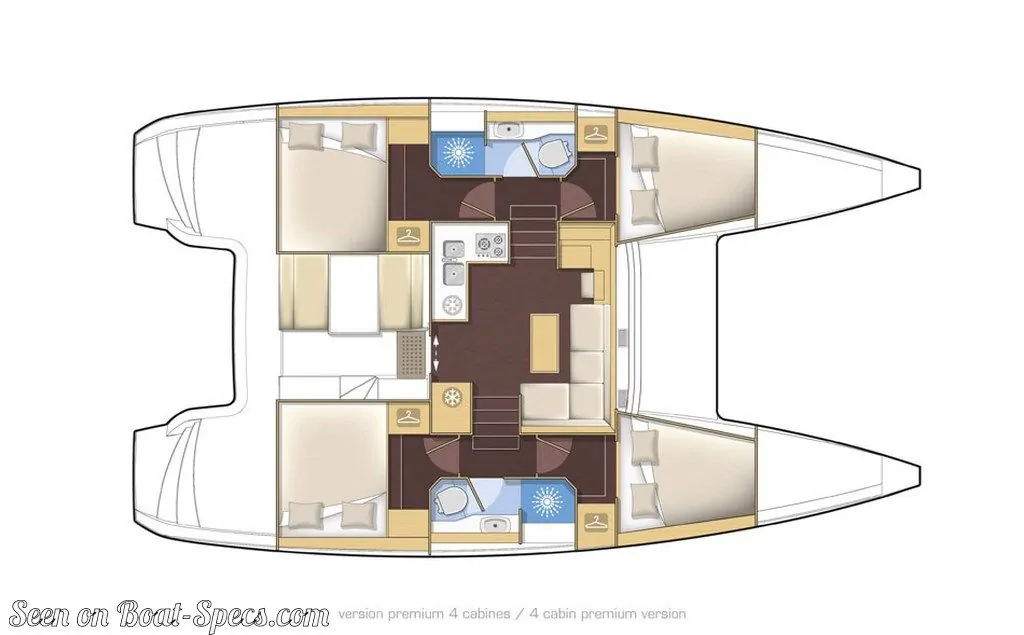

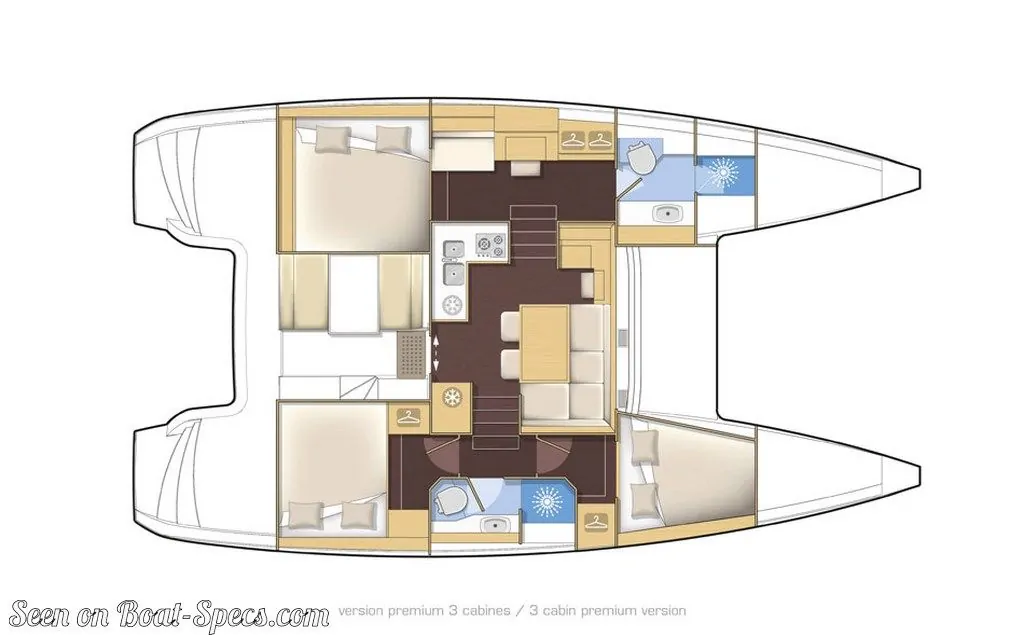

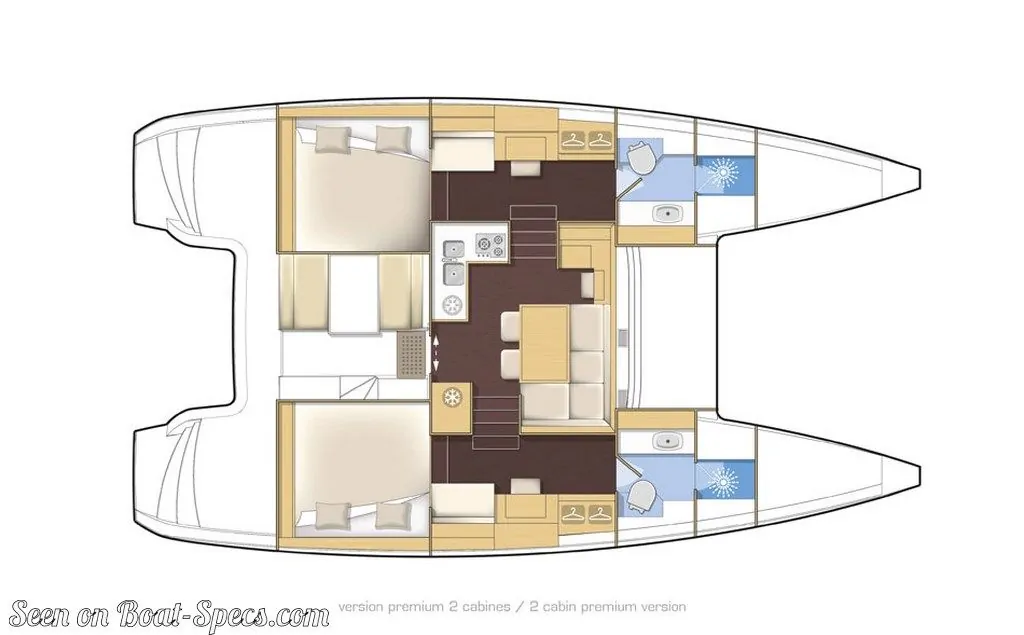

Lagoon 39's accommodations and layout

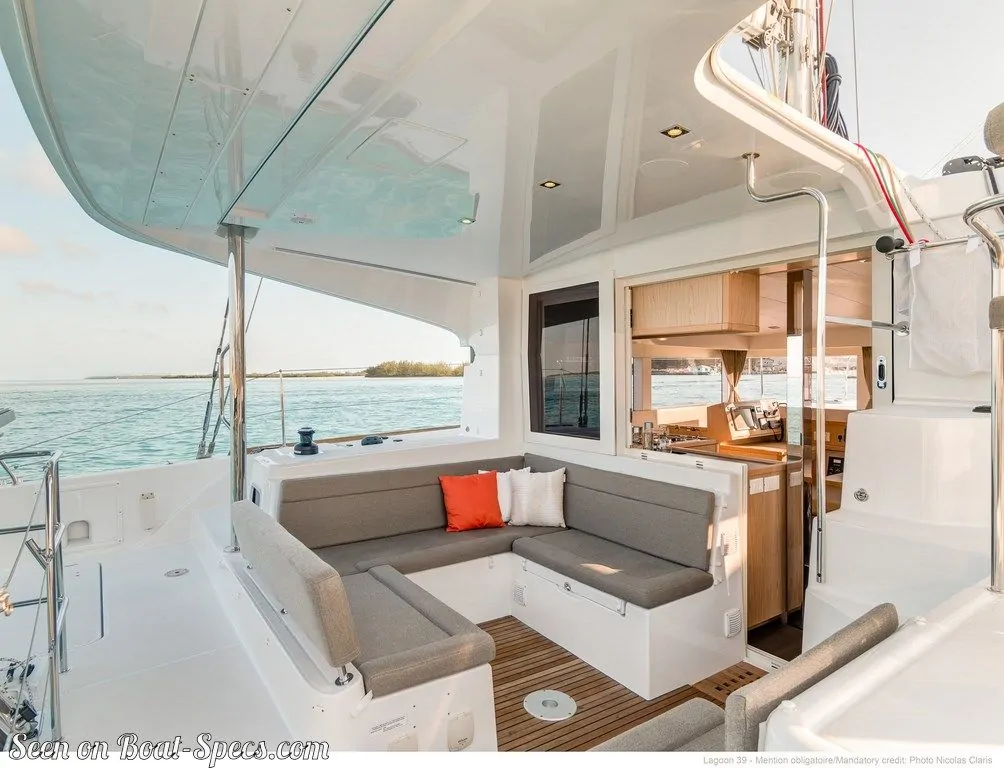

- Cockpit
- Aft cockpit
- Cabin(s) (min./max.)
- 2 / 4
- Berth(s) (min./max.)
- 4 / 12
- Head(s) (min./max.)
- 2 / 4
- Freshwater tank capacity
- 79.3 gal300 liters
- Fridge/ice-box capacity
- 34.3 gal130 liters
- Boiler capacity
- 6.6 gal25 liters
- Maximum headroom
- 6’ 7”2 m
- Head headroom
- 6’1.84 m

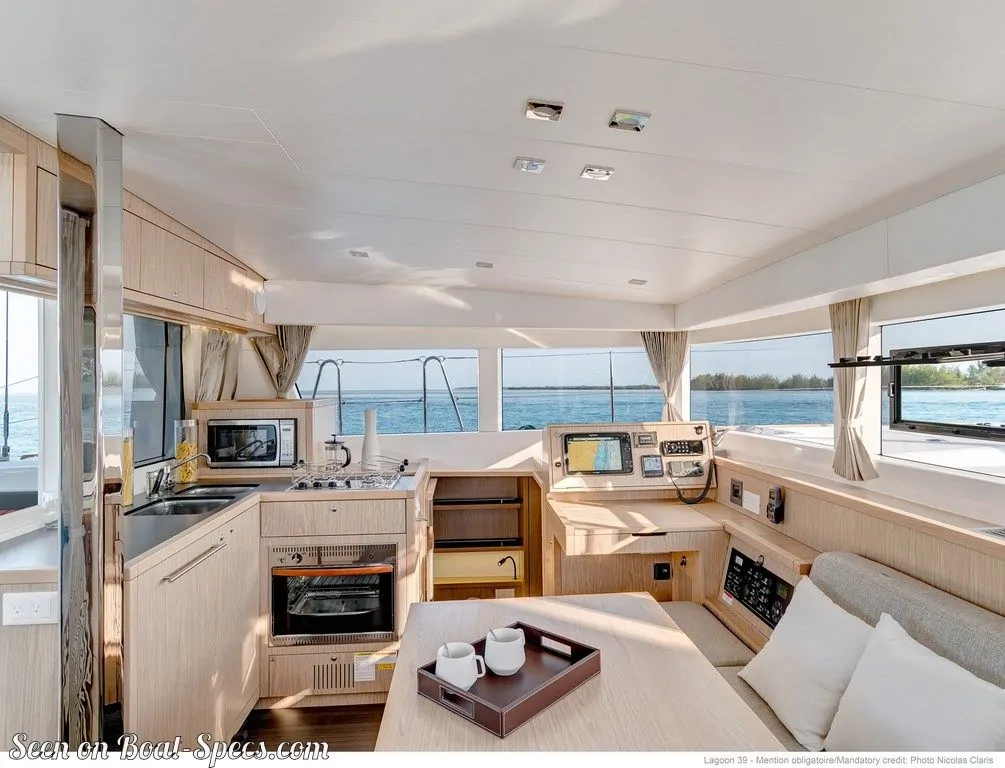

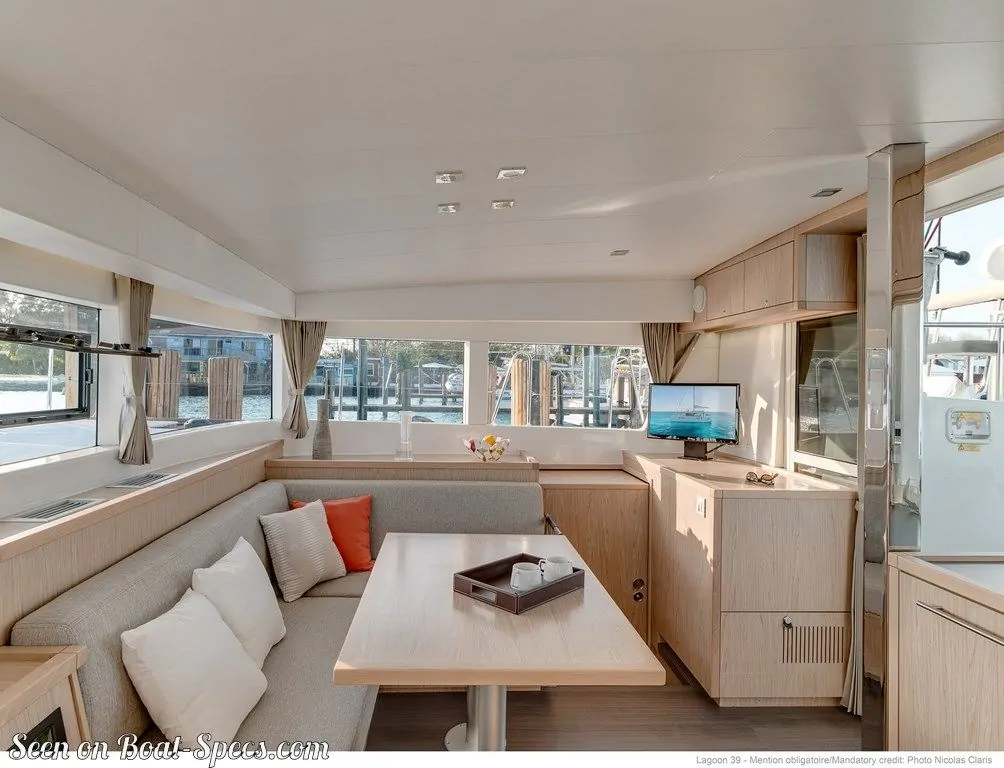

Lagoon 39's saloon
- Maximum headroom
- 6’ 7”2 m

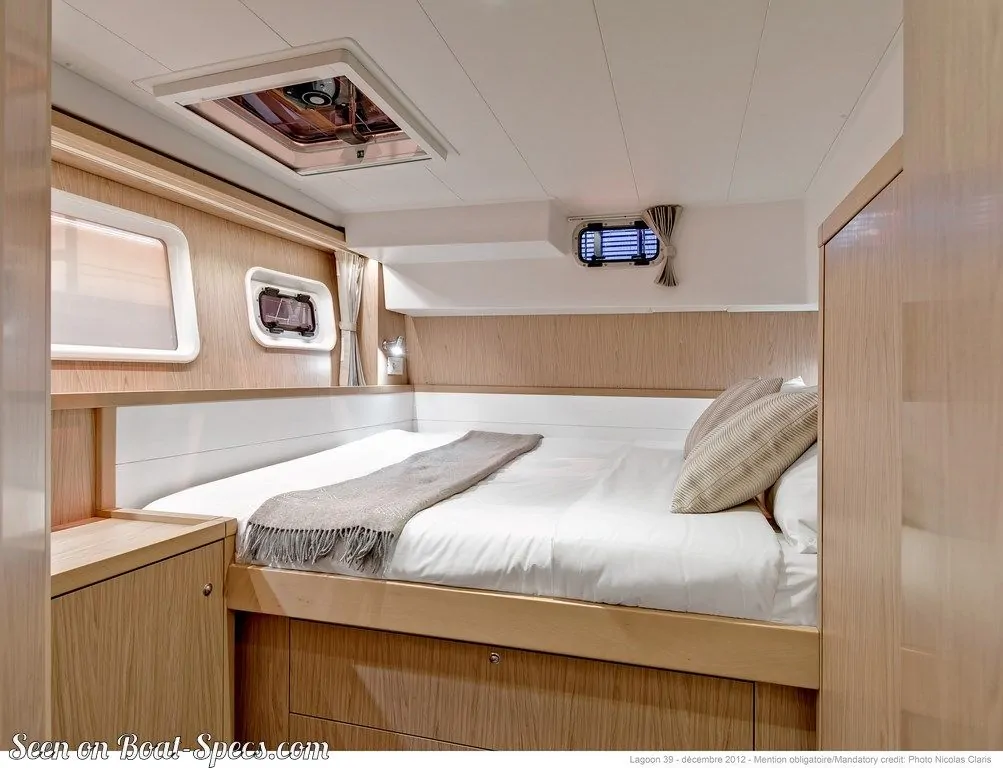

Lagoon 39's fore cabin
- Maximum headroom
- 6’ 2”1.88 m
- Berth length
- 6’ 7”2 m
- Berth width (head/feet)
- 5’ 2”1.6 m / 3’ 1”0.94 m

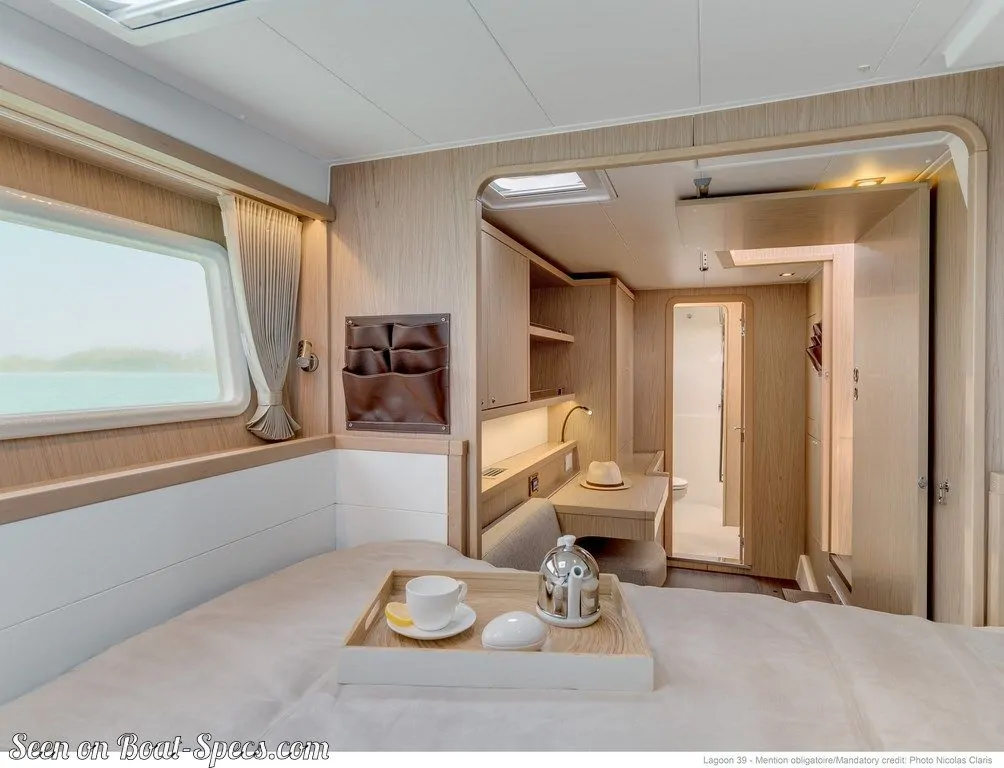

Lagoon 39's aft cabin
- Maximum headroom
- 6’ 2”1.88 m
- Berth length
- 6’ 7”2 m
- Berth width (head/feet)
- 5’ 2”1.6 m / 5’ 2”1.6 m
Lagoon 39 interior and accommodations - - 15/19
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 39 interior and accommodations - - 16/19
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 39 interior and accommodations - - 17/19
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 39 interior and accommodations - - 18/19
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
Lagoon 39 interior and accommodations - - 19/19
Picture extracted from the commercial documentation © Lagoon
Picture extracted from the commercial documentation © Lagoon
