Rush Deep draft

Sailboat specifications

The Rush is a 30’2” (9.2m) racer-cruiser sailboat designed by Ron Holland Design (Canada). She was built between 1979 and 1984 by Jeanneau (France) with 583 hulls completed. The Deep draft version displays a deeper fin allowing a lower center of gravity and extra performance especially upwind.

The Rush is as well listed, on Boat-Specs.com, in Royale TDF, Regatta and Shoal draft version (see all the versions compared).

Rush's main features

Model: Rush
Version: Deep draft
Hull type: Monohull
Category: Racer-cruiser sailboat
Sailboat builder: Jeanneau
Sailboat designer: Ron Holland Design
Sailboat collection: Tour de France à la Voile
Country: France
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
Number of hulls built: 583
First built hull: 1979
Last built hull: 1984
Appendages: Keel : fin without bulb
Helm: Single tiller
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 2
Standard public price ex. VAT (indicative only): N/A €

Rush's main dimensions

Overall length: 31’ 4”9.55 m
Hull length: 30’ 2”9.2 m
Waterline length: 25’ 5”7.75 m
Beam (width): 10’ 4”3.15 m
Draft: 5’ 7”1.7 m
Mast height from D_WL: 47’ 2”14.38 m
Light displacement (M_LC): 7055 lb3200 kg
Ballast weight: 2513 lb1140 kg
Ballast type: Cast iron
French customs tonnage: 7.23 Tx

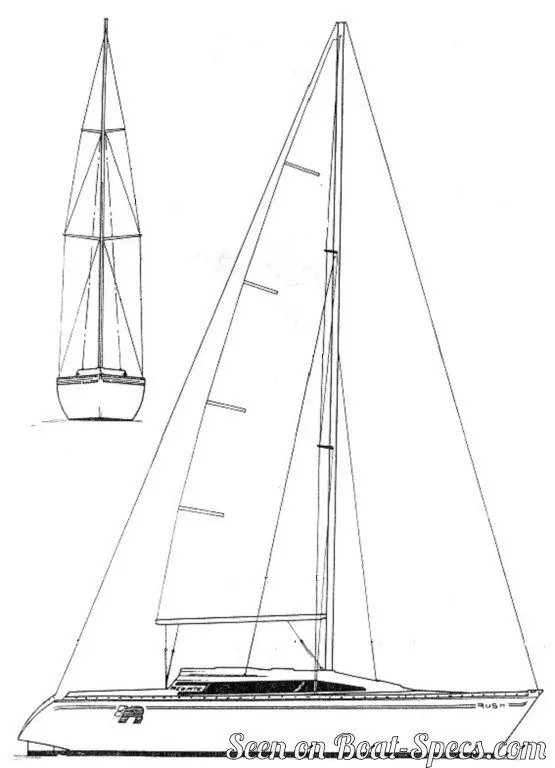

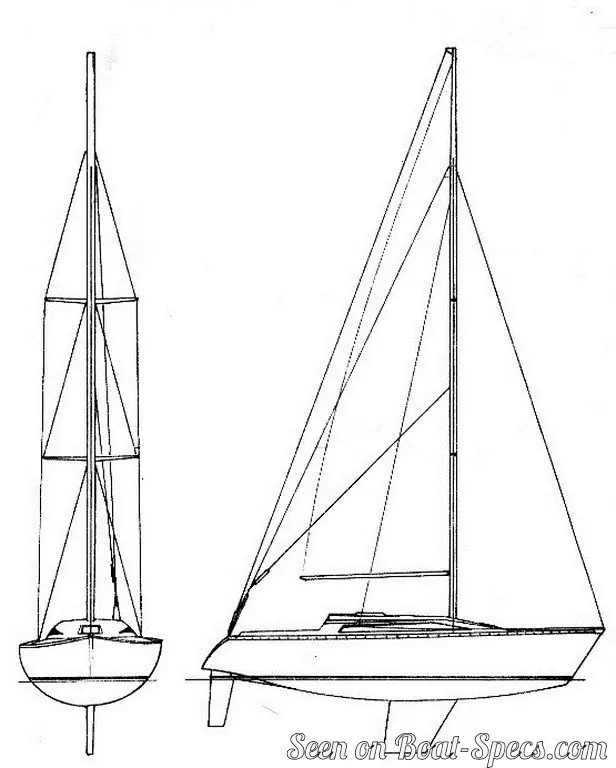

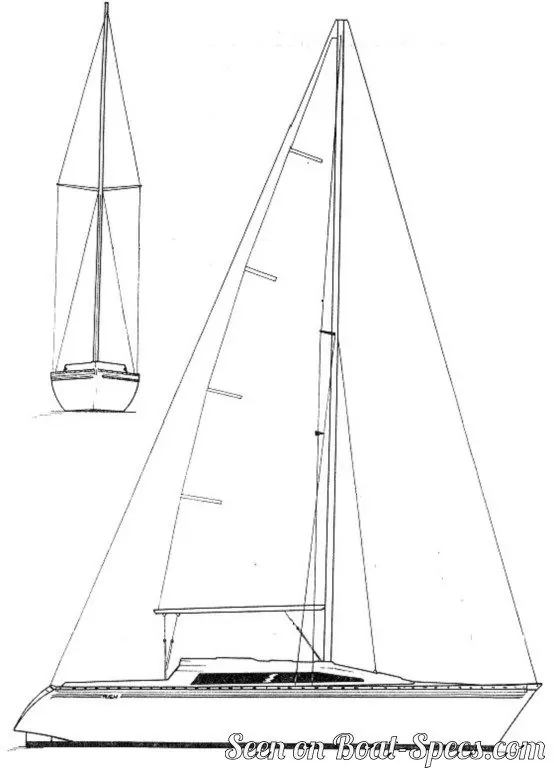

Rush's rig and sails

Upwind sail area: 527 ft²49 m²
Downwind sail area: 921 ft²85.6 m²
Mainsail area: 179 ft²16.6 m²
Genoa area: 349 ft²32.4 m²
Solent area: 280 ft²26 m²
Jib area: 147 ft²13.7 m²
Stormjib area: 75 ft²7 m²
Symmetric spinnaker area: 743 ft²69 m²
I iFore triangle height (from mast foot to fore stay top attachment): 34’ 5”10.5 m
J iFore triangle base (from mast foot to bottom of forestay): 11’ 11”3.62 m
P iMainsail hoist measurement (from tack to head): 32’ 6”9.91 m
E iMainsail foot measurement (from tack to clew): 10’3.05 m
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Rush's performances

HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 16.5
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 243 ft²/T22.56 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 424 ft²/T39.42 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 195
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 36 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.76 knots
