Jeanneau 58 Standard
Sailboat specifications
The Jeanneau 58 is a 56’8” (17.28m) cruising sailboat designed by Philippe Briand (France), Garroni Design (Italy) and Jeanneau Design Office (France). She was built between 2009 and 2016 by Jeanneau (France).
The Jeanneau 58 has also been marketed as Jeanneau 57 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Jeanneau 58 has also been marketed as Jeanneau 57 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Jeanneau 58's main features
- Model
- Jeanneau 58
- Version
- Standard
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- France
- Construction
- GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester - First built hull
- 2009
- Last built hull
- 2016
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About485 000 €(2015)
Jeanneau 58's main dimensions
- Overall length
- 58’ 4”17.78 m
- Hull length
- 56’ 8”17.28 m
- Waterline length
- 50’ 2”15.3 m
- Beam (width)
- 16’ 5”5 m
- Draft
- 8’ 2”2.5 m
- Mast height from DWL
- 79’ 5”24.2 m
- Light displacement (MLC)
- 47289 lb21450 kg
- Maximum displacement (MLDC)
- 61178 lb27750 kg
- Capacity
- 13889 lb6300 kg
- Ballast weight
- 13448 lb6100 kg
- Ballast type
- Cast iron
Jeanneau 58's rig and sails
- Upwind sail area
- 1572 ft²146 m²
- Downwind sail area
- 3315 ft²308 m²
- Mainsail area
- 947 ft²88 m²
- Genoa area
- 624 ft²58 m²
- Symmetric spinnaker area
- 2368 ft²220 m²
- Asymmetric spinnaker area
- 2174 ft²202 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 68’ 11”21 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 21’ 11”6.68 m
- PiMainsail hoist measurement (from tack to head)
- 64’ 4”19.59 m
- EiMainsail foot measurement (from tack to clew)
- 21’6.4 m
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- Dyform discontinuous
Jeanneau 58's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 204 ft²/T18.91 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 429 ft²/T39.9 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 170
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 28 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.49 knots
Jeanneau 58's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 150 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 111 gal420 liters

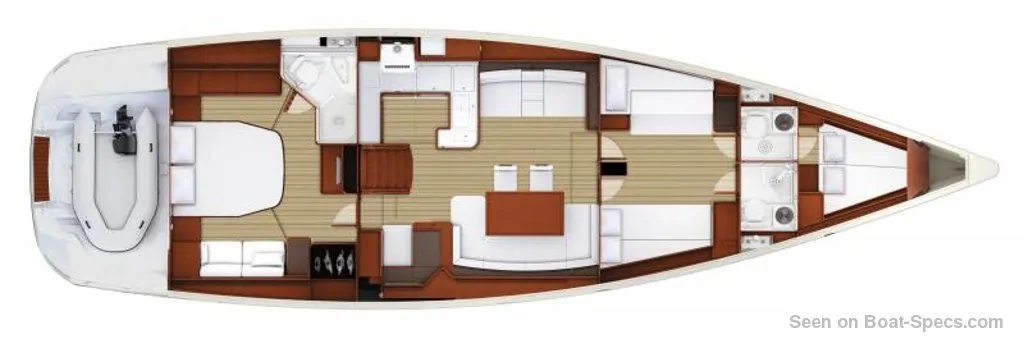

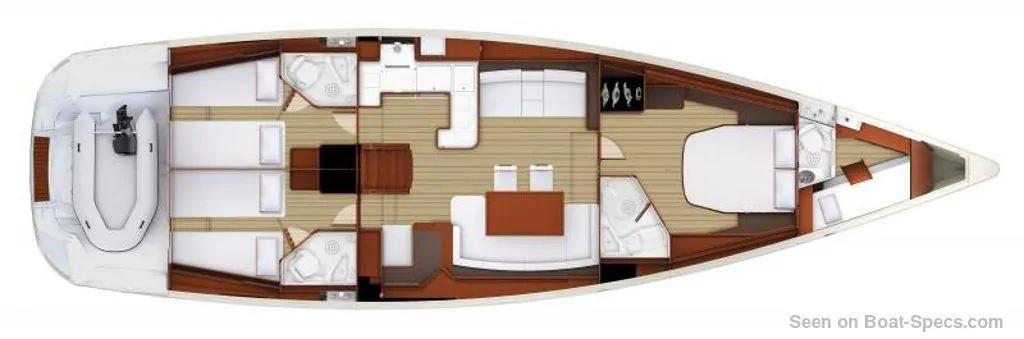

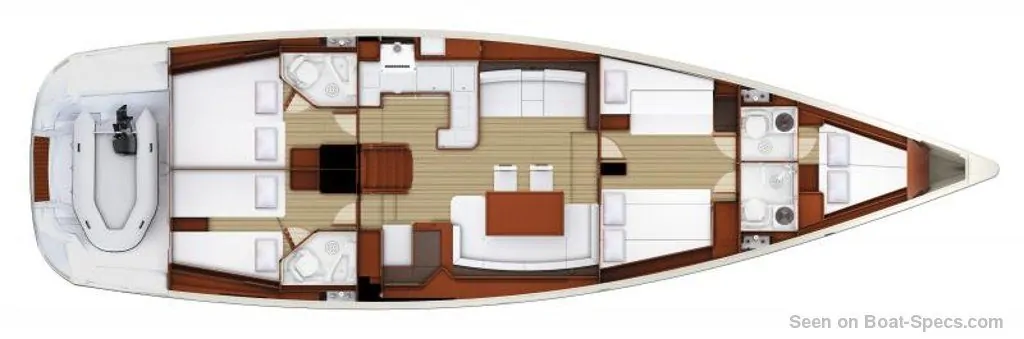

Jeanneau 58's accommodations and layout
- Cockpit
- Closed aft cockpit
- Cabin(s) (min./max.)
- 2 / 5
- Berth(s) (min./max.)
- 4 / 12
- Head(s) (min./max.)
- 2 / 4
- Freshwater tank capacity
- 245.7 gal930 liters
- Holding tank capacity
- 22.5 gal85 liters
- Fridge/ice-box capacity
- 79.3 gal300 liters
- Boiler capacity
- 15.9 gal60 liters
- Galley headroom
- 6’ 8”2.03 m
Jeanneau 58's saloon
- Maximum headroom
- 6’ 7”2.02 m
Jeanneau 58's fore cabin
- Maximum headroom
- 6’ 7”2.02 m
- Berth length
- 6’ 11”2.1 m
- Berth width
- 5’ 2”1.6 m
Jeanneau 58's aft cabin
- Maximum headroom
- 6’ 8”2.04 m
- Berth length
- 6’ 11”2.1 m
- Berth width
- 5’ 6”1.67 m

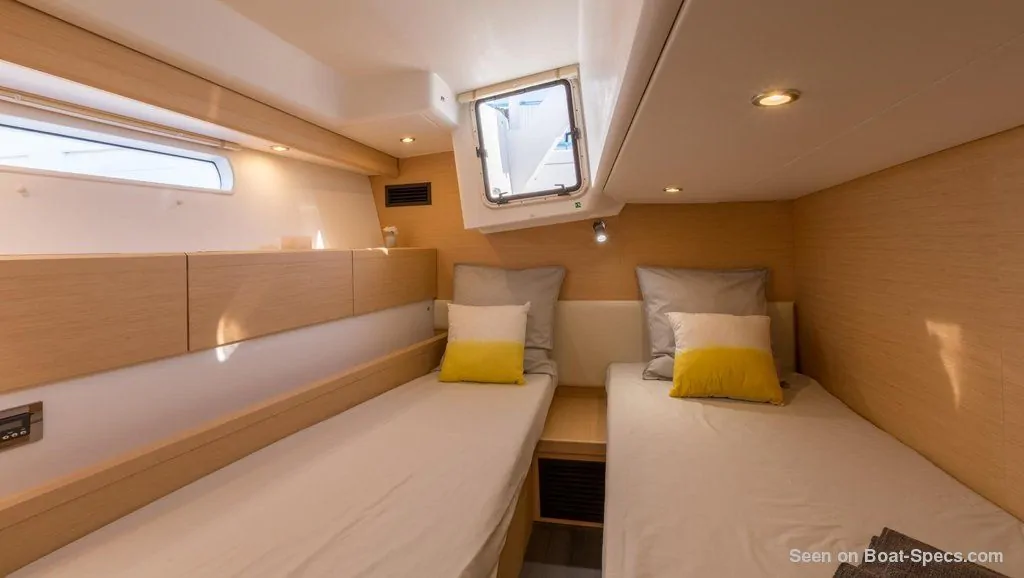

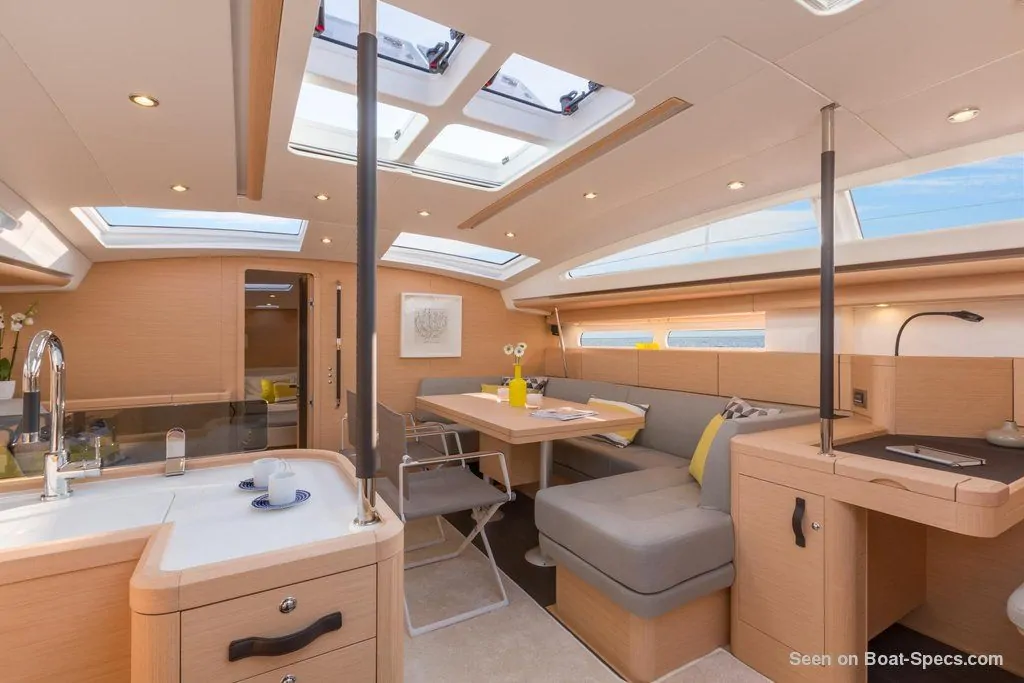

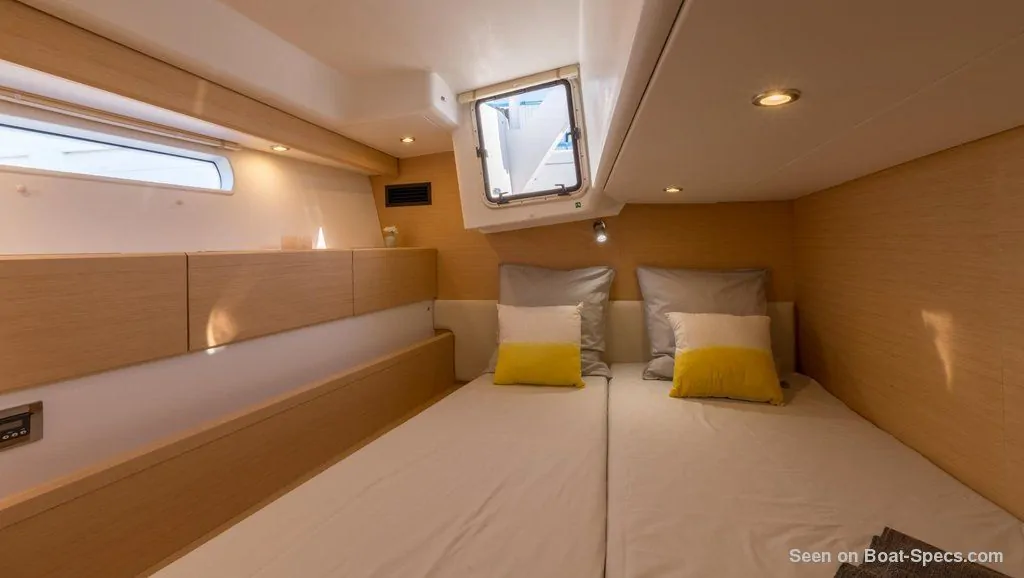

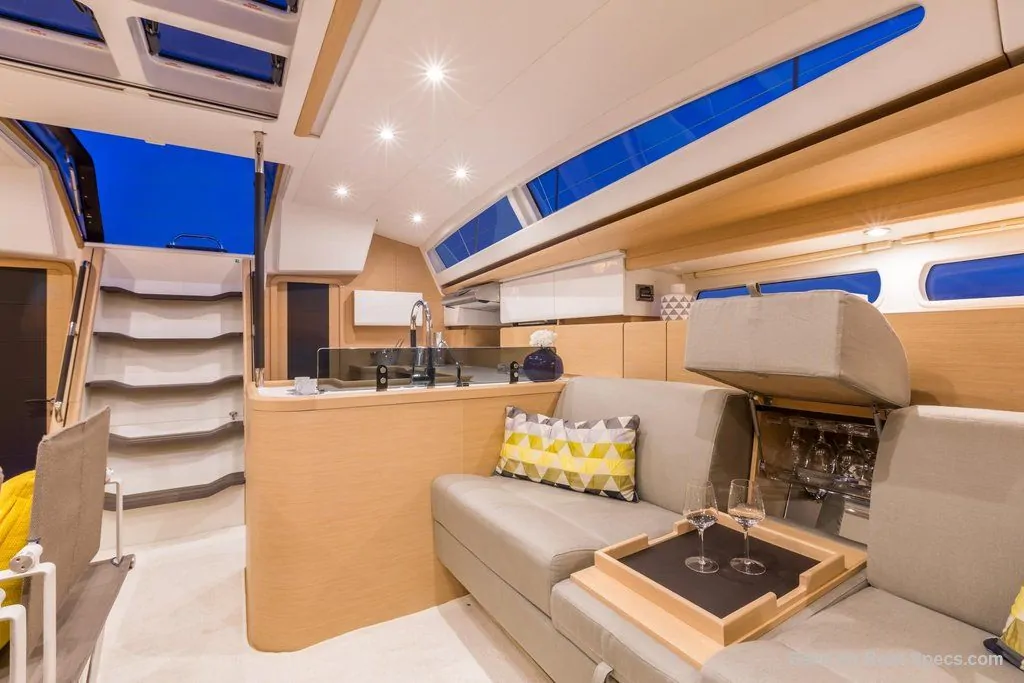

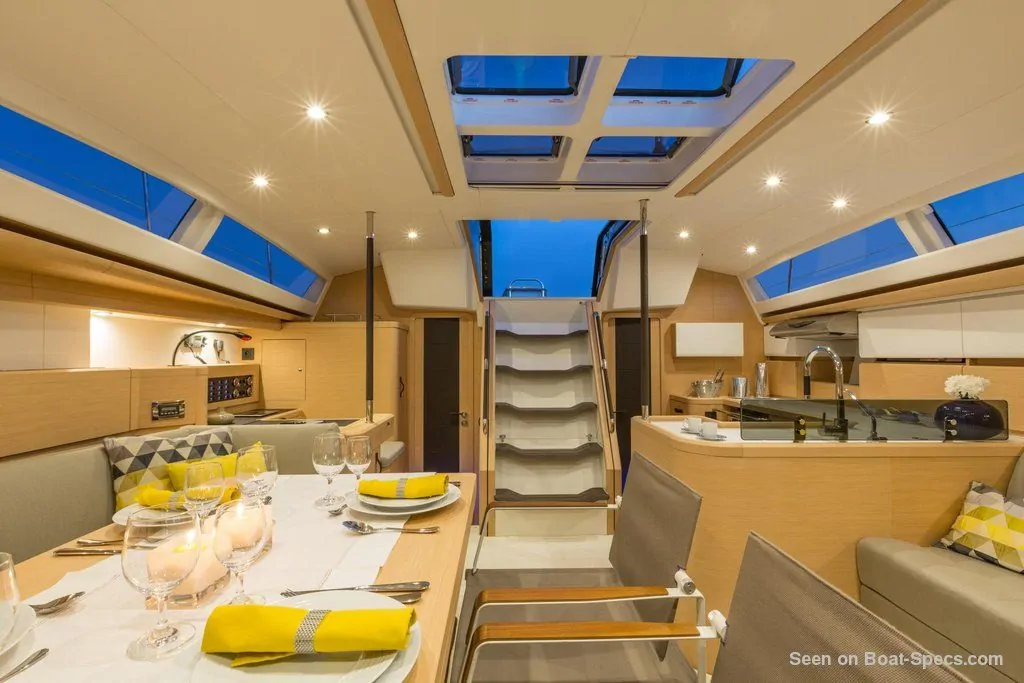

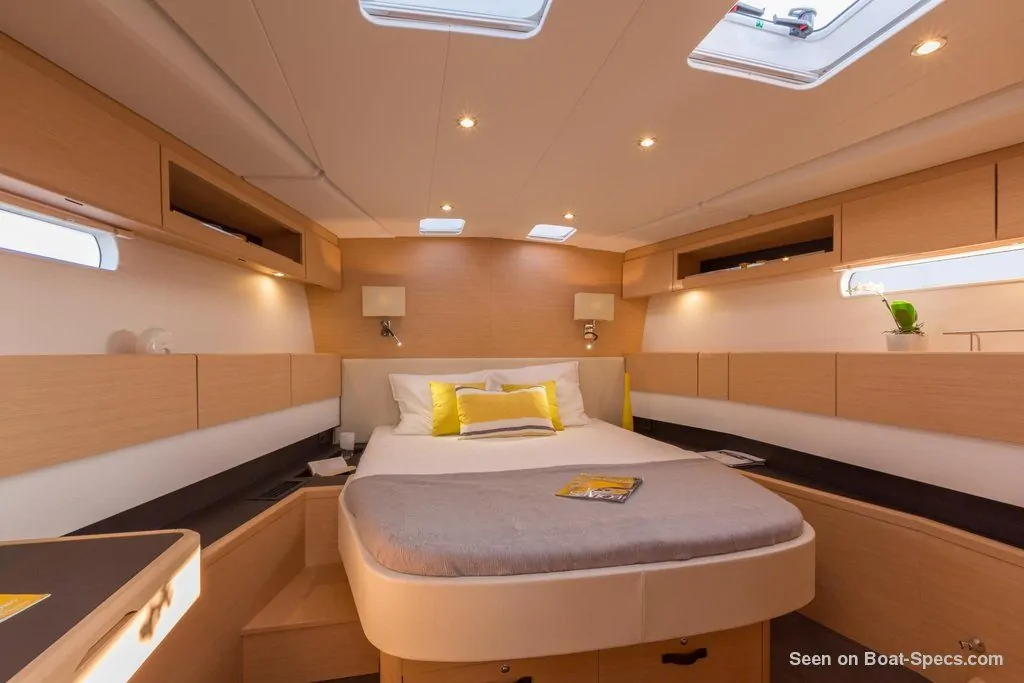

Jeanneau 58 interior and accommodations - - 13/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 14/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 15/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 16/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 17/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 18/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 58 interior and accommodations - - 19/19
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
