Jeanneau 54 Standard
Sailboat specifications
The Jeanneau 54 is a 51’8” (15.75m) cruising sailboat designed by Philippe Briand (France) and Jeanneau Design Office (France). She is built since 2015 by Jeanneau (France).
The Jeanneau 54 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Jeanneau 54 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Jeanneau 54's main features
- Model
- Jeanneau 54
- Version
- Standard
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- France
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester (vacuum infusion)
- Deck: Sandwich PVC fiberglass polyester (vacuum infusion) - First built hull
- 2015
- Last built hull
- Still in production
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About366 000 €(2020)
Jeanneau 54's main dimensions
- Overall length
- 53’16.16 m
- Hull length
- 51’ 8”15.75 m
- Waterline length
- 46’ 10”14.25 m
- Beam (width)
- 16’ 1”4.92 m
- Draft
- 7’ 4”2.24 m
- Mast height from DWL
- 73’ 6”22.4 m
- Light displacement (MLC)
- 37840 lb17164 kg
- Ballast weight
- 10240 lb4645 kg
- Ballast type
- Cast iron

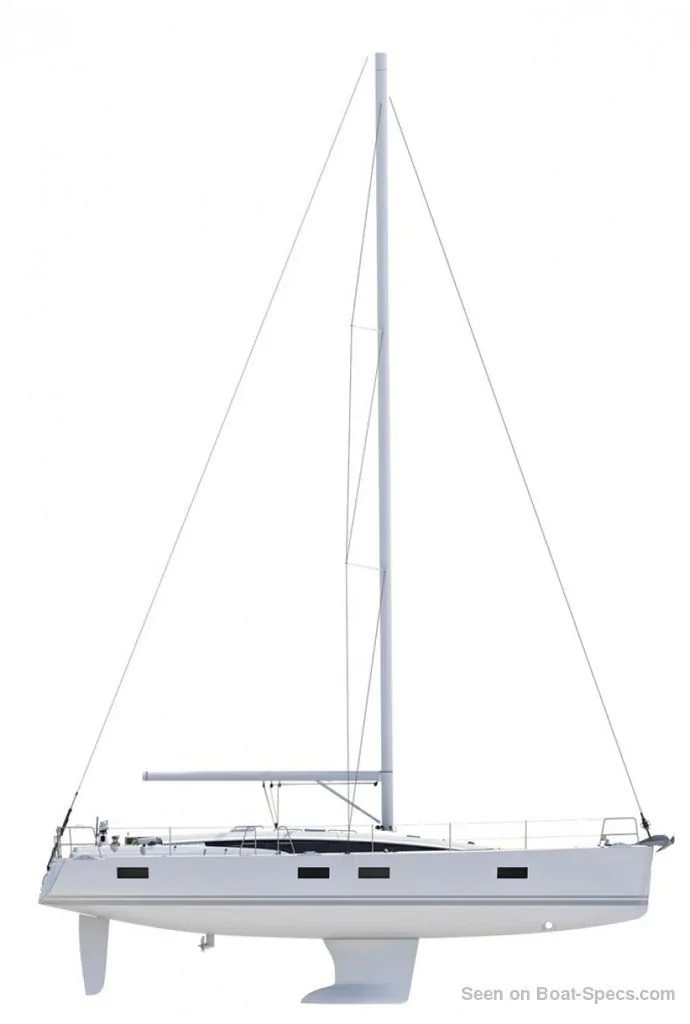

Jeanneau 54's rig and sails
- Upwind sail area
- 1324 ft²123 m²
- Downwind sail area
- 2766 ft²257 m²
- Mainsail area
- 646 ft²60 m²
- Genoa area
- 678 ft²63 m²
- Jib area
- 527 ft²49 m²
- Asymmetric spinnaker area
- 2120 ft²197 m²
- Code 0 area
- 1163 ft²108 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 63’ 1”19.23 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 21’ 10”6.64 m
- PiMainsail hoist measurement (from tack to head)
- 59’17.98 m
- EiMainsail foot measurement (from tack to clew)
- 19’ 1”5.81 m
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Jeanneau 54's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 199 ft²/T18.49 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 416 ft²/T38.62 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 168
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 27 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.16 knots
Jeanneau 54's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 80 HP / 110 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 63.4 gal240 liters

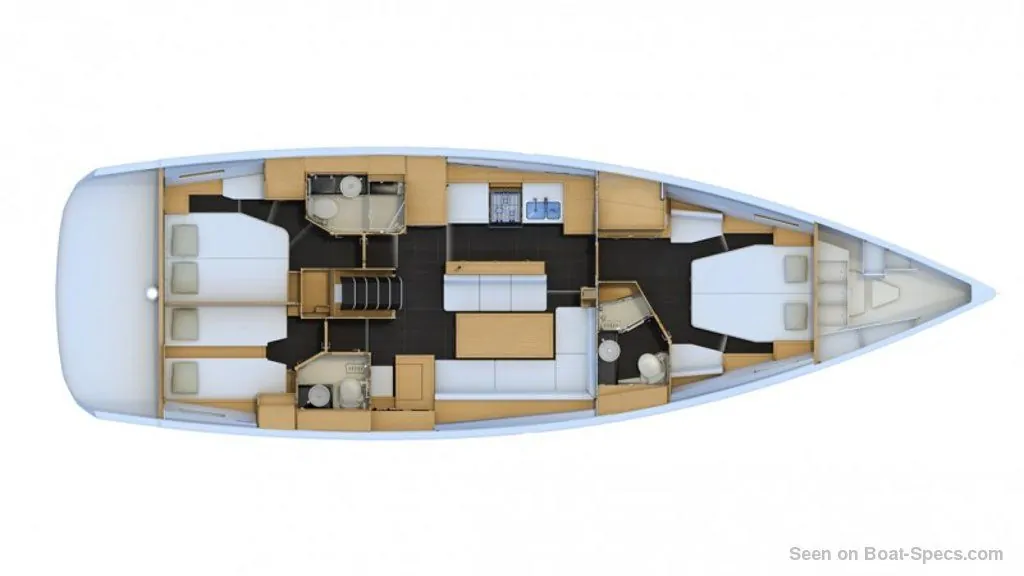

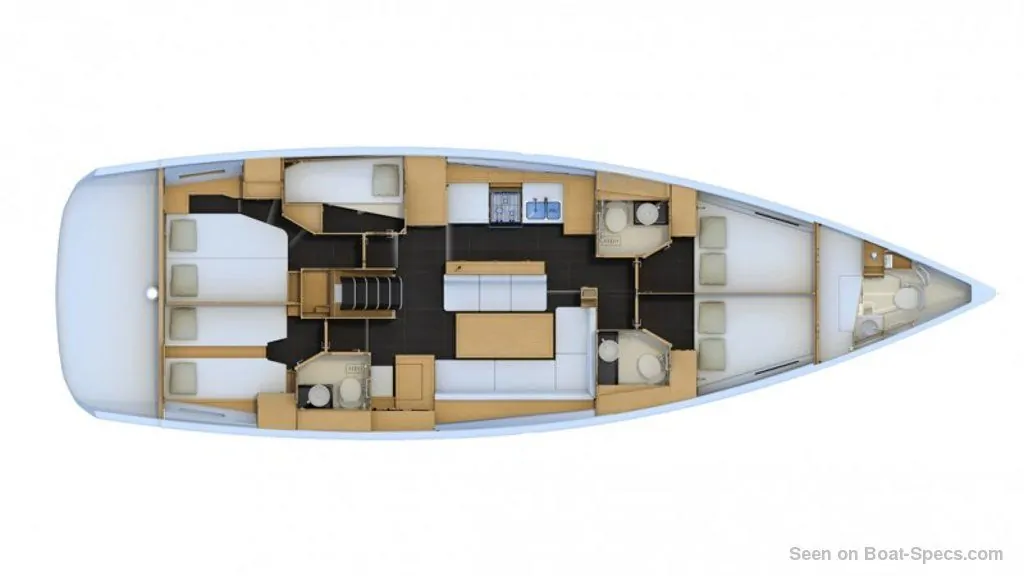

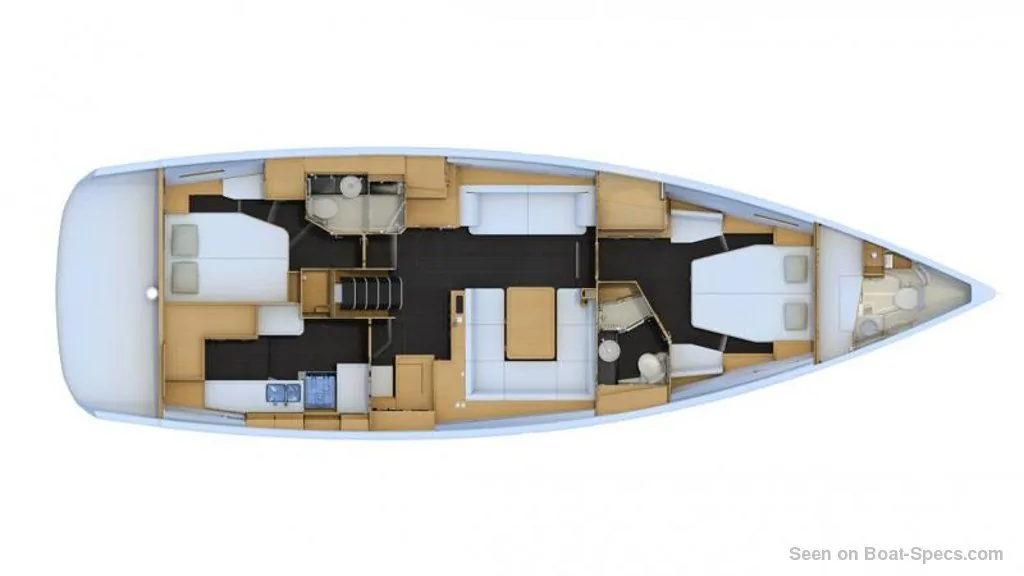

Jeanneau 54's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 2 / 6
- Berth(s) (min./max.)
- 4 / 13
- Head(s) (min./max.)
- 2 / 4
- Freshwater tank capacity
- 191.3 gal724 liters
- Holding tank capacity
- 44.9 gal170 liters
- Fridge/ice-box capacity
- 66 gal250 liters
- Boiler capacity
- 10.6 gal40 liters
- Maximum headroom
- 6’ 6”1.98 m
Jeanneau 54's fore cabin
- Berth length
- 6’ 7”2 m
- Berth width
- 5’ 2”1.6 m
Jeanneau 54's aft cabin
- Berth length
- 6’ 8”2.03 m
- Berth width
- 4’ 11”1.5 m

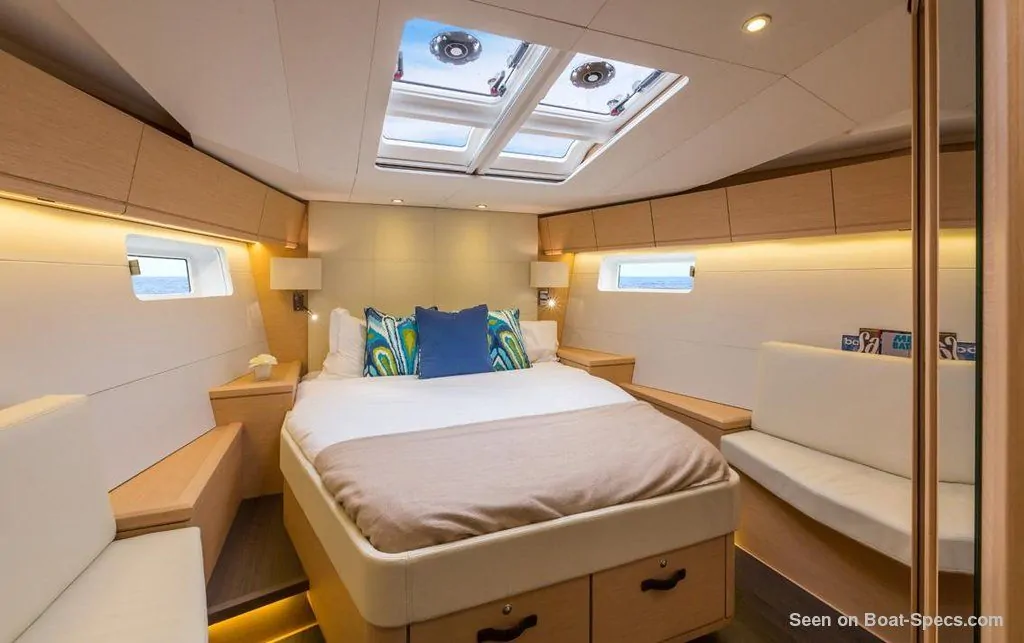

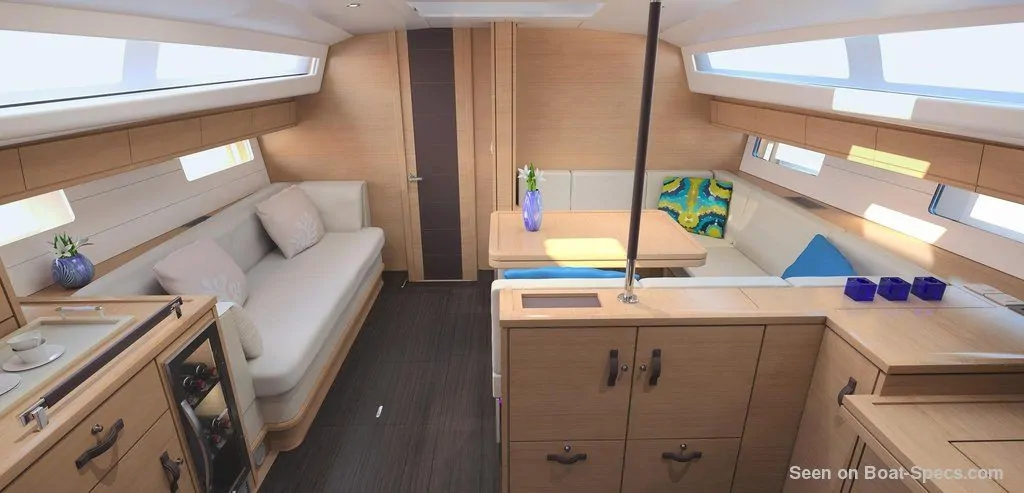

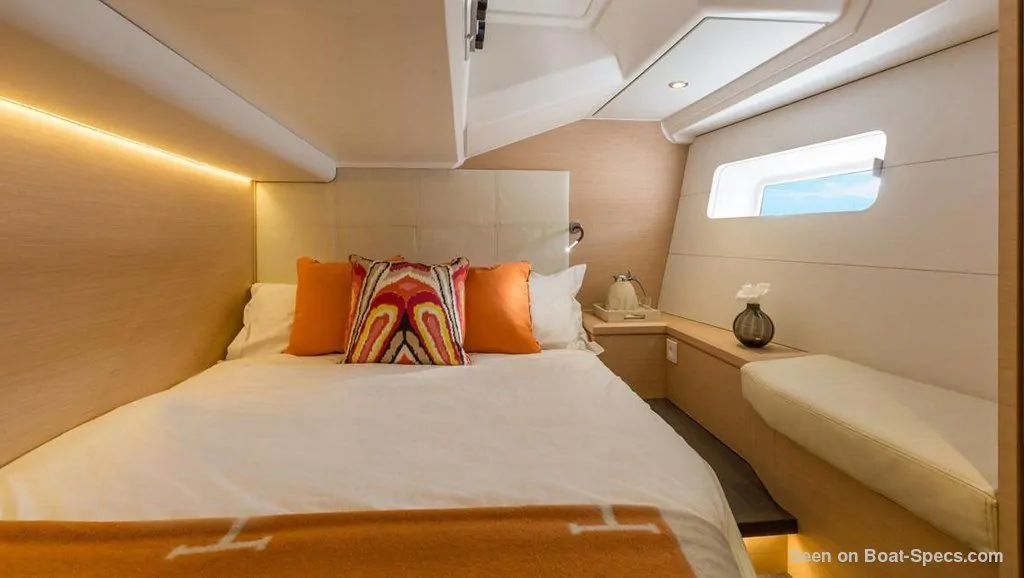

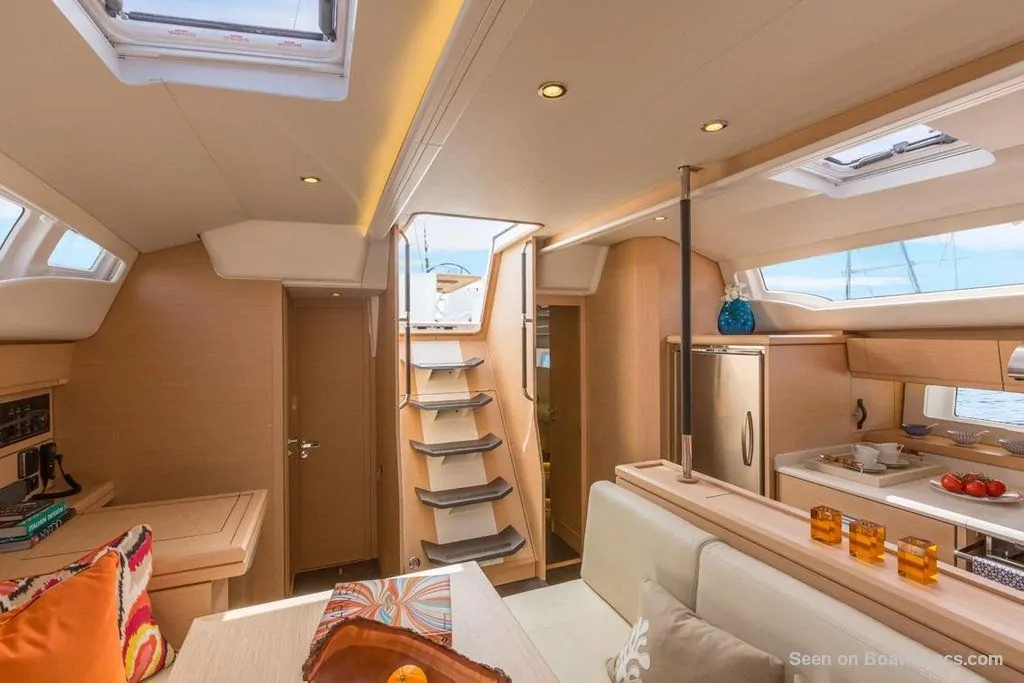

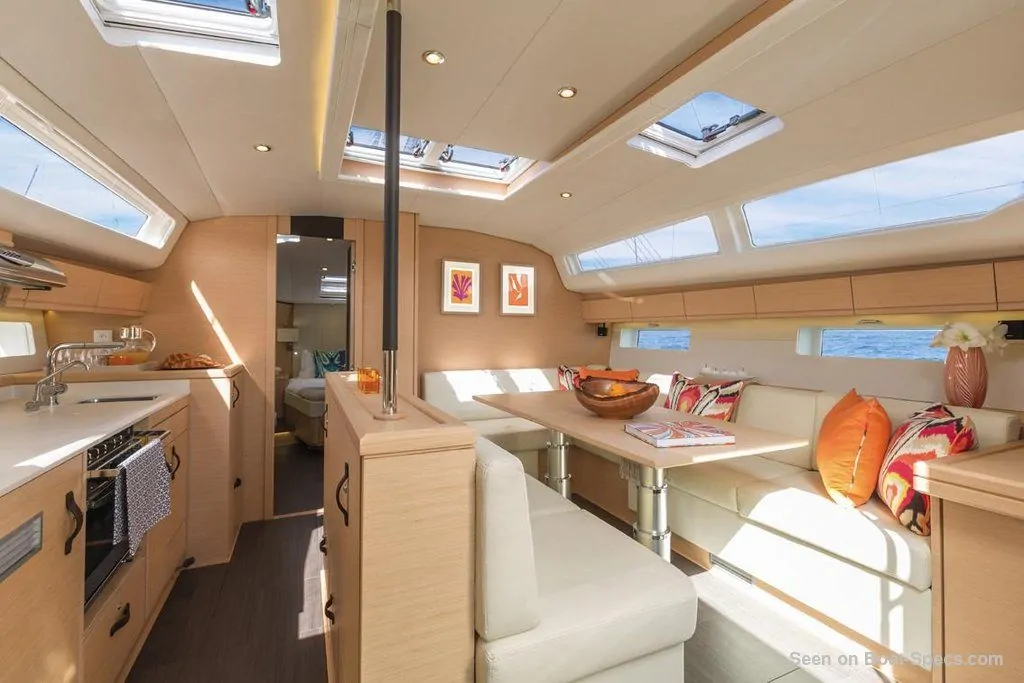

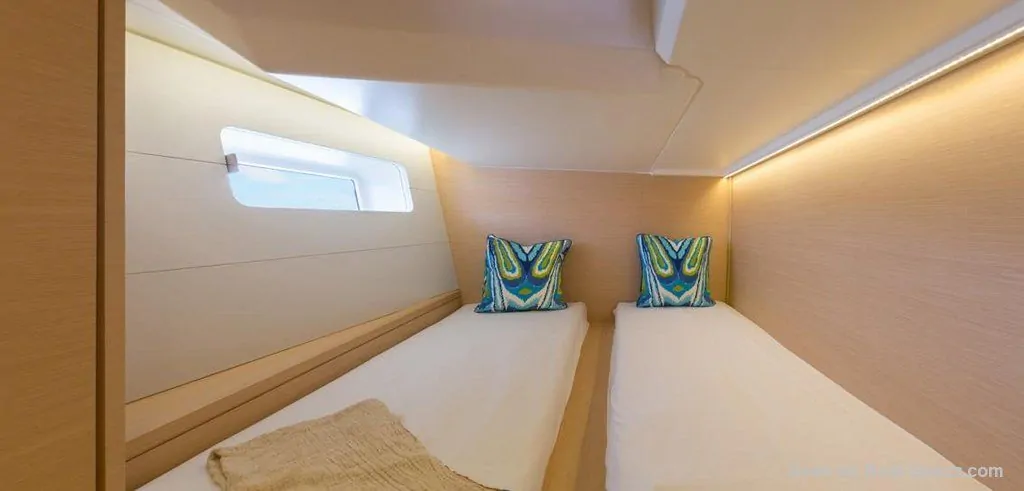

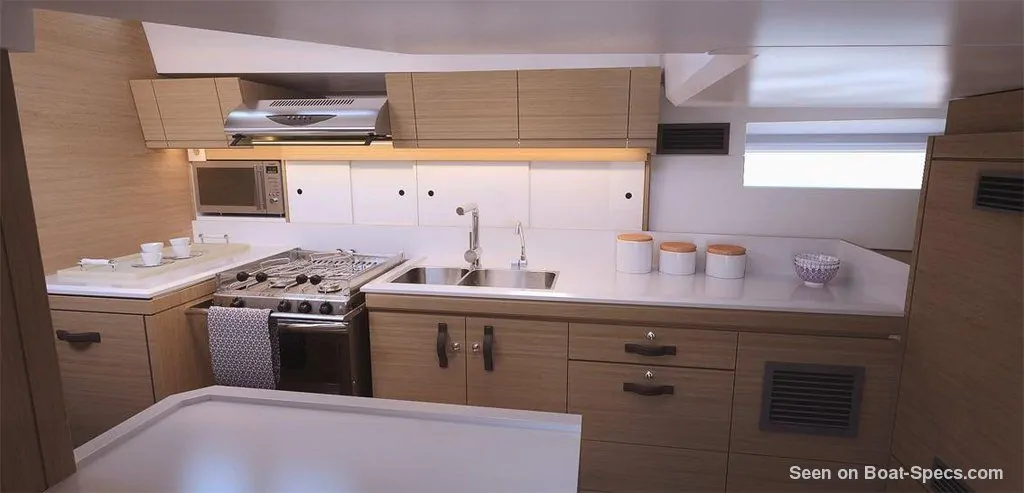

Jeanneau 54 interior and accommodations - - 14/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 15/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 16/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 17/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 18/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 19/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 20/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 21/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 22/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
Jeanneau 54 interior and accommodations - - 23/23
Picture extracted from the commercial documentation © Jeanneau
Picture extracted from the commercial documentation © Jeanneau
