J/122e Shoal draft

Sailboat specifications

The J/122e is a 40’ (12.19m) racer-cruiser sailboat designed by Rod Johnstone (United States). She is built since 2006 by J/Boats (United States). The Shoal draft version features a shorter keel to grant access to shallow areas.

The J/122e is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

J/122e's main features

Model: J/122e
Version: Shoal draft
Hull type: Monohull
Category: Offshore racer-cruiser sailboat
Sailboat builder: J/Boats
Sailboat designer: Rod Johnstone
Sailboat range: J/Elégance
Country: United States
Construction: GRP (glass reinforced polyester):
Sandwich fiberglass polyester (vacuum infusion)
First built hull: 2006
Last built hull: Still in production

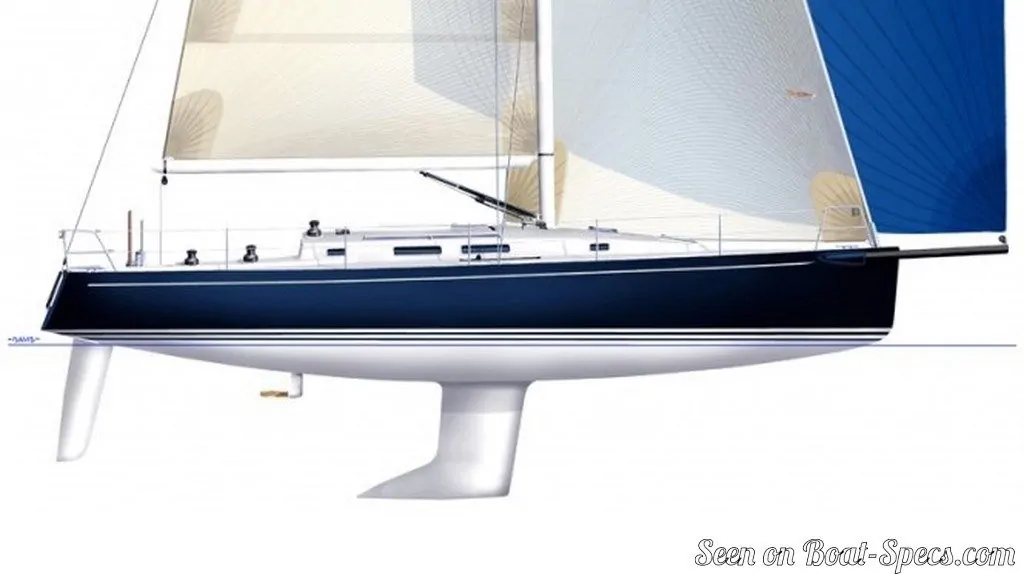

Appendages: Keel : fin with bulb

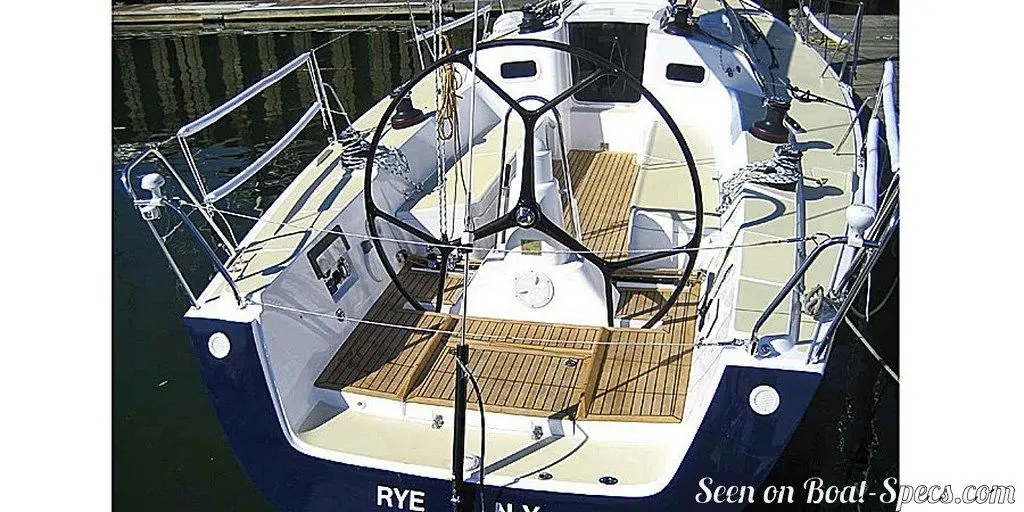

Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
284 000 €
(2020)

J/122e's main dimensions

Hull length: 40’12.19 m
Waterline length: 34’ 7”10.55 m
Beam (width): 11’ 11”3.63 m
Draft: 6’ 4”1.92 m
Light displacement (M_LC): 15410 lb6990 kg
Ballast weight: 6349 lb2880 kg
Ballast type: Cast iron fin with lead bulb

J/122e's rig and sails

Upwind sail area: 969 ft²90 m²
Downwind sail area: 2153 ft²200 m²
Mainsail area: 538 ft²50 m²
Genoa area: 431 ft²40 m²
Solent area: 301 ft²28 m²
Stormjib area: 65 ft²6 m²

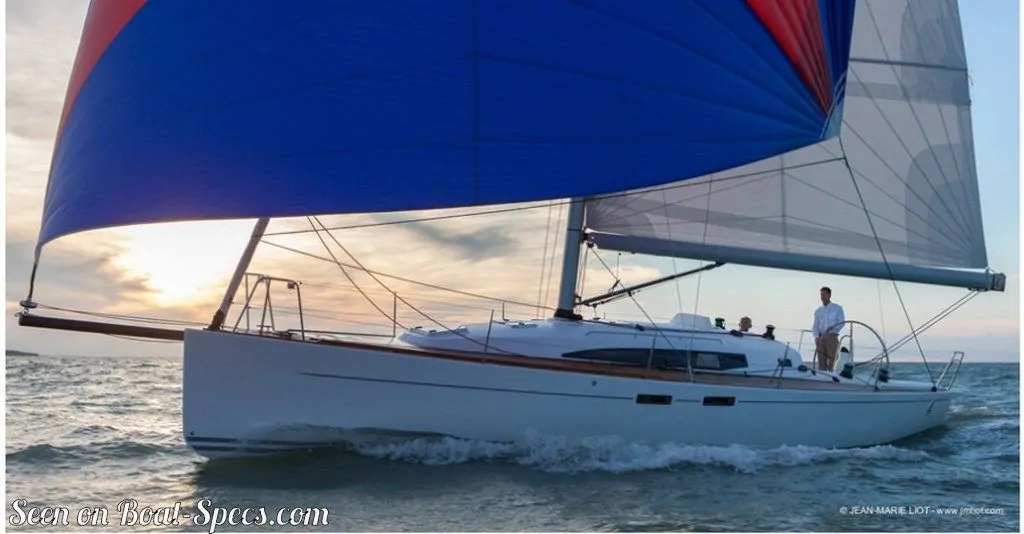

Symmetric spinnaker area: 1615 ft²150 m²
I iFore triangle height (from mast foot to fore stay top attachment): 54’ 5”16.59 m
J iFore triangle base (from mast foot to bottom of forestay): 15’ 2”4.63 m
P iMainsail hoist measurement (from tack to head): 51’ 4”15.65 m
E iMainsail foot measurement (from tack to clew): 17’ 7”5.36 m
Rigging type: Sloop Marconi fractional
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Carbon fiber mast and aluminum boom
Standing rigging: Single-strand (ROD)

J/122e's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 265 ft²/T24.62 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 589 ft²/T54.71 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 169
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 41 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.88 knots
