Island Packet 349

Sailboat specifications

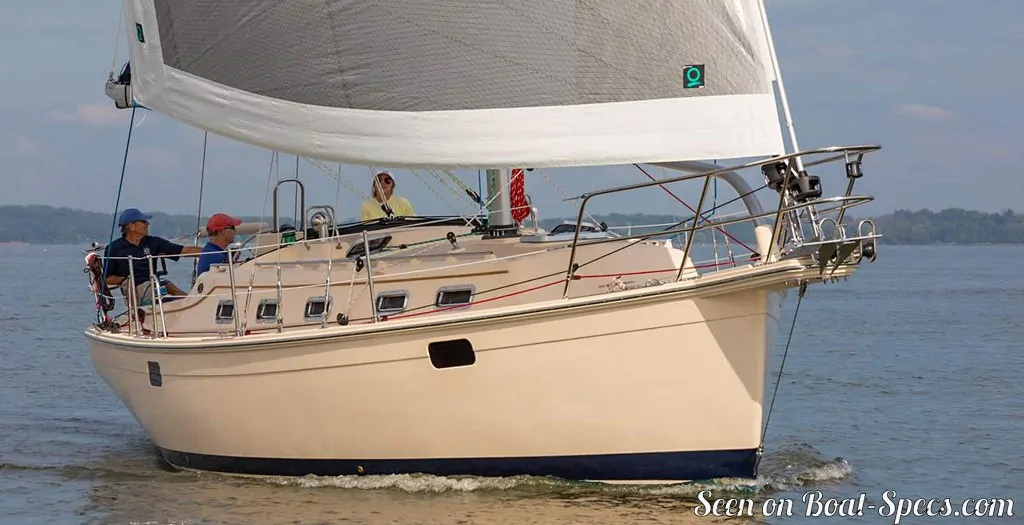

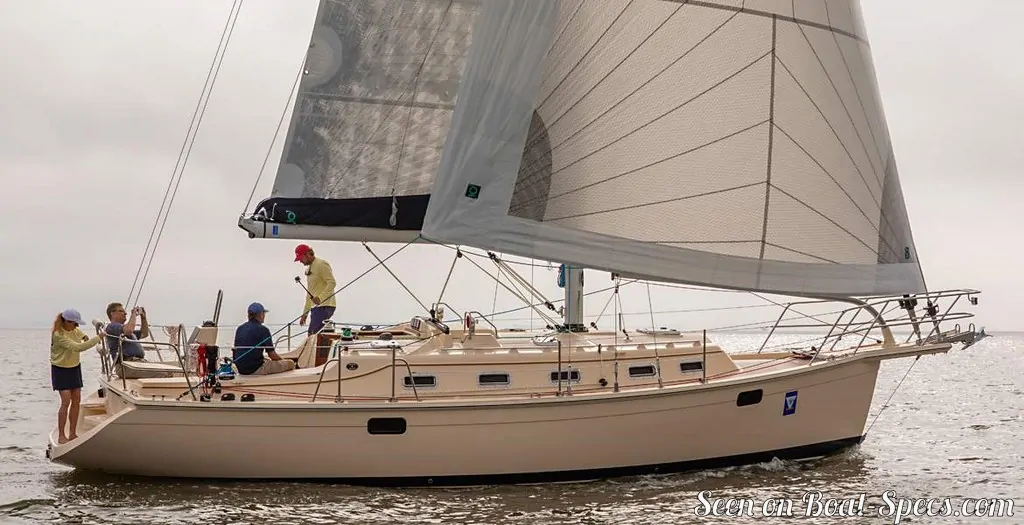

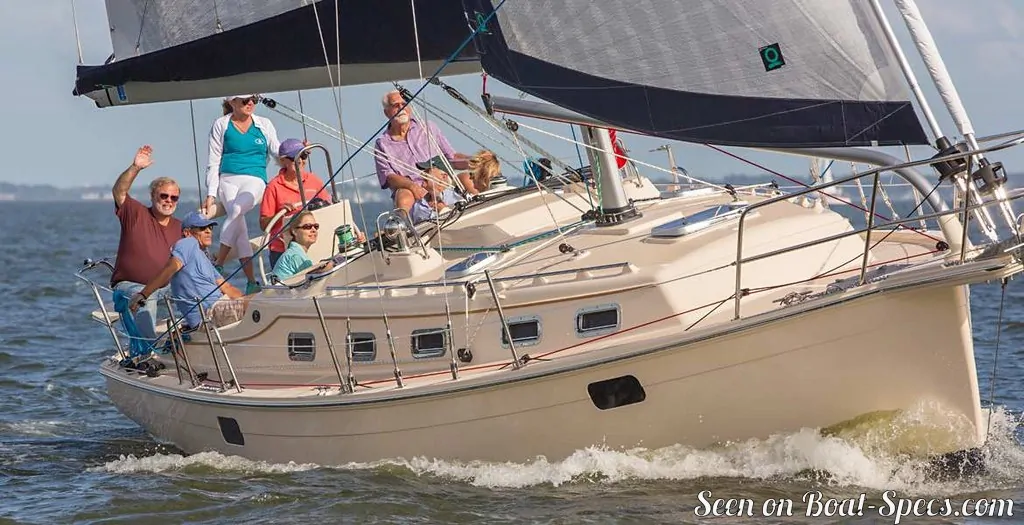

The Island Packet 349 is a 38’4” (11.66m) cruising sailboat designed by Robert Johnson (United States). She is built since 2018 by Island Packet Yachts (United States). She has been awarded "2019 - Cruising World - Boat of the Year: Overall Boat of the Year", "2019 - Cruising World - Boat of the Year: Domestic Boat" and "2019 - Cruising World - Boat of the Year: Midsize Cruiser Under 38 Feet".

Island Packet 349's main features

Model
Island Packet 349
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Country
United States
Construction
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich Divinicell fiberglass polyester
First built hull
2018
Last built hull
Still in production
Award(s)
  • 2019: Cruising World - Boat of the Year: Overall Boat of the Year
  • 2019: Cruising World - Boat of the Year: Domestic Boat
  • 2019: Cruising World - Boat of the Year: Midsize Cruiser Under 38 Feet
    Appendages
    Keel : semi-full keel
    Helm
    Single helm wheel
    Rudder
    Single rudder on skeg
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    250 000 €
     (2020)

    Island Packet 349's main dimensions

    Overall length
    38’ 4”11.66 m
    Hull length
    38’ 4”11.66 m
    Waterline length
    31’ 5”9.58 m
    Beam (width)
    12’ 6”3.81 m
    Draft
    4’1.22 m
    Mast height from DWL
    54’16.46 m
    Light displacement (MLC)
    19998 lb9071 kg
    Ballast weight
    7599 lb3447 kg
    Ballast type
    Lead

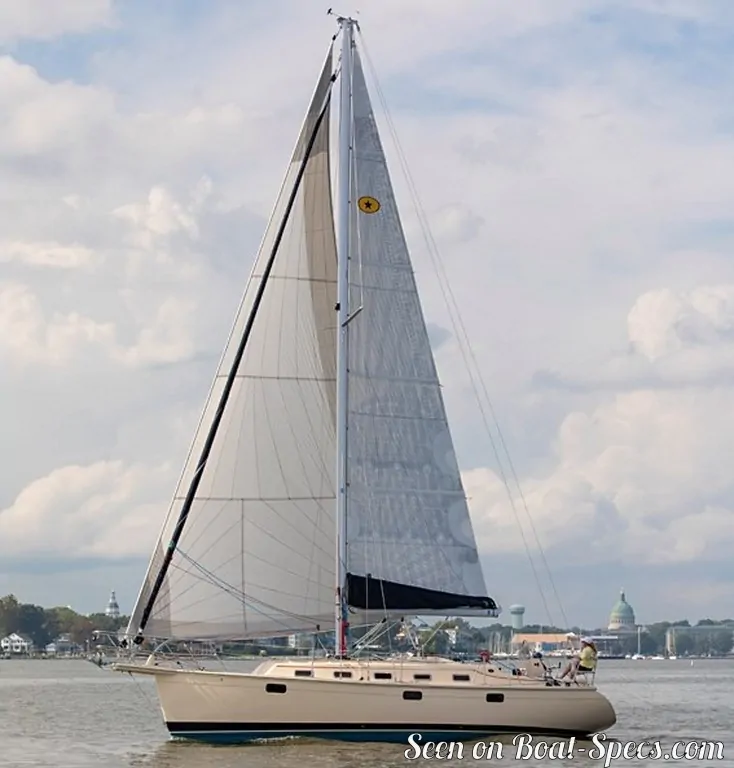

    Island Packet 349's rig and sails

    Upwind sail area
    774 ft²71.9 m²
    Rigging type
    Sloop Marconi masthead
    Mast configuration
    Keel stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    1
    Spreaders angle
    0 °
    Spars construction
    Aluminum spars
    Standing rigging
    1x19 strand wire continuous

    Island Packet 349's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    178 ft²/T16.53 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    292
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    38 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    7.51 knots

    Island Packet 349's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    45 HP
    Fuel type
    Diesel
    Fuel tank capacity
    55.5 gal210 liters

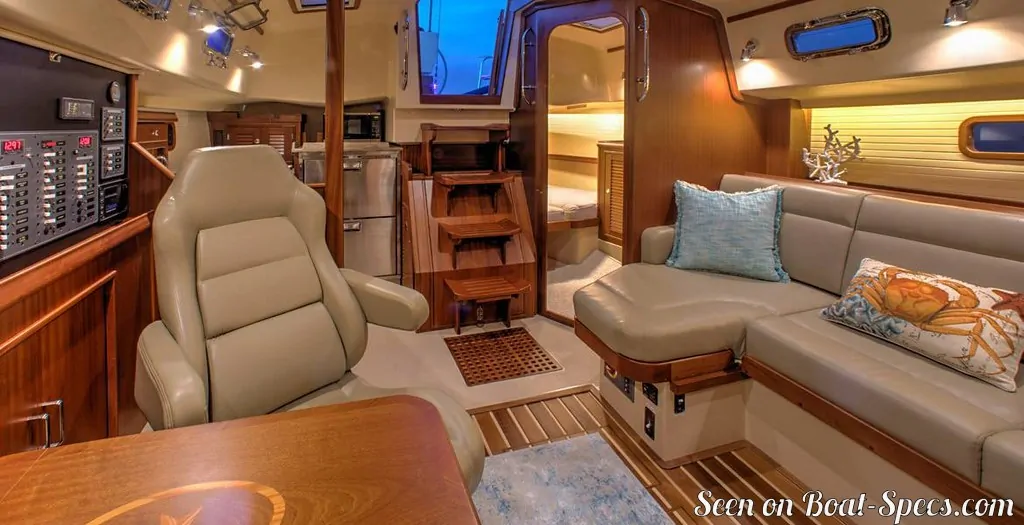

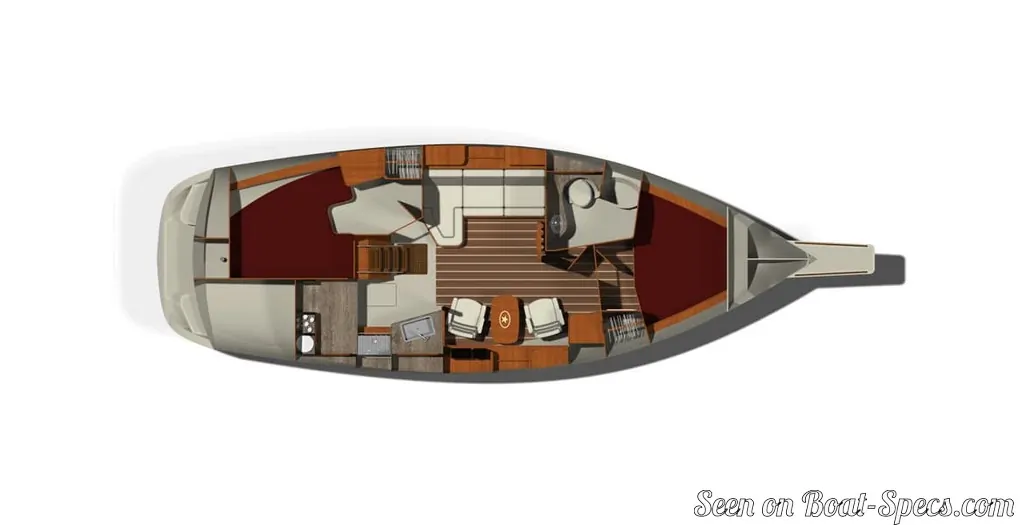

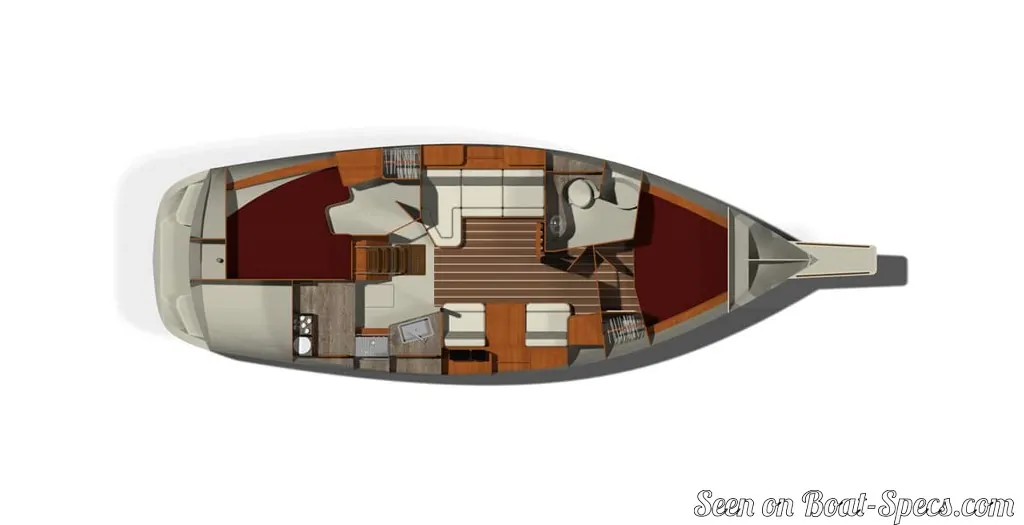

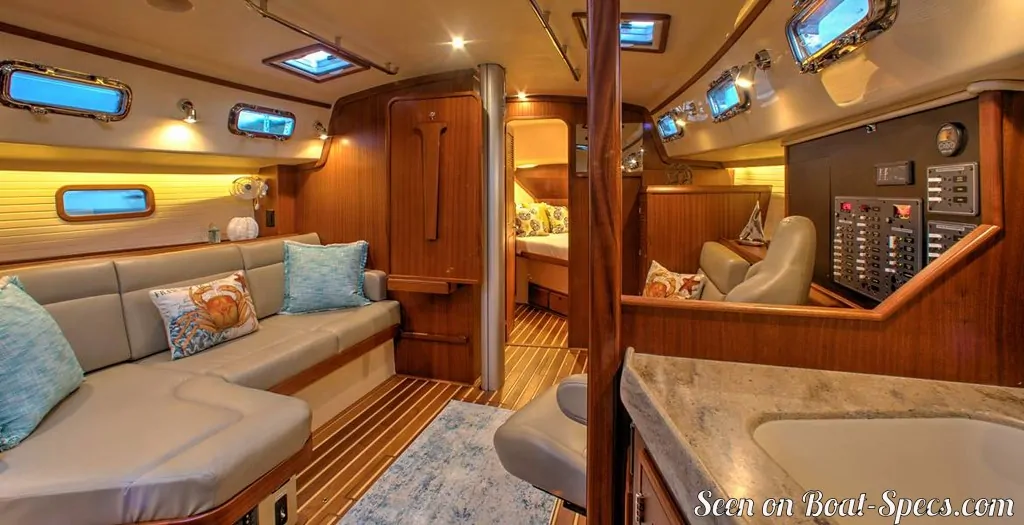

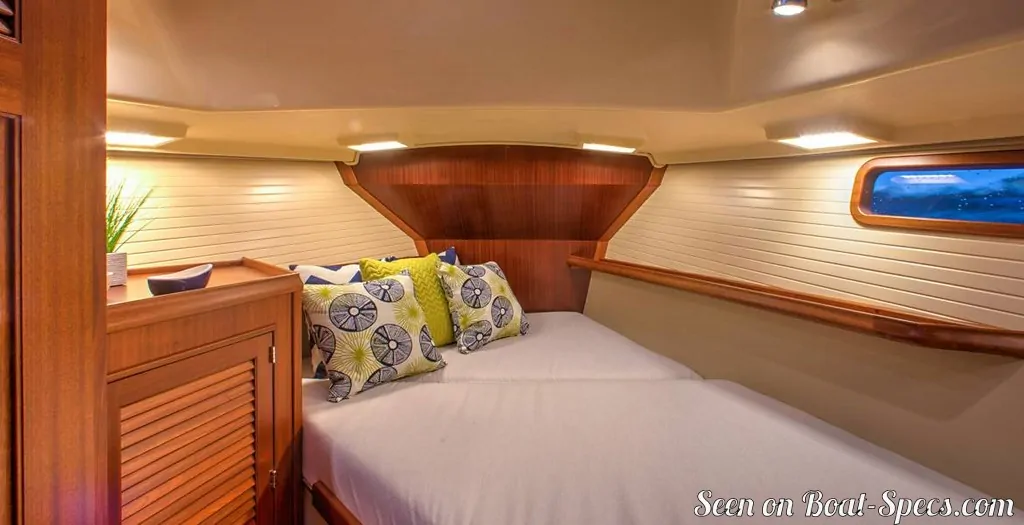

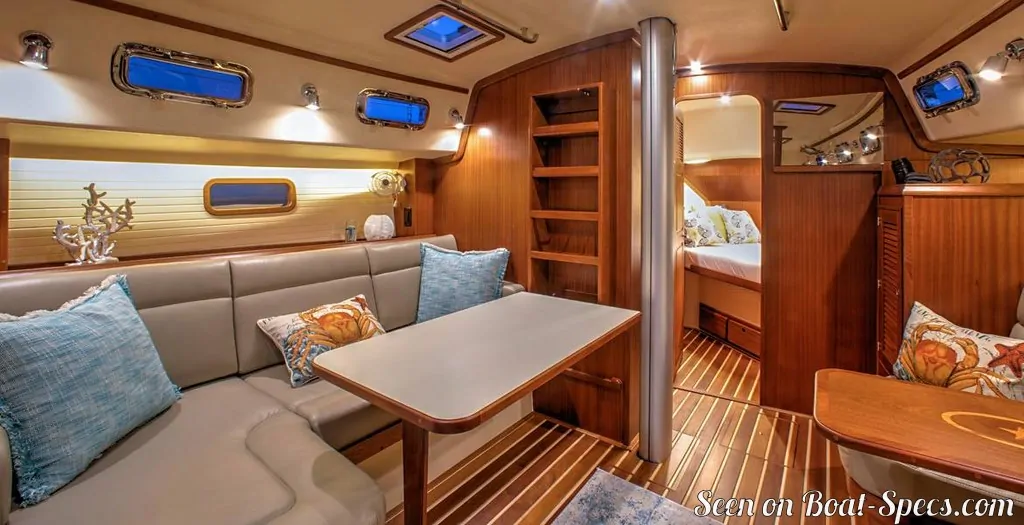

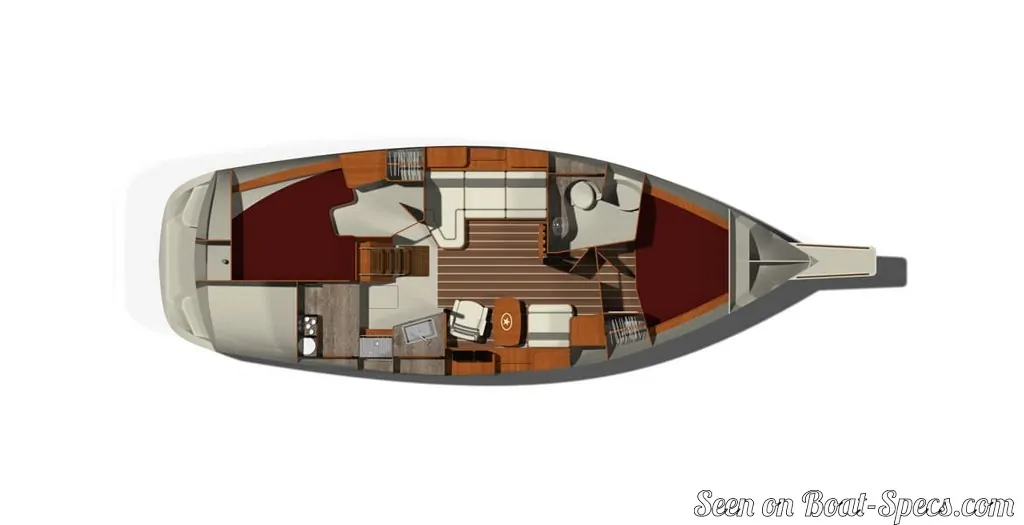

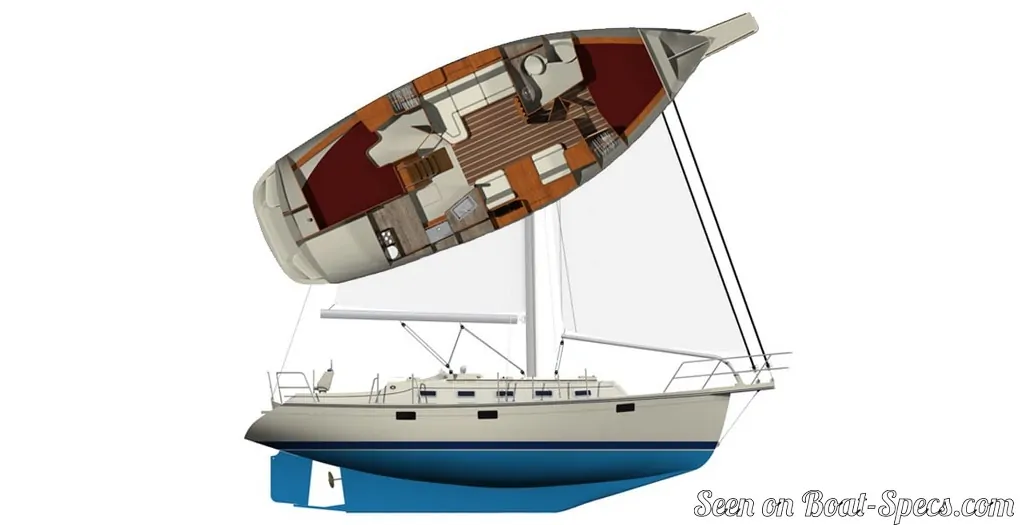

    Island Packet 349's accommodations and layout

    Cockpit
    Closed aft cockpit
    Cabin(s)
    2
    Berth(s) (min./max.)
    4 / 7
    Head(s)
    1
    Freshwater tank capacity
    100.4 gal380 liters
    Holding tank capacity
    29.9 gal113 liters
    Maximum headroom
    6’ 5”1.96 m
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
