Hobie Cat Dragoon Club
Sailboat specifications
The Hobie Cat Dragoon is a 12’10” (3.91m) double handed sport/beach catamaran designed by Hobie Cat Europe (France). She was built since 1998 (and now discontinued) by Hobie Cat (United States). The Club version comes with the basic equipment needed to start sailing.
The Hobie Cat Dragoon is as well listed, on Boat-Specs.com, in Extreme version (see all the versions compared).
The Hobie Cat Dragoon is as well listed, on Boat-Specs.com, in Extreme version (see all the versions compared).
Hobie Cat Dragoon's main features
- Model
- Hobie Cat Dragoon
- Version
- Club
- Hull type
- Catamaran
- Category
- Double handed sport/beach catamaran
- Sailboat builder
- Sailboat designer
- Country
- United States
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 1998
- Last built hull
- Discontinued
- Appendages
- Skegs : skeg on each hull
- Helm
- Single tiller
- Rudder
- Twin transom hung rudders
- Unsinkable
- No
- Trailerable
- Yes
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - D
- Standard public price ex. VAT (indicative only)
- N/A €
Hobie Cat Dragoon's main dimensions
- Hull length
- 12’ 10”3.91 m
- Beam (width)
- 7’ 2”2.2 m
- Light displacement (MLC)
- 251 lb114 kg
- Capacity
- 529 lb240 kg

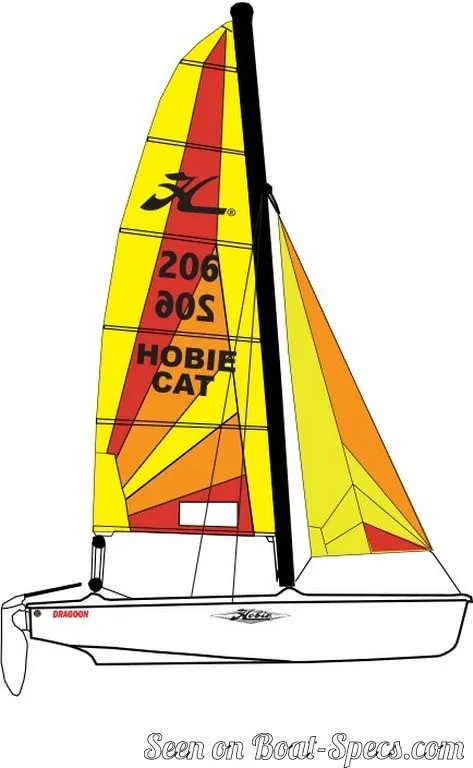

Hobie Cat Dragoon's rig and sails
- Upwind sail area
- 126 ft²11.7 m²
- Mainsail area
- 102 ft²9.5 m²
- Jib area
- 24 ft²2.2 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Fore beam stepped mast
- Rotating spars
- Yes
- Spreaders angle
- No spreader
- Spars construction
- Aluminum mast and no boom
- Standing rigging
- 1x19 strand wire
Hobie Cat Dragoon's performances
- Crew
- 3
- Trapezes
- 1 set(s)
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 536 ft²/T49.76 m²/T
Hobie Cat Dragoon's auxiliary engine
- Engine(s)
- No engine
Hobie Cat Dragoon's accommodations and layout
- Cockpit
- No cockpit
