Hanse 575 Shoal draft

Sailboat specifications

The Hanse 575 is a 54’10” (16.7m) cruising sailboat designed by Judel/Vrolijk (Germany). She was built since 2012 (and now discontinued) by Hanse (Germany). The Shoal draft version features a shorter keel to grant access to shallow areas.

The Hanse 575 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Hanse 575's main features

Model: Hanse 575
Version: Shoal draft
Hull type: Monohull
Category: Offshore cruising sailboat
Sailboat builder: Hanse
Sailboat designer: Judel/Vrolijk
Country: Germany
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
First built hull: 2012
Last built hull: Discontinued
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
382 000 €
(2015)

Hanse 575's main dimensions

Overall length: 56’ 4”17.15 m
Hull length: 54’ 10”16.7 m
Waterline length: 49’ 8”15.15 m
Beam (width): 17’ 1”5.2 m
Draft: 7’ 5”2.25 m
Mast height from D_WL: 83’25.3 m
Light displacement (M_LC): 44974 lb20400 kg
Ballast weight: 13007 lb5900 kg
Ballast type: Cast iron

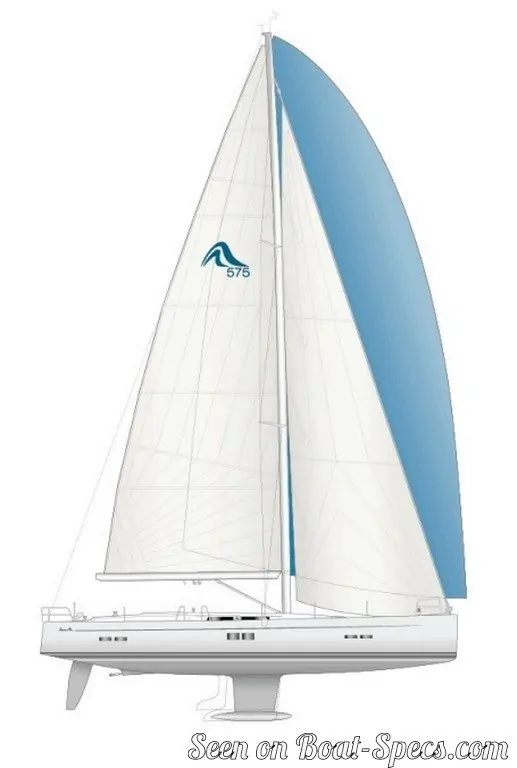

Hanse 575's rig and sails

Upwind sail area: 1738 ft²161.5 m²
Downwind sail area: 3202 ft²297.5 m²
Mainsail area: 942 ft²87.5 m²
Genoa area: 797 ft²74 m²
Jib area: 678 ft²63 m²
Gennaker area: 2260 ft²210 m²
I iFore triangle height (from mast foot to fore stay top attachment): 67’ 11”20.7 m
J iFore triangle base (from mast foot to bottom of forestay): 21’6.4 m
P iMainsail hoist measurement (from tack to head): 68’ 11”21 m
E iMainsail foot measurement (from tack to clew): 23’ 4”7.1 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Hanse 575's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 233 ft²/T21.63 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 429 ft²/T39.85 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 166
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 29 %
Righting moment @ 30° iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle. Higher the righting moment is for an angle, greater is the stability.: 86796 lb.ft12000 kg.m
Maximum righting moment iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle. Higher the righting moment is for an angle, greater is the stability.: 113558 lb.ft15700 kg.m @ 55.00 °
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 9.45 knots
