Hanse 545 Standard

Sailboat specifications

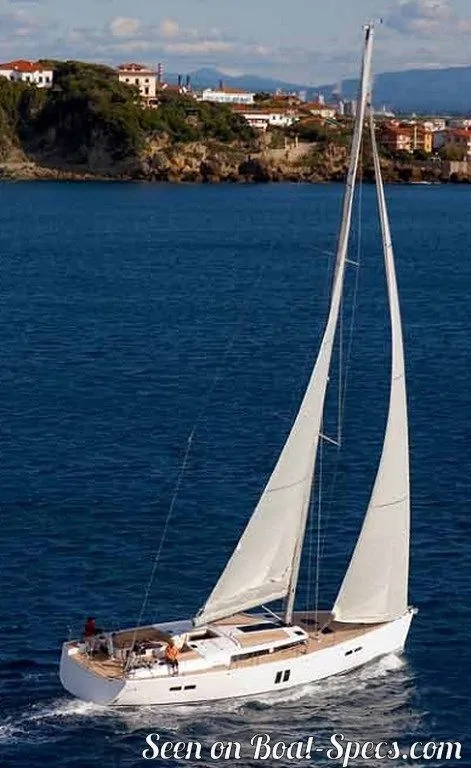

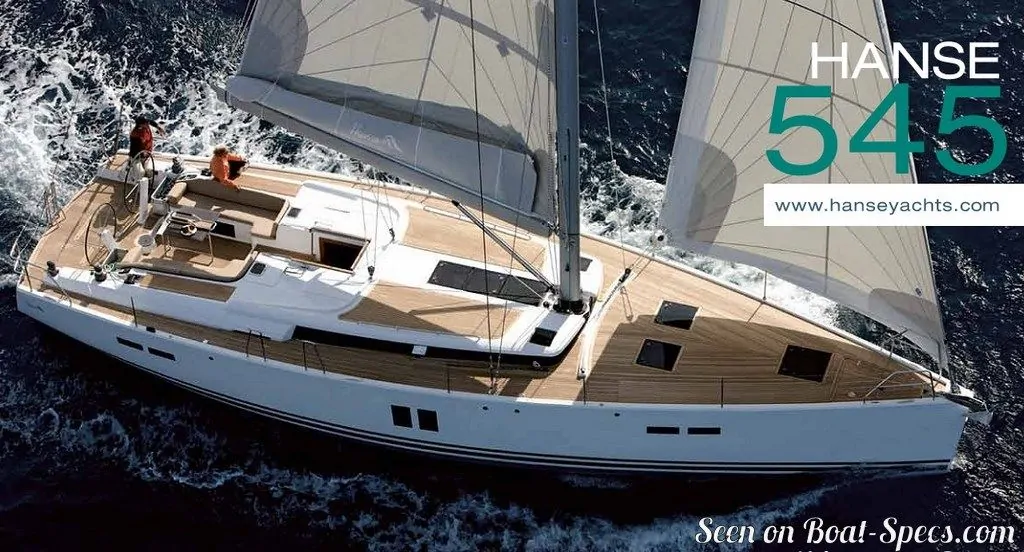

The Hanse 545 is a 52’10” (16.08m) cruising sailboat designed by Judel/Vrolijk (Germany). She was built between 2009 and 2013 by Hanse (Germany).

The Hanse 545 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Hanse 545's main features

Model: Hanse 545
Version: Standard
Hull type: Monohull
Category: Offshore cruising sailboat
Sailboat builder: Hanse
Sailboat designer: Judel/Vrolijk
Country: Germany
Construction: GRP (glass reinforced polyester):
Single skin bottom, sandwich sides and deck: balsa fiberglass polyester
First built hull: 2009
Last built hull: 2013
Appendages: Keel : T-shaped keel (with bulb), L-shaped in option

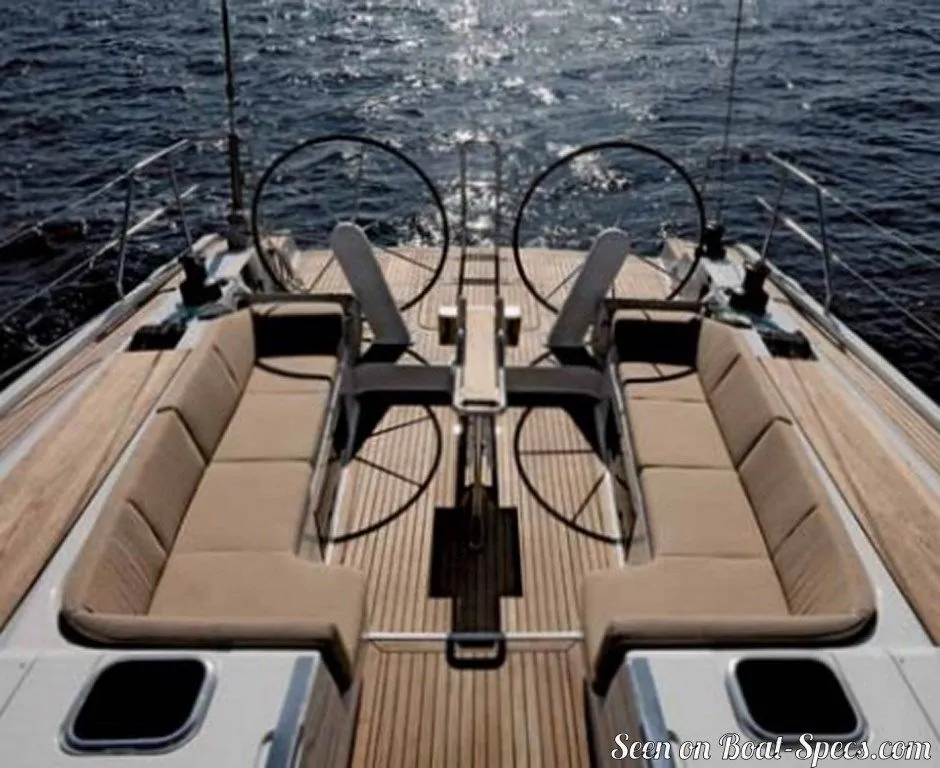

Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Hanse 545's main dimensions

Overall length: 52’ 6”16 m
Hull length: 52’ 10”16.08 m
Waterline length: 47’ 11”14.6 m
Beam (width): 16’ 1”4.91 m
Draft: 9’ 2”2.8 m
Mast height from D_WL: 81’ 11”24.95 m
Light displacement (M_LC): 41226 lb18700 kg
Ballast weight: 11684 lb5300 kg
Ballast type: Cast iron fin with lead bulb

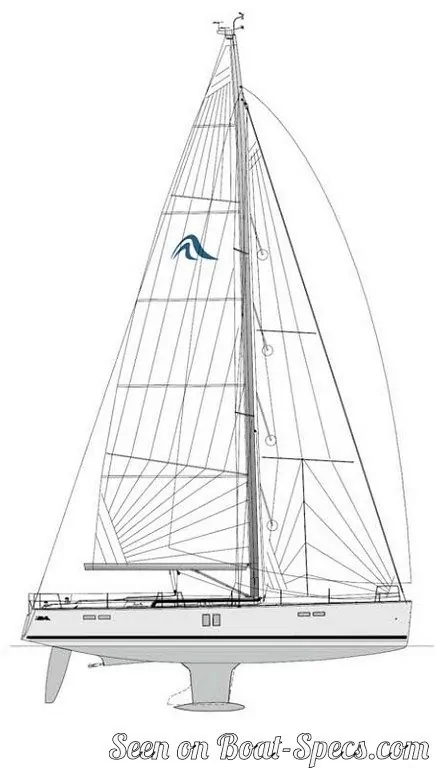

Hanse 545's rig and sails

Upwind sail area: 1679 ft²156 m²
Downwind sail area: 3035 ft²282 m²
Mainsail area: 936 ft²87 m²
Genoa area: 743 ft²69 m²
Jib area: 614 ft²57 m²
Gennaker area: 2099 ft²195 m²
I iFore triangle height (from mast foot to fore stay top attachment): 69’ 8”21.25 m
J iFore triangle base (from mast foot to bottom of forestay): 20’6.09 m
P iMainsail hoist measurement (from tack to head): 68’ 8”20.95 m
E iMainsail foot measurement (from tack to clew): 21’ 4”6.5 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 3
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Hanse 545's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 238 ft²/T22.14 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 431 ft²/T40.03 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 170
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 28 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 9.27 knots
