Hanse 508 Shoal draft
Sailboat specifications
The Hanse 508 is a 49’ (14.93m) cruising sailboat designed by Judel/Vrolijk (Germany). She is built since 2018 by Hanse (Germany). The Shoal draft version features a shorter keel to grant access to shallow areas.
The Hanse 508 is as well listed, on Boat-Specs.com, in Medium draft and Furling mainsail version (see all the versions compared).
The Hanse 508 is as well listed, on Boat-Specs.com, in Medium draft and Furling mainsail version (see all the versions compared).
Hanse 508's main features
- Model
- Hanse 508
- Version
- Shoal draft
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- Germany
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich balsa fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester - First built hull
- 2018
- Last built hull
- Still in production
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About281 000 €(2020)
Hanse 508's main dimensions
- Overall length
- 51’15.55 m
- Hull length
- 49’14.93 m
- Waterline length
- 44’ 5”13.54 m
- Beam (width)
- 15’ 7”4.75 m
- Draft
- 6’ 6”1.98 m
- Mast height from DWL
- 72’ 4”22.05 m
- Maximum displacement (MLDC)
- 33290 lb15100 kg
- Ballast weight
- 10428 lb4730 kg
- Ballast type
- Cast iron

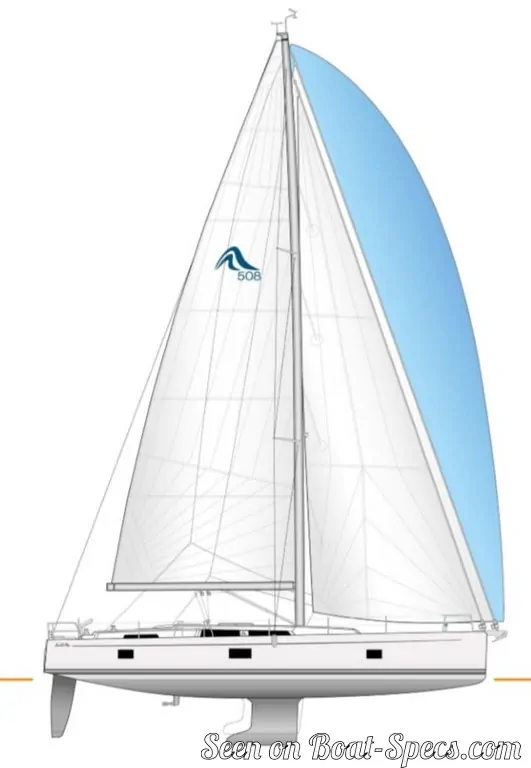

Hanse 508's rig and sails
- Upwind sail area
- 1270 ft²118 m²
- Downwind sail area
- 2869 ft²266.5 m²
- Mainsail area
- 716 ft²66.5 m²
- Jib area
- 554 ft²51.5 m²
- Asymmetric spinnaker area
- 2153 ft²200 m²
- Code 0 area
- 936 ft²87 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 62’ 8”19.1 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 20’ 1”6.13 m
- PiMainsail hoist measurement (from tack to head)
- 60’ 1”18.33 m
- EiMainsail foot measurement (from tack to clew)
- 21’ 2”6.45 m
- Rigging type
- Sloop Marconi 19/20
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- 22 °
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Hanse 508's performances
- Righting moment @ 1°iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 3038 lb.ft420 kg.m
- Righting moment @ 30°iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 65097 lb.ft9000 kg.m
- Maximum righting momentiThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 75947 lb.ft10500 kg.m @ 45.00 °
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.93 knots
Hanse 508's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 80 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 74 gal280 liters

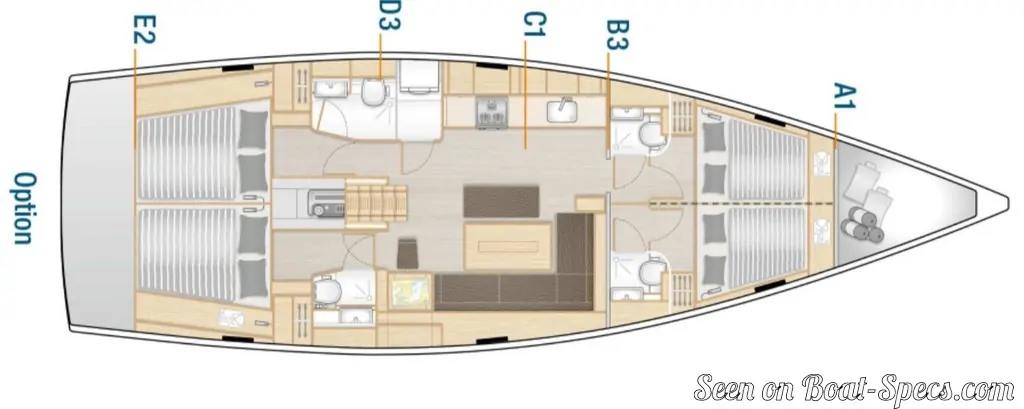

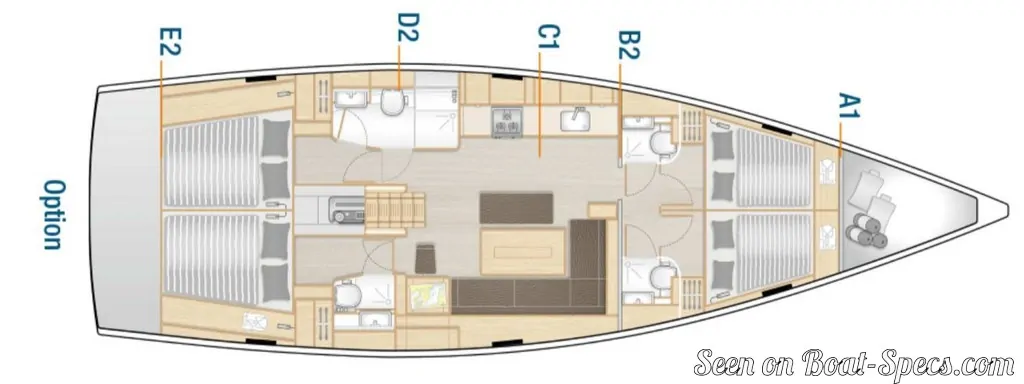

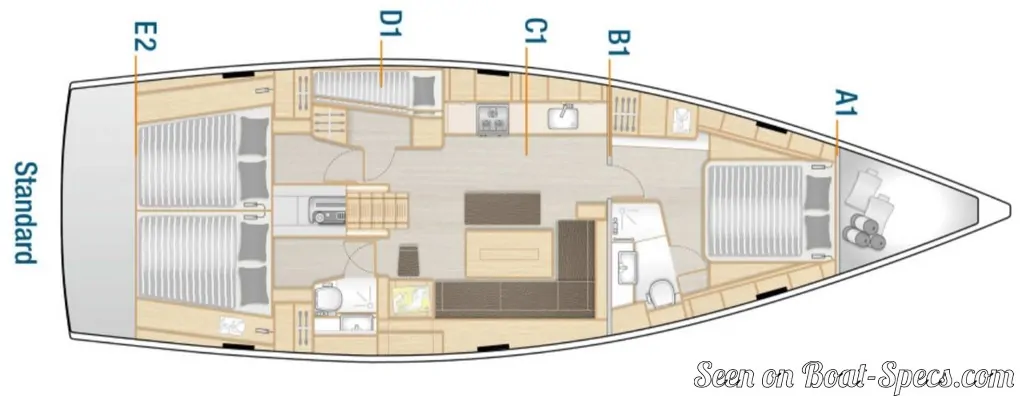

Hanse 508's accommodations and layout

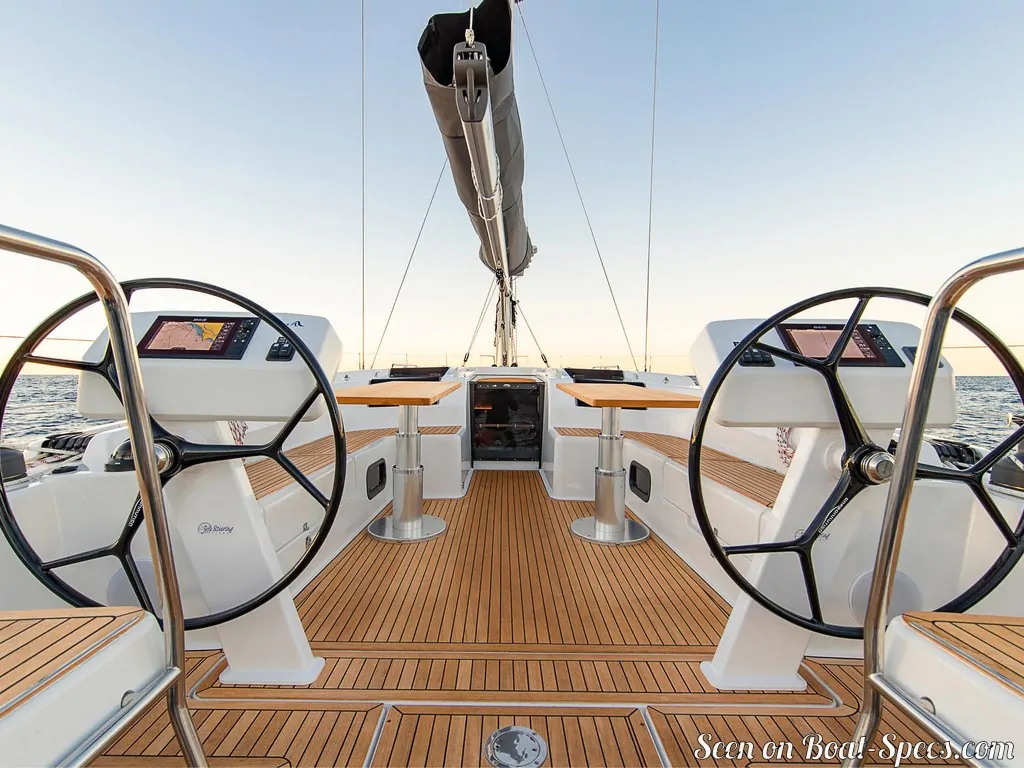

- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 5
- Berth(s) (min./max.)
- 7 / 10
- Head(s) (min./max.)
- 2 / 4
- Freshwater tank capacity
- 166.4 gal630 liters
- Holding tank capacity
- 15.9 gal60 liters
- Boiler capacity
- 5.3 gal20 liters

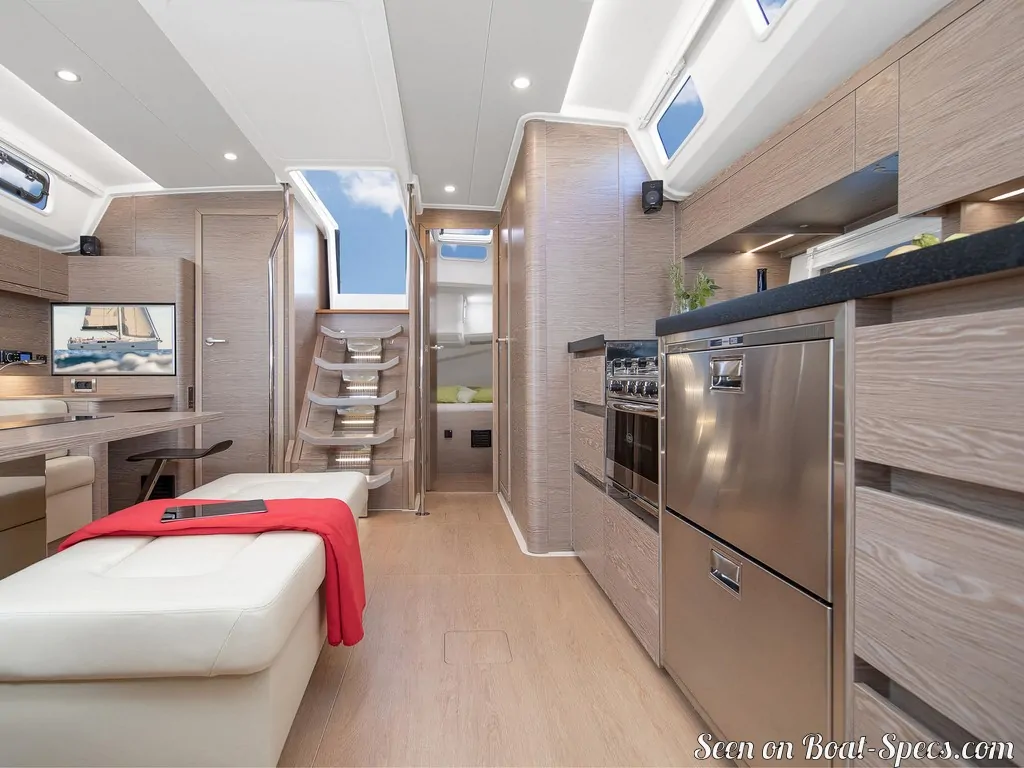

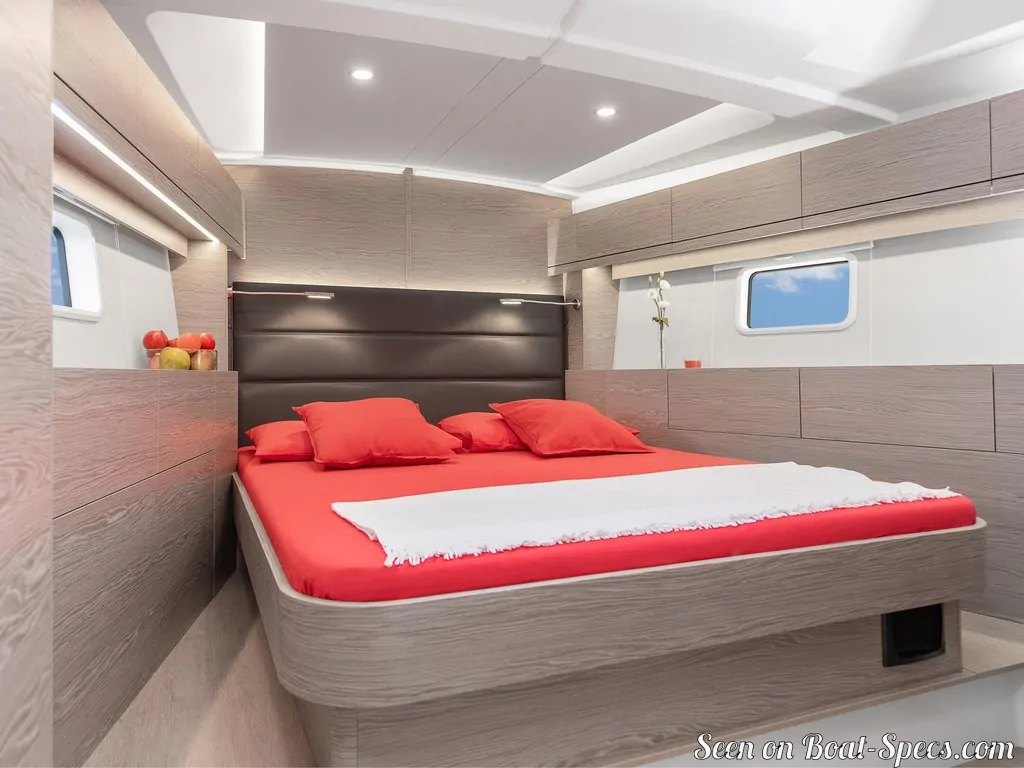

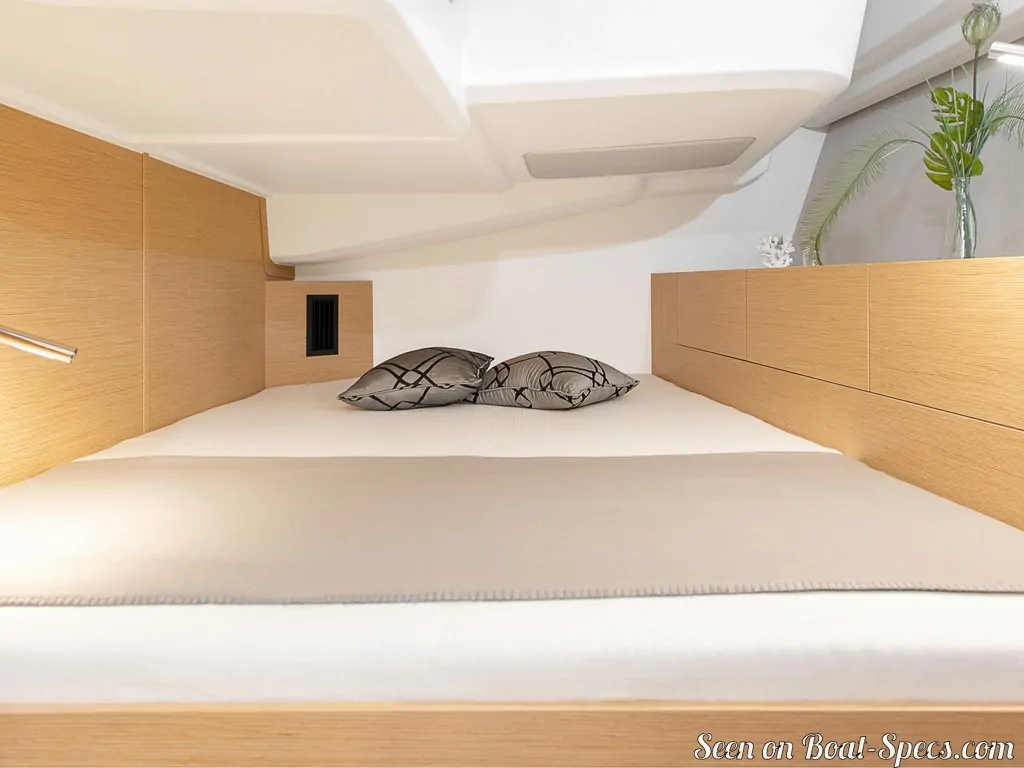

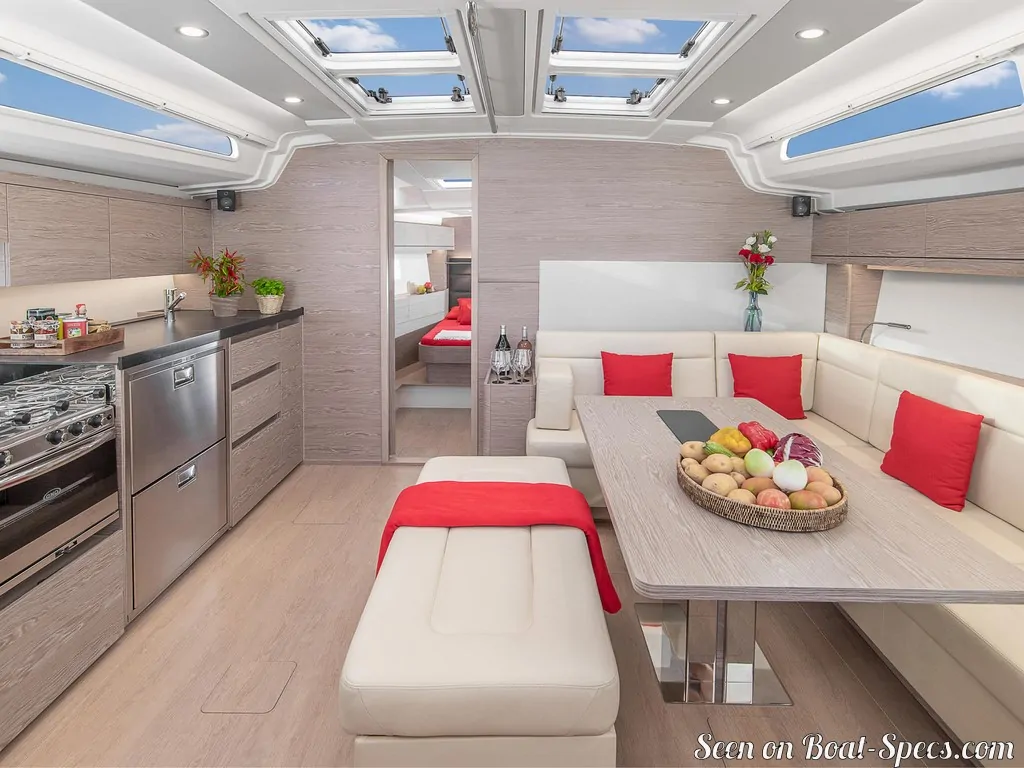

Hanse 508 interior and accommodations - - 17/20
Picture extracted from the commercial documentation © Hanse
Picture extracted from the commercial documentation © Hanse
Hanse 508 interior and accommodations - - 18/20
Picture extracted from the commercial documentation © Hanse
Picture extracted from the commercial documentation © Hanse
Hanse 508 interior and accommodations - - 19/20
Picture extracted from the commercial documentation © Hanse
Picture extracted from the commercial documentation © Hanse
Hanse 508 interior and accommodations - - 20/20
Picture extracted from the commercial documentation © Hanse
Picture extracted from the commercial documentation © Hanse
