Hanse 315 Shoal draft

Sailboat specifications

The Hanse 315 is a 29’11” (9.1m) cruising sailboat designed by Judel/Vrolijk (Germany). She is built since 2015 by Hanse (Germany). The Shoal draft version features a shorter keel to grant access to shallow areas. She has been awarded "2016 - European Yacht of the Year: Family Cruiser".

The Hanse 315 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Hanse 315's main features

Model

Hanse 315

Version

Shoal draft

Hull type

Monohull

Category

Cruising sailboat

Sailboat builder

Hanse

Sailboat designer

Judel/Vrolijk

Country

Germany

Construction

GRP (glass reinforced polyester):
Single skin bottom, sandwich sides and deck: fiberglass polyester

First built hull

2015

Last built hull

Still in production

Award(s)

2016: European Yacht of the Year: Family Cruiser

Appendages

Keel : L-shaped keel (with bulb)

Helm

Single tiller (helm wheel in option)

Rudder

Single spade rudder

Unsinkable

Trailerable

EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m

Standard public price ex. VAT (indicative only)

About

77 000 €

(2020)

Hanse 315's main dimensions

Overall length: 31’ 7”9.62 m
Hull length: 29’ 11”9.1 m
Waterline length: 28’ 6”8.7 m
Beam (width): 11’ 7”3.55 m
Draft: 4’ 6”1.37 m
Mast height from D_WL: 47’ 1”14.35 m
Light displacement (M_LC): 10692 lb4850 kg
Ballast weight: 3638 lb1650 kg

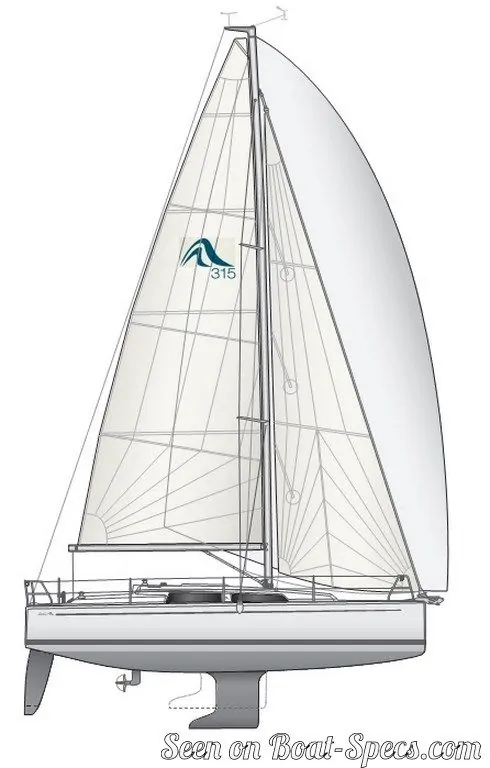

Hanse 315's rig and sails

Upwind sail area: 506 ft²47 m²
Mainsail area: 318 ft²29.5 m²
Jib area: 188 ft²17.5 m²
I iFore triangle height (from mast foot to fore stay top attachment): 38’ 8”11.8 m
J iFore triangle base (from mast foot to bottom of forestay): 11’ 5”3.47 m
P iMainsail hoist measurement (from tack to head): 37’ 8”11.5 m
E iMainsail foot measurement (from tack to clew): 13’ 11”4.25 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Hanse 315's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 177 ft²/T16.4 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 209
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 34 %
Righting moment @ 30° iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle. Higher the righting moment is for an angle, greater is the stability.: 28932 lb.ft4000 kg.m
Maximum righting moment iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle. Higher the righting moment is for an angle, greater is the stability.: 38335 lb.ft5300 kg.m @ 72.00 °
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.16 knots
