Hallberg-Rassy 94 Kutter
Sailboat specifications
The Hallberg-Rassy 94 Kutter is a 30’10” (9.4m) motorsailer designed by Olle Enderlein (Sweden) and Christoph Rassy (Germany). She was built between 1981 and 1994 by Hallberg-Rassy (Sweden) with 195 hulls completed.
Hallberg-Rassy 94 Kutter's main features
- Model
- Hallberg-Rassy 94 Kutter
- Hull type
- Monohull
- Category
- Motorsailer
- Sailboat builder
- Sailboat designer
- Country
- Sweden
- Construction
- GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich foam fiberglass polyester - Number of hulls built
- 195
- First built hull
- 1981
- Last built hull
- 1994
- Appendages
- Keel : full keel
- Helm
- Single tiller (helm wheel in option)
- Rudder
- Single rudder on skeg
- Unsinkable
- No
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Hallberg-Rassy 94 Kutter's main dimensions
- Hull length
- 30’ 10”9.4 m
- Beam (width)
- 10’ 8”3.25 m
- Draft
- 3’ 10”1.15 m
- Mast height from DWL
- 36’ 10”11.22 m
- Light displacement (MLC)
- 11464 lb5200 kg
- Ballast weight
- 3968 lb1800 kg
- Ballast type
- Steel incapsulated in deep GRP bilge
Hallberg-Rassy 94 Kutter's rig and sails
- Upwind sail area
- 366 ft²34 m²
- Mainsail area
- 161 ft²15 m²
- Genoa area
- 205 ft²19 m²
- Rigging type
- Sloop Marconi masthead
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- 0 °
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire continuous
Hallberg-Rassy 94 Kutter's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 122 ft²/T11.33 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 35 %
Hallberg-Rassy 94 Kutter's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 43 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 39.6 gal150 liters
Hallberg-Rassy 94 Kutter's accommodations and layout
- Cockpit
- Closed aft cockpit
- Cabin(s)
- 1
- Berth(s) (min./max.)
- 2 / 4
- Head(s)
- 1
- Freshwater tank capacity
- 39.6 gal150 liters
- Fridge/ice-box capacity
- 18.5 gal70 liters
Hallberg-Rassy 94 Kutter's saloon
- Saloon table width (min./max.)
- 2’ 6”0.77 m / 3’ 4”1 m
- Berth length
- 6’ 7”2 m
Hallberg-Rassy 94 Kutter's fore cabin
- Berth length
- 6’ 7”2 m

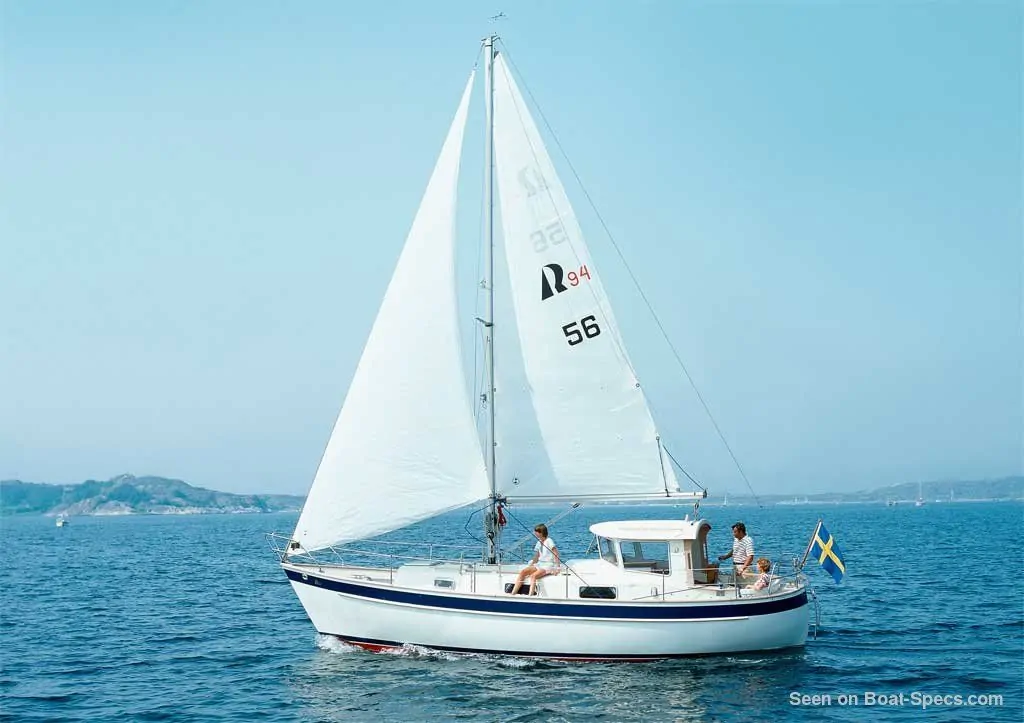

Hallberg-Rassy 94 Kutter - - 1/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

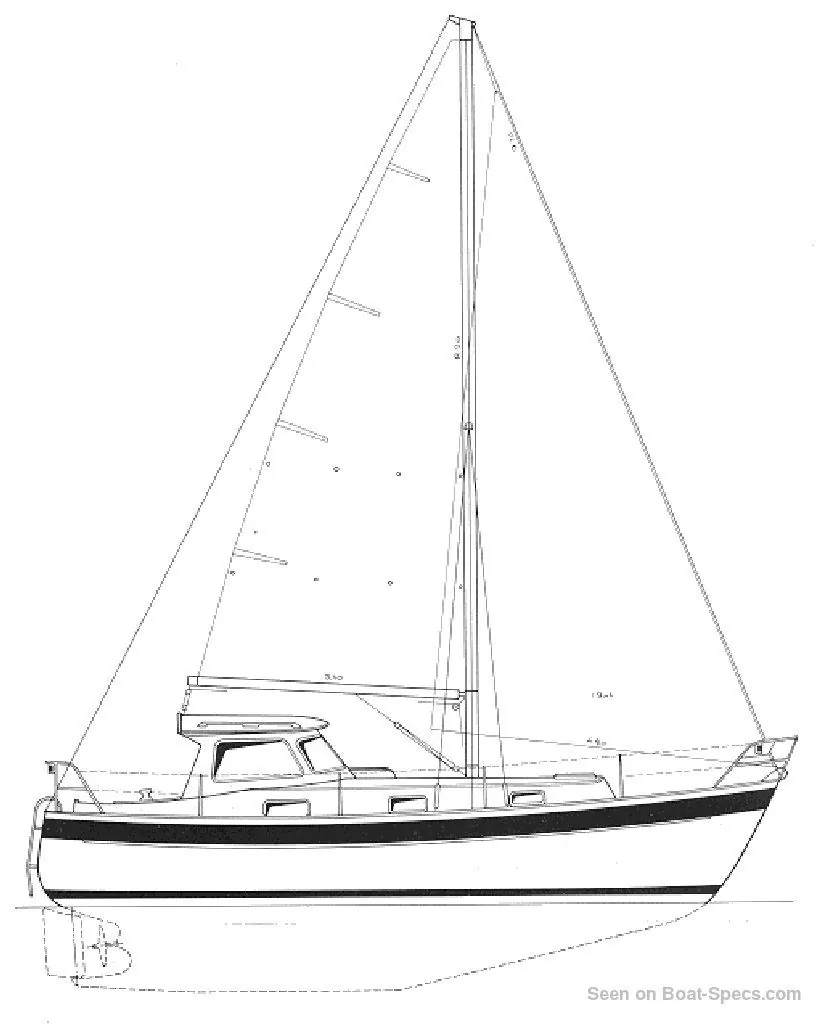

Hallberg-Rassy 94 Kutter sailplan - - 2/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

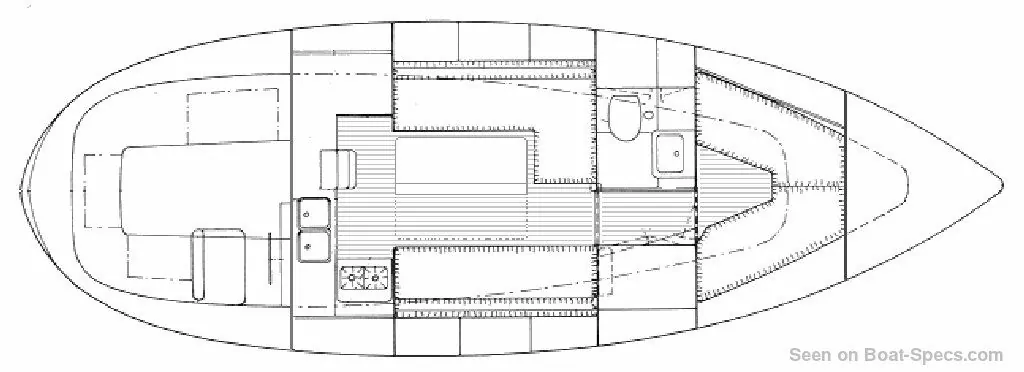

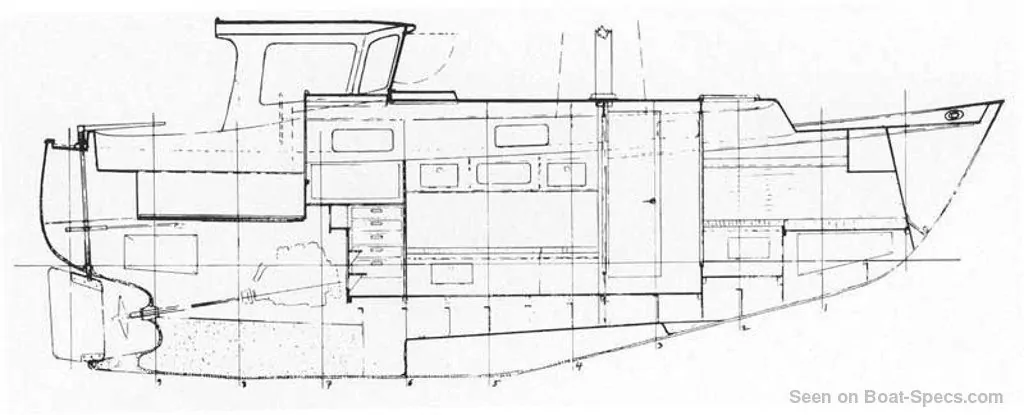

Hallberg-Rassy 94 Kutter layout - - 3/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter layout - - 4/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

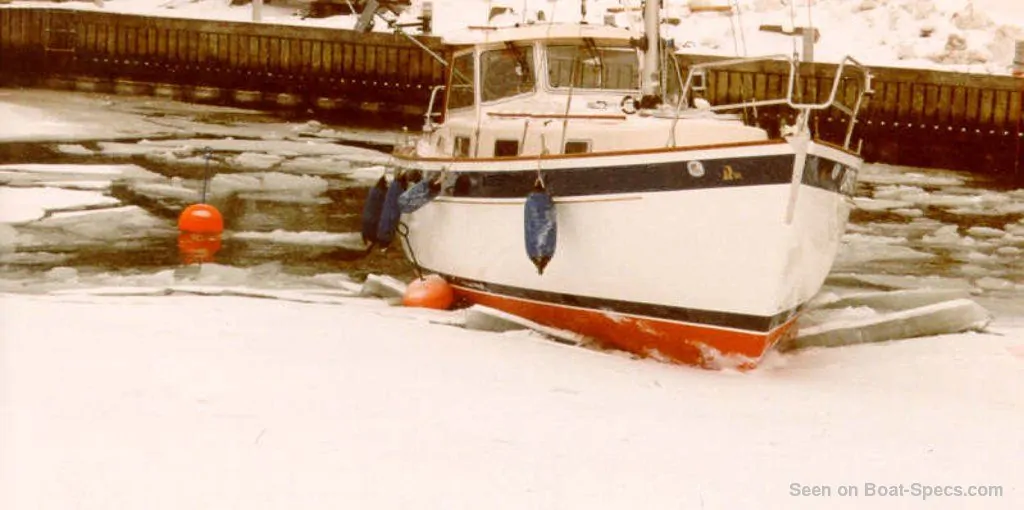

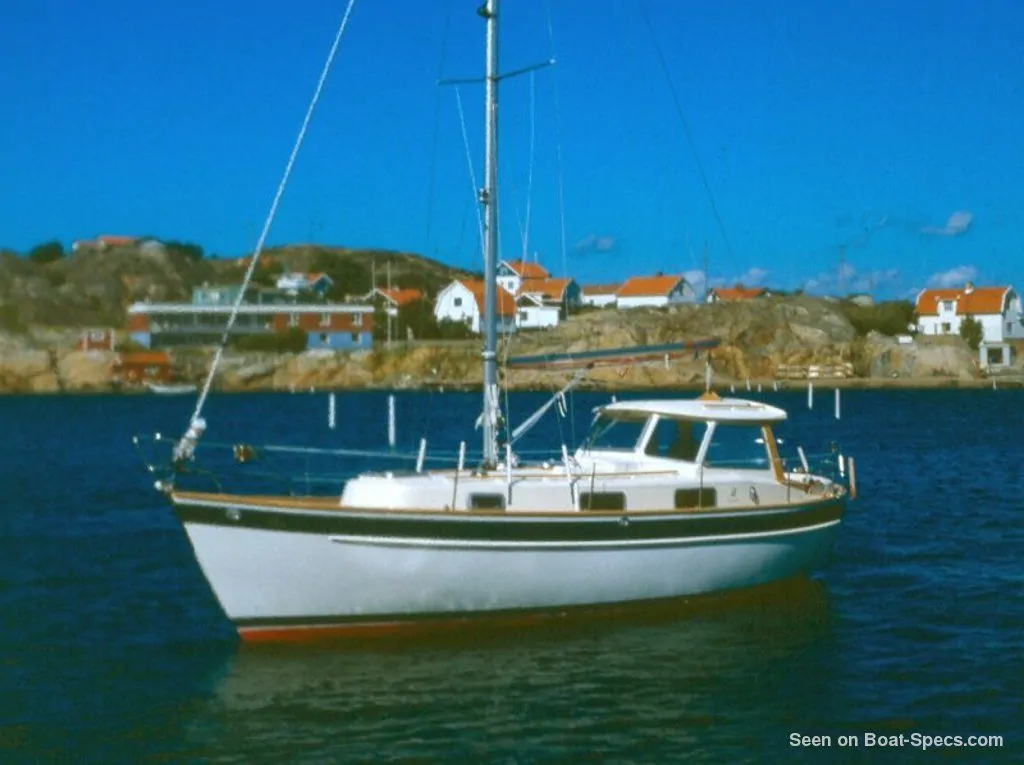

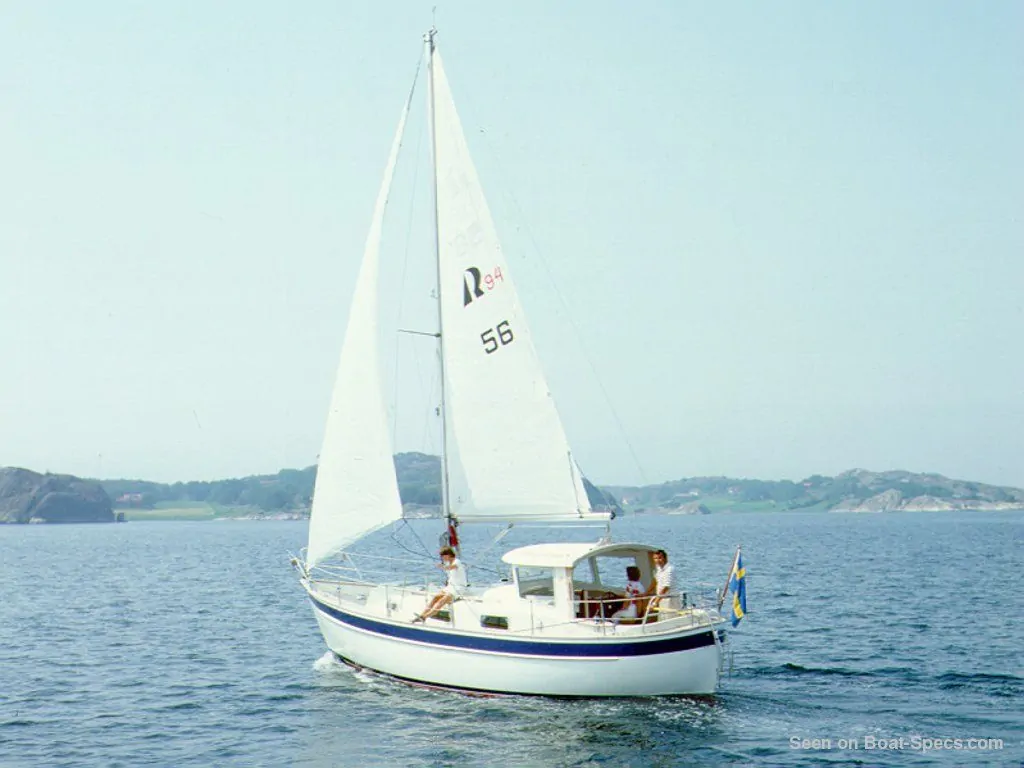

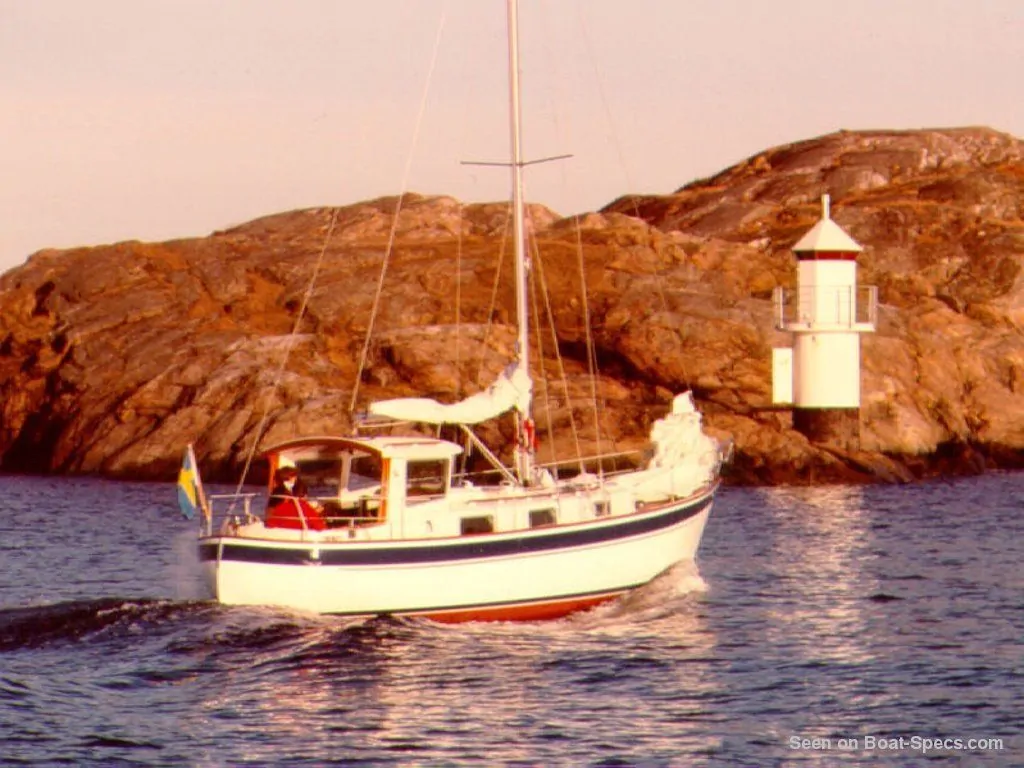

Hallberg-Rassy 94 Kutter sailing - - 5/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter sailing - - 6/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter sailing - - 7/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter sailing - - 8/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

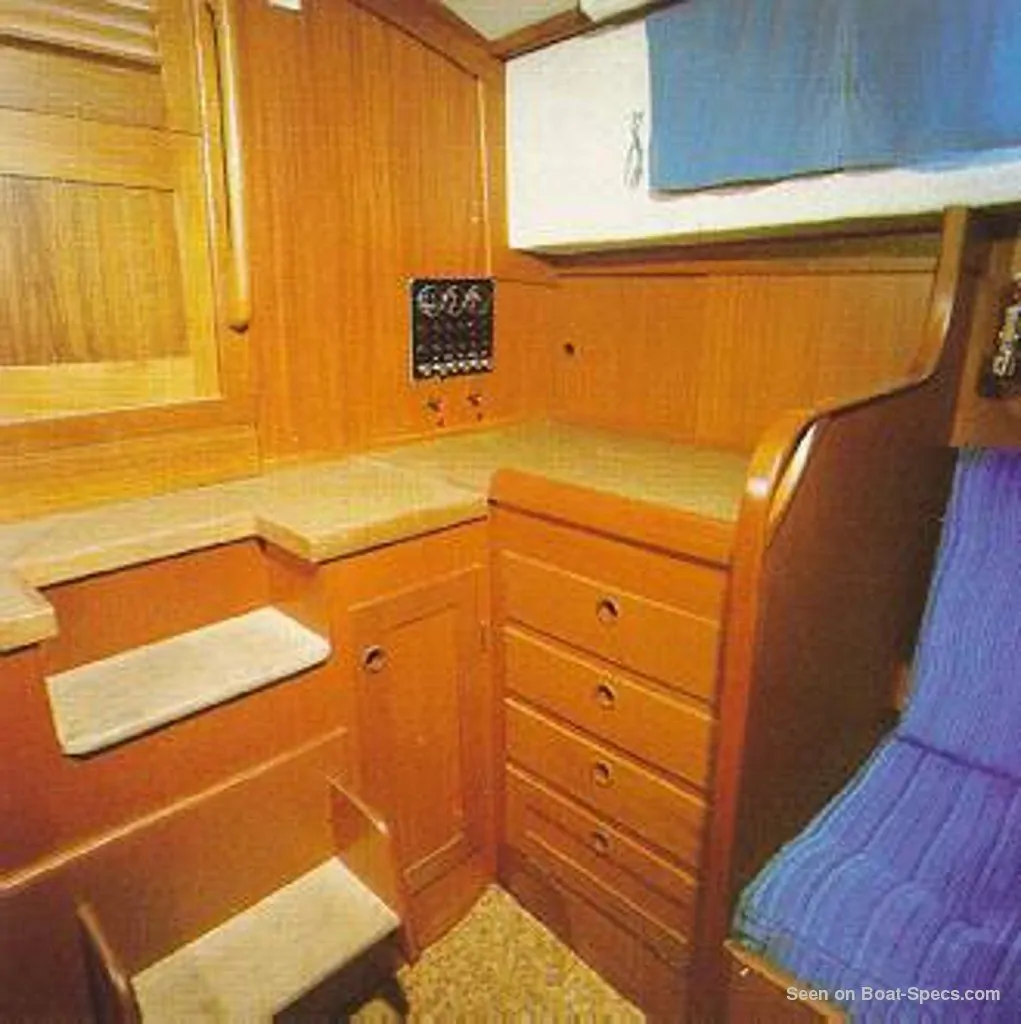

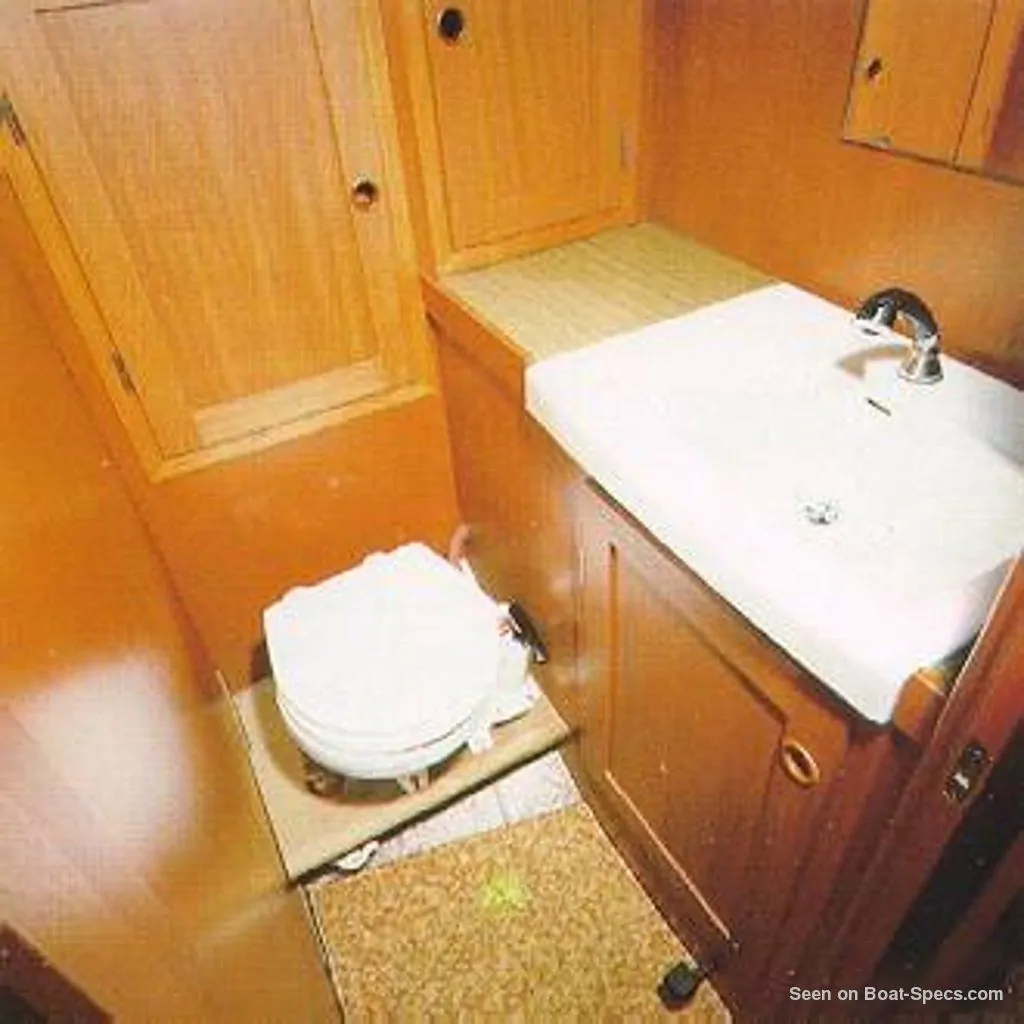

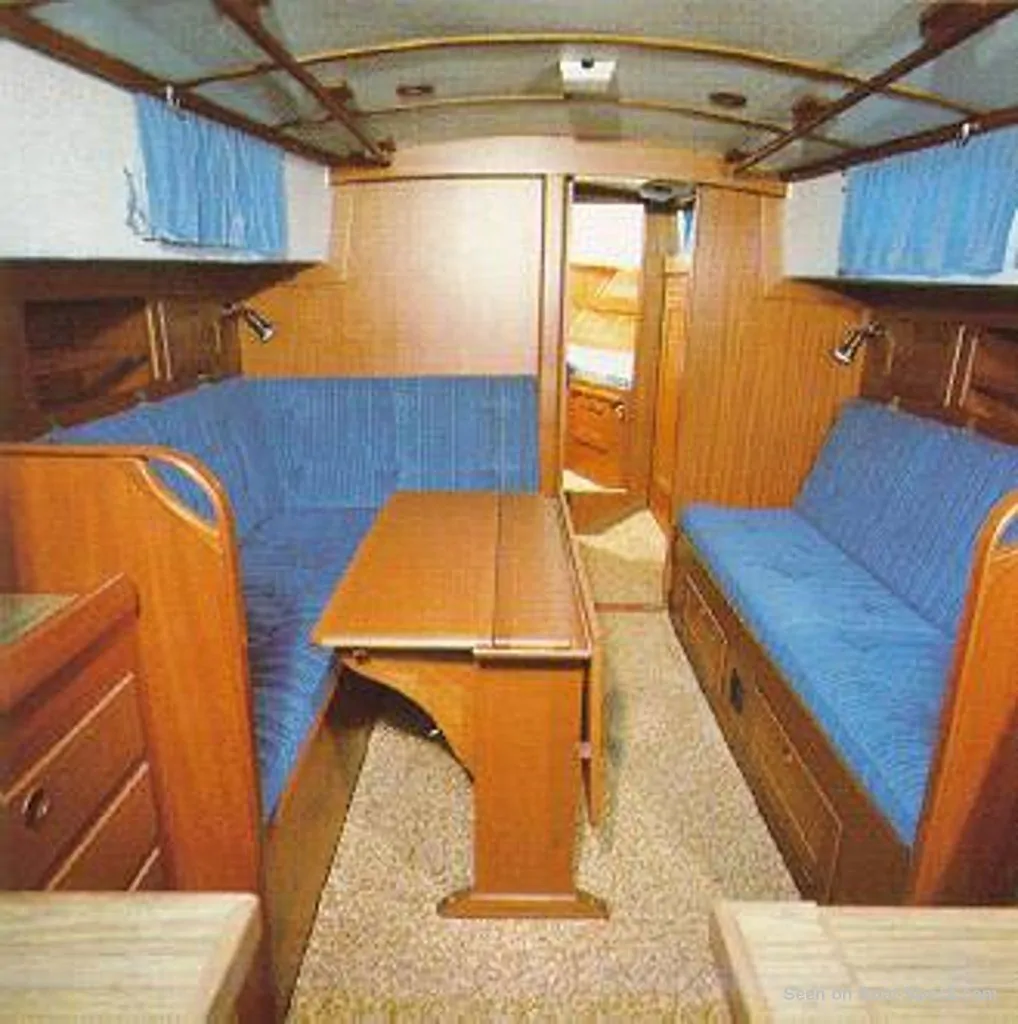

Hallberg-Rassy 94 Kutter interior and accommodations - - 9/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter interior and accommodations - - 10/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter interior and accommodations - - 11/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 94 Kutter interior and accommodations - - 12/12
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
