Hallberg-Rassy 41
Sailboat specifications
The Hallberg-Rassy 41 is a 41’ (12.5m) cruising sailboat designed by Olle Enderlein (Sweden). She was built between 1975 and 1981 by Hallberg-Rassy (Sweden) with 105 hulls completed.
Hallberg-Rassy 41's main features
- Model
- Hallberg-Rassy 41
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- Sweden
- Construction
- GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester - Number of hulls built
- 105
- First built hull
- 1975
- Last built hull
- 1981
- Appendages
- Keel : semi-full keel
- Helm
- Single helm wheel
- Rudder
- Single rudder on skeg
- Unsinkable
- No
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Hallberg-Rassy 41's main dimensions
- Hull length
- 41’12.5 m
- Beam (width)
- 11’ 10”3.6 m
- Draft
- 6’1.84 m
- Mast height from DWL
- 55’ 10”17 m
- Light displacement (MLC)
- 21826 lb9900 kg
- Ballast weight
- 8378 lb3800 kg
- Ballast type
- Steel incapsulated in deep GRP bilge
Hallberg-Rassy 41's rig and sails
- Upwind sail area
- 1095 ft²101.7 m²
- Mainsail area
- 371 ft²34.5 m²
- Mizzen sail area
- 126 ft²11.7 m²
- Genoa area
- 597 ft²55.5 m²
- Jib area
- 366 ft²34 m²
- Rigging type
- Ketch Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- 0 °
- Spars construction
- Aluminum spars
- Standing rigging
- Continuous
Hallberg-Rassy 41's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 237 ft²/T22.06 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 38 %
Hallberg-Rassy 41's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 45 HP / 75 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 121.5 gal460 liters
Hallberg-Rassy 41's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 6
- Head(s)
- 2
- Freshwater tank capacity
- 147.9 gal560 liters
- Holding tank capacity
- 10 gal38 liters
- Fridge/ice-box capacity
- 58.1 gal220 liters
- Head headroom
- 6’ 2”1.9 m
Hallberg-Rassy 41's saloon
- Berth length
- 6’ 8”2.03 m
Hallberg-Rassy 41's fore cabin
- Berth length
- 6’ 8”2.05 m
- Berth width
- 2’ 7”0.8 m
Hallberg-Rassy 41's aft cabin
- Berth length
- 6’ 5”1.95 m
- Berth width
- 2’ 7”0.8 m

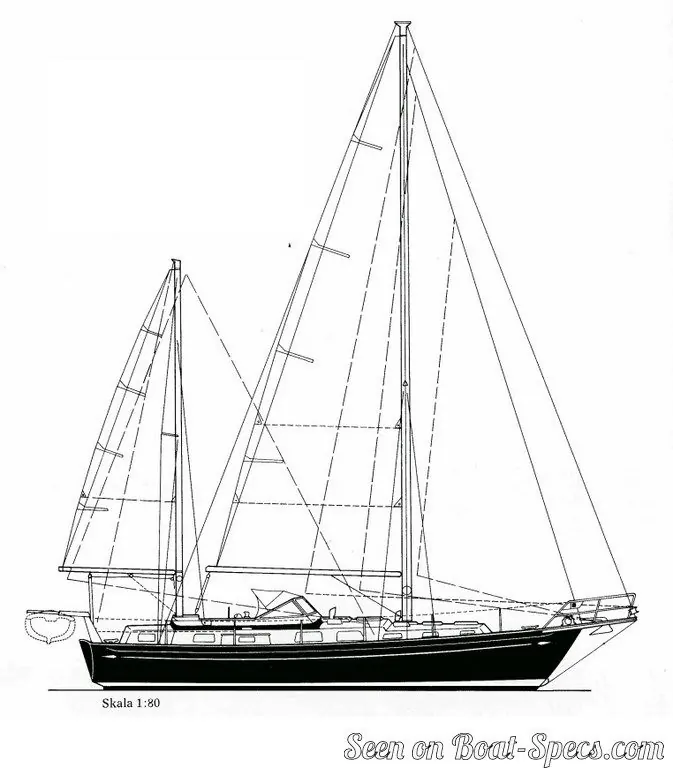

Hallberg-Rassy 41 sailplan - - 2/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

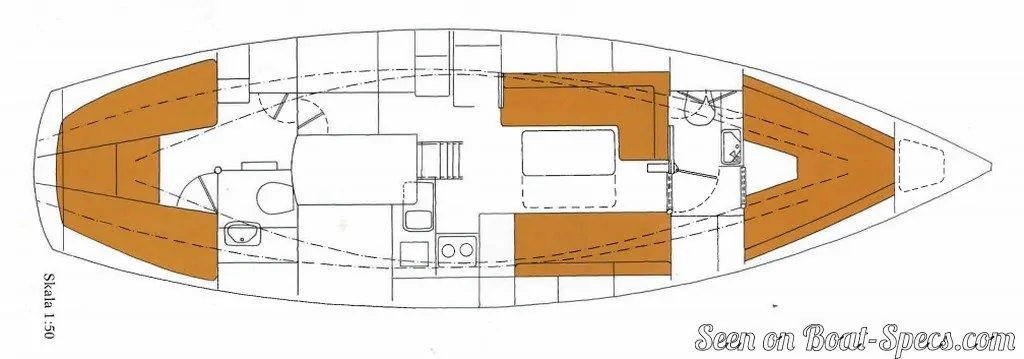

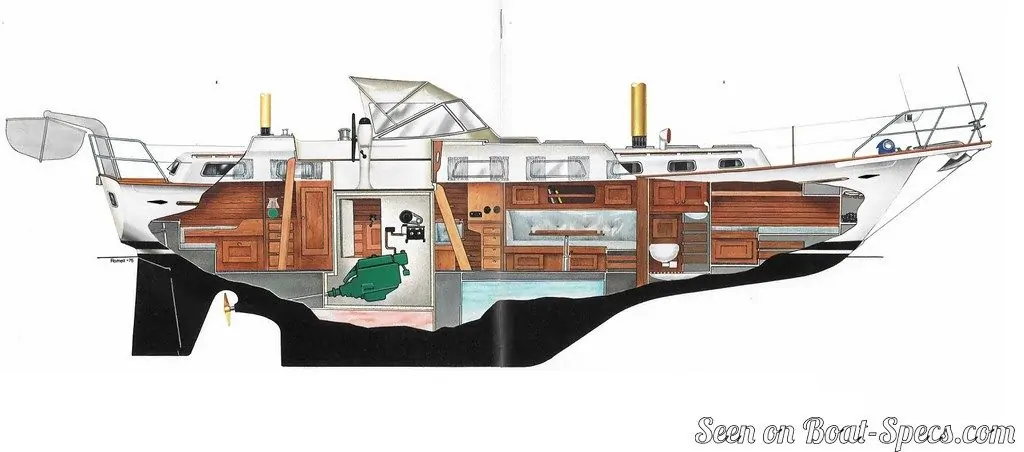

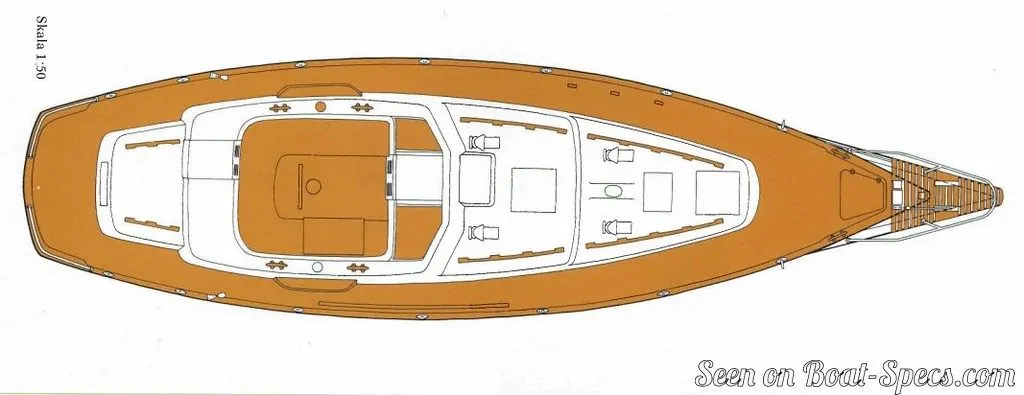

Hallberg-Rassy 41 layout - - 3/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 41 layout - - 4/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 41 layout - - 5/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

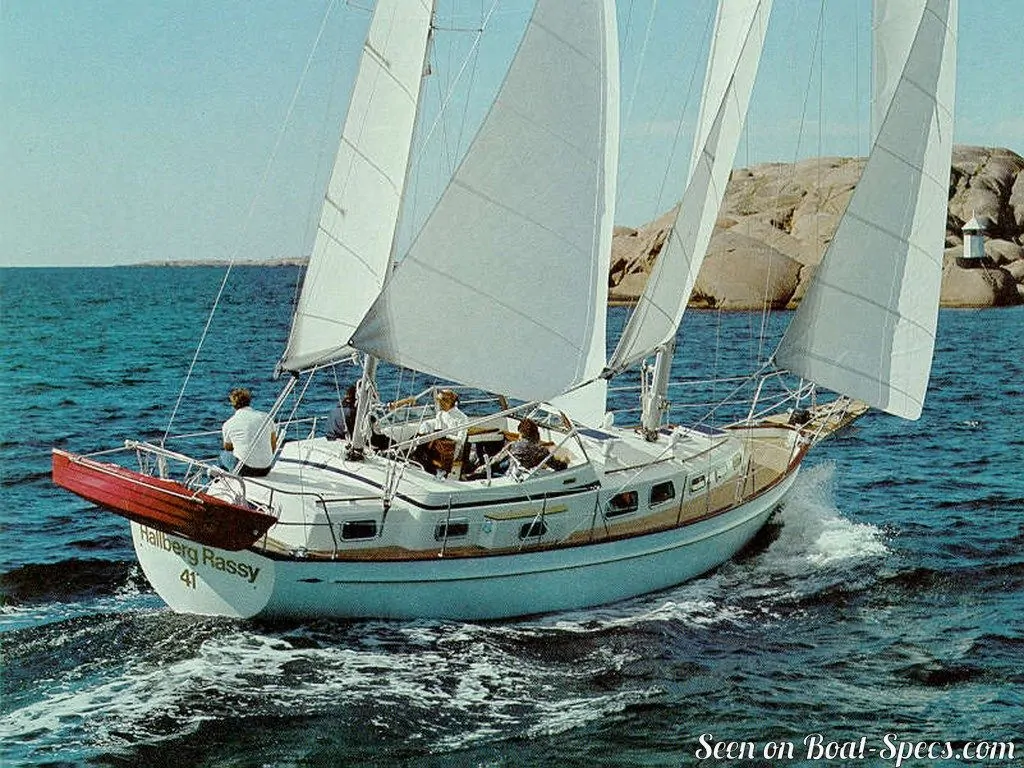

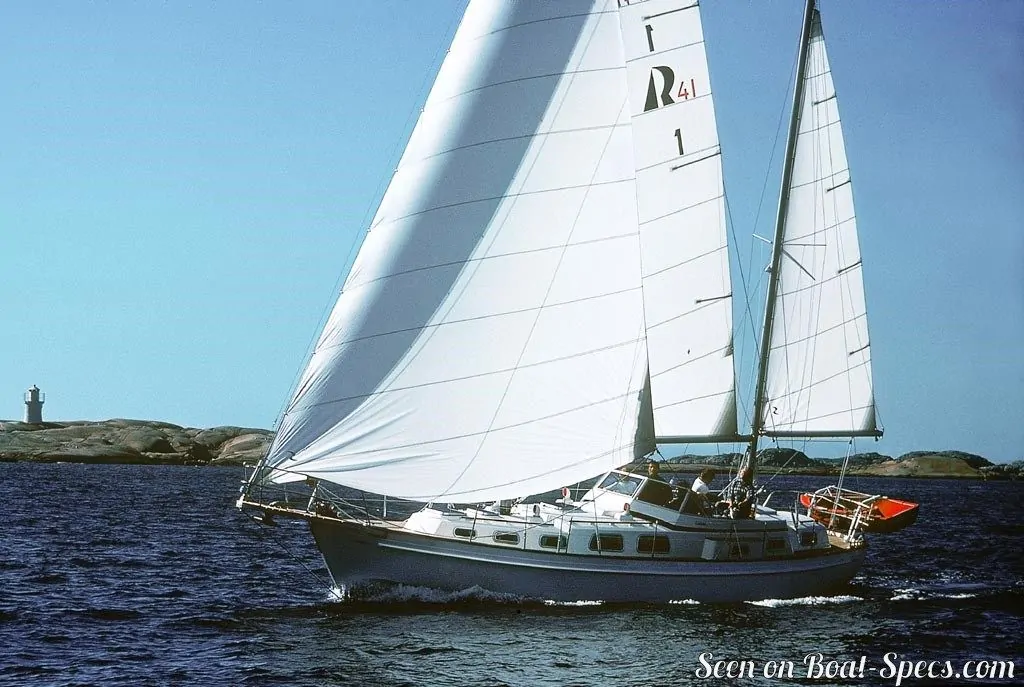

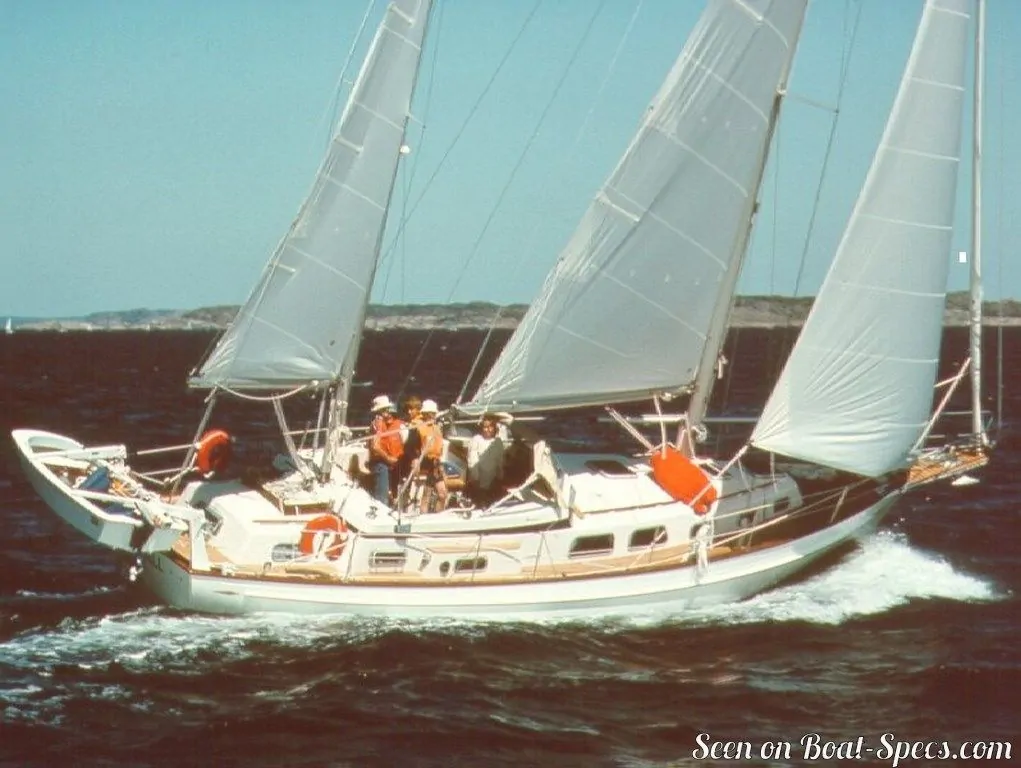

Hallberg-Rassy 41 sailing - - 6/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 41 sailing - - 7/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 41 sailing - - 8/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy

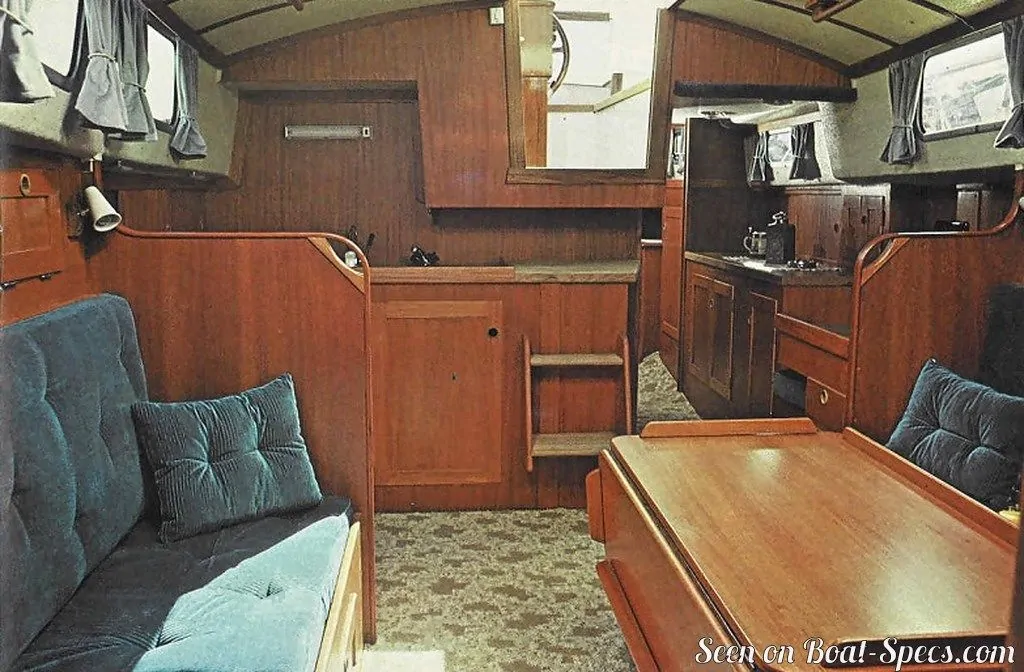

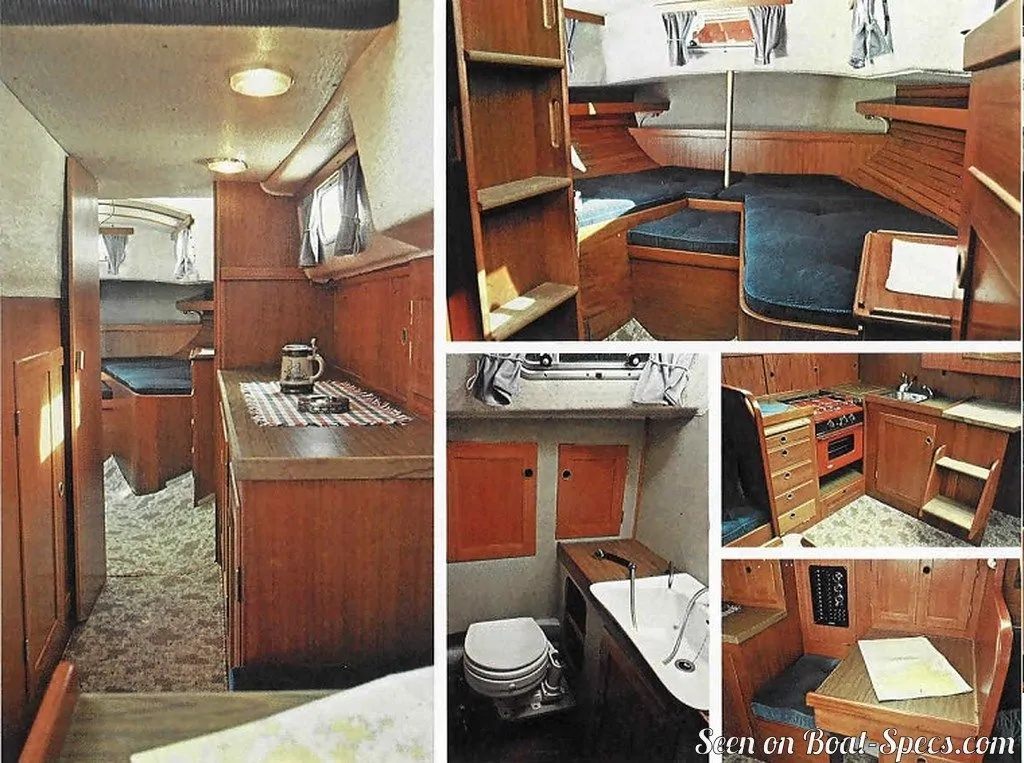

Hallberg-Rassy 41 interior and accommodations - - 9/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
Hallberg-Rassy 41 interior and accommodations - - 10/10
Picture extracted from the commercial documentation © Hallberg-Rassy
Picture extracted from the commercial documentation © Hallberg-Rassy
