Saba 50
Sailboat specifications
The Saba 50 is a 49’1” (14.98m) cruising catamaran designed by Berret Racoupeau Yachts Design (France). She is built since 2014 by Fountaine Pajot (France).
Saba 50's main features
- Model
- Saba 50
- Hull type
- Catamaran
- Category
- Cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich balsa fiberglass polyester (vacuum infusion) - First built hull
- 2014
- Last built hull
- Still in production
- Appendages
- Skegs : skeg on each hull
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About665 000 €(2020)
Saba 50's main dimensions
- Hull length
- 49’ 1”14.98 m
- Beam (width)
- 26’ 2”7.99 m
- Draft
- 4’ 1”1.25 m
- Light displacement (MLC)
- 34613 lb15700 kg
Saba 50's rig and sails
- Upwind sail area
- 1518 ft²141 m²
- Mainsail area
- 899 ft²83.5 m²
- Genoa area
- 619 ft²57.5 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Saba 50's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 242 ft²/T22.49 m²/T
Saba 50's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 55 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 248.3 gal940 liters
Saba 50's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s) (min./max.)
- 4 / 6
- Berth(s) (min./max.)
- 8 / 12
- Head(s) (min./max.)
- 4 / 6
- Freshwater tank capacity
- 184.9 gal700 liters
- Boiler capacity
- 15.9 gal60 liters
Saba 50's fore cabin
- Berth length
- 6’ 7”2 m
- Berth width
- 5’ 2”1.6 m
Saba 50's aft cabin
- Berth length
- 6’ 7”2 m
- Berth width
- 5’ 2”1.6 m

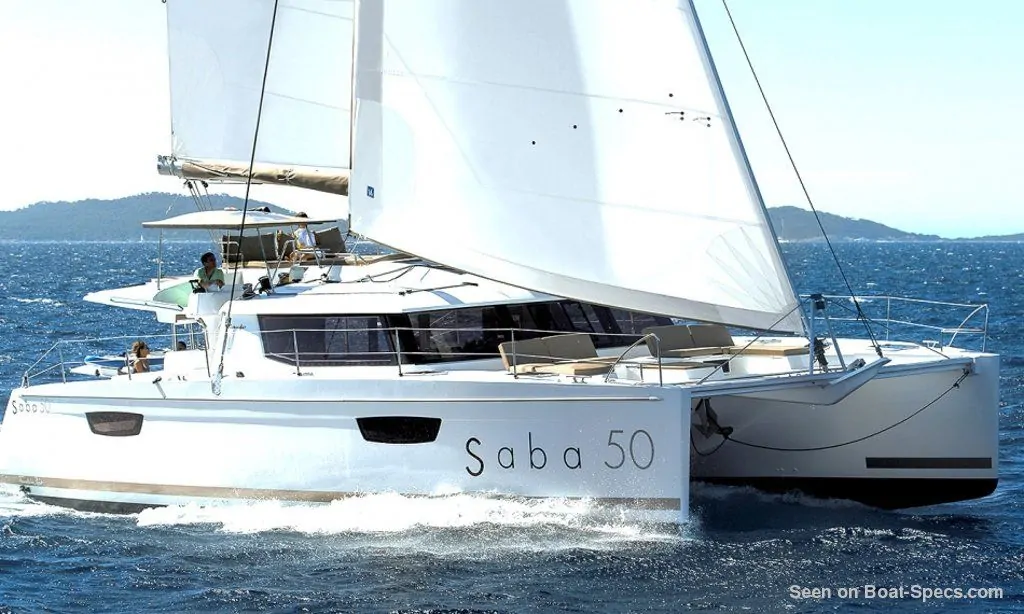

Fountaine Pajot Saba 50 - - 1/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

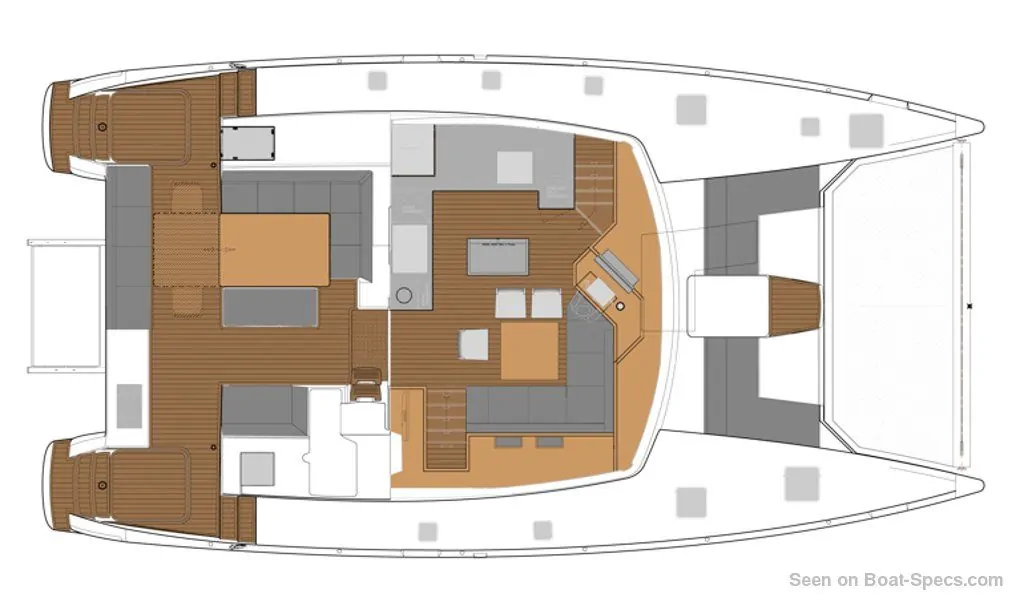

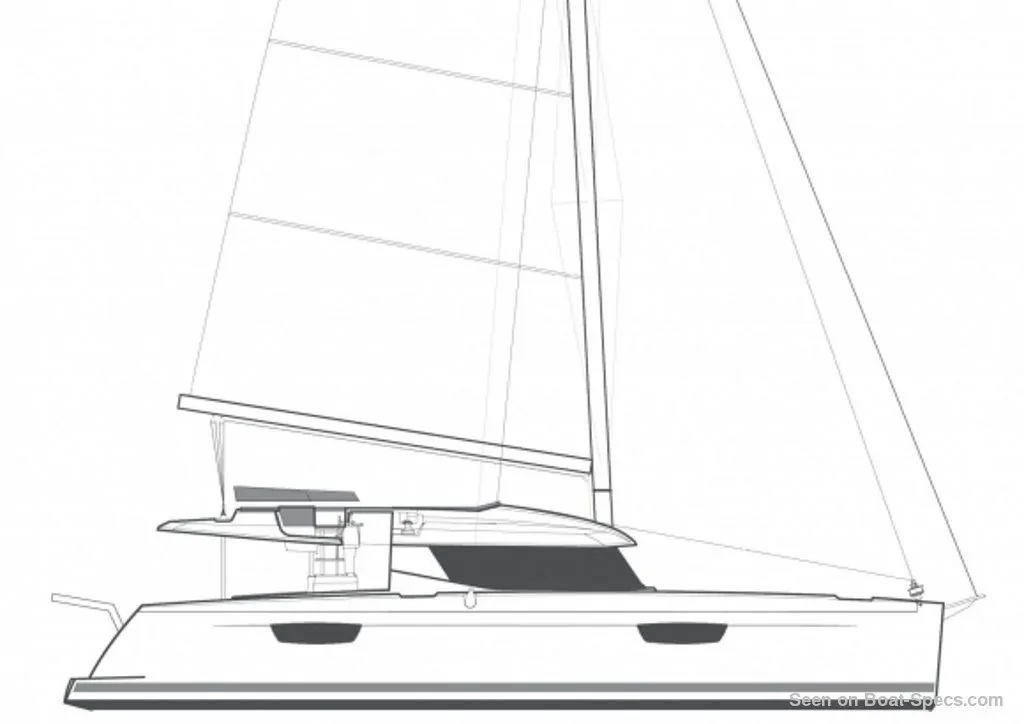

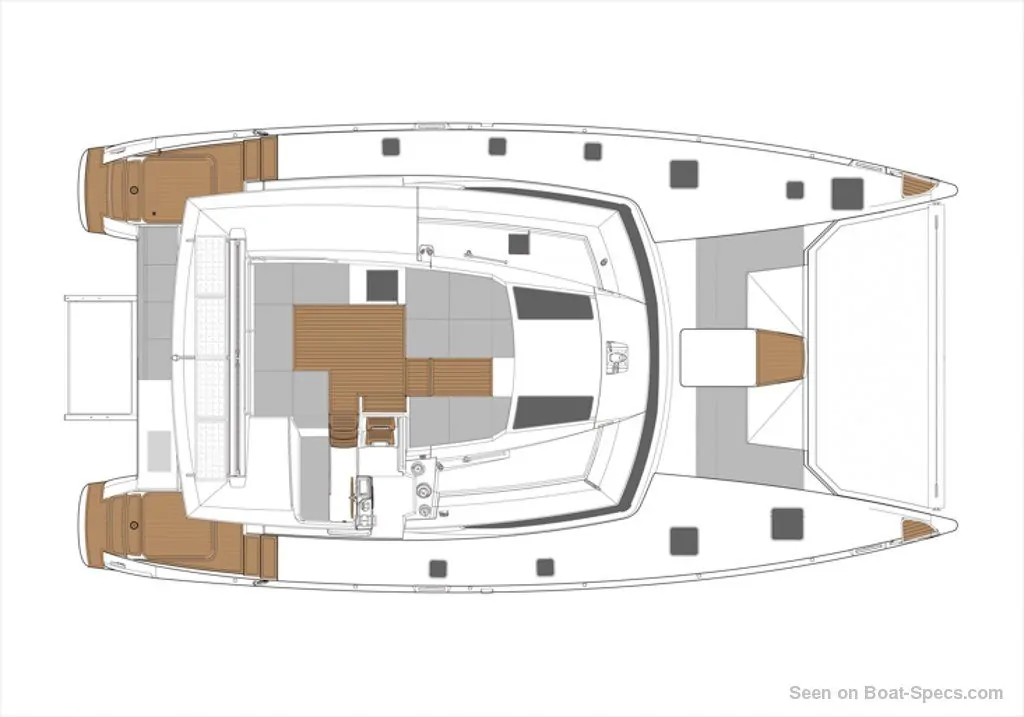

Fountaine Pajot Saba 50 layout - - 2/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 layout - - 3/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

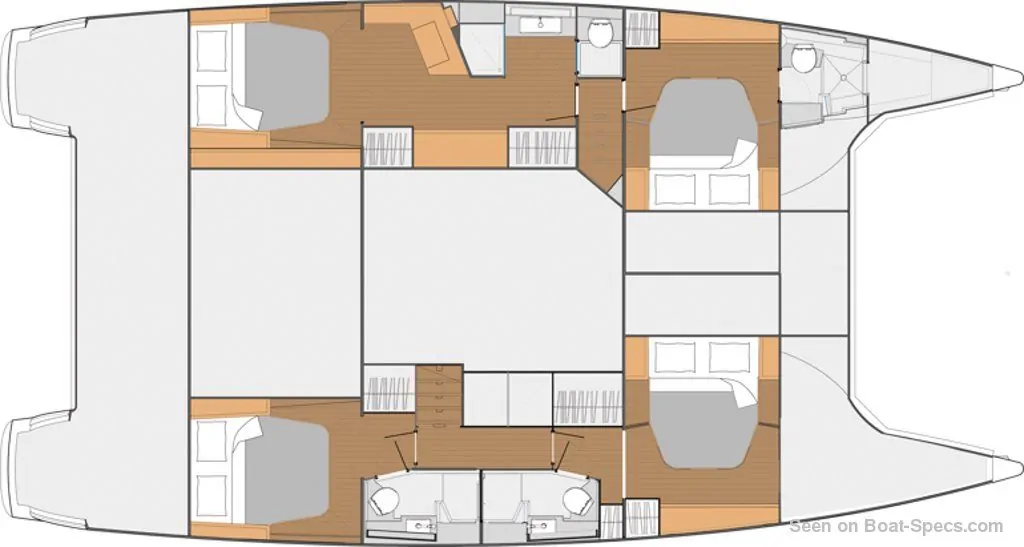

Fountaine Pajot Saba 50 layout - - 4/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

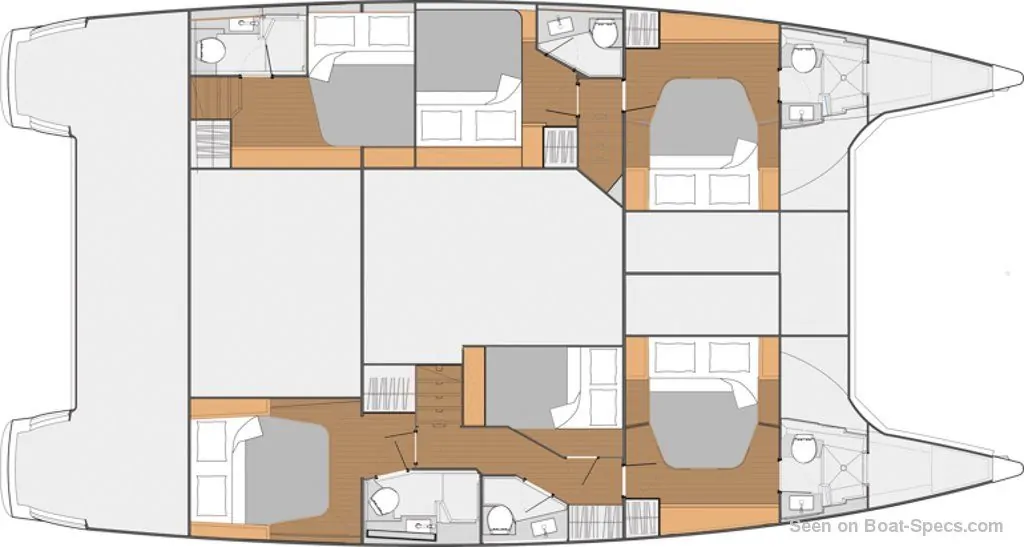

Fountaine Pajot Saba 50 layout - - 5/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 layout - - 6/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

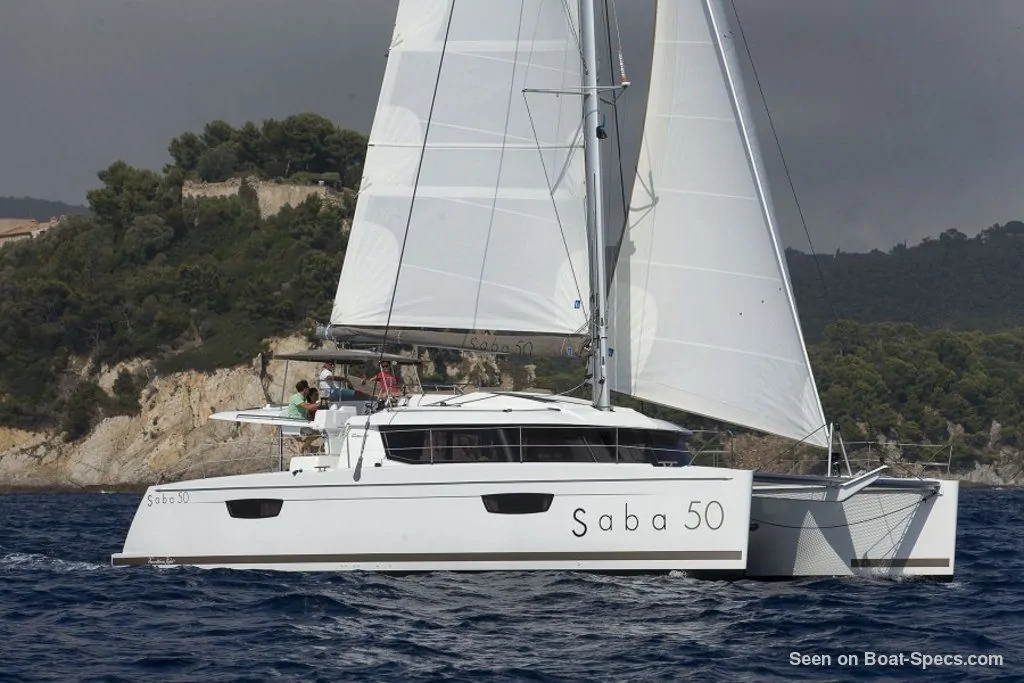

Fountaine Pajot Saba 50 sailing - - 7/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

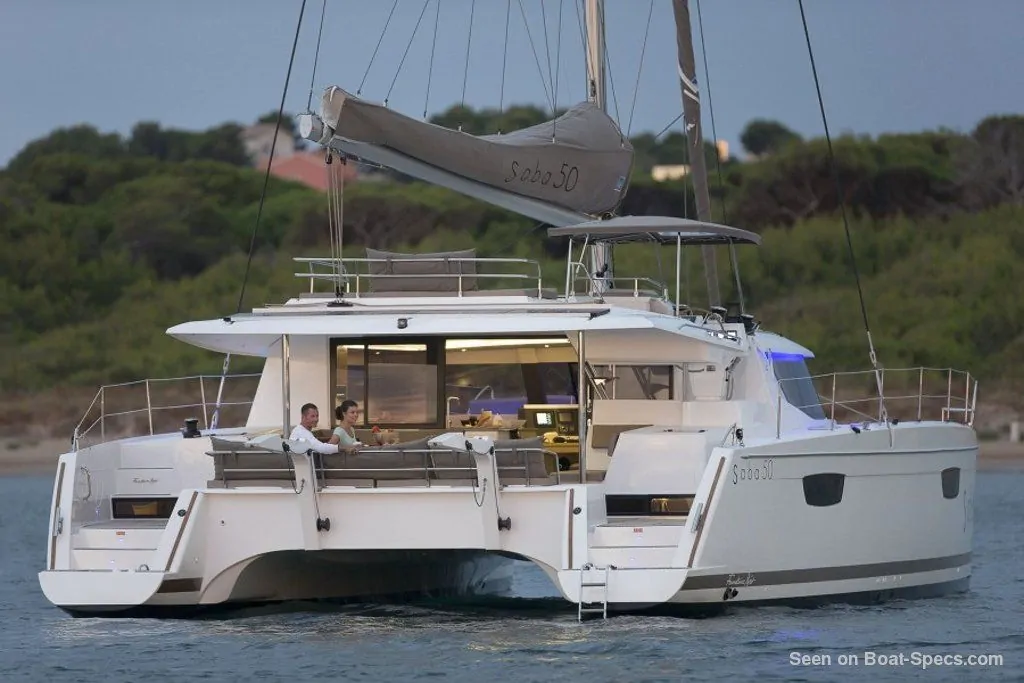

Fountaine Pajot Saba 50 sailing - - 8/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot

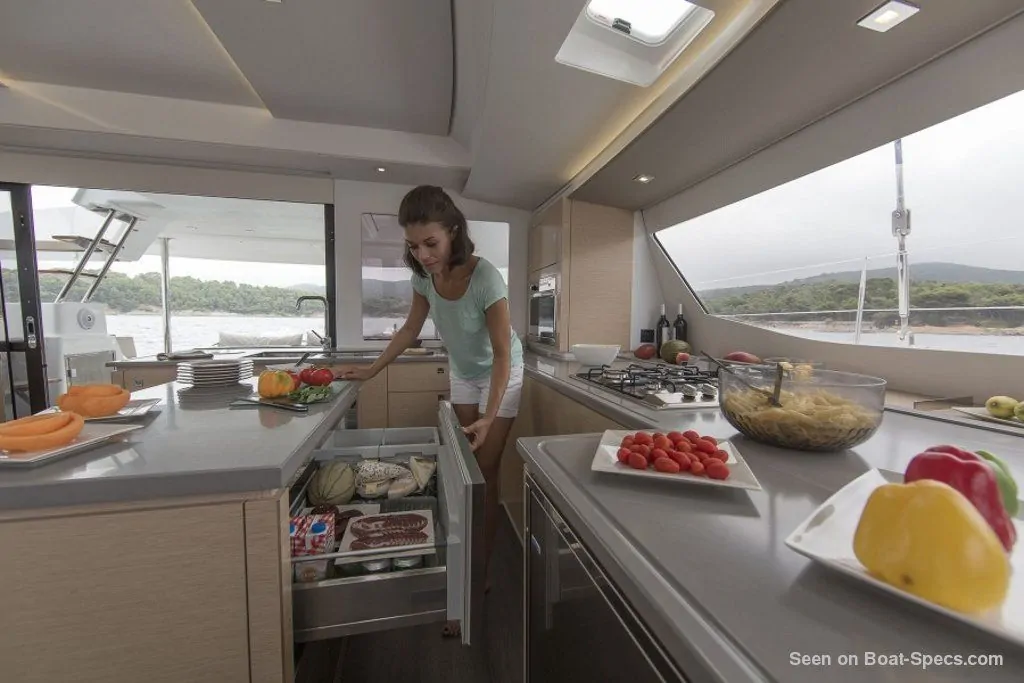

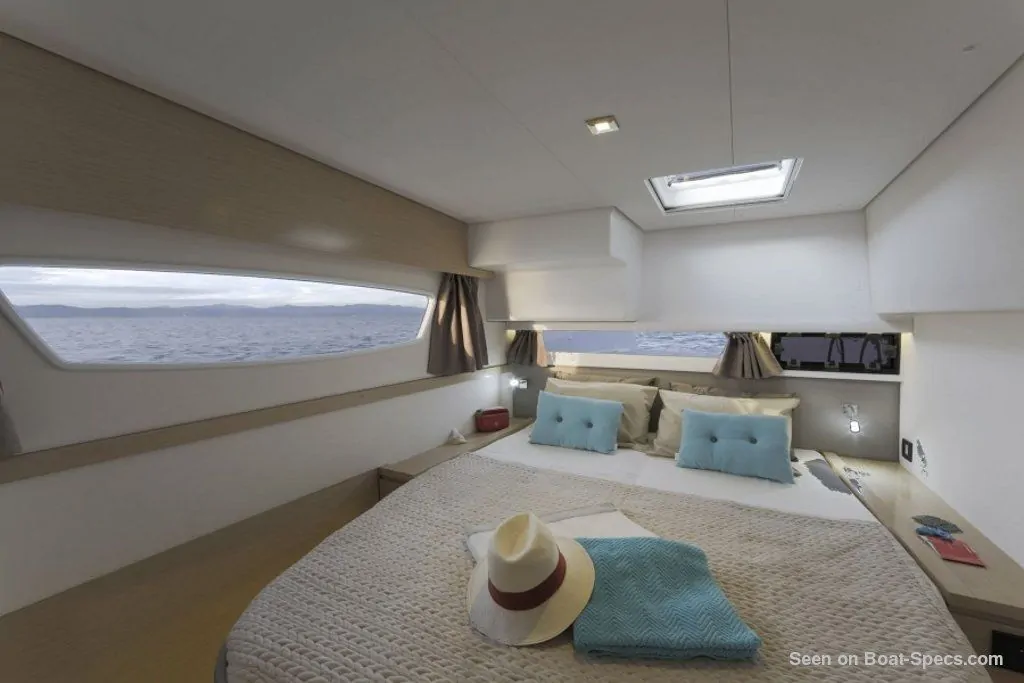

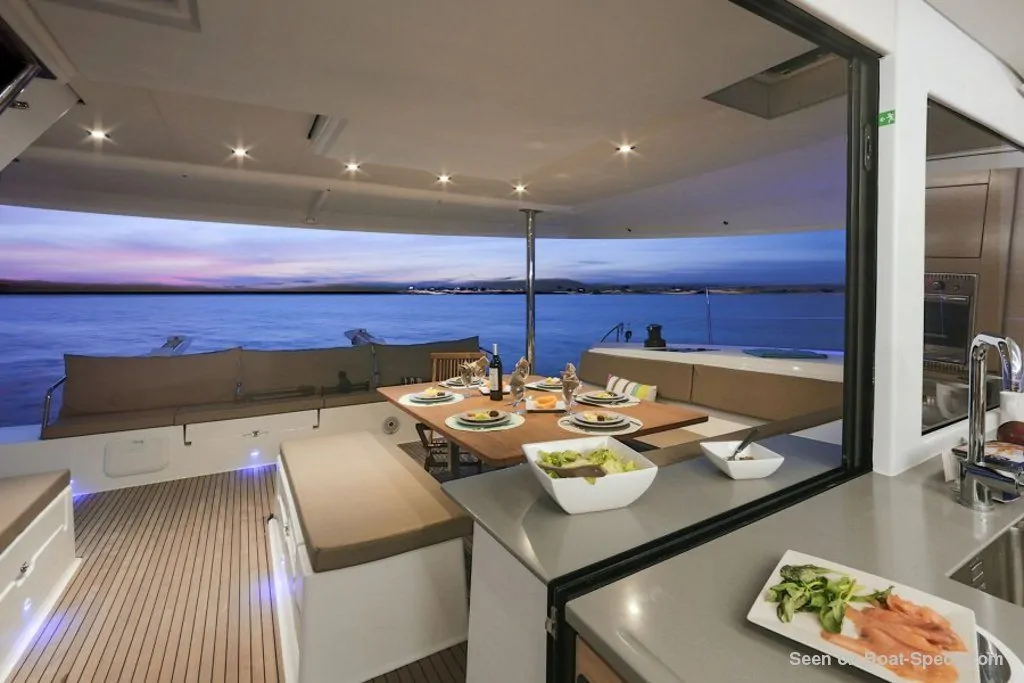

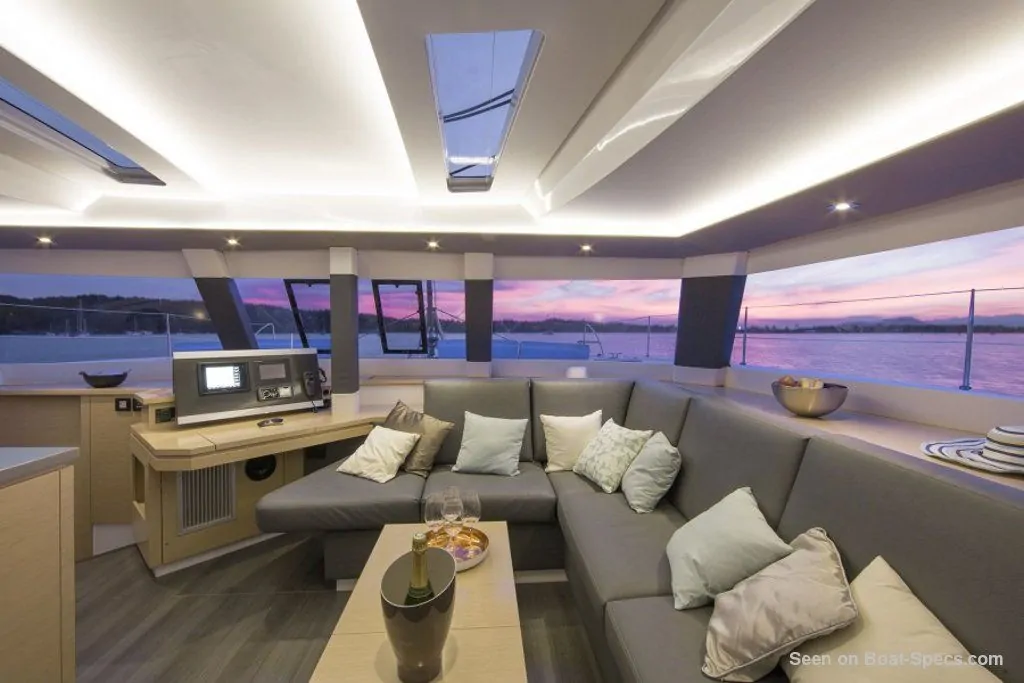

Fountaine Pajot Saba 50 interior and accommodations - - 9/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 10/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 11/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 12/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 13/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 14/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 15/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
Fountaine Pajot Saba 50 interior and accommodations - - 16/16
Picture extracted from the commercial documentation © Fountaine Pajot
Picture extracted from the commercial documentation © Fountaine Pajot
