RM 1200

Sailboat specifications

The RM 1200 is a 39’4” (11.99m) fast cruising sailboat designed by Marc Lombard Yacht Design Group (France). She was built between 2003 and 2012 by Fora Marine (France).

RM 1200's main features

Model: RM 1200
Hull type: Monohull
Category: Offshore fast cruising sailboat
Sailboat builder: Fora Marine
Sailboat designer: Marc Lombard Yacht Design Group
Sailboat range: RM
Country: France
Construction: Hull and deck: plywood with glass/epoxy stratification
First built hull: 2003
Last built hull: 2012
Appendages: Twin keel : twin asymmetric fin with bulb
Helm: Single tiller
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

RM 1200's main dimensions

Hull length: 39’ 4”11.99 m
Waterline length: 37’11.28 m
Beam (width): 13’ 10”4.22 m
Waterline beam (width): 10’ 10”3.3 m
Draft: 5’ 11”1.8 m
Light displacement (M_LC): 14991 lb6800 kg
Maximum displacement (M_LDC): 18298 lb8300 kg
Ballast weight: 5952 lb2700 kg
Ballast type: Cast iron

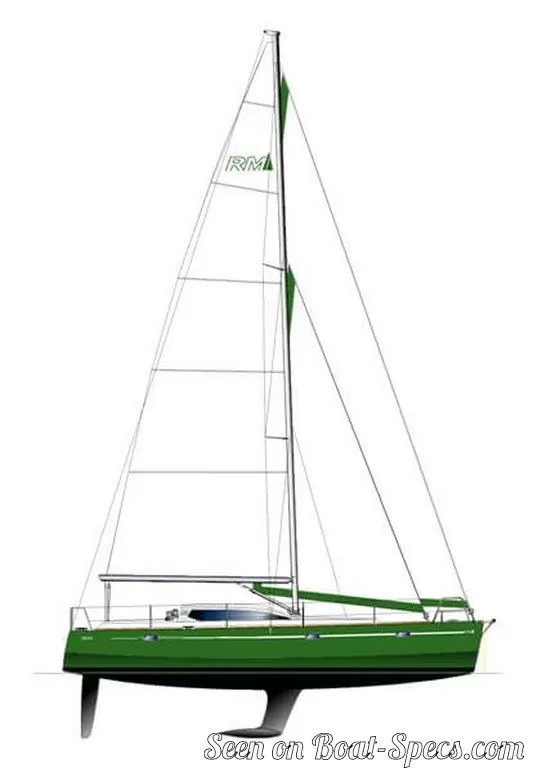

RM 1200's rig and sails

Upwind sail area: 996 ft²92.5 m²
Downwind sail area: 1631 ft²151.5 m²
Mainsail area: 501 ft²46.5 m²
Genoa area: 495 ft²46 m²
Jib area: 258 ft²24 m²
Symmetric spinnaker area: 1130 ft²105 m²
I iFore triangle height (from mast foot to fore stay top attachment): 51’ 10”15.8 m
J iFore triangle base (from mast foot to bottom of forestay): 16’ 7”5.05 m
P iMainsail hoist measurement (from tack to head): 49’ 6”15.1 m
E iMainsail foot measurement (from tack to clew): 17’ 4”5.26 m
Rigging type: Cutter Marconi fractional
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire discontinuous

RM 1200's performances

HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 28.5
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 277 ft²/T25.77 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 454 ft²/T42.21 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 134
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 40 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.15 knots
