RM 1180 Swing keel
Sailboat specifications
The RM 1180 is a 38’8” (11.8m) fast cruising sailboat designed by Marc Lombard Yacht Design Group (France). She is built since 2019 by Fora Marine (France) and RM yachts (France). The Swing keel version adopts an appendage configuration without compromise between draft and performance. The only drawbacks are the space taken inside and the price of the system...
The RM 1180 is as well listed, on Boat-Specs.com, in Twin keel and Fin keel version (see all the versions compared).
Find out more about the RM 1180 on Boat-Spec's blog: European Yacht of the Year 2020 nominated sailboats.
The RM 1180 is as well listed, on Boat-Specs.com, in Twin keel and Fin keel version (see all the versions compared).
Find out more about the RM 1180 on Boat-Spec's blog: European Yacht of the Year 2020 nominated sailboats.
RM 1180's main features
- Model
- RM 1180
- Version
- Swing keel
- Hull type
- Monohull
- Category
- Offshore fast cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- France
- Construction
- Plywood with glass/epoxy stratification:
- Hull: Bottom: plywood epoxy, sides: sandwich foam fiberglass epoxy
- Deck: Sandwich foam fiberglass polyester - First built hull
- 2019
- Last built hull
- Still in production
- Appendages
- Lifting keel : swing keel
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About220 000 €(2020)
RM 1180's main dimensions
- Overall length
- 42’ 10”13.05 m
- Hull length
- 38’ 8”11.8 m
- Beam (width)
- 14’ 4”4.37 m
- Draft
- 10’ 6”3.2 m
- Draft when appendages up
- 4’ 4”1.3 m
- Mast height from DWL
- 62’ 8”19.1 m
- Light displacement (MLC)
- 16976 lb7700 kg
- Ballast weight
- 4354 lb1975 kg
RM 1180's rig and sails
- Upwind sail area
- 990 ft²92 m²
- Downwind sail area
- 2120 ft²197 m²
- Mainsail area
- 506 ft²47 m²
- Genoa area
- 484 ft²45 m²
- Staysail area
- 269 ft²25 m²
- Asymmetric spinnaker area
- 1615 ft²150 m²
- Rigging type
- Sloop Marconi 19/20
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
- Standing rigging
- Single-strand (ROD) discontinuous
RM 1180's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 271 ft²/T25.14 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 580 ft²/T53.84 m²/T
RM 1180's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 50 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 27.7 gal105 liters
RM 1180's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s)
- 3
- Berth(s) (min./max.)
- 6 / 8
- Head(s)
- 1
- Freshwater tank capacity
- 79.3 gal300 liters
- Holding tank capacity
- 14.5 gal55 liters

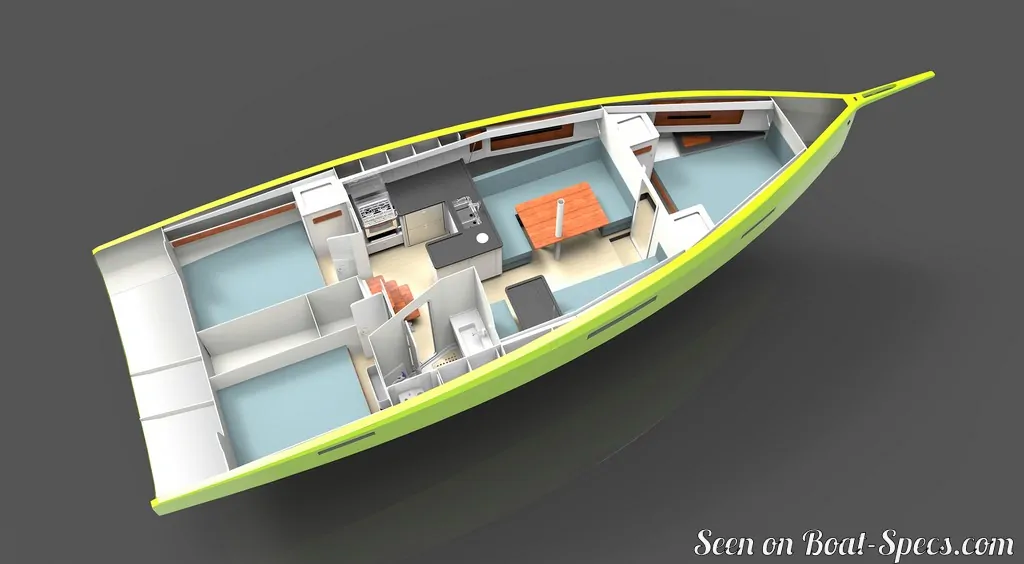

Fora Marine RM 1180 layout - - 2/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 layout - - 3/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine

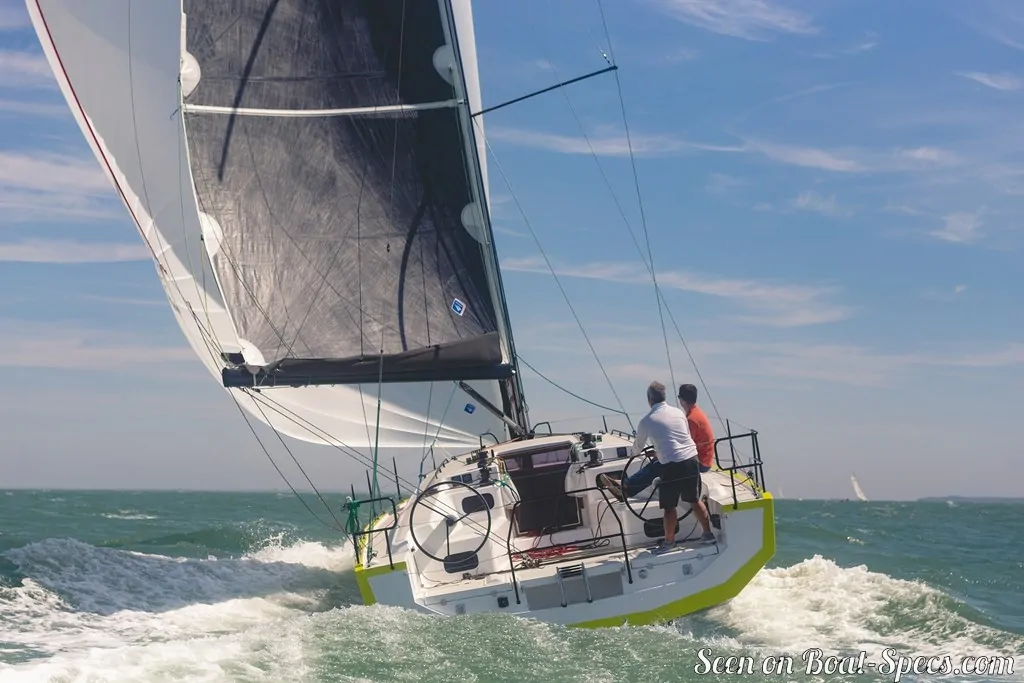

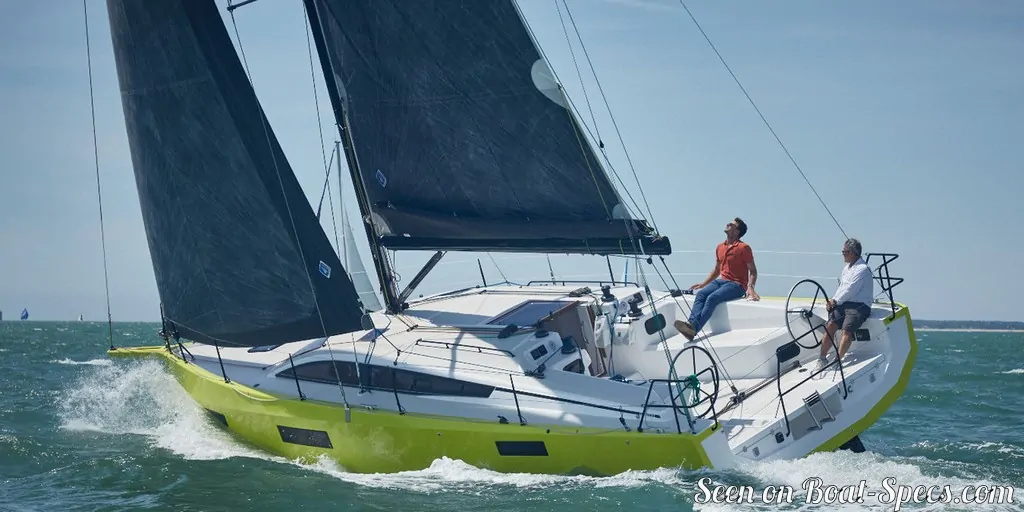

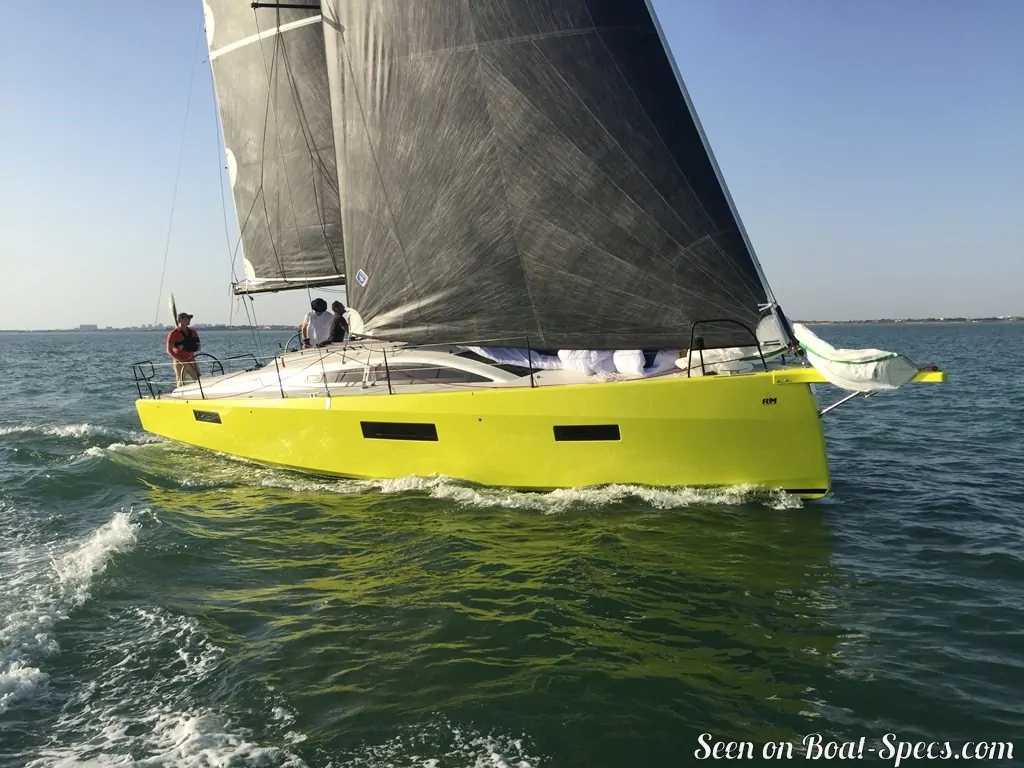

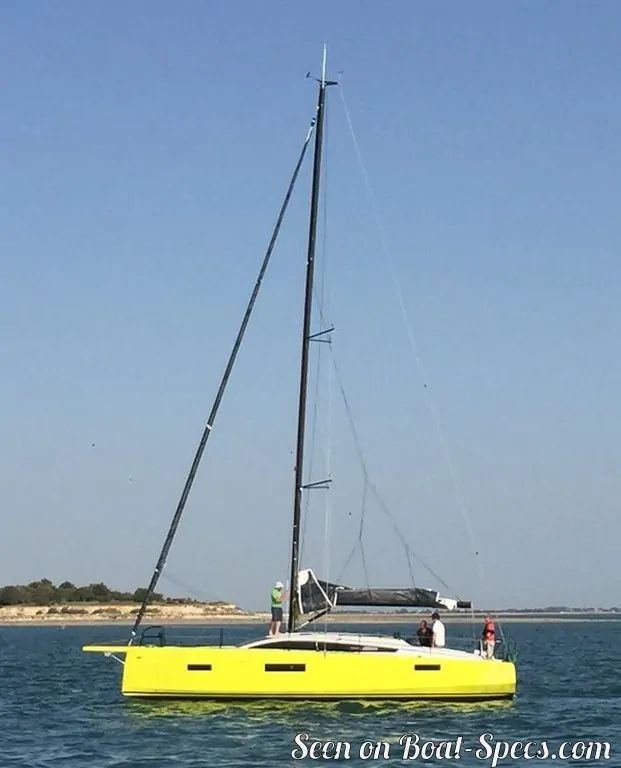

Fora Marine RM 1180 sailing - - 4/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 sailing - - 5/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 sailing - - 6/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 sailing - - 7/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine

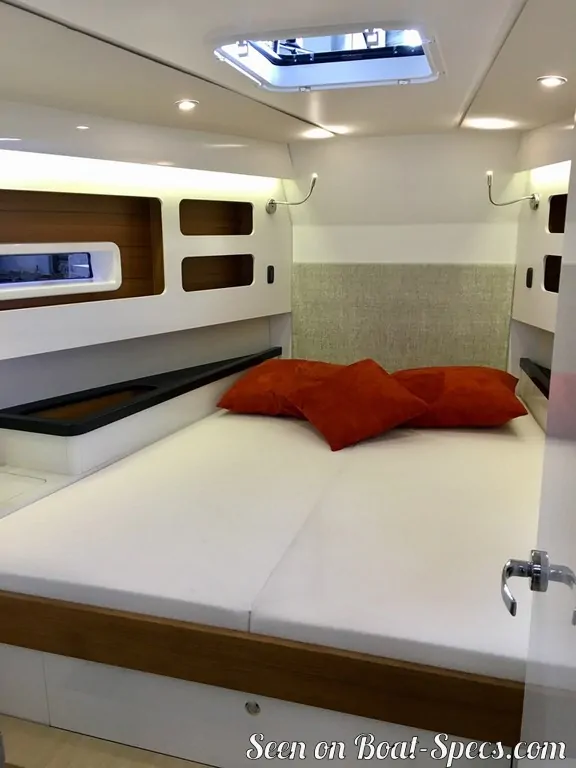

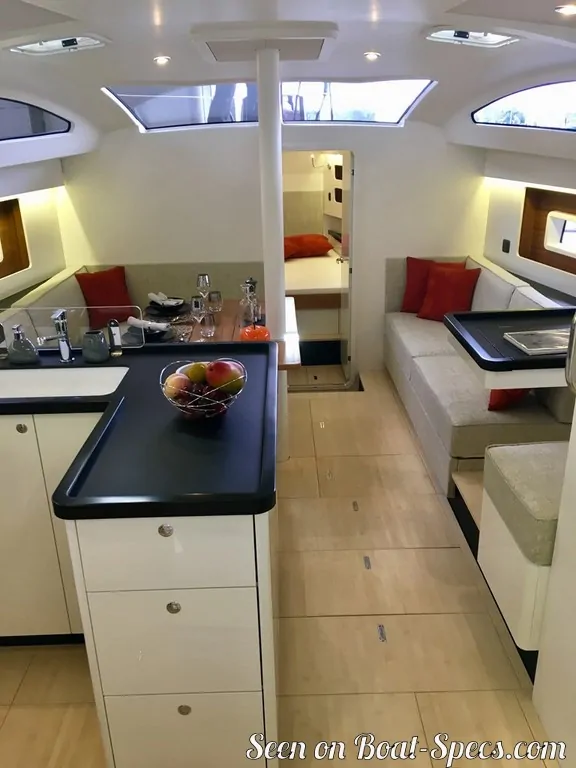

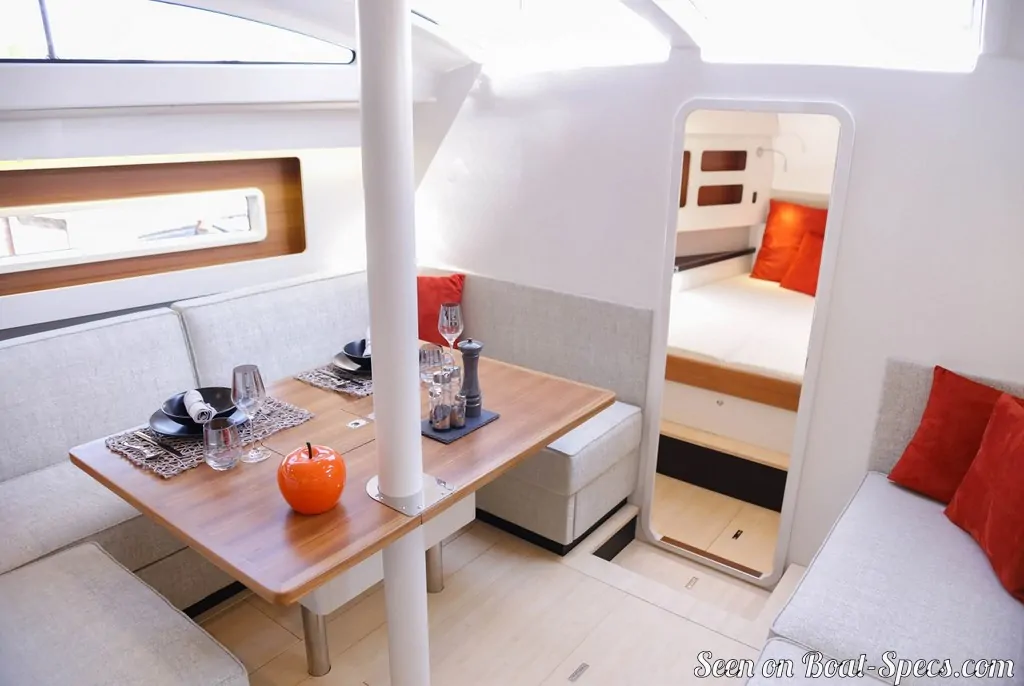

Fora Marine RM 1180 interior and accommodations - - 8/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 interior and accommodations - - 9/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
Fora Marine RM 1180 interior and accommodations - - 10/10
Picture extracted from the commercial documentation © Fora Marine
Picture extracted from the commercial documentation © Fora Marine
