Eagle Class 53
Sailboat specifications
The Eagle Class 53 is a 54’1” (16.5m) fast cruising catamaran designed by Fast Forward Composites design team (United States). She is built since 2019 by Fast Forward Composites (United States). She has been awarded "2020 - Cruising World - Boat of the Year: Most Innovative", "2020 - SAIL magazine - Best Large Multihull 51ft and Above", "2020 - Multihull of the Year: Over 50 feet" and "2020 - Sailing World - Boat of the Year: Best Multihull".
Eagle Class 53's main features
- Model
- Eagle Class 53
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- United States
- Construction
- Carbon fiber reinforced epoxy:
Sandwich honeycomb carbon fiber epoxy vacuum bagged - First built hull
- 2019
- Last built hull
- Still in production
- Award(s)
- 2020: Cruising World - Boat of the Year: Most Innovative
- 2020: SAIL magazine - Best Large Multihull 51ft and Above
- 2020: Multihull of the Year: Over 50 feet
- 2020: Sailing World - Boat of the Year: Best Multihull
- Appendages
- Foils : twin C foils
- Helm
- Twin helm wheels
- Rudder
- Twin rudders with T-foils
- Unsinkable
- No
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Eagle Class 53's main dimensions
- Hull length
- 54’ 1”16.5 m
- Waterline length
- 52’ 10”16.08 m
- Beam (width)
- 26’ 5”8.05 m
- Draft
- 10’3.05 m
- Draft when appendages up
- 1’ 5”0.42 m
- Mast height from DWL
- 88’ 4”26.9 m
- Light displacement (MLC)
- 13228 lb6000 kg
- Maximum displacement (MLDC)
- 16623 lb7540 kg
Eagle Class 53's rig and sails
- Upwind sail area
- 1873 ft²174 m²
- Rigging type
- Sloop Hybrid wing masthead
- Mast configuration
- Fore beam stepped mast
- Rotating spars
- Yes
- Spreaders angle
- No spreader
- Spars construction
- Carbon fiber spars
Eagle Class 53's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 567 ft²/T52.7 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 41
Eagle Class 53's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 29 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 79.3 gal300 liters
Eagle Class 53's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s)
- 2
- Berth(s)
- 4
- Head(s)
- 2
- Freshwater tank capacity
- 66 gal250 liters
Eagle Class 53's aft cabin
- Maximum headroom
- 6’ 5”1.96 m
- Berth length
- 6’ 8”2.03 m

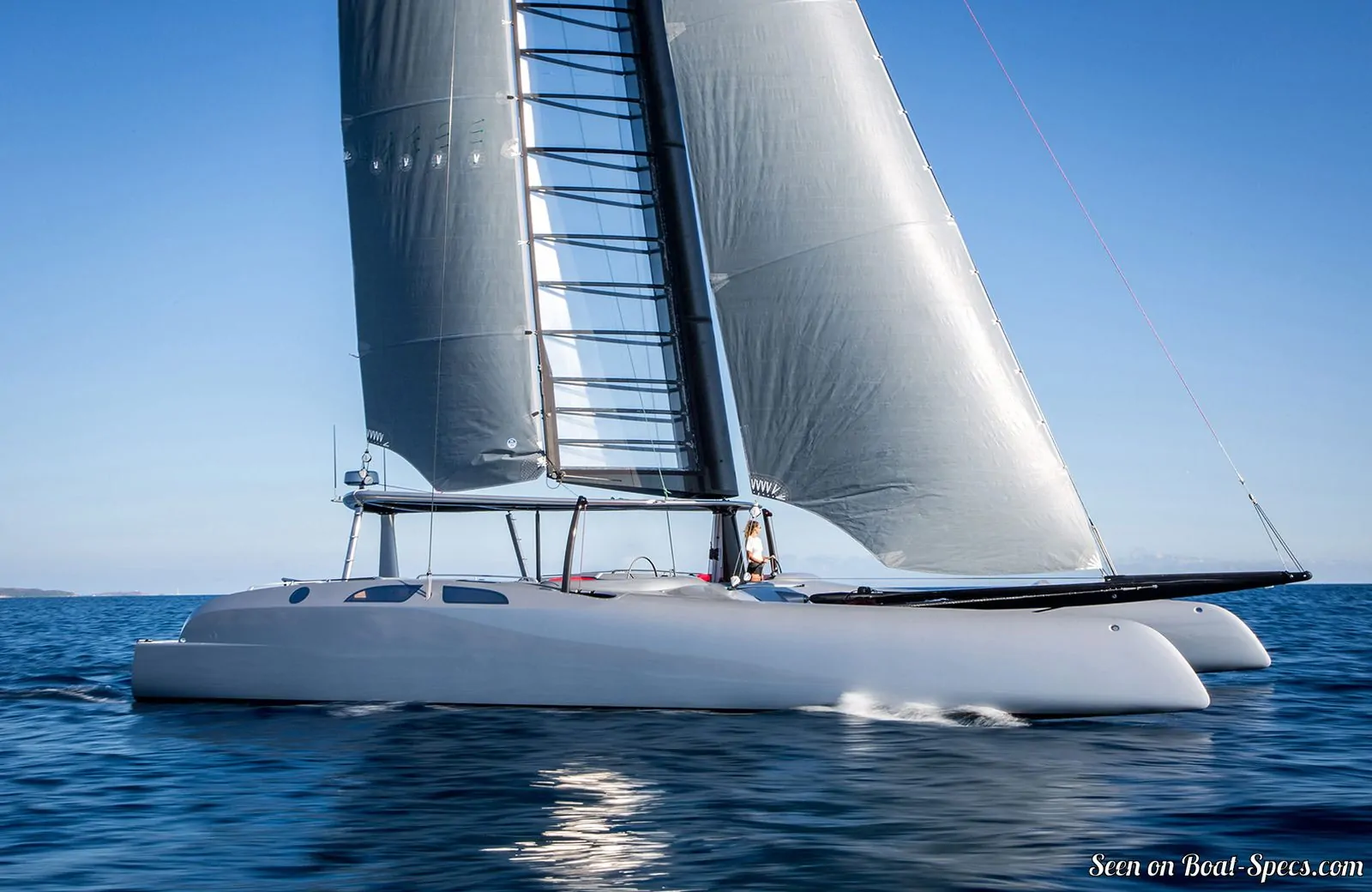

Fast Forward Composites Eagle Class 53 - - 1/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

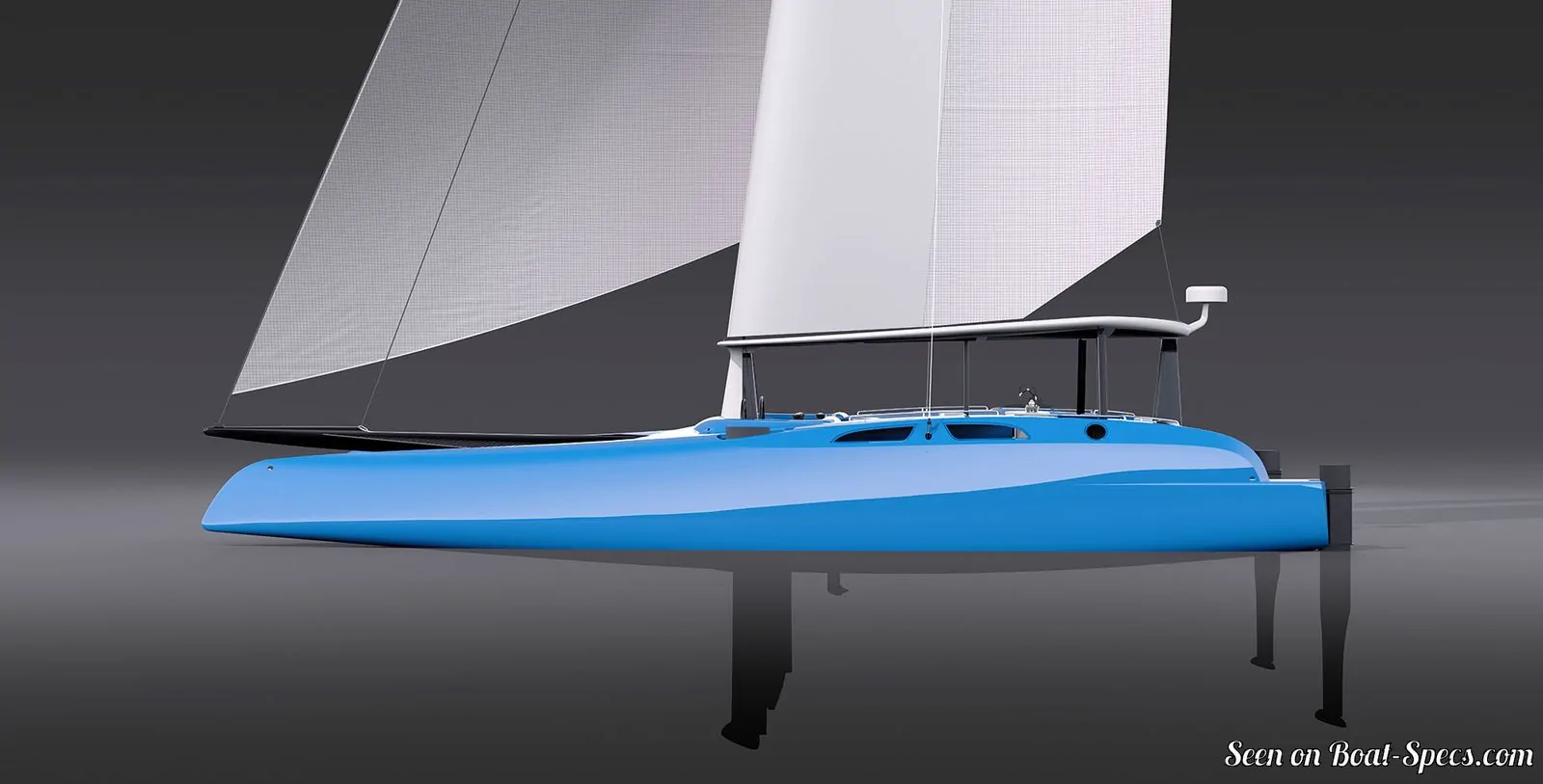

Fast Forward Composites Eagle Class 53 layout - - 2/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

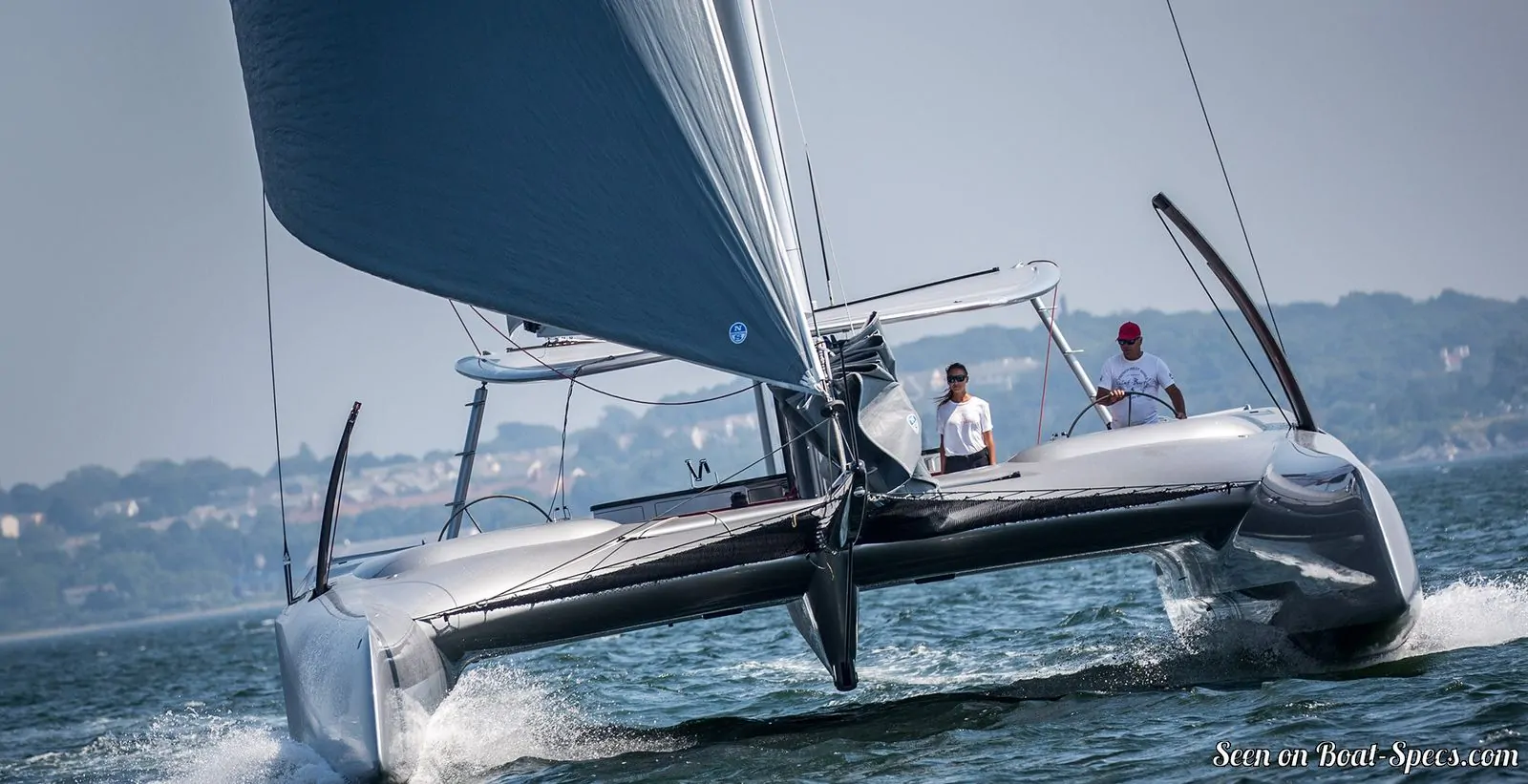

Fast Forward Composites Eagle Class 53 sailing - - 3/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

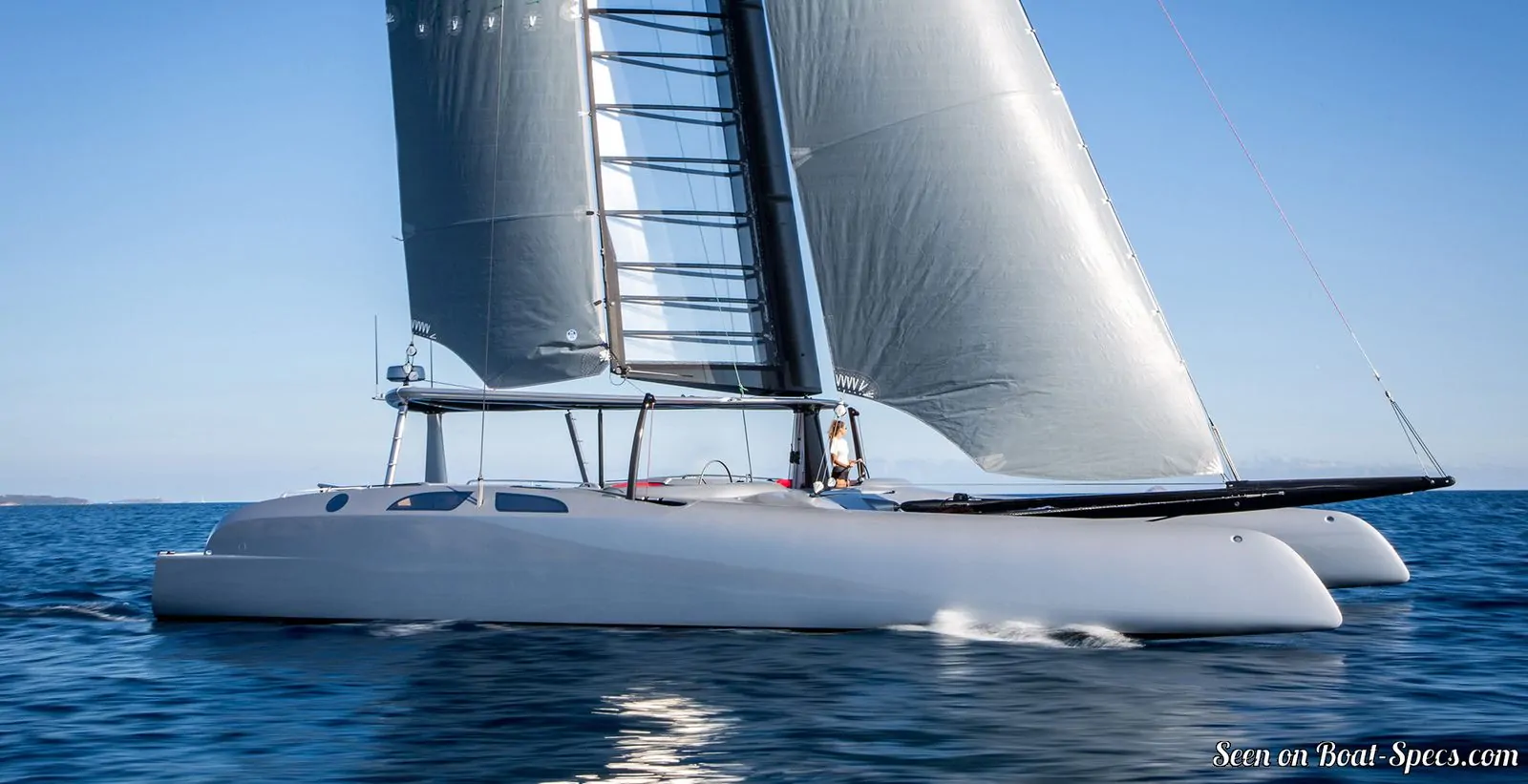

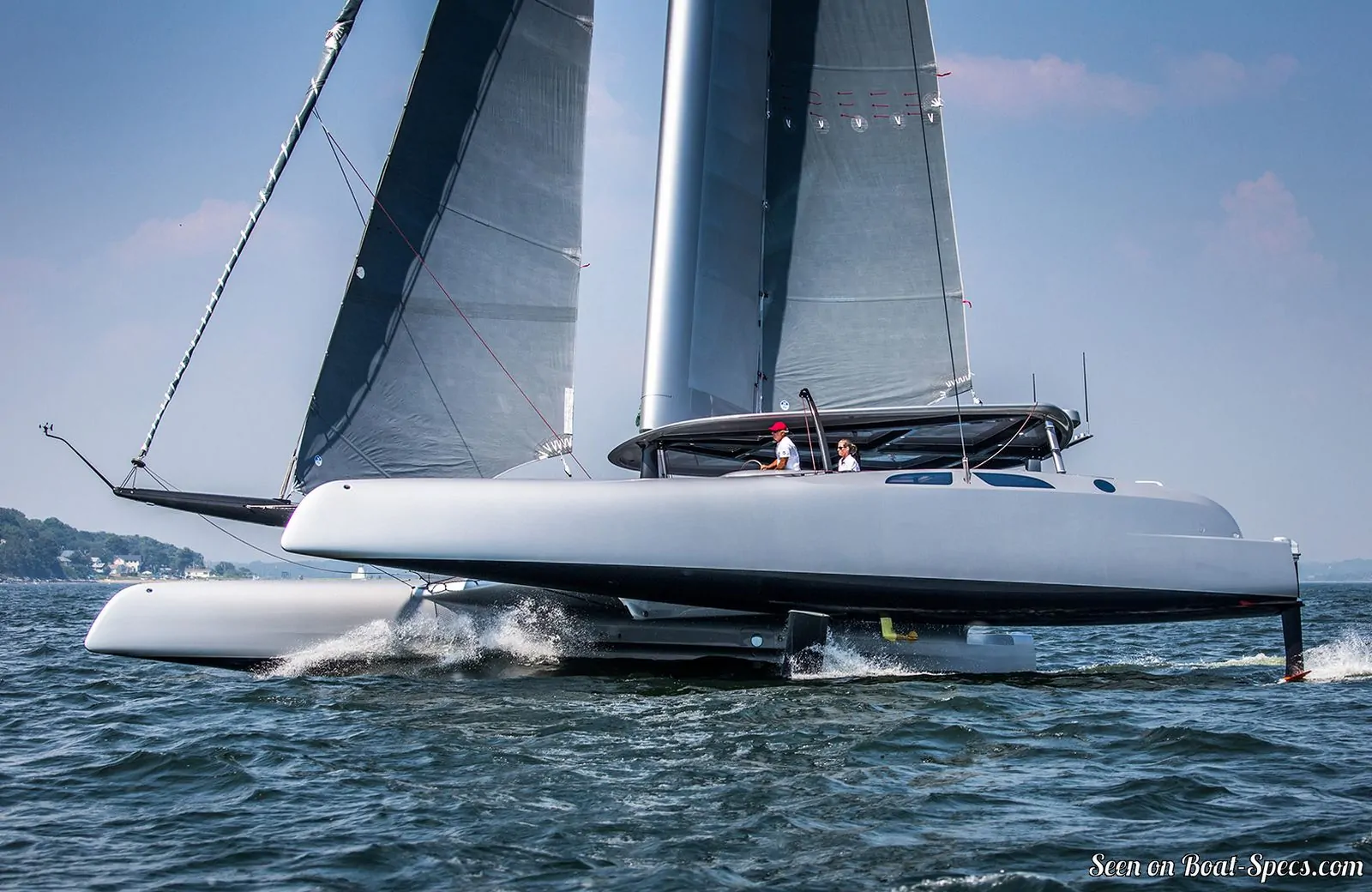

Fast Forward Composites Eagle Class 53 sailing - - 4/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

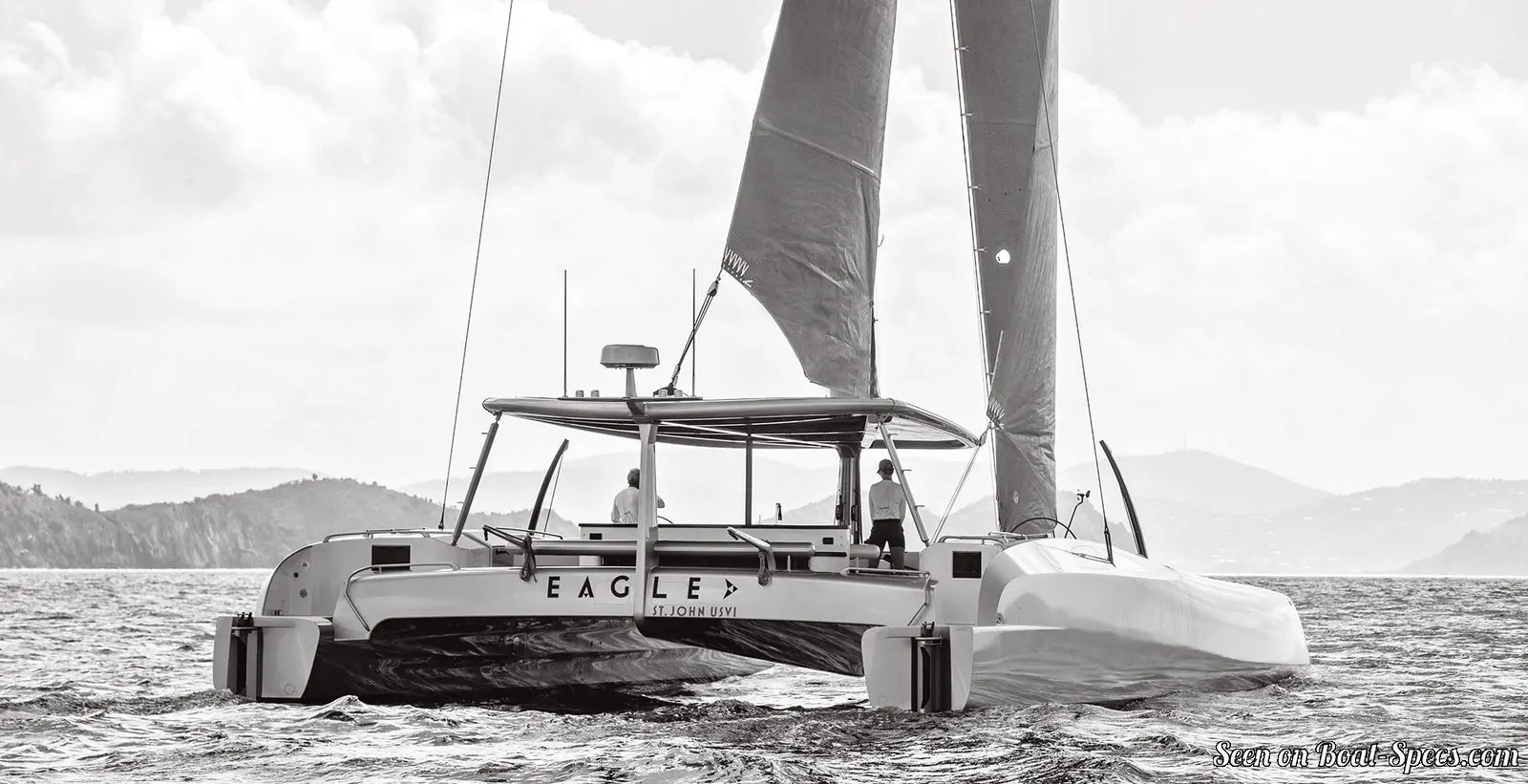

Fast Forward Composites Eagle Class 53 sailing - - 5/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

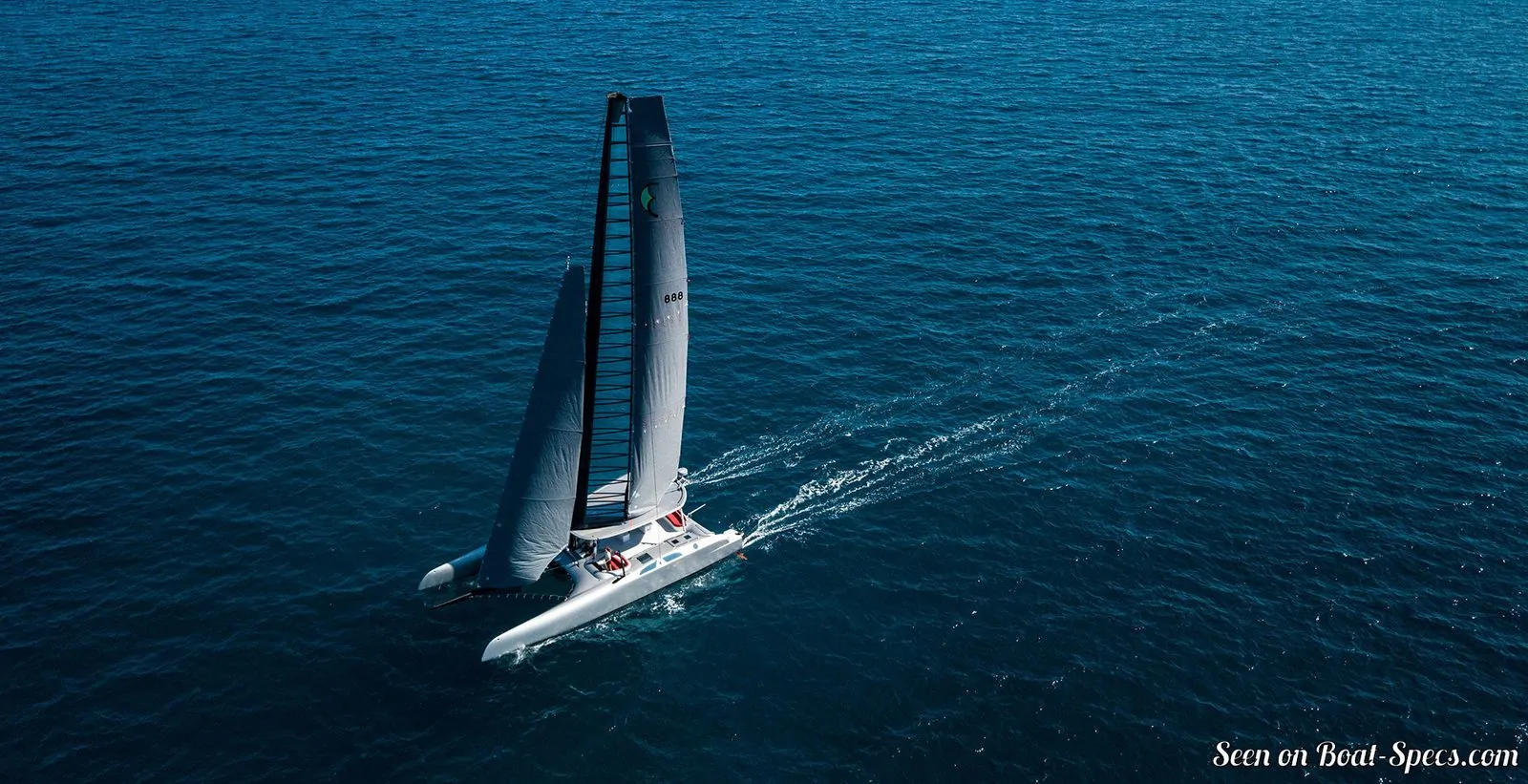

Fast Forward Composites Eagle Class 53 sailing - - 6/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites
Fast Forward Composites Eagle Class 53 sailing - - 7/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites
Fast Forward Composites Eagle Class 53 sailing - - 8/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

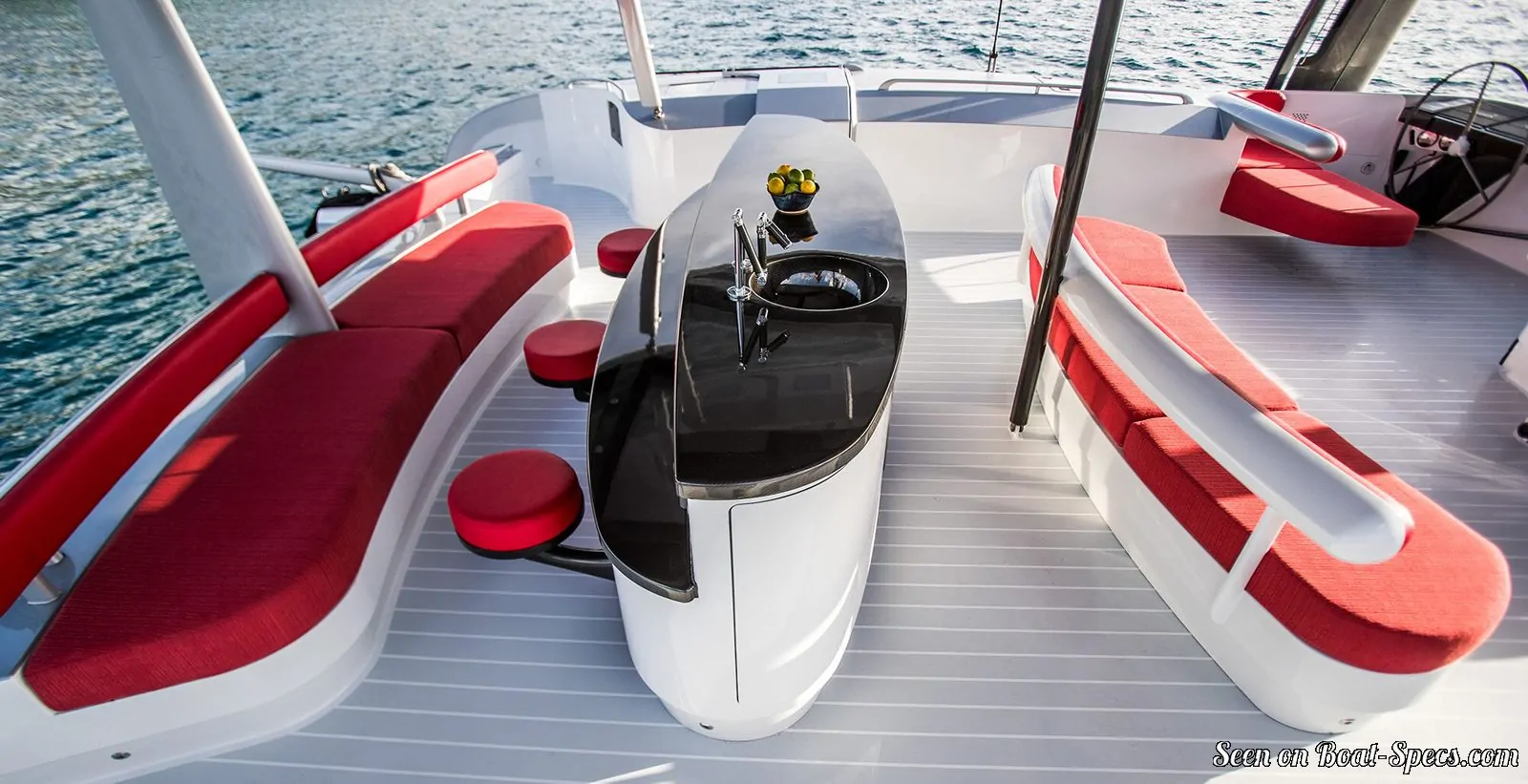

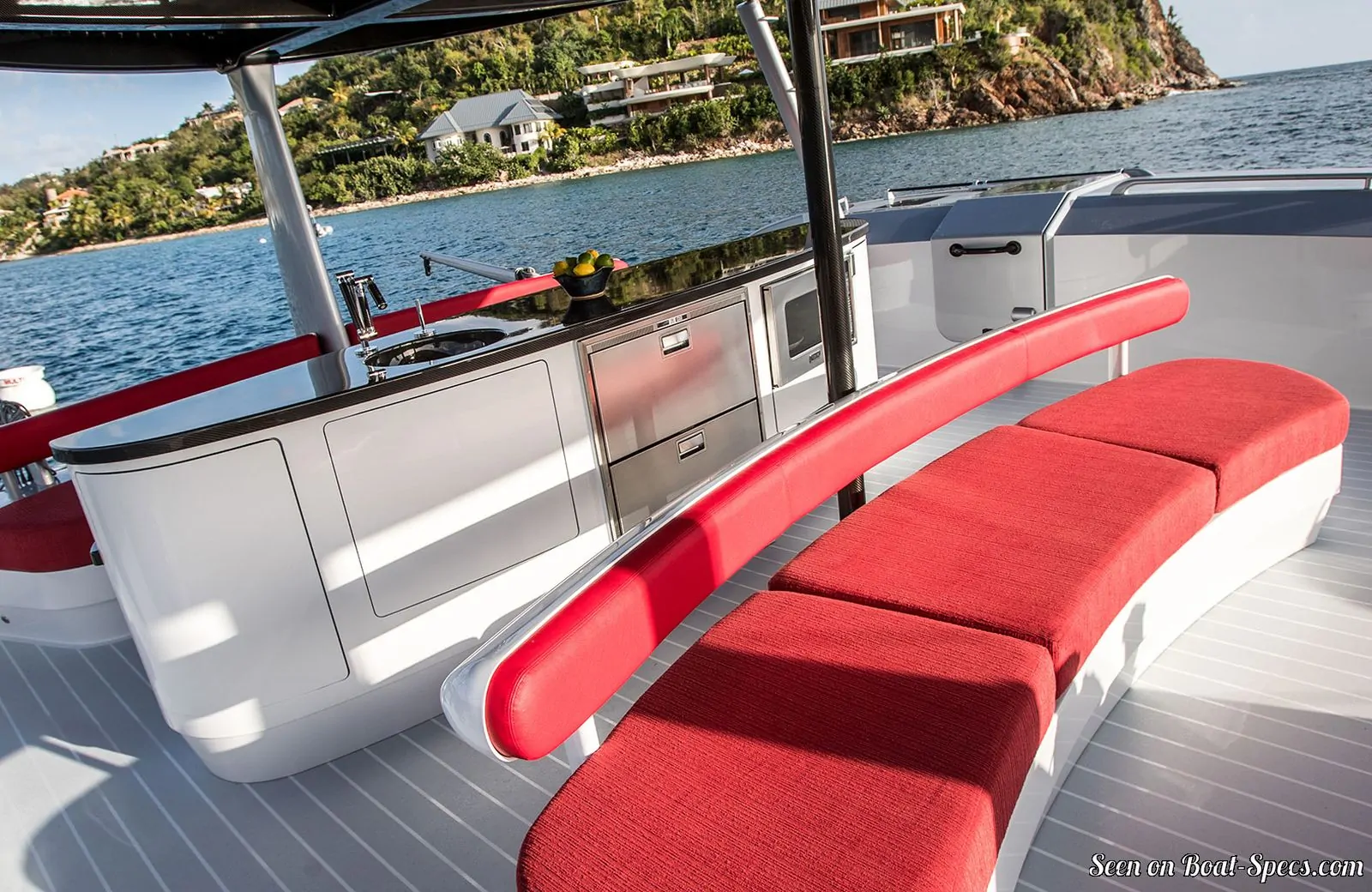

Fast Forward Composites Eagle Class 53 cockpit - - 9/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites
Fast Forward Composites Eagle Class 53 cockpit - - 10/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

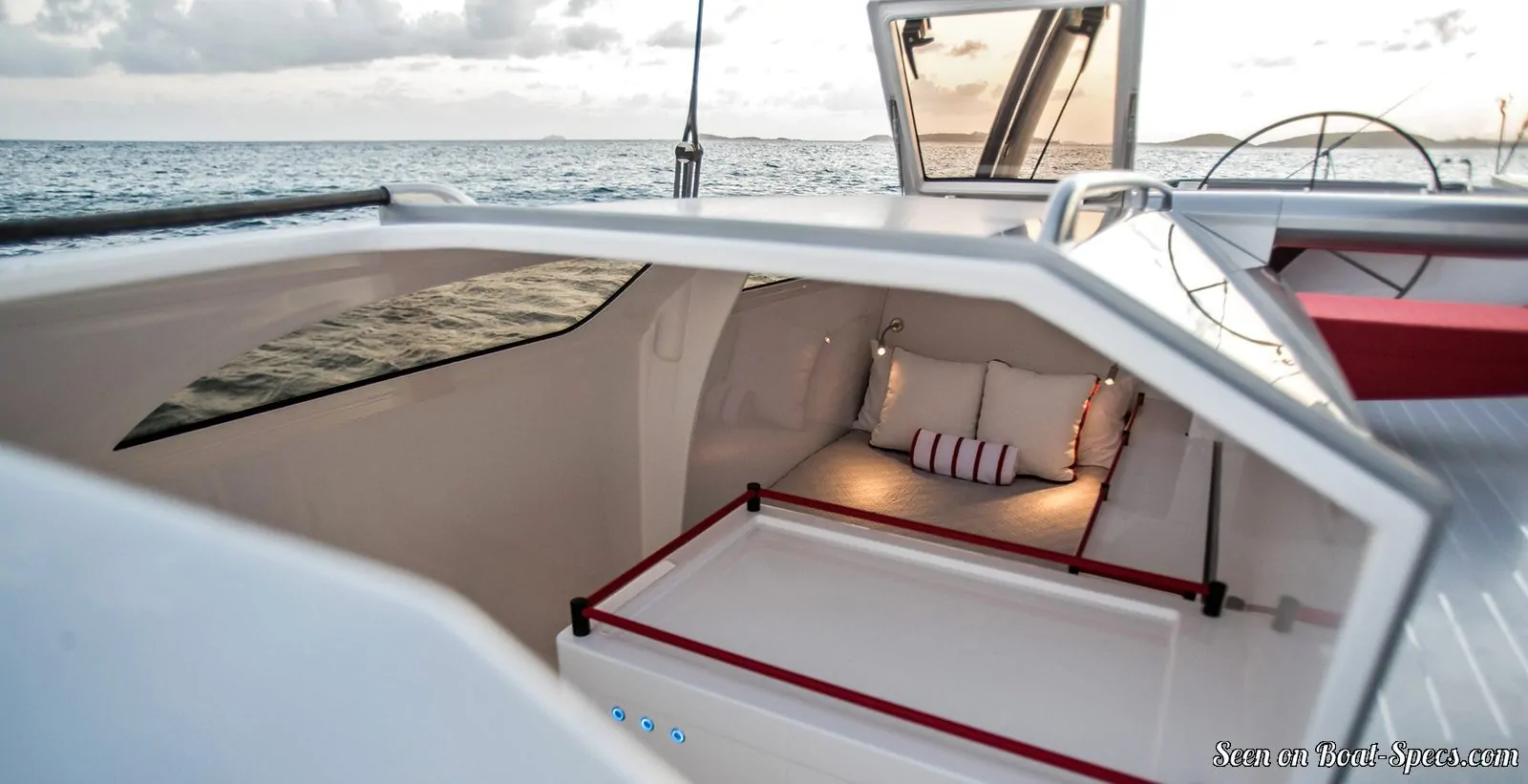

Fast Forward Composites Eagle Class 53 interior and accommodations - - 11/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

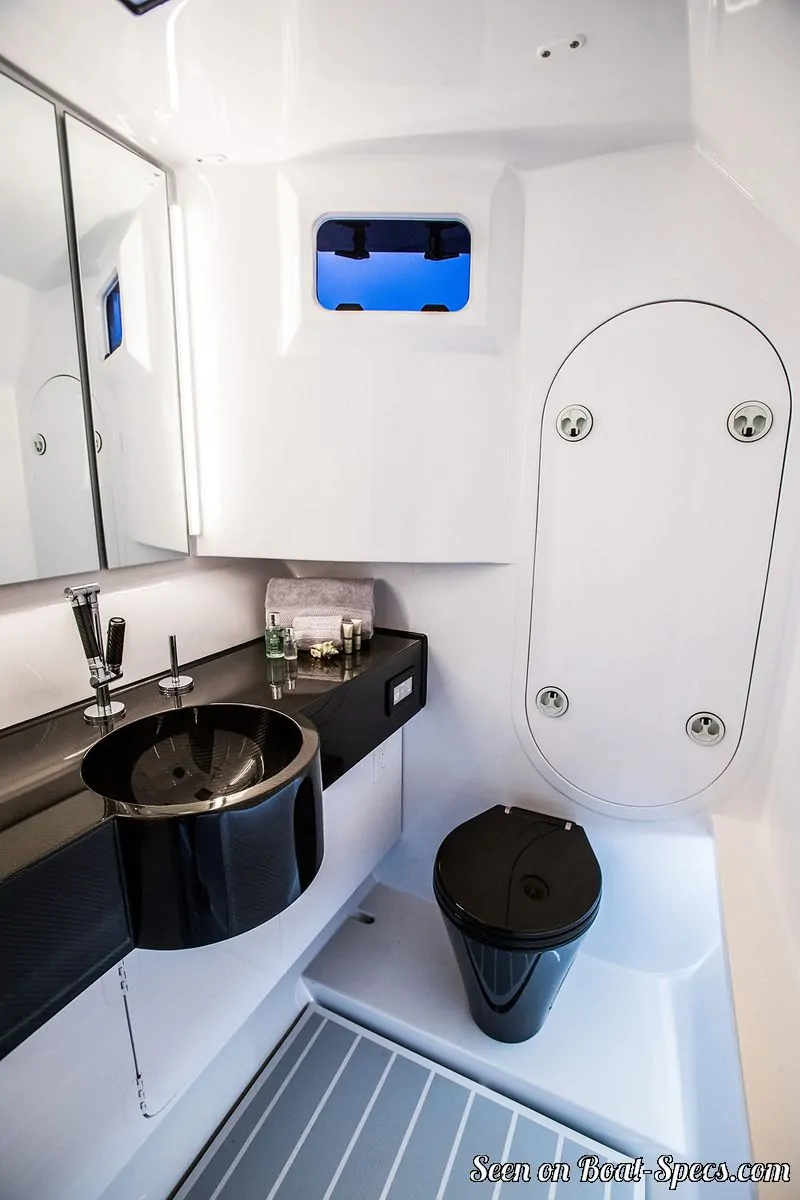

Fast Forward Composites Eagle Class 53 interior and accommodations - - 12/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites

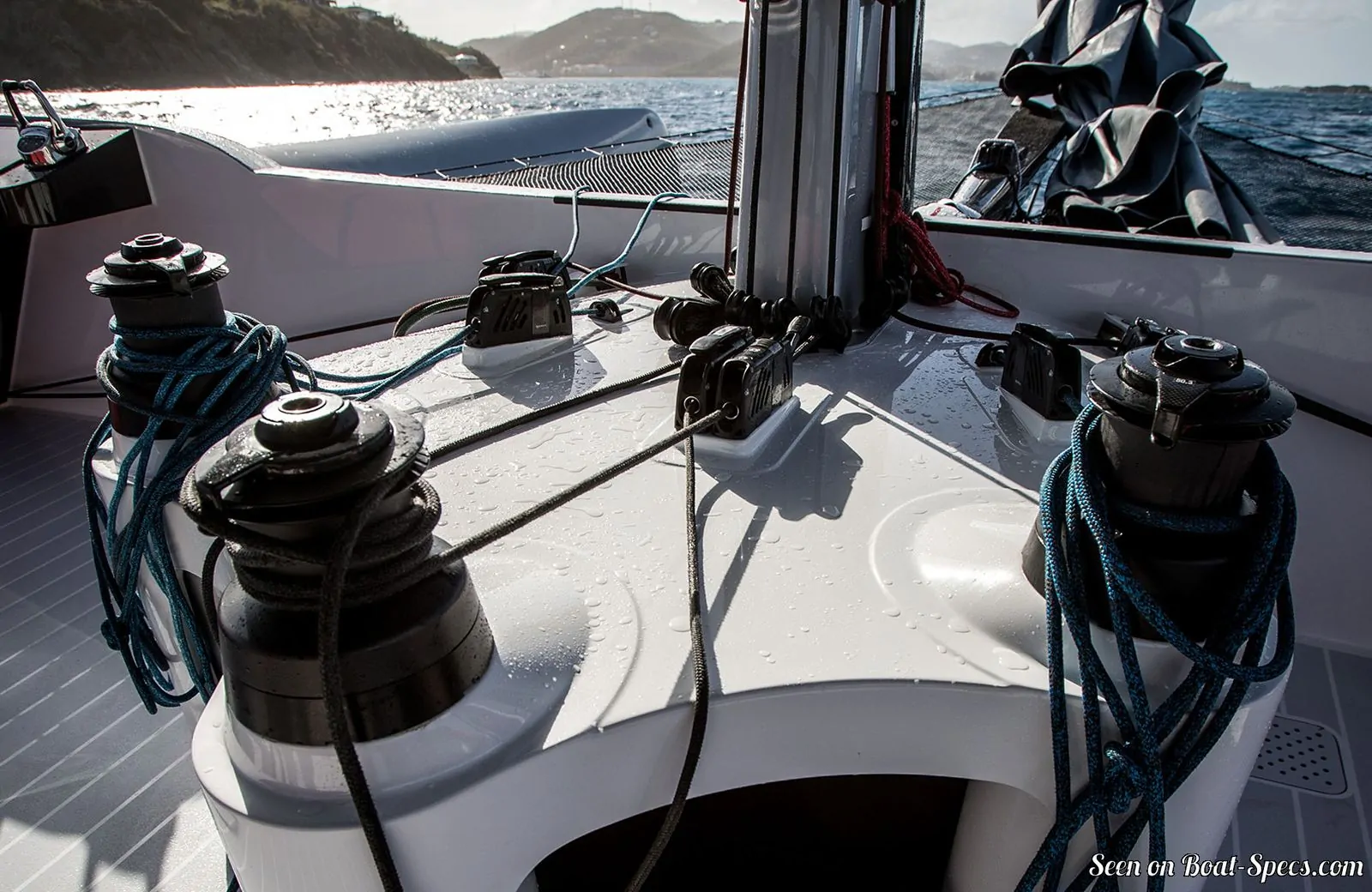

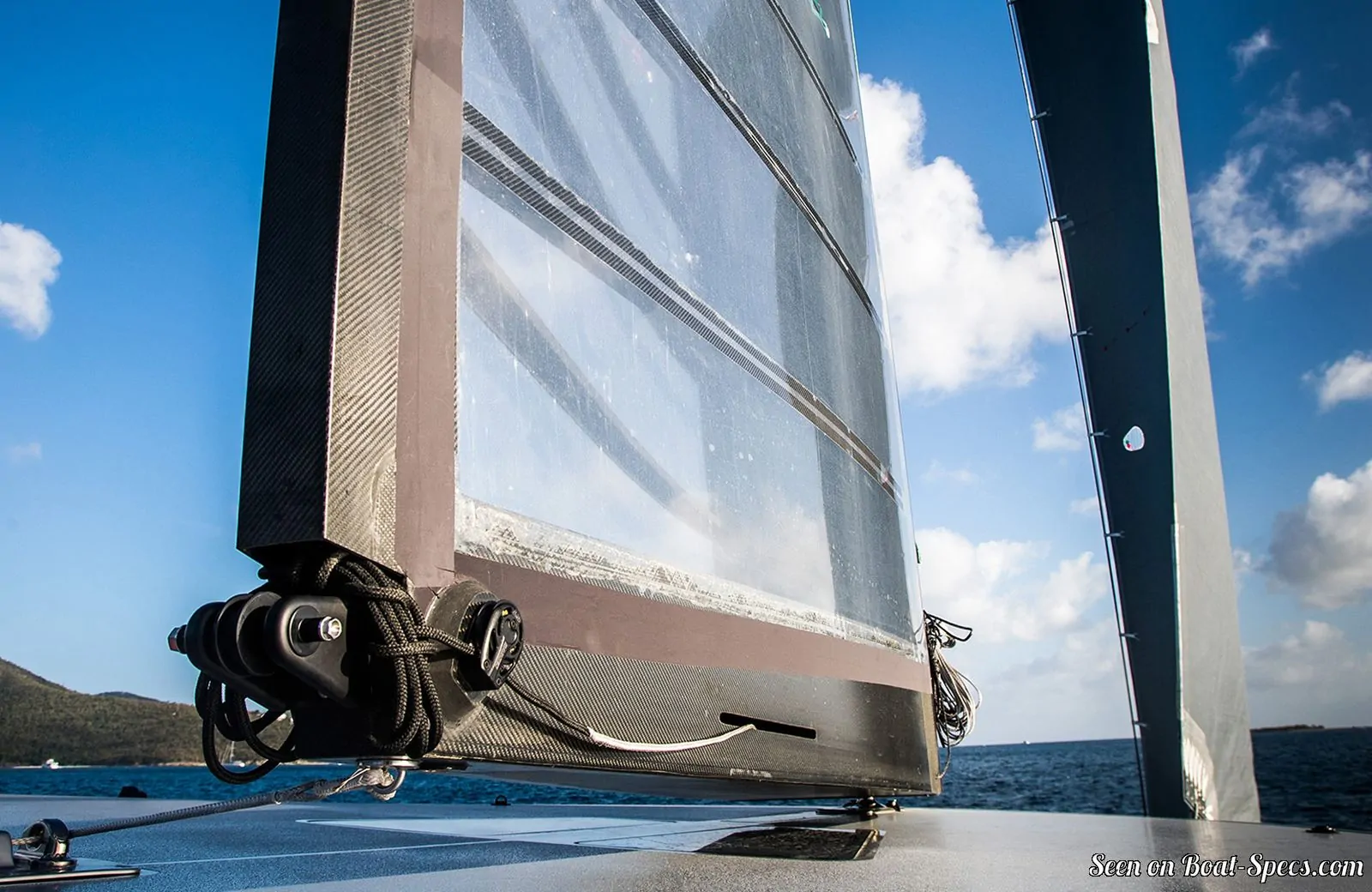

Fast Forward Composites Eagle Class 53 detail - - 13/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites
Fast Forward Composites Eagle Class 53 detail - - 14/14
Picture extracted from the commercial documentation © Fast Forward Composites
Picture extracted from the commercial documentation © Fast Forward Composites
