Impression 45 Deep draft
Sailboat specifications
The Impression 45 is a 42’8” (13m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She was built between 2015 and 2018 by Elan Yachts (Slovenia). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.
The Impression 45 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Impression 45 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Impression 45's main features
- Model
- Impression 45
- Version
- Deep draft
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Slovenia
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich fiberglass polyester (vacuum infusion)
- Deck: Sandwich fiberglass polyester (vacuum infusion) - First built hull
- 2015
- Last built hull
- 2018
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About200 000 €(2017)
Impression 45's main dimensions
- Overall length
- 45’ 5”13.85 m
- Hull length
- 42’ 8”13 m
- Waterline length
- 37’ 6”11.44 m
- Beam (width)
- 13’ 8”4.18 m
- Draft
- 6’ 2”1.9 m
- Mast height from DWL
- 64’19.5 m
- Light displacement (MLC)
- 22972 lb10420 kg
- Ballast weight
- 7297 lb3310 kg
Impression 45's rig and sails
- Upwind sail area
- 1068 ft²99.26 m²
- Downwind sail area
- 1962 ft²182.24 m²
- Mainsail area
- 504 ft²46.79 m²
- Genoa area
- 565 ft²52.47 m²
- Gennaker area
- 1458 ft²135.45 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 52’ 2”15.9 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 15’ 8”4.78 m
- PiMainsail hoist measurement (from tack to head)
- 48’ 7”14.8 m
- EiMainsail foot measurement (from tack to clew)
- 17’ 7”5.37 m
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Impression 45's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 224 ft²/T20.81 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 411 ft²/T38.2 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 197
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 32 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.21 knots
Impression 45's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 50 HP / 75 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 56.8 gal215 liters
Impression 45's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 2 / 4
- Berth(s) (min./max.)
- 4 / 10
- Head(s)
- 2
- Freshwater tank capacity
- 136.3 gal516 liters

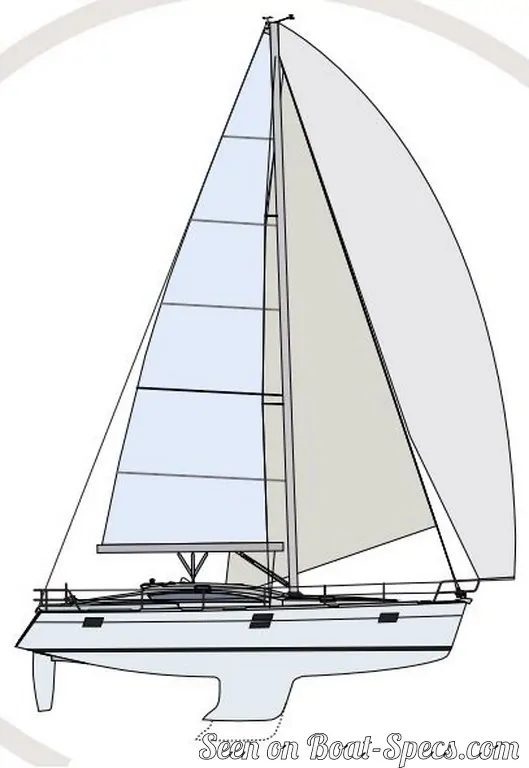

Elan Yachts Impression 45 sailplan - - 2/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

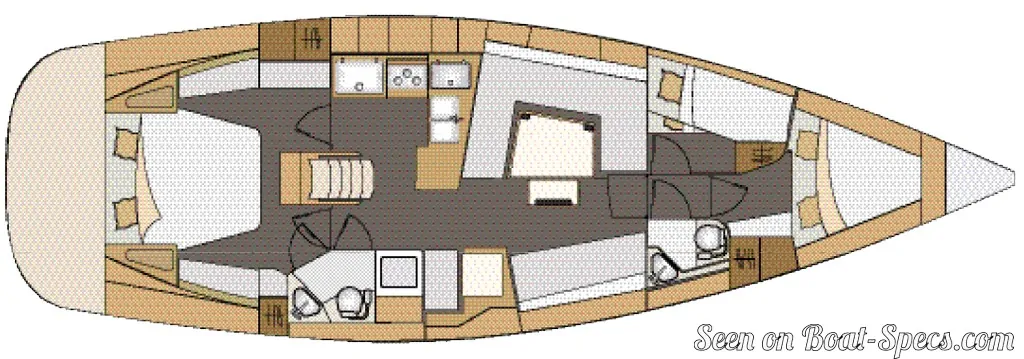

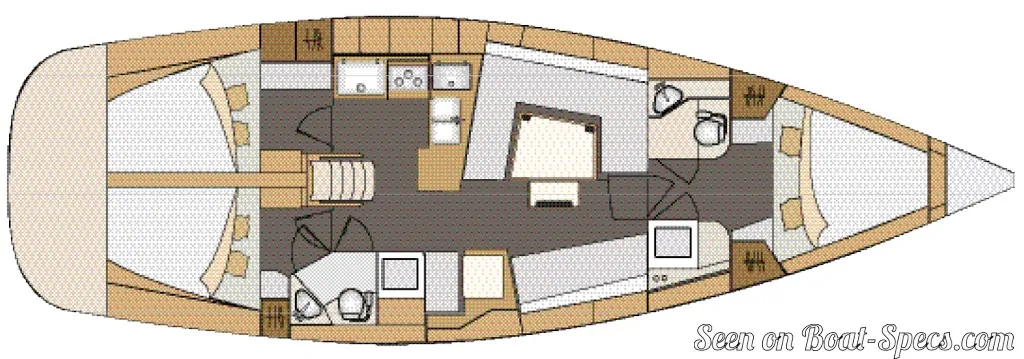

Elan Yachts Impression 45 layout - - 3/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

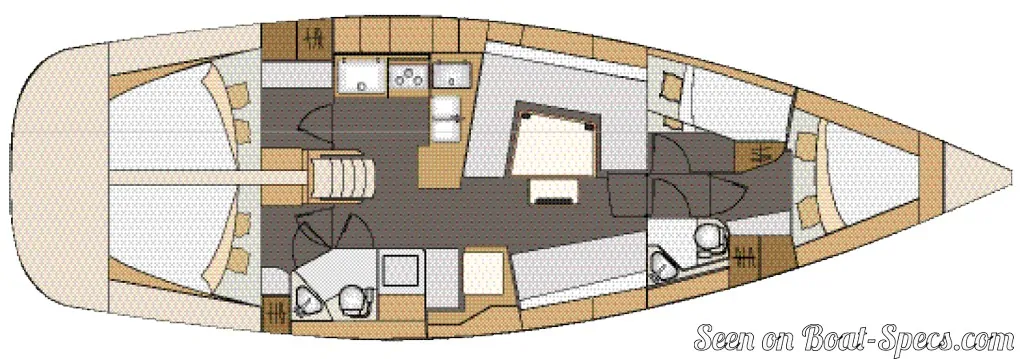

Elan Yachts Impression 45 layout - - 4/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 45 layout - - 5/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 45 layout - - 6/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

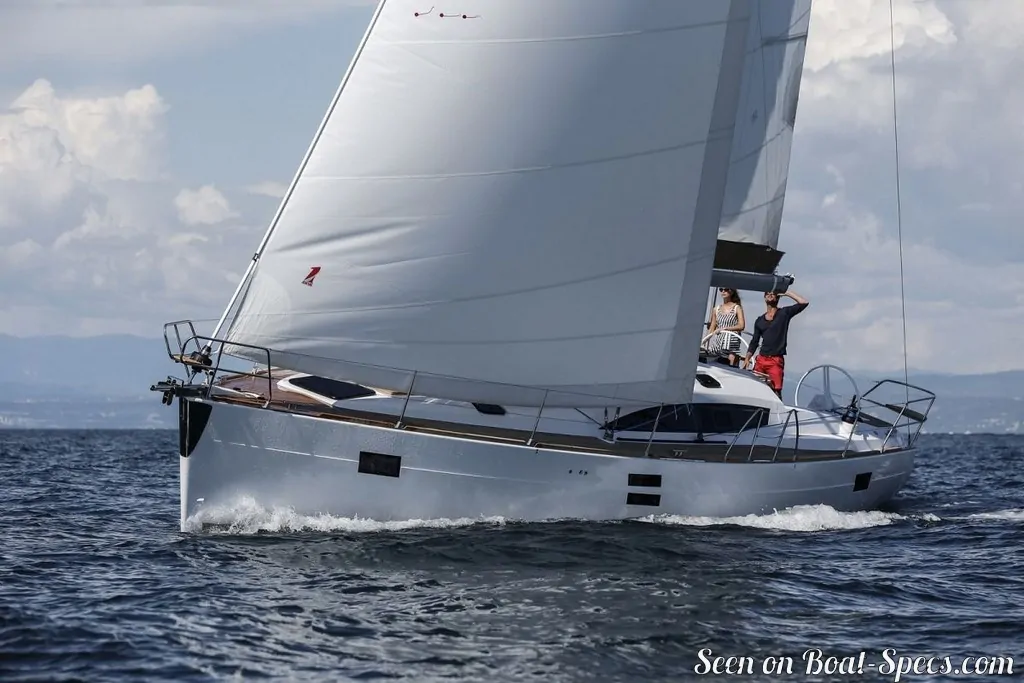

Elan Yachts Impression 45 sailing - - 7/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

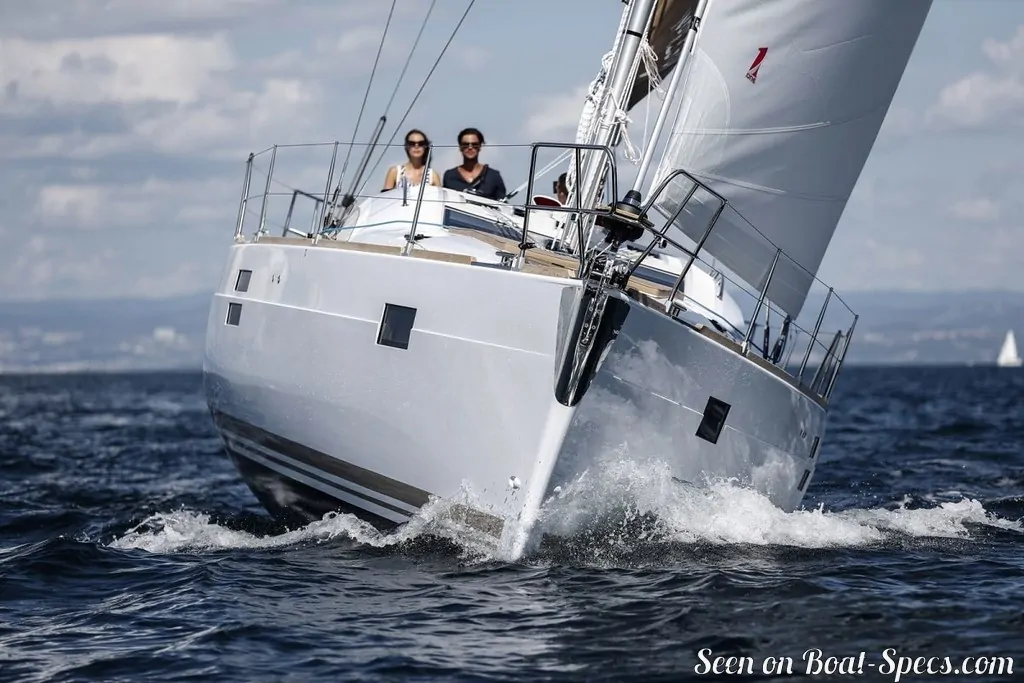

Elan Yachts Impression 45 sailing - - 8/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

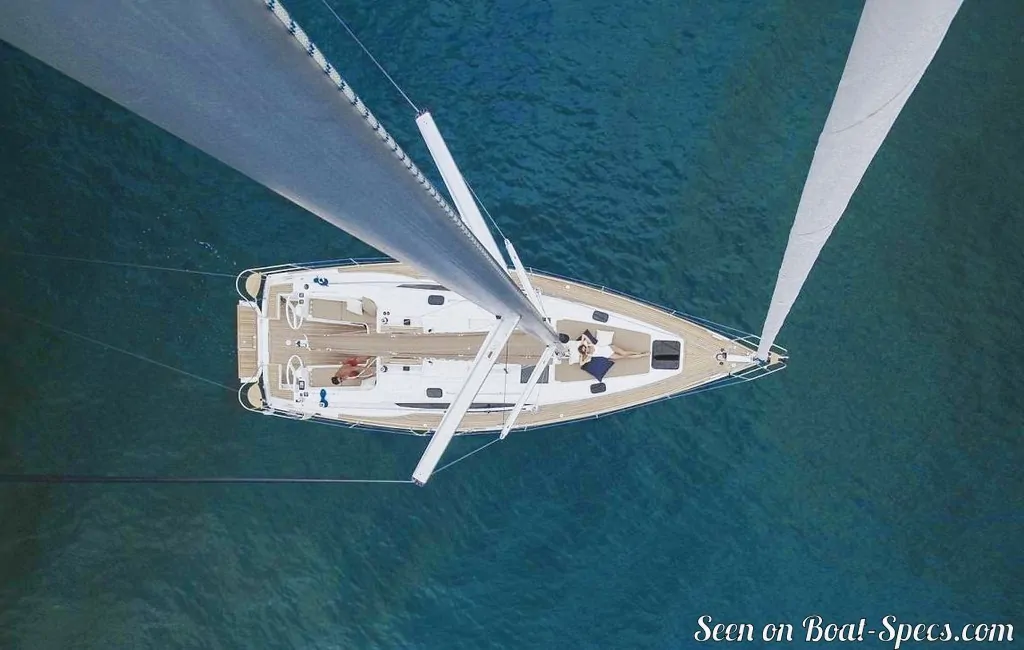

Elan Yachts Impression 45 sailing - - 9/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

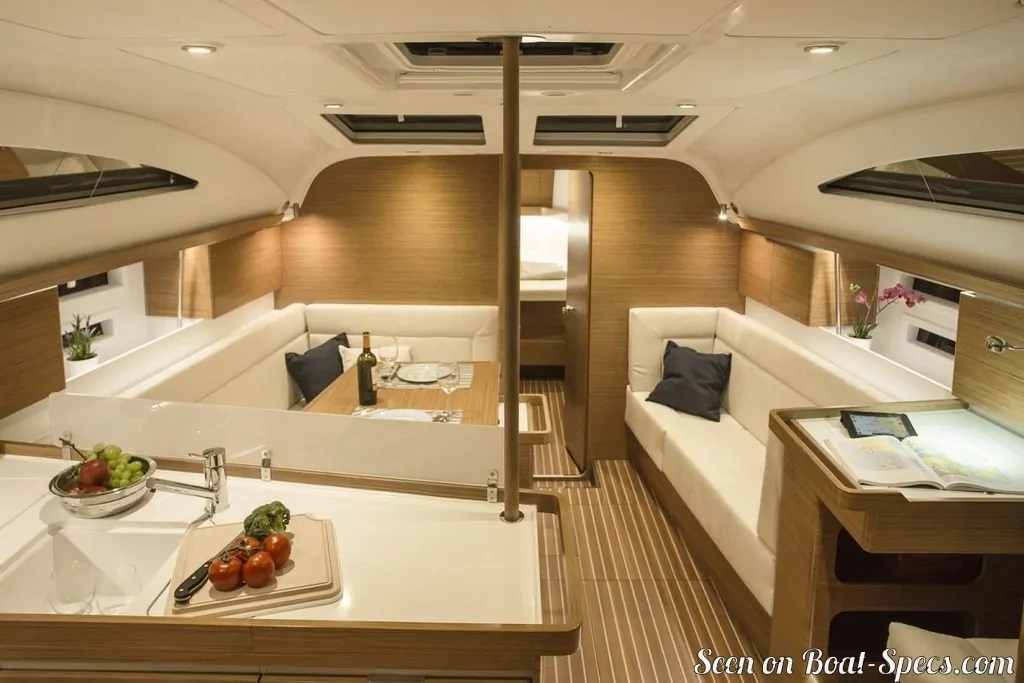

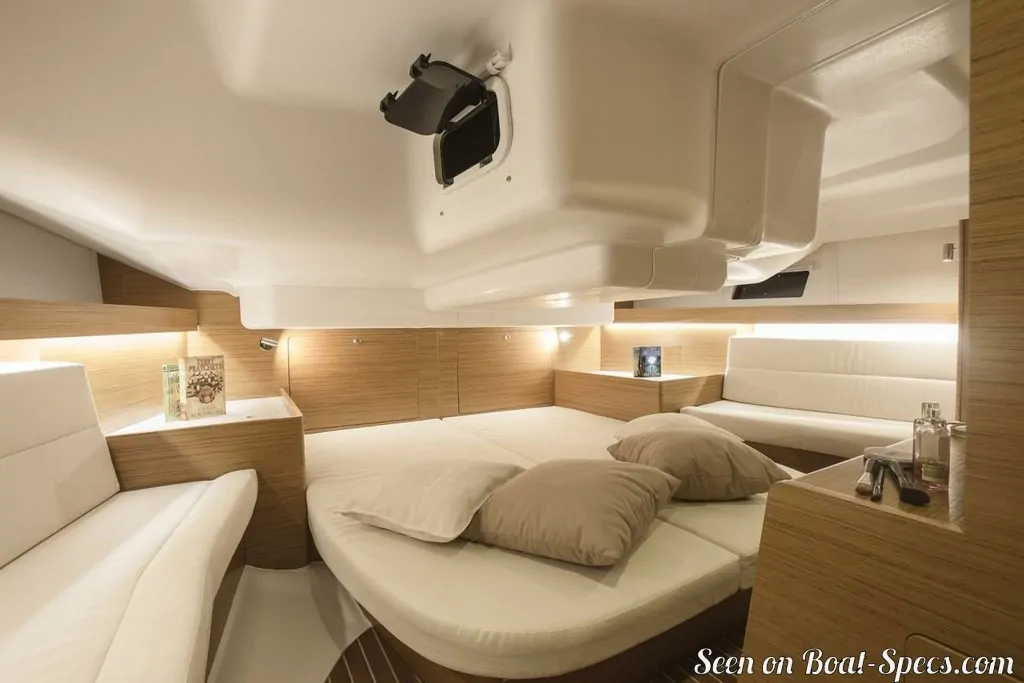

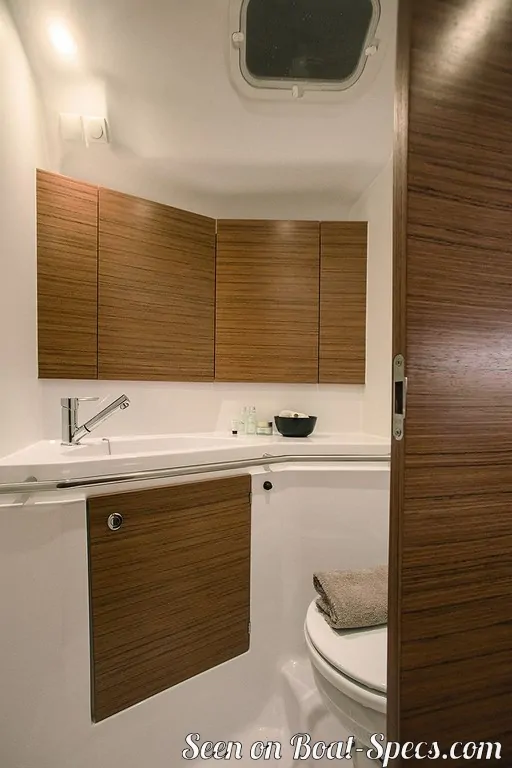

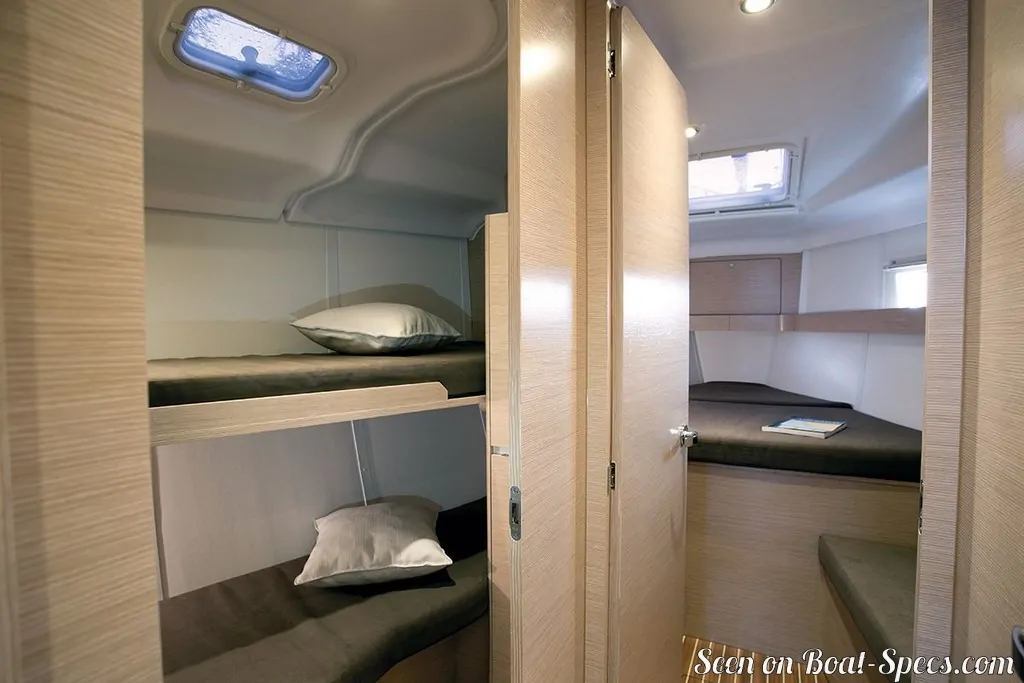

Elan Yachts Impression 45 interior and accommodations - - 10/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 45 interior and accommodations - - 11/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

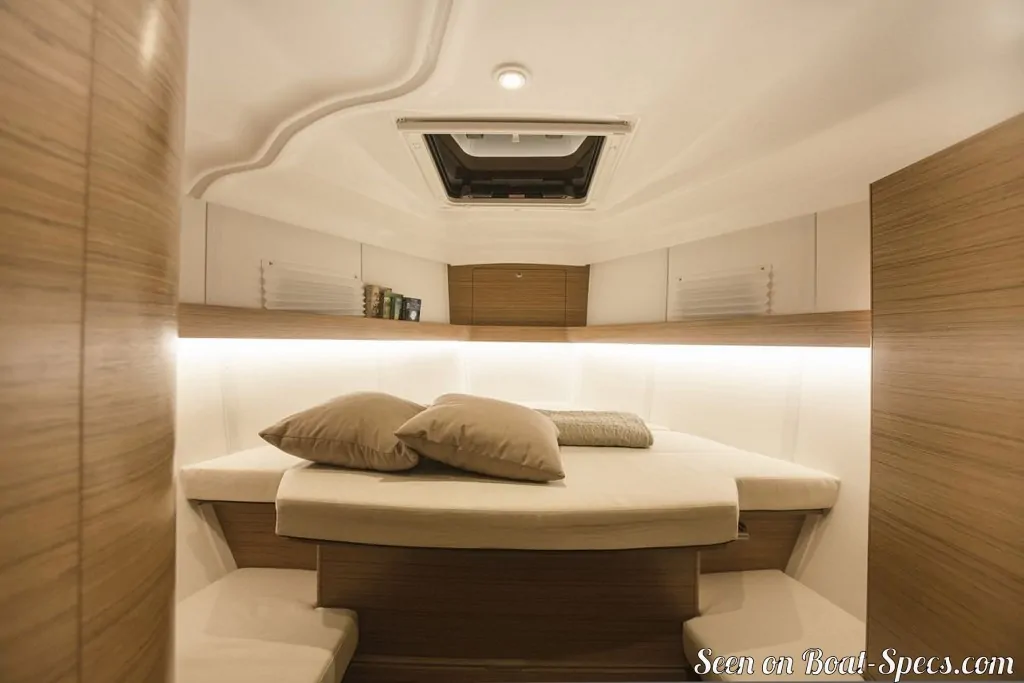

Elan Yachts Impression 45 interior and accommodations - - 12/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 45 interior and accommodations - - 13/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 45 interior and accommodations - - 14/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
