Impression 40 Deep draft
Sailboat specifications
The Impression 40 is a 37’8” (11.48m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She was built between 2014 and 2019 by Elan Yachts (Slovenia). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.
The Impression 40 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Impression 40 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Impression 40's main features
- Model
- Impression 40
- Version
- Deep draft
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Slovenia
- Construction
- GRP (glass reinforced polyester):
- Hull: Sandwich fiberglass polyester (vacuum infusion)
- Deck: Sandwich fiberglass polyester (vacuum infusion) - First built hull
- 2014
- Last built hull
- 2019
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About154 000 €(2017)
Impression 40's main dimensions
- Overall length
- 39’11.9 m
- Hull length
- 37’ 8”11.48 m
- Waterline length
- 32’ 10”10 m
- Beam (width)
- 12’ 10”3.91 m
- Draft
- 5’ 11”1.8 m
- Mast height from DWL
- 57’ 8”17.6 m
- Light displacement (MLC)
- 18448 lb8368 kg
- Ballast weight
- 5465 lb2479 kg
Impression 40's rig and sails
- Upwind sail area
- 818 ft²76 m²
- Downwind sail area
- 1463 ft²135.9 m²
- Mainsail area
- 408 ft²37.9 m²
- Genoa area
- 410 ft²38.1 m²
- Gennaker area
- 1055 ft²98 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 45’ 10”13.96 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 12’ 10”3.9 m
- PiMainsail hoist measurement (from tack to head)
- 42’ 8”13 m
- EiMainsail foot measurement (from tack to clew)
- 15’ 11”4.86 m
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Impression 40's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 198 ft²/T18.44 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 355 ft²/T32.97 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 237
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 30 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 7.68 knots
Impression 40's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 29 HP / 39 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 38.6 gal146 liters
Impression 40's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 4 / 8
- Head(s) (min./max.)
- 1 / 2
- Freshwater tank capacity
- 63.4 gal240 liters

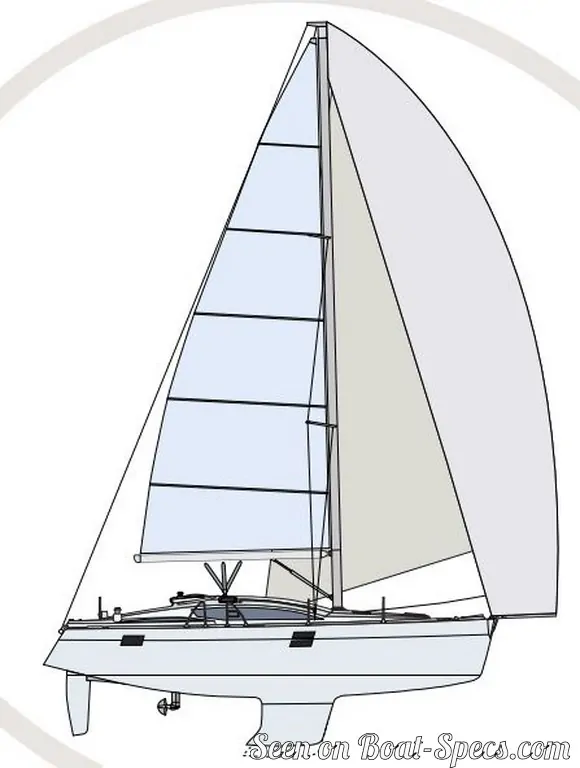

Elan Yachts Impression 40 sailplan - - 2/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

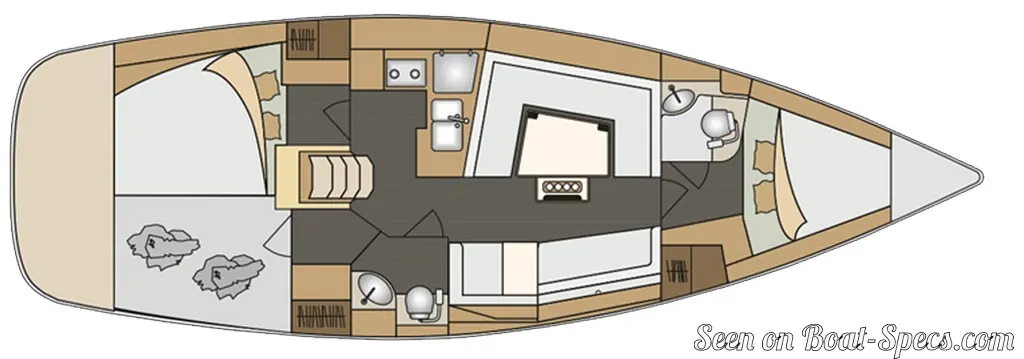

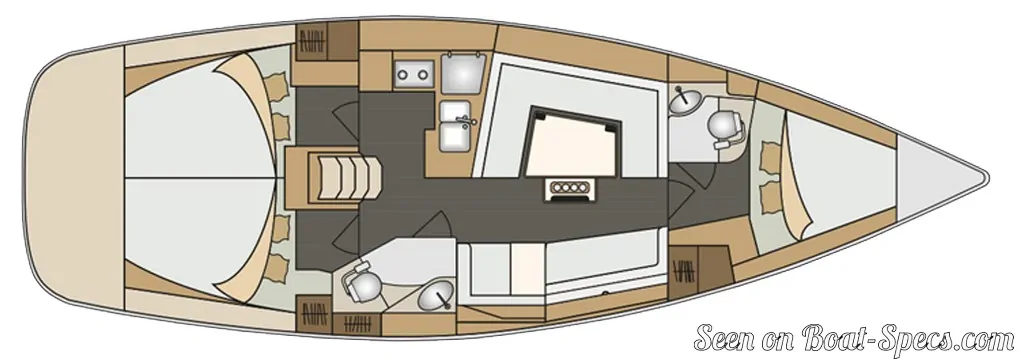

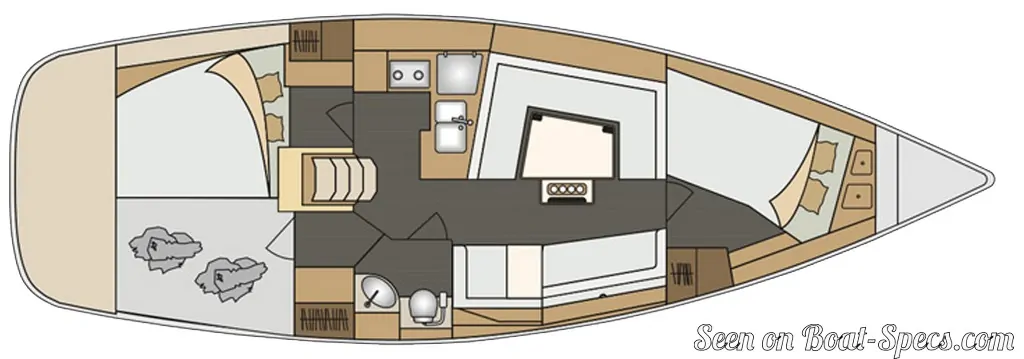

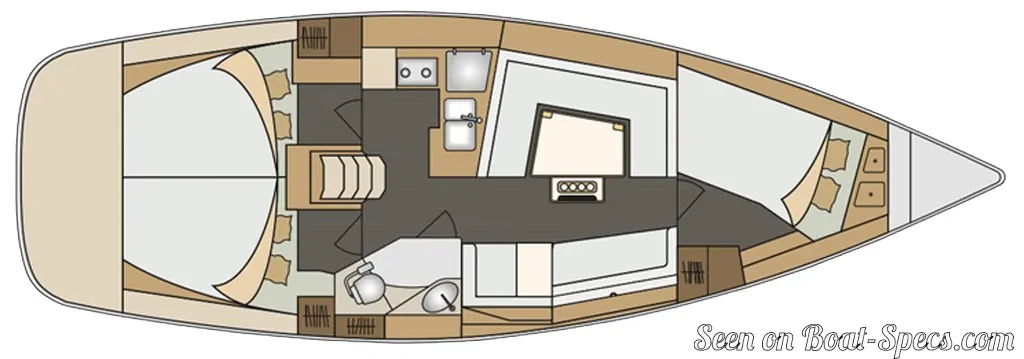

Elan Yachts Impression 40 layout - - 3/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 layout - - 4/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 layout - - 5/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 layout - - 6/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

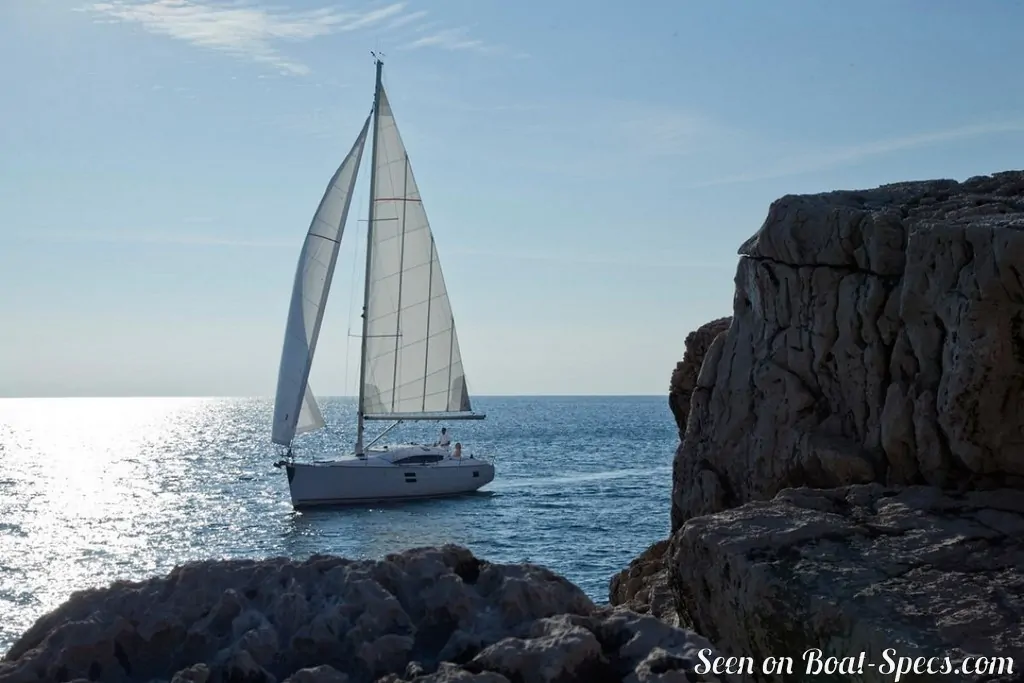

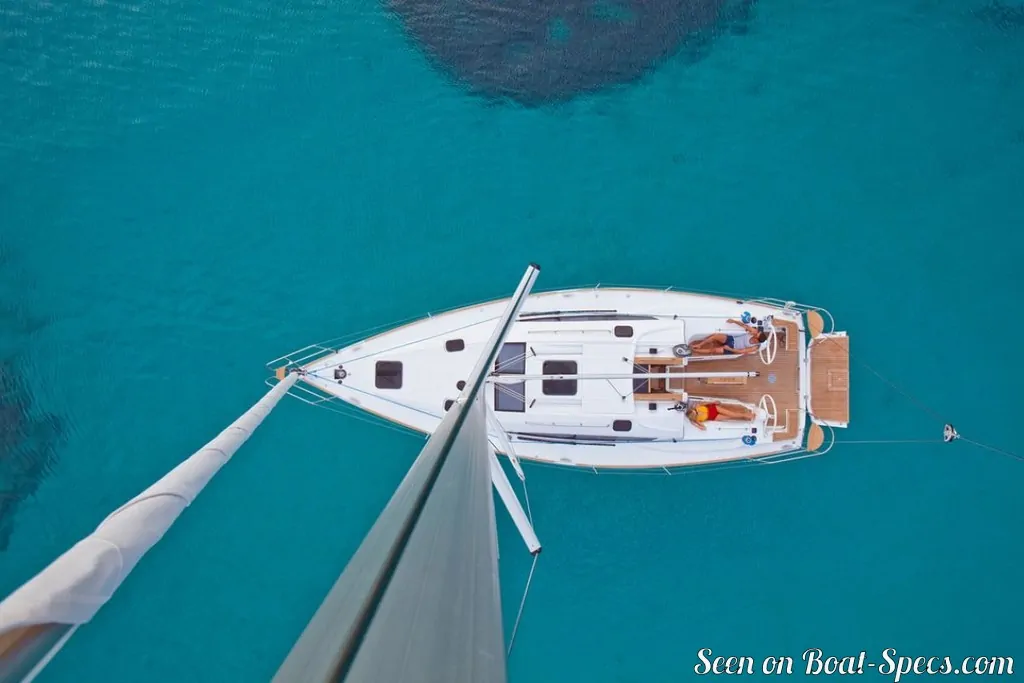

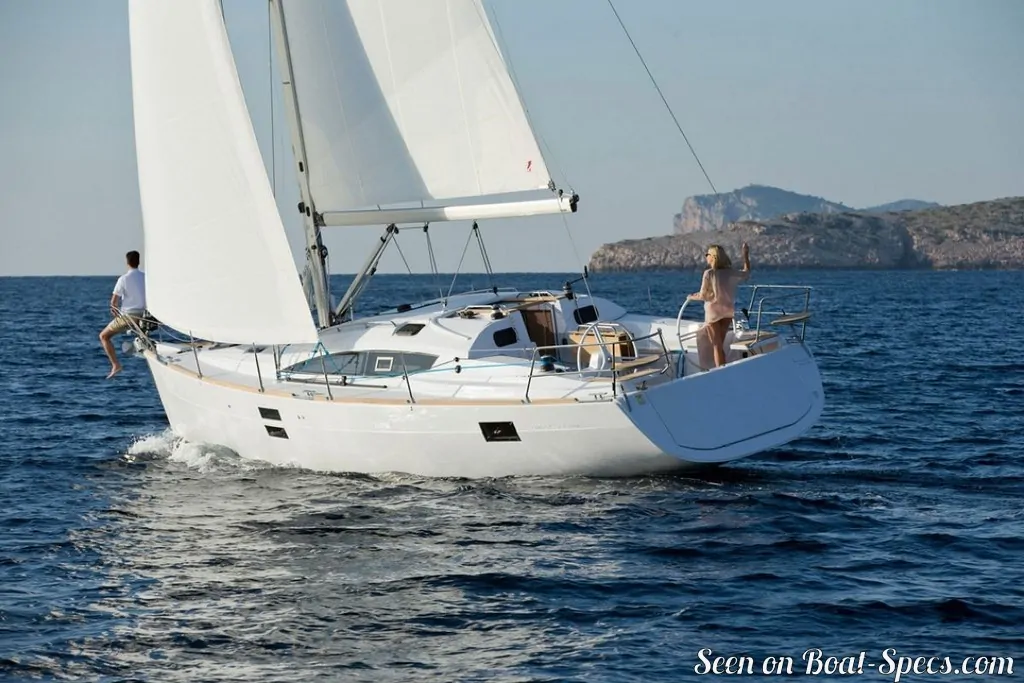

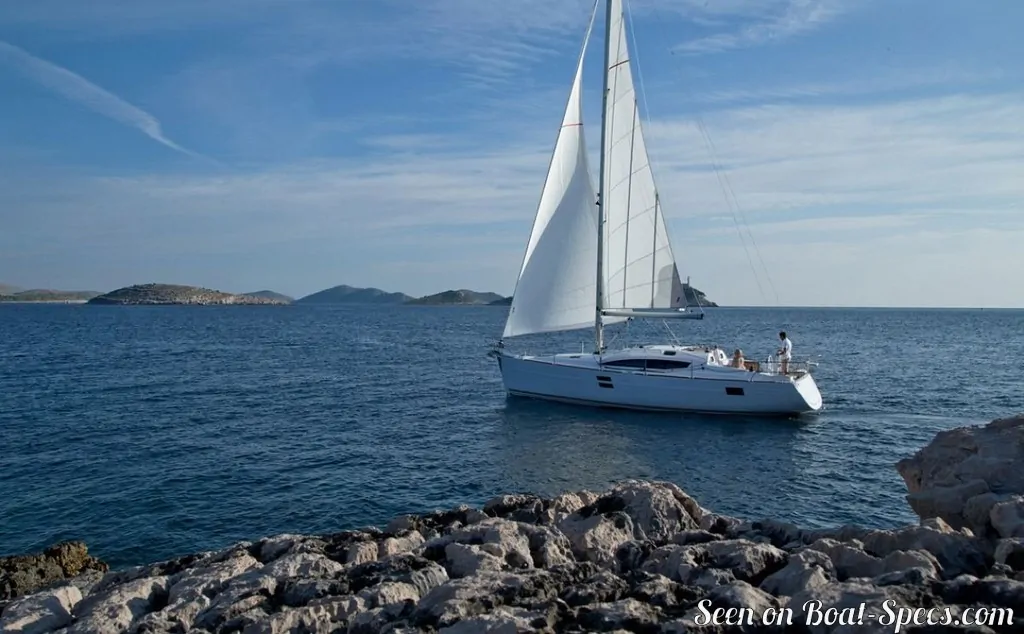

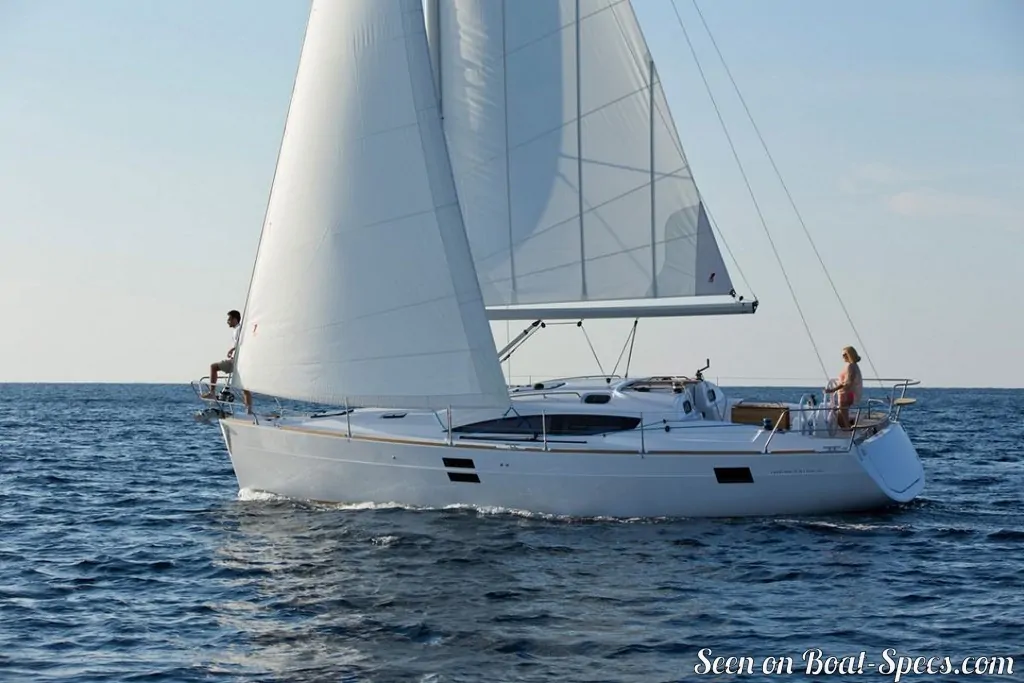

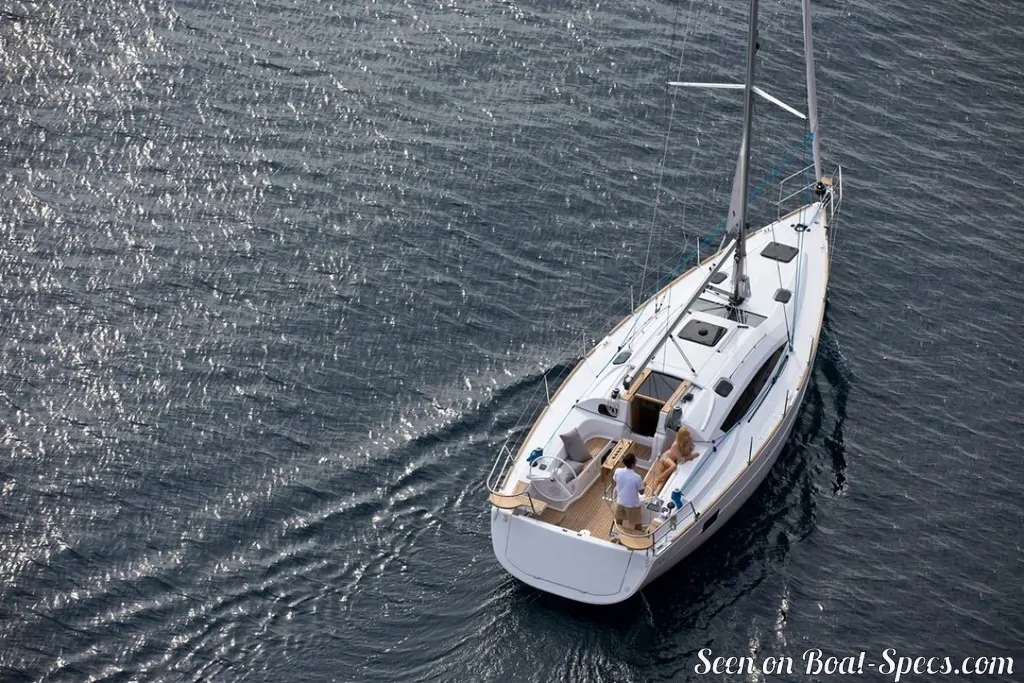

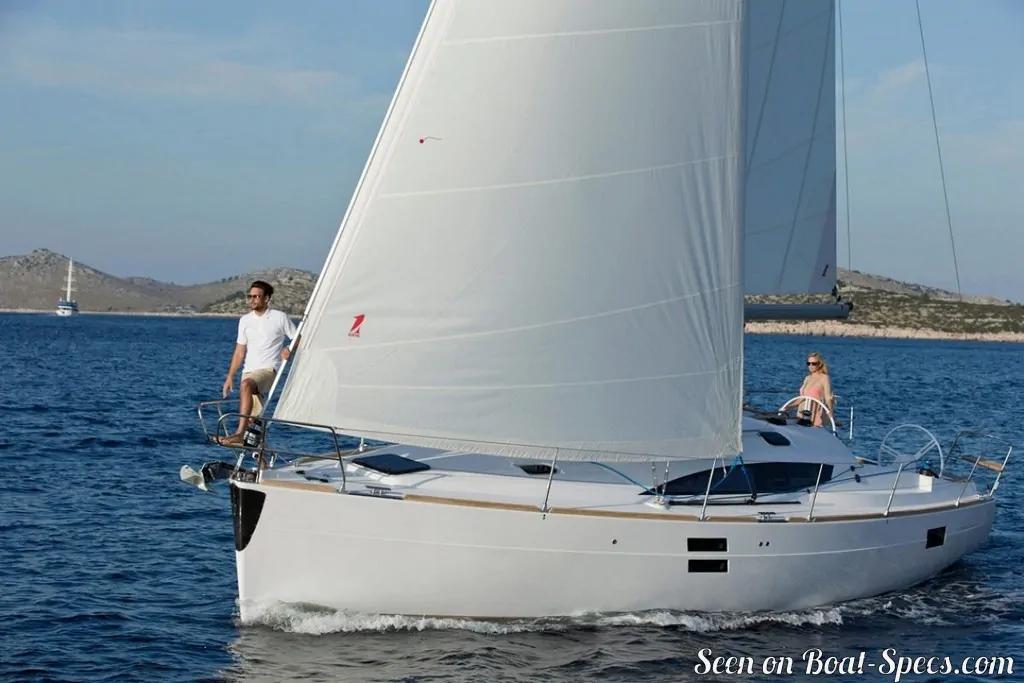

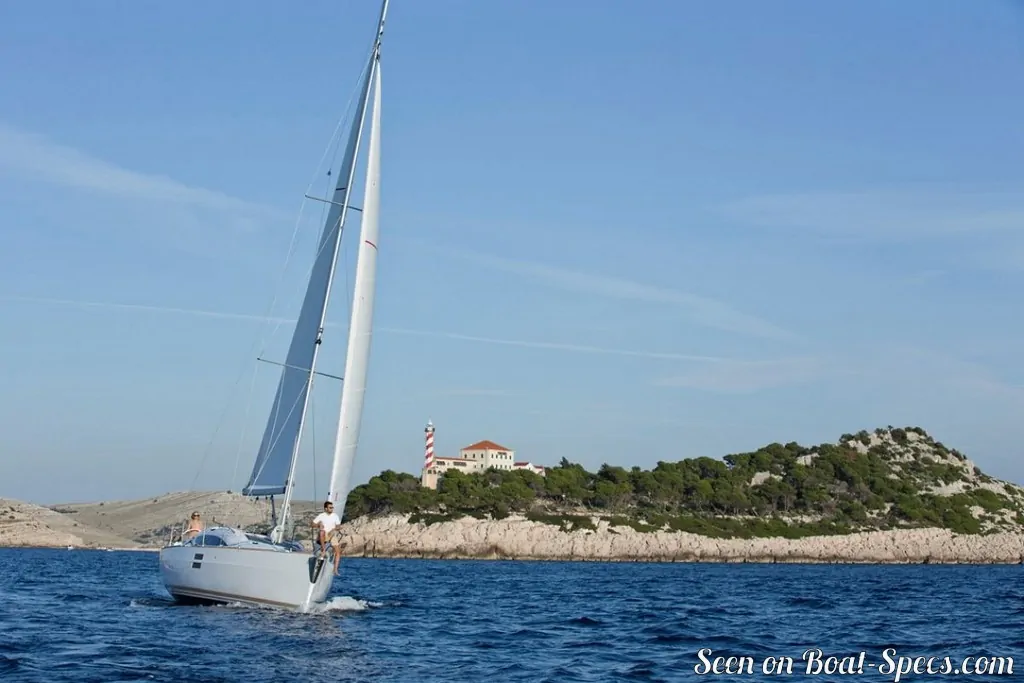

Elan Yachts Impression 40 sailing - - 7/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 8/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 9/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 10/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 11/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 12/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 sailing - - 13/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

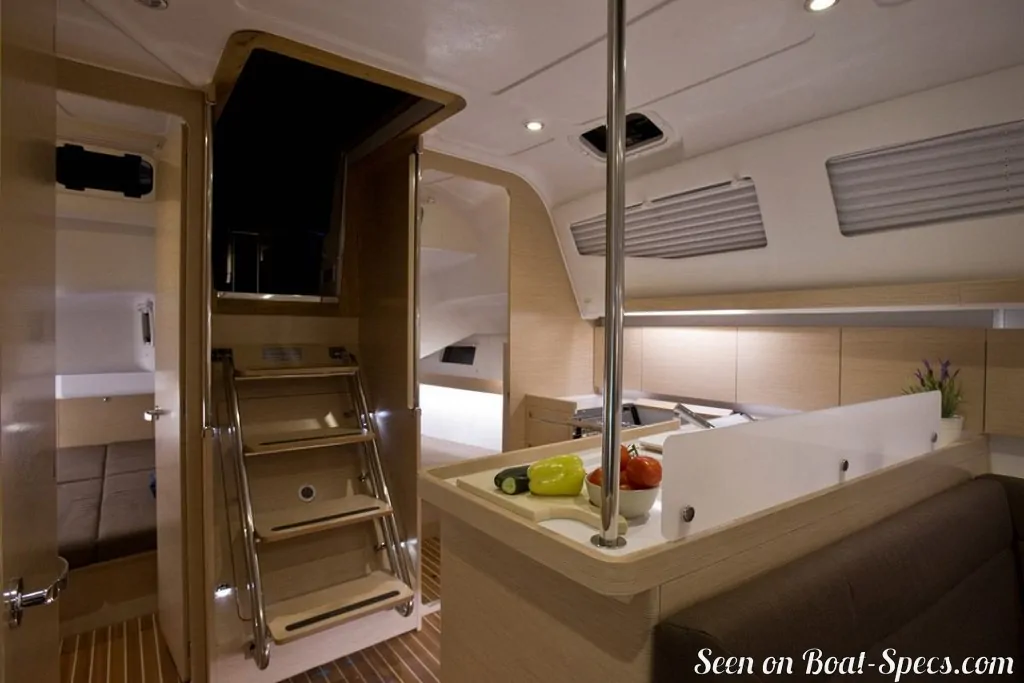

Elan Yachts Impression 40 interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Impression 40 interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
