Impression 35

Sailboat specifications

The Impression 35 is a 32’10” (9.99m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She was built between 2014 and 2018 by Elan Yachts (Slovenia).

Impression 35's main features

Model: Impression 35
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: Elan Yachts
Sailboat designer: Humphreys Yacht Design
Sailboat range: Impression
Country: Slovenia
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
First built hull: 2014
Last built hull: 2018
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
114 000 €
(2017)

Impression 35's main dimensions

Overall length: 32’ 10”9.99 m
Hull length: 32’ 10”9.99 m
Waterline length: 28’ 10”8.79 m
Beam (width): 11’ 6”3.49 m
Draft: 5’ 2”1.6 m
Mast height from D_WL: 52’ 6”16 m
Light displacement (M_LC): 12950 lb5874 kg
Ballast weight: 4012 lb1820 kg

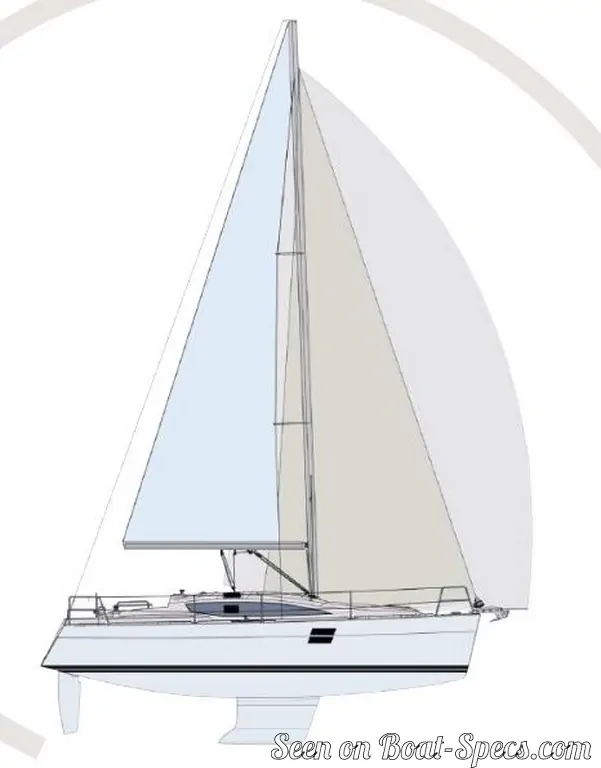

Impression 35's rig and sails

Upwind sail area: 635 ft²59 m²
Downwind sail area: 1130 ft²105 m²
Mainsail area: 301 ft²28 m²
Genoa area: 334 ft²31 m²
Gennaker area: 829 ft²77 m²
I iFore triangle height (from mast foot to fore stay top attachment): 41’12.5 m
J iFore triangle base (from mast foot to bottom of forestay): 11’ 11”3.63 m
P iMainsail hoist measurement (from tack to head): 38’ 2”11.64 m
E iMainsail foot measurement (from tack to clew): 13’ 2”4.01 m
Rigging type: Sloop Marconi fractional
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Impression 35's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 195 ft²/T18.12 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 347 ft²/T32.25 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 245
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 31 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.20 knots
