Elan E5 Shoal draft
Sailboat specifications
The Elan E5 is a 39’2” (11.96m) cruiser-racer sailboat designed by Humphreys Yacht Design (United Kingdom). She is built since 2015 by Elan Yachts (Slovenia). The Shoal draft version features a shorter keel to grant access to shallow areas.
The Elan E5 is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).
The Elan E5 is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).
Elan E5's main features
- Model
- Elan E5
- Version
- Shoal draft
- Hull type
- Monohull
- Category
- Offshore cruiser-racer sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Slovenia
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2015
- Last built hull
- Still in production
- Appendages
- Keel : T-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About205 000 €(2020)
Elan E5's main dimensions
- Overall length
- 39’ 2”11.96 m
- Hull length
- 39’ 2”11.96 m
- Waterline length
- 36’ 11”11.26 m
- Beam (width)
- 12’ 8”3.87 m
- Draft
- 7’ 2”2.2 m
- Mast height from DWL
- 64’ 10”19.75 m
- Light displacement (MLC)
- 16094 lb7300 kg
- Ballast weight
- 5952 lb2700 kg
Elan E5's rig and sails
- Upwind sail area
- 958 ft²88.96 m²
- Downwind sail area
- 2006 ft²186.36 m²
- Mainsail area
- 553 ft²51.36 m²
- Jib area
- 405 ft²37.6 m²
- Asymmetric spinnaker area
- 1453 ft²135 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 52’ 2”15.92 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 14’ 10”4.5 m
- PiMainsail hoist measurement (from tack to head)
- 51’ 8”15.75 m
- EiMainsail foot measurement (from tack to clew)
- 18’ 1”5.52 m
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
- Standing rigging
- 1x19 strand wire
Elan E5's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 254 ft²/T23.64 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 533 ft²/T49.52 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 145
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 37 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.14 knots
Elan E5's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 38 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 42.3 gal160 liters
Elan E5's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 6 / 8
- Head(s) (min./max.)
- 1 / 2
- Freshwater tank capacity
- 73.2 gal277 liters

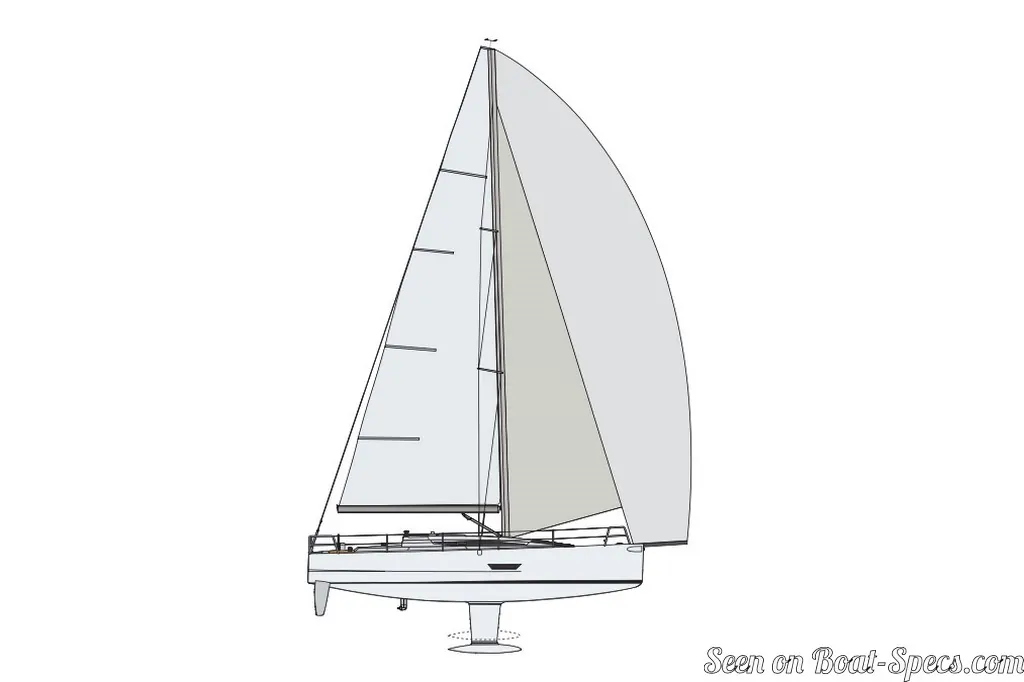

Elan Yachts Elan E5 sailplan - - 2/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

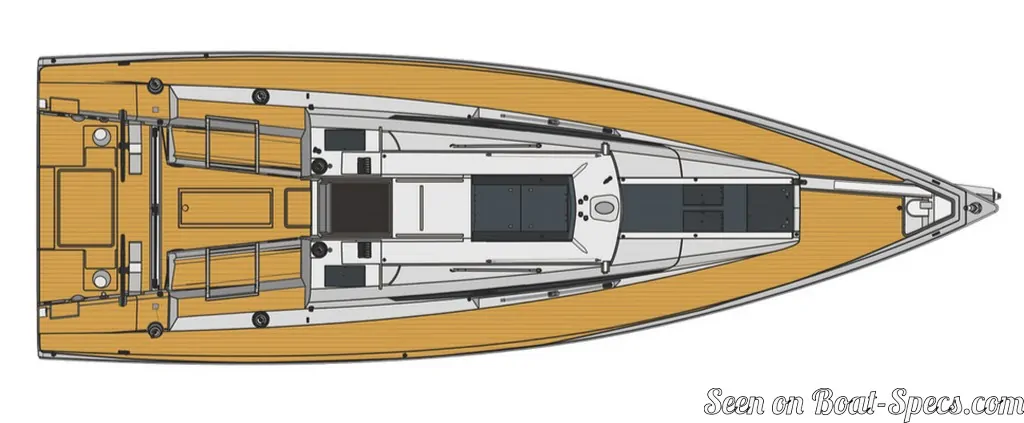

Elan Yachts Elan E5 layout - - 3/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

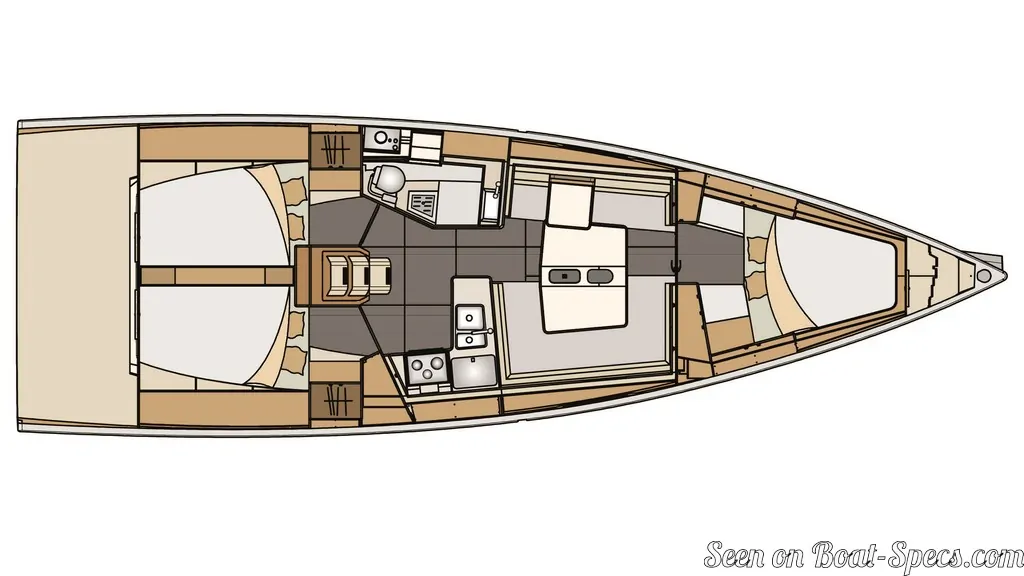

Elan Yachts Elan E5 layout - - 4/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

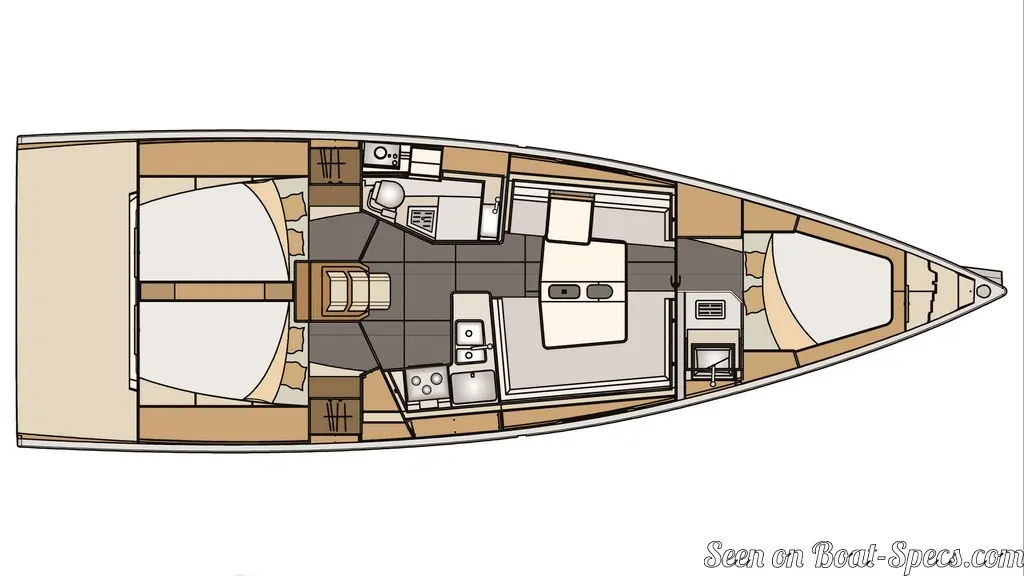

Elan Yachts Elan E5 layout - - 5/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

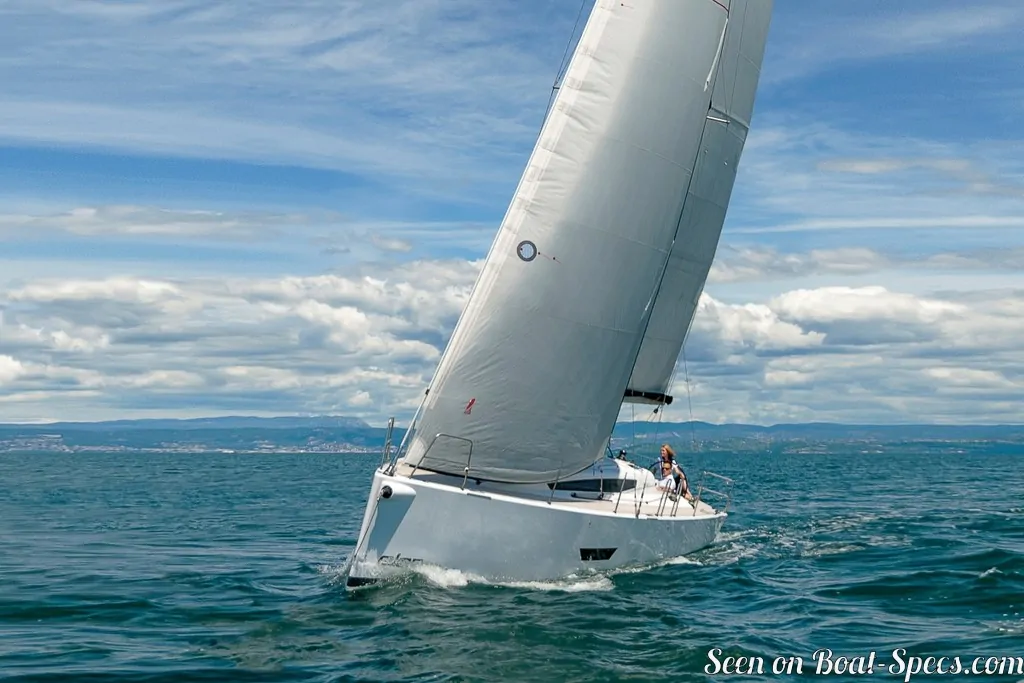

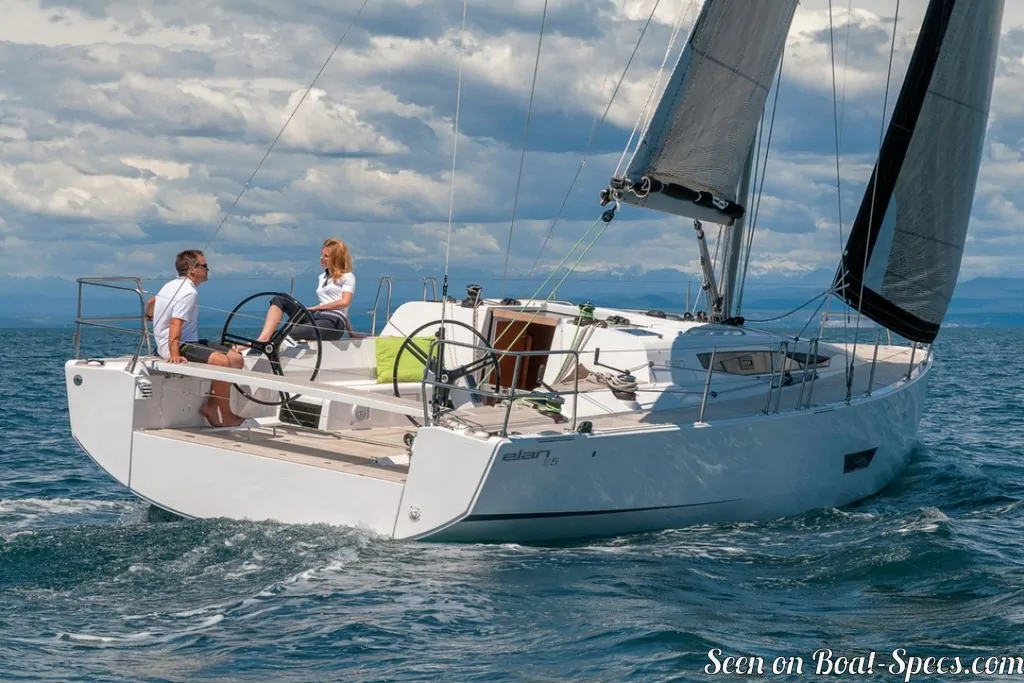

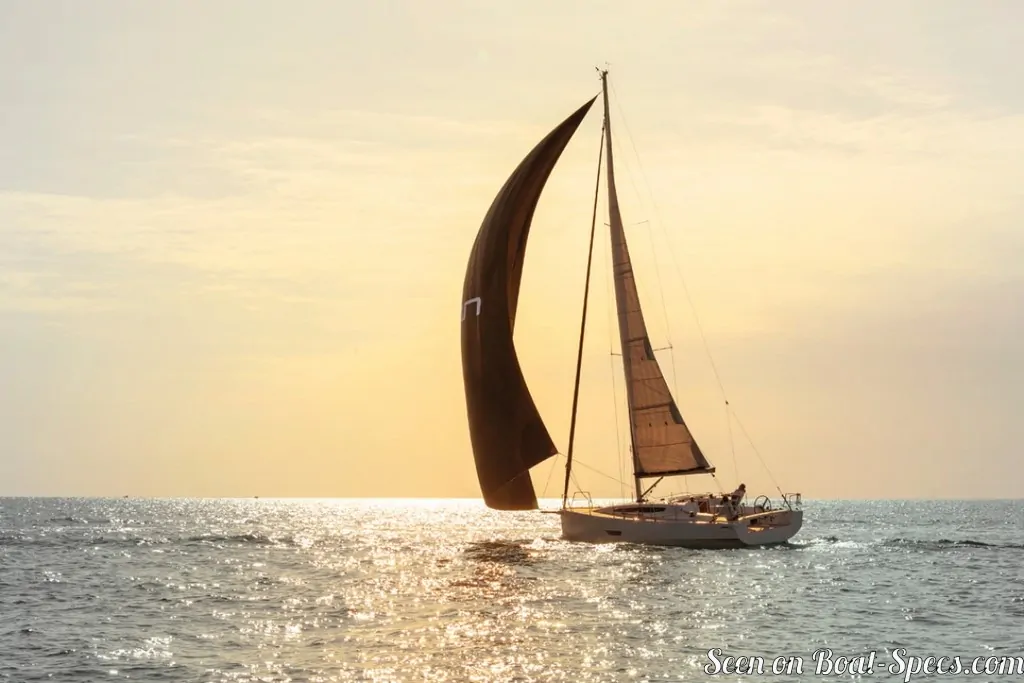

Elan Yachts Elan E5 sailing - - 6/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 sailing - - 7/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 sailing - - 8/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

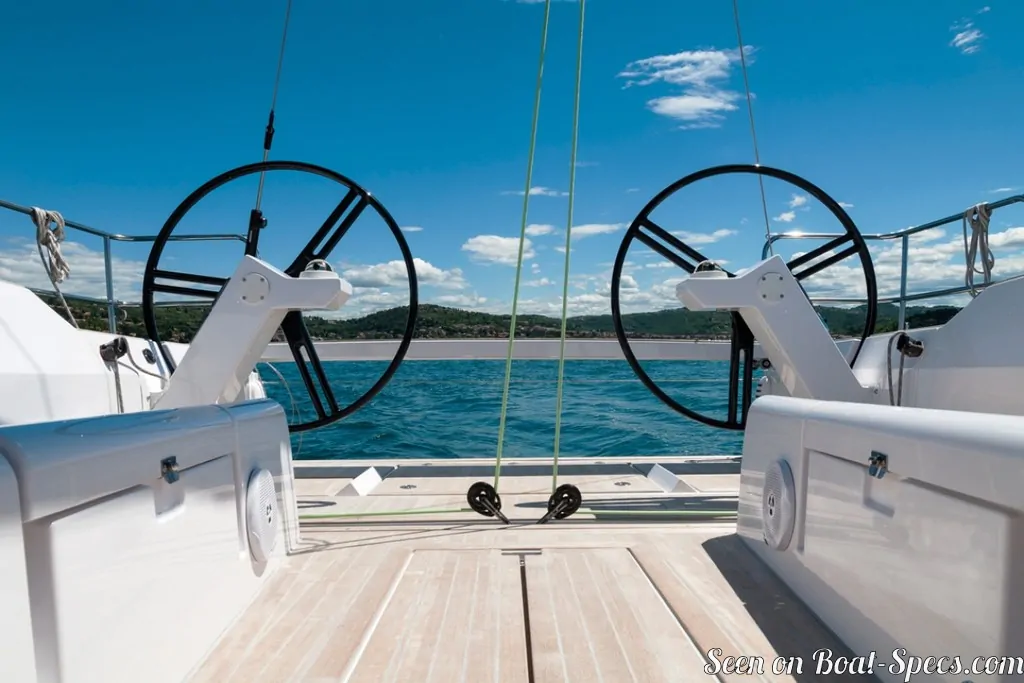

Elan Yachts Elan E5 cockpit - - 9/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

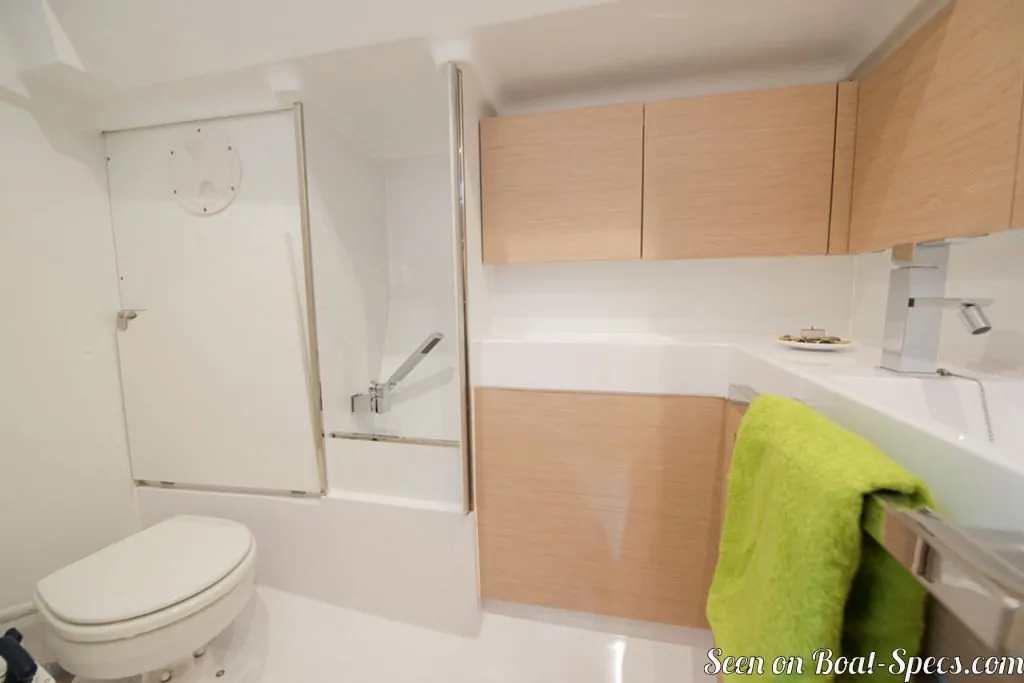

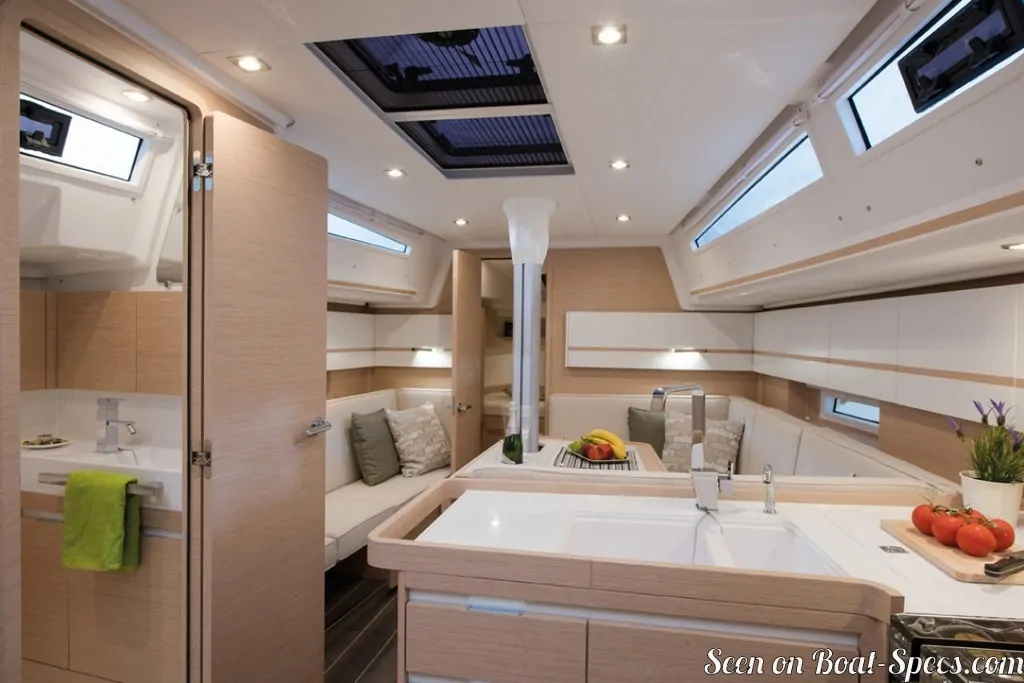

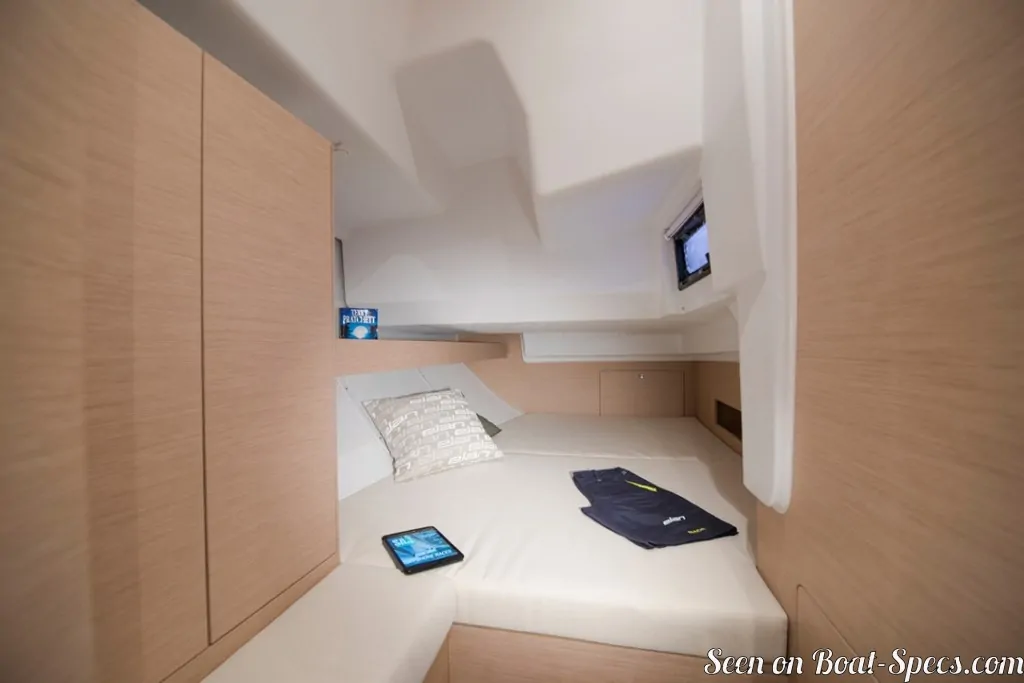

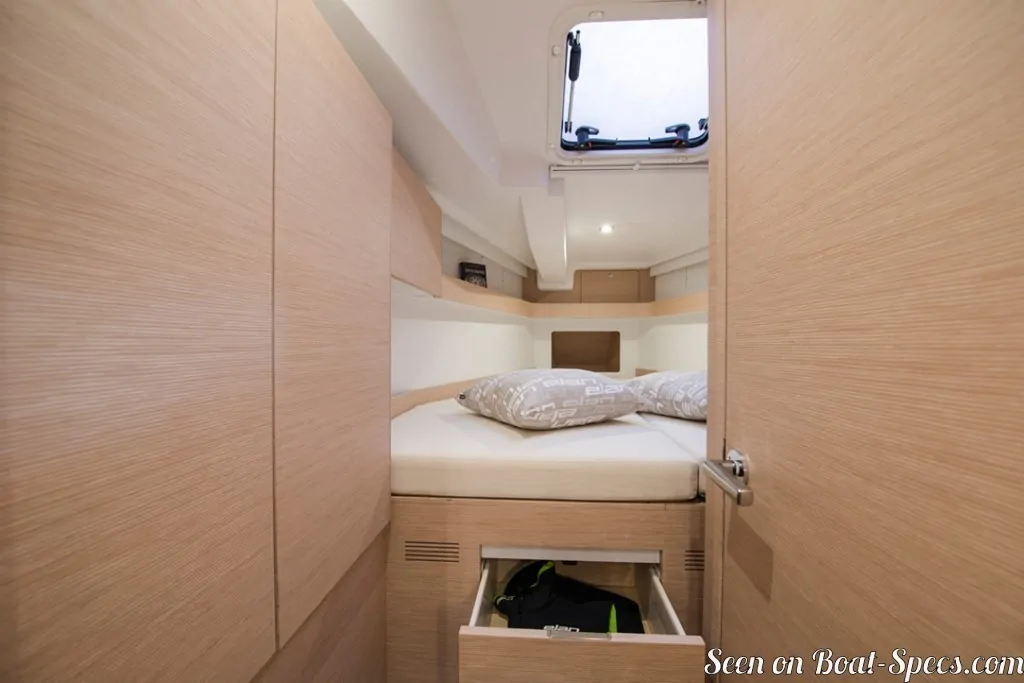

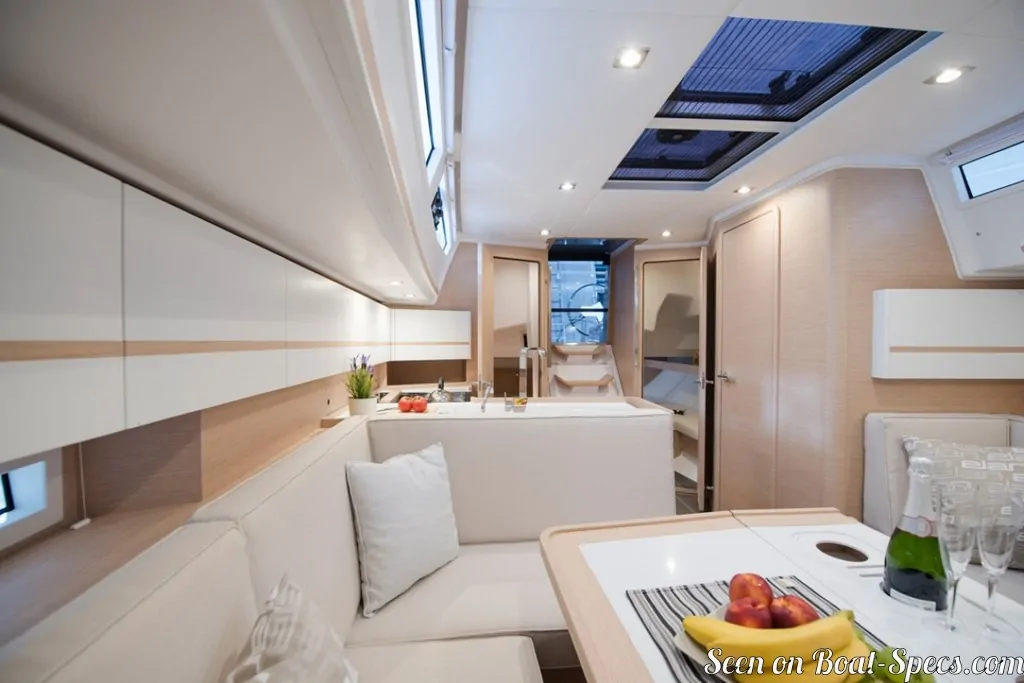

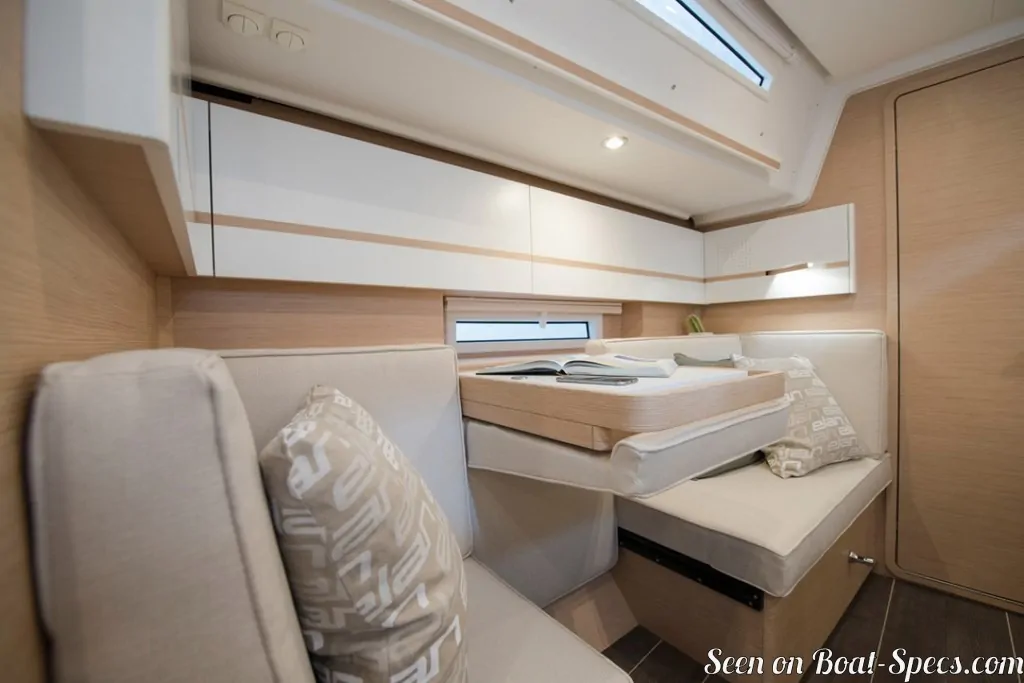

Elan Yachts Elan E5 interior and accommodations - - 10/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 interior and accommodations - - 11/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 interior and accommodations - - 12/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 interior and accommodations - - 13/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan E5 interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
