Elan 380 Deep draft
Sailboat specifications
The Elan 380 is a 37’2” (11.34m) cruiser-racer sailboat designed by Humphreys Yacht Design (United Kingdom). She was built between 2008 and 2012 by Elan Yachts (Slovenia). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.
The Elan 380 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
The Elan 380 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).
Elan 380's main features
- Model
- Elan 380
- Version
- Deep draft
- Hull type
- Monohull
- Category
- Offshore cruiser-racer sailboat
- Sailboat builder
- Sailboat designer
- Country
- Slovenia
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2008
- Last built hull
- 2012
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Single helm wheel
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Elan 380's main dimensions
- Overall length
- 37’ 2”11.34 m
- Hull length
- 37’ 2”11.34 m
- Waterline length
- 34’ 11”10.63 m
- Beam (width)
- 12’3.65 m
- Draft
- 7’ 8”2.35 m
- Light displacement (MLC)
- 15432 lb7000 kg
- Ballast weight
- 4866 lb2207 kg
Elan 380's rig and sails
- Upwind sail area
- 807 ft²74.99 m²
- Downwind sail area
- 1695 ft²157.43 m²
- Mainsail area
- 449 ft²41.67 m²
- Jib area
- 359 ft²33.32 m²
- Symmetric spinnaker area
- 1246 ft²115.76 m²
- Gennaker area
- 1217 ft²113.08 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 49’ 1”14.98 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 13’ 7”4.16 m
- PiMainsail hoist measurement (from tack to head)
- 47’ 11”14.61 m
- EiMainsail foot measurement (from tack to clew)
- 16’ 4”4.96 m
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
Elan 380's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 221 ft²/T20.49 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 463 ft²/T43.02 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 165
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 32 %
- Righting moment @ 30°iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 25316 lb.ft3500 kg.m
- Maximum righting momentiThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 34718 lb.ft4800 kg.m @ 55.00 °
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 7.91 knots
Elan 380's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 30 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 29.1 gal110 liters
Elan 380's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 4 / 8
- Head(s)
- 1
- Freshwater tank capacity
- 66 gal250 liters

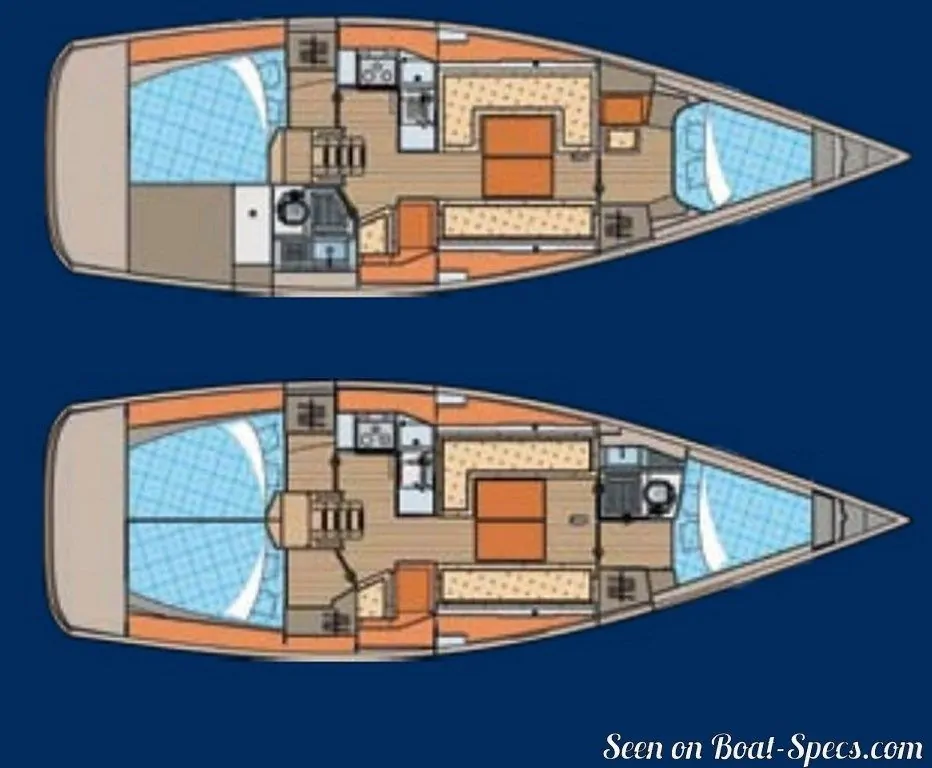

Elan Yachts Elan 380 layout - - 2/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

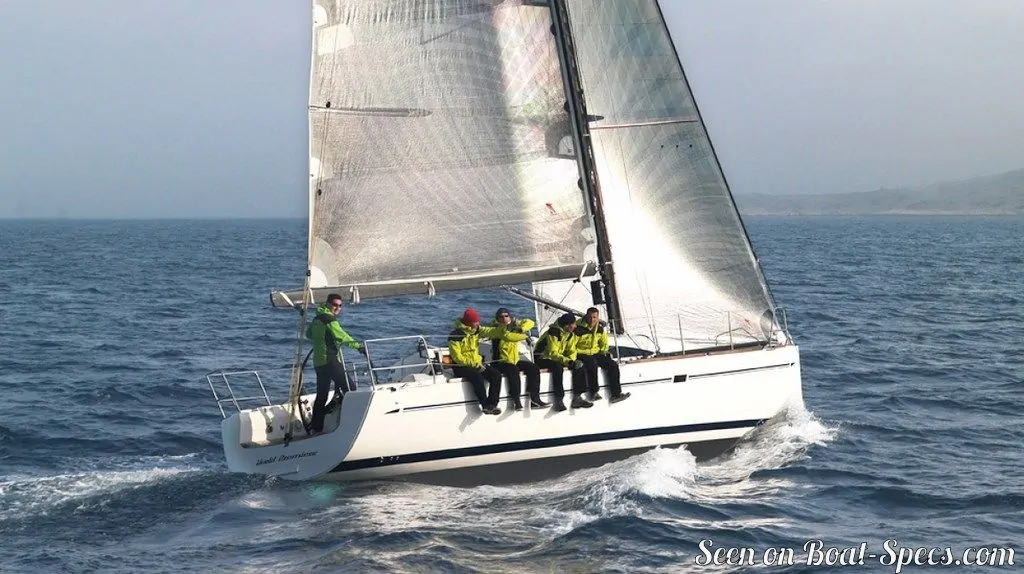

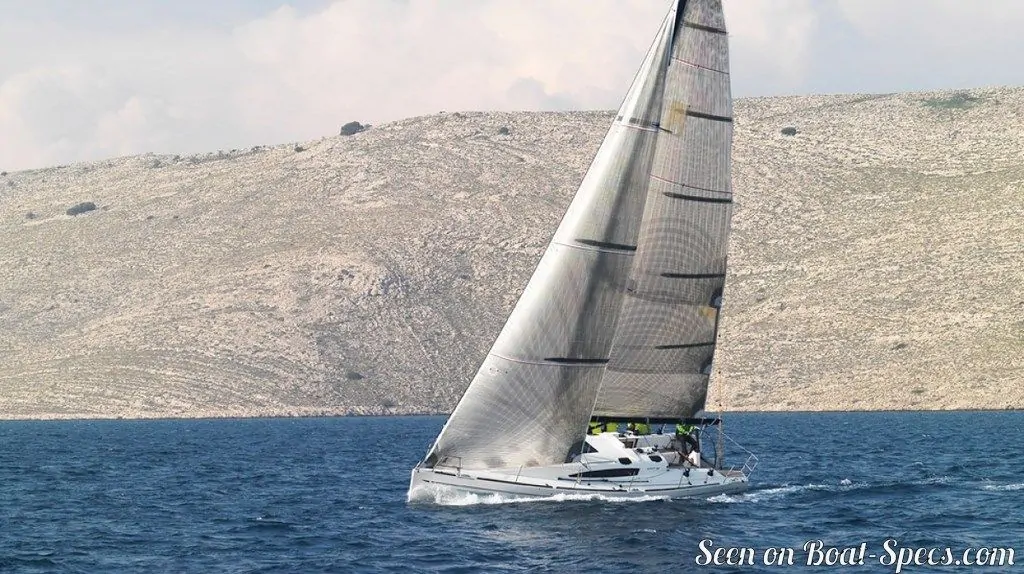

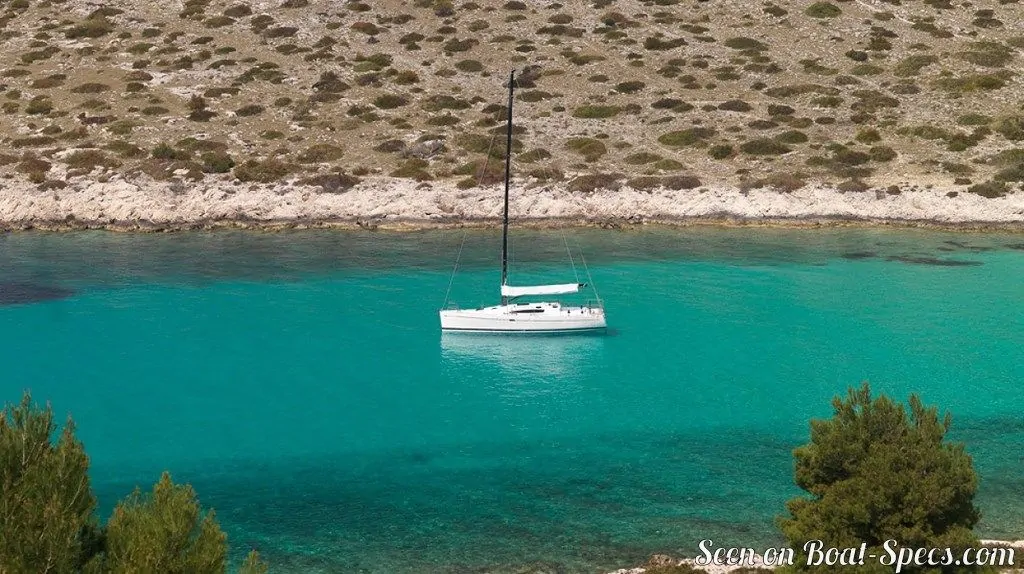

Elan Yachts Elan 380 sailing - - 3/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

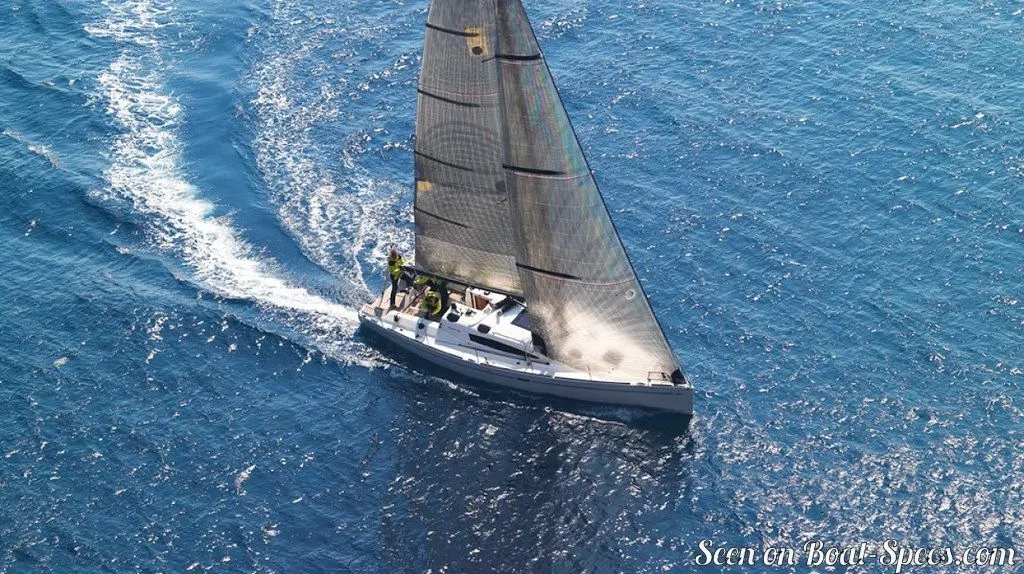

Elan Yachts Elan 380 sailing - - 4/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 sailing - - 5/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

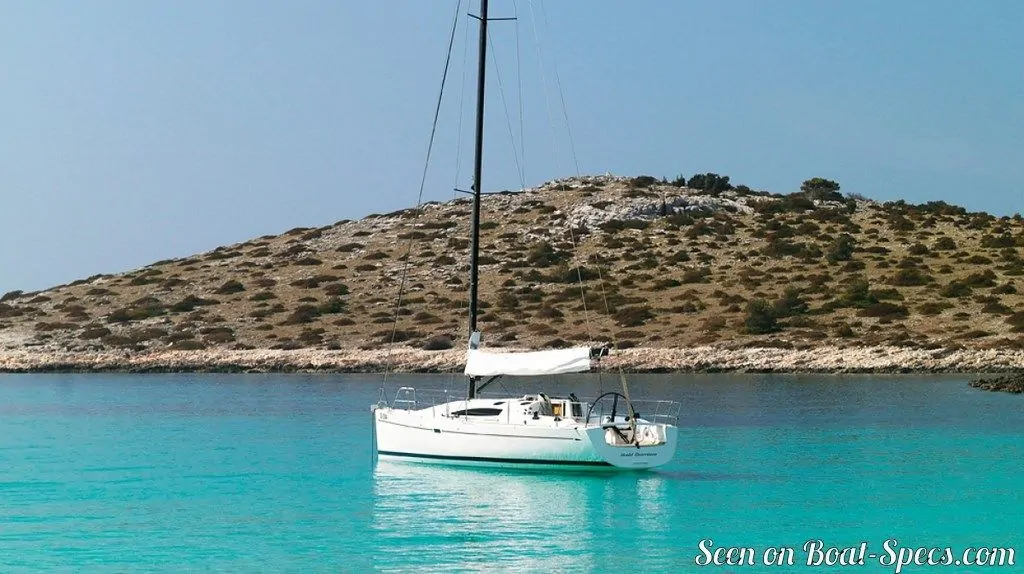

Elan Yachts Elan 380 sailing - - 6/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 sailing - - 7/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 sailing - - 8/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

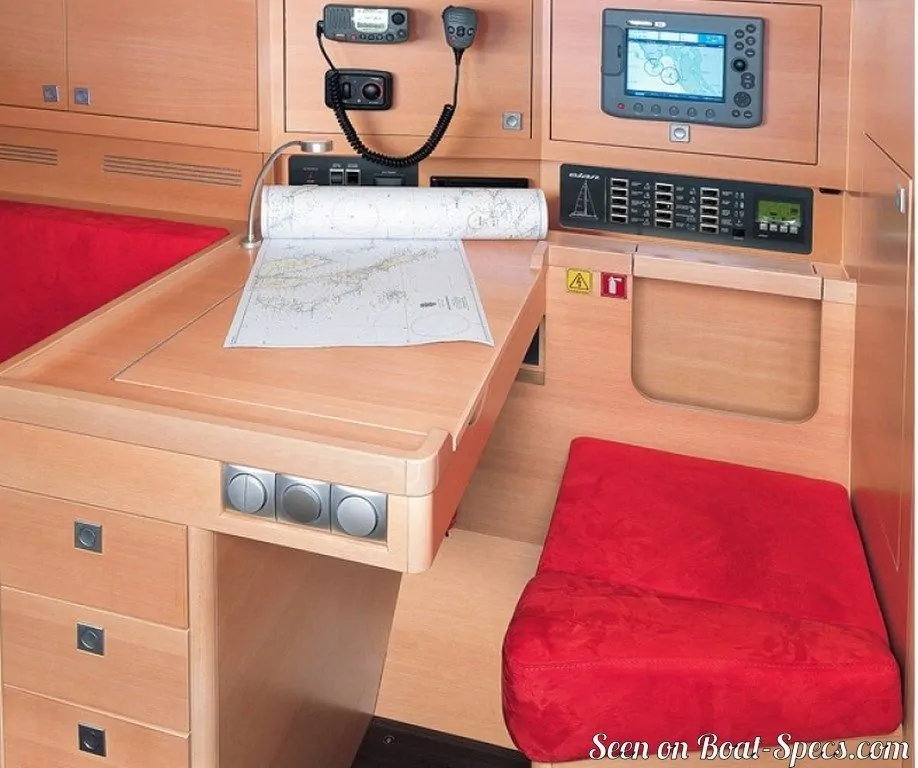

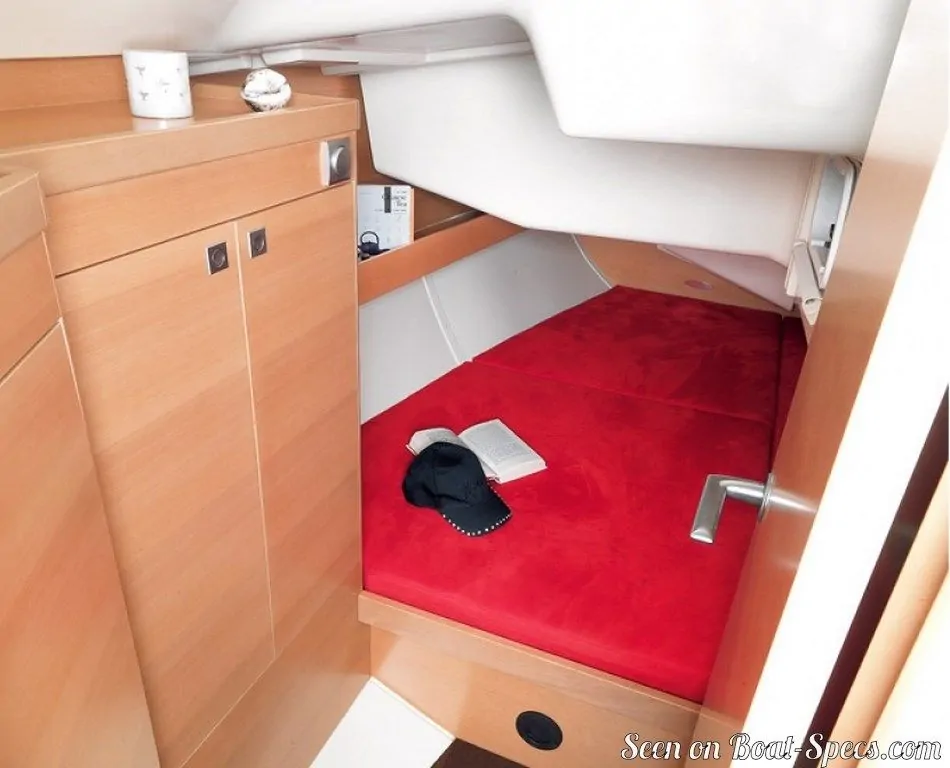

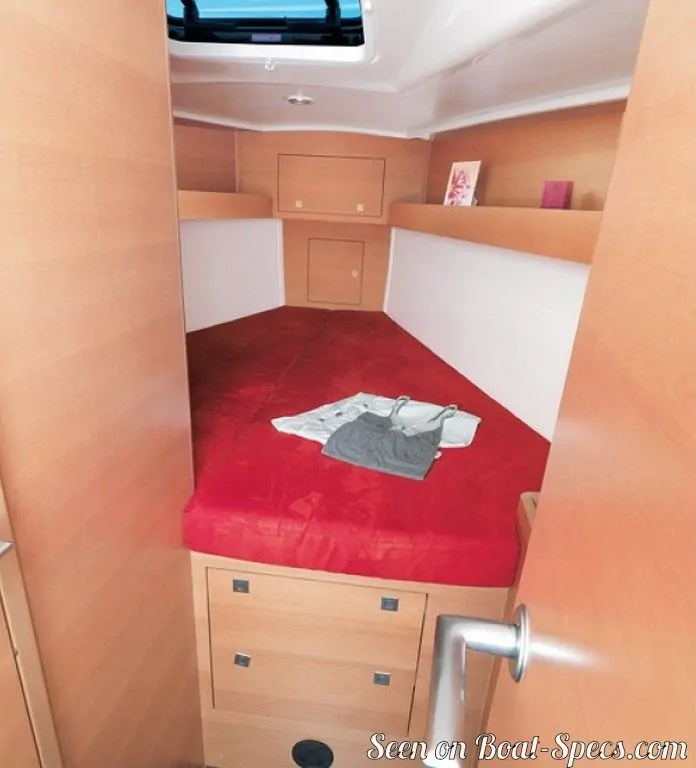

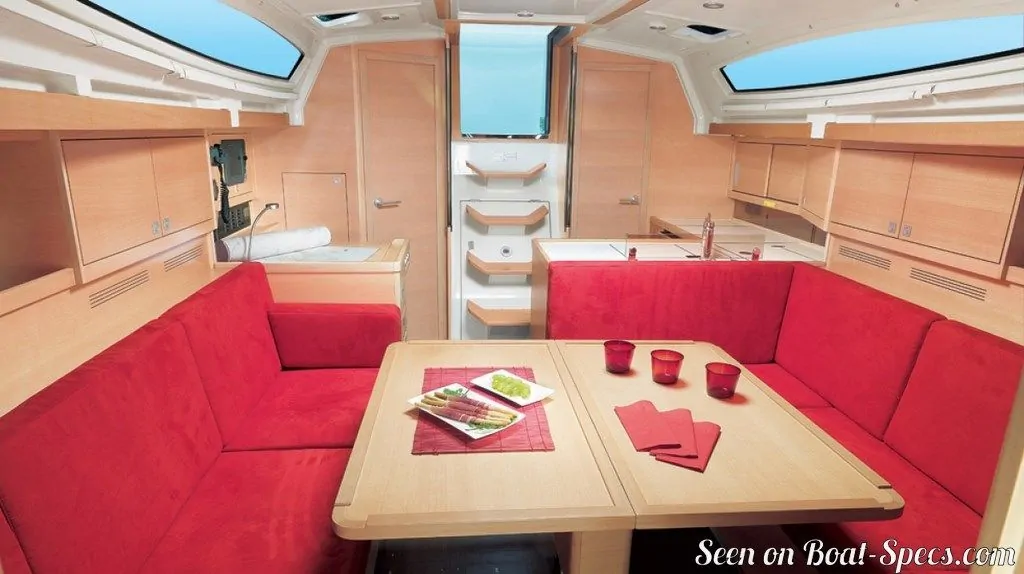

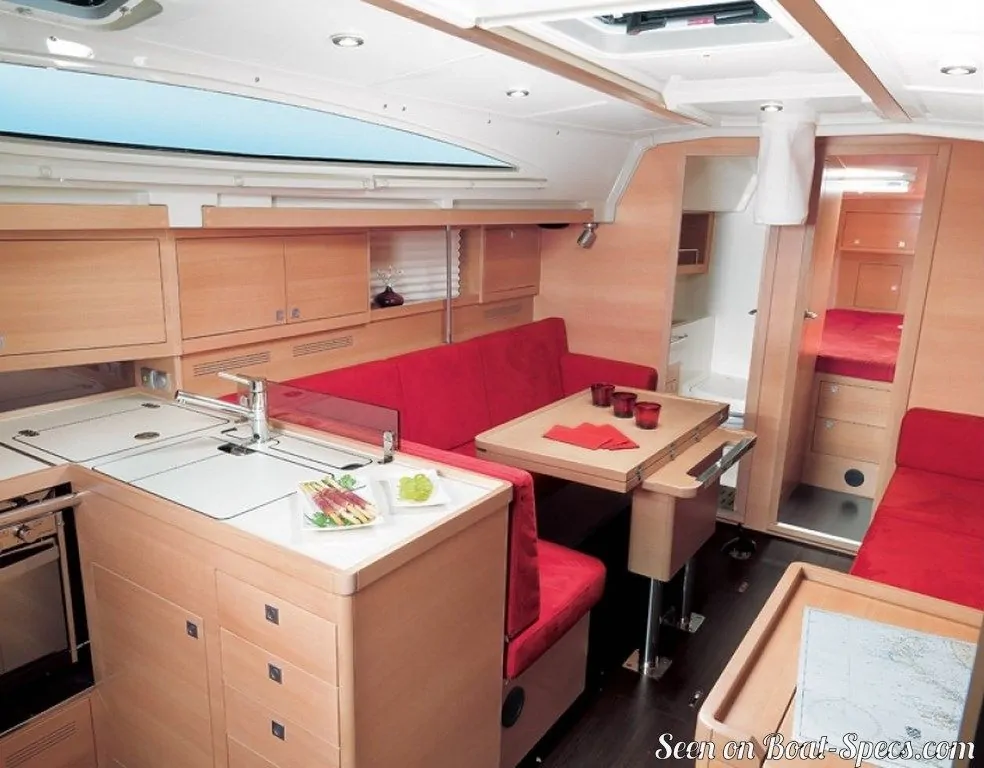

Elan Yachts Elan 380 interior and accommodations - - 9/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 interior and accommodations - - 10/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 interior and accommodations - - 11/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts

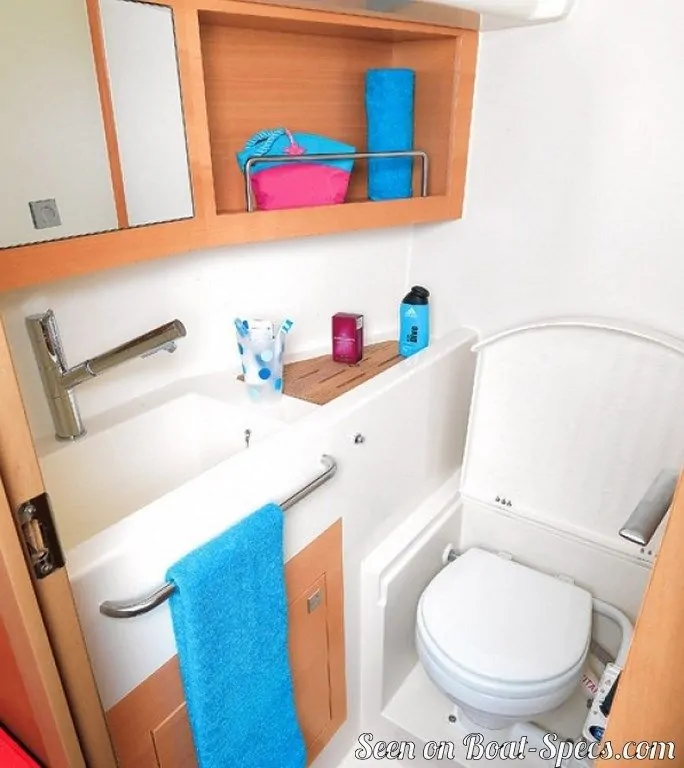

Elan Yachts Elan 380 interior and accommodations - - 12/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 interior and accommodations - - 13/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
Elan Yachts Elan 380 interior and accommodations - - 14/14
Picture extracted from the commercial documentation © Elan Yachts
Picture extracted from the commercial documentation © Elan Yachts
