The
Dufour 530 is a 50’11” (15.5m) cruising sailboat designed by
Felci Yachts (Italy). She is built since 2020 by
Dufour (France). The
Performance version offers a deeper keel, longer mast, and larger sail area.
The
Dufour 530 is as well listed, on Boat-Specs.com, in
Standard and
Shoal draft version (
see all the versions compared).
Dufour 530's main features
Model
Dufour 530
Version
Performance
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Country
France
Construction
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester (injection molding process)
First built hull
2020
Last built hull
Still in production
Appendages
Keel : T-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5mA
Standard public price ex. VAT (indicative only)
Dufour 530's main dimensions
Overall length
53’ 7”16.35 m
Hull length
50’ 11”15.5 m
Waterline length
47’ 4”14.43 m
Beam (width)
16’ 5”4.99 m
Draft
9’ 2”2.8 m
Light displacement (MLC)
35699 lb16193 kg
Ballast weight
10141 lb4600 kg
Ballast type
Cast iron fin with lead bulb

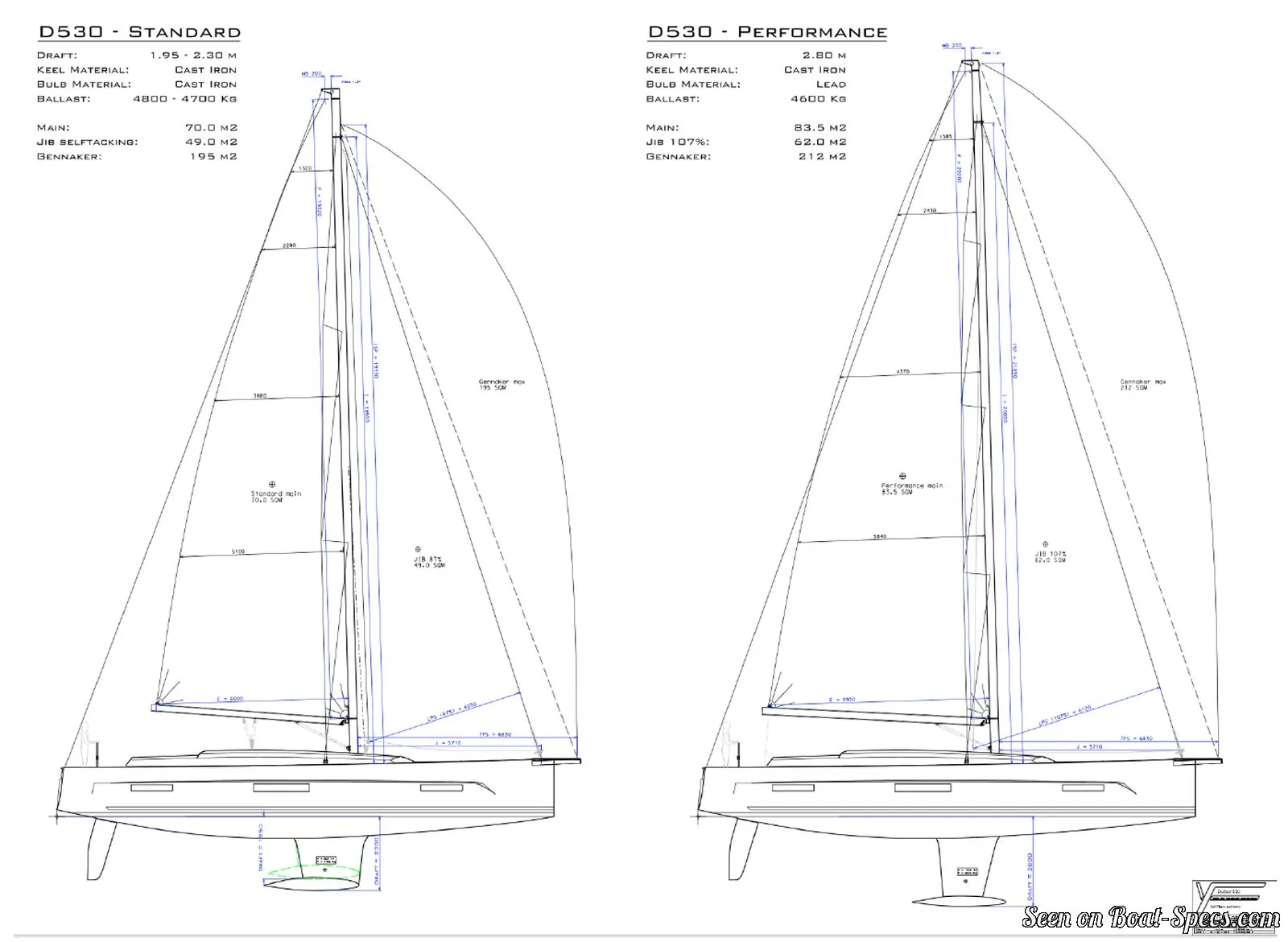

Dufour 530's rig and sails
Upwind sail area
1566 ft²145.5 m²
Downwind sail area
3181 ft²295.5 m²
Mainsail area
899 ft²83.5 m²
Genoa area
667 ft²62 m²
Asymmetric spinnaker area
2282 ft²212 m²
I
iFore triangle height (from mast foot to fore stay top attachment)65’ 7”20 m
J
iFore triangle base (from mast foot to bottom of forestay)18’ 8”5.71 m
P
iMainsail hoist measurement (from tack to head)66’ 4”20.2 m
E
iMainsail foot measurement (from tack to clew)19’ 5”5.9 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
3
Spreaders angle
Swept-back
Spars construction
Aluminum spars (carbon fiber spars as an option)
Standing rigging
1x19 strand wire discontinuous
Dufour 530's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.245 ft²/T22.73 m²/T
Downwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.497 ft²/T46.17 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.153
Ballast ratio
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.28 %
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.9.22 knots
Dufour 530's auxiliary engine
Engine(s)
1 inboard engine
Engine(s) power (min./max.)
75 HP / 110 HP
Fuel type
Diesel
Fuel tank capacity
116.2 gal440 liters

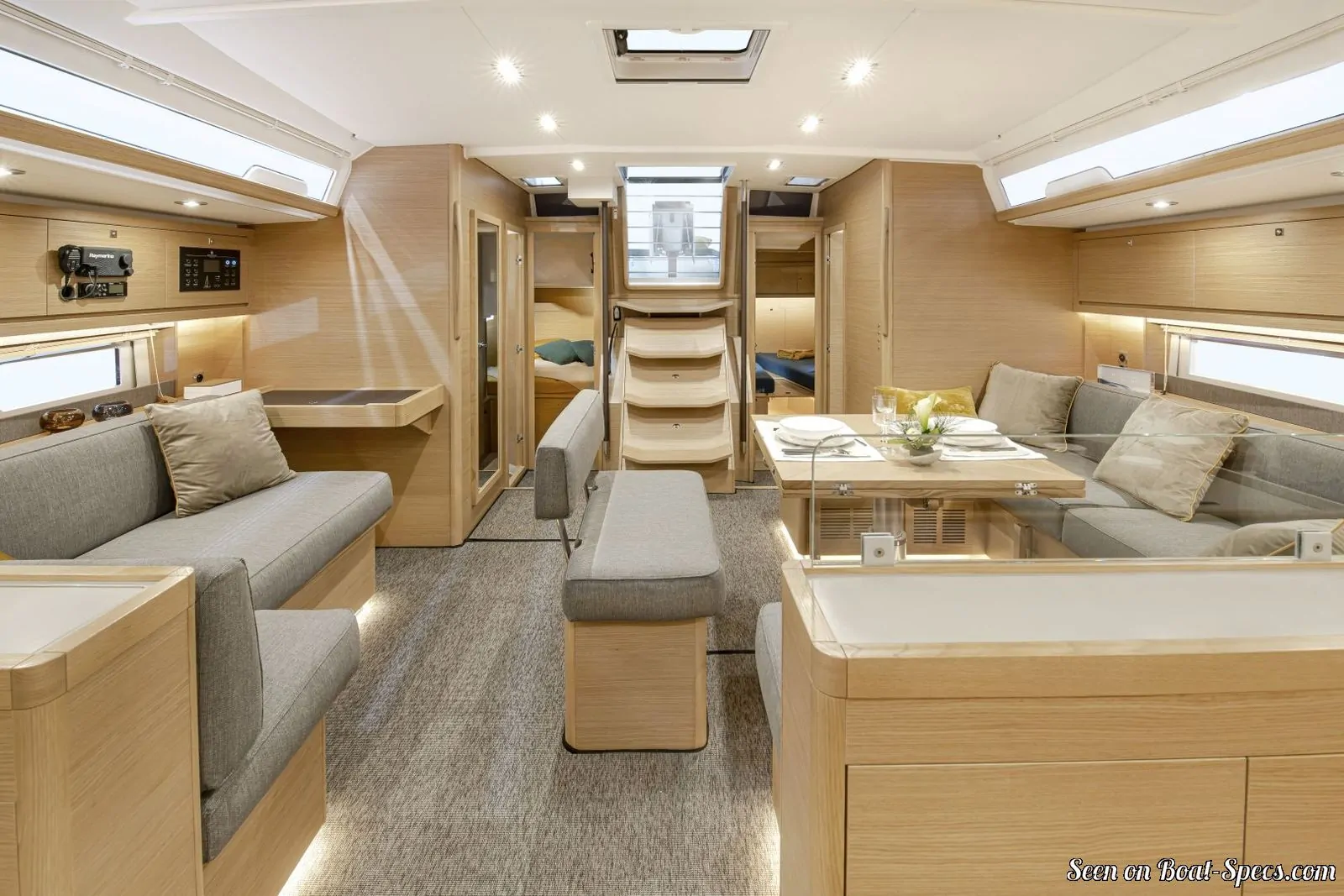

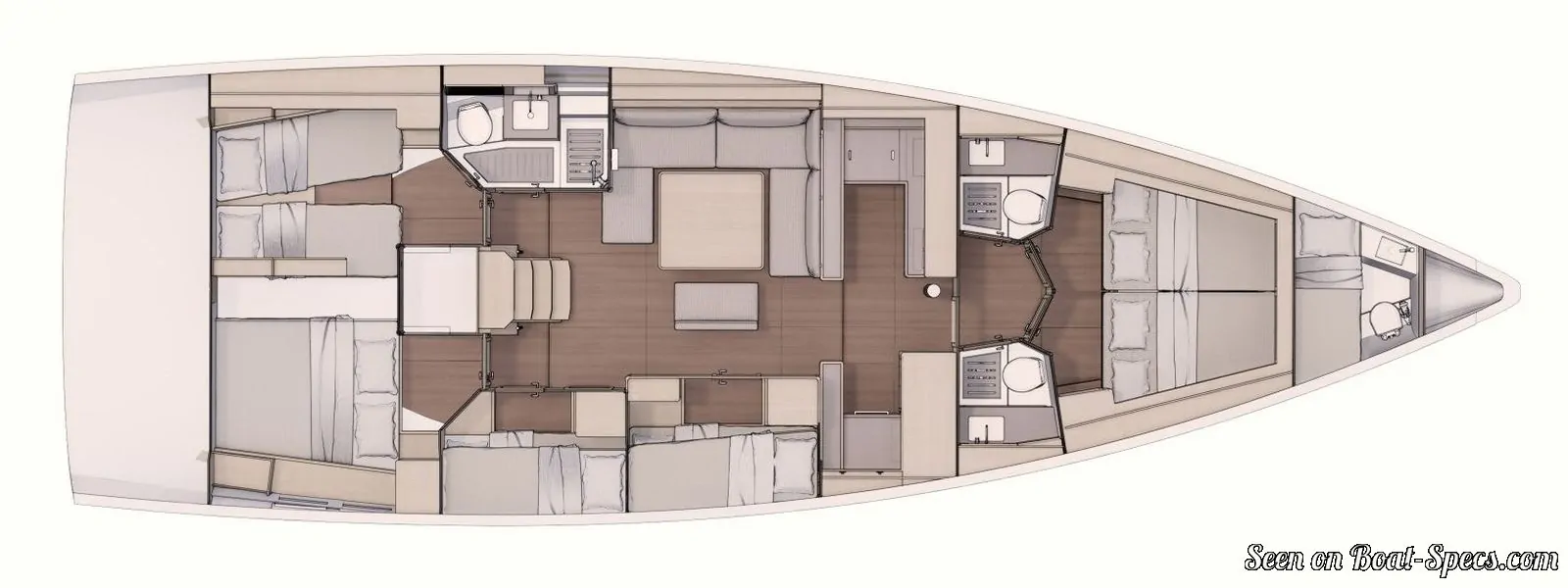

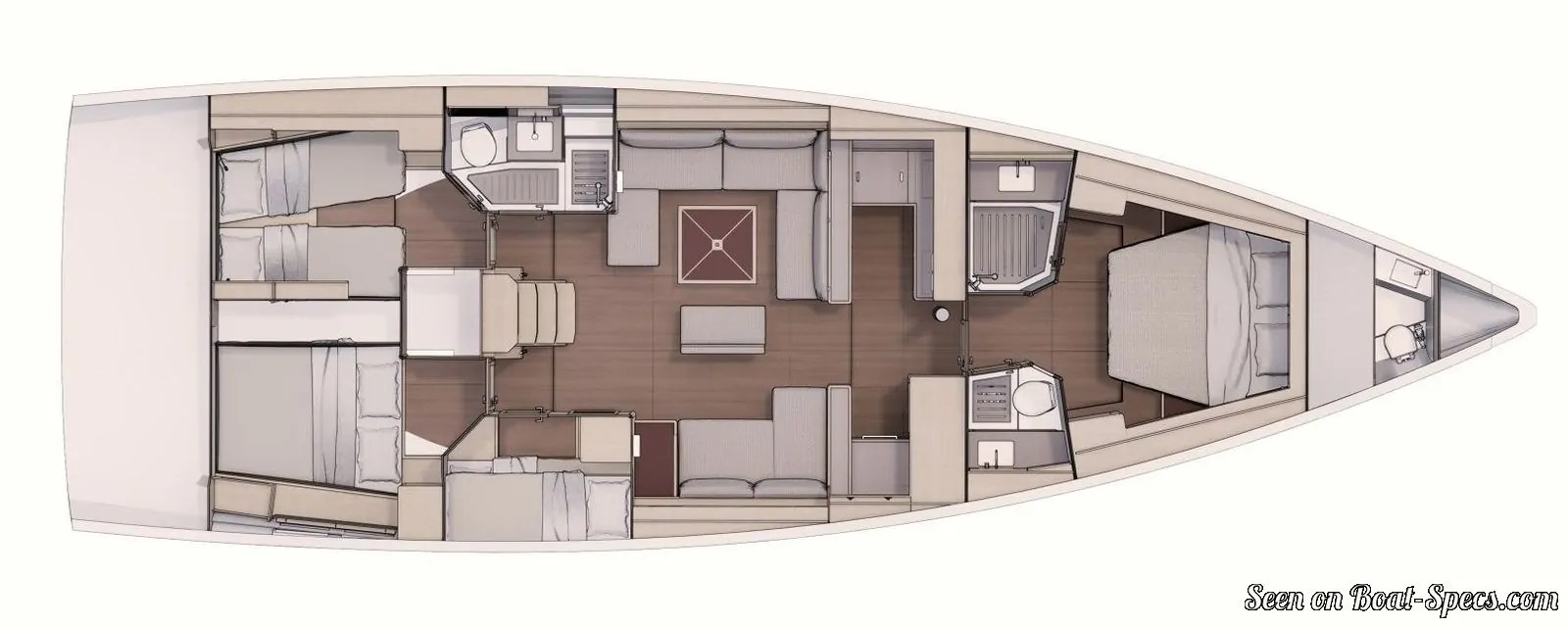

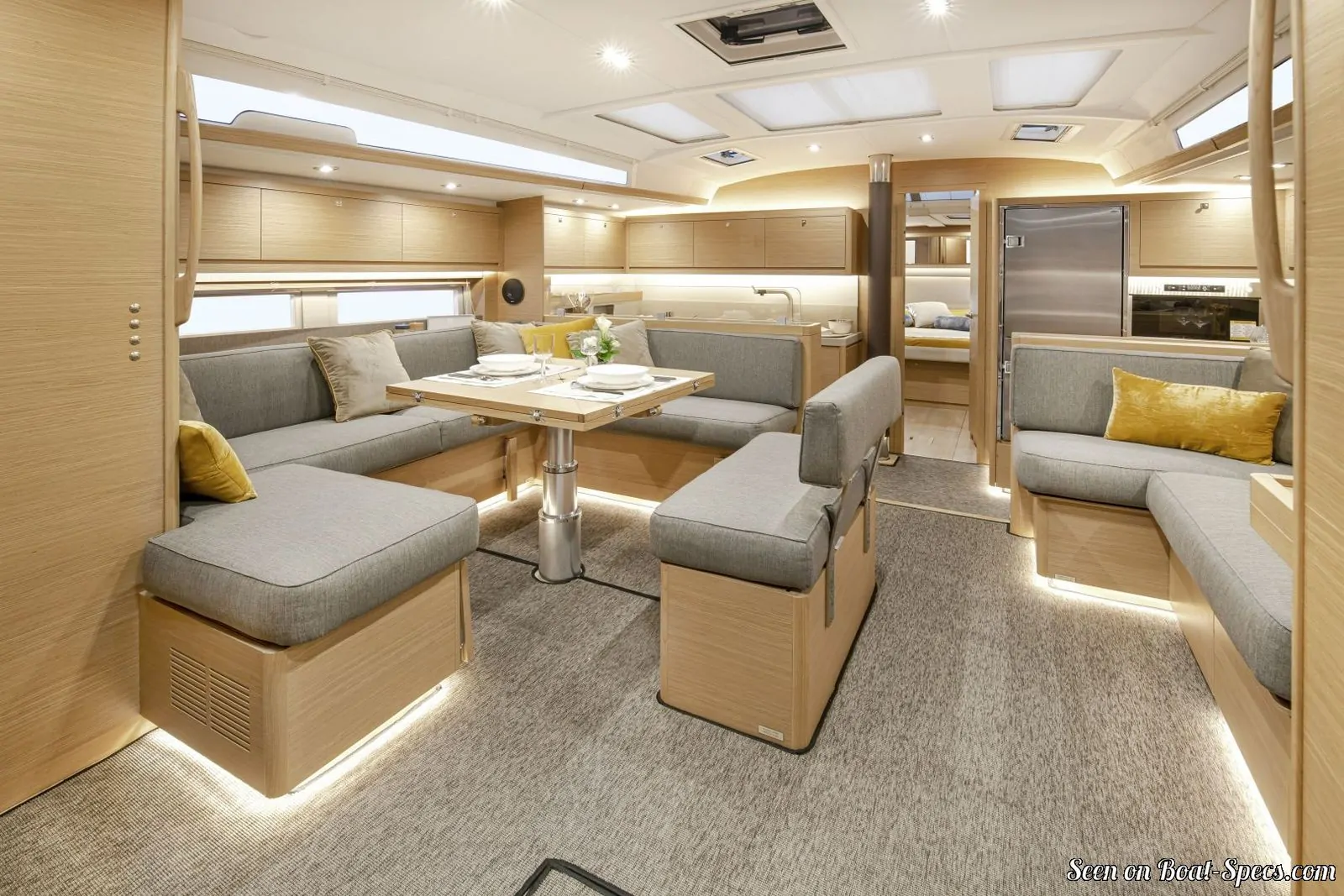

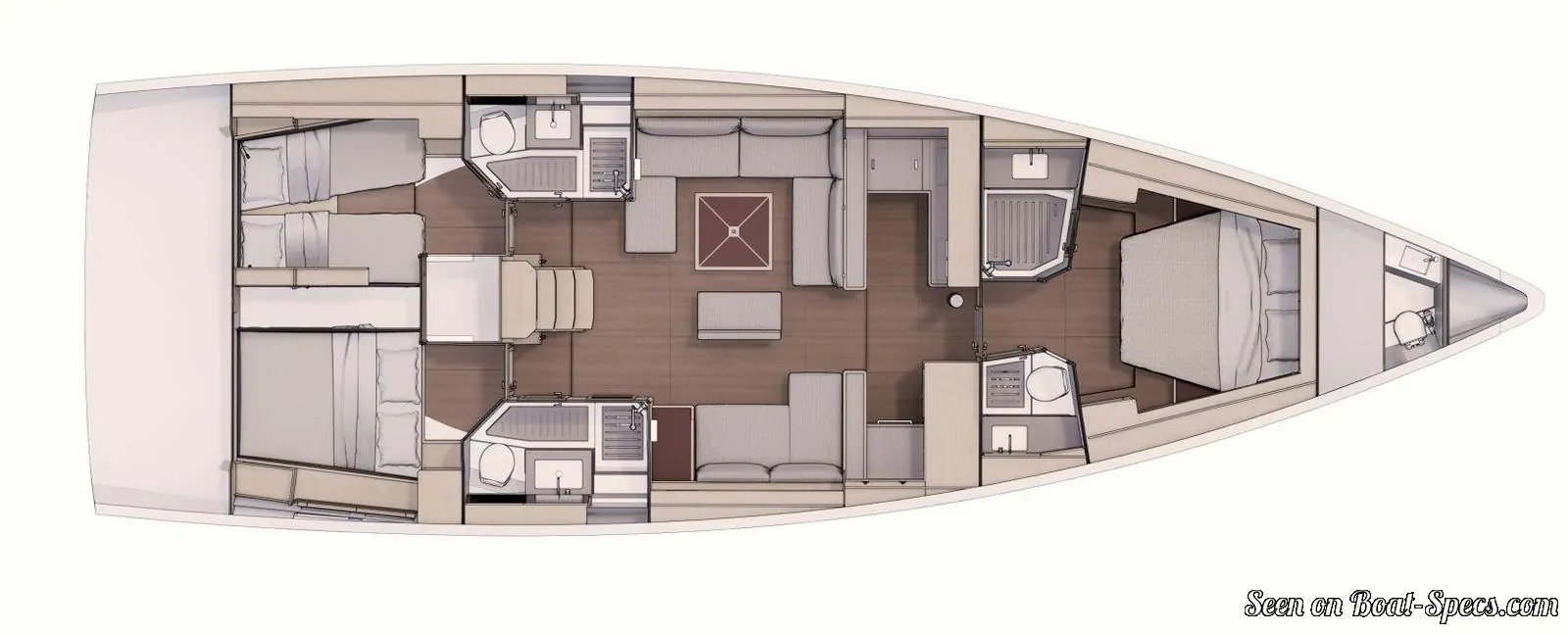

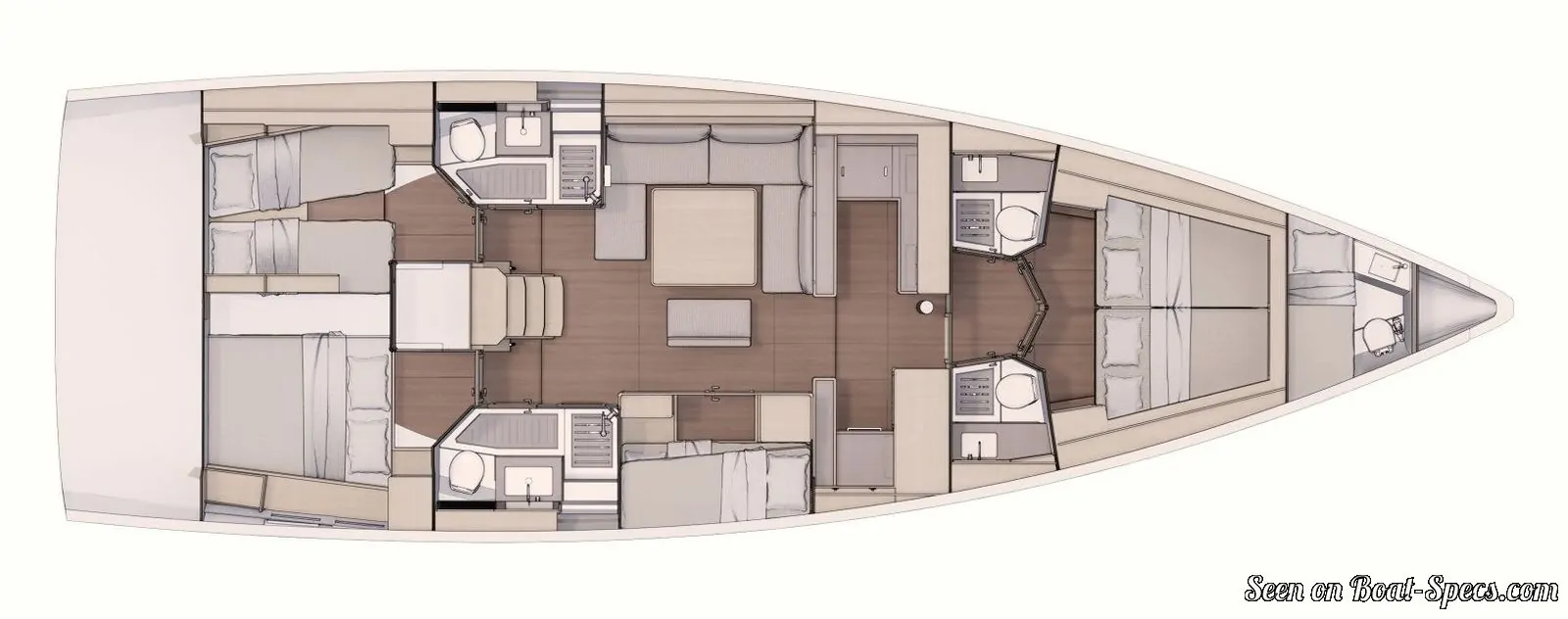

Dufour 530's accommodations and layout
Cockpit
Closing aft cockpit with opening system
Cabin(s) (min./max.)
3 / 7
Berth(s) (min./max.)
6 / 15
Head(s) (min./max.)
3 / 4
Freshwater tank capacity
195.5 gal740 liters
